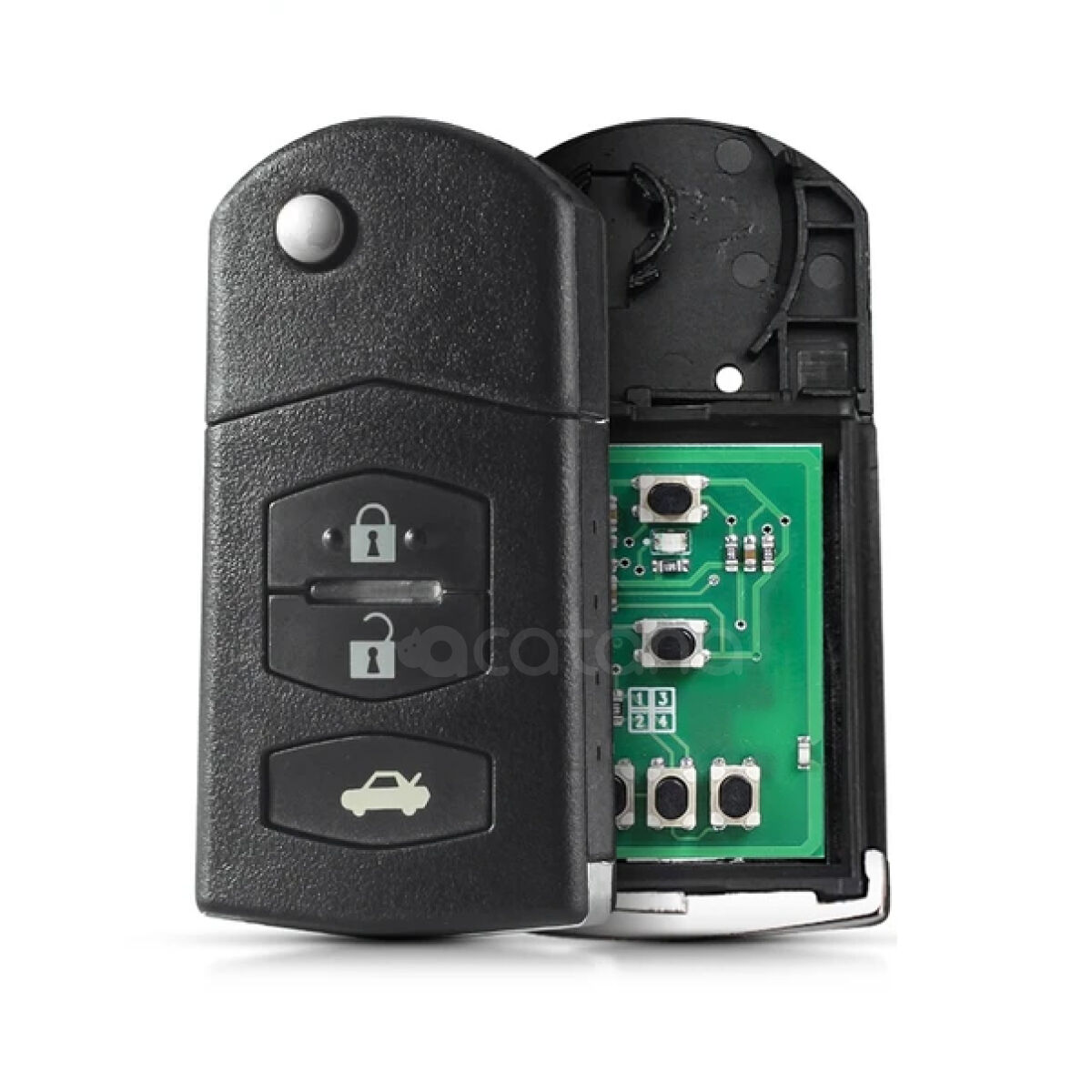

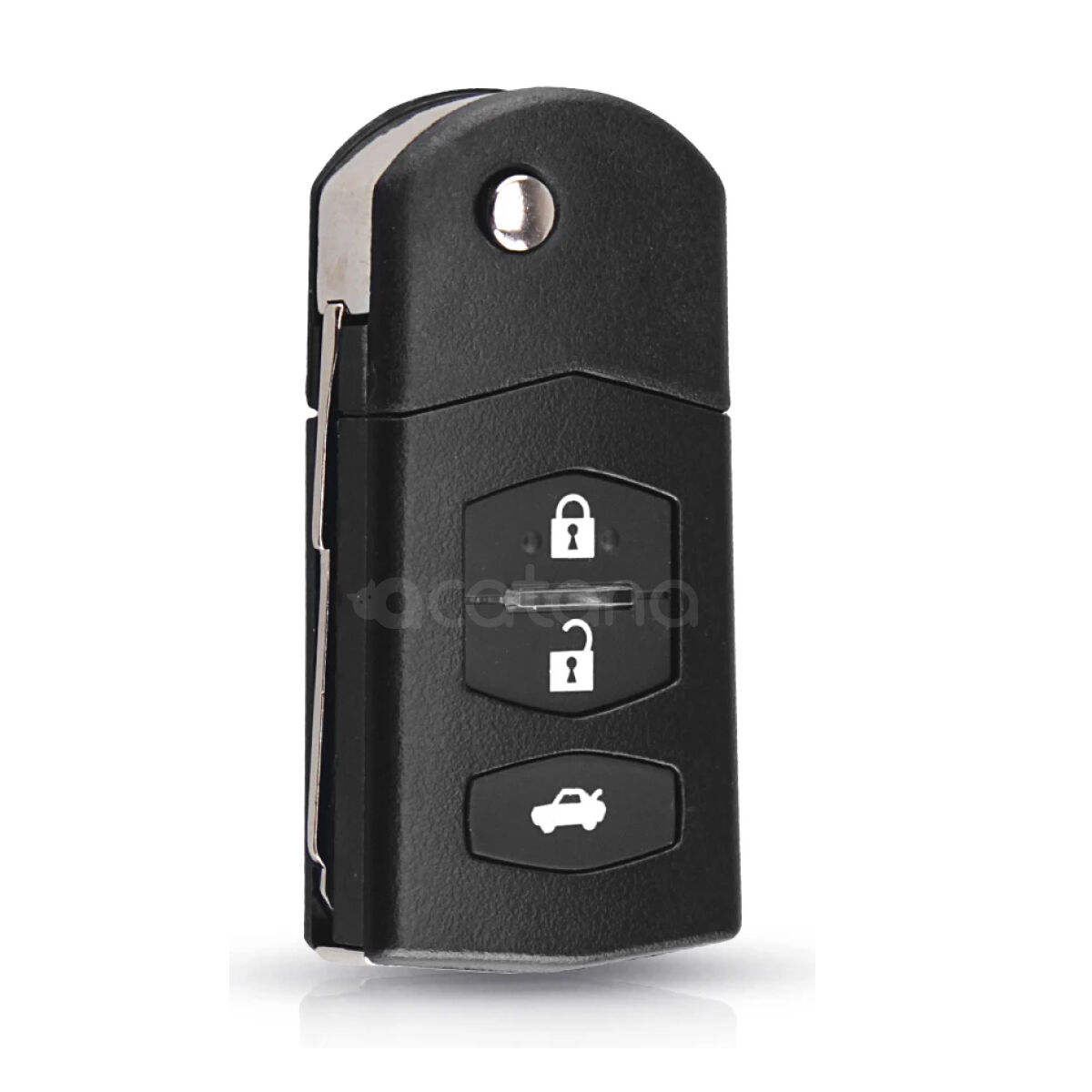

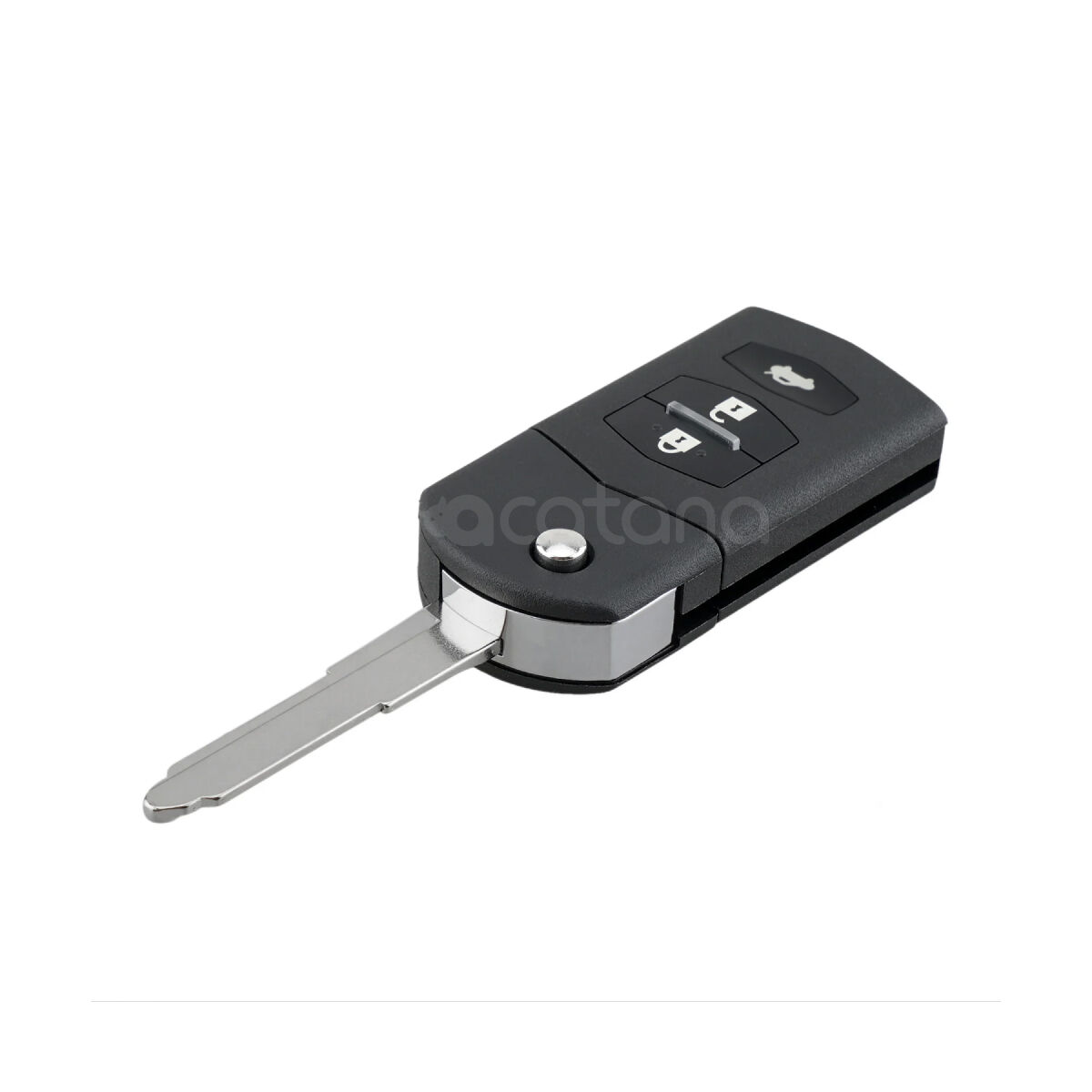

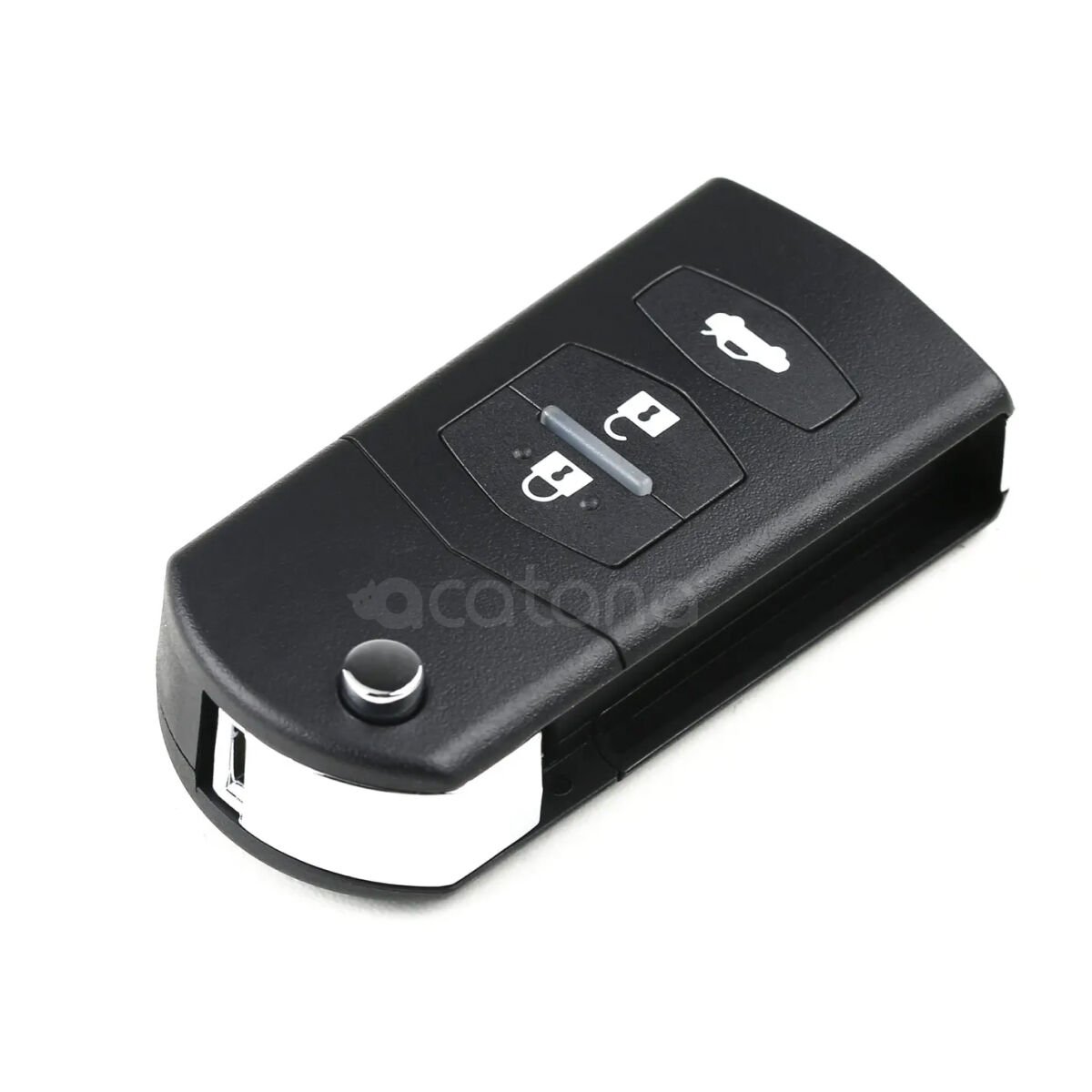

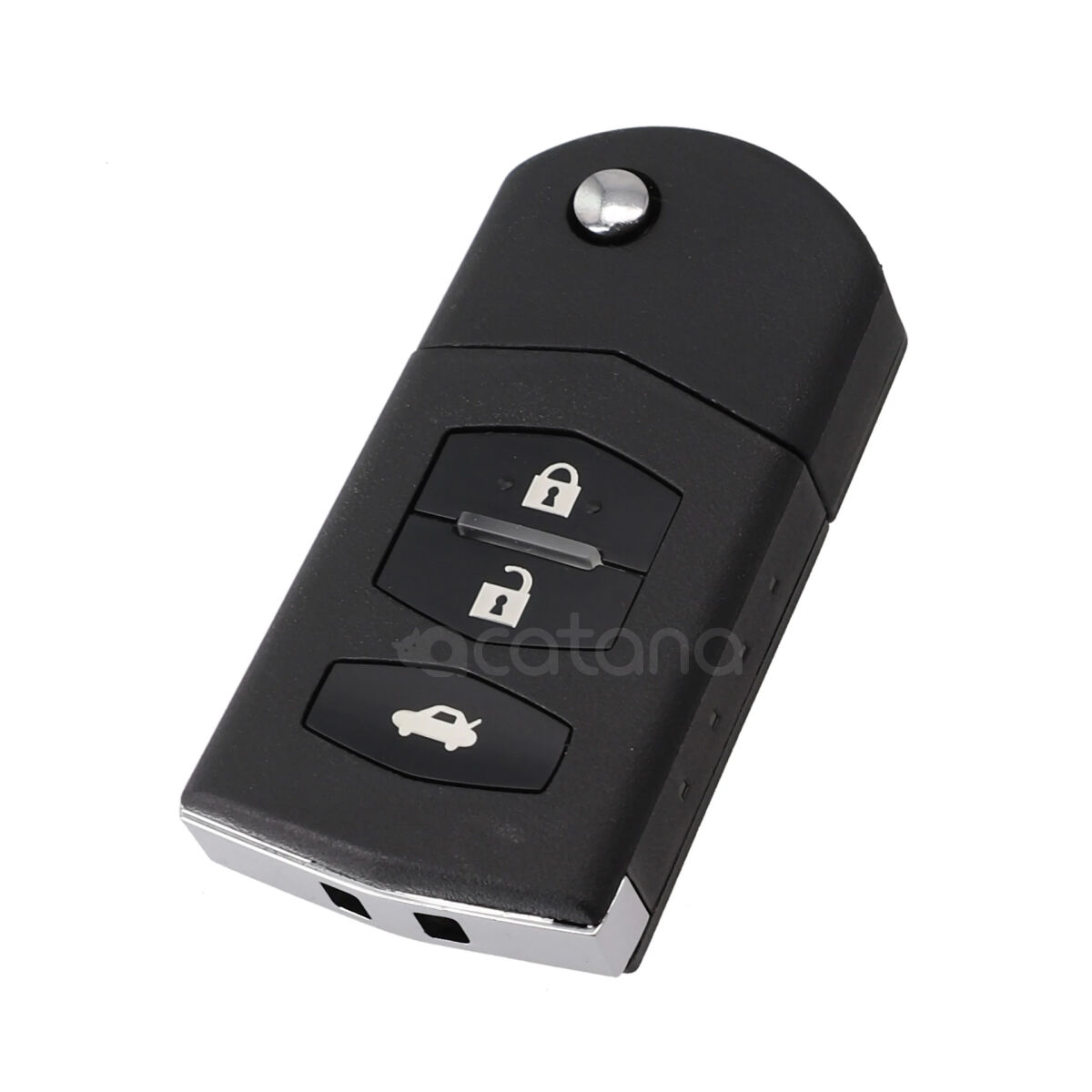

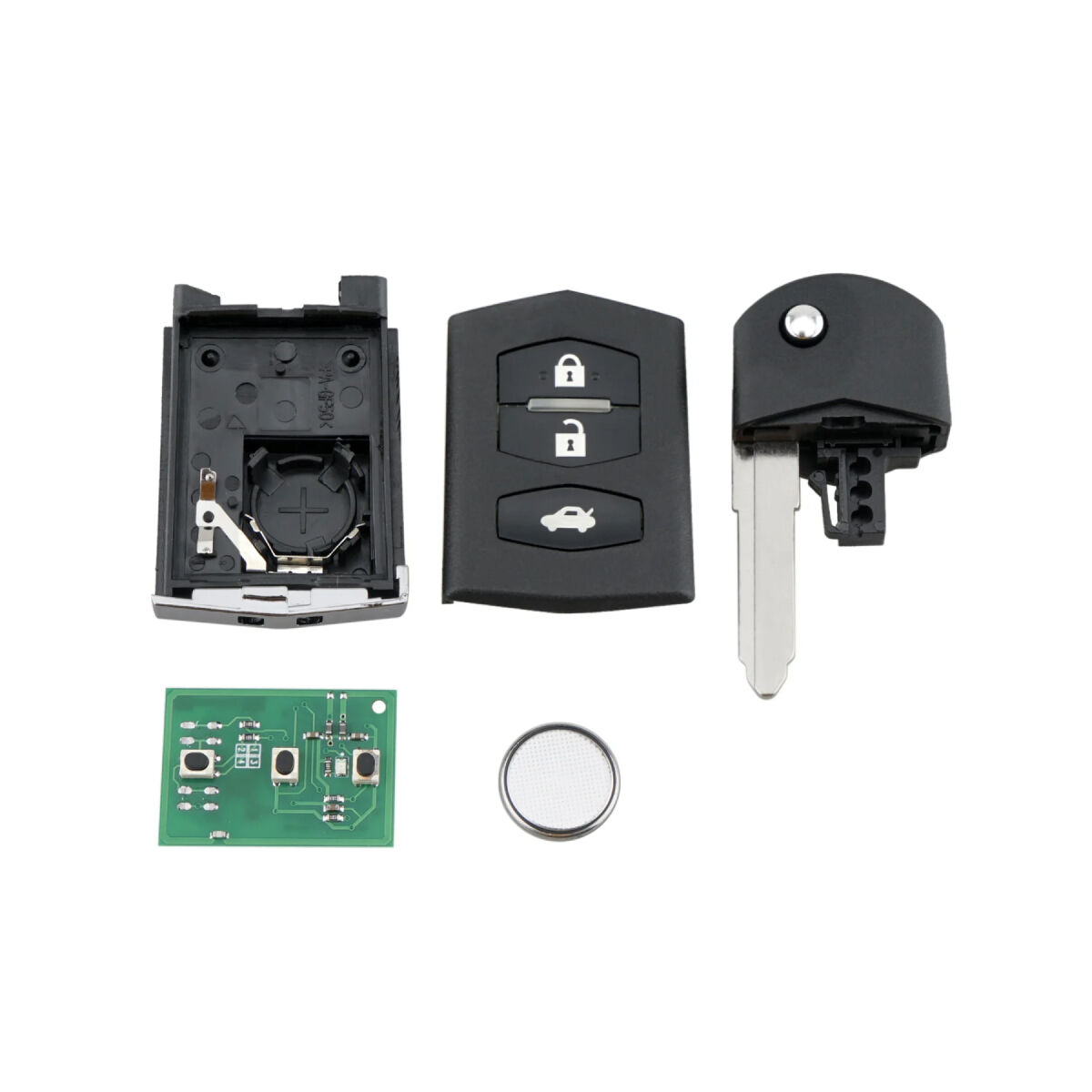

This is a complete remote car key for Mazda. A great replacement for your old, worn-out or lost car key can also be a spare key. This replacement key is assembled and ready for programming. It includes a 3-button key shell case, uncut key blade, remote transponder and 433MHz chip, battery.



Compatibility:

• Fits for Mazda 2 DE 2007 - 2015
• Fits for Mazda 3 2009 - 2015
• Fits for Mazda 6 GH 2009 - 2012
• Fits for Mazda CX-7 ER 2006 - 2014
• Fits for Mazda CX-9 TB 2007 - 2016

NOTE: not suitable for Mazda 6 siemens VDO system.



Features:

• 100% COMPATIBILITY: This is a complete remote key for Mazda.

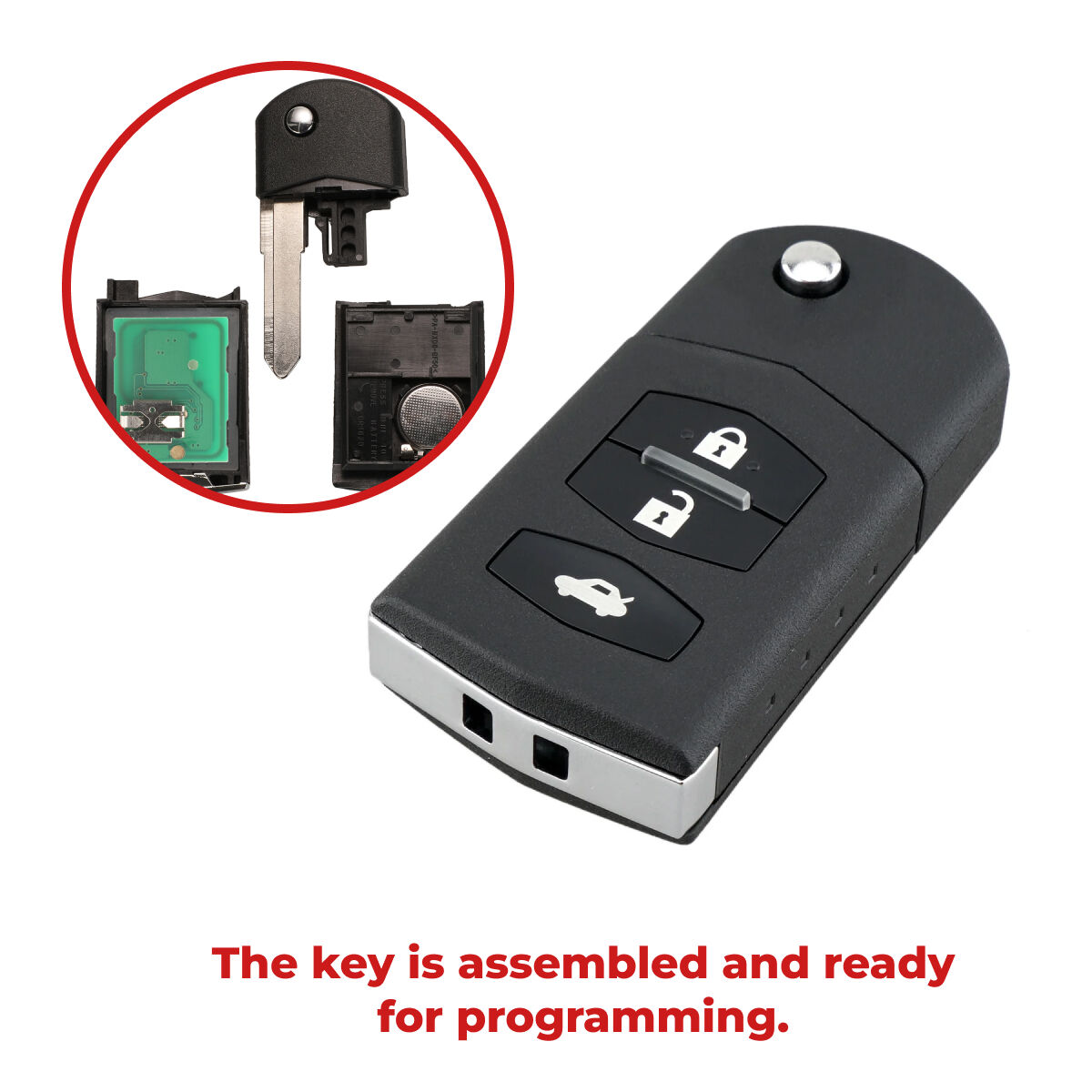

• READY FOR PROGRAMMING: This replacement key is assembled and ready for programming
• GOOD QUALITY REPLACEMENT: Complete Remote Car Key replacement for a key with broken buttons, worn or lost key case
• DURABLE KEY SHELL: Made of high-quality materials, highly durable.
• TRANSPONDER CHIP 433 Mhz includes remote control unlock and lock button

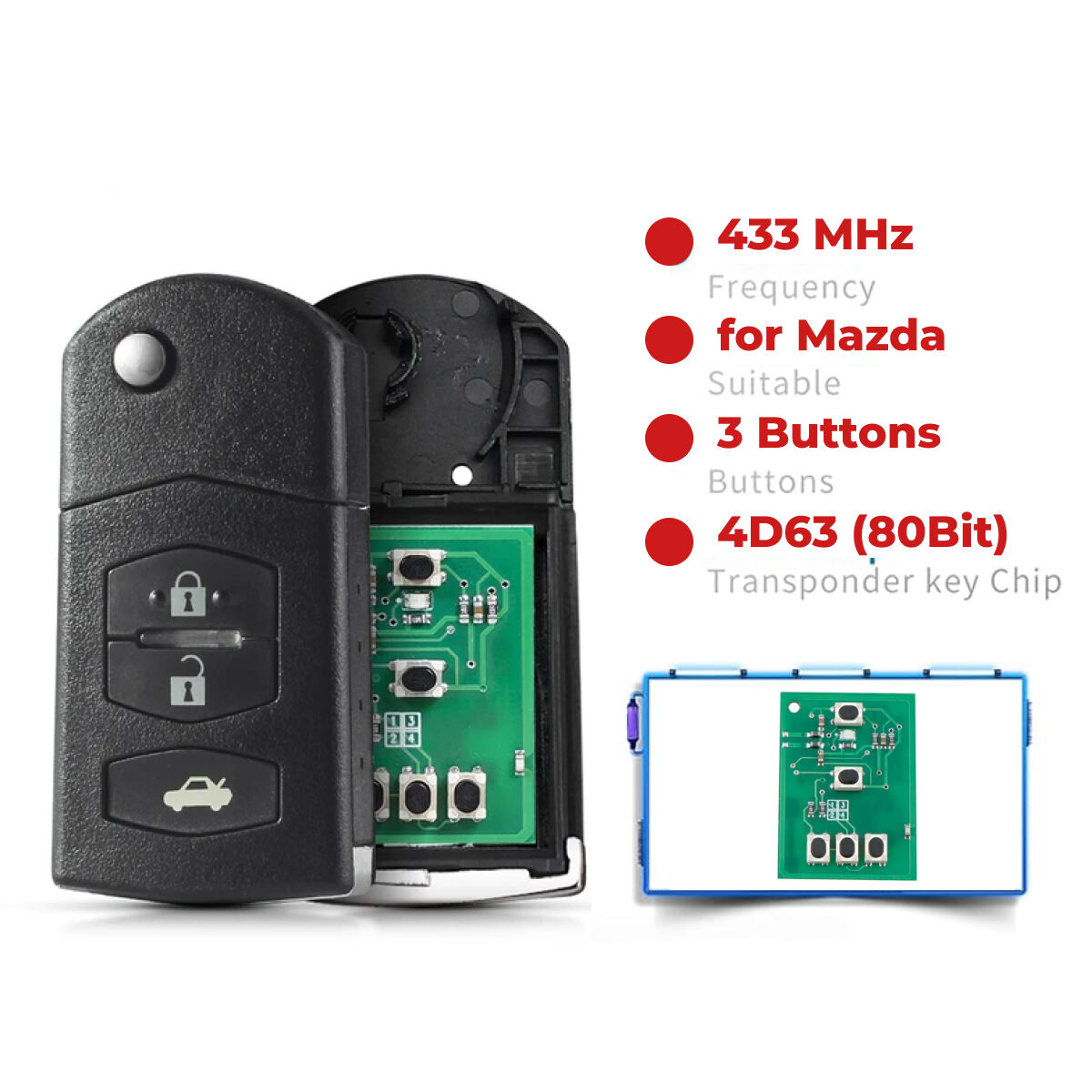

Specification:

• FCC ID: SKE126-01, 2006DJ2777
• Frequency: 433Mhz
• Transponder Chip: 4D63 (80Bit)
• Material: Plastic + Metal
• Colour: Black
• Button: 3 Buttons
• Blade: MAZ24R Uncut (need to be cut in Locksmith)
• Battery included
• Fits Mazda
• Programming: by yourself



NOTES:

• You will need to have at least one original working either black key or another remote key. It will not work if you have service grey key

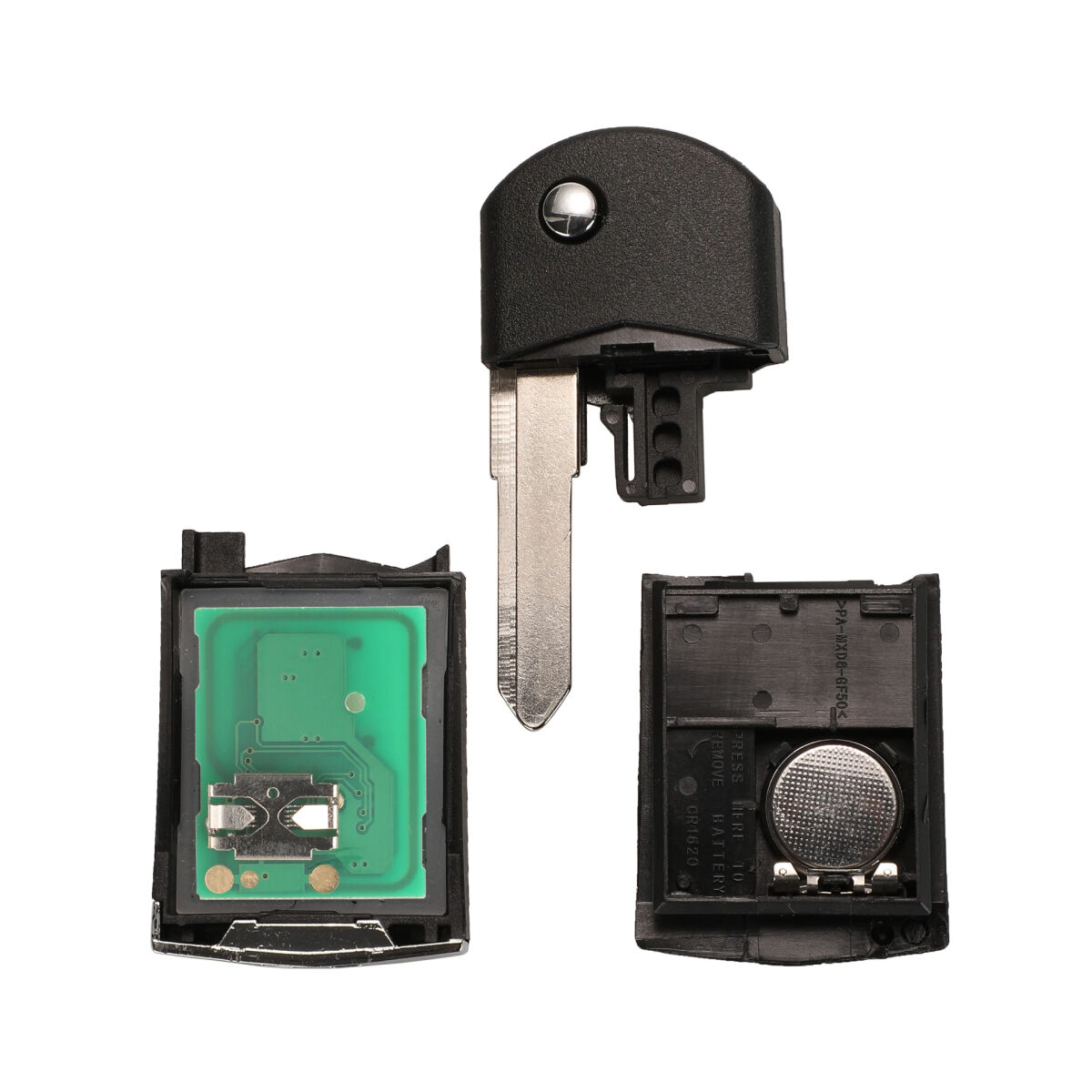

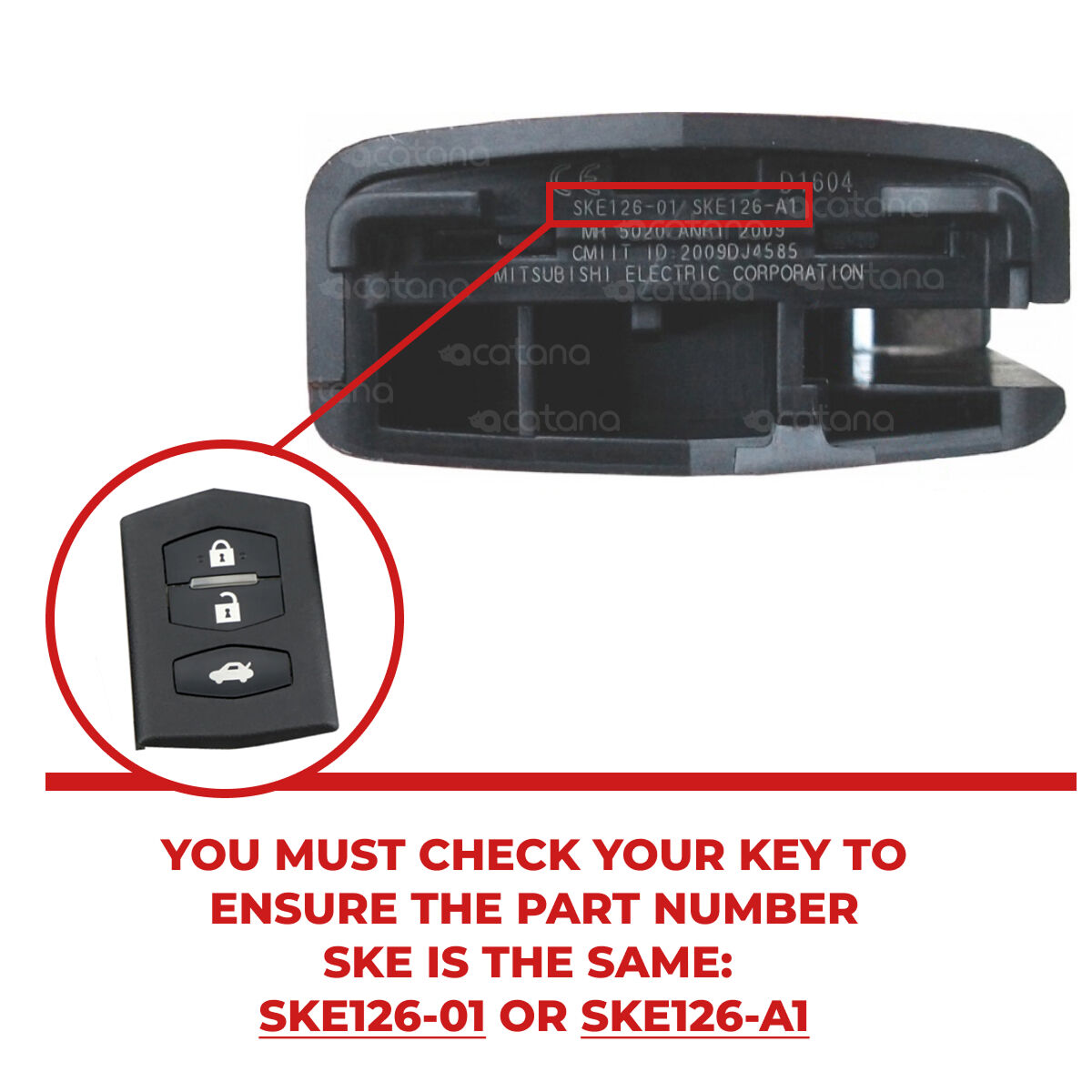

• You must check your key to ensure the part number is the same SKE126-01, 2006DJ2777 (to check, disassemble your original key down, do it this way if you are replacing the battery and check the number stamped on the remote.)
• The key will need to be cut and programmed by either a Locksmith or programmed yourself by following the instructions listed



Before a new key is programmed:  the new car key will need to be cut by a Locksmith (also you can program by either a Locksmith or yourself by following the instructions listed.) Car Key Programming instructions are presented below. Programming INSTRUCTIONS include two stages: 1) “How to program the remote control” and 2) How to program the car key to start (Programming the transponder chip)”



INSTRUCTIONS:

1) How to program the remote control - Do it yourself:

• 1. Open Driver side door
• 2. Put the Original key in and out of ignition 2 times
• 3. Close and open driver door 2 times
• 4. Put Original Key in and out of ignition once
• 5. Shut and open door twice
• 6. Close door
• 7. Insert key Turn ignition on
• 8. Turn ignition off and remove key
• 9. Door locks will cycle
• 10. Press lock and unlock together for 1 second then lock button

(To delete remotes turn the key on and off 5 times, door locks will cycle 5 times. Turn the key on then off. Open shut door)

• 11. Locks will cycle put key in ignition turn to on then off
• 12. Remove key from ignition, close door and test remote



2) How to program your car key to start  (Programming the transponder chip) - do it yourself:

• 1. Put Original master key in and out of ignition 5 times. Finish with key in ignition
• 2. Open and shut door 6 times
• 3. Remove original, insert new key
• 4. Leave for 60 seconds (or till Security light goes out on dashboard)
• 5. After 60 seconds security light stops flashing then you can start car.
• 6. Take key out
• 7. Open and shut door



Package Includes:

• 1 X Complete Remote Car Key, 1х Battery
