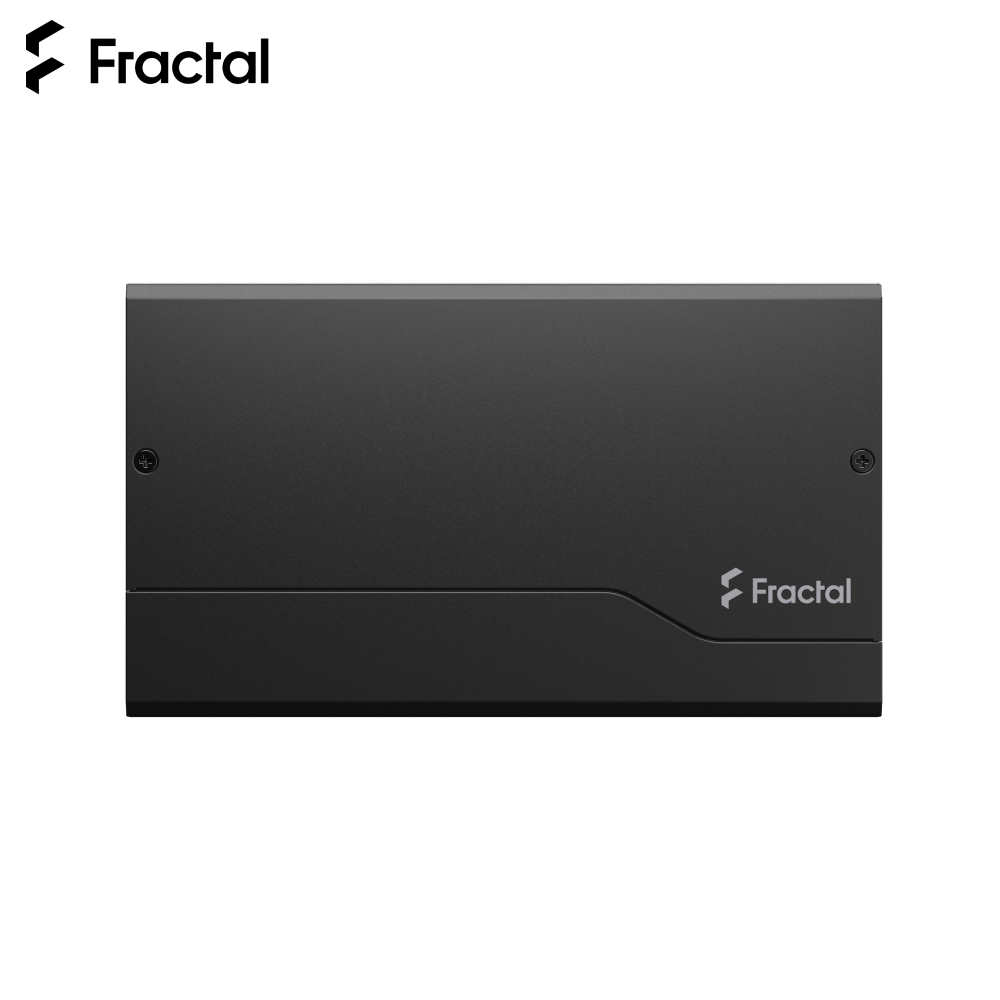

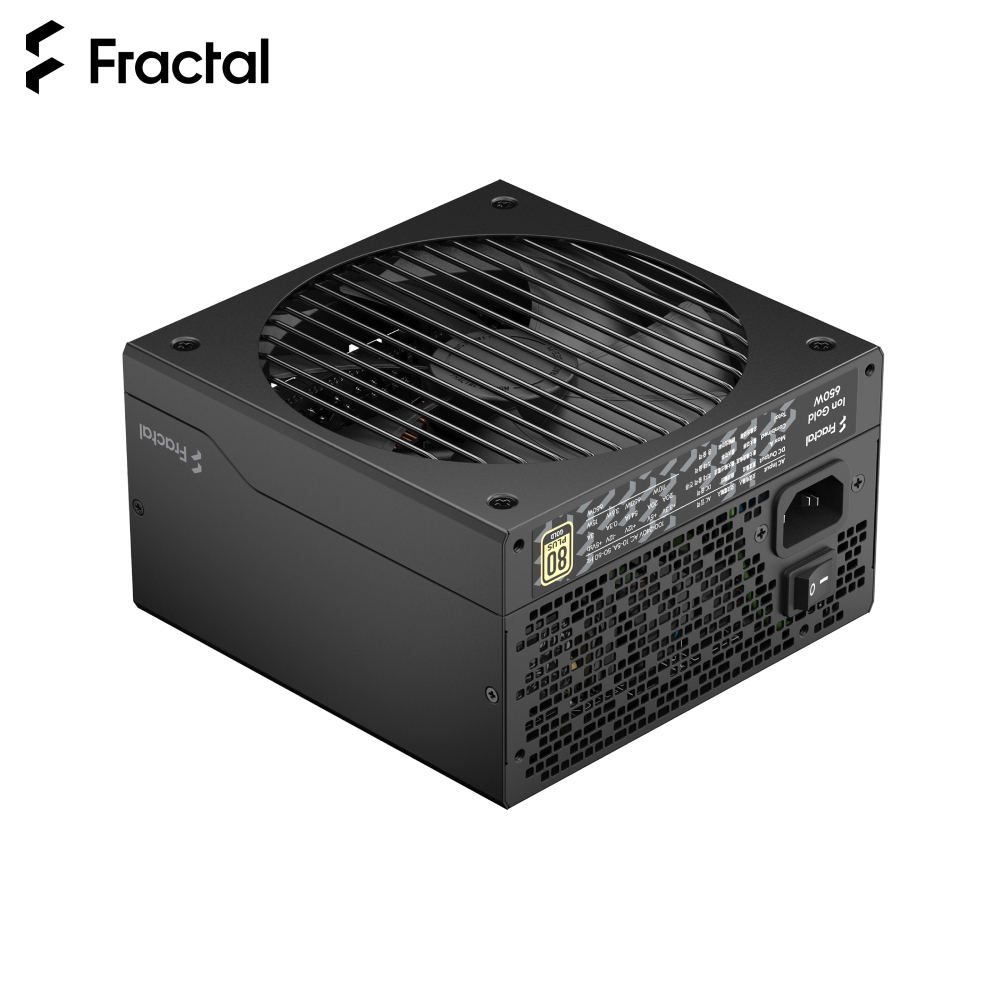

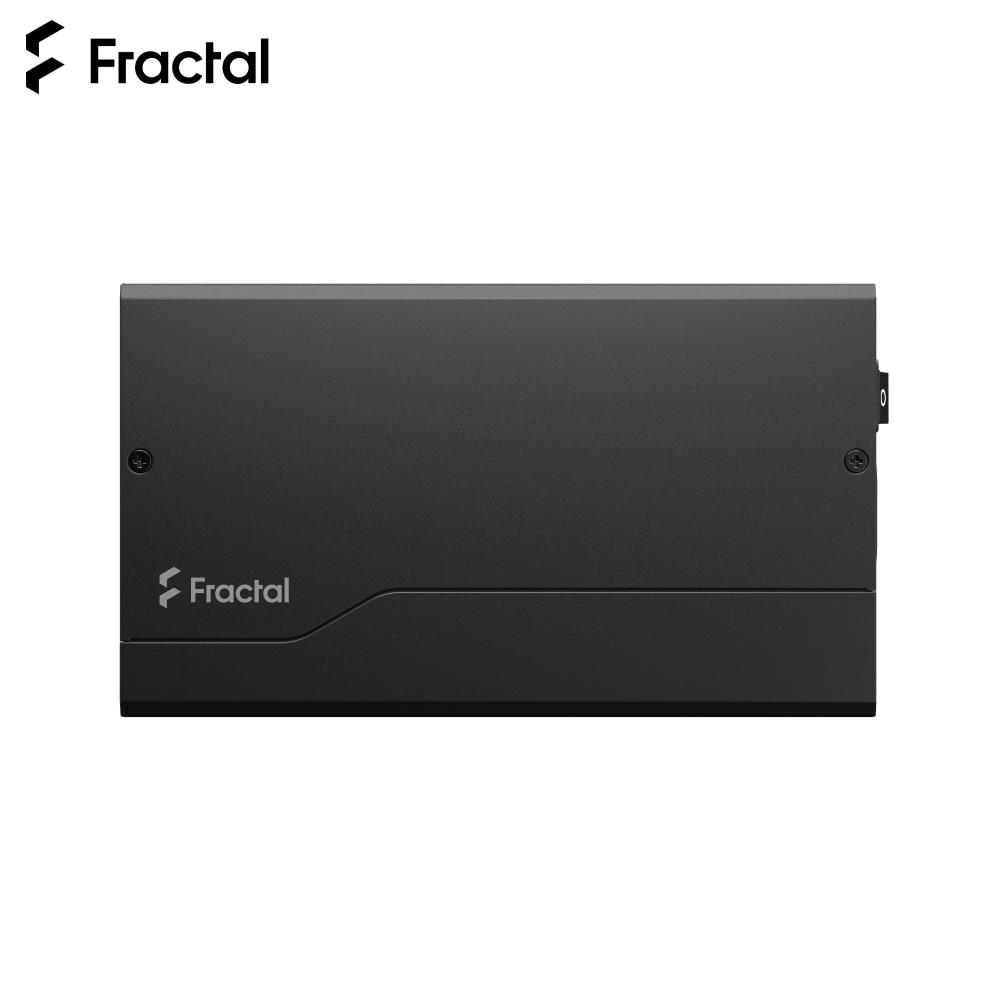

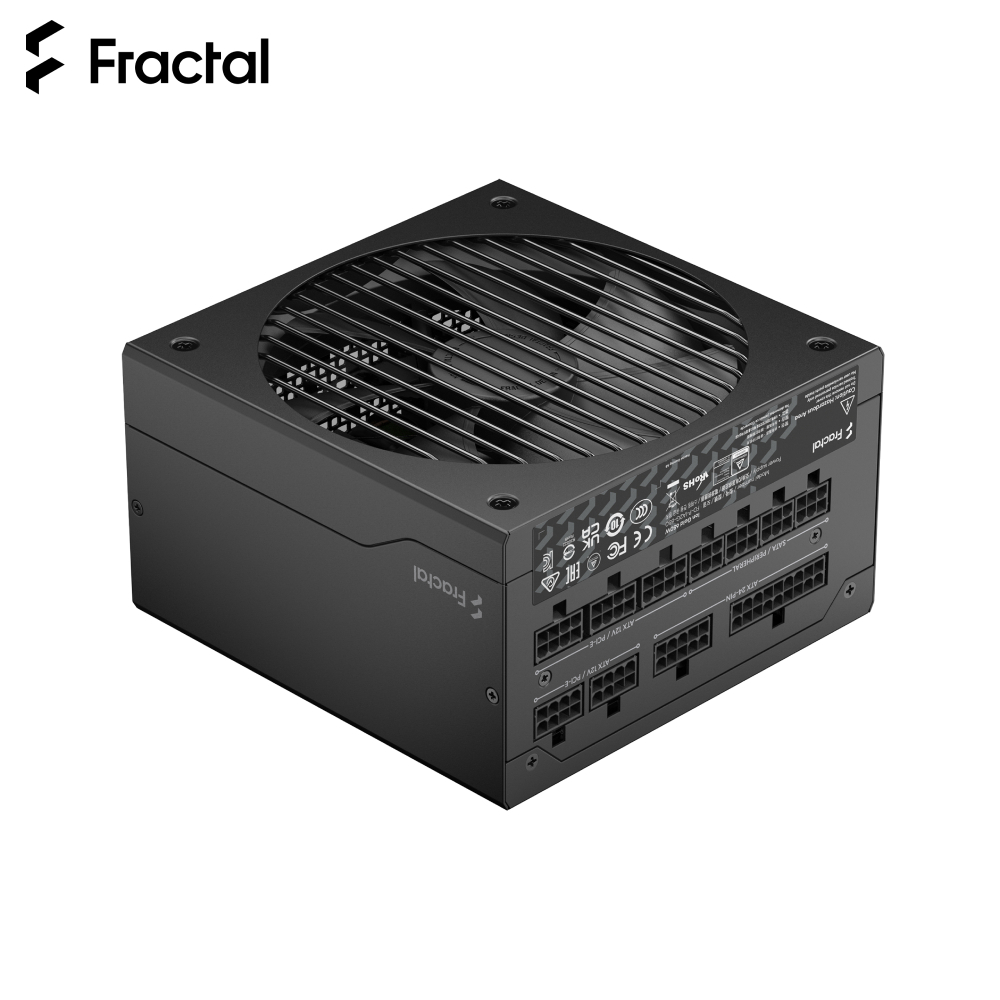

650W Computer Power Supply Fractal Design Ion+ 650 Gold 80+ Black PSU ATX FD-P-IA2G-650

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.

  • 80PLUS® Gold Efficiency rating for reduced noise and energy consumption
  • Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
  • Fully modular design for reduced clutter and maximum ease of installation



Key Features

  • 80PLUS® Gold Efficiency rating for reduced noise and energy consumption
  • Supports ATX 2.52 with improved start-up time and transient load response
  • DC-DC design for more precise electrical output and full compatibility with modern components
  • Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
  • Fully modular design for reduced clutter and maximum ease of installation
  • Equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed
  • Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases




The power of balance

Great performance. Fully modular. Quiet operation.



80 PLUS® Gold certified

  • High-efficiency performance wastes less energy and reduces heat generation
  • More precise electrical output and full compatibility with modern components through DC-DC design
  • Quality components consistently deliver tight voltage regulation with low ripple and noise



Premium capacitor(s)

Premium Japanese 105°C capacitor(s) on the primary side provide superior reliability and durability



Fully modular design

  • Reduced clutter results in a clean and simple installation
  • Compact 150 mm depth allows for installation in compact cases
  • Provides additional cable management room in larger cases

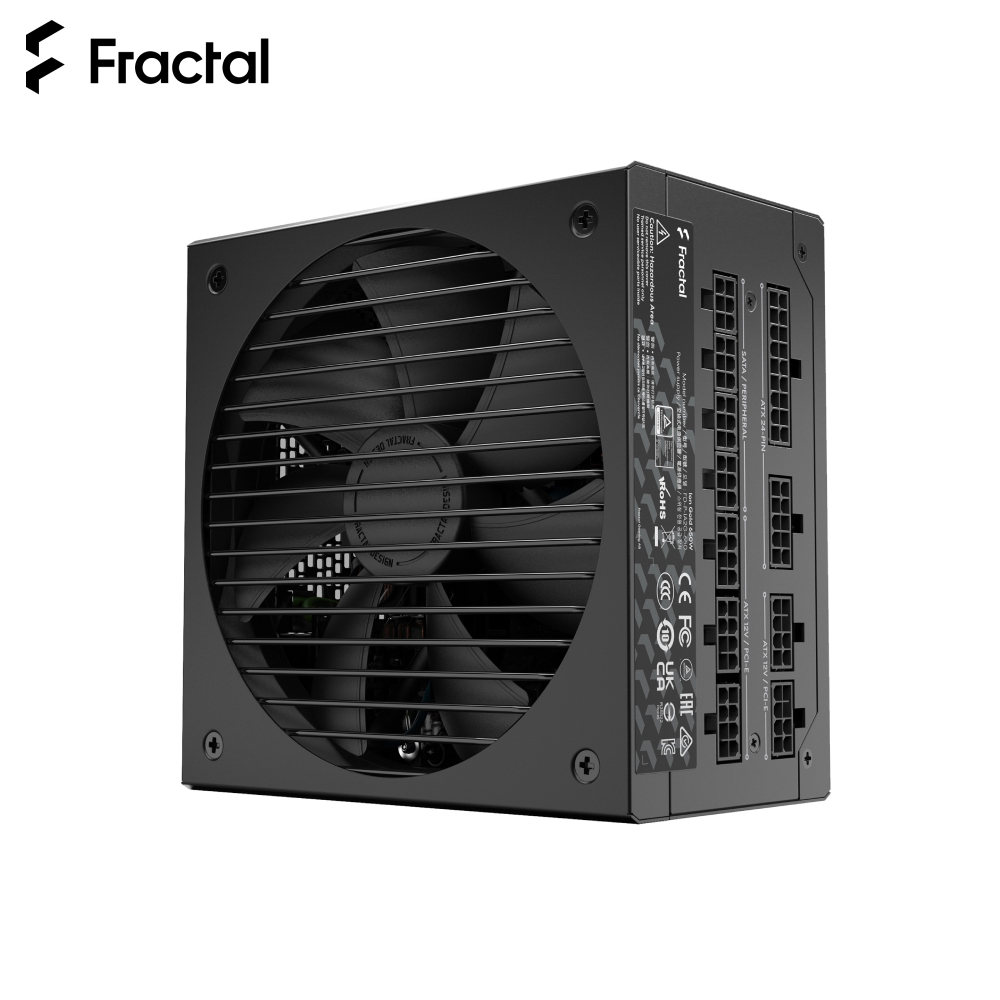

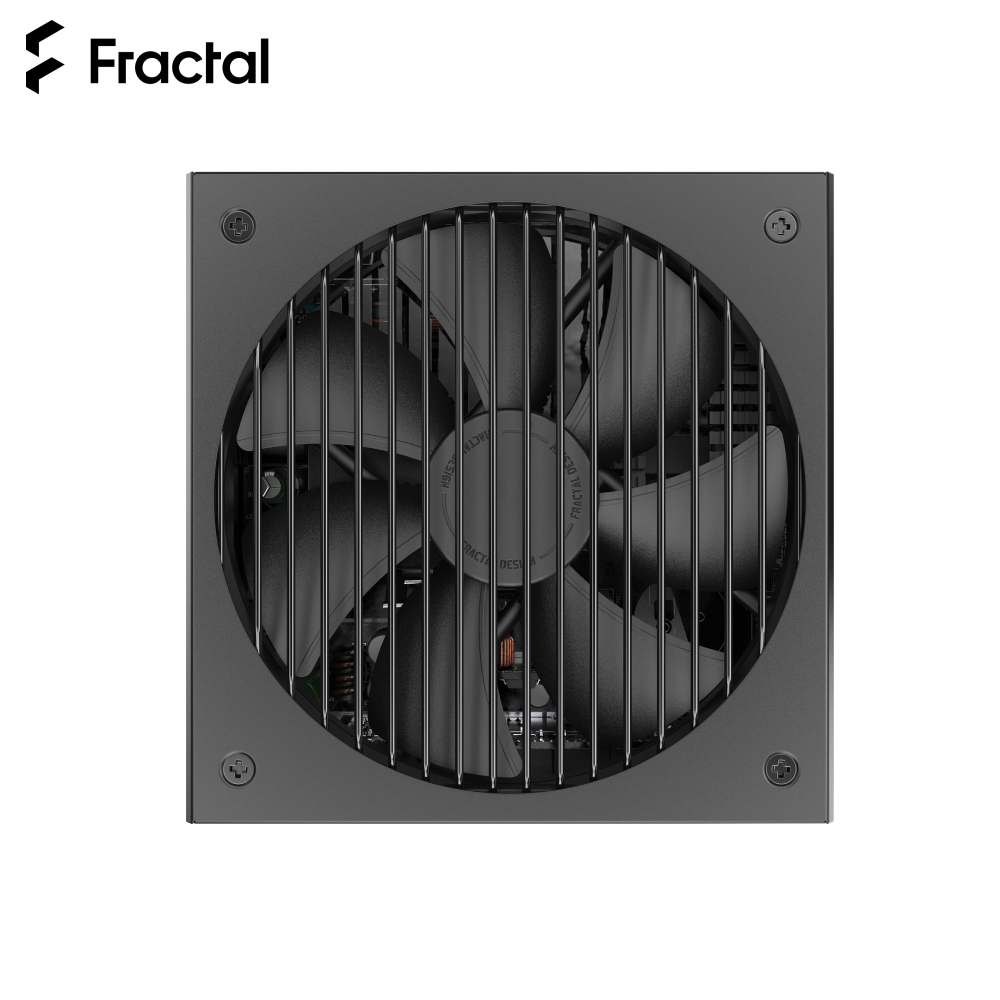

Large low-speed fan

Ion Gold comes equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed

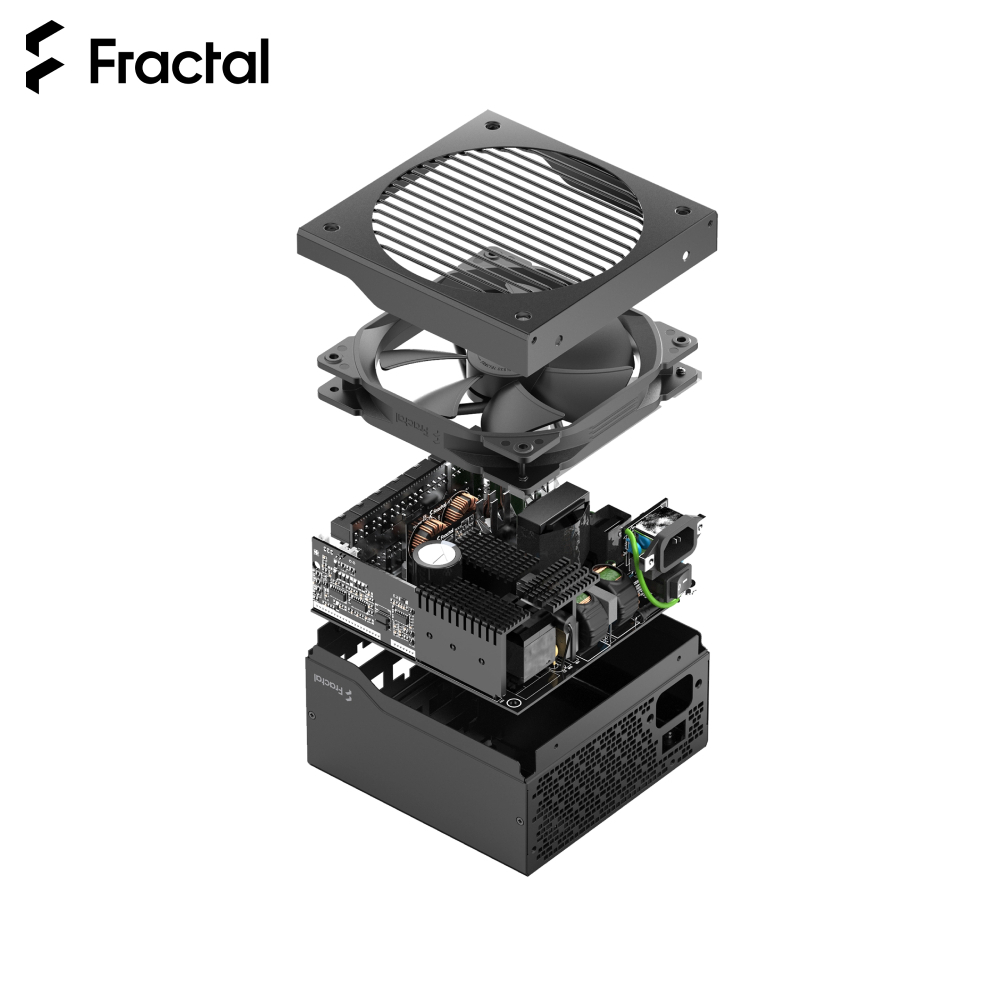

Take a closer look at the Ion Gold

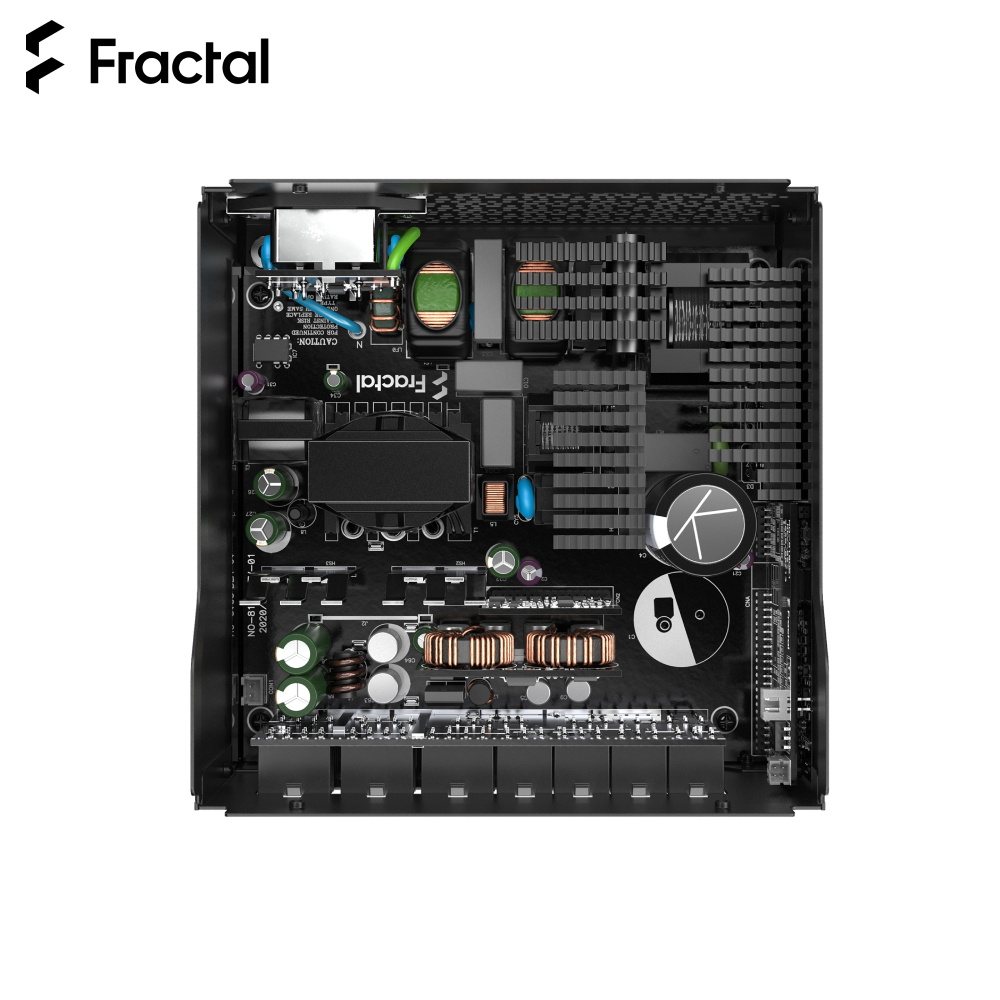

DC-DC design for more precise electrical output. ATX 2.52 compatible for tighter timing limits.

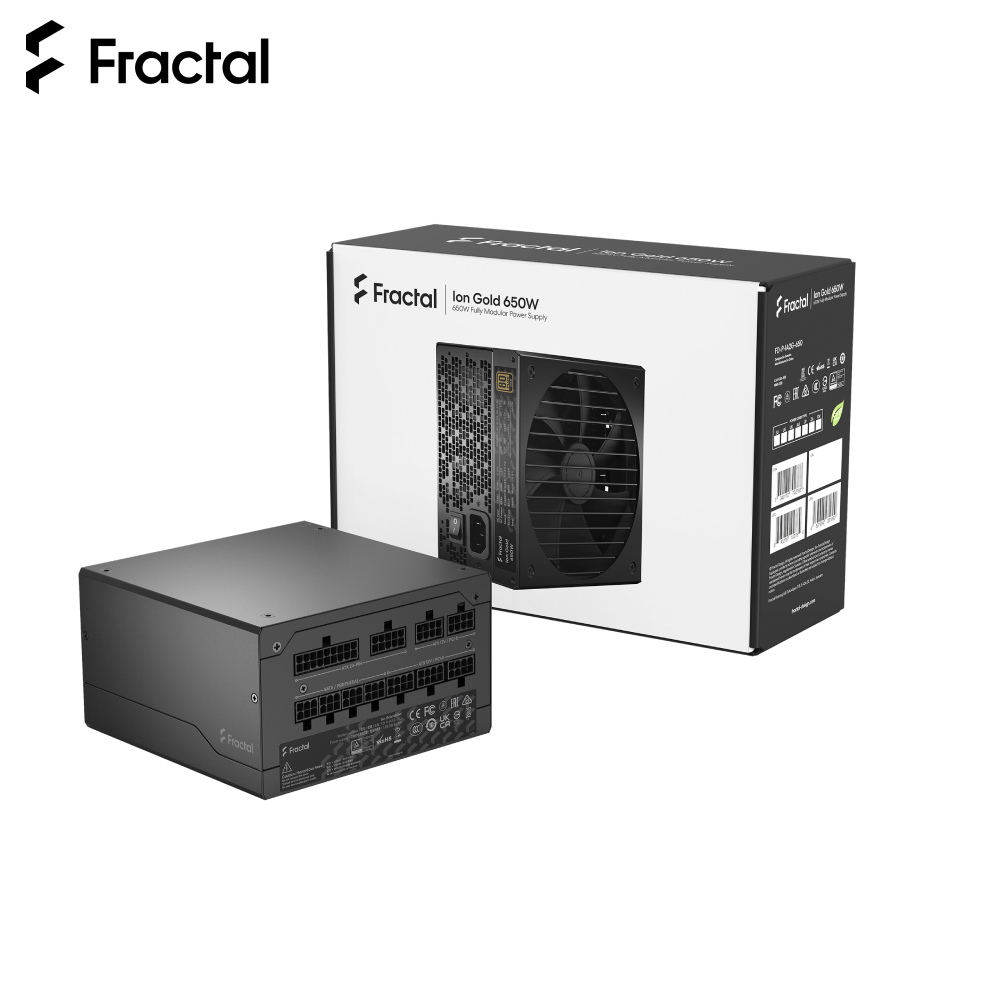

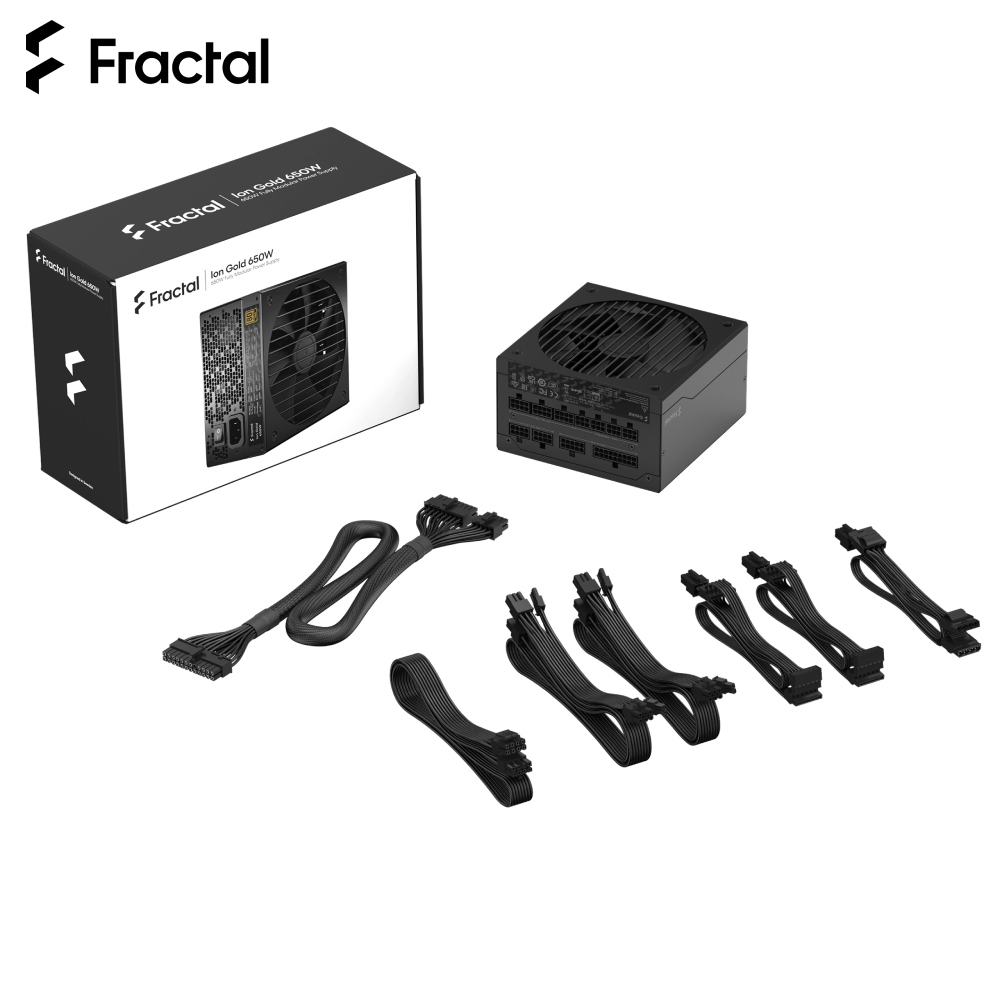

Package contents

  • Ion Gold power supply
  • Modular cables
  • Screw pack with velcro cable ties
  • AC power cord (localized)
  • User manual







  • 80PLUS® certification - Gold
  • Modular cables - Fully modular
  • Fan type - 140 mm LLS bearing Fractal Design Dynamic series fan
  • Maximum operating temperature (full load) - 40°C; 50°C at 80% load
  • Semi-passive operation - No
  • Capacitors - Primary side: Japanese 105° main bulk capacitor(s); Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
  • Life expectancy - 100,000 hours
  • PSU specification compliance - ATX12V 2.52; EPS12V 2.92
  • PSU color - Black
  • Cable type - Modular 24-pin cable: Black wires in braided sleeve; Other modular cables: Flat black wires

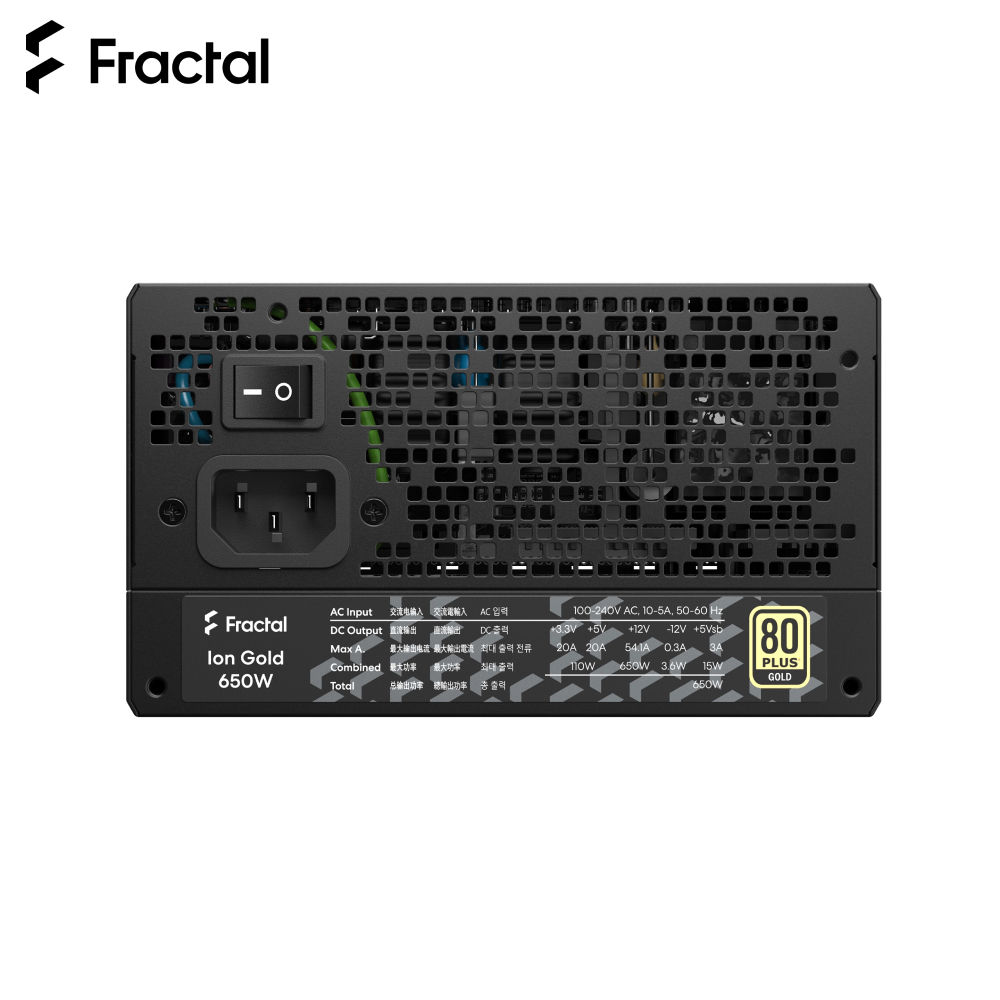

  • Input voltage - 100-240V AC
  • Input frequency - 50-60 Hz
  • Input current - 10A/5A
  • Protection features - Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
  • Standby efficiency - ErP 2013 (<0.45W @ 230 VAC, 45mA load on +5Vsb)
  • Sleep state compliance - C6/C7 compatible
  • Approvals & certifications - CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
  • Unit dimensions - LxWxH - 150 x 150 x 86 mm
  • Net weight (unit & DC cables) - 2.13kg
  • Package dimensions – LxWxH - 300 x 110 x 210 mm
  • Package weight (without power cord)  - 2.53kg

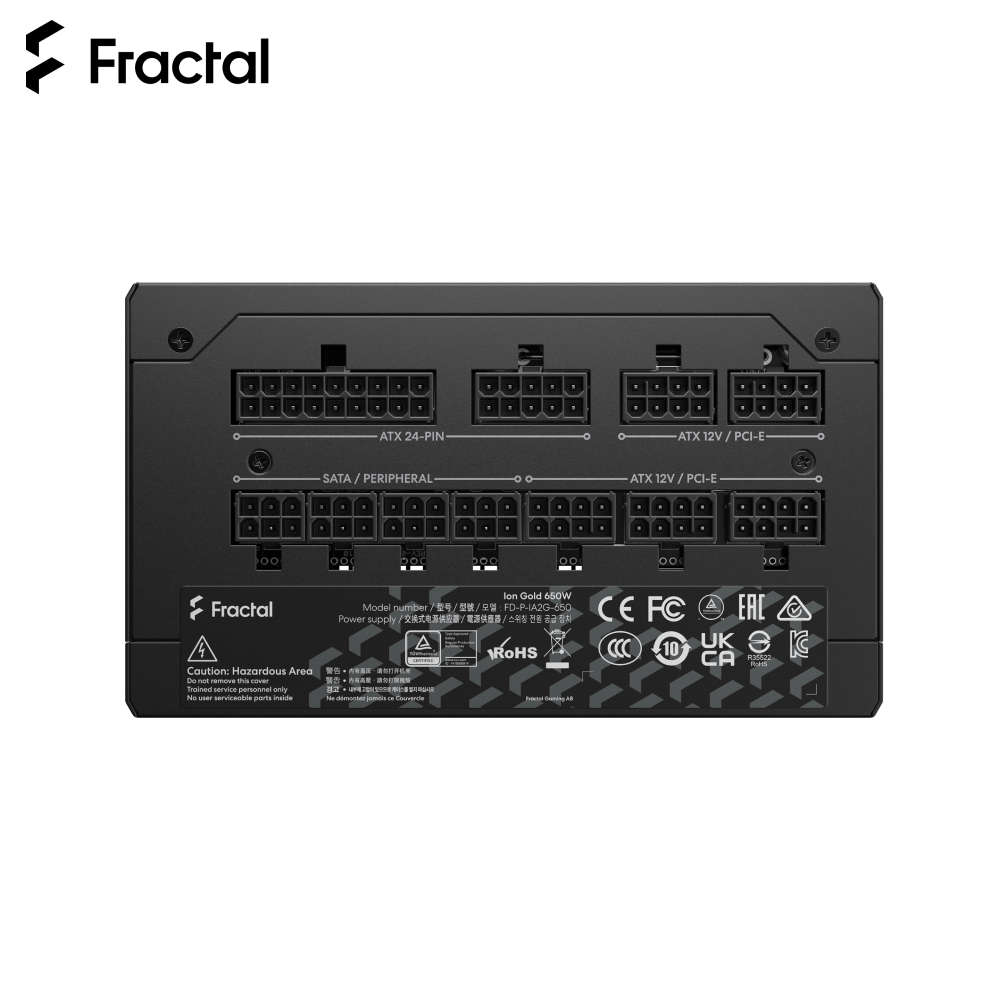

  • ATX 24-pin - 1
  • EPS/ATX12V - 1
  • PCIe - 4
  • SATA - 6
  • Peripheral  - 3
  • ATX 24-pin - 500
  • ATX 12V 4+4 pin - 600
  • EPS12V 8-pin - N/A
  • PCIe 6+2 pin - 550+150
  • SATA - 500+150+150
  • Peripheral - 500+150+150
  • 3.3V - 20A
  • 5V - 20A
  • 3.3V and 5V combined - 110W
  • 12V - 54.1A
  • -12V - 0.3A
  • +5Vsb - 3A
  • Total Power - 650W
