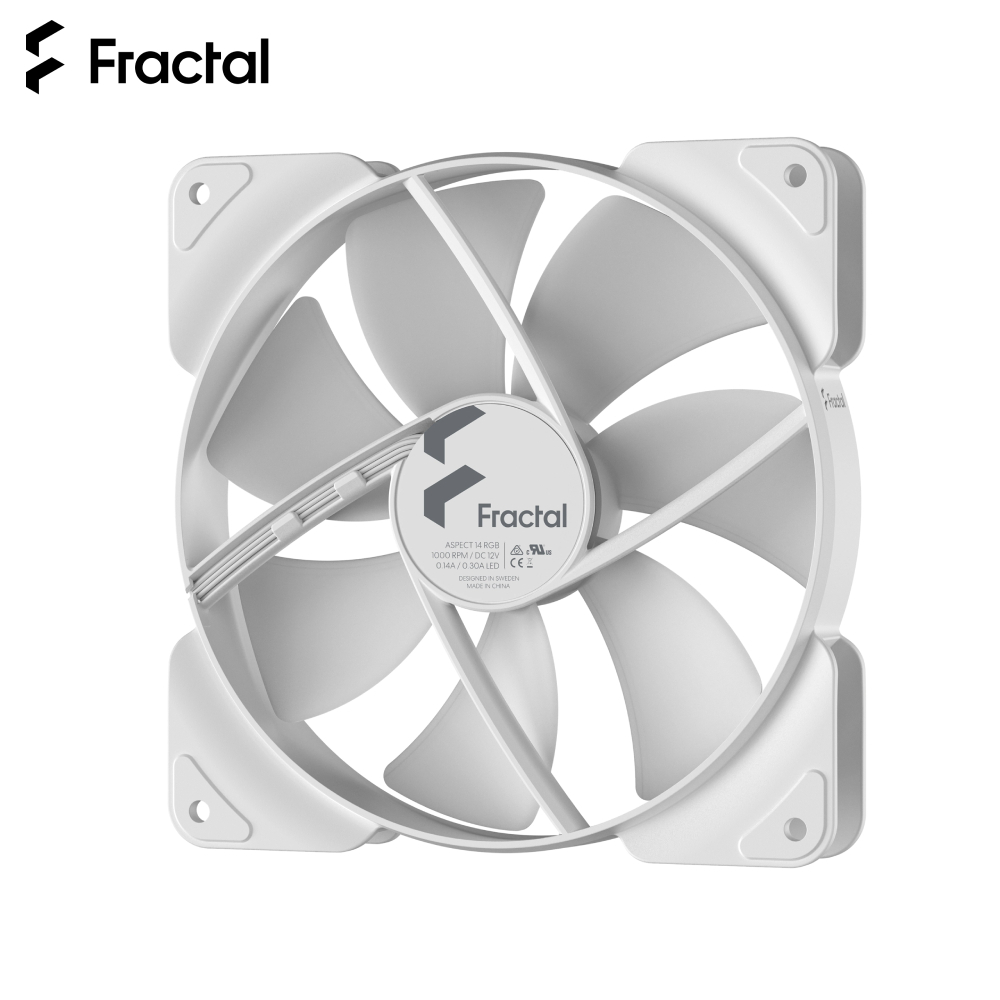

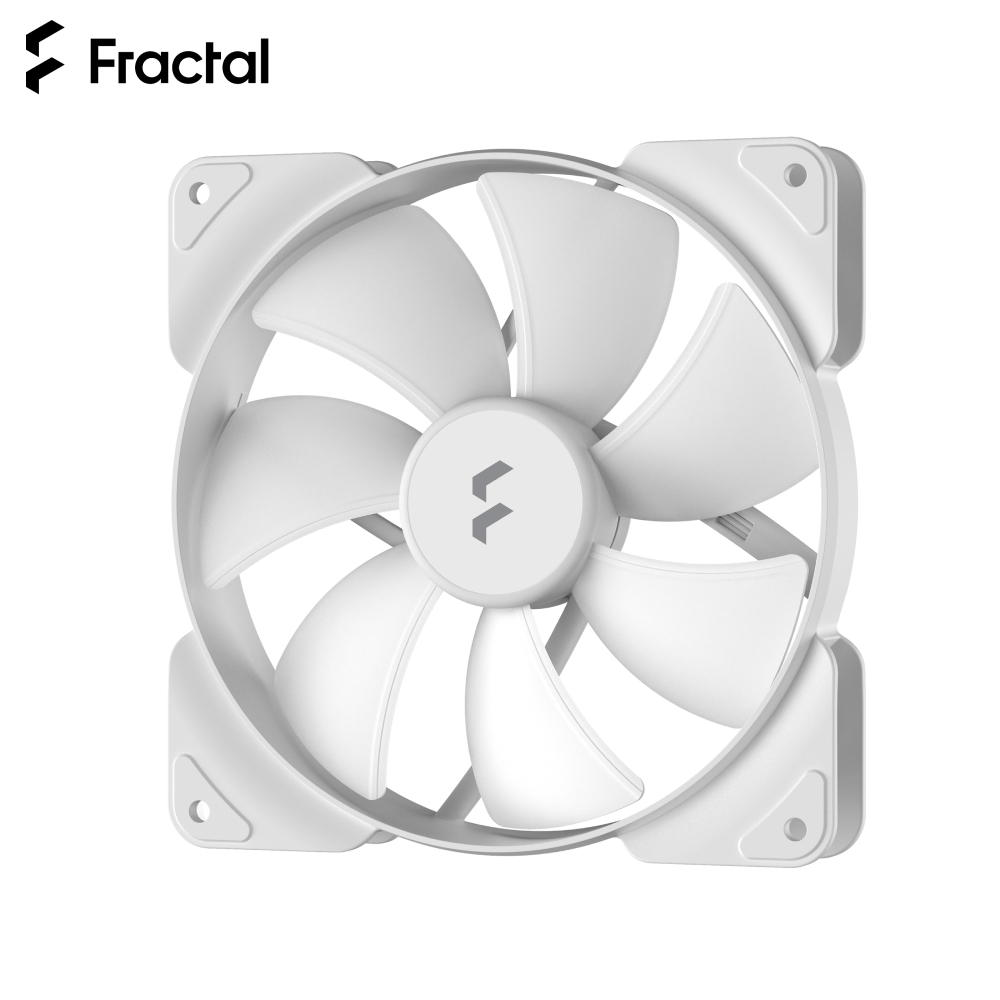

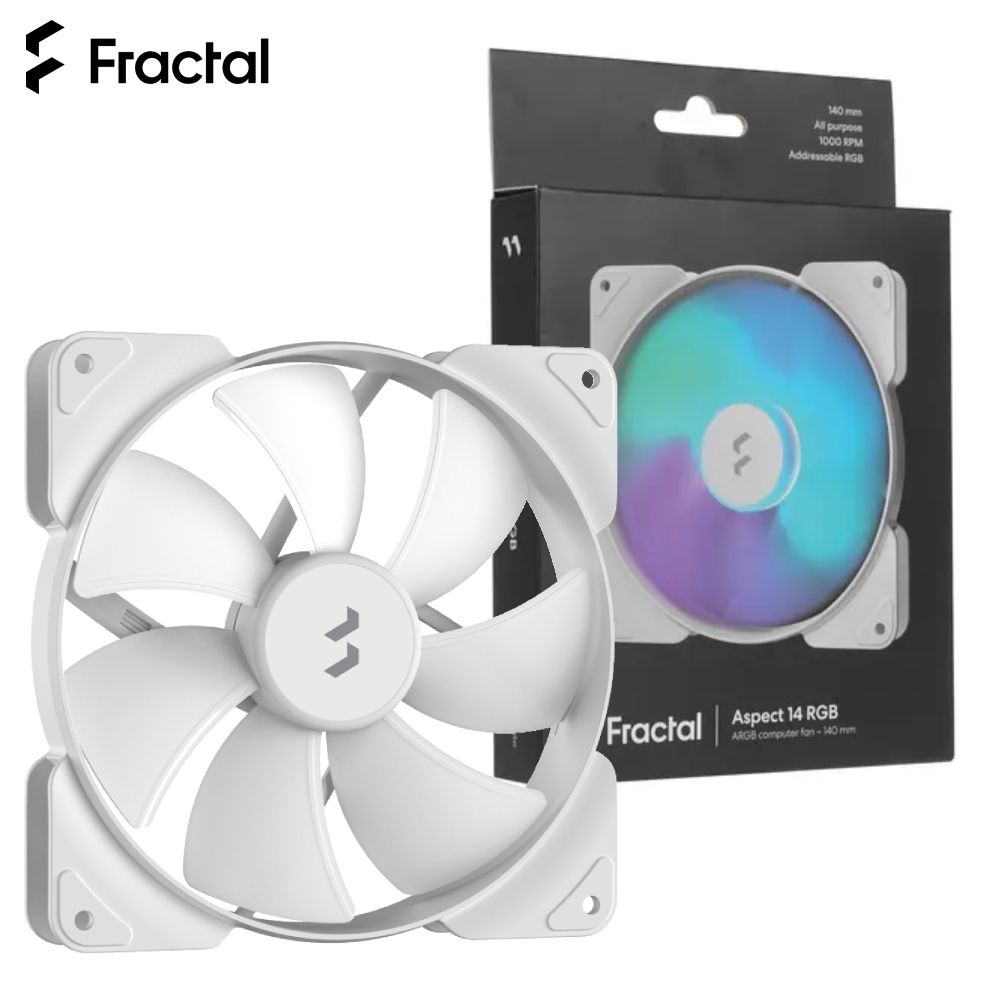

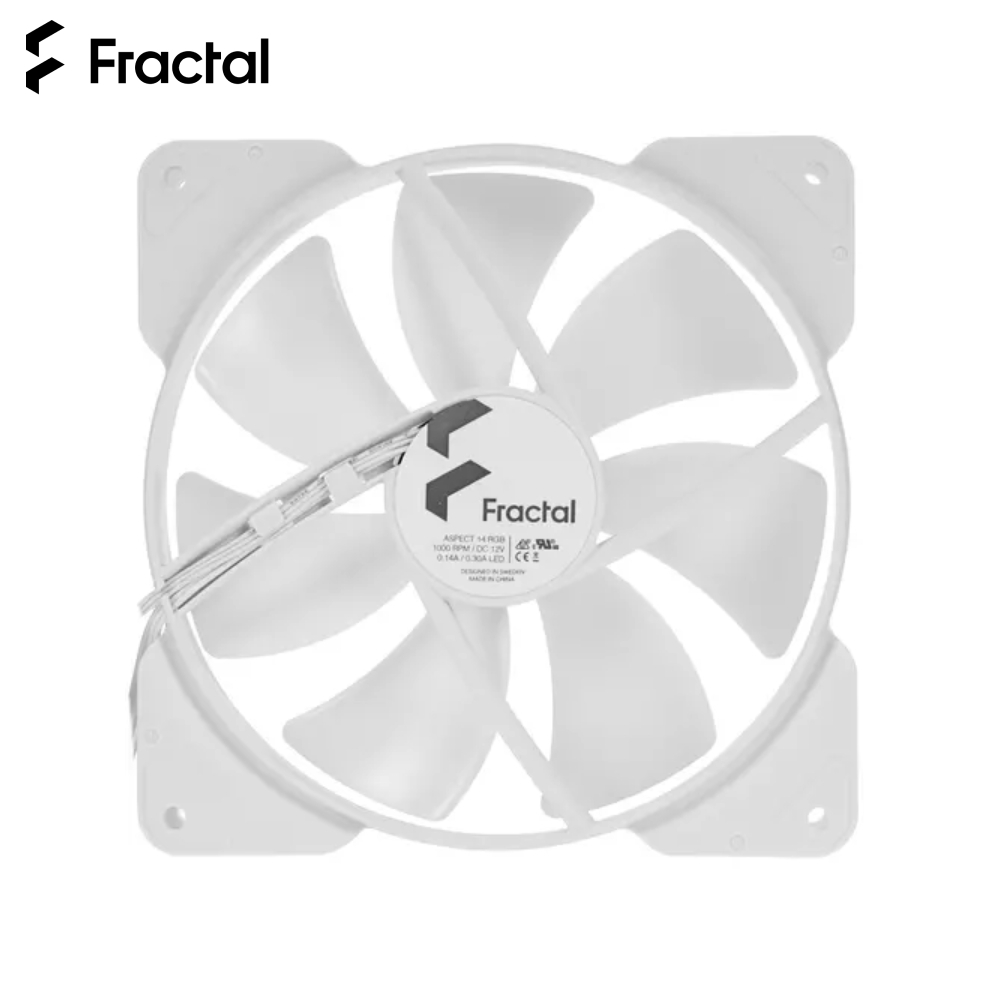

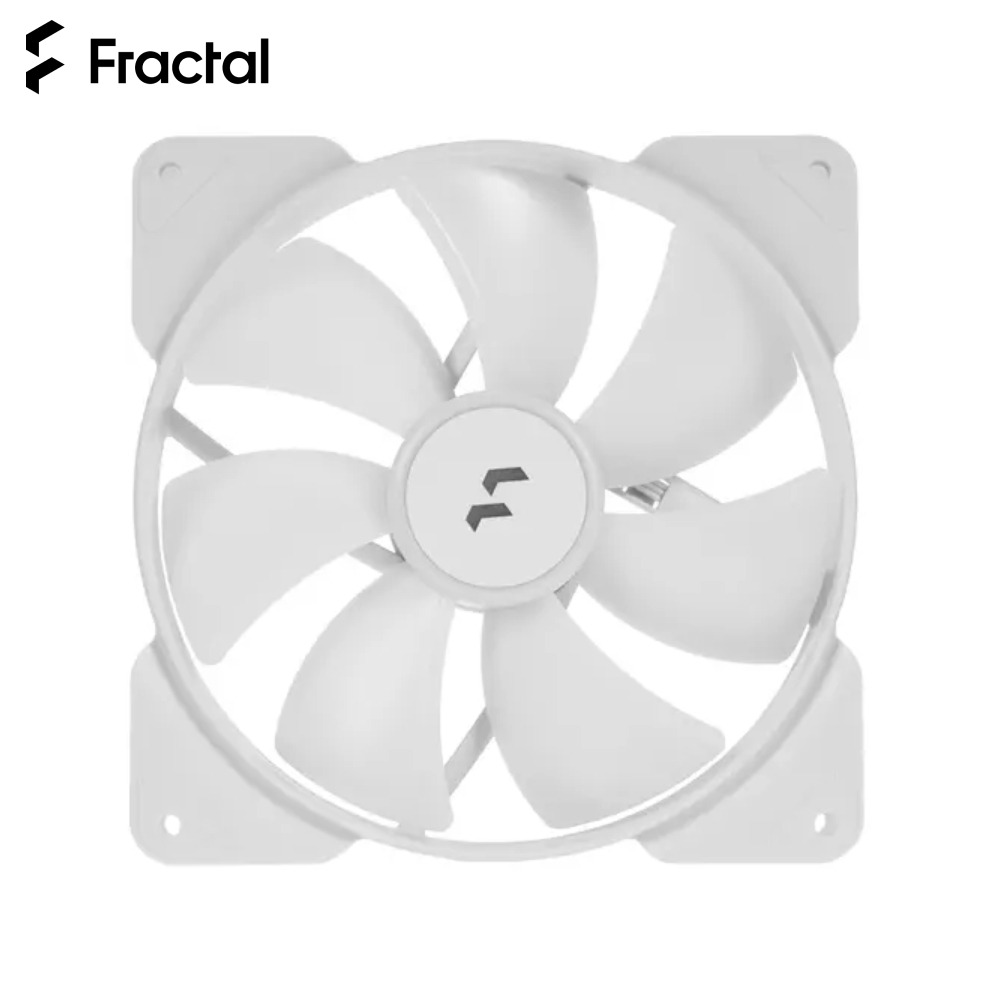

Computer Case Fan 140 mm Fractal Design Aspect 14 RGB White FD-F-AS1-1408

Widening the color range.

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.

Key features

  • Less turbulence thanks to aerodynamic stator struts
  • Supports ASUS AURA, Gigabytes Fusion MSI Mystic Light and others
  • Trip Wire provides a micro-turbulent layer for enhanced blade efficiency
  • Supports chaining to simplify cable management
  • Rifle bearings – more efficient than standard sleeve
  • Combines aesthetic design and reliable performance
  • PWM control with a. wide RPM speed range (PWM versions only)
  • Available in black or white
  • Fits standard 140 mm (125 x 125 hole pattern) (Aspect 14)



In living color

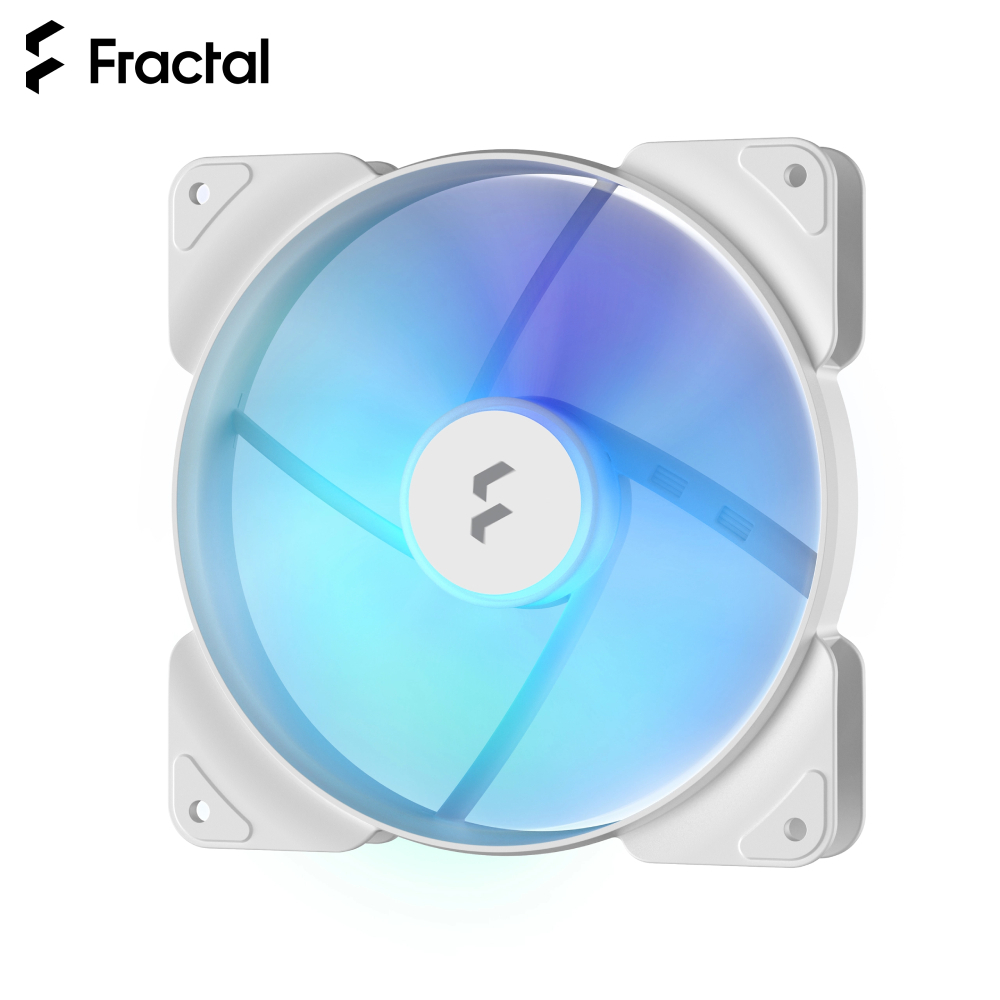

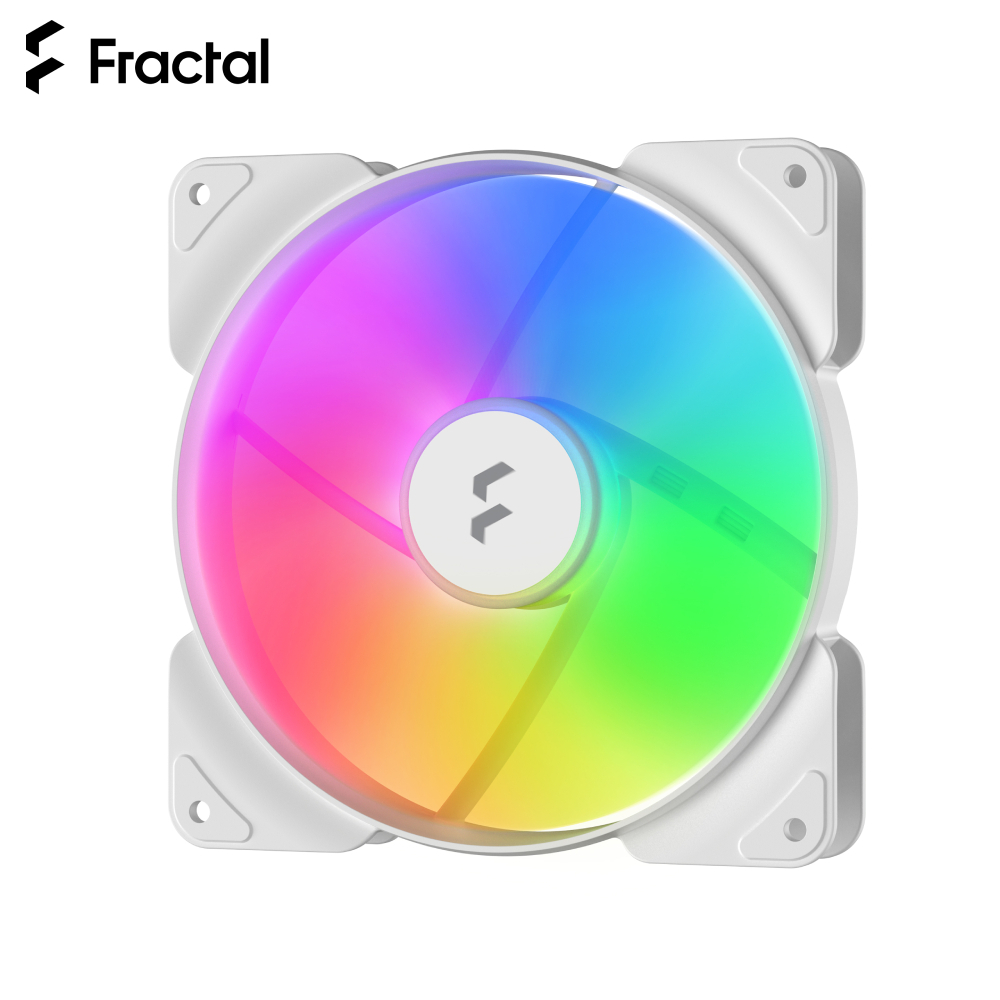

  • Let your system shine with six individually addressable hub-mounted RGB LEDs
  • The aerodynamic stator struts decrease turbulence and noise caused by flowing air
  • The Aspect frame offers aesthetics without compromising on performance



Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma



Rifle bearings
More efficient than standard sleeve bearings



Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency

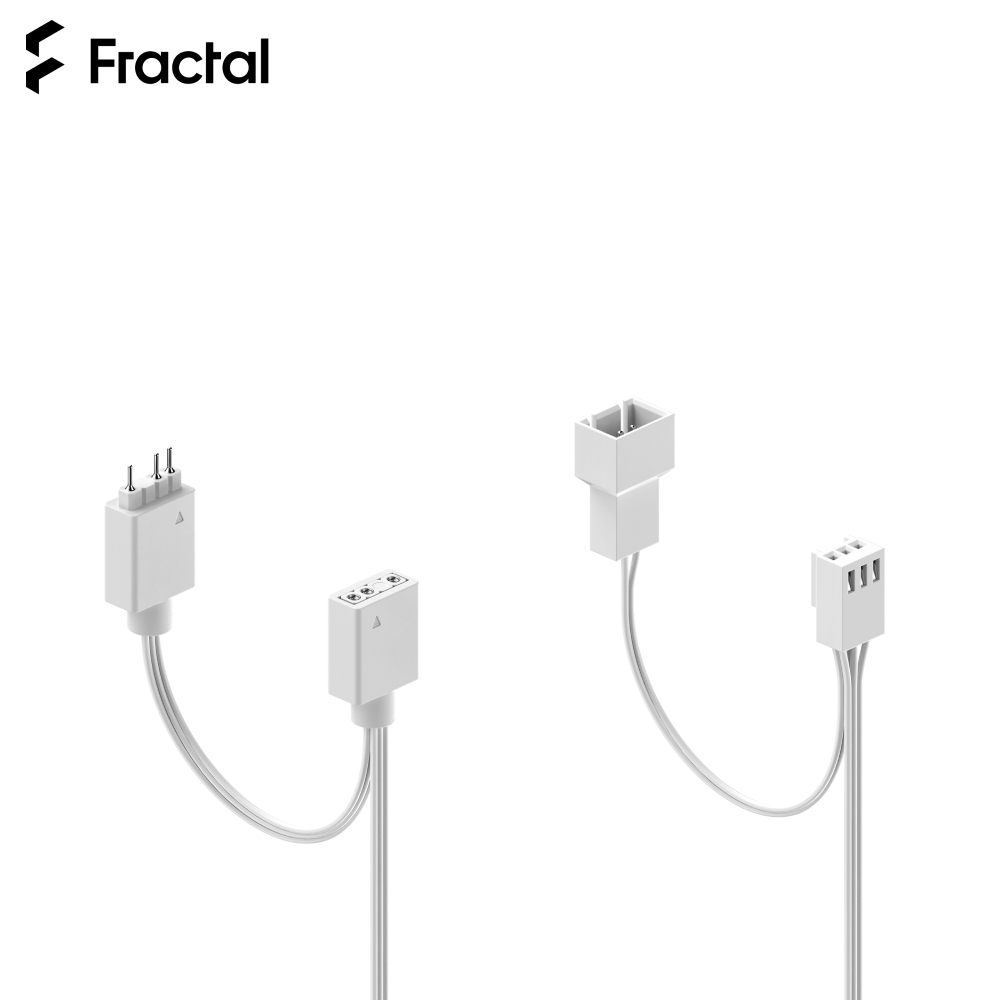

Chain feature
Simplify cable management by using the Aspect chain feature for multiple units







  • Size - 140 x 140 x 25 mm
  • Color - White frame, white blades
  • Screw hole pattern - 125 x 125 mm
  • LED type - Addressable RGB
  • Power connector - 3-pin
  • Bearing - Rifle
  • Number of blades - 7
  • Rotational speed - 1000 RPM
  • Noise level - 19.5 dB(A)
  • Max airflow - 41 CFM
  • Max airflow - 69.7 m³/h
  • Max pressure - 1.02 mm H2O
  • Fan typical input power - 0.96 W
  • Fan typical input current - 0.08 A
  • Fan max input power - 1.68 W
  • Fan max input current - 0.14 A
  • Fan input voltage - 12 V
  • Minimum startup voltage - 7 V
  • LED rated voltage - 5 V
  • LED rated current - 0.3 A
  • LED Rated input power - 1.5 W
  • MTTF - 90.000 h
  • Unit weight - 155 g
  • Package weight - 185 g

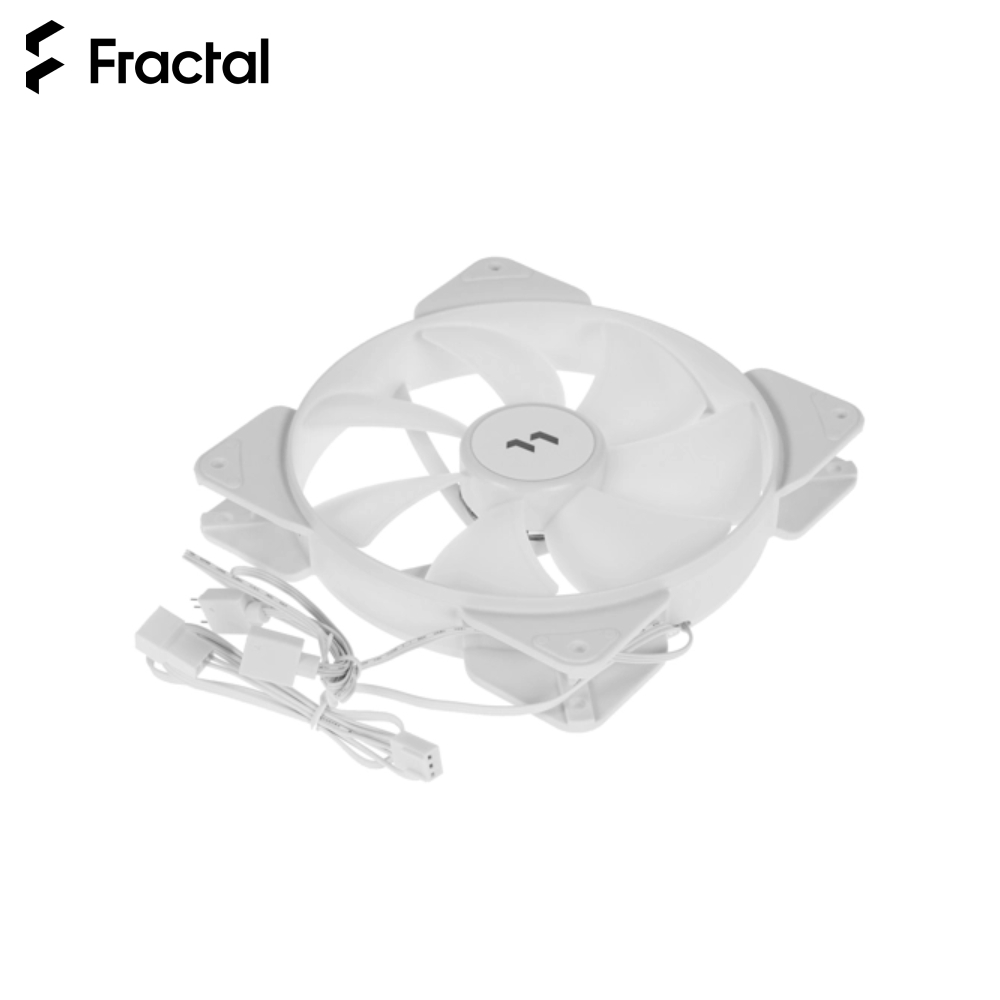

  • Cable length - 500 mm
  • Cable type - White ribbon [allows chaining]

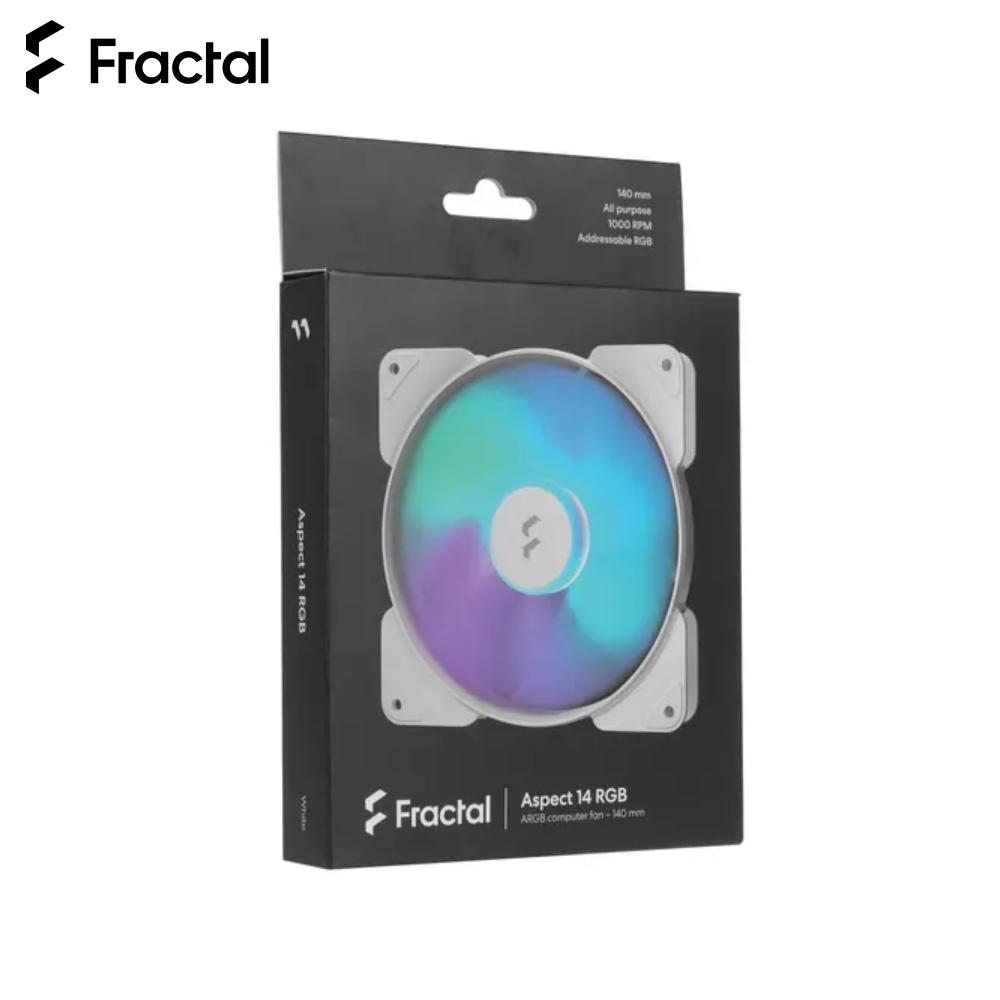

  • Packaging dimensions including hanging tab - 143 x 212 x 30 mm
  • Packaging dimensions excluding hanging tab (WxHxD) - 143 x 170 x 30 mm
