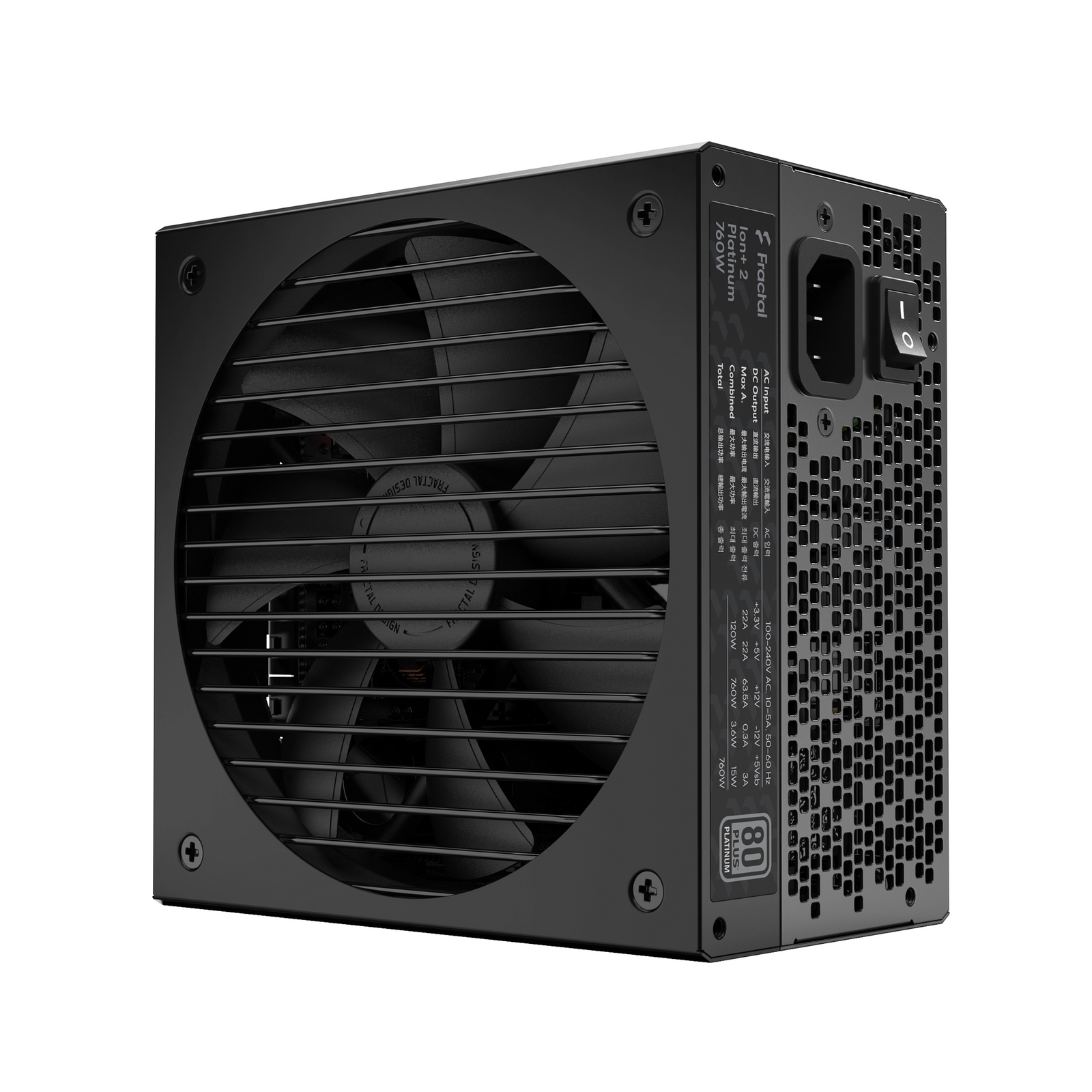

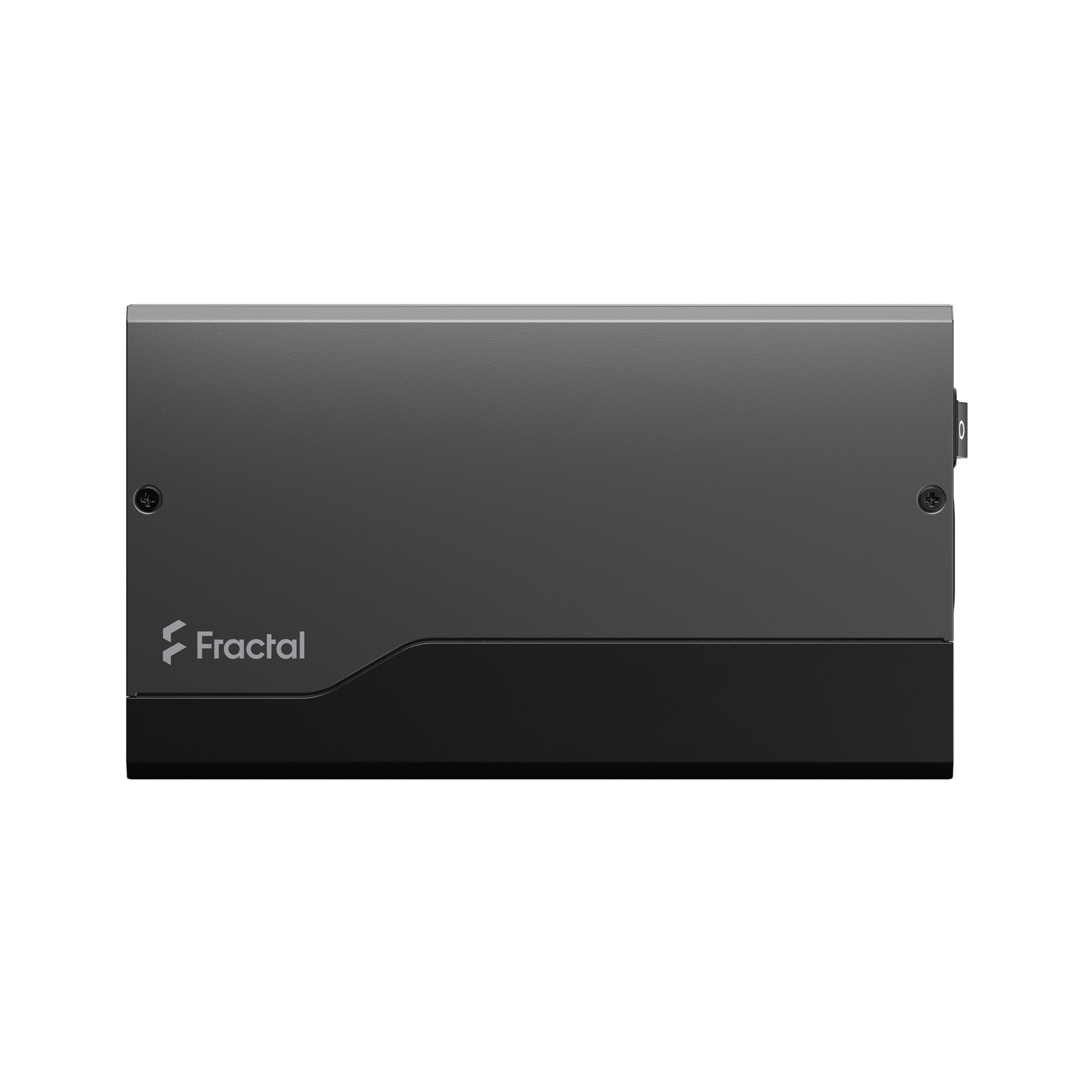

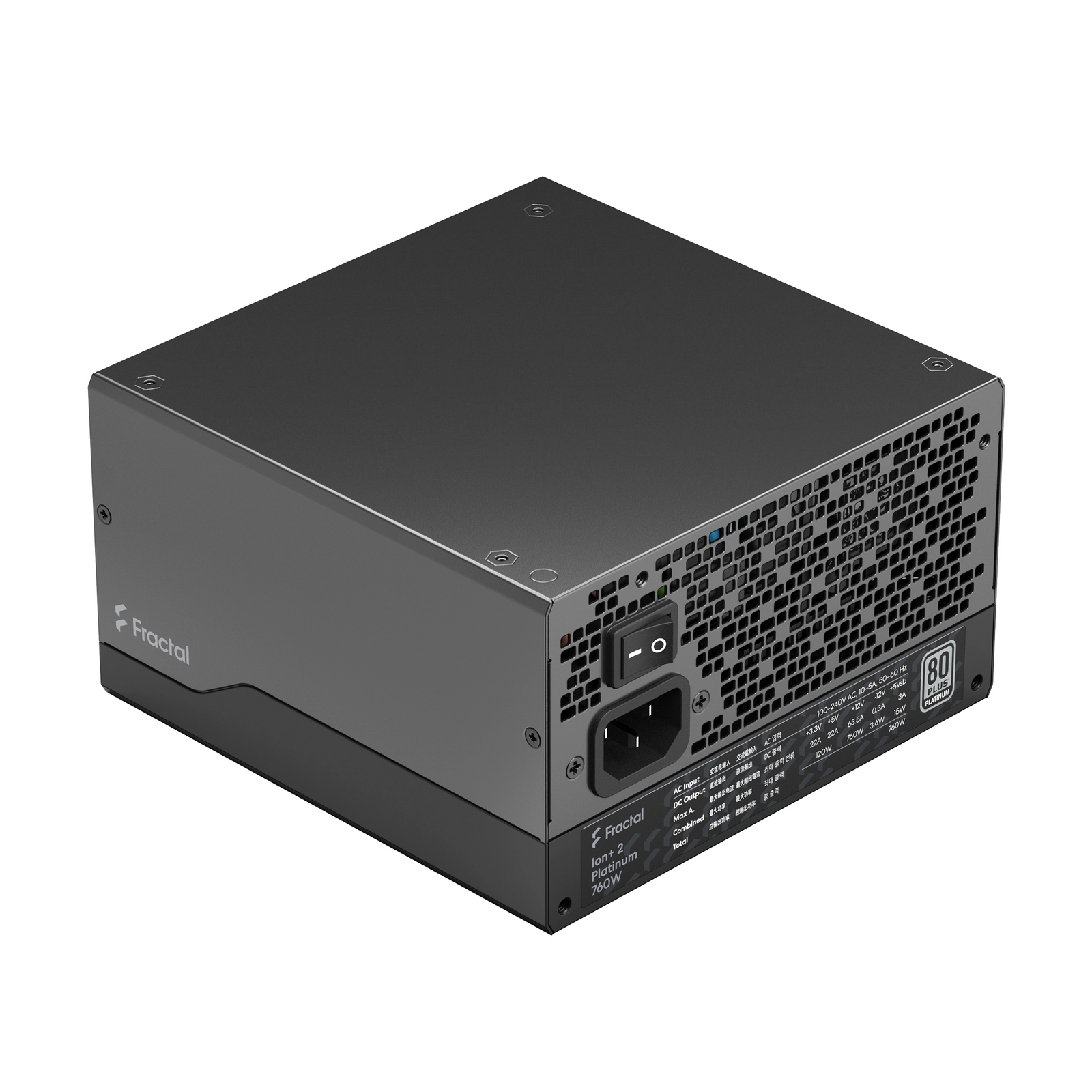

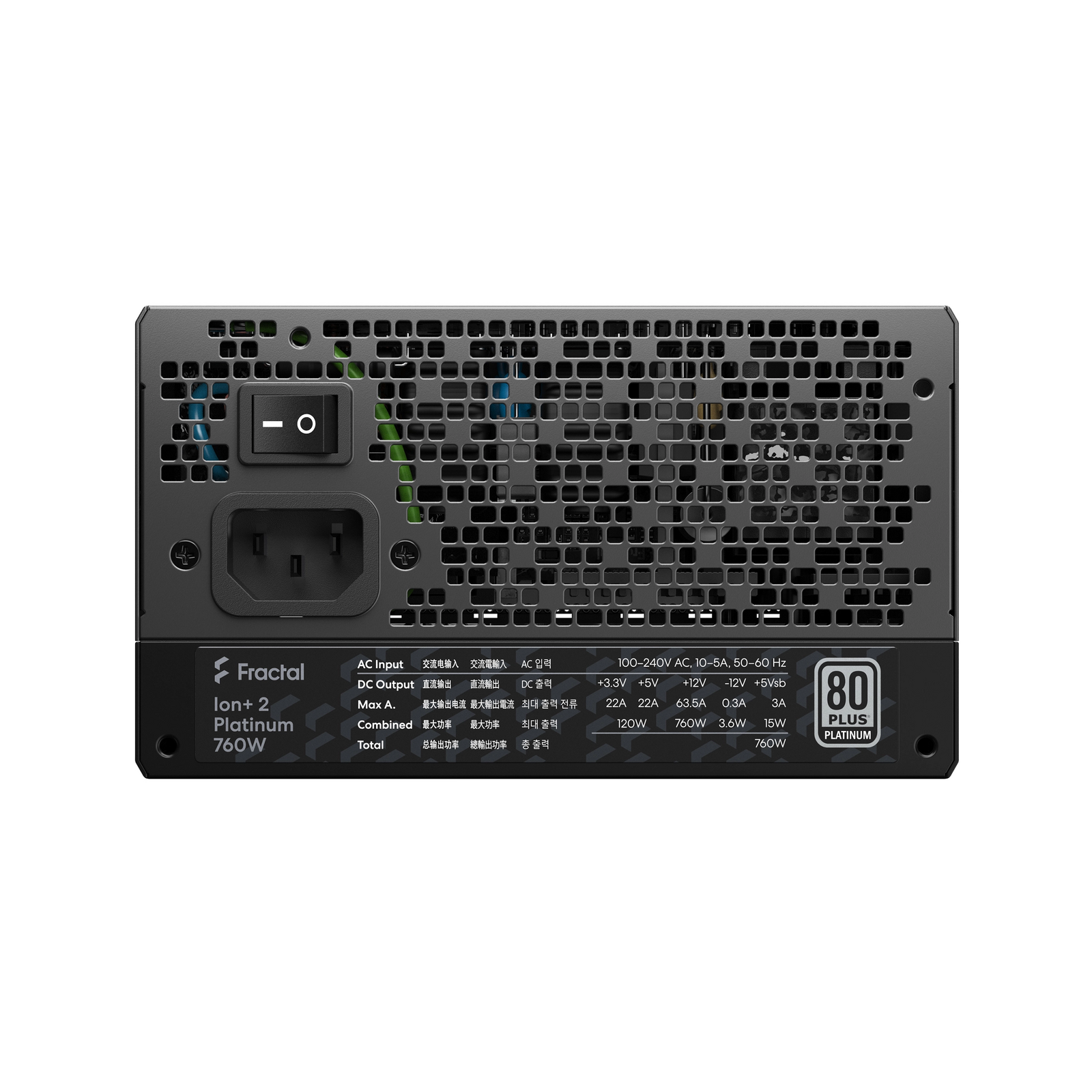

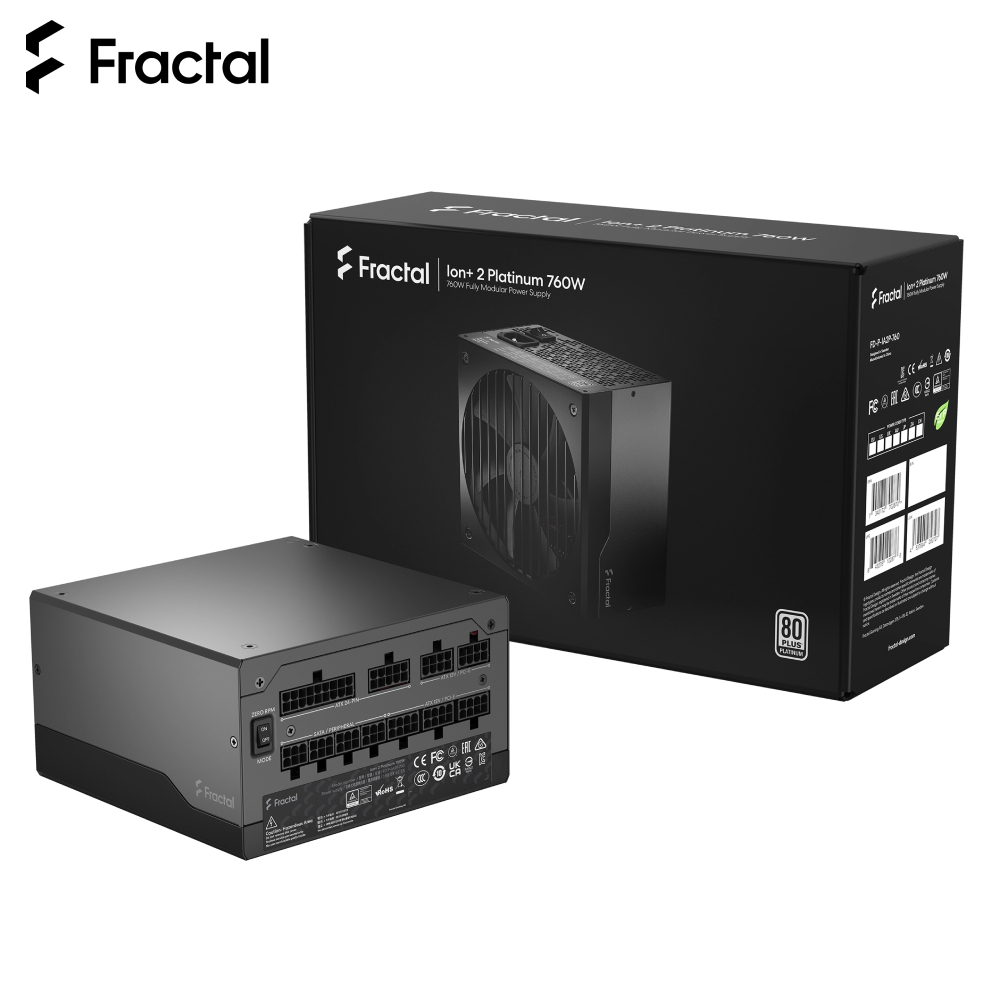

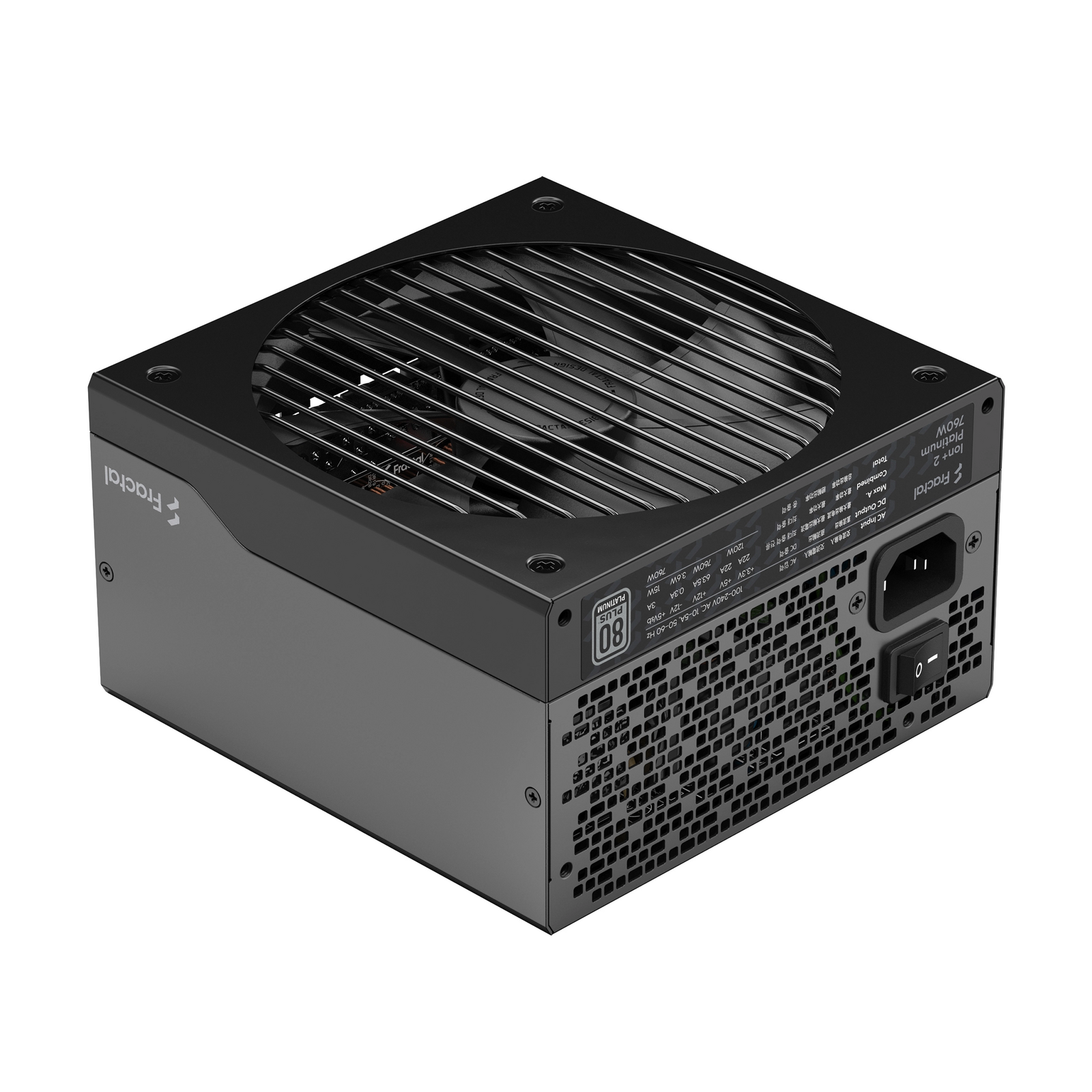

760W Computer Power Supply Fractal Design Ion+ 2 ATX Black FD-P-IA2P-760-AU
Product Code: FD-P-IA2P-760-AU
Price:
Share This Item:
760W Computer Power Supply Fractal Design Ion+ 2 ATX Black FD-P-IA2P-760-AU
80 PLUS® Platinum certified
-
80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
-
Supports the latest ATX 2.52 standard with improved start-up time and transient load response
-
Great electrical output quality with tight voltage regulation and low ripple and noise

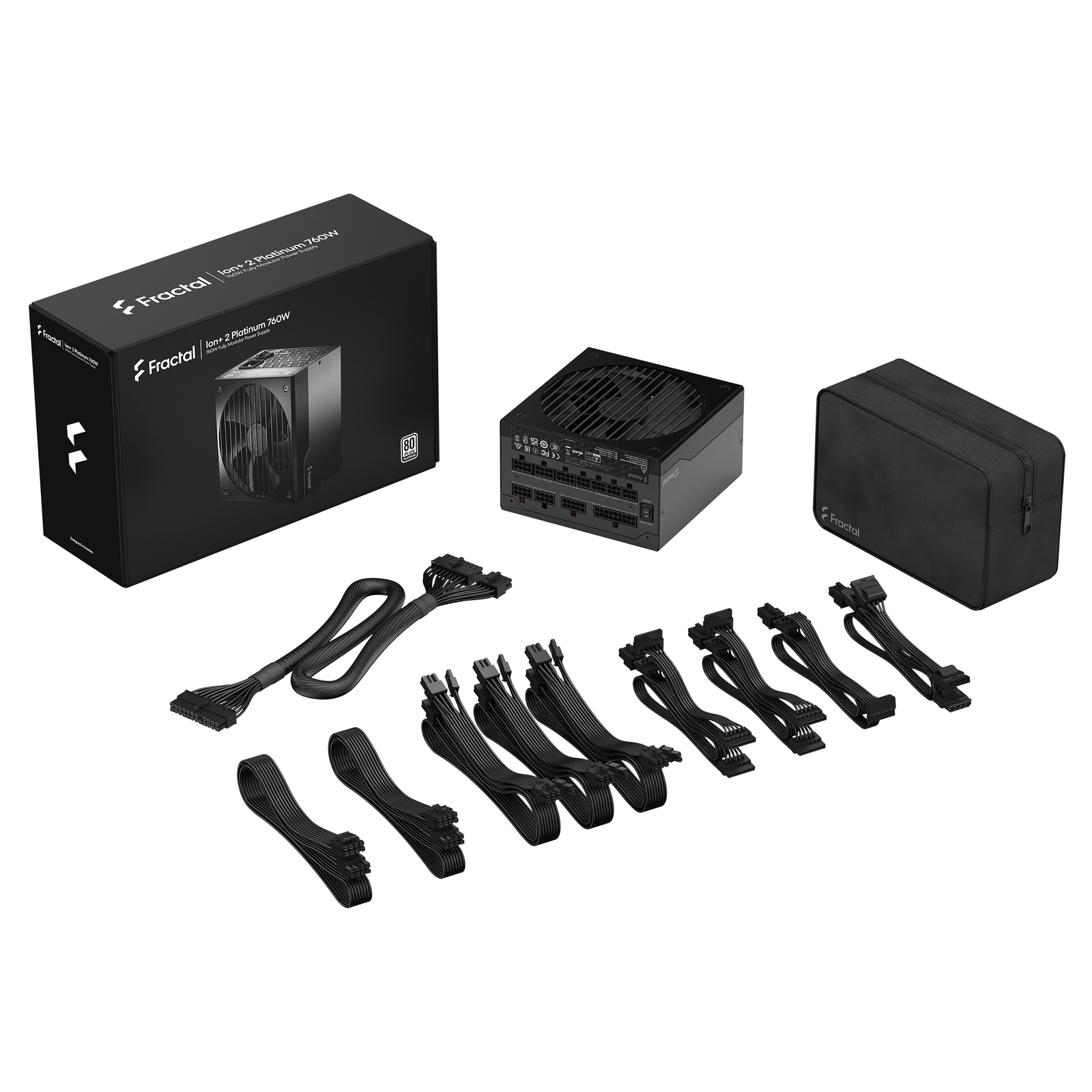

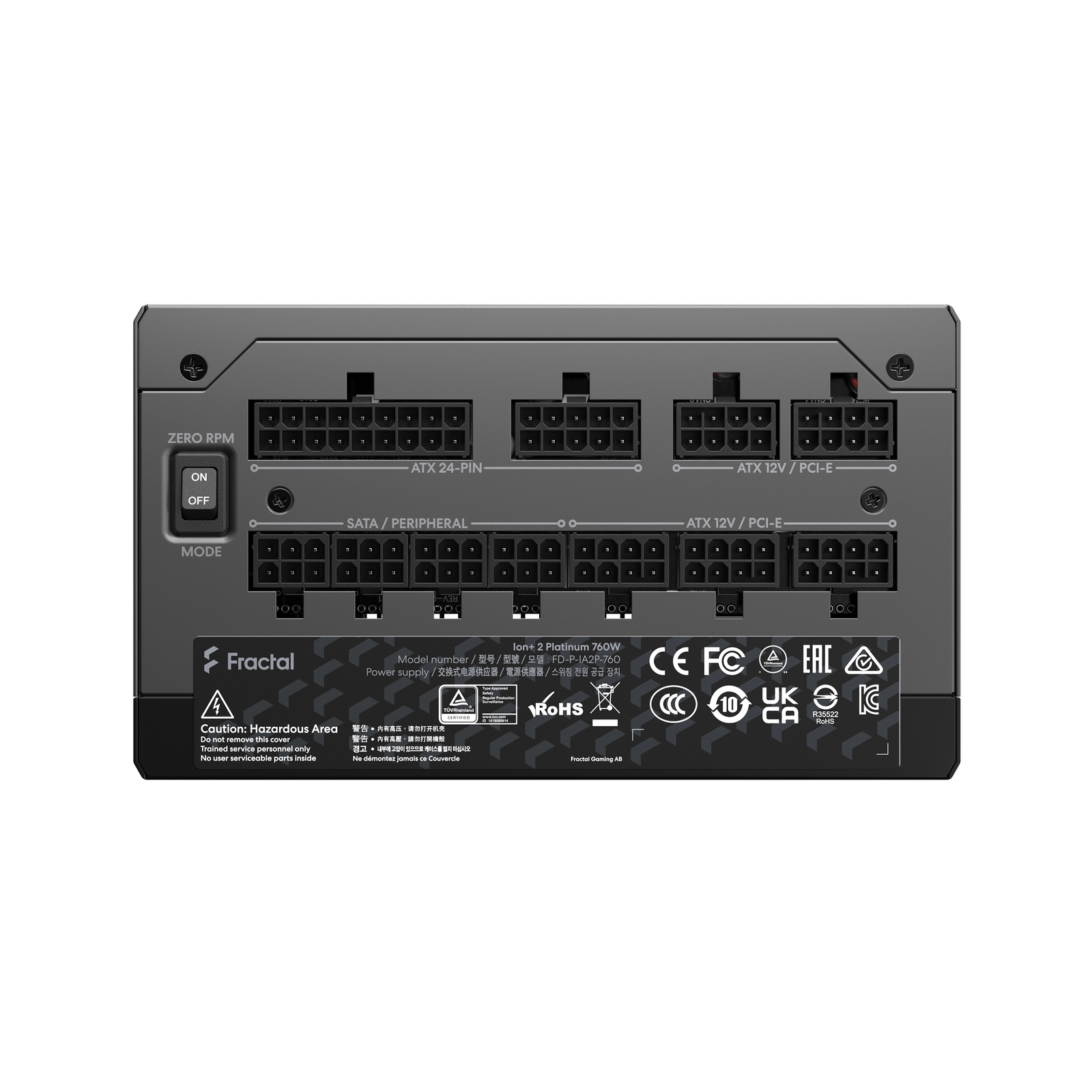

Fully modular design
-
Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management
-
All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards
-
Premium storage bags for cables and PSU
Custom-tailored fan

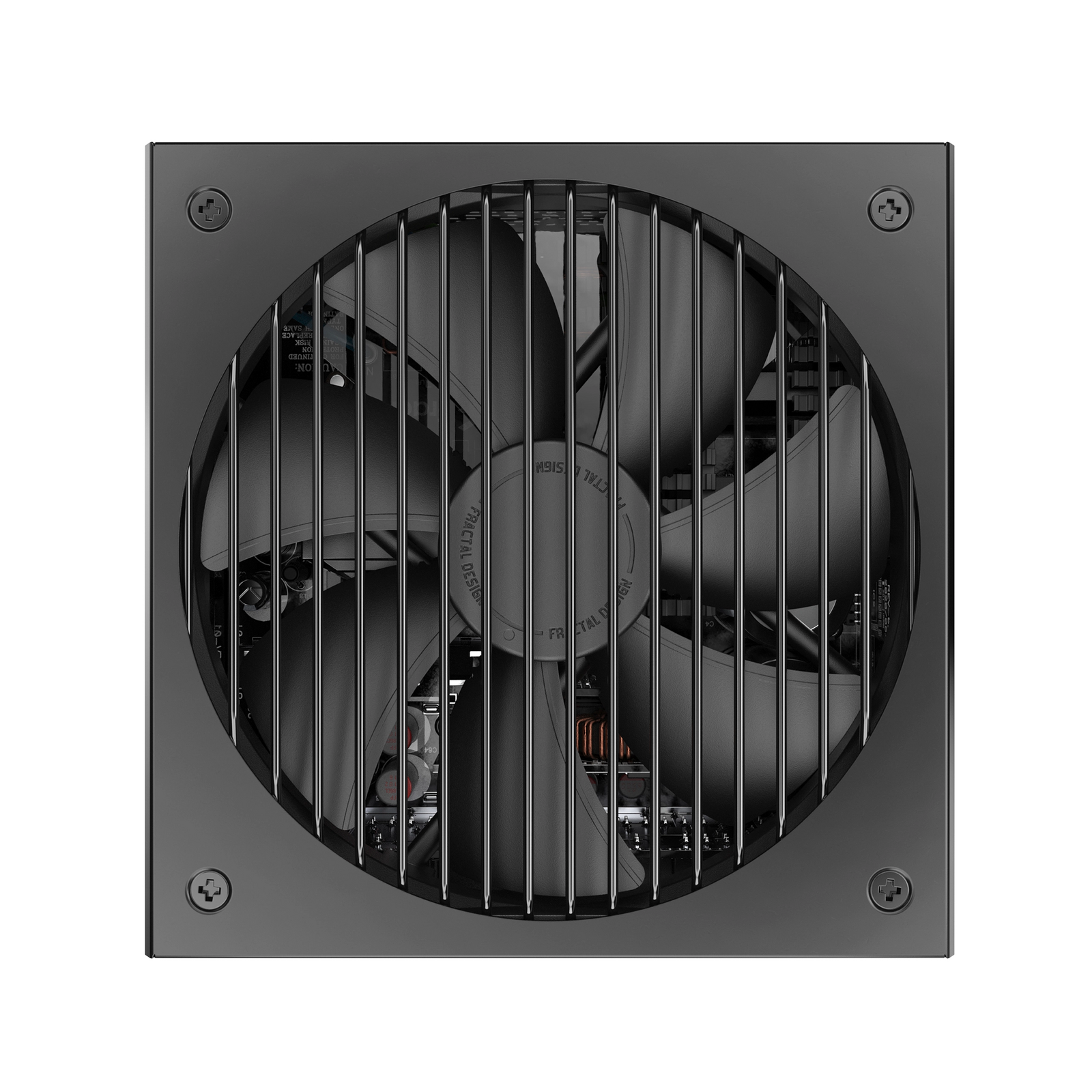

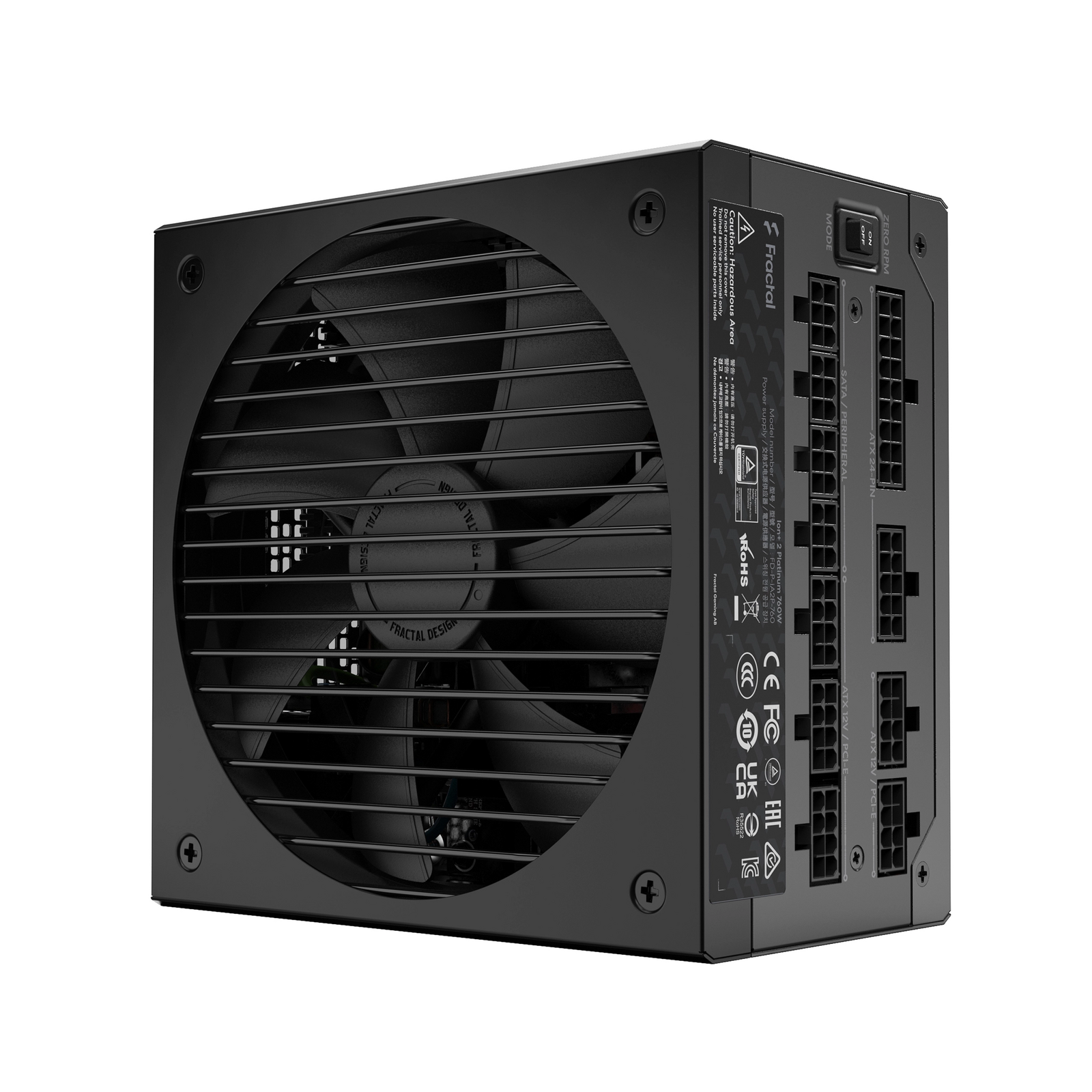

Equipped with a high-performance Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing
Compact advantages
-
Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases
-
Extensive 10-year warranty and a full electrical protection suite provides peace of mind
Semi-passive mode
User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress

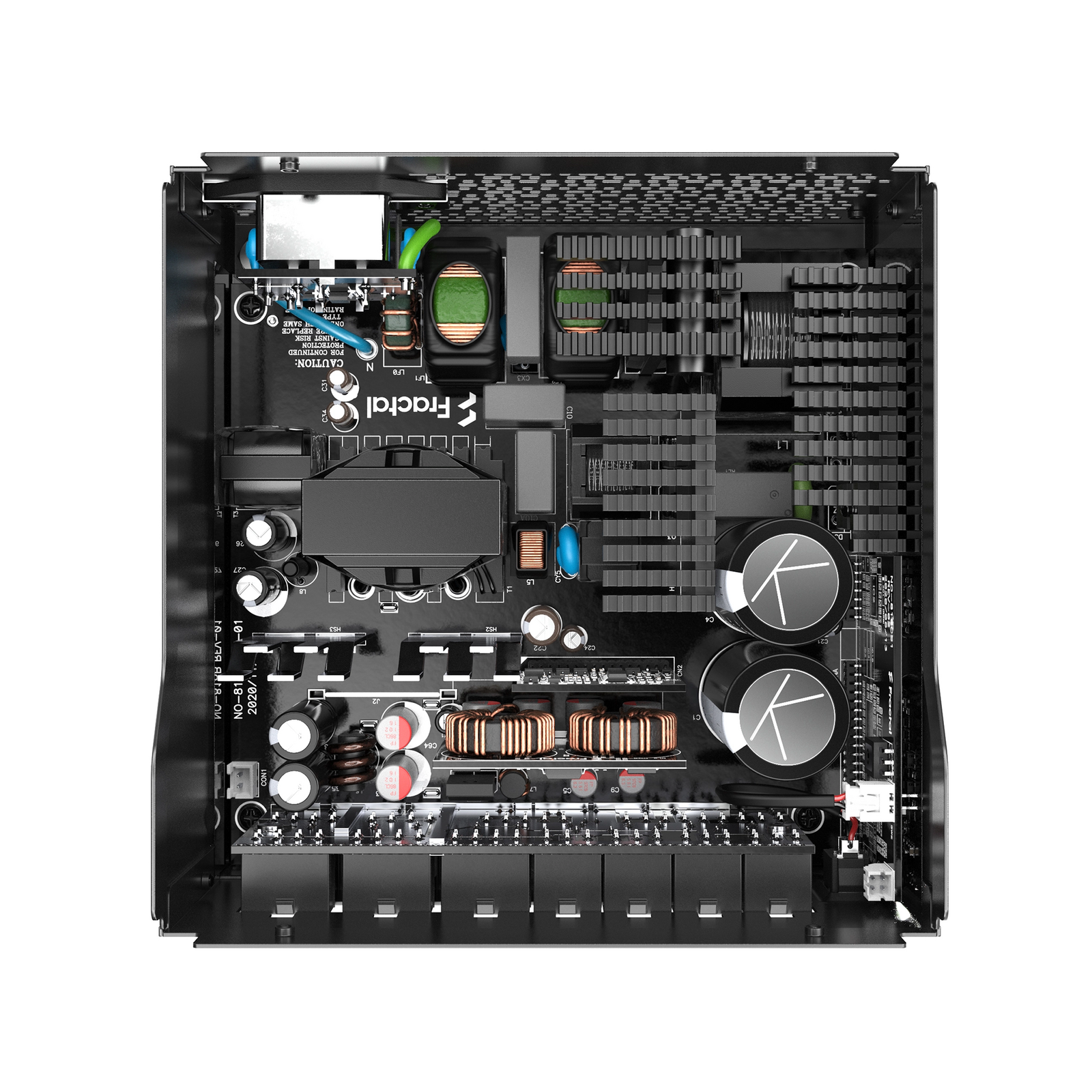

Manufacturer (OEM) | High Power |
PCB Type | Double Sided |
Transient Filter | 4x Y caps, 2x X caps, 3x CM chokes, 1x MOV,1x Discharge IC |
Inrush Protection | NTC Thermistor & Relay |
Bridge Rectifier(s) | 2x GBU1506 (600V, 15A @ 100°C) |
APFC MOSFETs | 2x Infineon IPA60R120P7 (650V, 16A @ 100°C, 0.120Ohm) |
APFC Boost Diode | 1x Infineon IDH08G65C5 (650V, 8A @ 145°C) |
Hold-up Cap(s) | 2x Rubycon (400V, 470uF each or 940uF combined, 2,000h @ 105°C, MXH) |
Main Switchers | 2x Infineon IPA60R120P7 (650V, 16A @ 100°C, 0.120Ohm) |
APFC Controller | Infineon ICE3PCS01G |
Resonant Controller | Champion CM6901X |
Topology | Primary side: Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters |
+12V MOSFETs | 8x Infineon BSC027N04LS (40V, 88A @ 100°C, 2.7mOhm) |
5V & 3.3V | DC-DC Converters:8x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm) PWM Controller: ANPEC APW7159C |
Filtering Capacitors | Electrolytic: 4x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 5x Rubycon (3-6,000h @ 105°C, YXG), 1x Rubycon (6-10,000h @ 105°C, ZLH) Polymer: 31x FPCAP, 6x NIC |
Supervisor IC | SITI PS224 (OCP, OVP, UVP, SCP, PG) |
Micro Controller | STC 15W408AS |
Fan Model | Fractal Design DYNAMIC X2 GP-14 (140mm, 3-12V, 0.35A, 1700 rpm, Fluid Dynamic Bearing Fan ) |
Fan Power Transistor | STi 2SD882 (NPN) |
Rectifier | 1x PFC P10V45SP SBR (45V, 10A) & 2x Infineon BSC0906NS FET (30V, 40A @ 100°C, 4.5mΩ) |
Standby PWM Controller | Excelliance MOS Corp EM8569 |
Rectifier | KEC KIA7912PI (-12V, 1A) |
