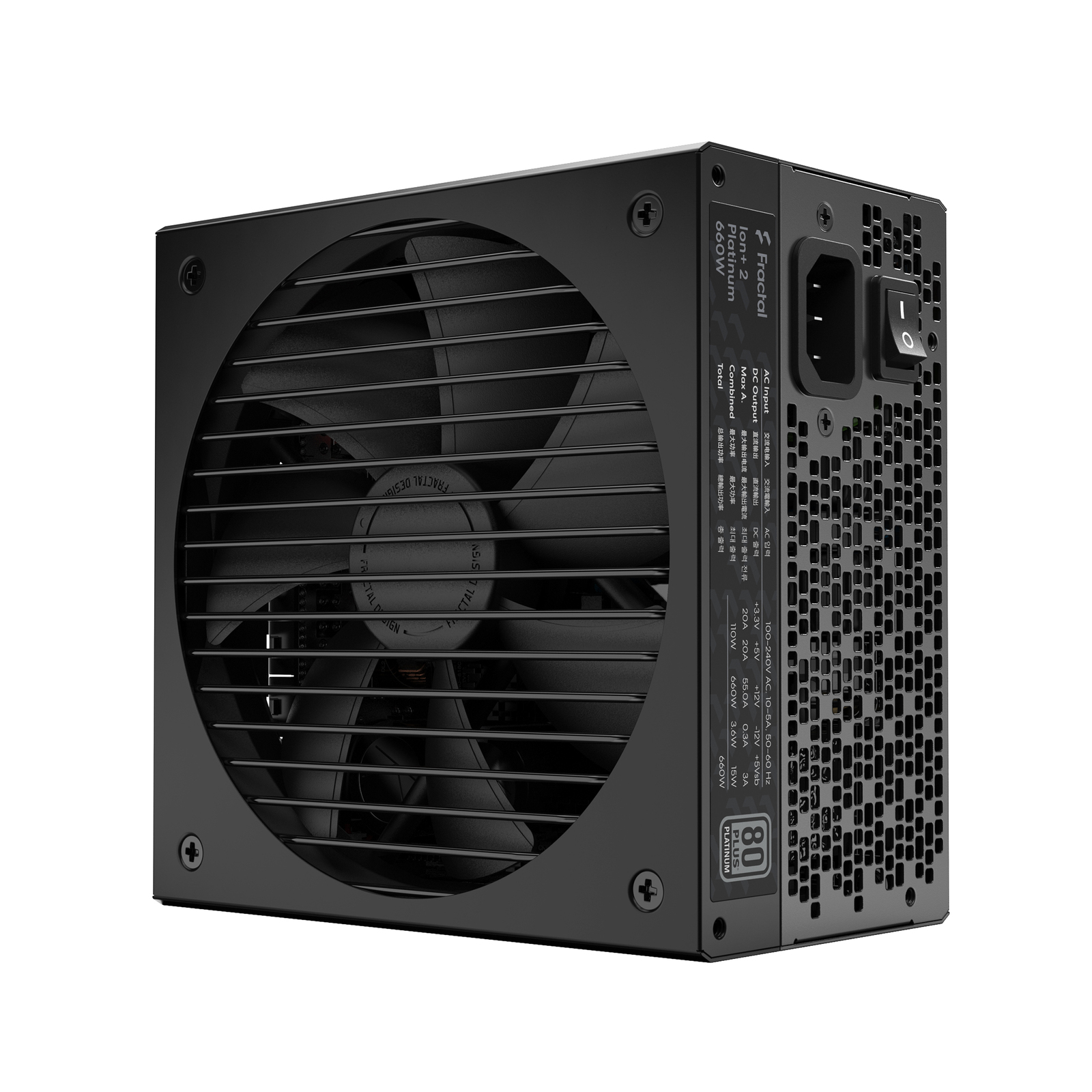

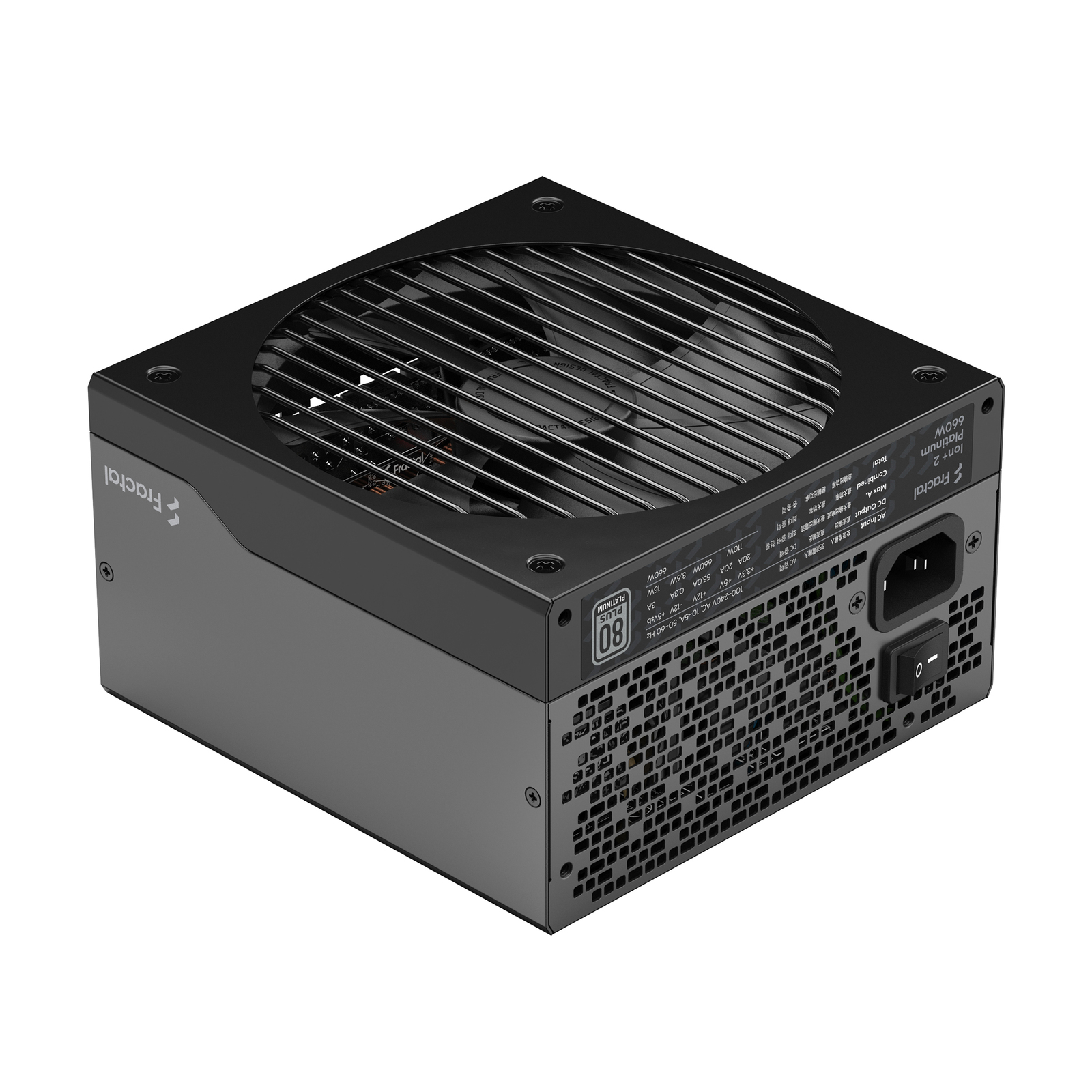

660W Computer Power Supply Fractal Design Ion+ 2 Platinum ATX Black FD-P-IA2P-660

The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.

  • 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
  • Great electrical output quality with tight voltage regulation and low ripple and noise
  • Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management



80 PLUS® Platinum certified

  • 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation

  • Supports the latest ATX 2.52 standard with improved start-up time and transient load response

  • Great electrical output quality with tight voltage regulation and low ripple and noise



Premium capacitors

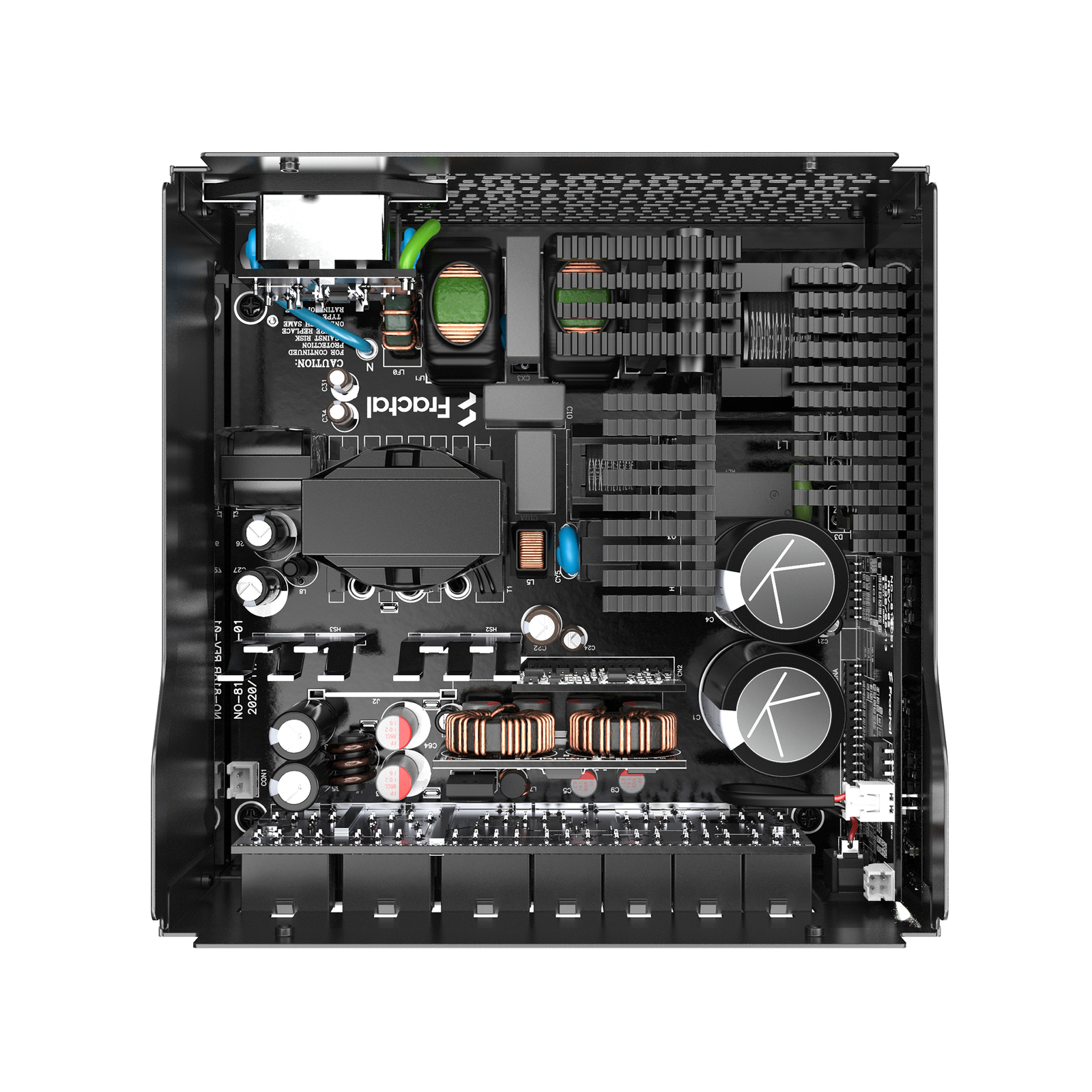

Premium Japanese 105°C capacitors provide superior reliability and durability



Fully modular design

  • Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management

  • All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards

  • Premium storage bags for cables and PSU

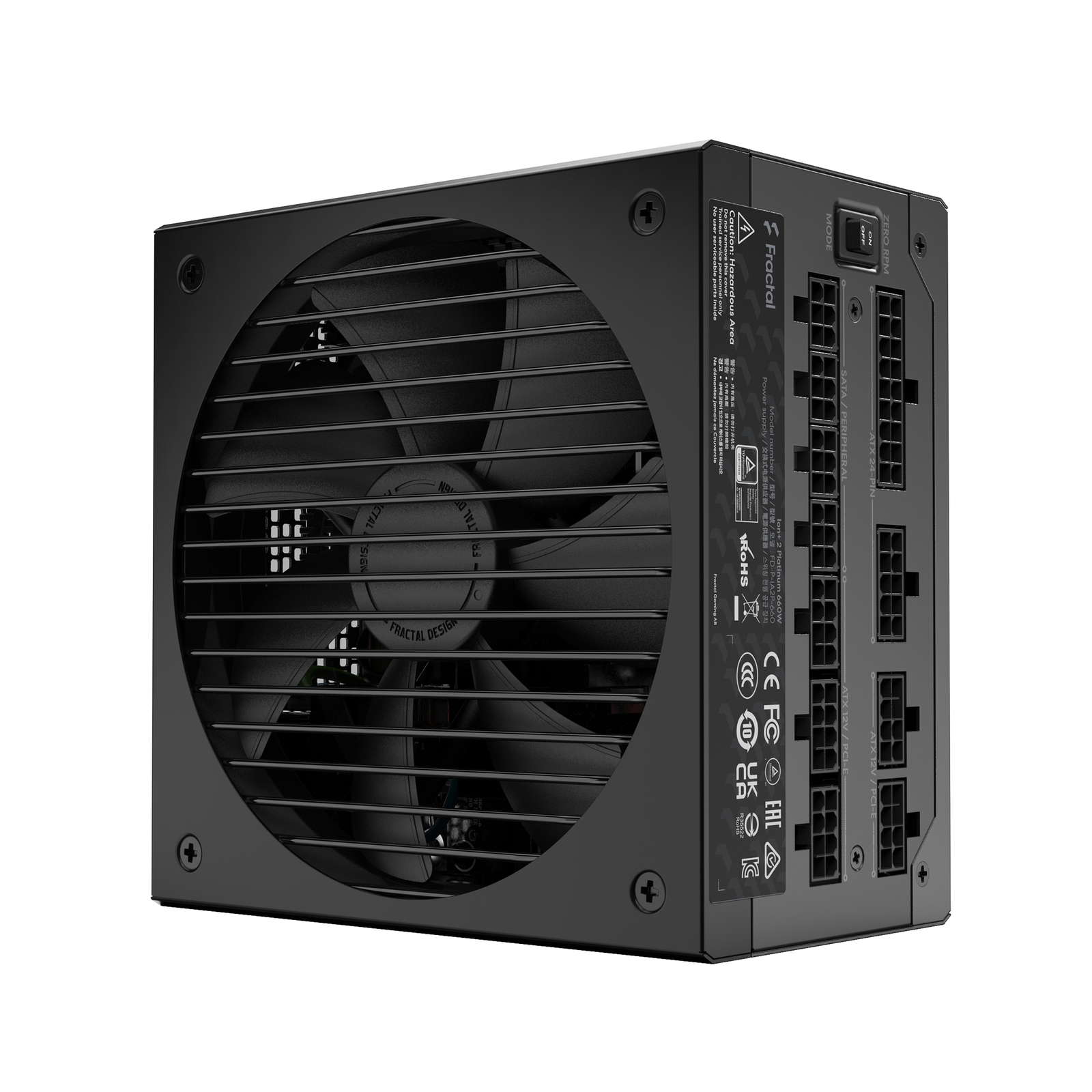

Custom-tailored fan

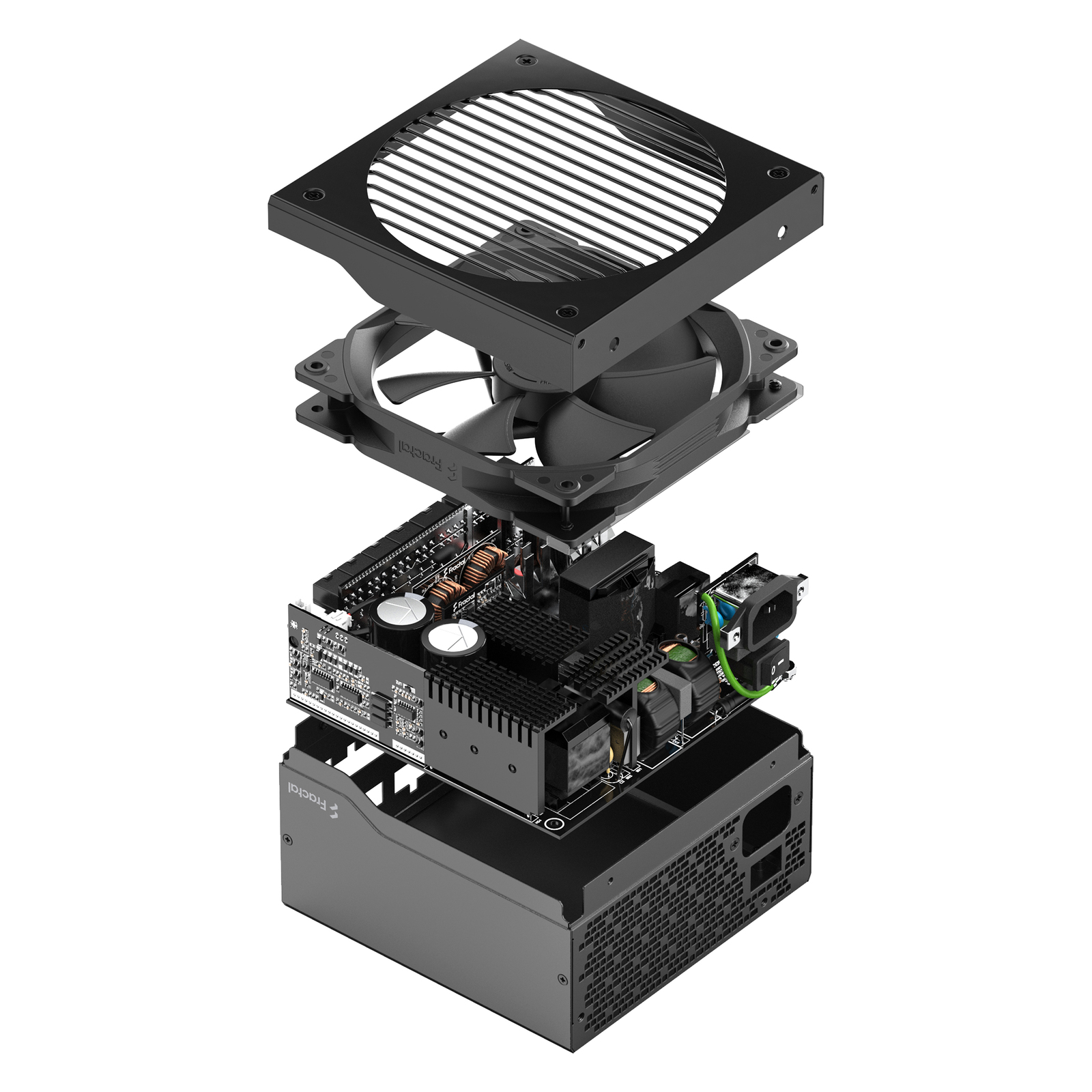

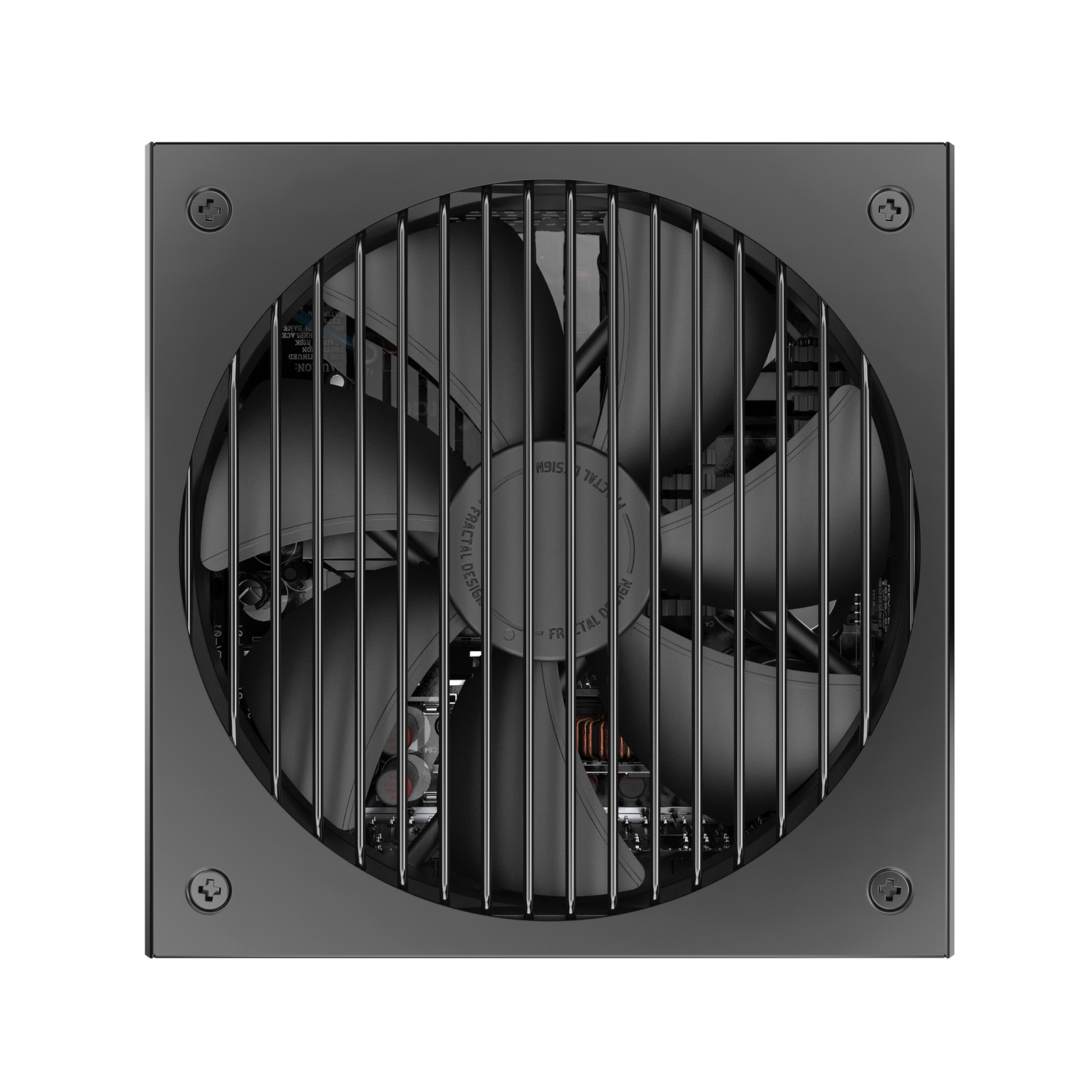

Equipped with a high-performance Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing



Compact advantages

  • Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases

  • Extensive 10-year warranty and a full electrical protection suite provides peace of mind



Semi-passive mode

User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress







Color Black/Gunmetal
Type ATX12V 2.52 / EPS12V 2.92
Maximum Power  660 W
Fans  140 mm FDB bearing Fractal Design Dynamic Series fan
PFC  Active
Main Connector  20+4Pin
+12V Rails  Single
PCI-Express Connector  4 x 6+2-Pin
SATA Power Connector  10
Modular  Full Modular
Energy-Efficient 80 PLUS PLATINUM Certified
Over Voltage Protection  Yes
Protection Over voltage protection
Under voltage protection
Over power protection
Short circuit protection
Over current protection
Over temperature protection

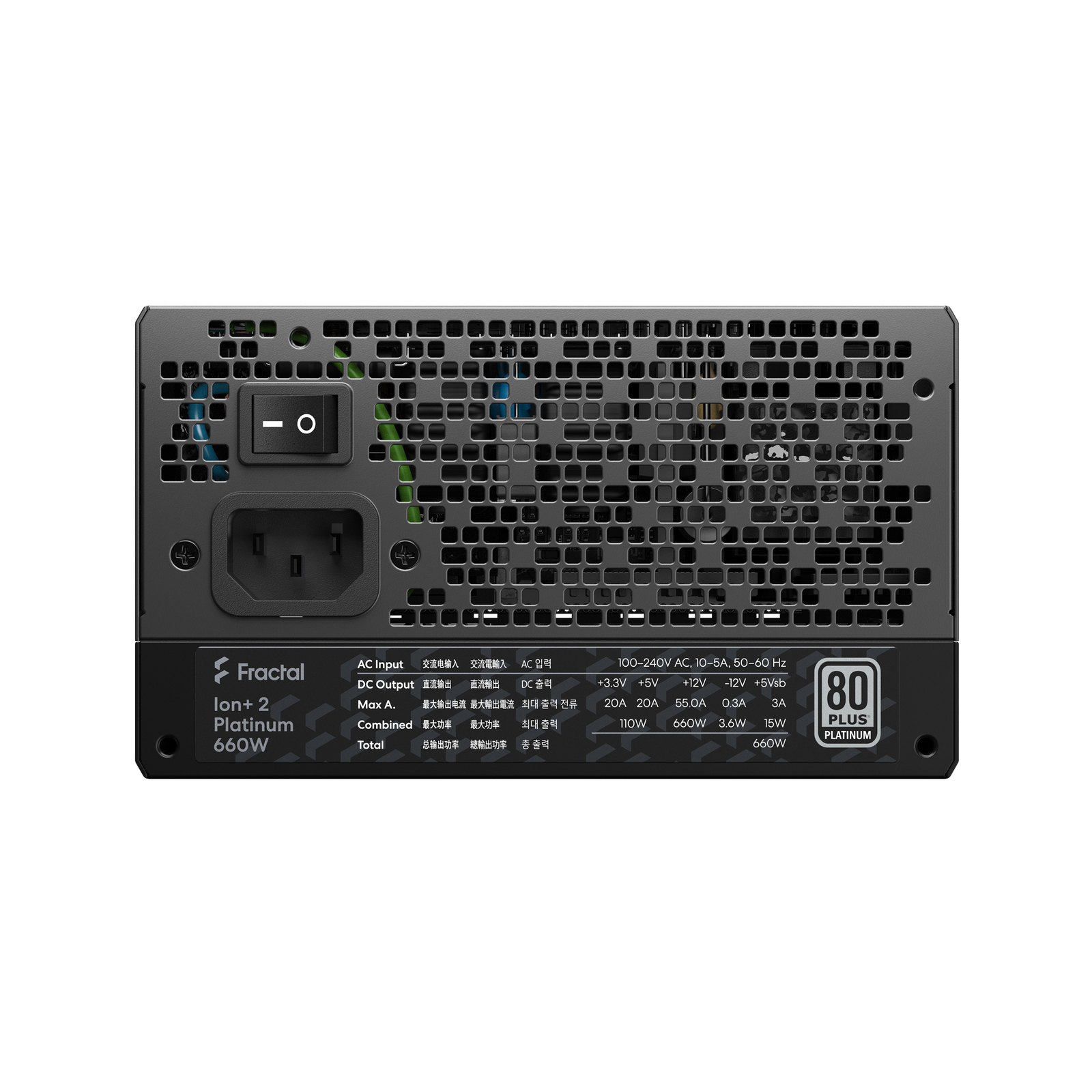

Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 10/5 A
Output +3.3V@20A, +5V@20A, +12V@55.0A, -12V@0.3A, +5VSB@3A
MTBF  >100,000 Hours
Approvals CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Max PSU Length 150 mm

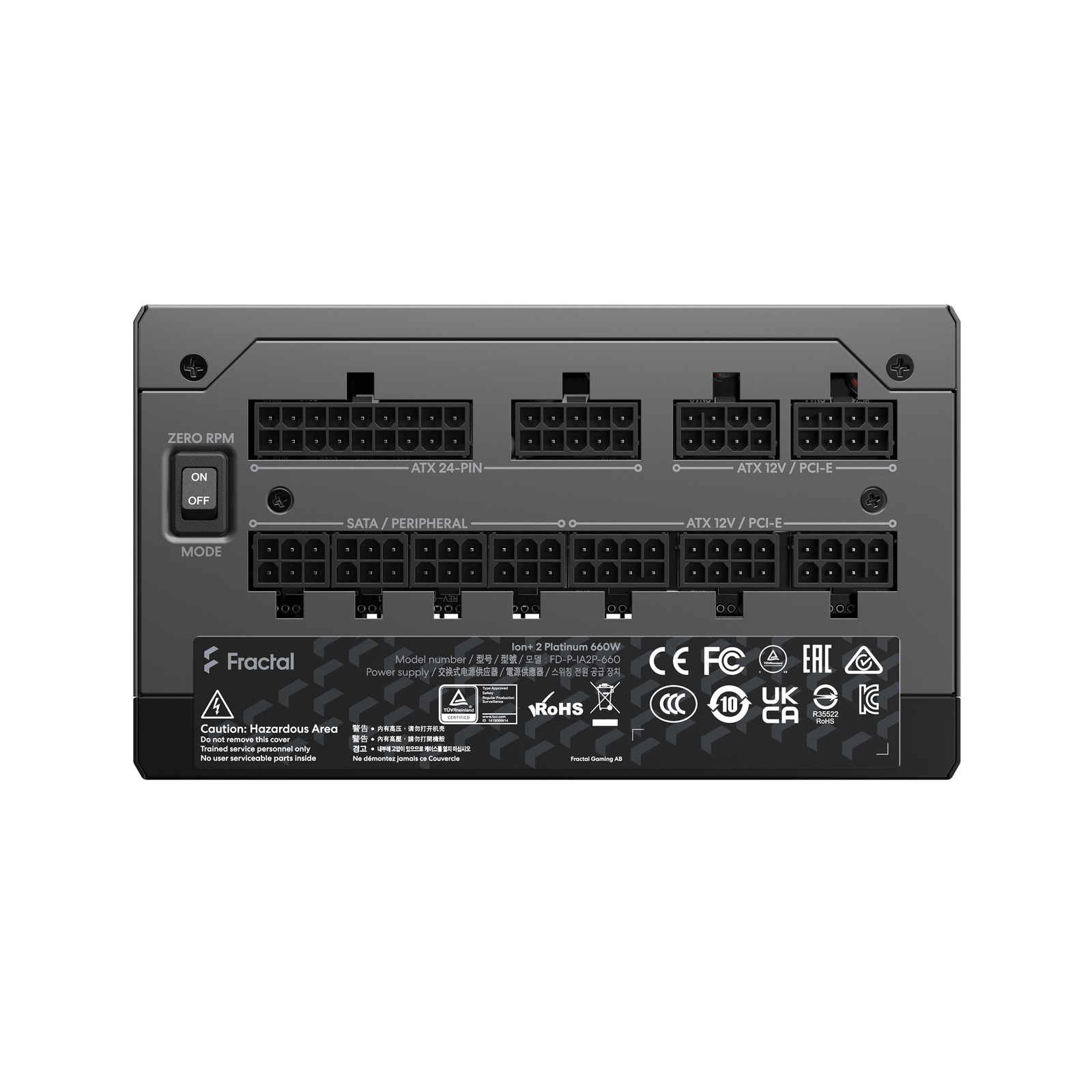

Connectors ATX: 1 x 20+4 pin
EPS/ATX12V: 2 x 4+4/8 pin
PCIe: 4 x 6+2 pin
SATA: 10
Peripheral: 4

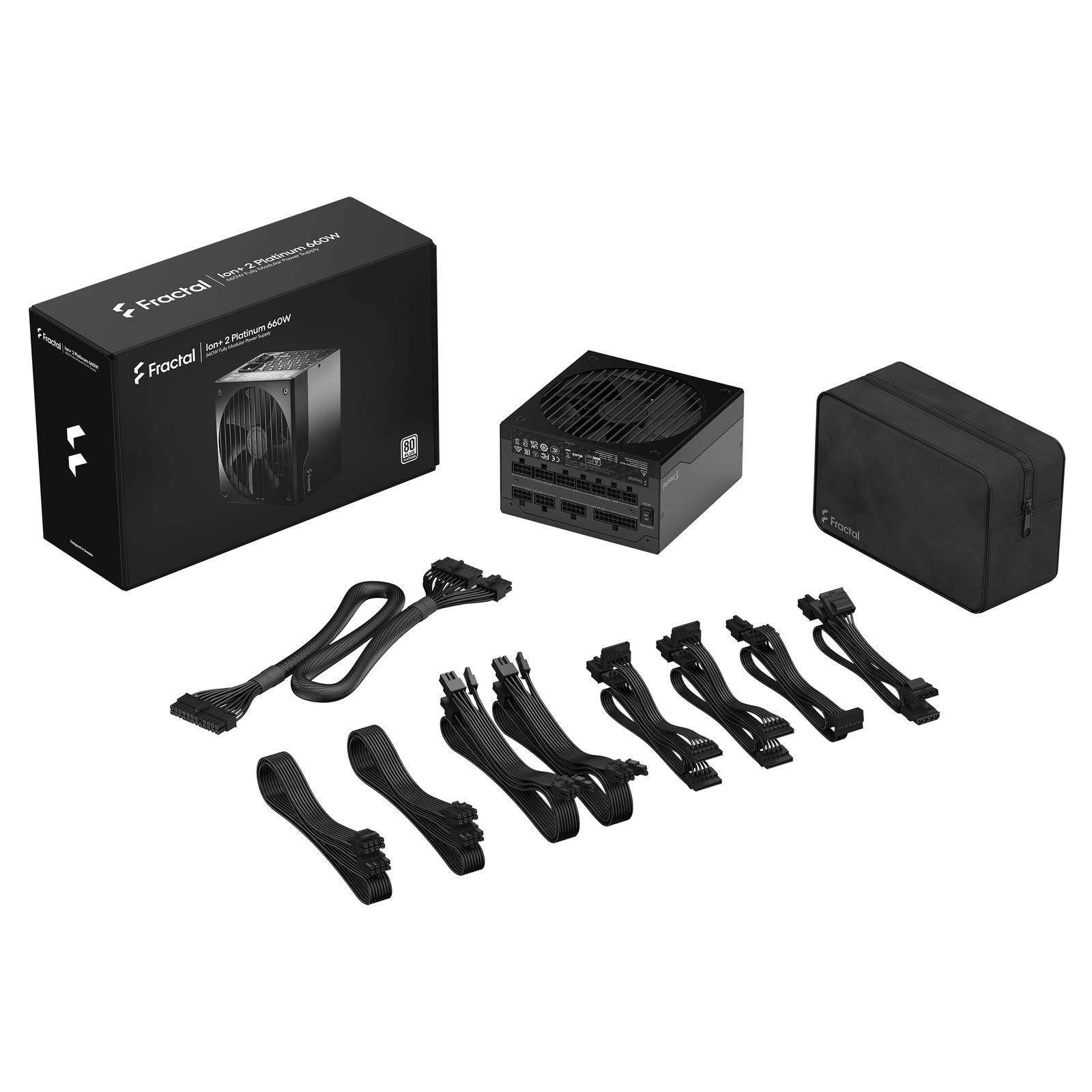

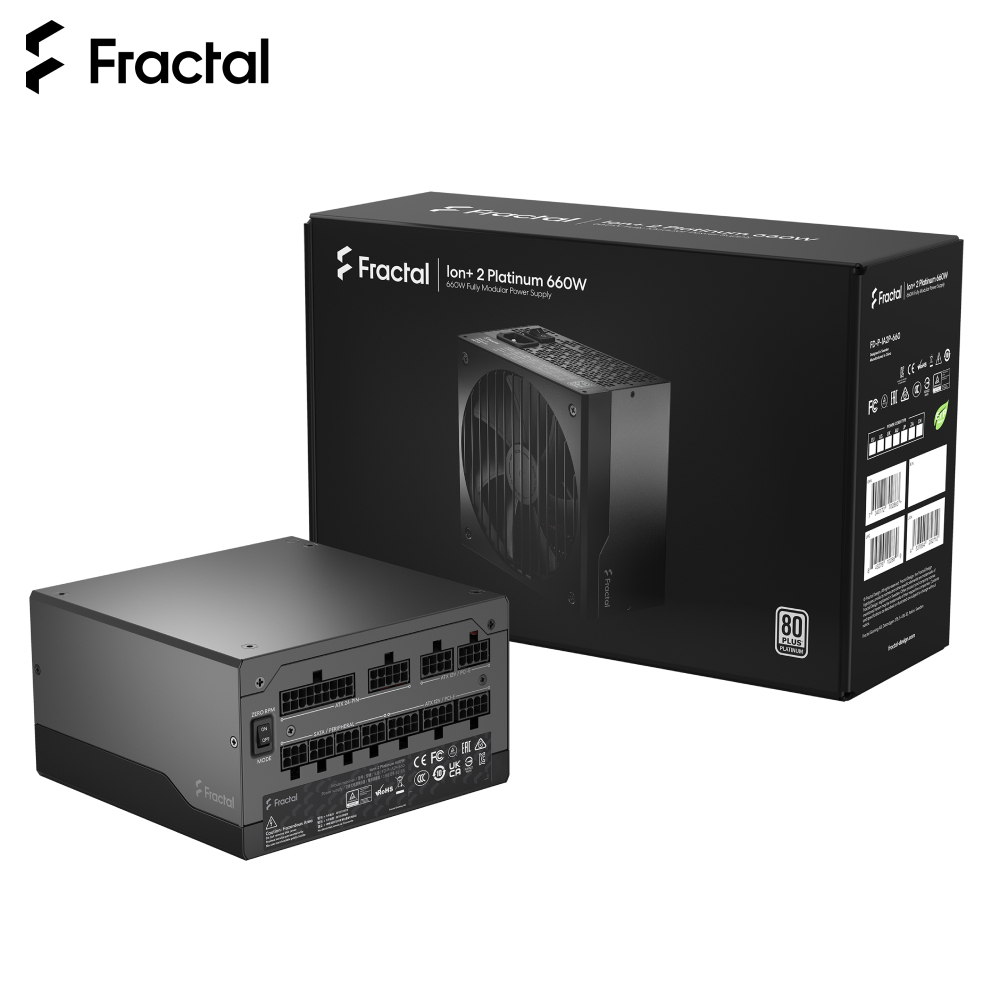

Package Content

  • Power Supply
  • Power Supply storage bag
  • Modular cable kit in storage bag
  • User guide
  • AC Power cord
  • Velcro cable ties and mounting screw pack
