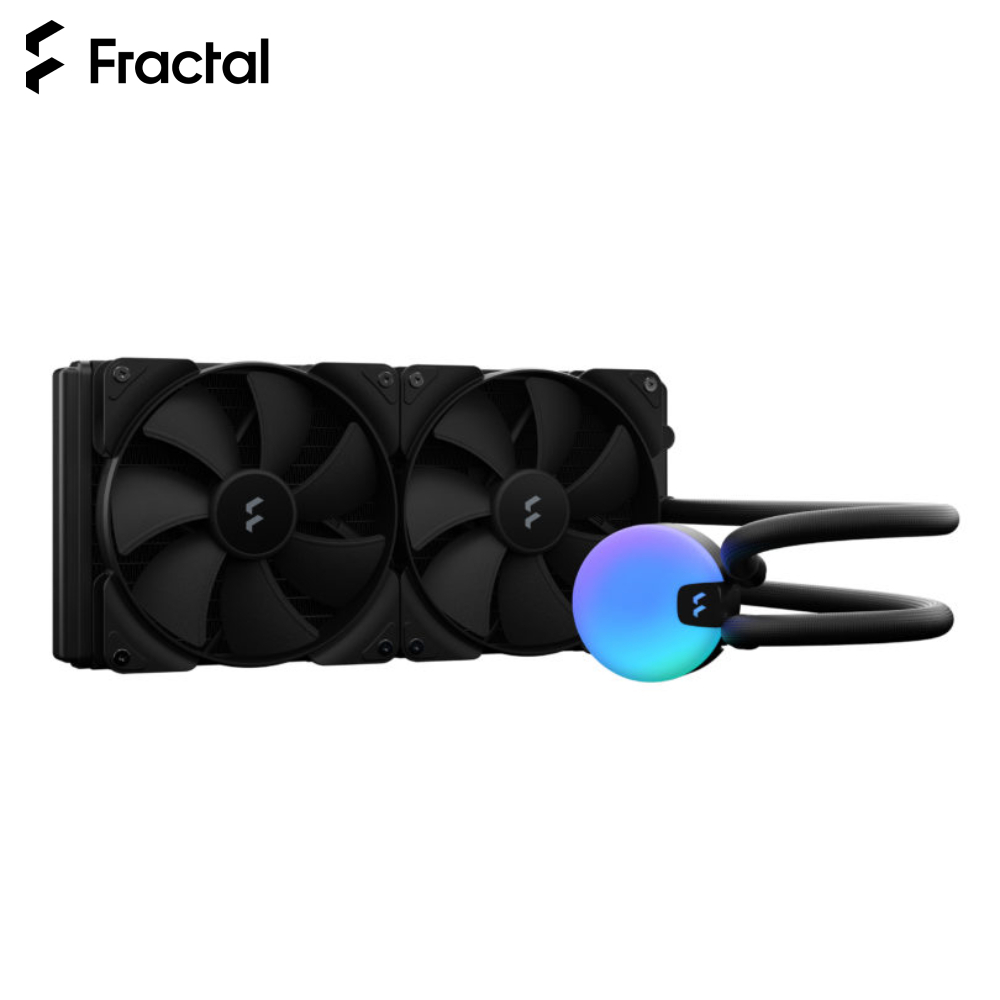

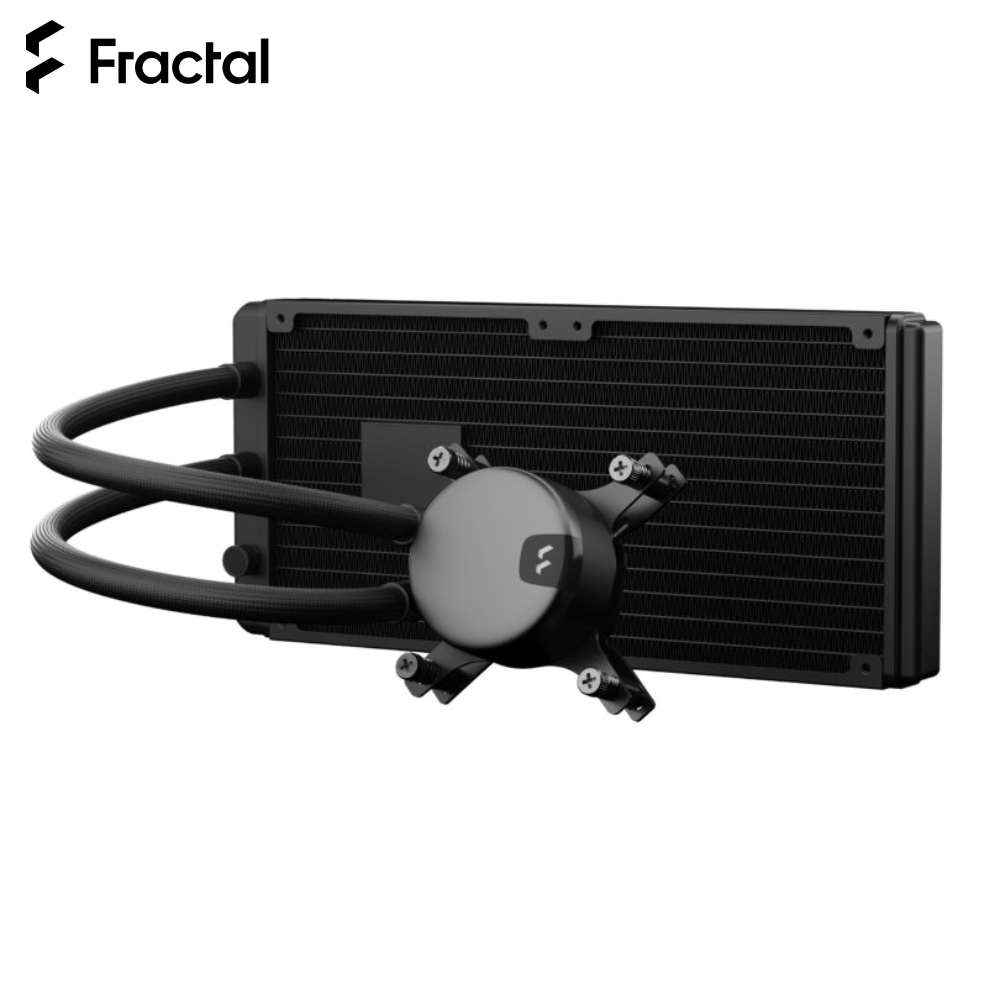

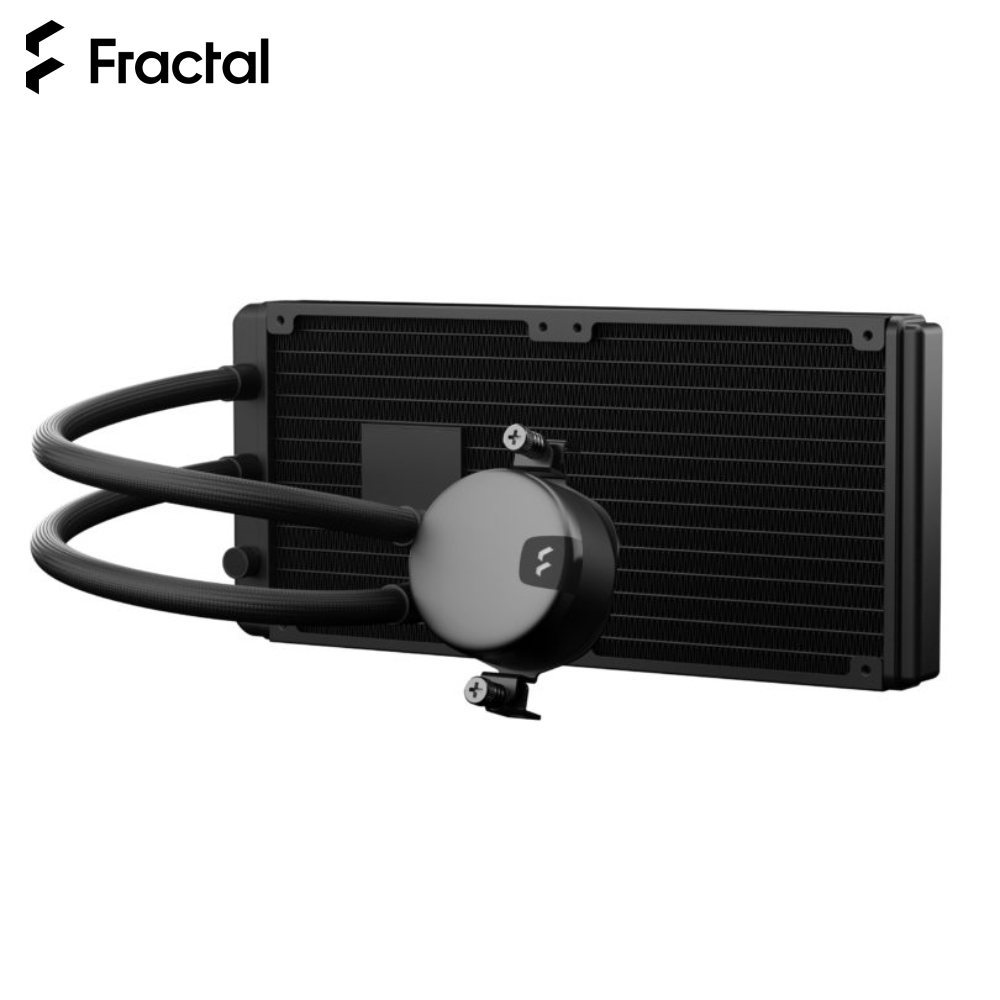

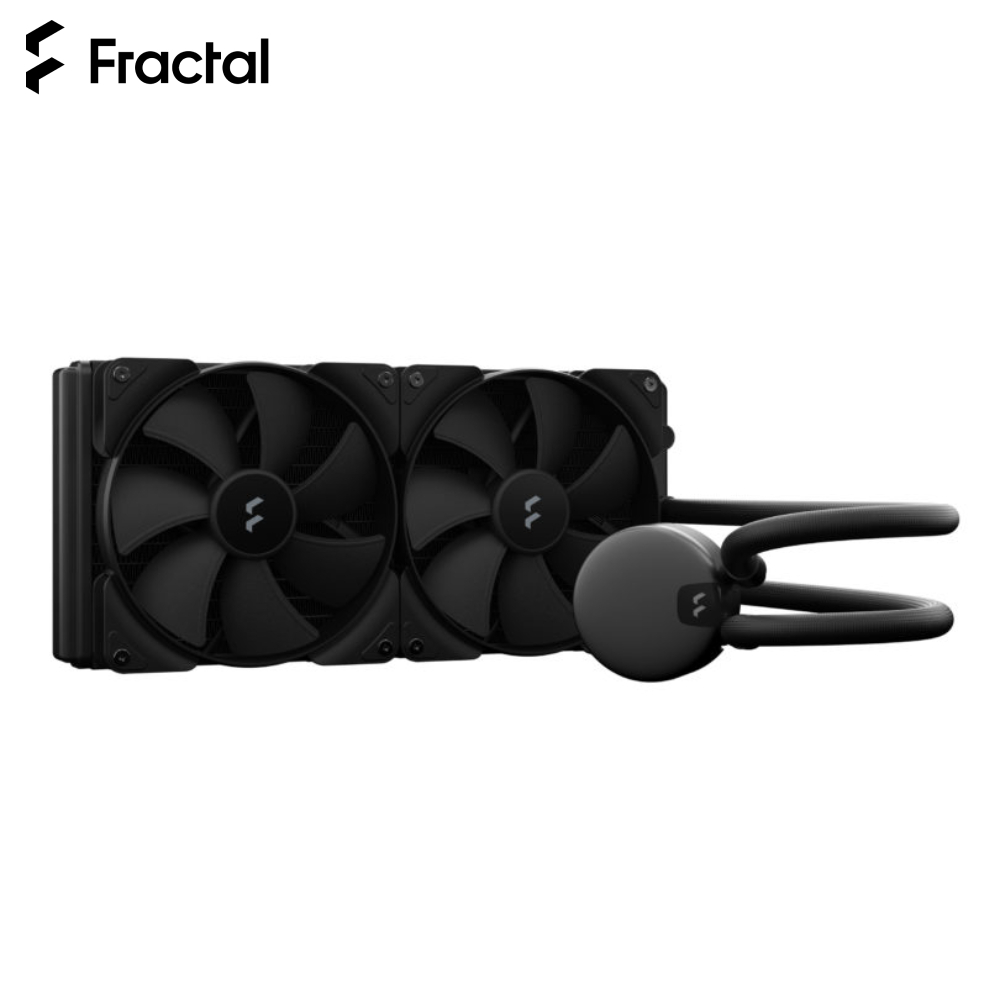

CPU Liquid Cooling System Fractal Design Lumen S28 Black FD-W-L1-S2801

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via a motherboard or controller. Compatible with the most common Intel/AMD sockets and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

  • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
  • Six ARGB LEDs are yours to command via your motherboard or controller
  • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation



Colour coordinated cooling

Customize your water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via a motherboard or controller. Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Lumen is an attractive proposition for starting and seasoned builders alike.



Key features

  • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
  • Six ARGB LEDs are yours to command via your motherboard or controller
  • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
  • Pre-applied thermal paste ensures an easy installation
  • Supports the most common sockets for both Intel and AMD
  • Aspect fans for low turbulence and chaining support
  • Articulating elbow fittings make tubes easier to route and reduce tension on the cold plate housing
  • Current certifications include Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
  • Low-permeability rubber tubes with braided nylon sleeves

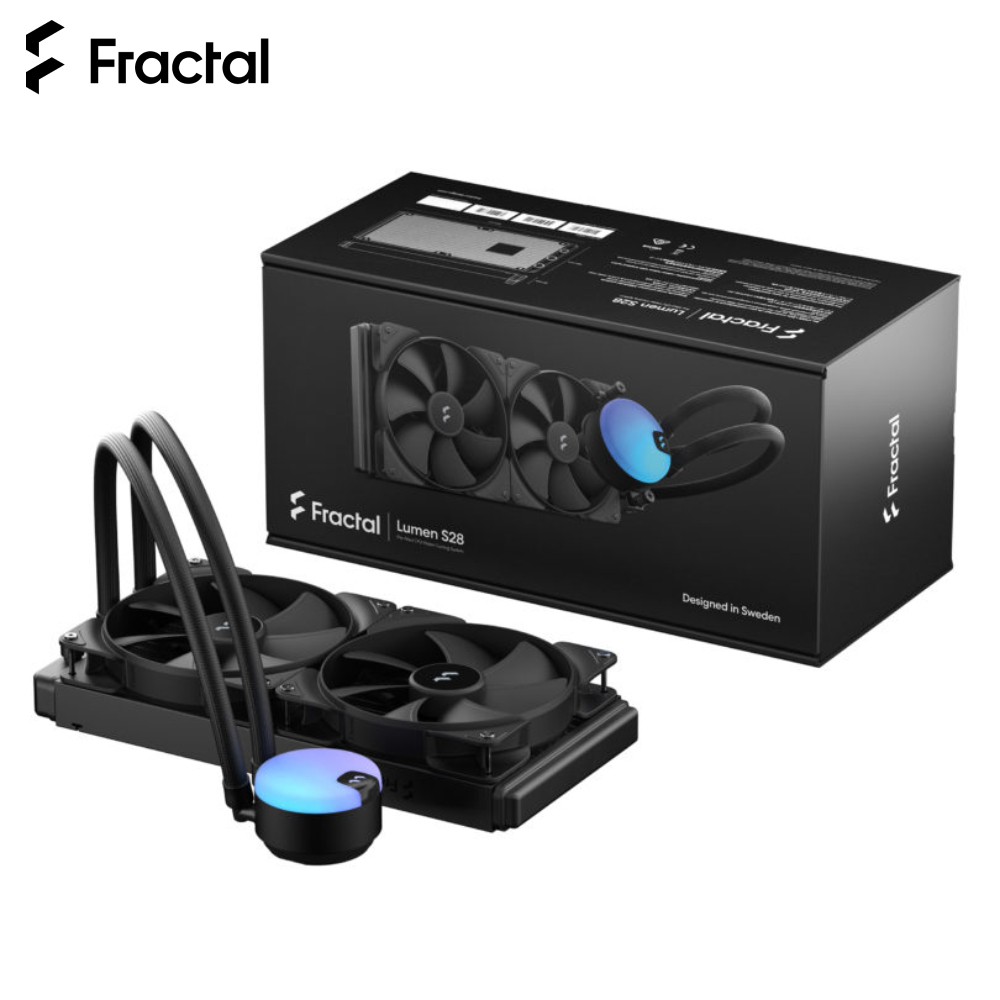

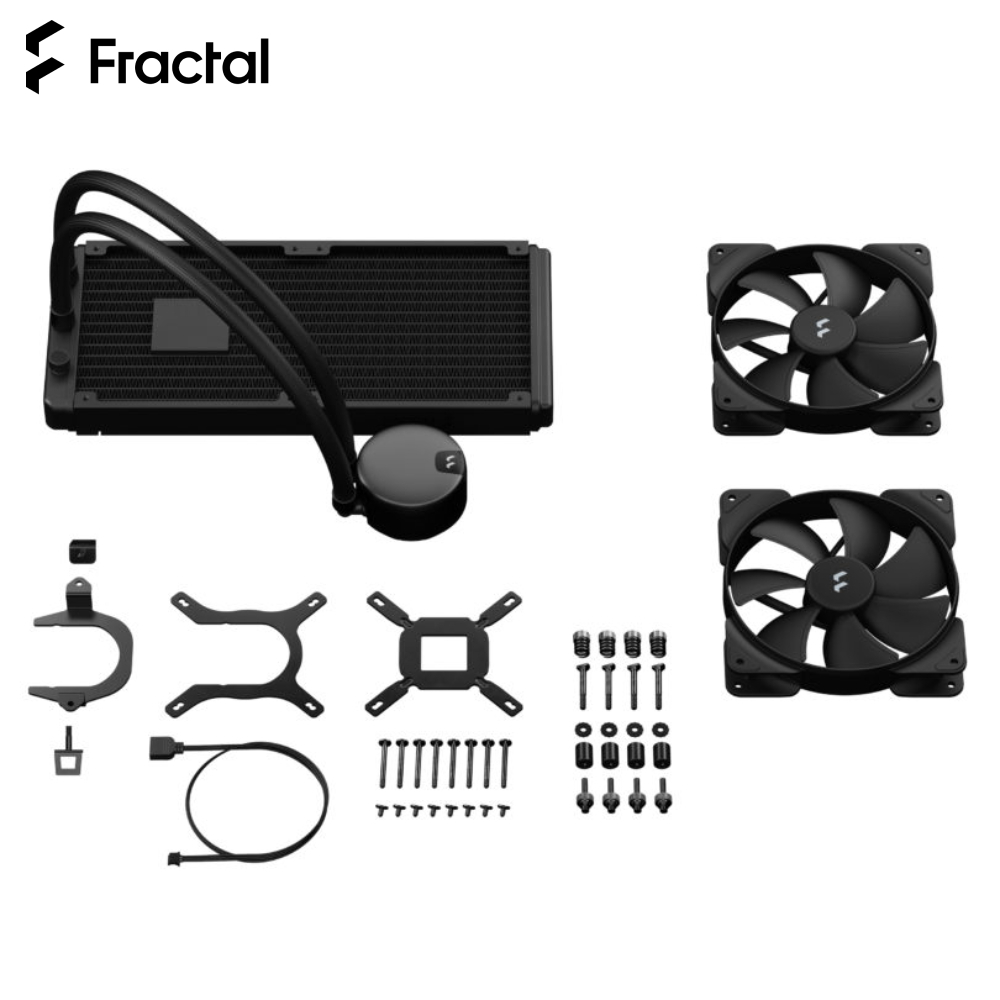

Package contents

  • CPU Cooler Assembly
  • 2x Aspect 14 BLCK fans
  • User Manual x1
  • Thumb screw x4
  • 6-32 Mounting Screw (short/long) x8
  • Bracket for Intel x1
  • Washer x4
  • Spacer x4
  • Intel 115X Backplate x1
  • Intel 115X Mounting Standoff x4
  • Intel 2011 Mounting Standoff x4
  • AMD Mounting Standoff x2
  • Bracket for AMD x1
  • 5V ARGB cable x1







  • Fan type - Aspect 14 PWM
  • Fan rotational speed - 500–1700 RPM
  • Fan bearing - Rifle bearings
  • Fan PWM control - Yes
  • Fan acoustical noise - <10–35.5 dBA
  • Fan maximum air flow - 20–78 CFM
  • Fan maximum static pressure - 0.3–2.05 mm H2O
  • Fan input voltage - 12V
  • Fan maximum input current - 0.24 A
  • Fan MTTF - 90 000 hours
  • Fan 4-pin Cable length - 500 mm
  • Fan aRGB 5V, 3-Pin Cable length - 500 mm
  • Cold plate material - Copper
  • Additional sound damping - No
  • Thermal paste - Pre-applied
  • Block Height - 43 mm
  • Block measurements (with fittings) - 79 x 67 mm
  • Block diameter (main block body) - 67 mm
  • Sockets supported (Intel) - LGA 1150/1151/1155/1156/1200, LGA 1366/2011/2011-3/2066
  • Sockets supported (AMD) - AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
  • Tube length - 400 mm
  • Tube material - Low-permeability rubber with braided nylon sleeve
  • Fittings, block side - Articulating 90-degree Elbow
  • Fittings, radiator side - Barbed fitting
  • Warranty - 5 years
  • Pump bearing type - Ceramic
  • Pump PWM control - No
  • Pump acoustical noise (full speed) [dB(A)] - 22 dBA
  • Pump maximum pressure - 1.8 m H2O/ 17.6 kPa / 2.5 PSI
  • Pump input voltage - 12 V DC
  • Pump input current (without fans) - 0.34 A
  • Pump MTTF - 50 000 hours
  • Radiator dimensions - 312 x 140 x 27 mm
  • Radiator housing material - Aluminum
  • Radiator fin material - Aluminum
  • Radiator fan screw threads - 6–32
  • Tube Length - 400 mm
  • Pump power cable length - 775 mm
  • aRGB 5V, 3-Pin cable length - 500 mm
