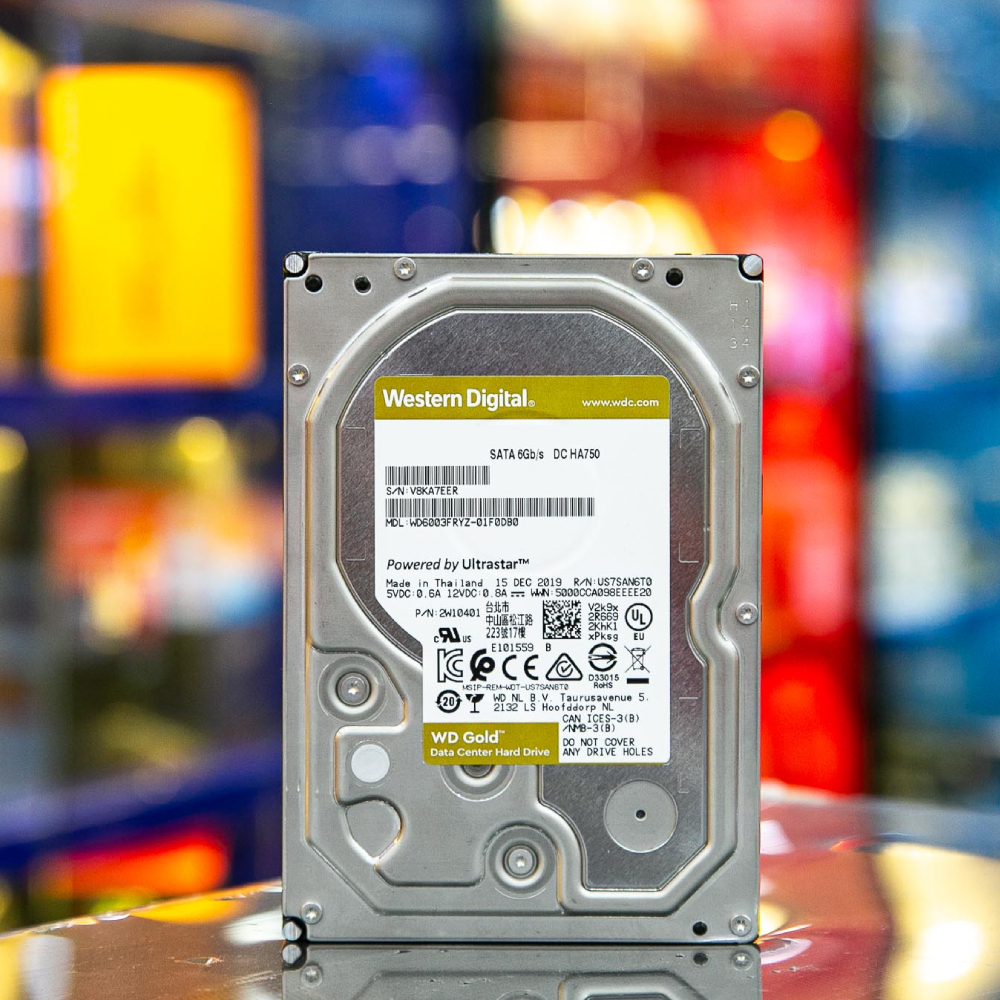

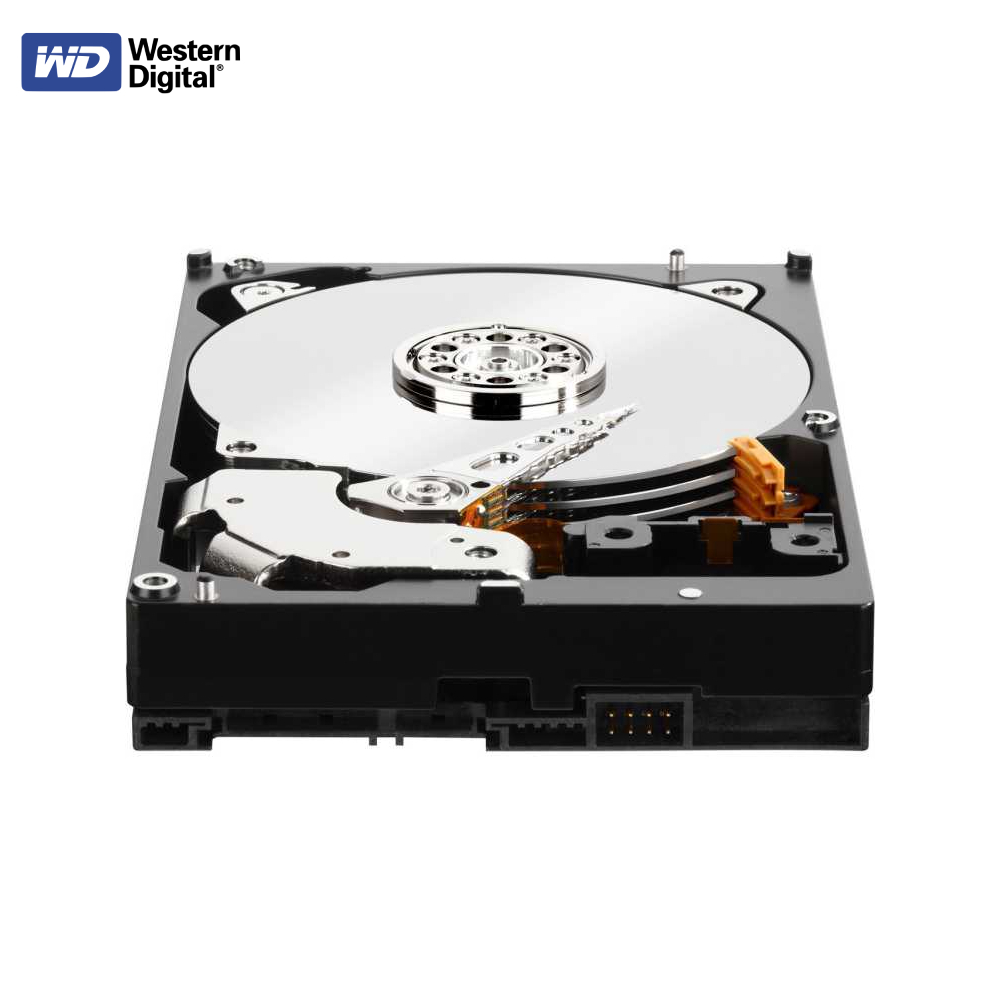

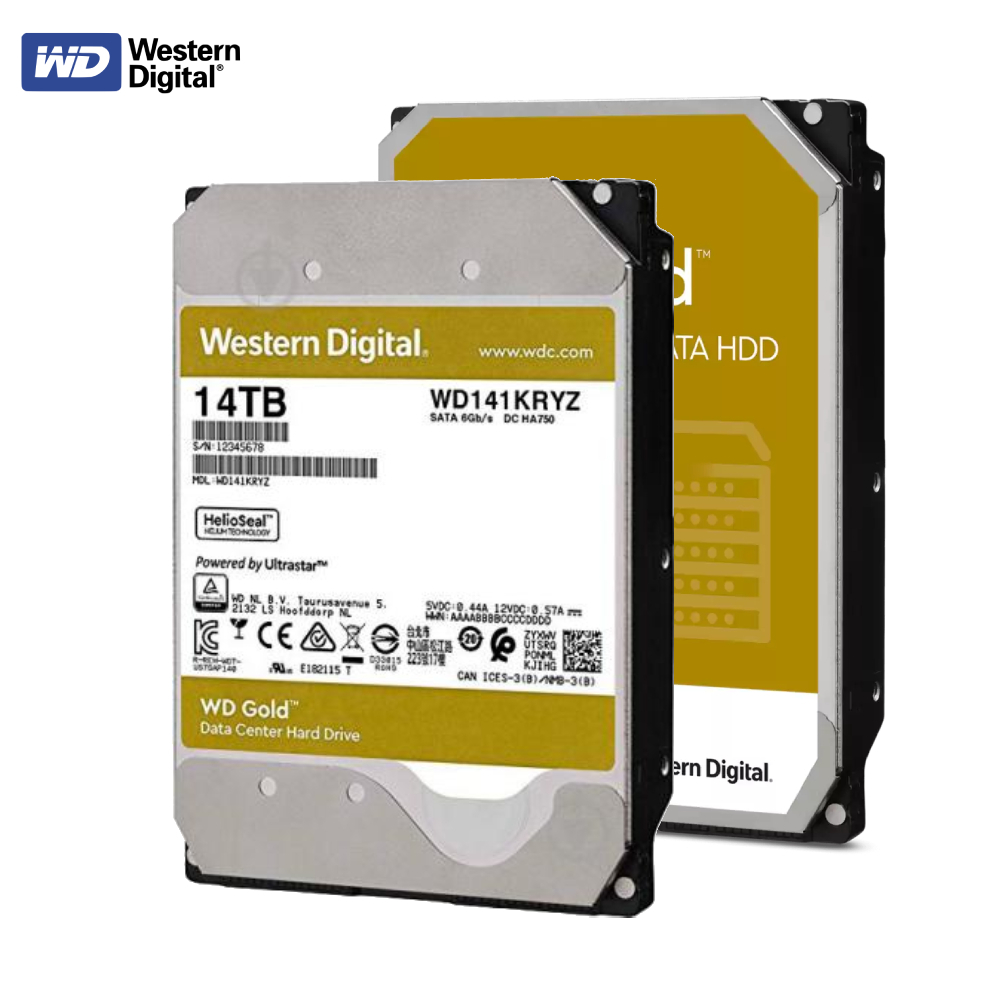

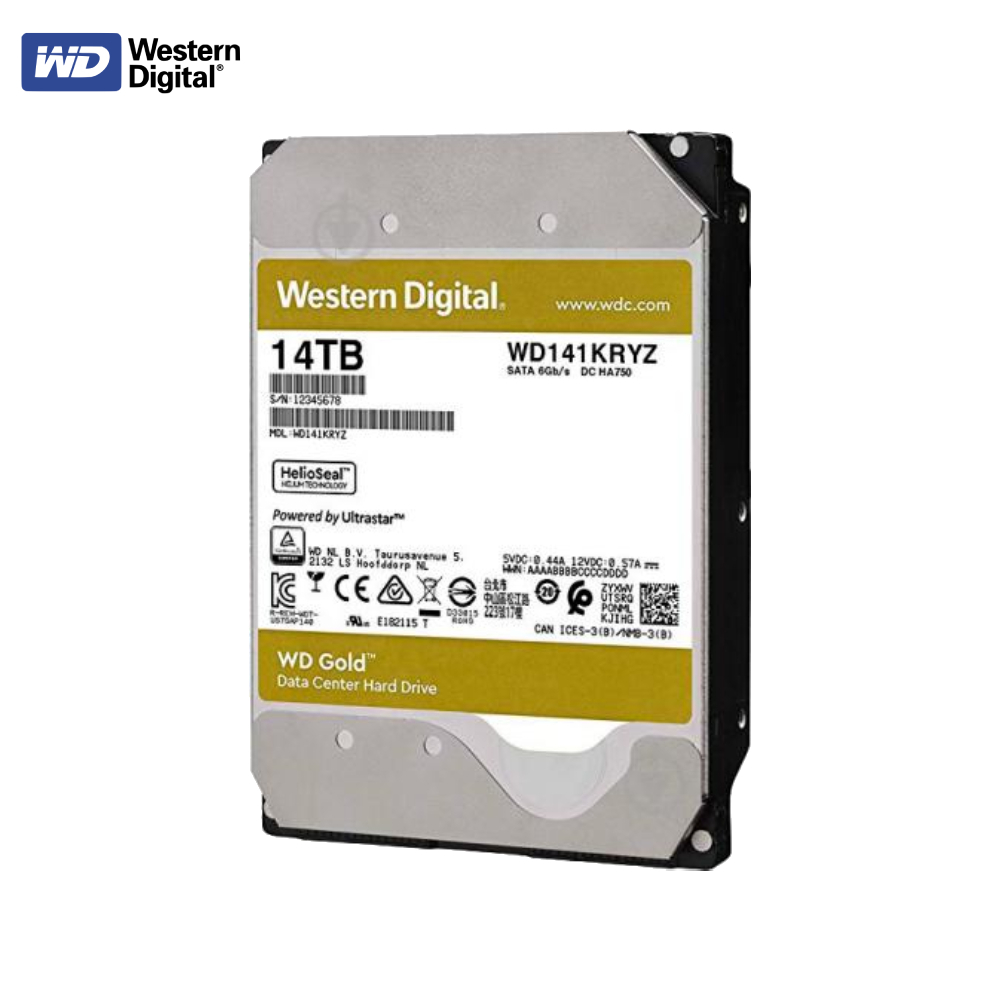

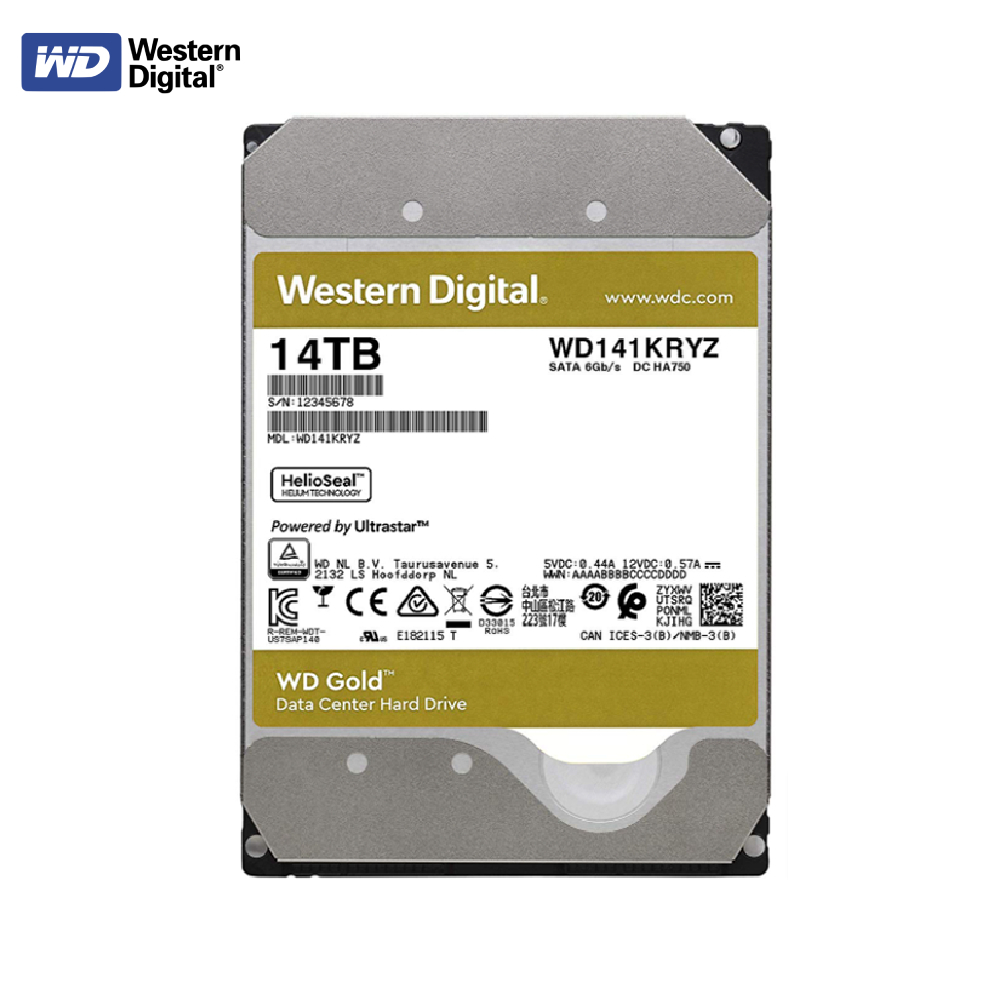

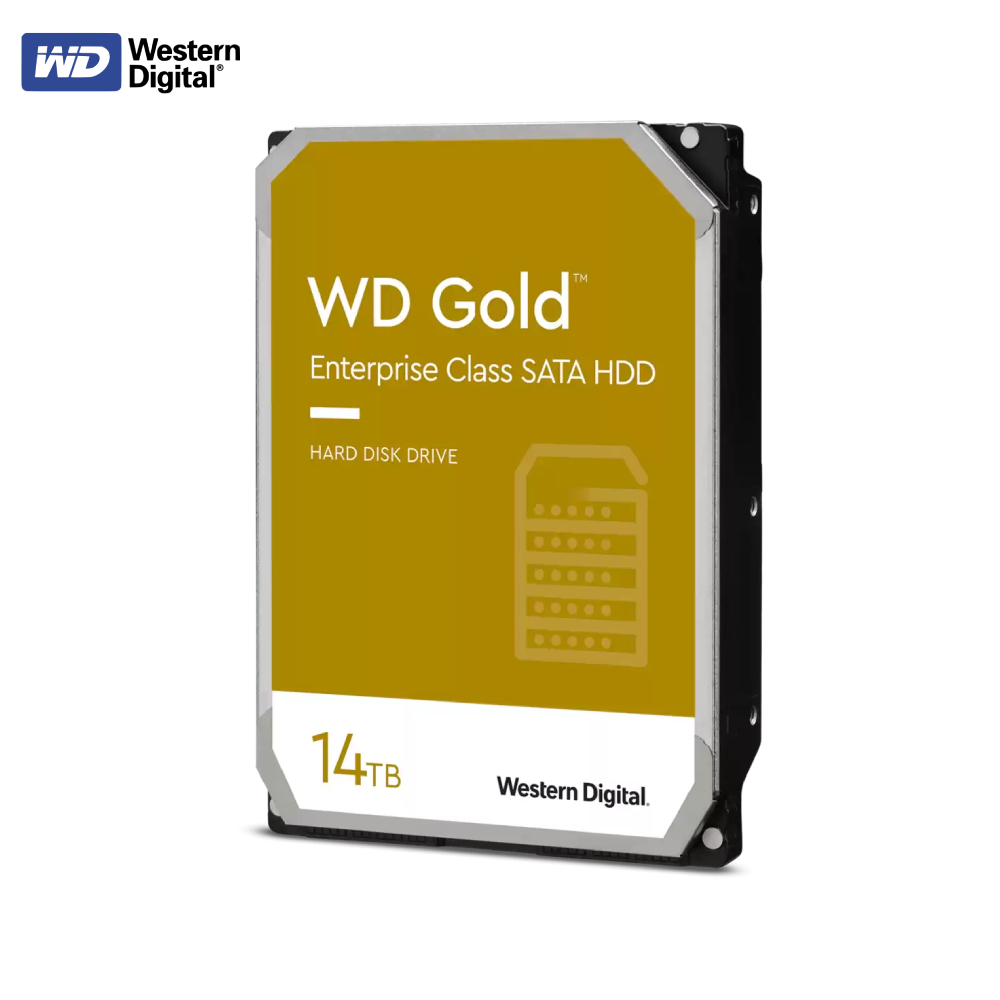

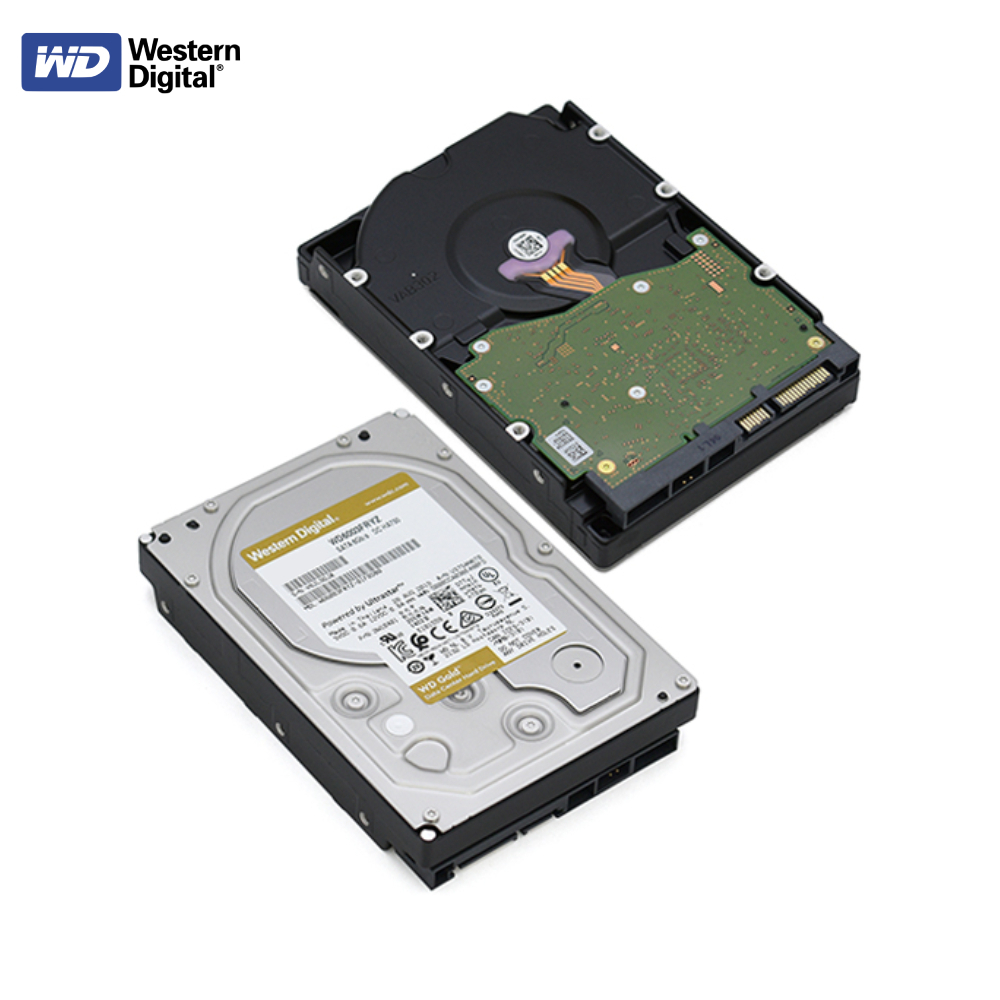

14TB 3.5" HDD WD Gold Enterprise SATA Internal Hard Disk Drive Western Digital WD141KRYZ

Product Highlights

  • Take on tough workloads; up to 10 times the typical desktop rates
  • Enhanced reliability with up to 2.5M hours MTBF
  • Specifically designed for use in enterprise-class storage systems and data centers
  • 14TB on a 9-disk CMR drive utilizing the first implementation of OptiNAND technology’s capacity-enabling features
  • Energy-assisted magnetic recording (EAMR) and triple-stage actuator (TSA) (in 16TB capacities and above)



Go for Gold
Conquer tough workloads with enterprise-class WD Gold™ HDDs. Available in 1TB to 20TB capacities, these highly reliable solutions for demanding storage environments provide up to 2.5M hours MTBF, vibration protection technology and a low power draw thanks to HelioSeal™ technology [for 12TB and above]. Specifically designed for use in enterprise-class data centers and storage systems, the WD Gold™ SATA HDDs deliver the world-class performance you expect from Western Digital hard drives.

Beyond Expectations

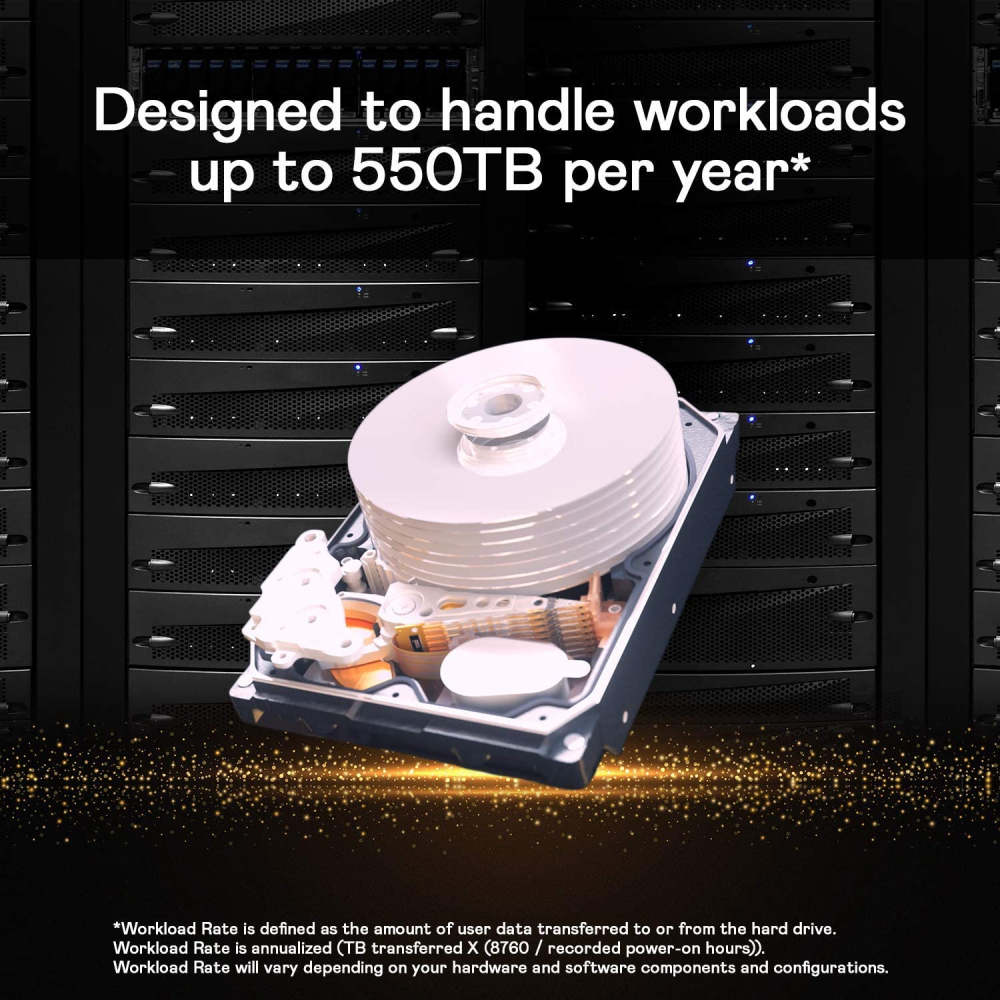

WD Gold™ hard drives are performance-optimized for heavy application workloads and are designed to handle workloads up to 550TB per year. Whether you need 1TB or 20TB, the wide capacity range of WD Gold™ HDDs solves for the most demanding storage environments.

Enhanced Reliability
With up to 2.5M hours MTBF, WD Gold™ hard drives deliver enhanced levels of dependability and durability.

Reimagining the HDD
WD Gold™ offers 20TB on a 9 disk CMR drive with reimagined HDDs utilizing the first implementation of OptiNAND™ technology's capacity-enabling features.​

Vibration Protection
WD Gold™ has sophisticated monitoring electronics that help correct linear and rotational vibrations in real time using enhanced vibration protection technology for improved performance in high-vibration environments.

Play Well with Others

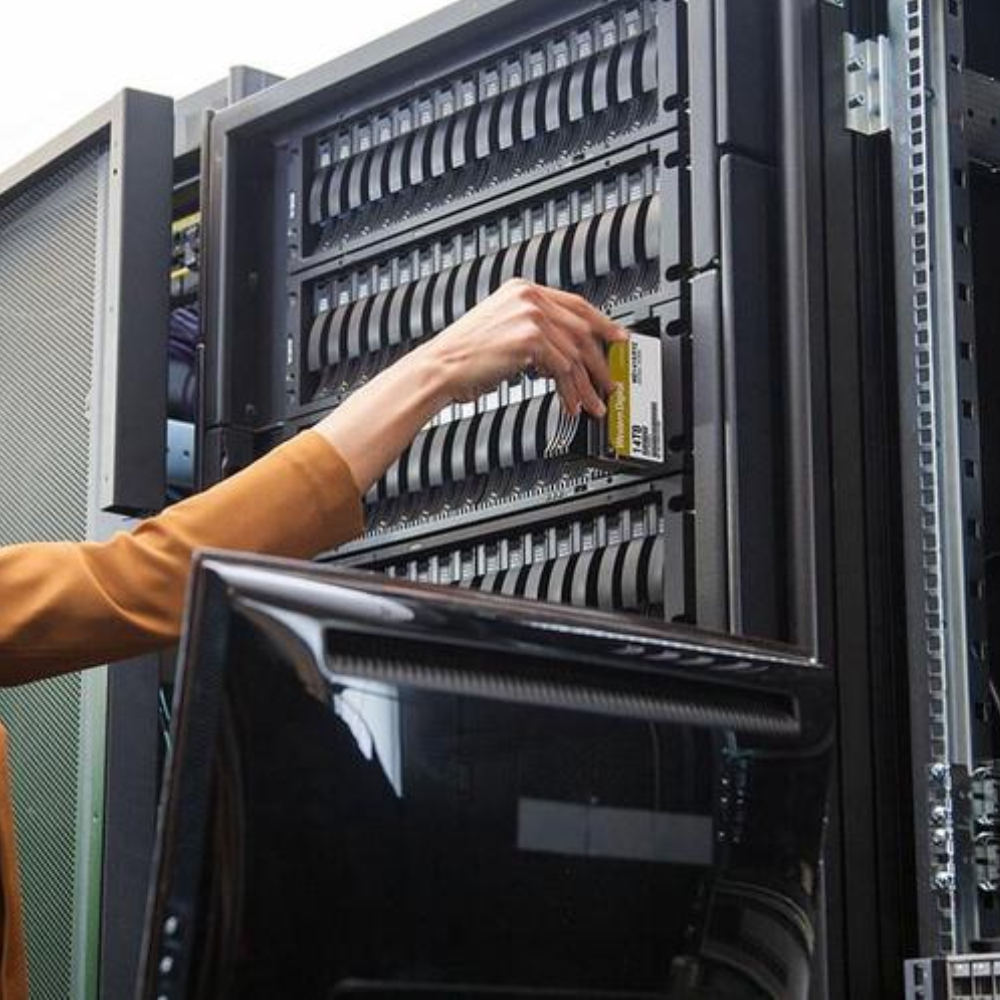

Broadly compatible with most PC and major enterprise operating systems. Specifically designed for use in enterprise-grade data centers and storage systems.

Leading the Way
Energy-assisted magnetic recording (EAMR) technology enables higher media precision and increases areal density. The triple-stage actuator (TSA) enhances the accuracy of head-positioning and delivers better performance and data integrity to also increase areal density. Both EAMR and TSA are available only in 16TB capacities and above.



  • Form Factor: 3.5-inch
  • Interface: SATA 6 Gb/s
  • 512n / 512e user sectors per drive: 512e
  • Formatted Capacity: 14TB
  • RoHS compliant: Yes
  • Data Transfer Rate5 (max Sustained) : 267MB/s
  • Performance (RPM): 7200
  • Cache: 256MB
  • Operational: 6.0W
  • Idle: 5.5W
  • Power efficiency index (W/TB, idle): 0.4
  • MTBF (hours, projected): 2,500,000
  • Annualized Failure Rate9 (AFR, %): 0.35
  • Operating Temperature: 5° C to 60° C
  • Non-Operating Temperature: -40°C to 70°C
  • Shock (Read/Write) Operating (half-sine wave, 2ms): 70G/70G
  • Non-operating (half-sine wave, 2ms): 300G
  • Idle Mode: 30 dBA
  • Seek Mode: 36 dBA
  • Height (max): 26.1 mm
  • Length (max): 147.0 mm
  • Width (± .01 in.): 101.6 mm
  • Weight: 1.46 lb. (.66 kg) ± 10%
