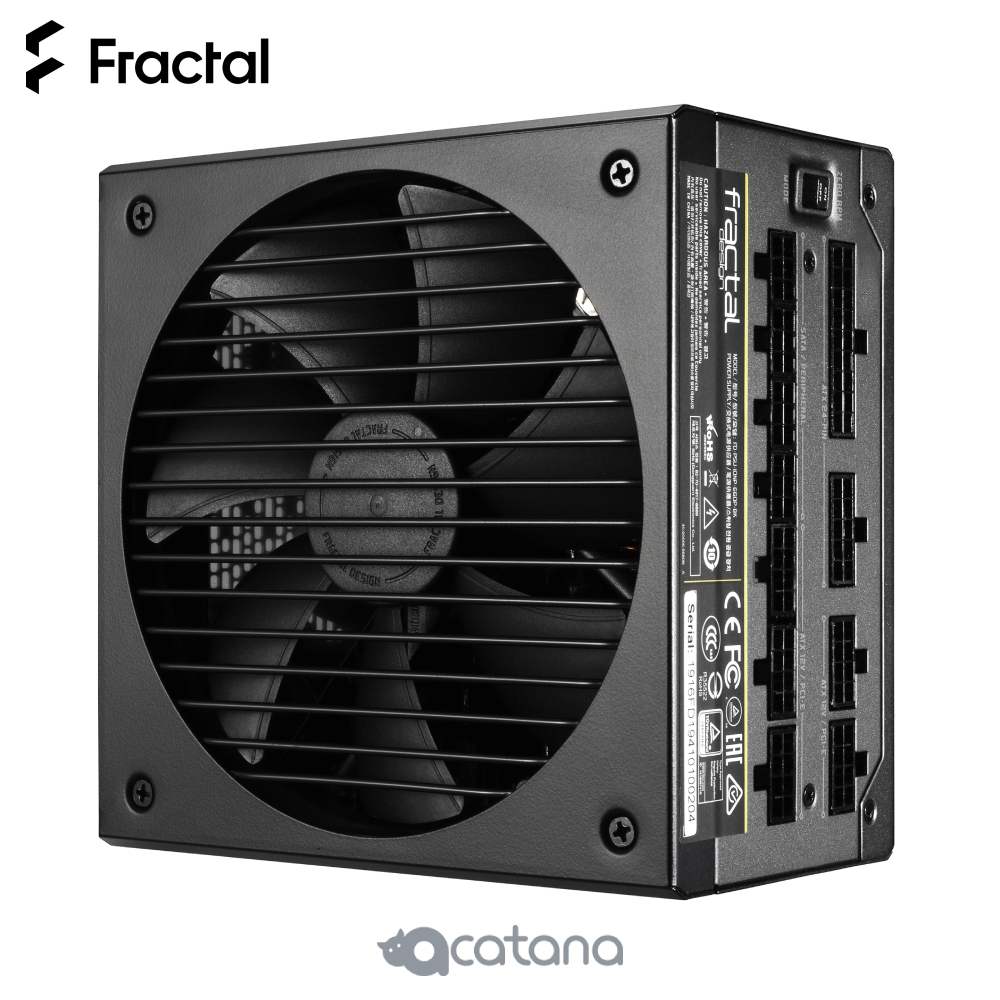

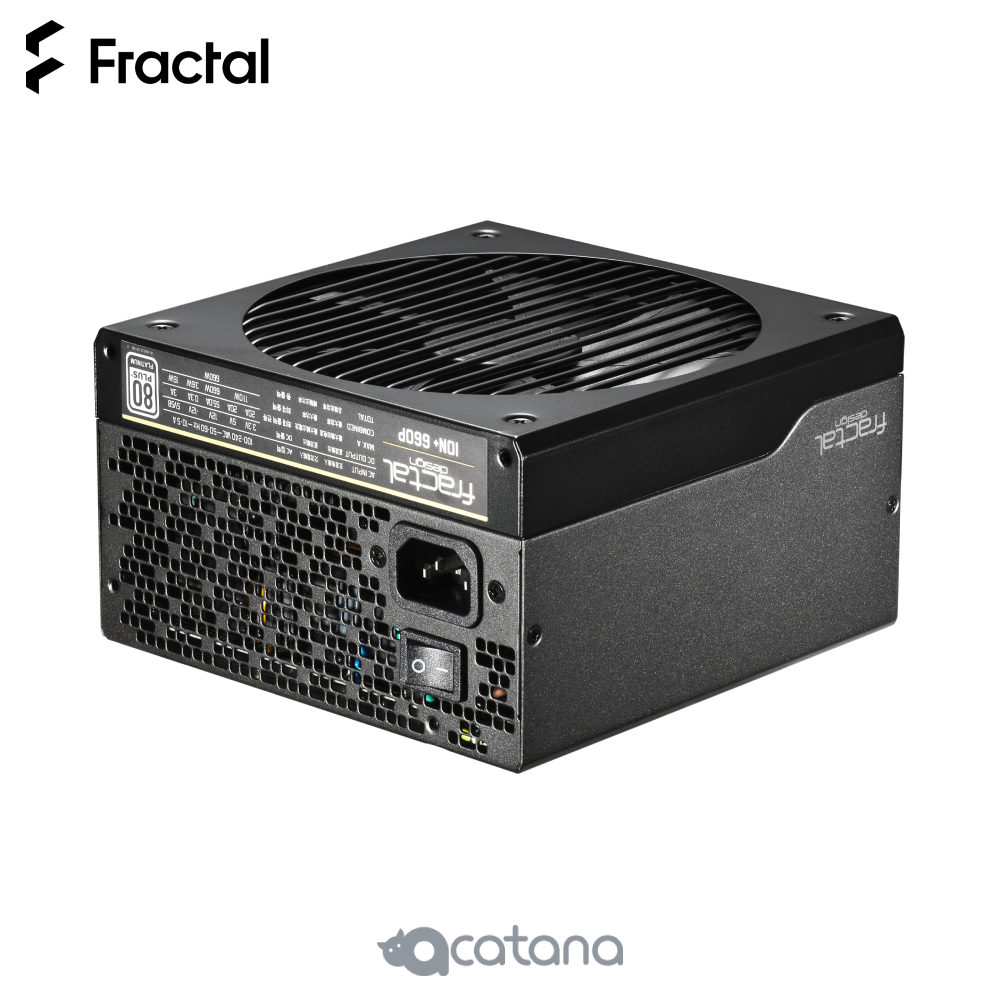

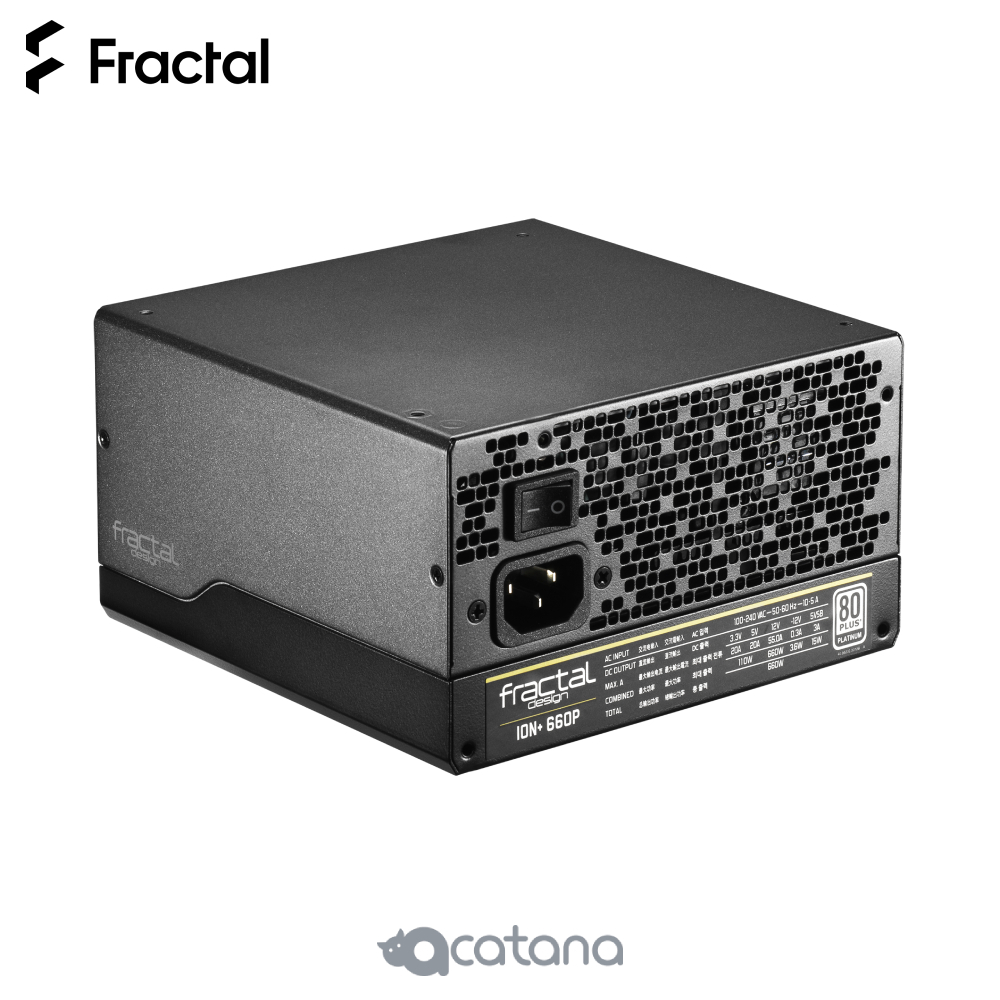

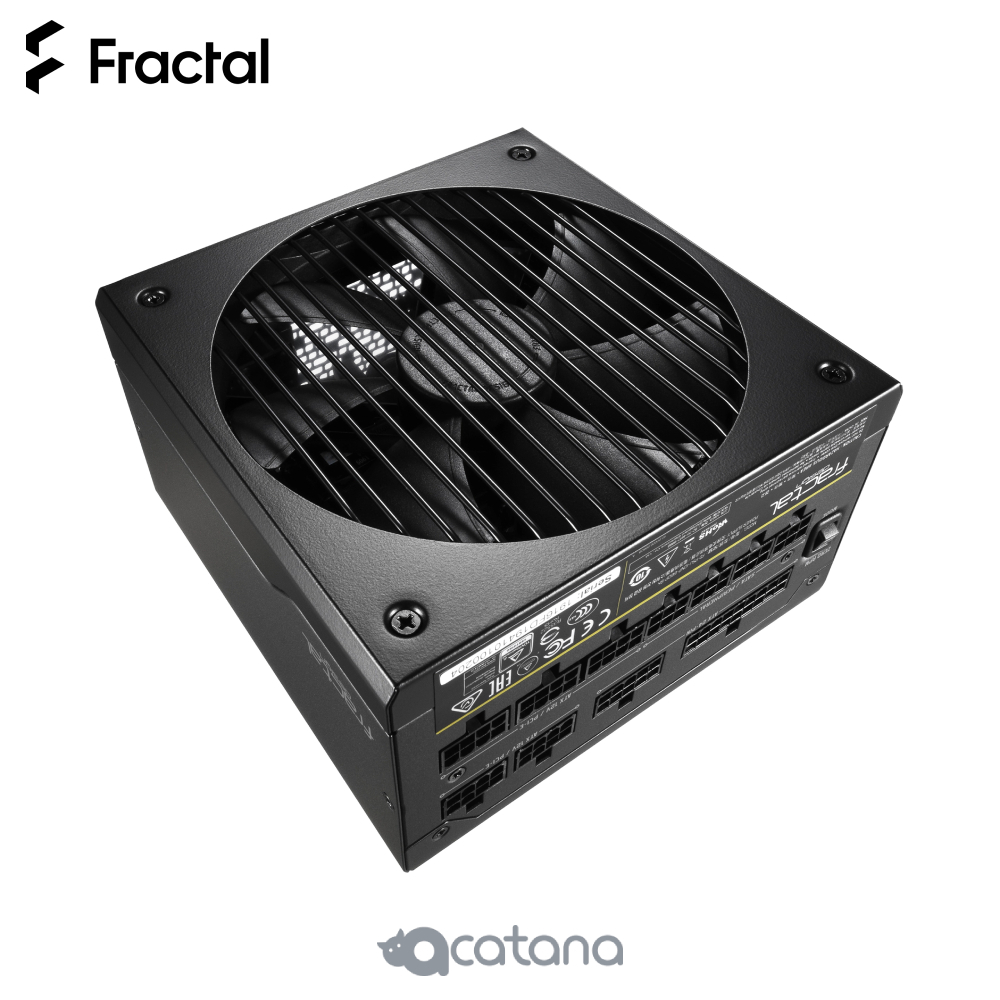

660W Power Supply Fractal Design Ion+ 660 Platinum 80+ Black PSU FD-PSU-IONP-660P-BK
Product Code: FD-PSU-IONP-660P-BK-AU
Price:
Share This Item:
Ion+ 660W Platinum
The Ion+ Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality
- UltraFlex DC wires for effortless cable-routing and connectors
- Custom-tailored 140 mm fan with exceptionally low minimum speed
- 80 PLUS® Platinum Efficiency for optimized electrical performance
Key features
- Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation—not fight it

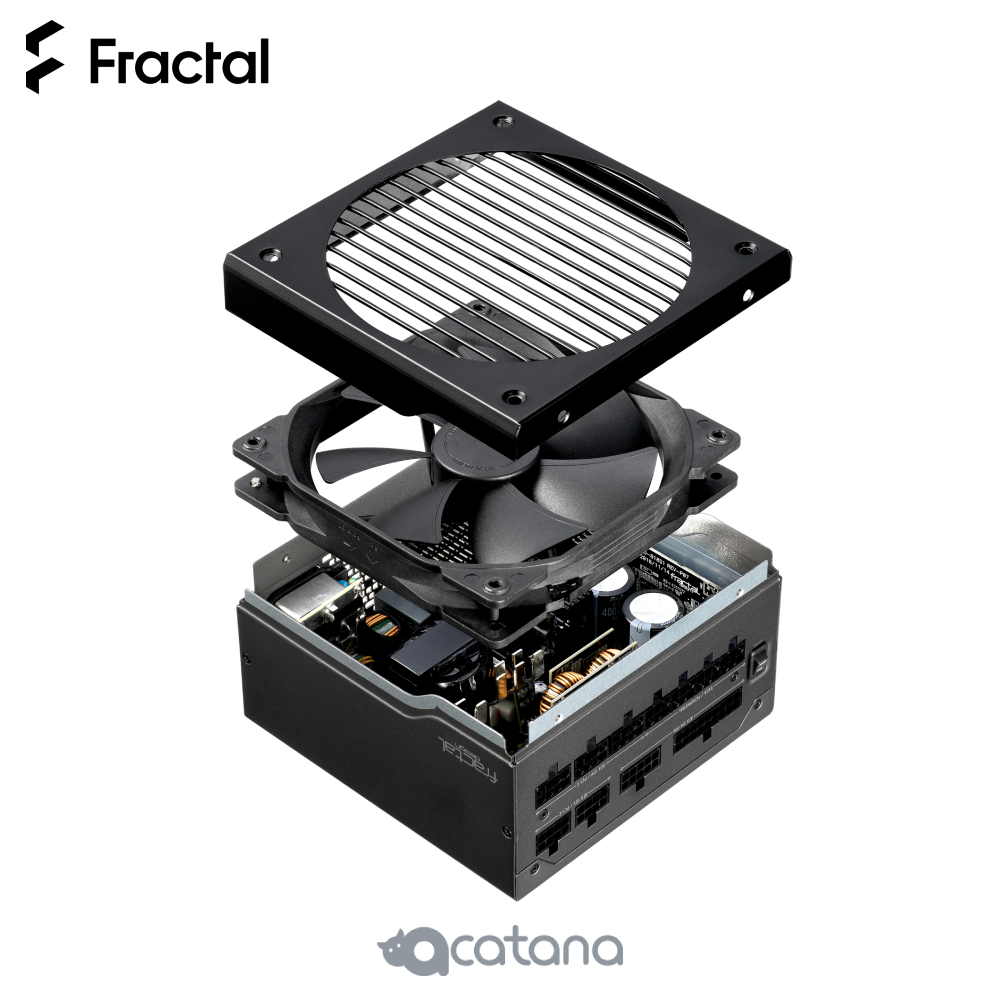

- Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing
- 80PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
- User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
- Outstanding output quality with tight voltage regulation and extremely low noise and ripple

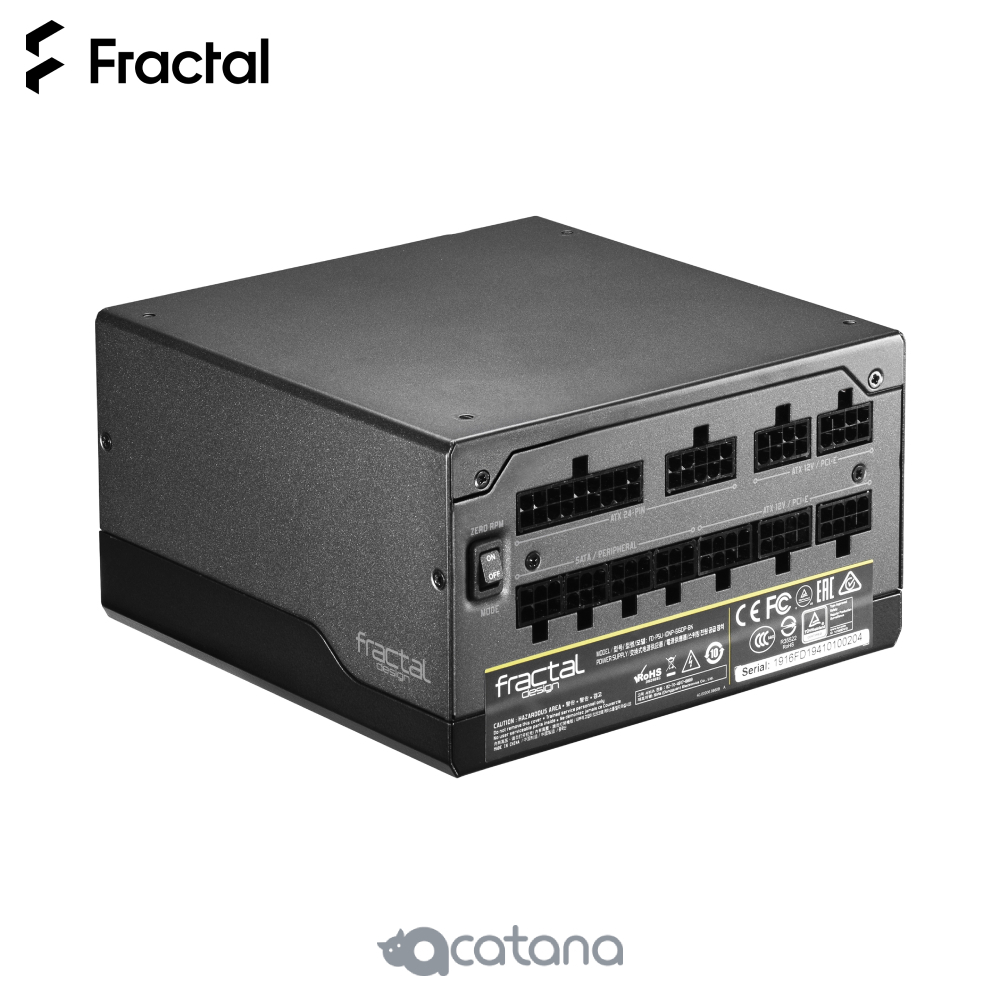

- Fully modular design for reduced clutter and maximum ease of installation

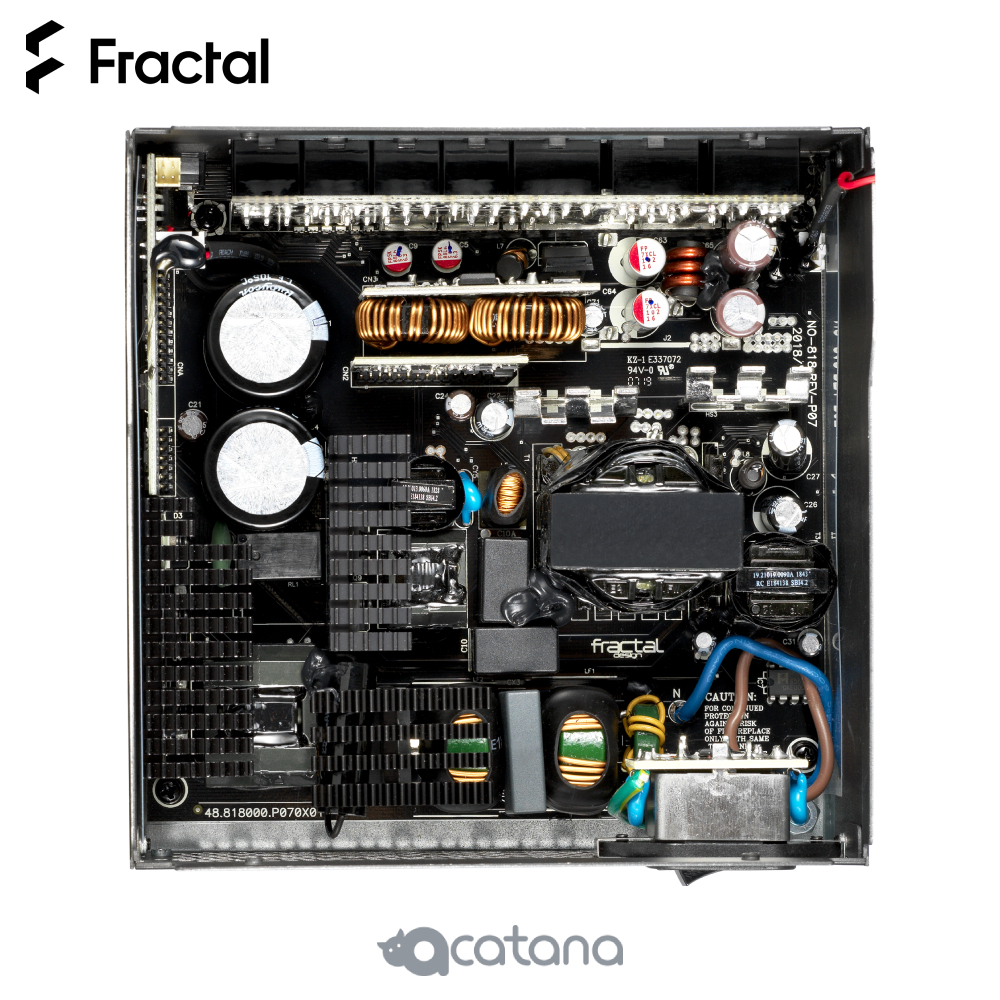

- Premium Japanese 105° C capacitors provide enhanced reliability and durability
- Compact 150 mm depth easily fits compact spaces with extra headroom for cable management
- Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
- Extra-long 600 mm 24-pin ATX cable and 700 mm 4+4 pin cable
The power of silence
A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and under heavy use the custom-tailored 140 mm fan with FDB bearings barely breaks a whisper. The revolutionary UltraFlex cable bends and twists effortlessly to make installation and cable-routing a breeze, thanks to an ultra-high strand count wire and special insulation.
Ion+ is available now in 560, 660, 760 and 860 watt capacities, all with 80 PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for your peace of mind.
Power with a plus
- Fully modular design for reduced clutter and maximum ease of installation
- Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing
Japanese capacitors
Premium Japanese 105°C capacitors provide enhanced reliability and durability

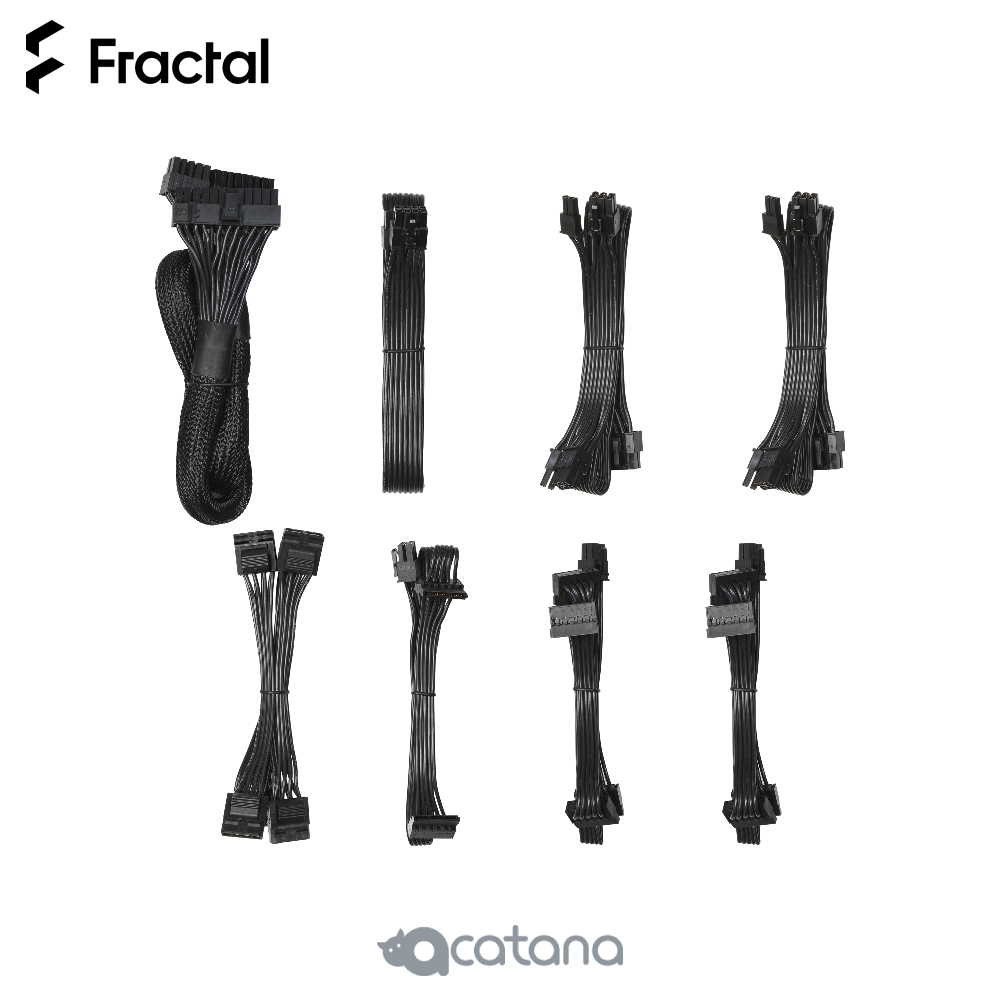

UltraFlex Cables
Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation—not fight it
Zero RPM
User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
More power, less heat
The Ion+ Platinum is rated 80 PLUS® Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating as little heat as possible.
-
80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
-
Outstanding output quality with tight voltage regulation and extremely low noise and ripple
-
Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
General specifications
80PLUS® Certification: Platinum
Modular cables: Fully modular
Fan type: Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
Maximum operating temperature (full load): 50° C
Semi-passive operation: Yes, user selectable (Zero RPM)
Capacitors: Japanese
Life expectancy (MTBF) at max output load: 100,000 hours
PSU specification compliance: ATX12V 2.4 ; EPS12V 2.92
Cable type:
- Modular 24-pin: Braided sleeve UltraFlex wire
- Others: Flat UltraFlex wire
PSU Color: Black/Gunmetal
Cable Color: Black
Protection features:
- Over voltage protection
- Under voltage protection
- Over power protection
- Short circuit protection
- Over current protection
- Over temperature protection
Input voltage: 100-240V AC
Input frequency: 50-60 Hz
Input current: 10A/5A
Number of 12V rails: 1
Standby efficiency:
- ErP 2013 (<0.45W @230
- VAC, 45 mA load on +5Vsb)
Sleep State Compliance: C6/C7
Approvals & Certifications: CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Unit dimensions (LxWxH): 150 x 150 x 86 mm
Net weight (unit only): 1.61 kg (560P/660P) / 1.665 kg (760P/860P)
Package dimensions (LxWxH): 325 x 110 x 210 mm
Package weight: 2.6 kg (560P) / 2.65 kg (660P) / 2.975 kg (760P/860P)

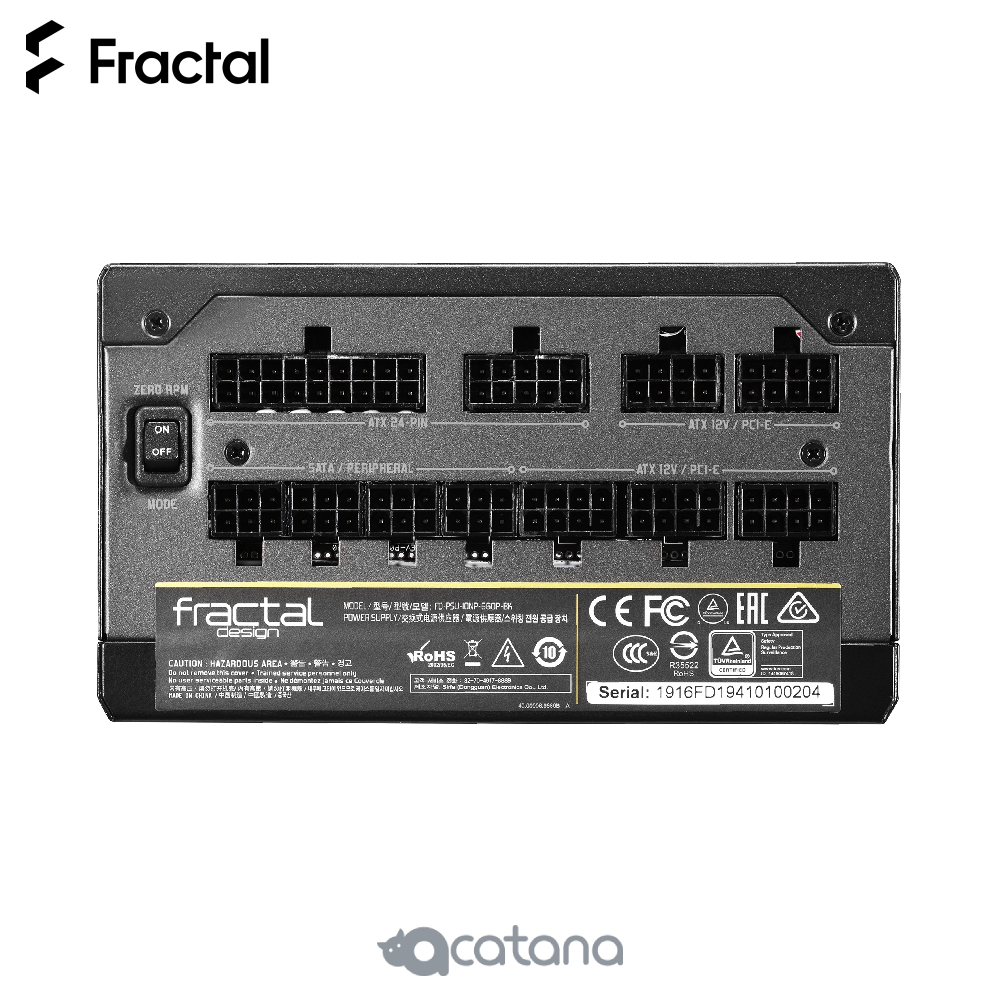

Connectors
ATX: 1
EPS: 0
PCIe: 4
SATA: 10
Peripheral: 4
Cable Configuration (length in mm between connectors)
ATX 24-pin: 600
ATX 12V 4+4 pin: 700
EPS12V 8-pin: N/A
PCIe 6+2 pin: 550+120
SATA:
- 400+120+120+120
- 650+120

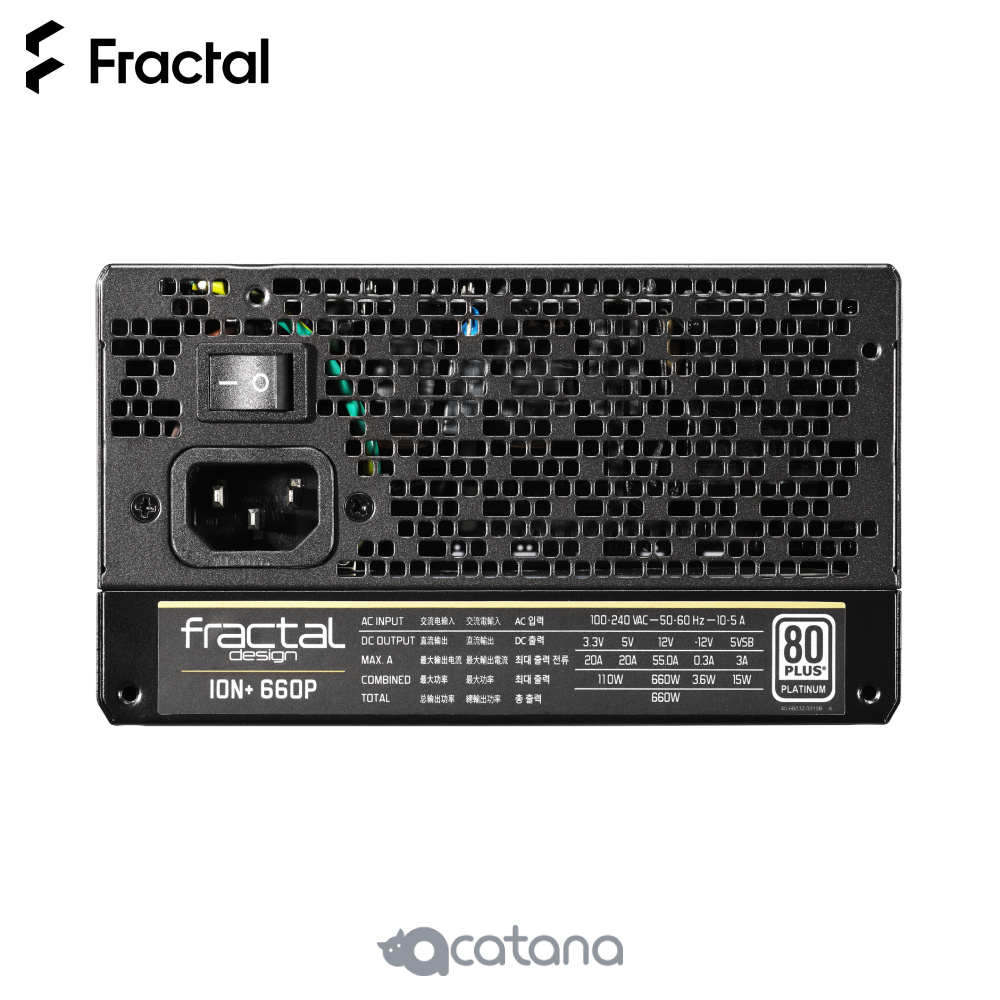

DC Output
3.3V: 20A
5V: 20A
3.3V and 5V combined: 110W
12V: 55.0A
-12V: 0.3A
+5Vsb: 3A
Total Power: 660W
DC Voltage Regulation
Fractal Design Ion+, typical value: <0.25%
ATX Specifications, maximum value: <5%
Ripple and Noise
Fractal Design Ion+, typical value: <15mV
ATX Specifications, maximum value: <50mV
