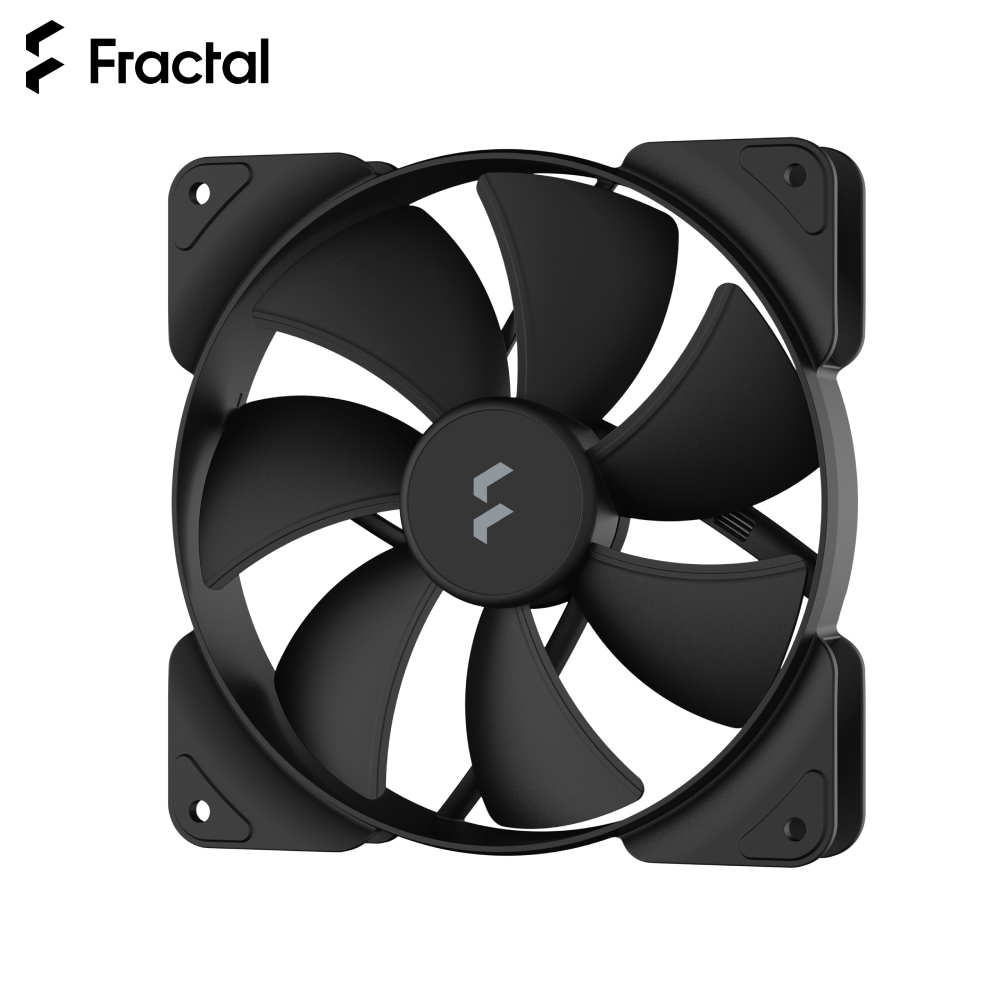

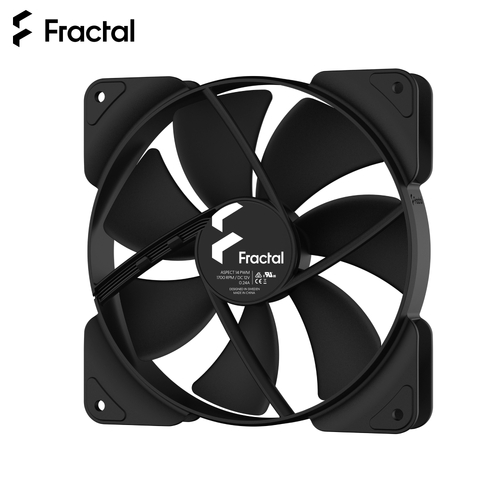

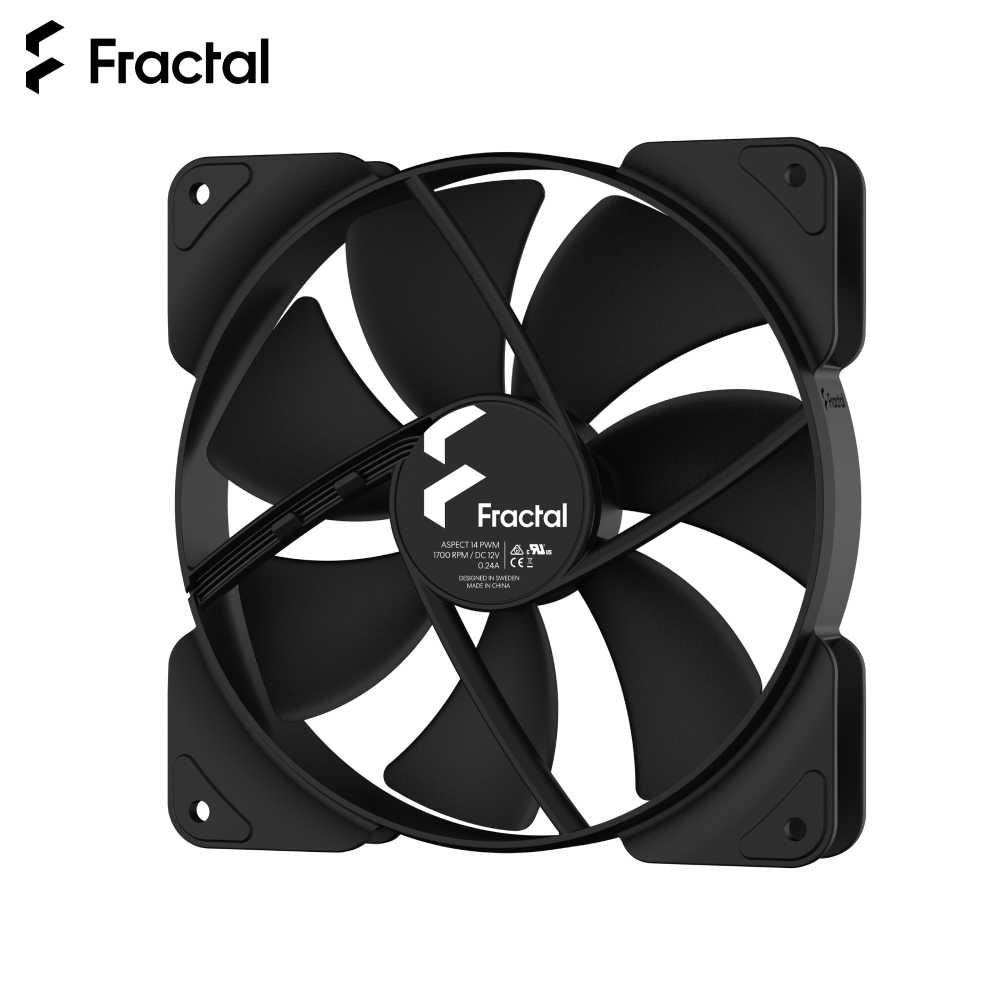

Fan Fractal Design Aspect 14 PWM Black for Computer Case PC FD-F-AS1-1403
Product Code: FD-F-AS1-1403
Price:
Share This Item:
Aspect 14 PWM
Widening the range.
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
- • Less turbulence thanks to aerodynamic stator struts
- • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- • PWM control with a wide RPM speed range

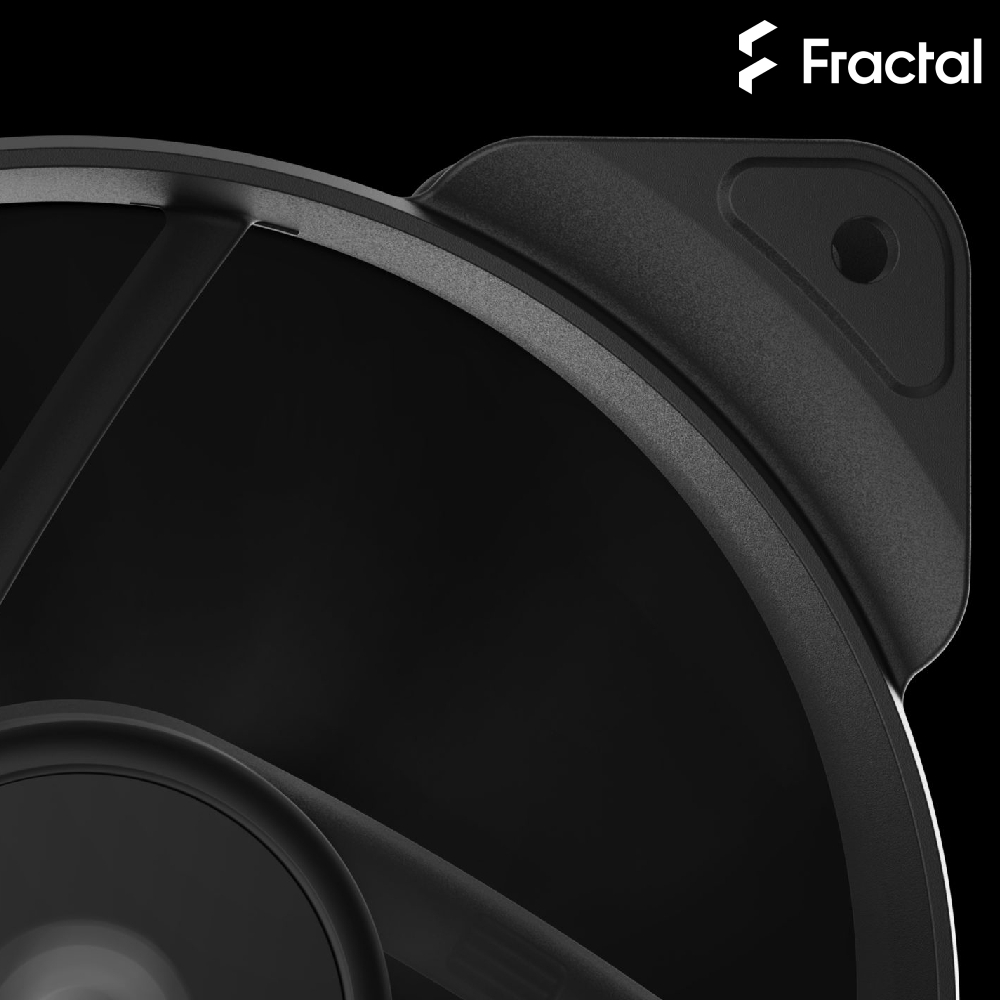

Minimalistic nozzle frame
The Aspect frame offers aesthetics without compromising on performance

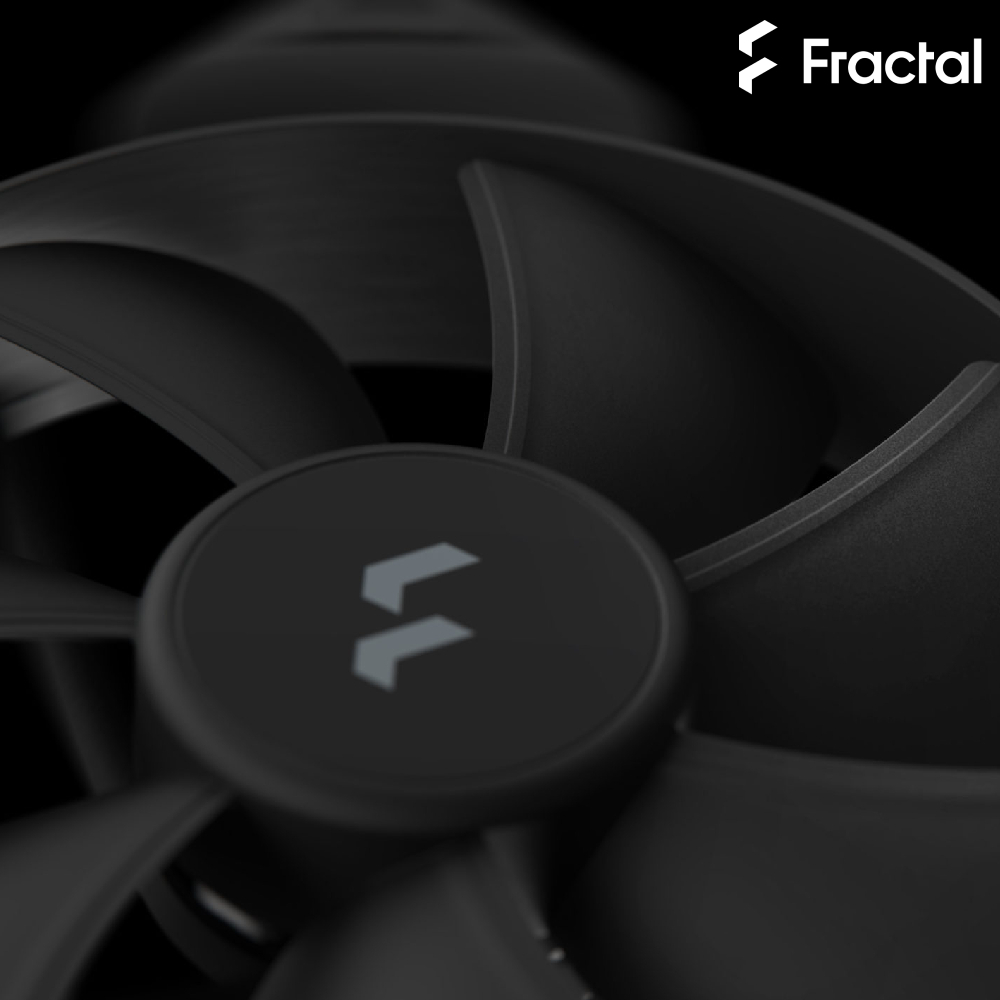

Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency

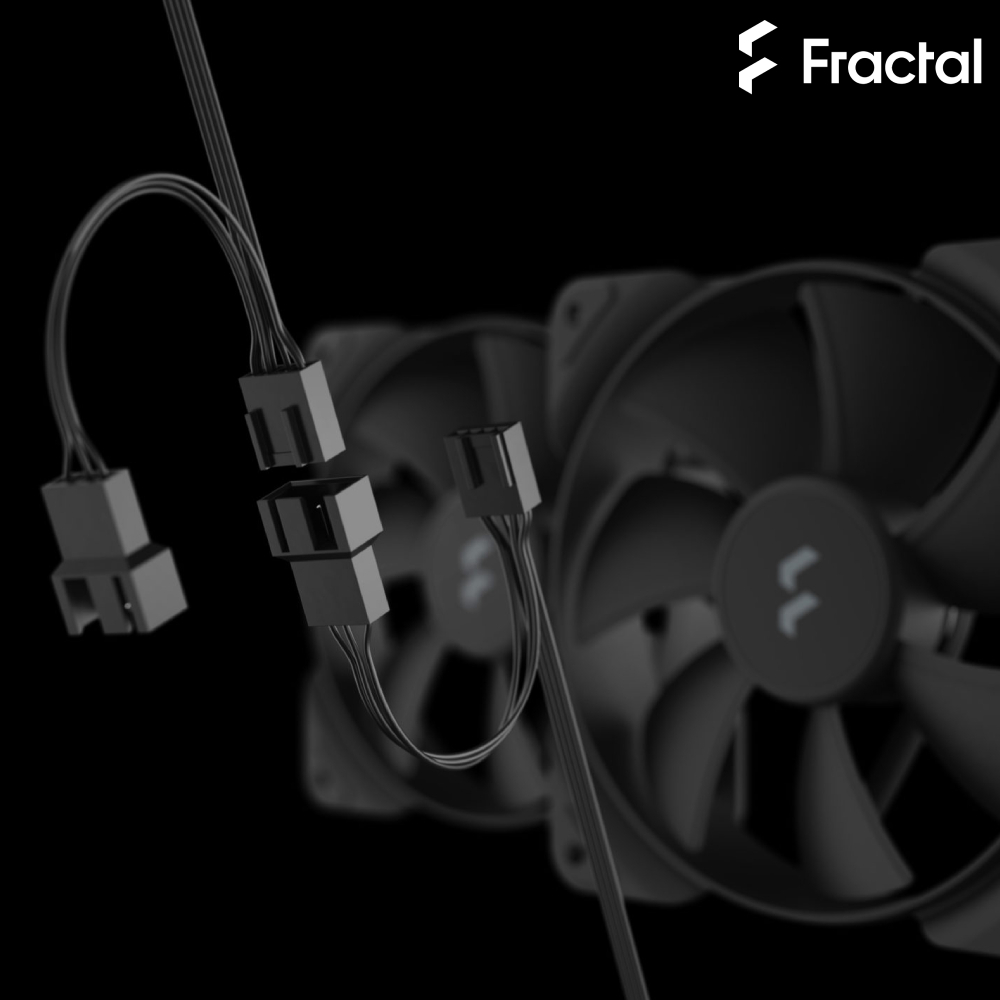

Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
- Size: 140 x 140 x 25 mm
- Color: Black
- Screw hole pattern: 125 x 125 mm
- Power connector: 4-pin

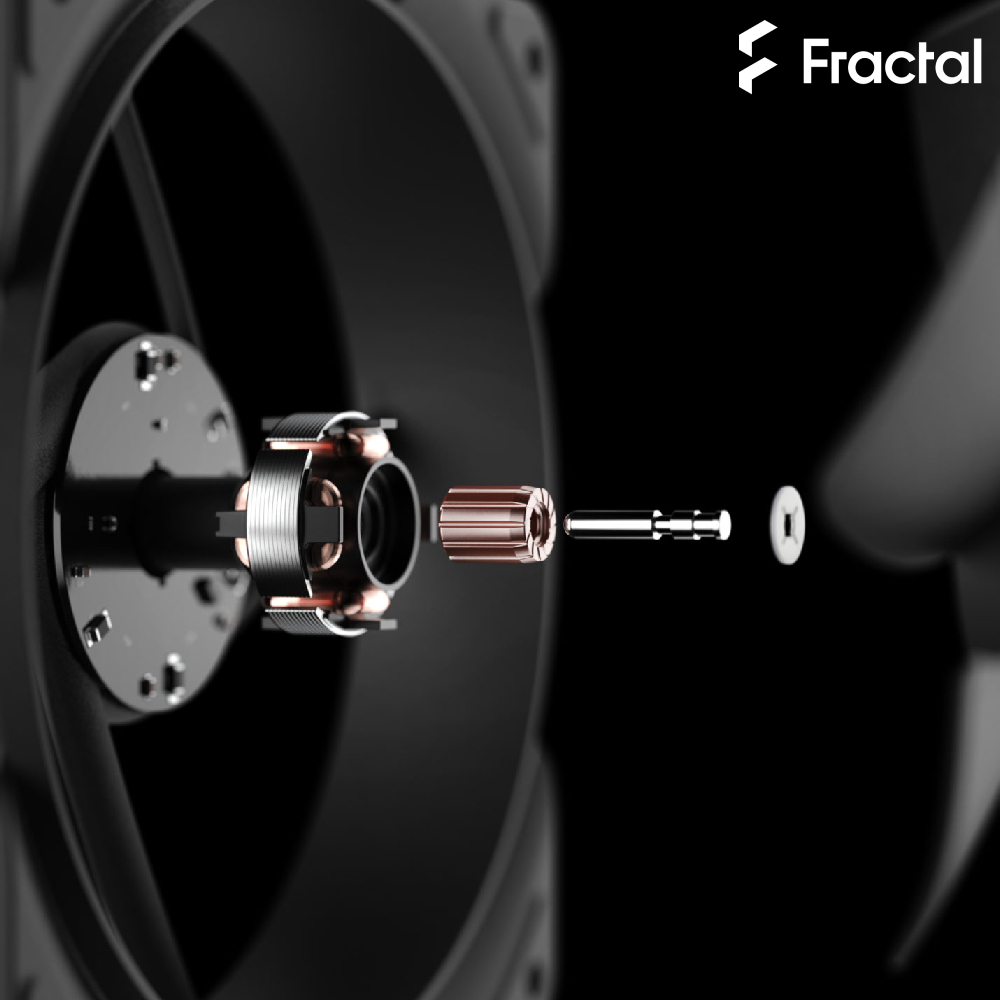

- Bearing: Rifle
- Number of blades: 7
- Rotational speed: 500 – 1700 RPM
- Noise level: <10 – 35.5 dB(A)
- Max airflow: 20 – 78 CFM
- Max airflow: 34 – 132.5 m³/h
- Max pressure: 0.30 – 2.05
- Fan typical input power: 2.16 W
- Fan typical input current: 0.18 A
- Fan max input power: 2.88 W
- Fan max input current: 0.24 A
- Fan input voltage: 12 V
- Minimum startup voltage: 7 V
- MTTF: 90.000 h
- Unit weight: 155 g
- Package weight: 187 g
- Cable length: 500 mm

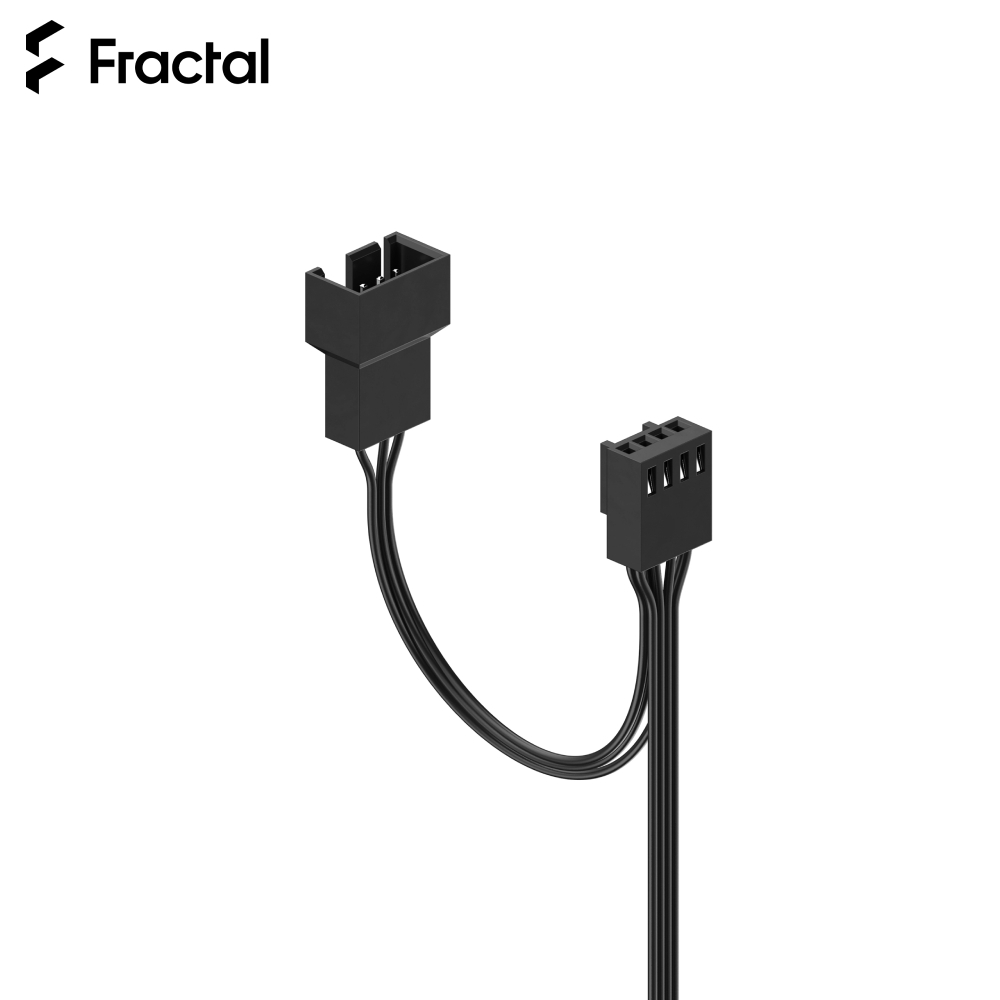

- Cable type: Black/white ribbon [allows chaining]
- Packaging dimensions including hanging tab: 143 x 212 x 30
- Packaging dimensions excluding hanging tab (WxHxD mm): 143 x 170 x 30
