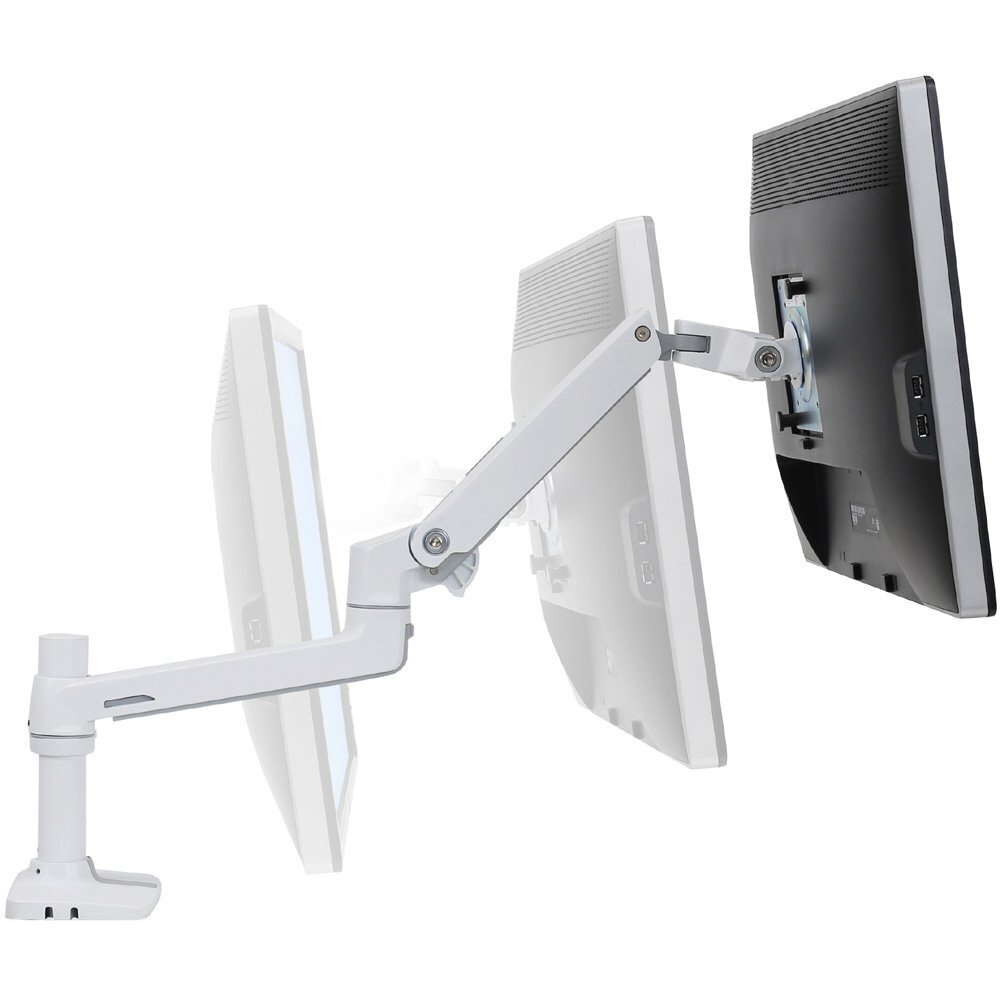

Find your best view, save desk space and discover your most productive self, thanks to the LX Desk Monitor Arm. Place your screen where you need it for each project, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.   

  • Increase viewing comfort - help reduce eye, back and neck strain
  • Upgrade LCD monitors and TVs with improved ergonomic adjustment
  • Patented CF motion technology provides premium ease-of-use display adjustment
  • Cable management feature routes cables under the arm, out of the way
  • Extends LCD up to 25" (64 cm); push your display out of the way when not in use
  • 13" (33 cm) height range meets the ergonomic needs of more than nine out of ten adults
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Part Number

45-490-216

Description

LX Desk Mount LCD Monitor Arm (white)

Includes
  • One LCD arm and extension
  • Pole
  • Desk clamp

Notebook Tray

Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray (50-193-200)

Quality Tested

10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Improved LX Arm Features & Benefits
  • Steel and aluminum construction offers greater durability and enhanced aesthetics
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Snap-fit cap secures interface of arms to extensions for greater stability
  • Clamp base ensures greater stability of display and arm; also includes theft deterrent anchor holes for cable locks

Desk Clamp

Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick

Grommet Mount

A separately ordered grommet mount accessory (98-034) is available to attach the arm through a hole in the desktop

Mounting Standards

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Weight Capacity

7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)

Tilt Range

70° backward, 5° forward

Product Weight

7.5 lbs (3.4 kg)

Shipping Dimensions

17.75" x 10" x 6.75" (45 x 25 x 17 cm)

Shipping Weight

8.55 lbs (3.8 kg)

Warranty

Ten (10) years
