Part Number

45-489-216

Description

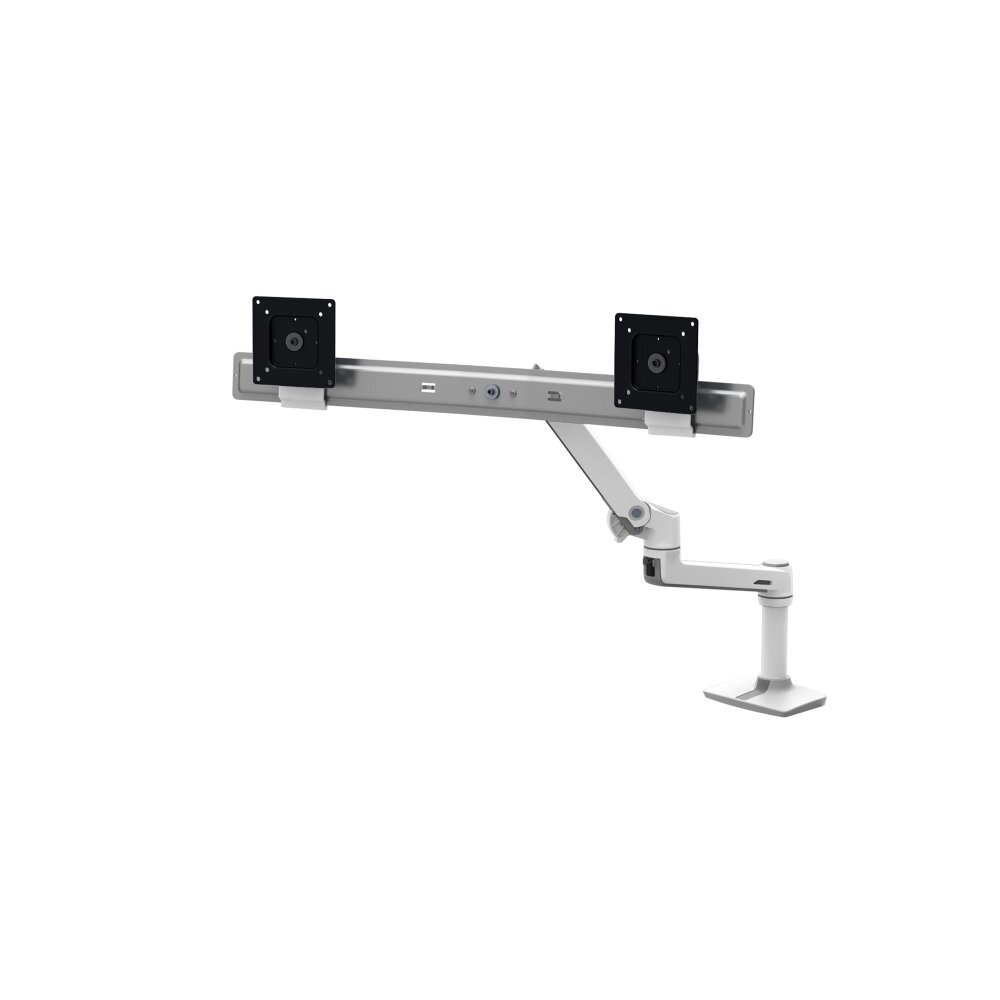

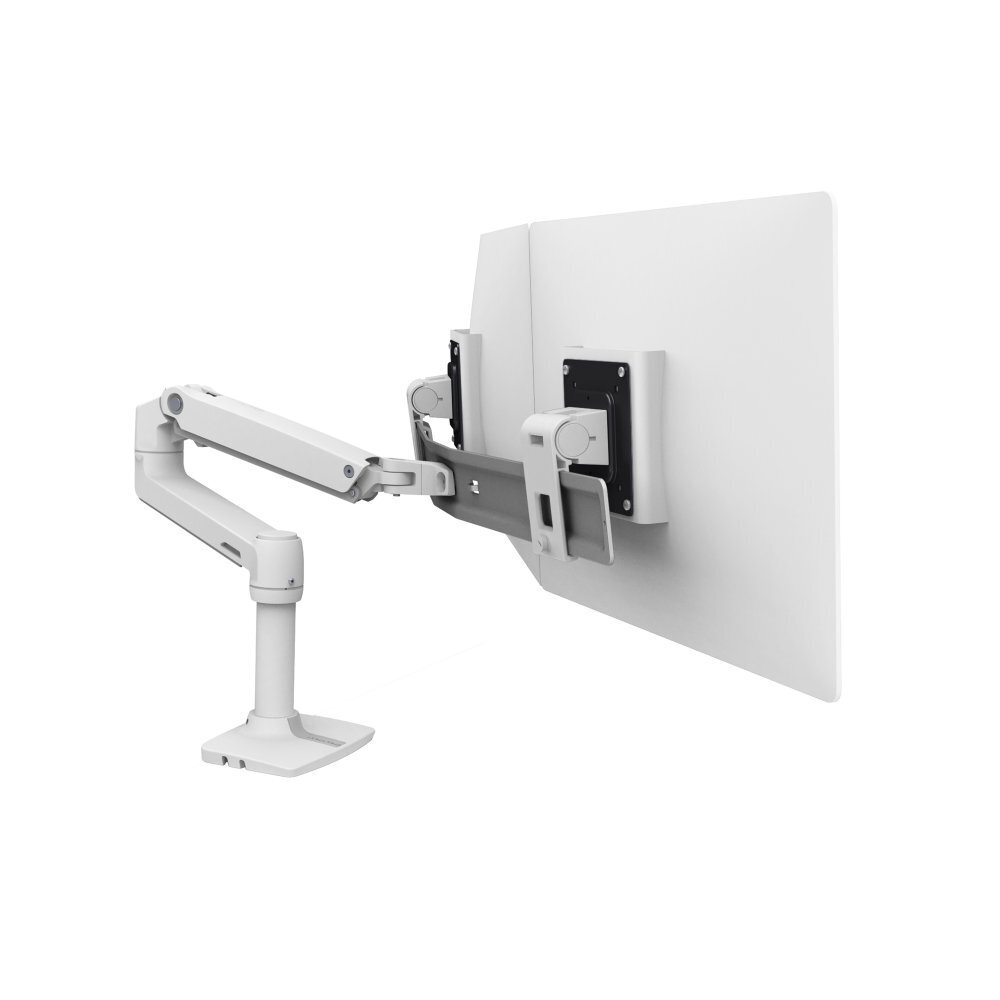

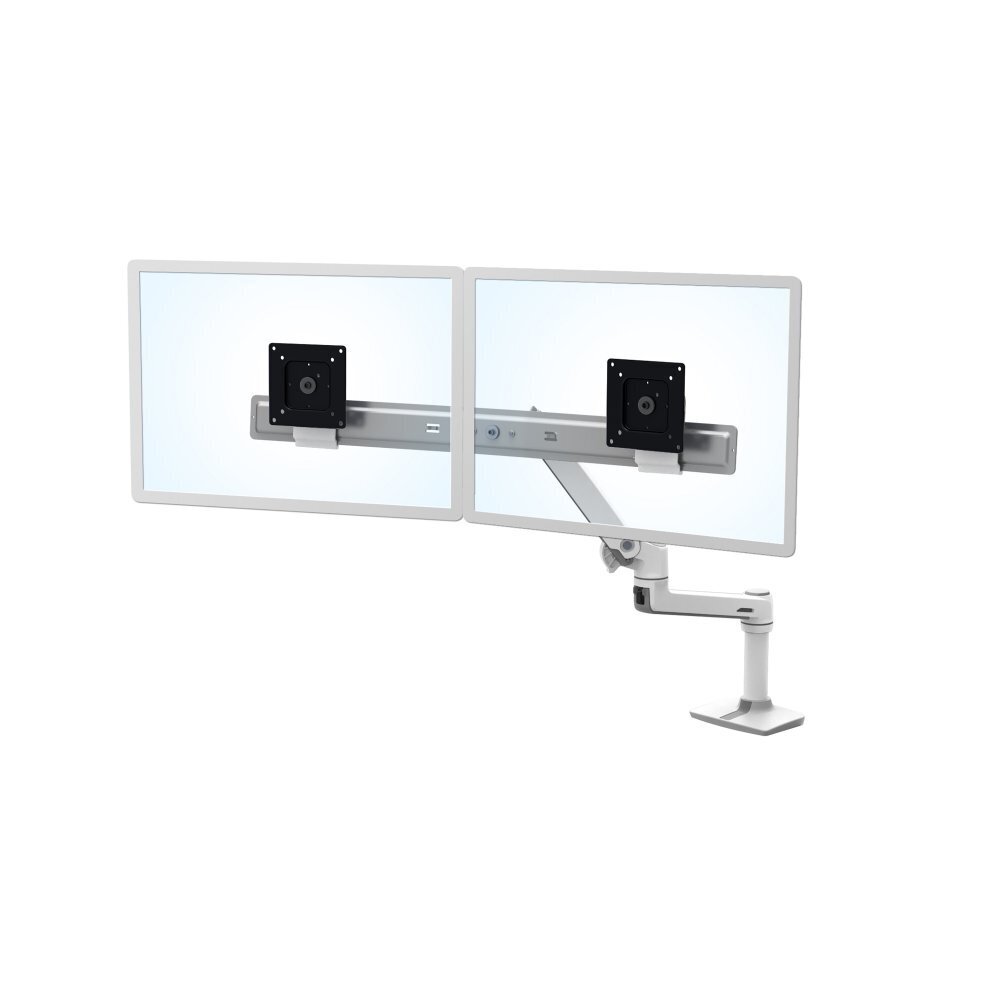

LX Desk Dual Direct Arm (polished aluminum)

Includes

• LX Arm
• Extension
• Desk clamp
• Dual bow
• (2) monitor pivots
• 7" pole
• Monitor mounting hardware

Cable Management

Streamline cable management that routes cables under arm and within the extension

Portrait/Landscape

Portrait/landscape rotation with lockout

Handle

Handle for Dual Direct Arm available as an accessory (98–037–062)

Mounting Standards

VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Grommet Mount

Attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick

Weight Capacity

Maximum individual LCD weight = 2–11 lbs (1–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg)

Note

If installed on WorkFit-T or WorkFit-TL, the maximum allowable individual monitor weight is reduced to 4.8 lbs (2.2 kg). A separately order Grommet Mount (98-017) is required for attachment

Tilt Range

15° backward, 15° forward

Extended Reach

Up to 24.3" (61.7 cm)

Vertical Height Adjustment

13" (33 cm) vertical height adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)

Maximum Outside Width of Display

Maximum outside width of display is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when monitor is 2.6" (6.6 cm) thick. Accommodates most displays with screen–size up to 25" as well as some displays with screens as large as 27". Actual allowable width of displays will vary slightly depending on display thickness

Shipping Dimensions

32.8" x 13" x 7" (83 x 33 x 18 cm)

Shipping Weight

15.5 lbs (6.6 kg)
