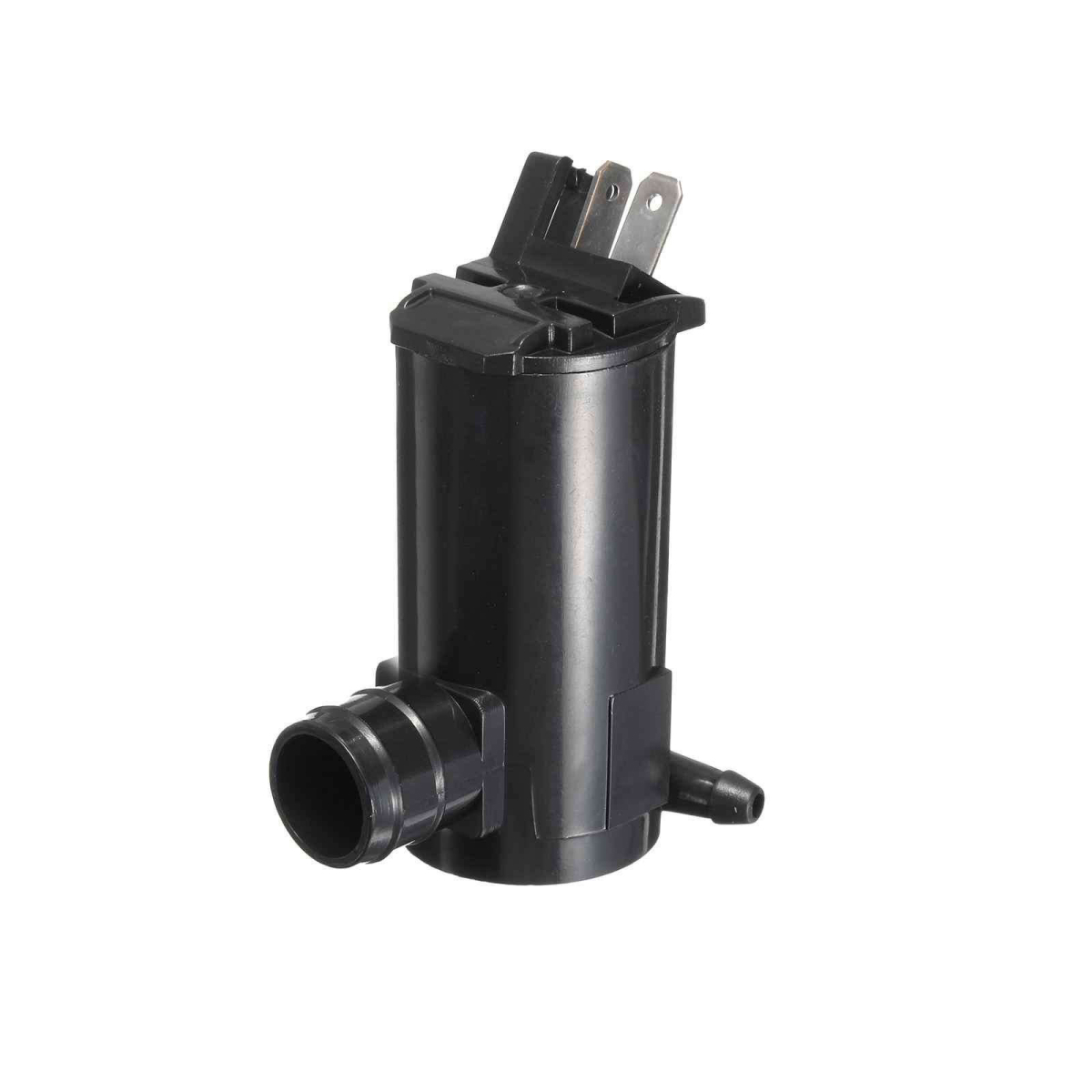

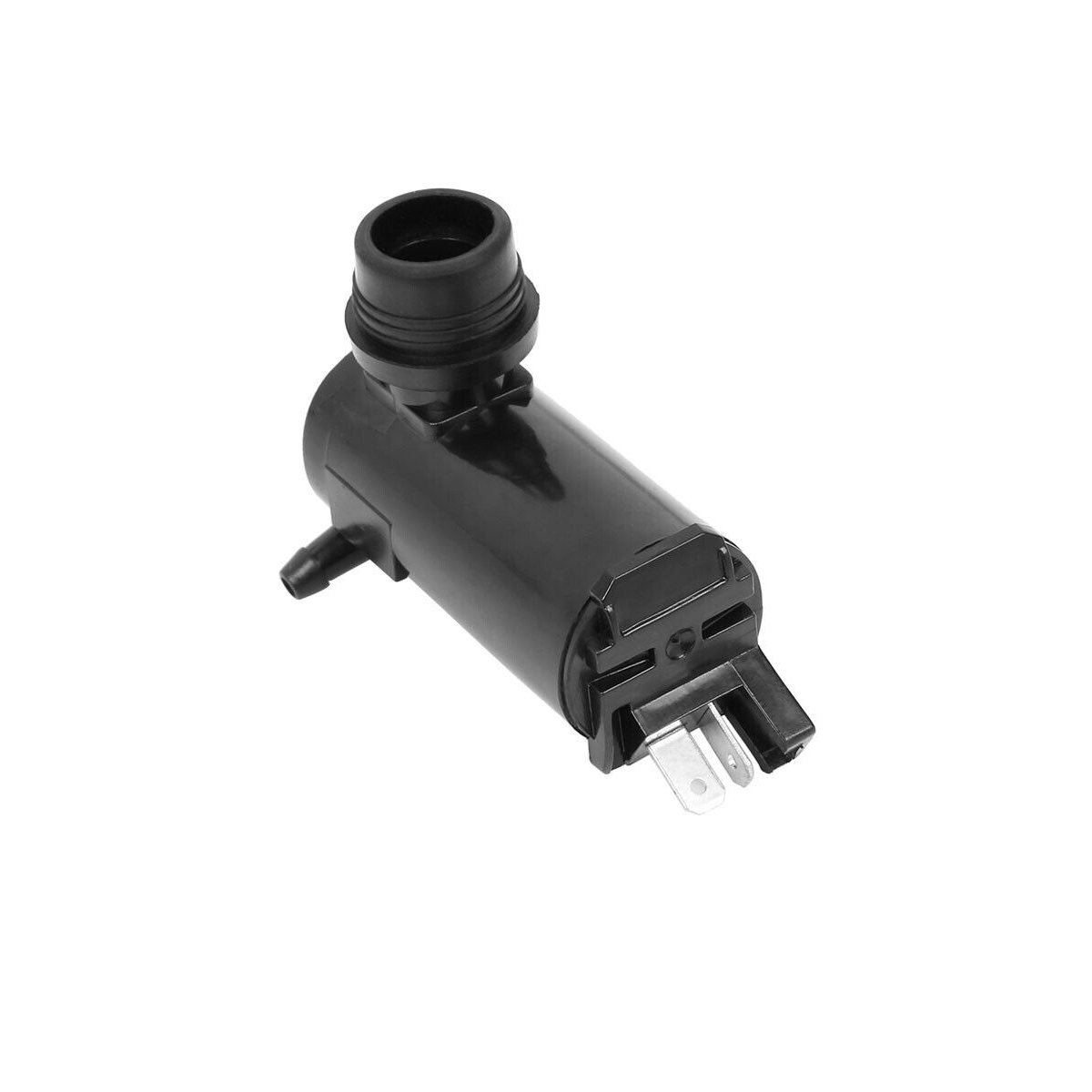

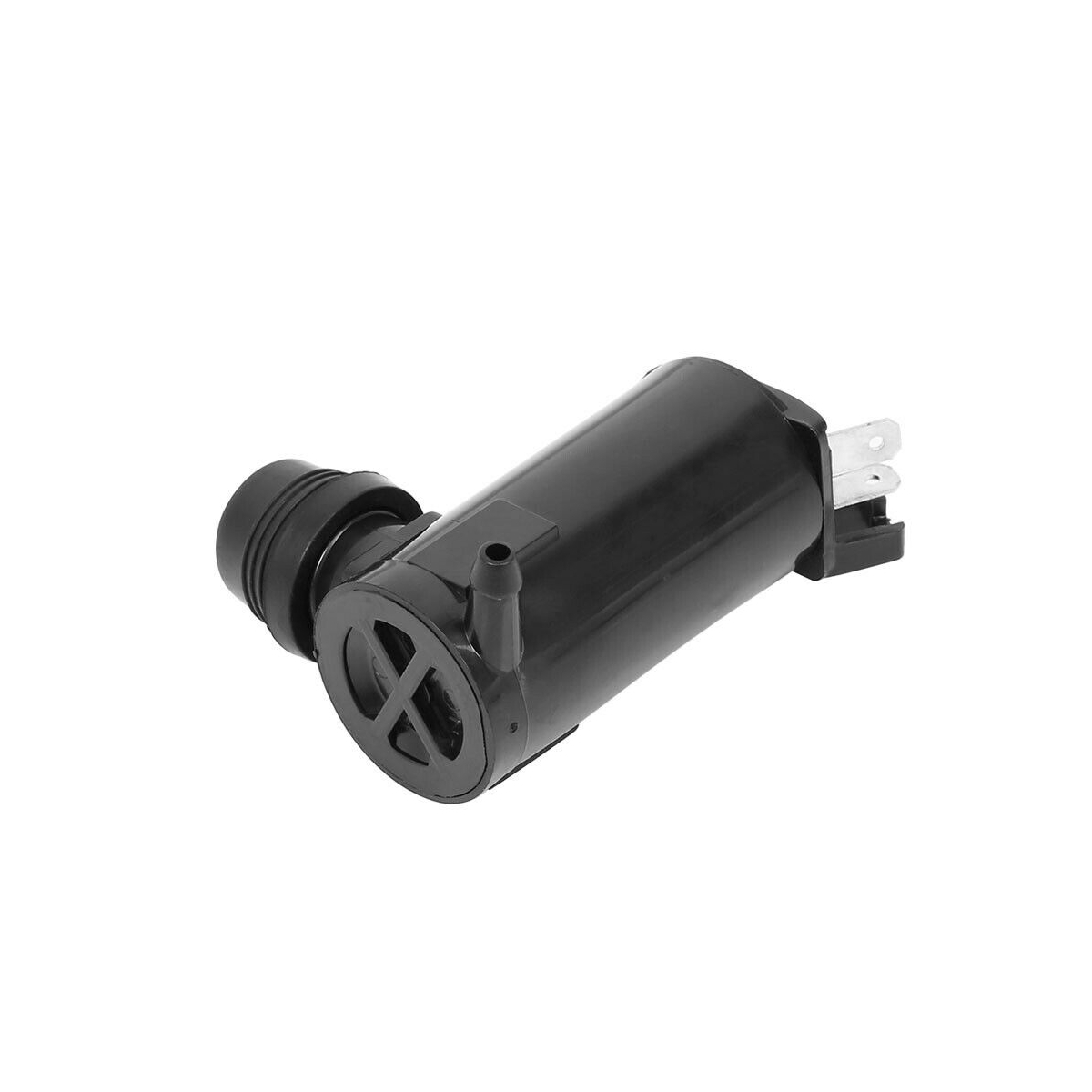

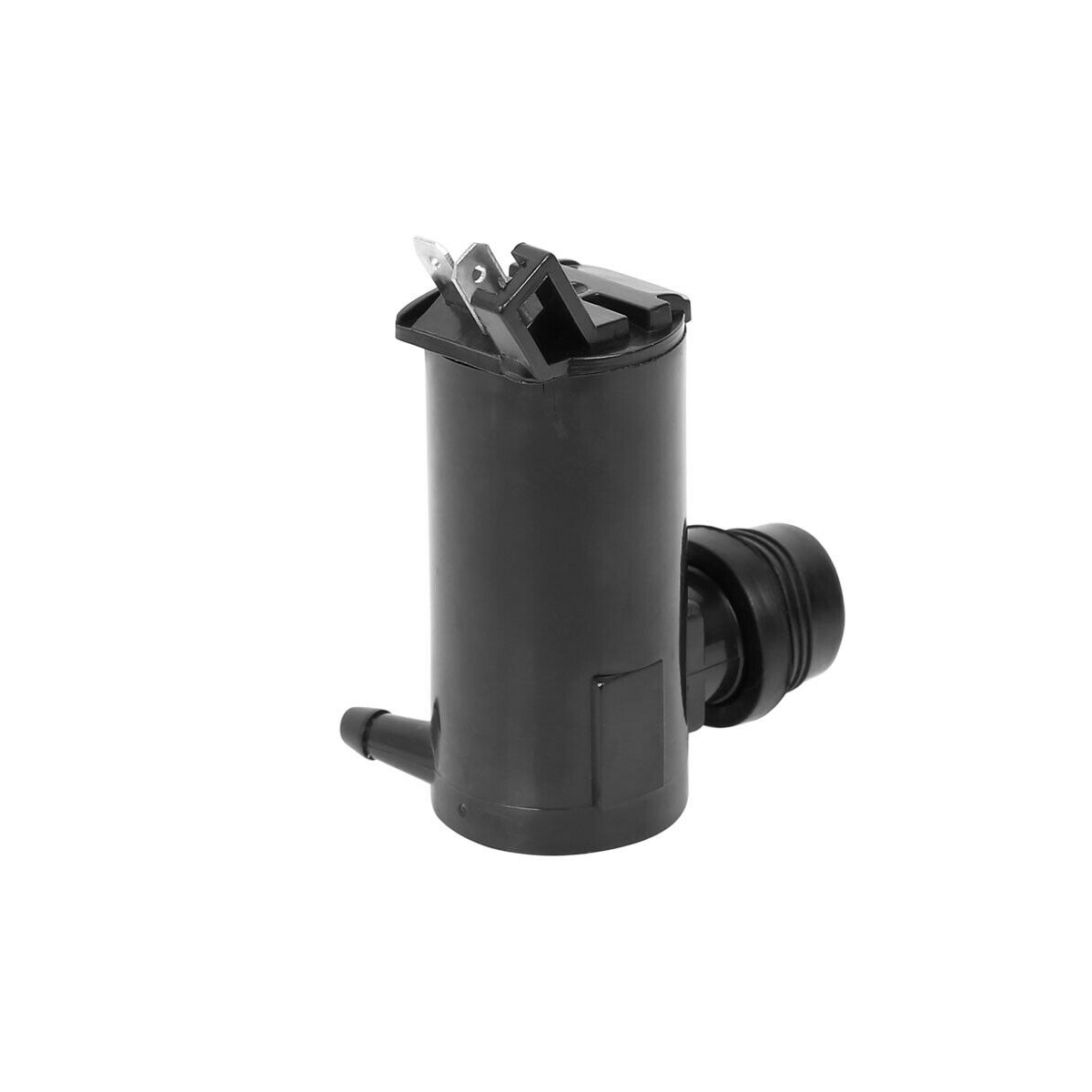

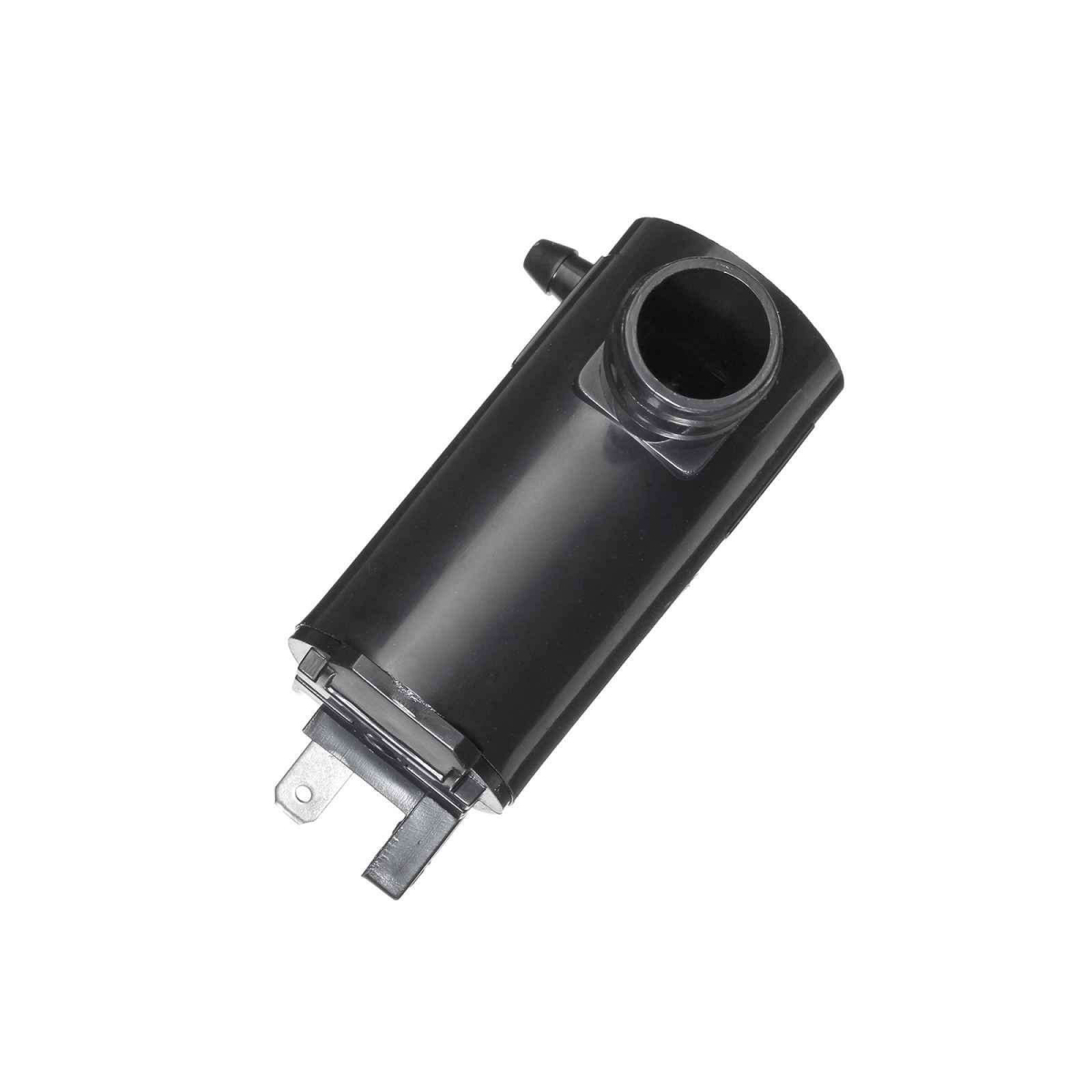

This is a replacement windscreen washer pump for your Toyota Liteace YM KM CM 1985 - 1998. If your windscreen washers don't spray water or the washer fluid reservoir is leaking, you may need to replace your windshield washer pump and grommet. The LZ-101B model is the original OEM quality for repairing or replacing a faulty windscreen washer fluid pump.



Compatibility for:

• Toyota LiteAce YM30 09/85-08/88 - Front or Rear
• Toyota LiteAce YM35 09/85-08/88 - Front or Rear
• Toyota LiteAce YM35 08/88-04/98 - Front or Rear
• Toyota LiteAce YM36 08/88-04/98 - Front or Rear
• Toyota LiteAce YM40 09/85-08/88 - Front or Rear
• Toyota LiteAce YM41 09/85-08/88 - Front or Rear
• Toyota LiteAce KM36 08/88-04/98 - Front or Rear
• Toyota LiteAce CM35 09/85-08/88 - Front or Rear
• Toyota LiteAce CM36 08/88-04/98 - Front or Rear



Installation position: Front, Rear



Reference OEM Numbers: 83BB17K624AA, 83BB17K624BA, 6140949, 6156960, 9851

Specifications:

• Brand: acatana auto parts
• Model: LZ-101B
• Colour: Black
• Condition: Brand New
• Material: Plastic
• Quantity: 1pc
• Voltage 12 volt



Easy installation - replace it by yourself.

• First, disconnect the old one of the tanks, and unscrew the stopper that holds the feed hoses in place.

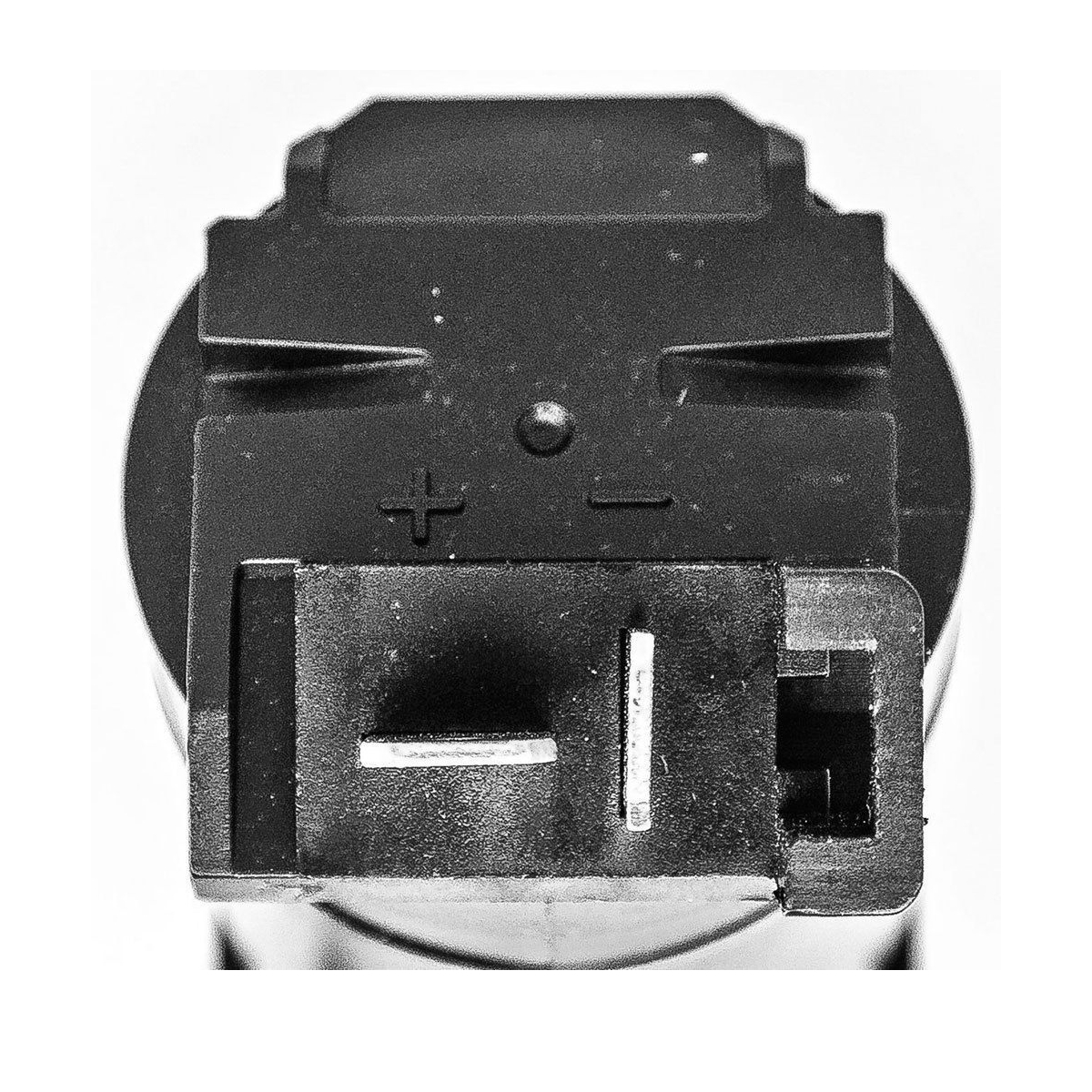

• Attach electrical connection, hoses and reservoir.
• Make sure there is plenty of screenwash in the reservoir and test.

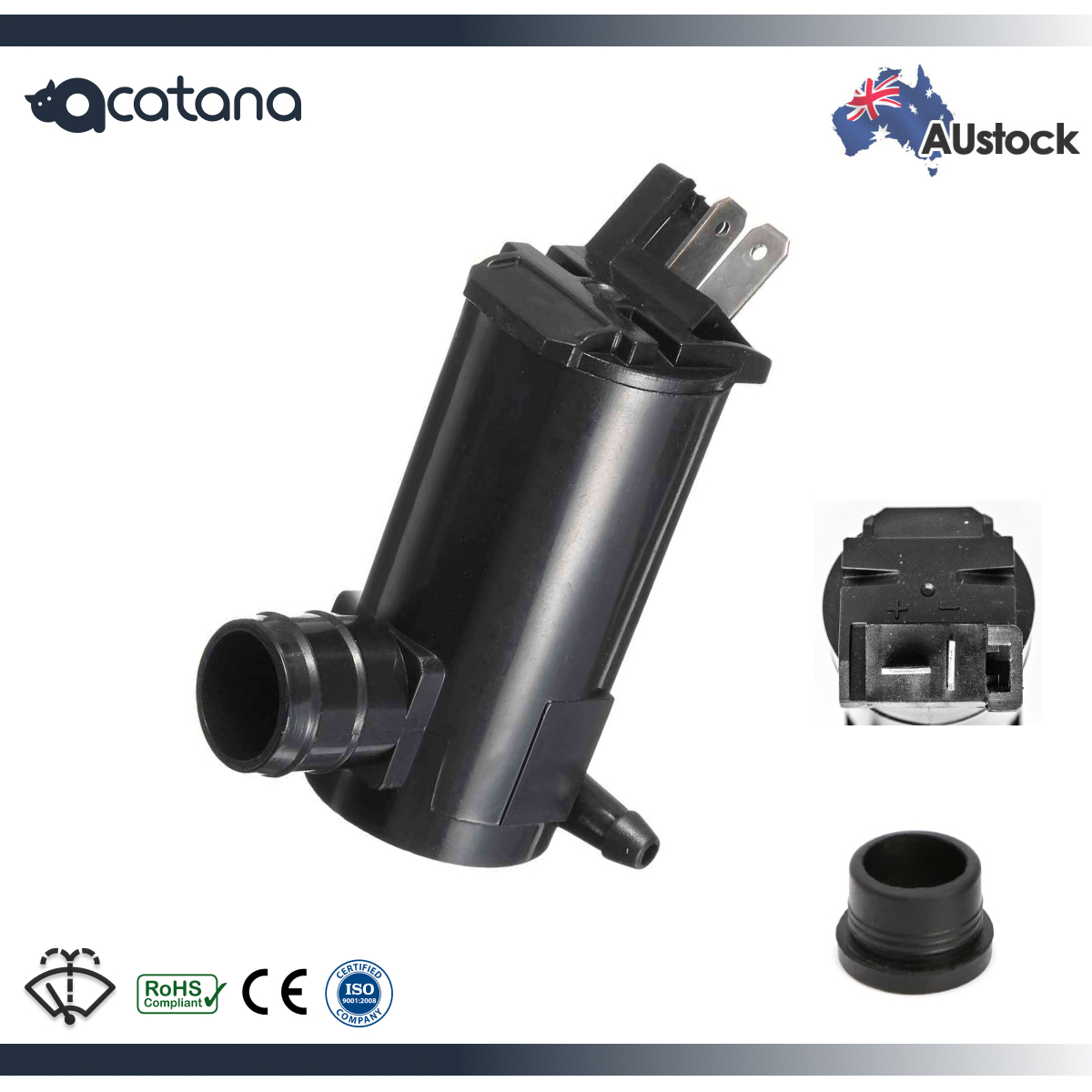

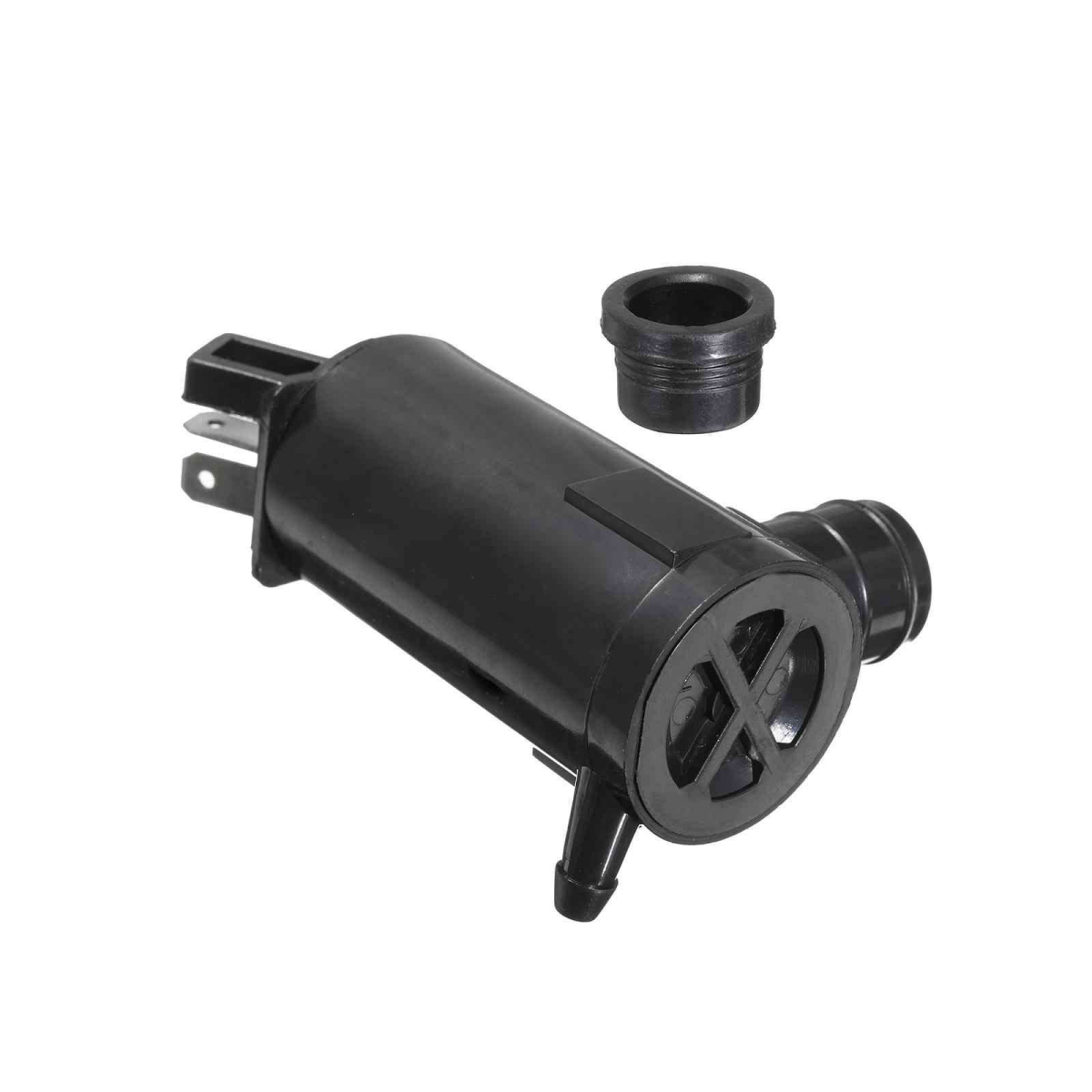

Package includes:

• 1x Wiper Windshield Spray Motor
• 1x Rubber Ring Grommet
• Packaging Type: Box
• Fitment: Direct Replacement



Note and recommendations:

• It is always recommended to clean the bottle, and clear pipes before replacement as sludge can build up in the tank and cause damage to the new wiper fluid pump
• Please check OEM numbers, and photos when placing an order
