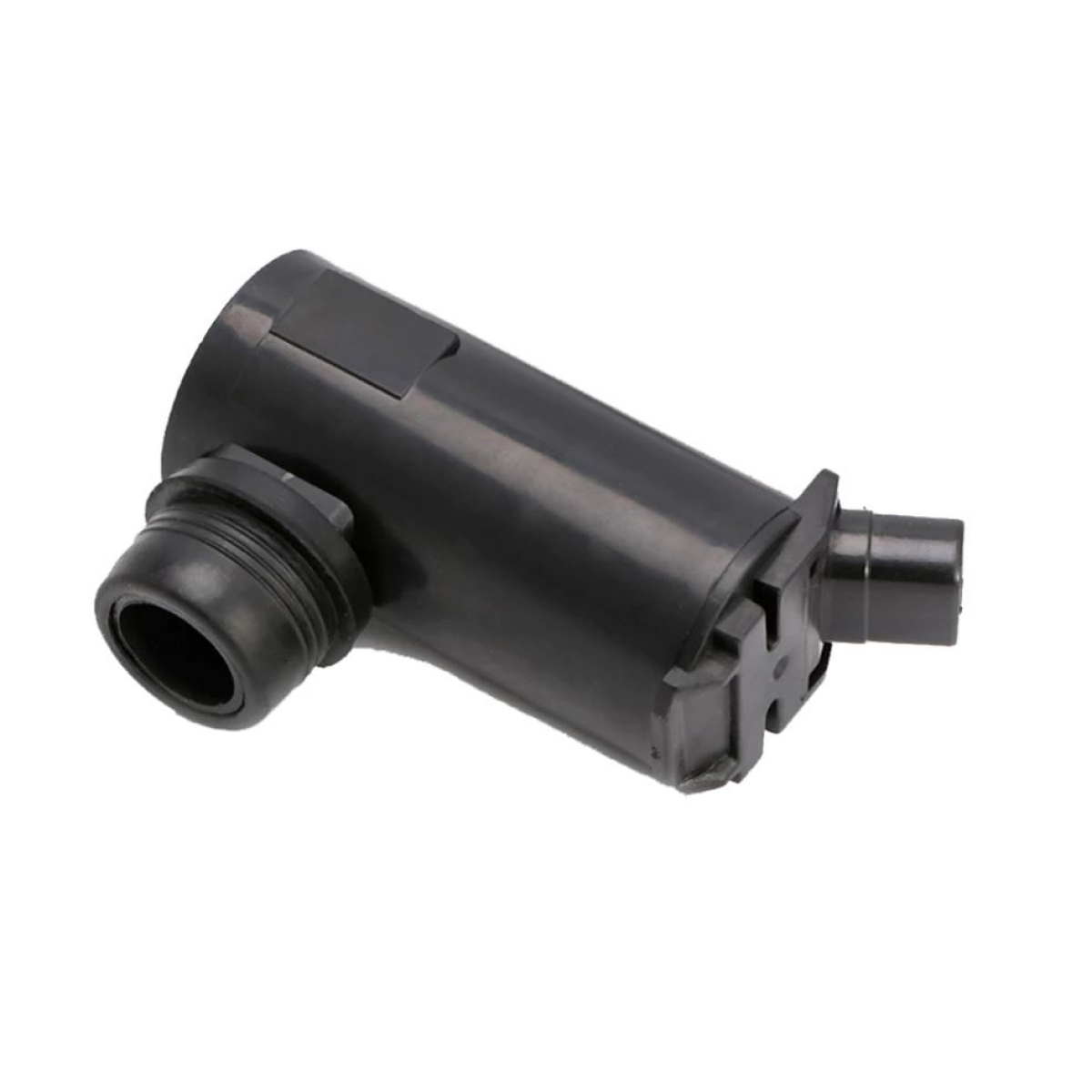

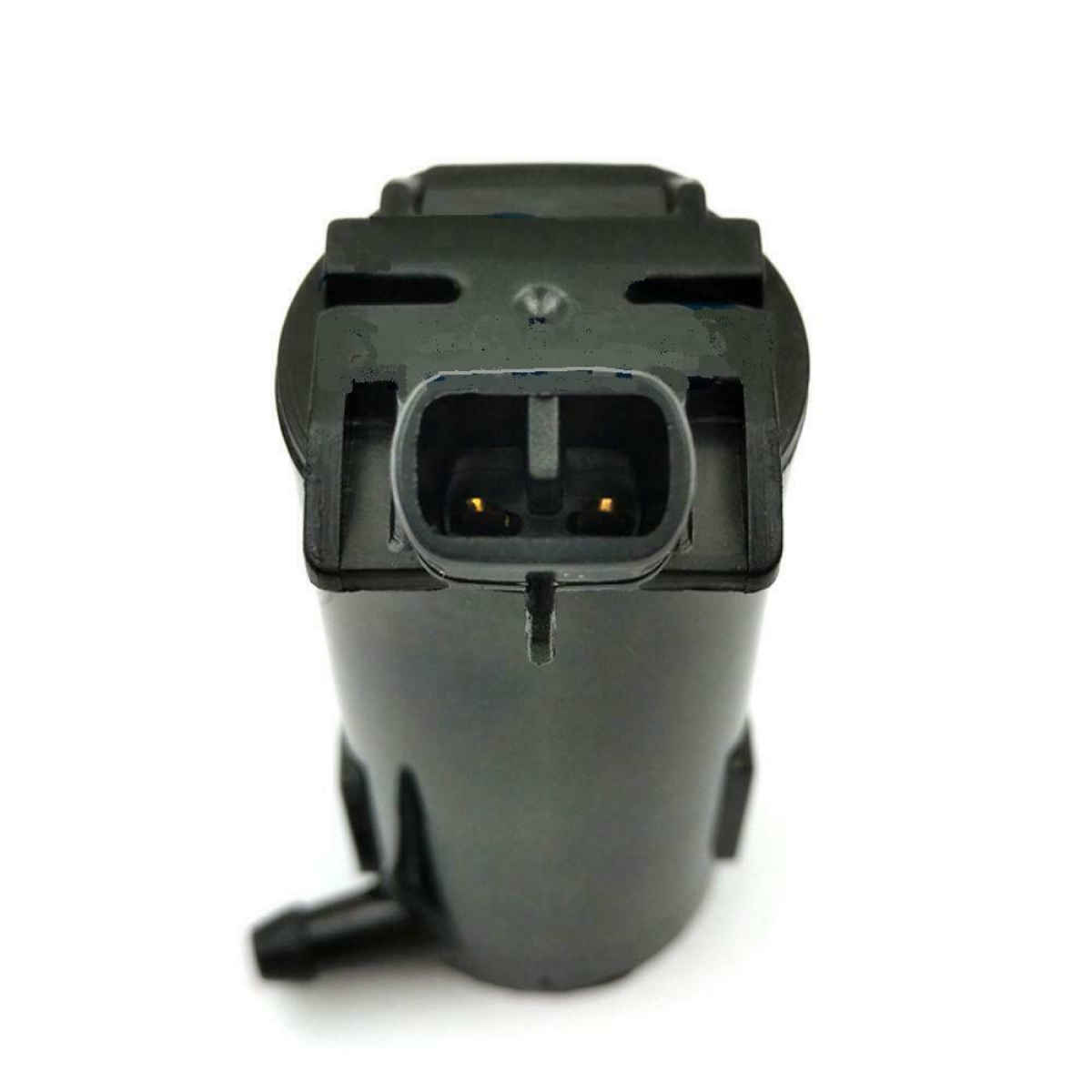

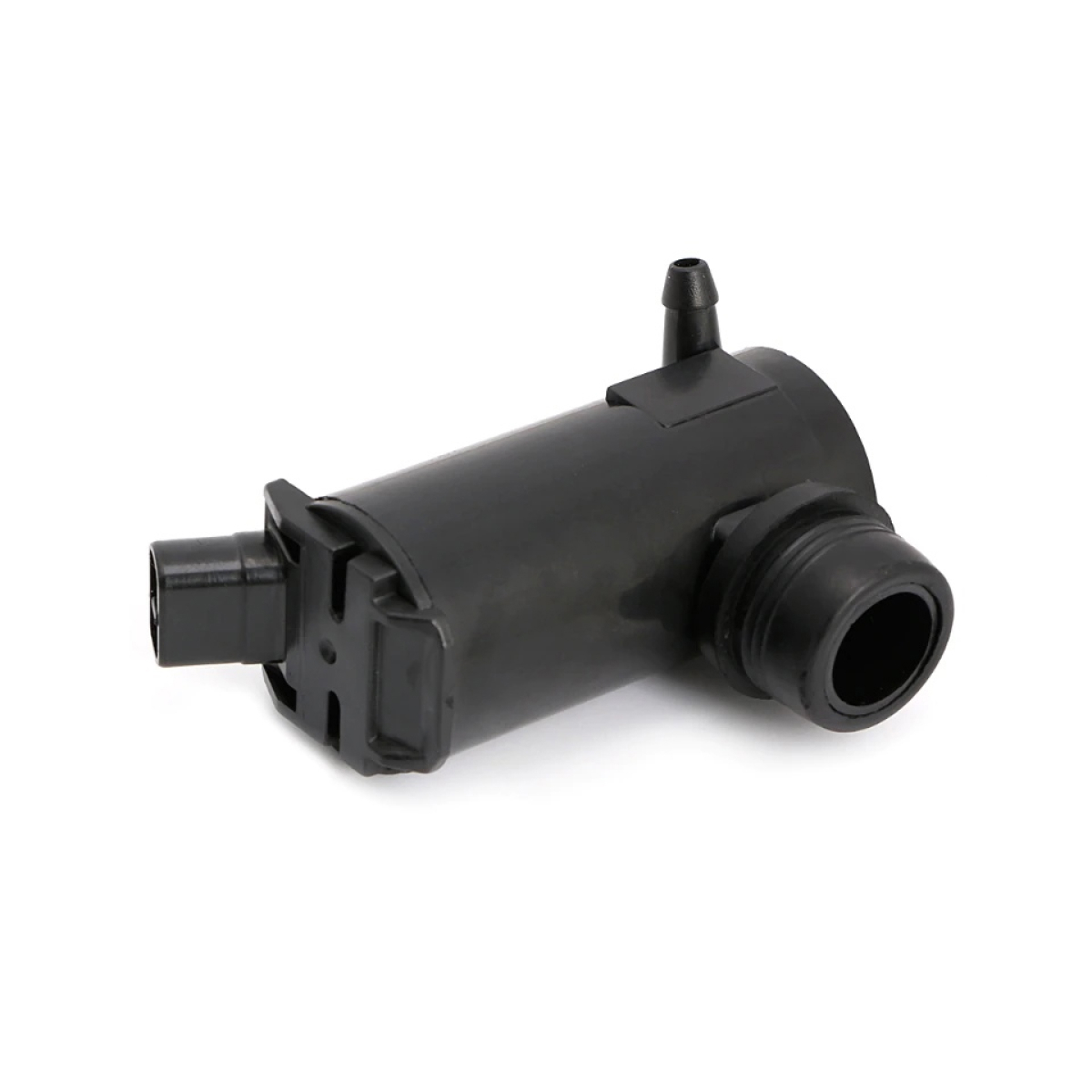

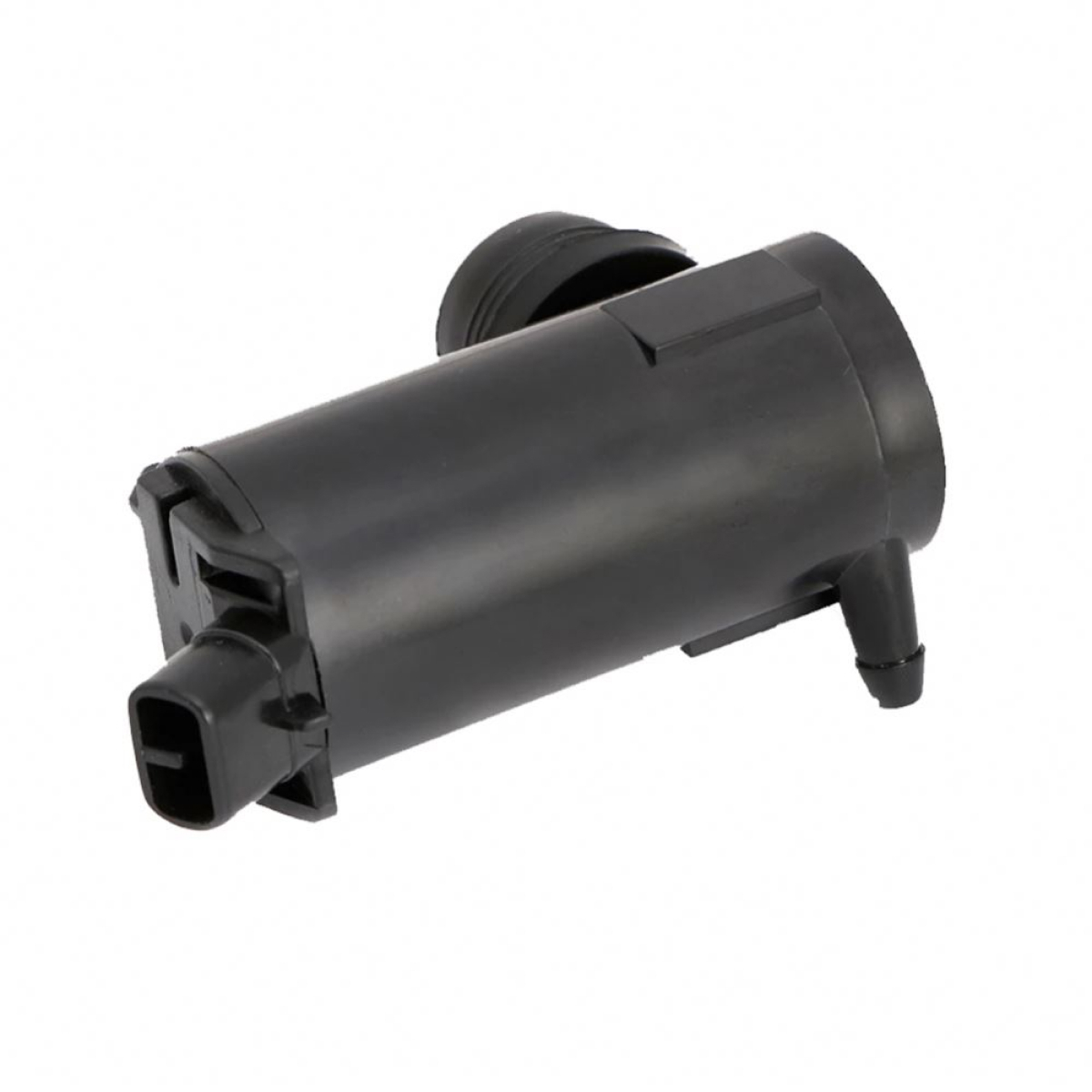

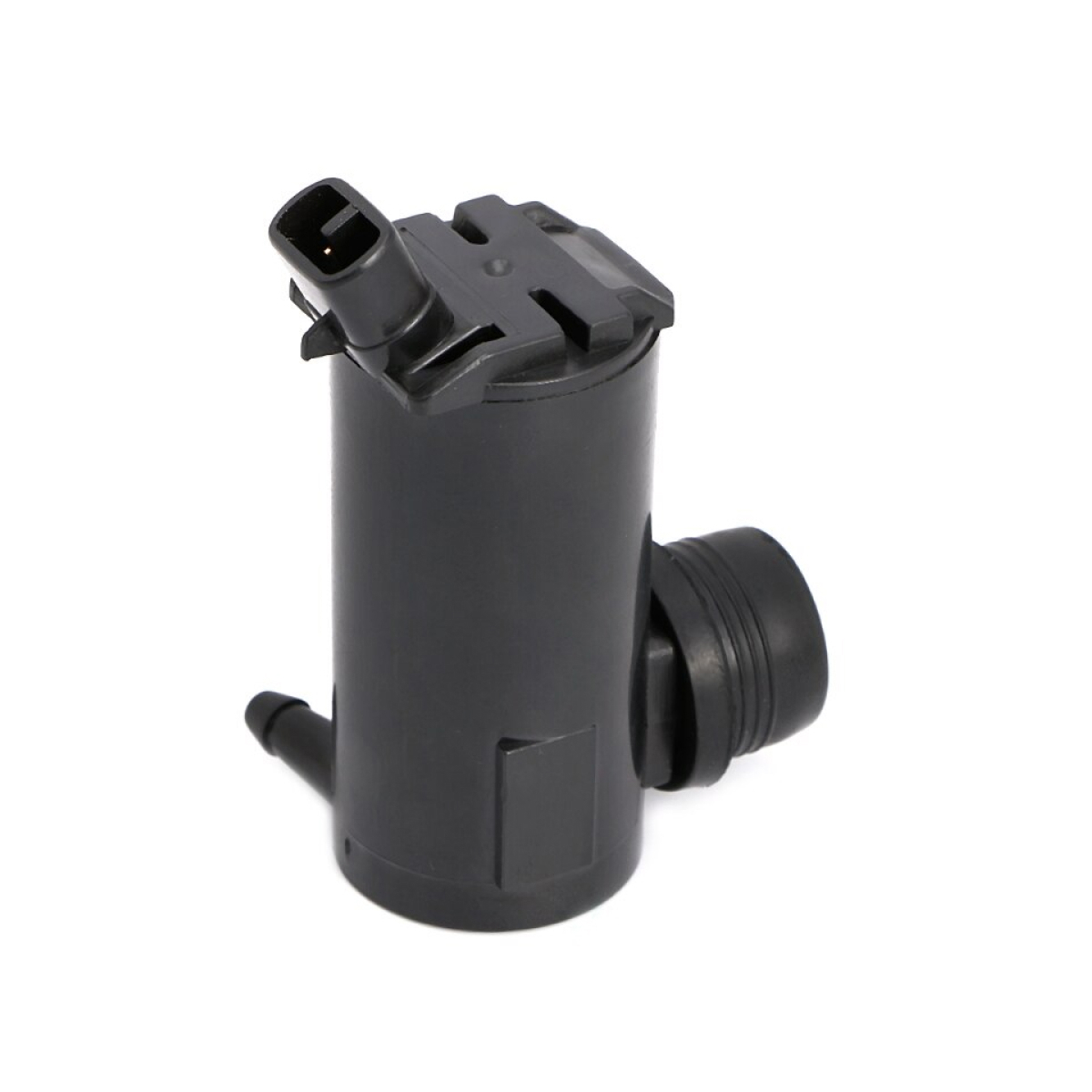

This is a replacement windscreen washer pump for your Toyota RAV4 ACA20 ACA21 2000 - 2003. If your windscreen washers don't spray water or the washer fluid reservoir is leaking, you may need to replace your windshield washer pump and grommet. The LZ-103B model is the original OEM quality for repairing or replacing a faulty windscreen washer fluid pump.



Compatibility for:

• Toyota RAV4 ACA20 ACA21 2000 - 2003



Installation position: Rear



Reference OEM Numbers:

• MR339099
• 85330-35070
• 85330-35080
• 85310-16050
• 85330-60140
• 85330-50020
• 85310-95J03
• 85330-60130

Specifications:

• Brand: acatana auto parts
• Model: LZ-103B
• Color: Black
• Condition: Brand New
• Material: Plastic
• Position: Rear
• Voltage: 12 volt
• Inlet OD 17 mm
• Outlet OD 5.3 mm
• Quantity: 1pc



Easy installation - replace it by yourself.

• First, disconnect the old one of the tanks, and unscrew the stopper that holds the feed hoses in place.
• Attach electrical connection, hoses and reservoir.
• Make sure there is plenty of screenwash in the reservoir and test.

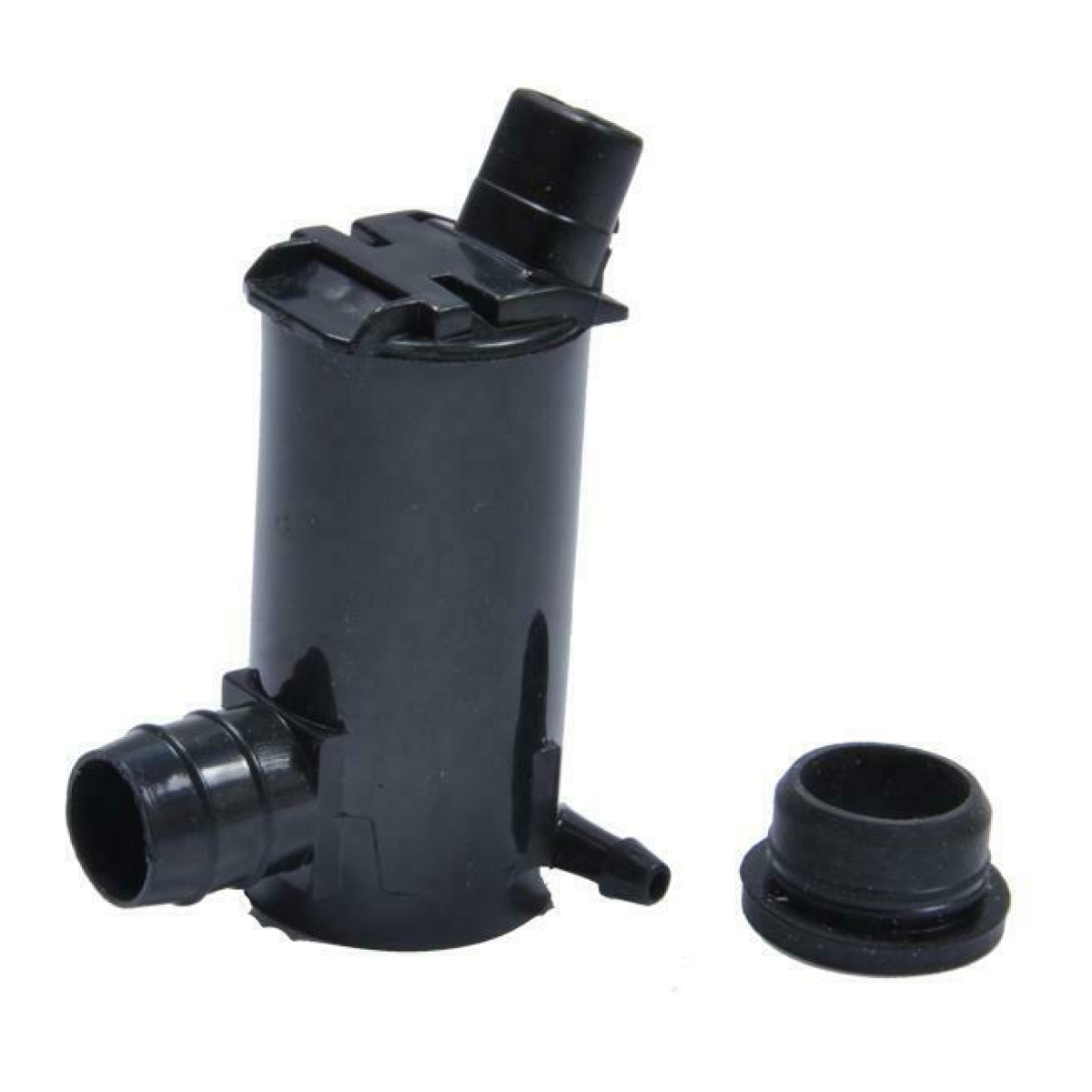

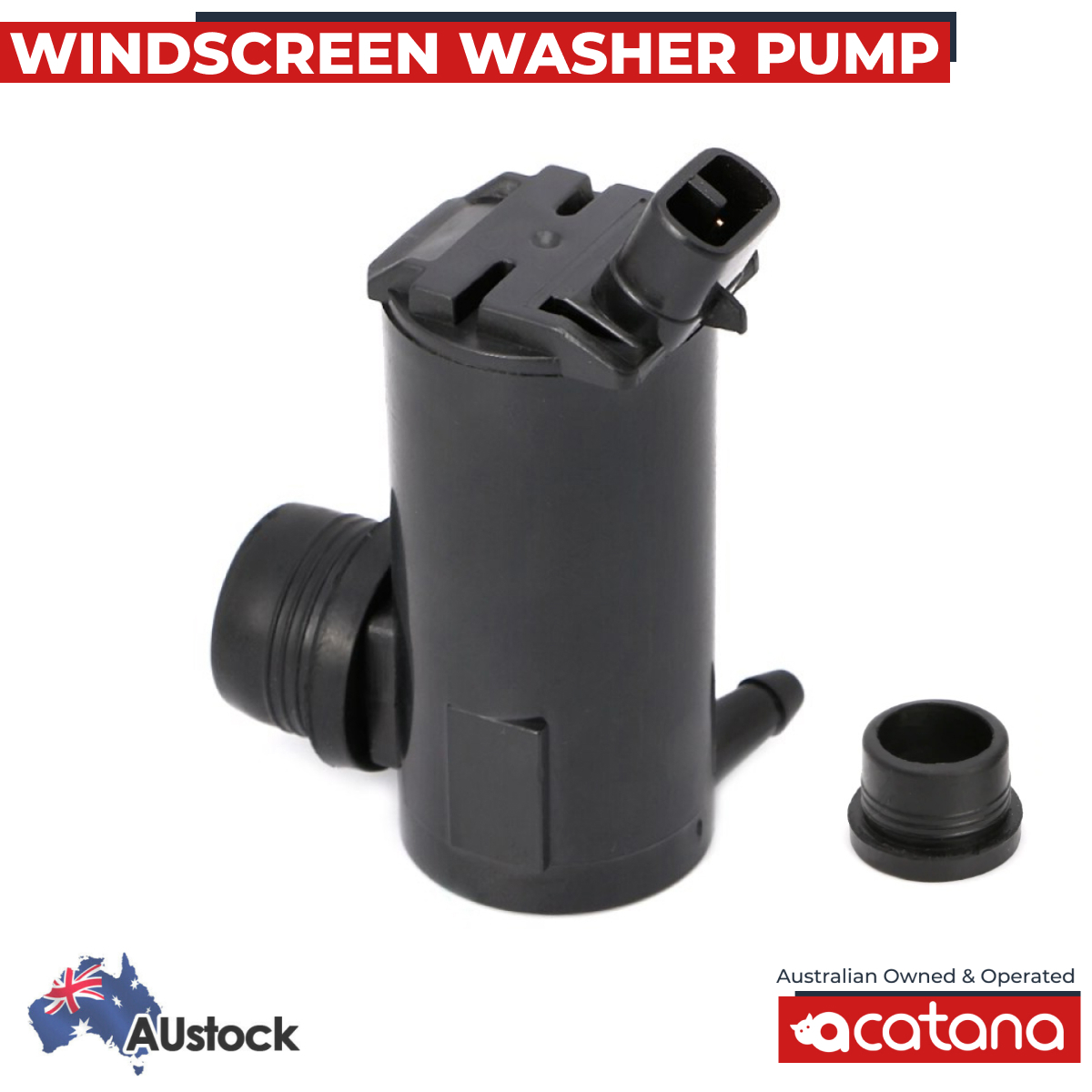

Package includes:

• 1x Wiper Windshield Spray Motor
• 1x Rubber Ring Grommet
• Packaging Type: Box
• Fitment: Direct Replacement



Note and recommendations:

• It is always recommended to clean the bottle, and clear pipes before replacement as sludge can build up in the tank and cause damage to the new wiper fluid pump
• Please check OEM numbers, and photos when placing an order
