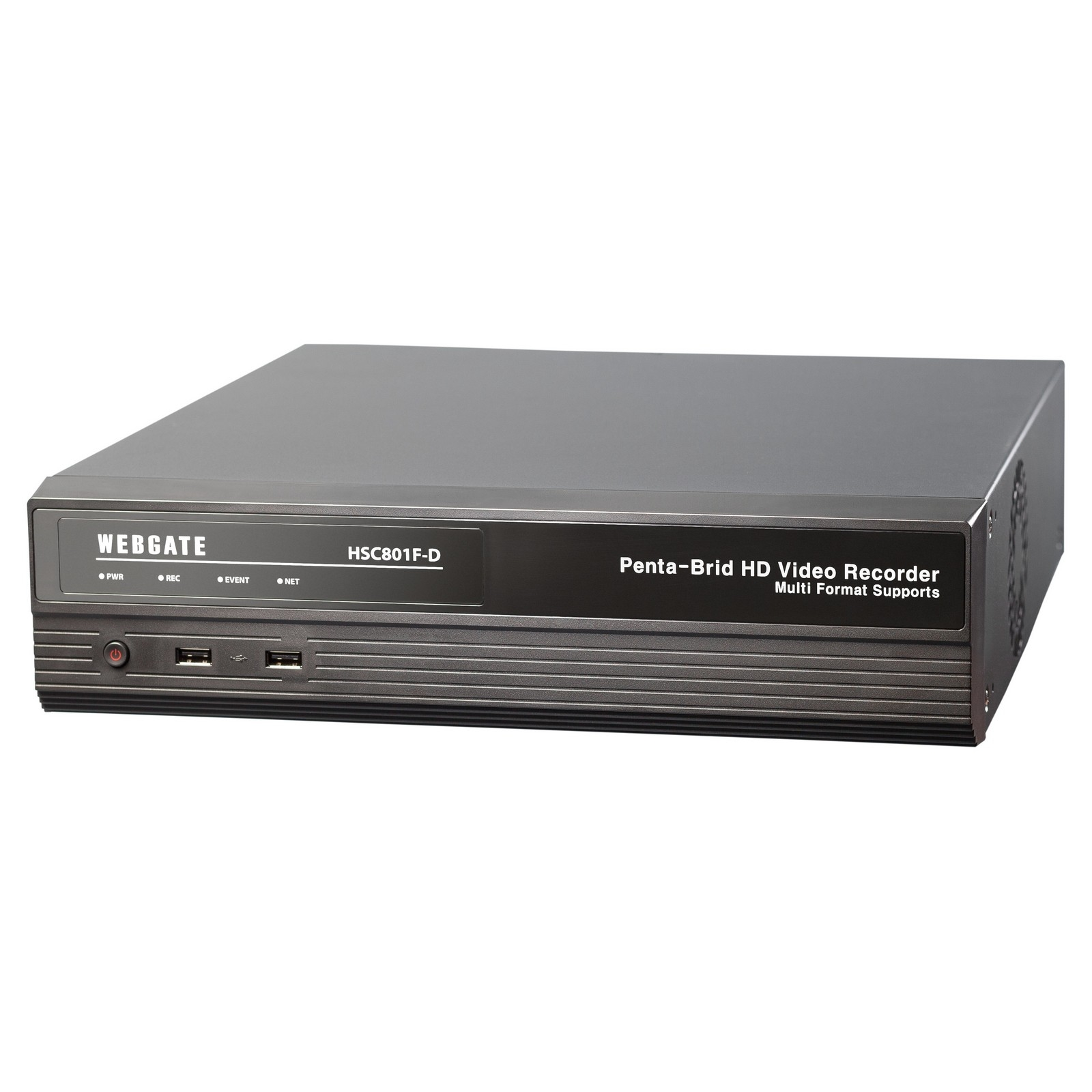

Webgate HSC801F-D 8-Channel Standalone DVR Supporting Multi-Video Input FullHD Digital Video Recorder for HD-CCTV Surveillance Camera, SATA/eSATA HDD
Product Code: HSC801F-D
Price:
$429.00
RRP $799.00
46% OFF
Sold Out
Share This Item:
| Video Input | |||
|---|---|---|---|
| Video input format | HD-SDI (SMPTE 292M), DoubleReach™ | ||
| CVBS, 960H | |||
| Resolution / framerate | HD1080p | 1920x1080 / 25, 30 FPS | |
| HD720p | 1280x720 / 25, 30, 50, 60 FPS | ||
| DoubleReach | 1920x1080 / 25, 30FPS | ||
| 510H/760H | 720x480 / 60i or 720x576 / 50i | ||
| 960H | 960x480 / 60i or 960x576 / 50i | ||
| Connectors | 8ch, 75? BNC connector | ||
| Video Output | |||
| Video output | HDMI VGA | 1, 4, 9 split-screen | |
| 1920x1080 | |||
| User defined sequence / Alarm pop-up | |||
| BNC | 1, 4, 9 split-screen | ||
| CVBS | |||
| Channel Switching / Alarm pop-up | |||
| Recording | |||
| Compression | H.264 / JPEG | ||
| Resolution | 1920 x 1080, 1280 x 720, 720 x 480(576), 960 x 480(576) | ||
| Rate | Max. 30fps(25fps) per channel | ||
| Quality | 10 levels up to 12Mbps | ||
| Mode | Manual & Event / Schedule & Event / Continuous & Event | ||
| Schedule | 24hrs / 7days | ||
| Playback | |||
| Mode | Instant playback / search | ||
| Speed | Max. 30fps(25fps) per channel | ||
| Search type | Date/Time, Calendar/Time-line, Event, Thumbnail, Text | ||
| Block playback | 24hours ~ 99days | ||
| Event & alarm | |||
| Event source | MD(Motion Detection), sensor, text, Video Loss | ||
| Event check schedule | 24hrs / 7days | ||
| Event action | Buzzer, Relay, E-mail, FTP, Alarm pop-up | ||
| MD area | 15x10 | ||
| Sensor input | Dry contact (NO or NC selectable) | ||
| Text input | POS/ATM support, AVE VSI Pro/Hydra support | ||
| System alarm | |||
| Alarm source | HDD fail, HDD almost full, Fan fail, Password fail, WRS fail | ||
| Alarm action | Warning message, Buzzer, E-mail, Relay | ||
| Audio | |||
| Input/output | 4ch RCA input / HDMI, RCA output | ||
| Compression | ADPCM (32Kbps, 16KHz, 16bit sampleing) | ||
| Direction | Both | ||
| PTZ | |||
| Protocols | 35 models including C1080, C1080PT-Z20, Pelco-D, Pelco-P, Samsung, Panasonic and others | ||
| Network | |||
| Interface | 2 Gigabit Ethernet (10/100/1000Mbps) | ||
| Type | Static IP, Dynamic IP, xDSL | ||
| DDNS | WNS, DynDNS, NoIP, WRS | ||
| Bandwidth limit | Supported | ||
| NTP | Server / Client / Both | ||
| Users | 10 monitoring, 2 playback | ||
| Streaming | H.264 stream, High resolution 1 additional H.264 stream, Normal resolution 1 JPEG stream, Normal resolution for e-mail or mobile | ||
| Security | |||
| User level | 1 admin, 10 users | ||
| User privilege | Menu, PTZ, Relay, Playback, Power, Copy, Network MIC | ||
| IP filtering | Supported | ||
| Storage & Backup | |||
| Storage devices | 2 internal SATA HDDs, 1 external eSATA Interface | ||
| File system | Proprietary file system, data-loss protection against power-failure | ||
| Capacity | Max. 32TB with eSATA | ||
| Backup type | Multi-channel or Single channel avi file | ||
| Backup device | USB drive (2 ports) | ||
| S.M.A.R.T. | Temperature and Health checking | ||
| Serial & I/O | |||
| Serial port | 1 RS-232C, 2 RS-485 | ||
| Sensor input | 8 Dry-contact | ||
| Relay output | 2 Relay | ||
| Controller | |||
| Device | IR remote controller, Joystick Keyboard, Mouse | ||
| Software | |||
| Web viewer | Monitoring / Event / PTZ / Playback with IE | ||
| Java viewer | Monitoring / Event/ PTZ with IE, Chrome, Safari | ||
| Mobile viewer | Monitoring / PTZ / LogView / Playback with iPhone & Android | ||
| CMS | Control Center, Max. 1024 DVRs | ||
| SDK | ActiveX(COM) SDK | ||
| Environmental & physical | |||
| Dimension | 350(W) x 393(D) x 88(H) mm | ||
| Weight | 8 Kg (No HDD) | ||
| Operating temperature | 5°C~45°C (41°F ~ 113°F) | ||
| Power | DC 12V / 5A | ||
| Power consumption | Max. 40W Typical 30W | ||
| Approval | KC, FCC, CE, RoHS | ||
| Specification | http://www.webgateinc.com/wgi/eng/index.php?svc_name=product&amCode=C029&asCode=C036&ec_idx1=P010&page=&ptype=view2&p_idx=90 |
| Model | HSC801F-D |
| Video Output | VGA HDMI Bridge Media slot |
| Packing Weight | 8000 g |
| External Outputs | RS-232 RCA RS-485 Audio input USB 2.0 |
| Network Interface | 2 x 10/100/1000 Mbps Ethernet Port |
| Packing Width | 443 mm |
| Packing Depth | 400 mm |
| Packing Height | 138 mm |
| Package Type | BOX |
