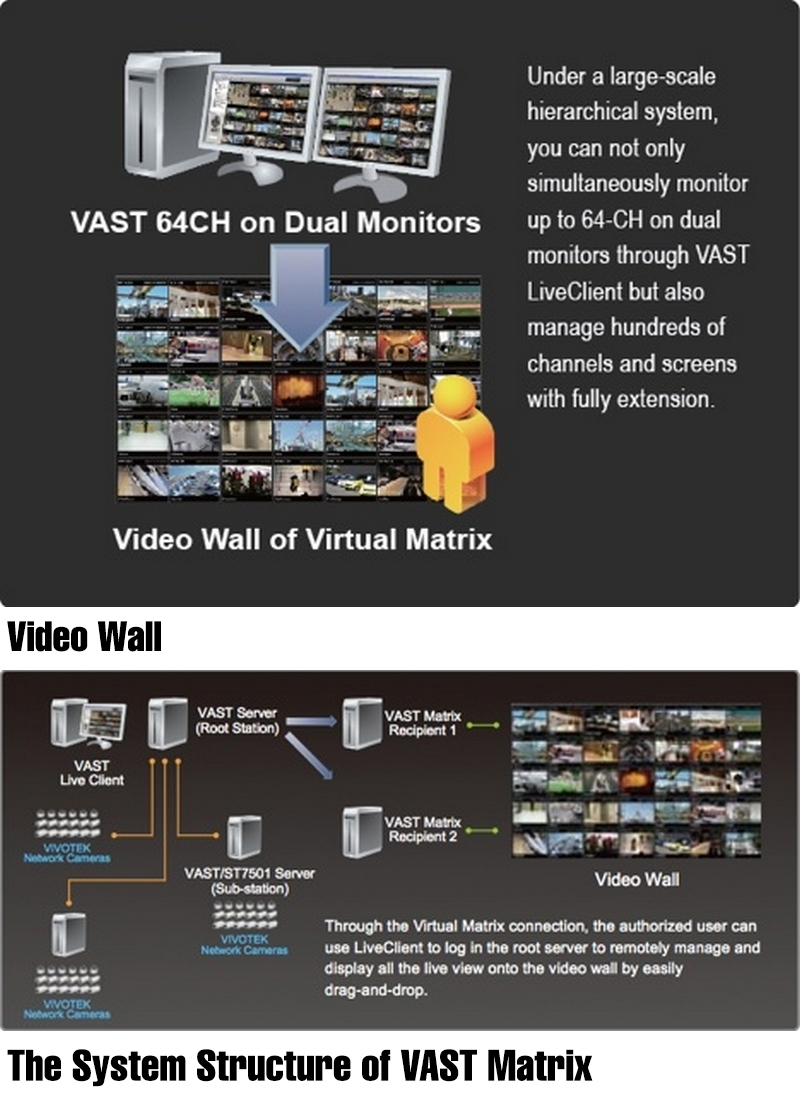

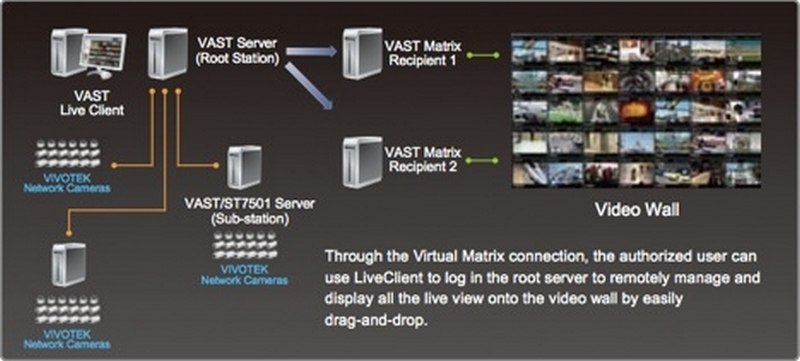

Fully Scalable VAST Matrix

01

VAST Matrix is a very useful program for multiple monitor display and central management, which efficiently helps user construct a real-time live video wall in the control center, thus making VAST a very powerful central management system.

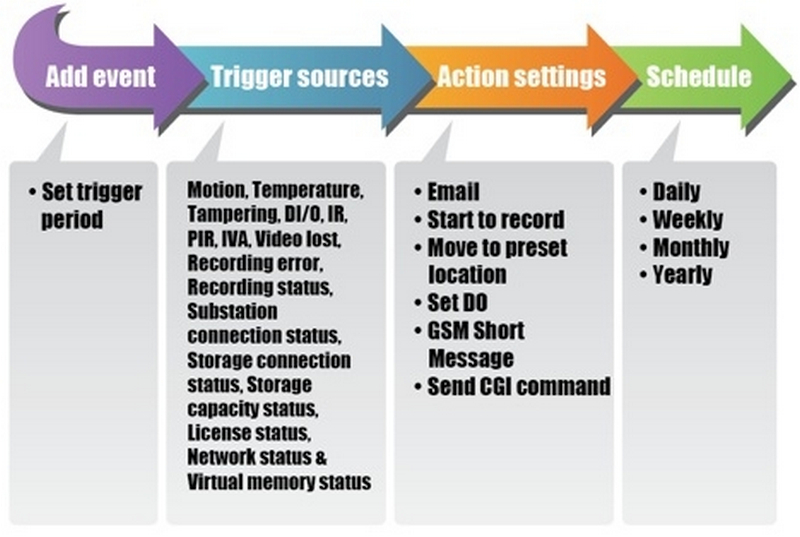

Effective Event Management

02

The LiveClient supports co-megapixel retentive event man- agreement which allows the user to quickly respond to any emergencies. The VAST Playback offers an array of event search engine for retrieving video clips from the database of recorded videos based on different search criteria.

E-map

03

VAST LiveClient supports intuitive E-map function which allows users to upload E-maps for overall devices management. The whole system architecture is thus visualized through e-map links.



System Requirement - VAST Server



4Mbps Each Channel	Upto 64 Channel	Upto 120 Channel
CPU	2nd Generation Intel  CoreTM i3 Processors or above
RAM	4 GB or above
Hard Drive (Enterprise Model Only)	Single Recording Group with One Hard Drive	Duplex Recording Group with Two Hard Drive*
Graphics Adapter	DirectX 9 compatible 1GB graphics card
Network Interface Card	1000/100/10 Ethernet



Each recording group can be setup to only 60 channels



System Requirement - VAST LiveView & Playback



720P, 4Mbps, H.264*	8CH	16CH	32CH
1080P, 4Mbps, H.264**	4CH	10CH	18CH
CPU	2nd Generation Intel CoreTM i3 Processors	2nd Generation Intel CoreTM i5 Processors	2nd Generation Intel CoreTM i7 Processors
RAM	2 GB or above	4 GB or above	4 GB or above
Graphics Adapter	DirectX 9 compatible 1GB graphics card
Network Interface Card	1000/100/10 Ethernet



Display requirements of the 3MP fisheye camera is equal to a 720P camera.

 Display requirements of the 5MP fisheye camera is equal to a 1080P camera.
