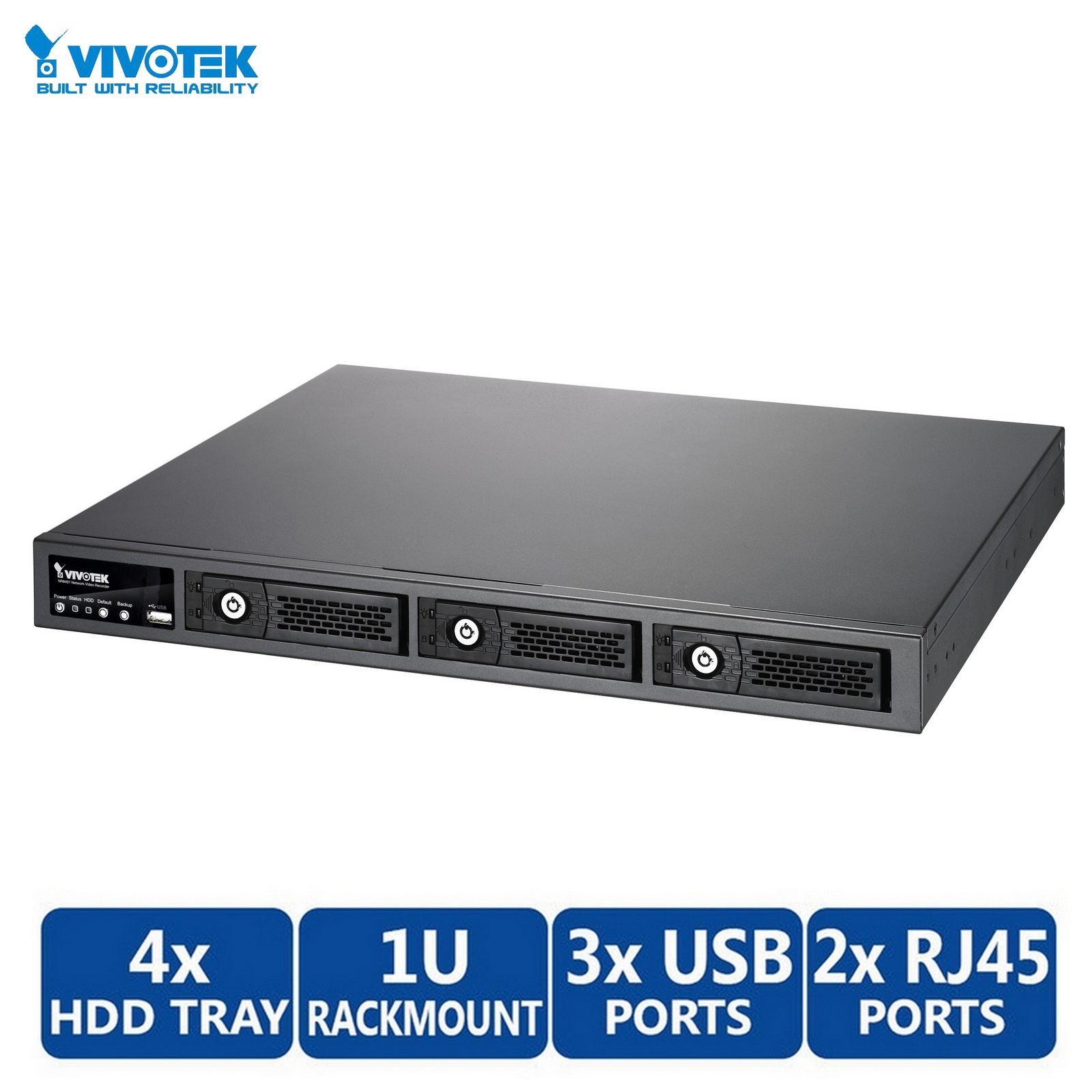

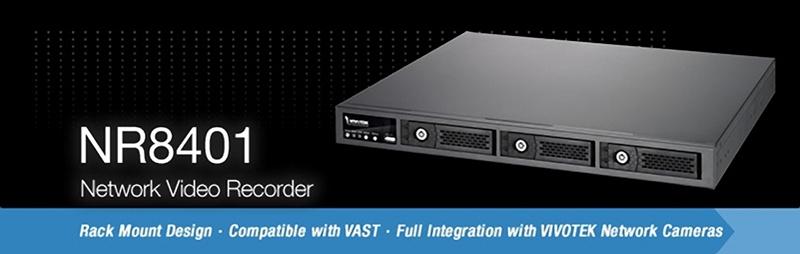

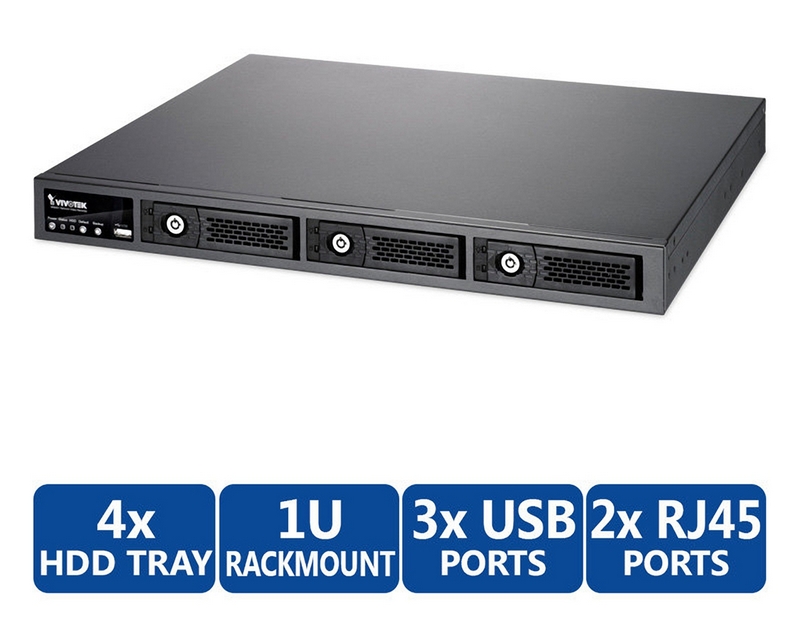

Vivotek NR8401 16-Channel Network Video Recorder with 4x3.5"HDD Bays

01

The NR8401 is equipped with two gigabit ethernet RJ45 ports which provide network failover/load balance functionality to avoid the risk of recording loss. The front panel provides an easy backup button for users to backup/restore NVR configurations, which is very useful for a rackmount chassis system. Up to 4 HDDs can be added to the NR8401 for a total storage capacity of up to 16TB (4TB*4). Three removable HDD trays are available in the front of the unit, with hot-swap functionality for easy replacement, and support the RAID 0/1/5 application for video data protection and mirroring.

A CMS server running VAST software can also directly control the NR8401, and compatibility with the iViewer application allows for remote access to the NR8401 on handheld devices. By integrating all of the components together using VIVOTEK's NR8401, network cameras, VAST, and iViewer software, users can realize a fully-featured and robust next-generation surveillance system.

Features

02

Features - Hardware

Embedded Linux;

1U Rack Mount Design;

RAID 0, 1, 5 Storage Solution;

4 x HDD Tray, Max. 16TB;

2 x Gigabit RJ45 Ethernet Port;

3 x USB Port (1 x Front / 2 x Back);

4 x DI / 1 x DO;

Size: 430 mm (W) x 421 mm (D) x 44 mm (H).



Features - Software

16-CH Live View & 4-CH Synchronous Playback;

H.264 / MPEG-4;

PTZ Support;

Snapshot / Export Media;

PiP Video Control;

Bookmark Design;

Fast Configuration Backup / Restore;

Compatible with VIVOTEK VAST Central Management Software*;

Full Integration with VIVOTEK Network Cameras;

VIVOTEK iViewer Support (iOS/Android);

* The VIVOTEK VAST Central Management Software is not included in the package.



Supported Model list



• Network Cameras:
  • CC8130, FD7131, FD7132, FD7141, FD8131, FD8131V, FD8133, FD8133, FD8133V, FD8134, FD8134, FD8134V, FD8135H, FD8136, FD8152V, FD8156, FD8161, FD8162, FD8162V, FD8167, FD8367V, FD8335, FD8335H, FD8361, FD8361L, FD8362, FD8362E, FD8371V, FD8371EV, FD8372, FE8171, FE8171V, FE8172, FE8181, FE8181V, IB8156, IB8367, IB8367-R, IP7111, IP7121, IP7130, IP7133, IP7134, IP7138, IP7139, IP7142, IP7151, IP7152, IP7153, IP7154, IP7160, IP7161, IP7330, IP7361, IP8130, IP8131, IP8132, IP8133, IP8133W, IP813X, IP8151, IP8151P, IP8152, IP8155HP, IP8161, IP8162, IP8162P, IP8165HP, IP8172, IP8172P, IP8330, IP8331, IP8332, IP8335H, IP8336W, IP8352, IP8361, IP8362, IP8371, IP8371E, IP8372, IZ7151, MD7530, MD7560, MD7560X, MD8562, PD8136, PT8133, PT8133W, PZ7131, PZ7132, PZ7151, PZ7152, PZ71x1, PZ71x2, PZ8111, PZ8111W, PZ8121, PZ8121W, PZ81X1, PZ81X1W, SD7151, SD7313, SD7323, SD73X3, SD8111, SD8121, SD81X1, SD8311E, SD8312E, SD8313E, SD8321E, SD8322E, SD8323E, SD8331E, SD8332, SD8362, SD8362E, SD83X1, SD83X2, SD83X3
• Video Servers:
  • VS7100, VS8102, VS8401, VS8801

Camera is not on the list still which means its advanced function might not be supported on NVR. But for the basic functions - getting live streaming, recording and playback are still available.

Full Specifications

System	OS: Embedded Linux
channels	16-CH selectable
Storage	4x3.5"HDD, up to 16TB 3 x hot-swappable & lockable hard disk tray, 1 x internal hard disk tray HDD S.M.A.R.T.(Self-Monitoring Analysis and Reporting Technology) RAID0,1,5
Connectors	2 x Gigabit RJ45 ethernet port 3 x USB2.0 port (1 x front / 2 x back) 4 x DI and 1 x DO for external sensor or alarm 1 x RS232 (reserved)
Camera Compatibility	Integrates with most VIVOTEK network cameras
Networking	IPv4, TCP/IP, HTTP, RTSP/RTP/RTCP, SMTP, DHCP, NTP, DNS, DDNS Network mode (TCP/IP configuration): failover / load balance / standalone Default: restore user name/password to default
Recording	Throughput: Max. 96 Mbps Recording Policy: scheduled (continuous/event mode), manual and alarm recording Video Compression: H.264/MPEG-4 Audio Compression: AMR/G.711/AAC Resolution: up to 5-Megapixel recording Format: 3GP
LiveView (Local Display)	Display Layout: 1x1, 2x2, 4x4, 1+3, 1+5 Rotate Freeze Snapshot Bookmark design Audio control PiP video control Manual Trigger Camera DI/DO, NVR DI/DO Pan/Tilt/Zoom control of VIVOTEK cameras Preset location Auto pan/patrol
Playback (Local Display)	Display Layout: 1x1/2x2/1+3 Playback Mode: play, pause, stop, next/frame, speed up/down (1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64) 4-channel synchronous playback Search Mode: date/time mode, alarm mode (motion, DI/DO, Bookmark) Graphical timeline Snapshot Bookmark design Audio control Export: 3GP/EXE
Button	Power: on/off Default: restore user name/password to default Backup: backup the NVR configuration file
Event Action Management	Source: motion, camera DI/DO, NVR DI/DO Actions: recording, email, buzzer, FTP, HTTP, camera preset position, camera DO, NVR DO Alarm history search (motion, DI, DO)
Security	User group setting with password protection Access list
Backup	Manual backup
Mobile APP Support	VIVOTEK iViewer (iOS/Android)
Dimensions	430mm (W) x 421mm (D) x 44mm (H)
Weight	Net: 7200 g (without HHD)
LED Indicator	1 x Power LED 1 x Status LED 1 x HDD LED 1 x Restore LED 1 x Backup LED
Approvals	CE, FCC Class A, VCCI, C-Tick
Operating Environments	Temperature: 0°C ~ 40°C ( 32°F ~ 104°F ) Humidity: 20% ~ 95% RH
Warranty	24 months
Language Support	English, Deutsch, Espanol, French, Italiano, Portuguese, Traditional Chinese, Simplified Chinese, Japanese
