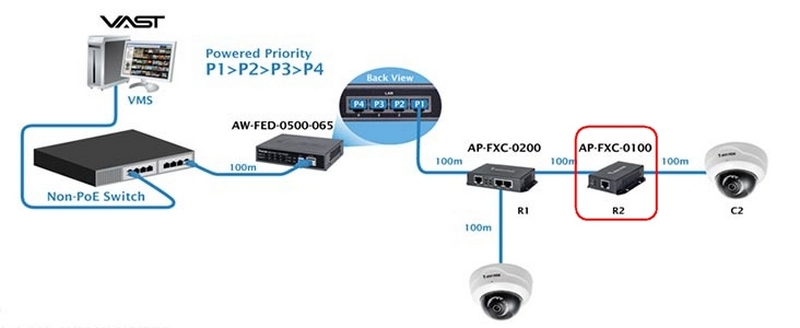

AP-FXC-0100 1-Port Indoor FE PoE Extender. Application Diagram 01

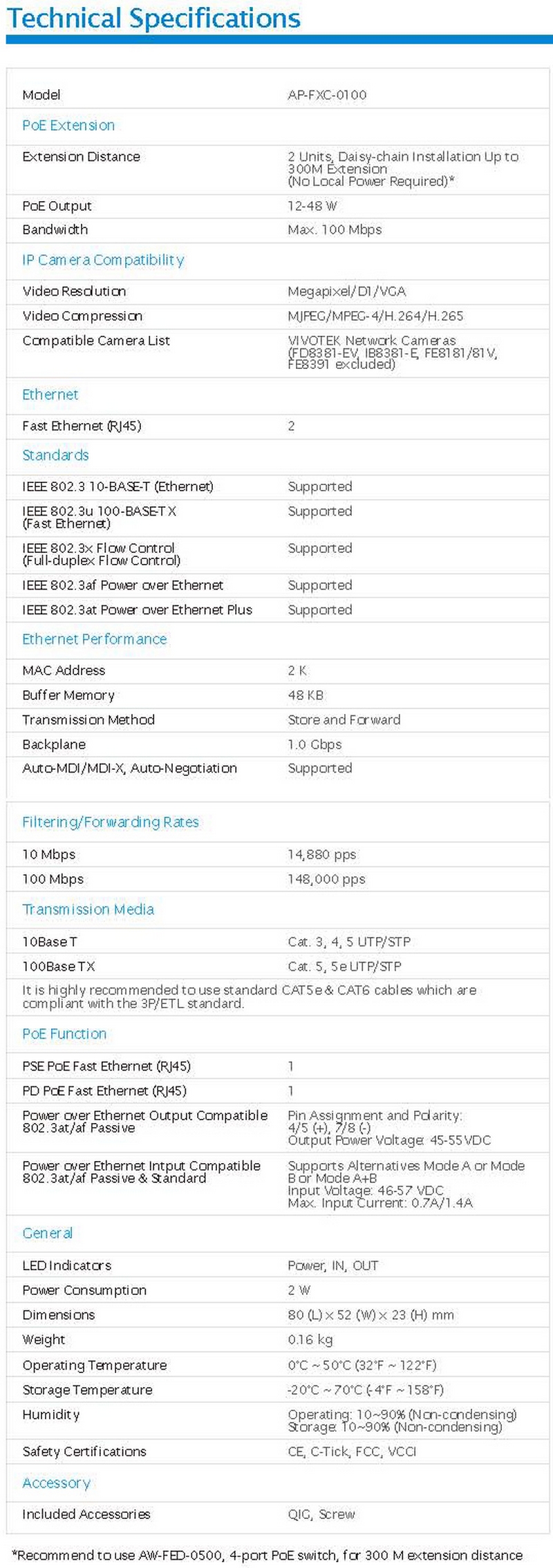

Features & Specifications 02

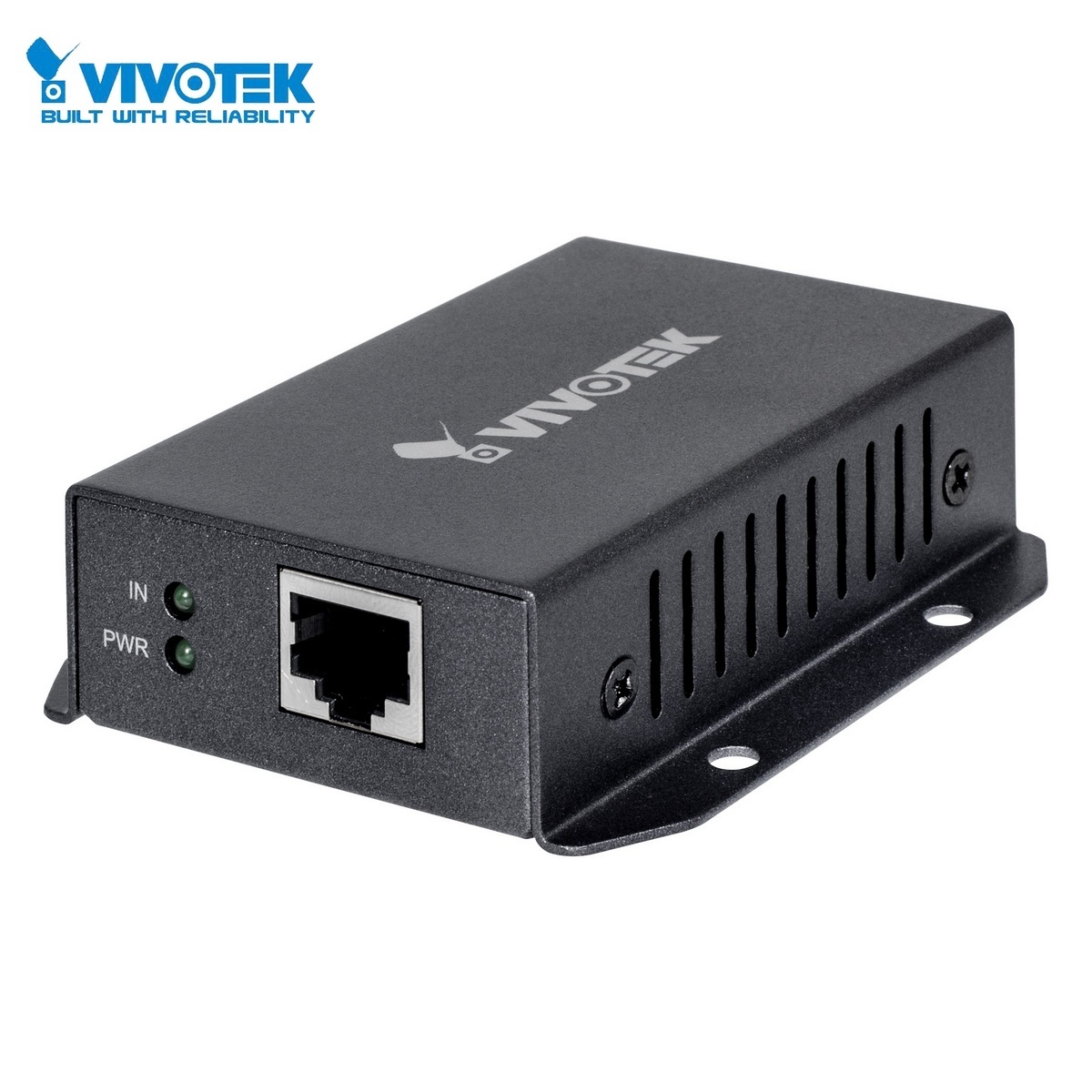

Vivotek AP-FXC-0100 1-Port Indoor FE PoE Extender up to 12-48W Power, 100Mbps Up to 300 meters



  • PoE extender capable of feeding 15.4/30W power to powered devices for a distance of up to 300 meters
  • Multiple extenders can be cascaded to increase the cabling distance and the number of powered devices
Material Type Metal
Additional Features PoE Power Output: 12-48W Compression: MJPEG/MPEG-4/H.264/H.265 Resolution: Megapixel/D1/VGA Ethernet Ports: 2 x RJ45 Fast Ethernet Ports PoE Ports: 2 Regulation Compliance: CE, C-Tick, FCC, VCCI Transmission Method: Store & forward Filtering/Forwarding Rates: 10Mbps, 100Mbps
Product Size 80 (L) x 52 (W) x 23 (H) mm
Packing Weight 250 g
Compatible VIVOTEK IEEE 802.3af Network Cameras (FD8381-EV, IB8381-E, FE8181/81V, FE8391 excluded)
Packing Width 120 mm
Packing Depth 90 mm
Packing Height 50 mm
Package Type BOX
