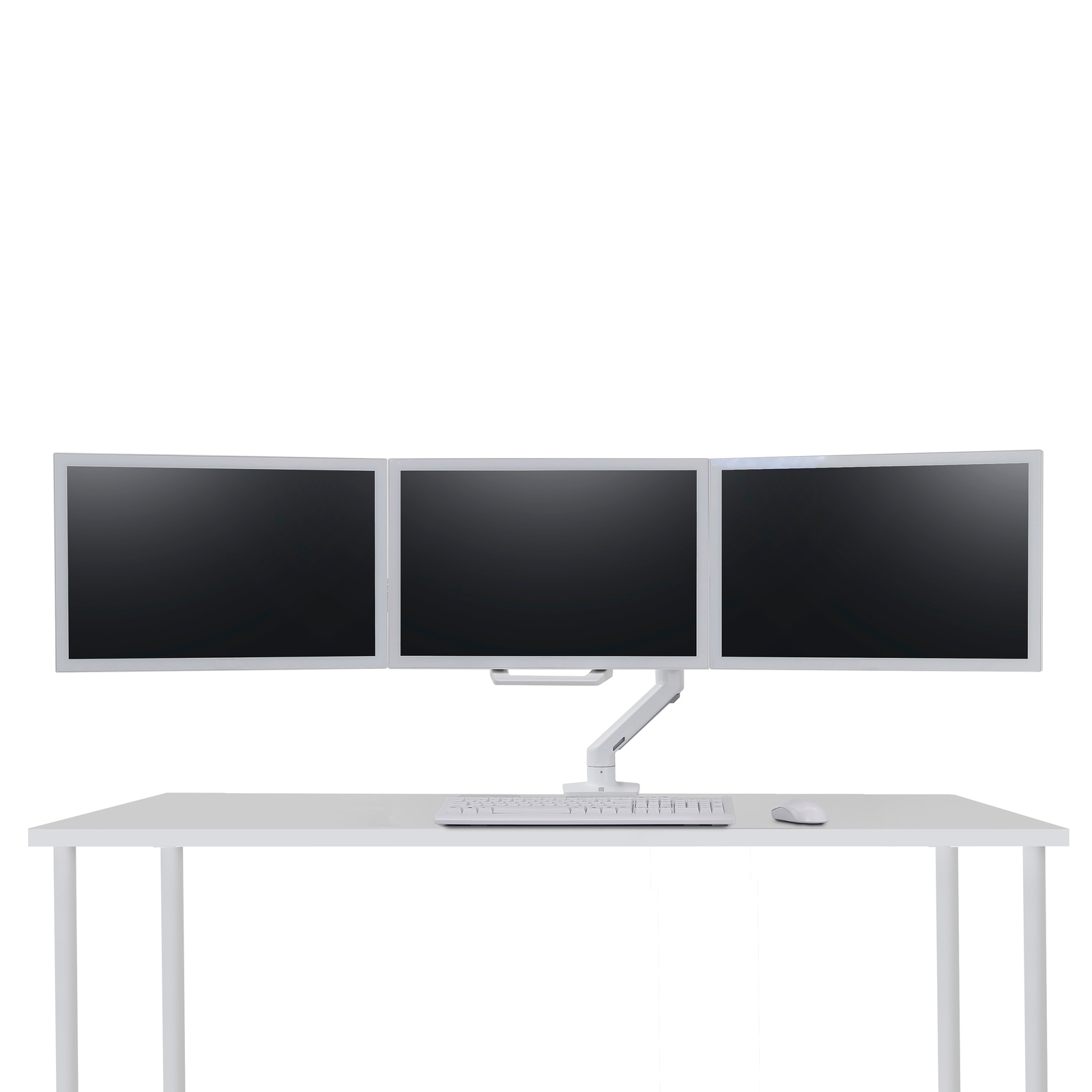

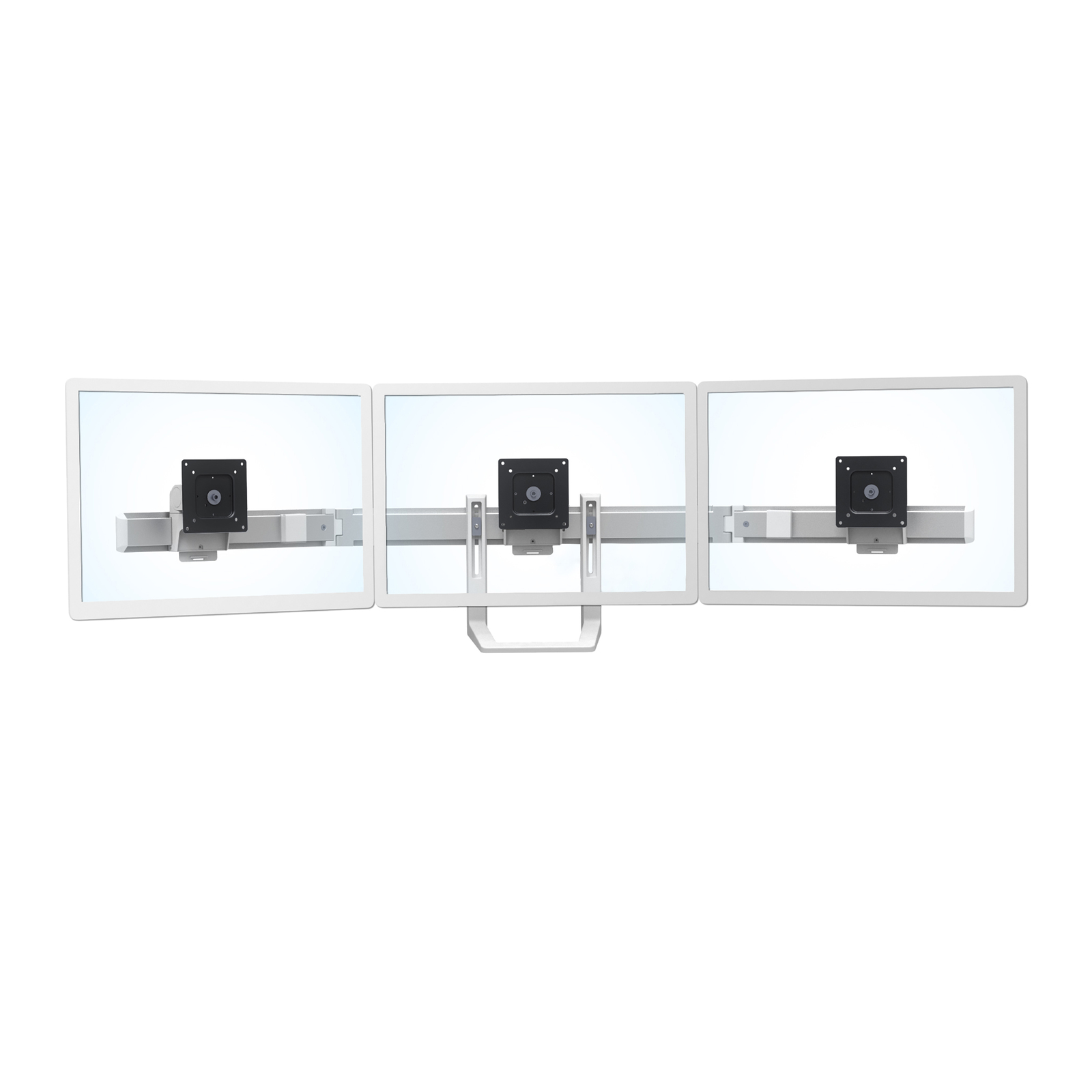

The HX Triple Monitor Bow Kit upgrades an HX arm to hold three monitors and includes a handle for easy positioning. It’s the perfect accessory to expand your view across multiple screens while taking advantage of the HX arm’s adjustment capabilities.



  • Increases viewing comfort: Helps reduce eye, back and neck strain



  • The hinged bow allows monitors to pan outward independently, ideal for sharing screens



  • Optimize the viewing range for enhanced ergonomic comfort by rotating monitors inward using the hinged bow



  • Independent, quick-release monitor pivots with effortless rotation, pan, and tilt for custom positioning of each monitor



  • Includes integrated cable management guides for hassle-free routing of cables











  • Screen Screen ≤ 24 "
  • Capacity Capacity 6–30.6 lbs 2.7–13.9 kg *
  • Lift Lift
  • Tilt Tilt 75°
  • Pan Pan 180°
  • Rotation Rotation 360°
  • Vesa Vesa MIS-D



  • UPC: 698833054835
  • Part Number: 98-009-216 (white)
  • Description: HX Triple Monitor Bow Kit
  • Includes 3 monitor pivots, triple hinged bow, handle
  • Select 98-009-026 for HX arms with polished aluminum finish:
  • Single arms: 45-475-026, 45-478-026
  • Dual arms: 45-476-026, 45-479-026
  • Select 98-009-216 for HX arms with a white finish:
  • Single arms: 45-475-216, 45-478-216
  • Dual arms: 45-476-216, 45-479-026
  • Streamline cable management that routes cables under arm, within extension, and neatly across bow
  • Mounting Standards: VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • * Weight Capacity: Individual LCD weight = 2.0–10.2 lbs (1.0–4.6 kg) per monitor. Total LCD weight = 6.0–30.6 lbs (3.0–13.8 kg)
  • Hinge bow pivots 40° inward and 90° outward
  • Up to 24.5" (60 cm) extended reach and 11.5" (29.2 cm) vertical height adjustment
  • † Tilt Range: 70° backward, 5° forward
  • Pivots feature quick install and release
  • ‡ Works with three displays with diagonal screen–size up to 24"
  • Portrait/landscape rotation with lockout
  • Product Weight: 13.7 lb (6.2 kg)
  • Shipping Dimensions: 28.3" x 18.5" x 7.5" (72 x 47 x 19 cm)
  • Shipping Weight: 19.1 lbs (8.7 kg)
