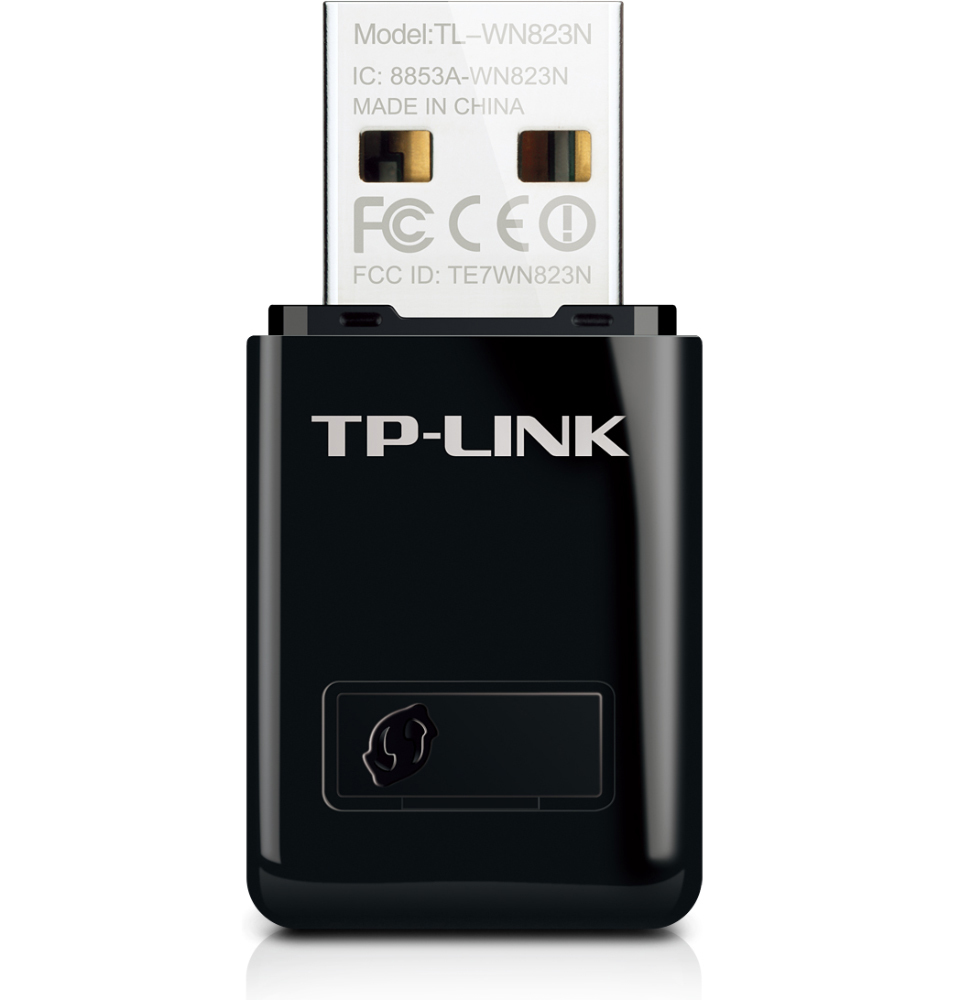

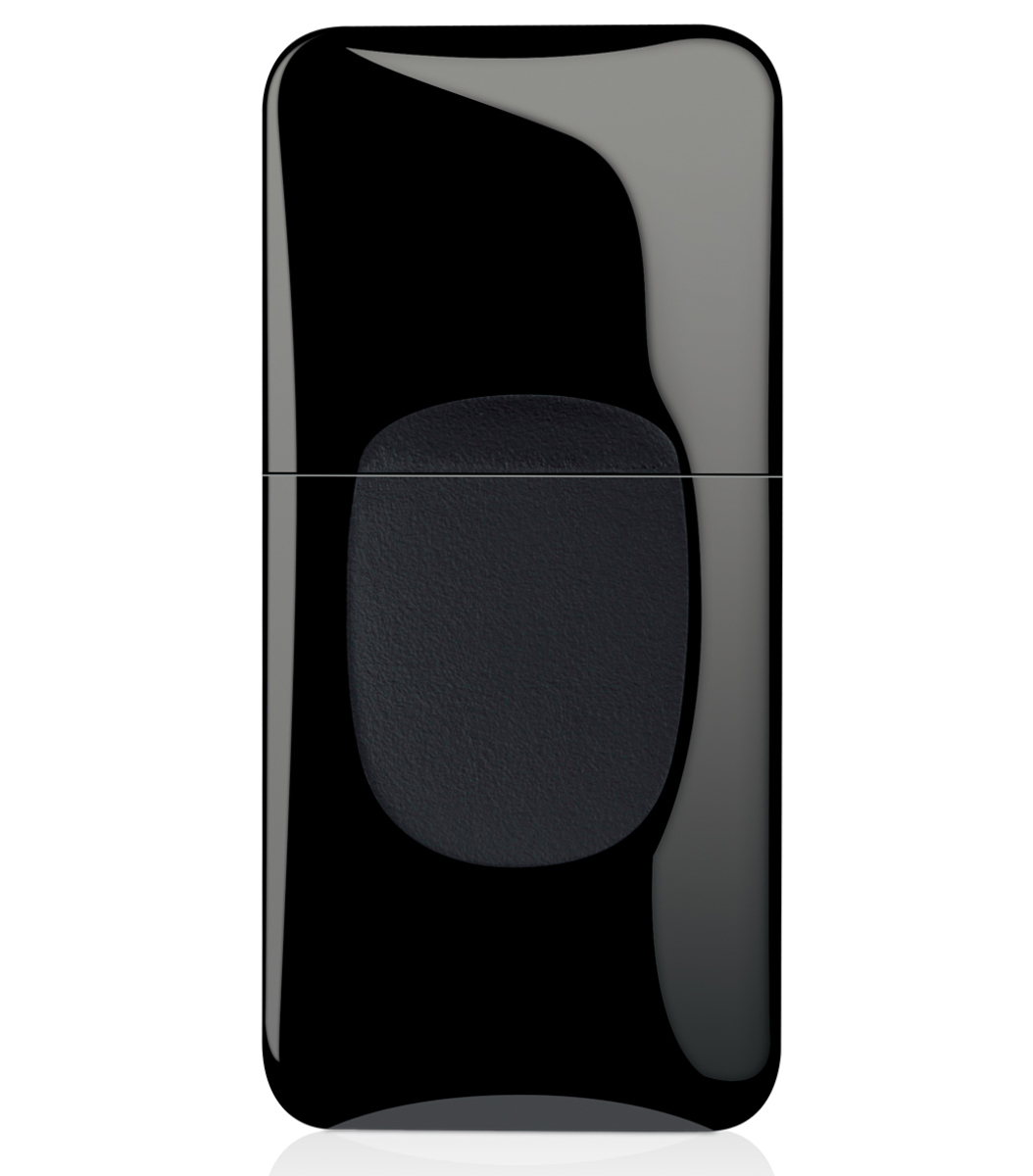

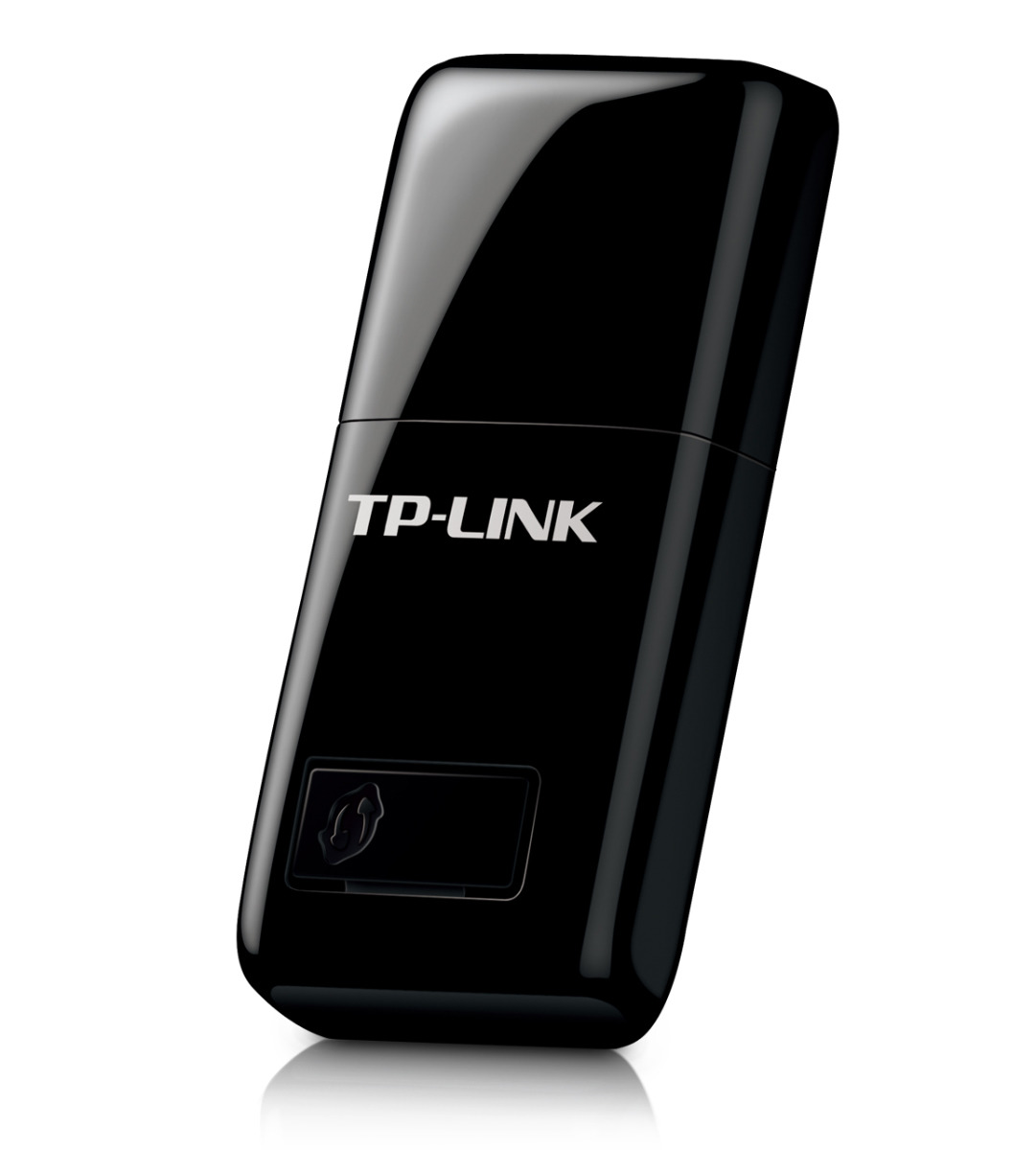

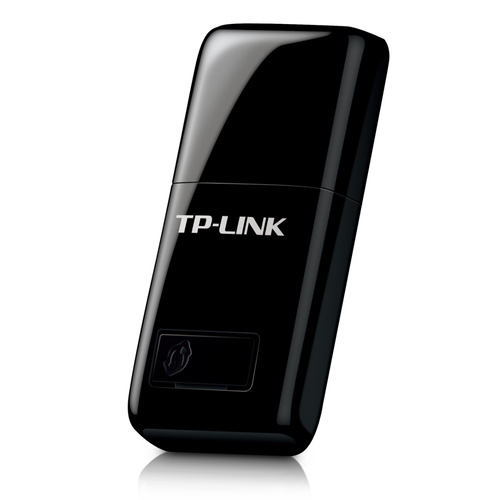

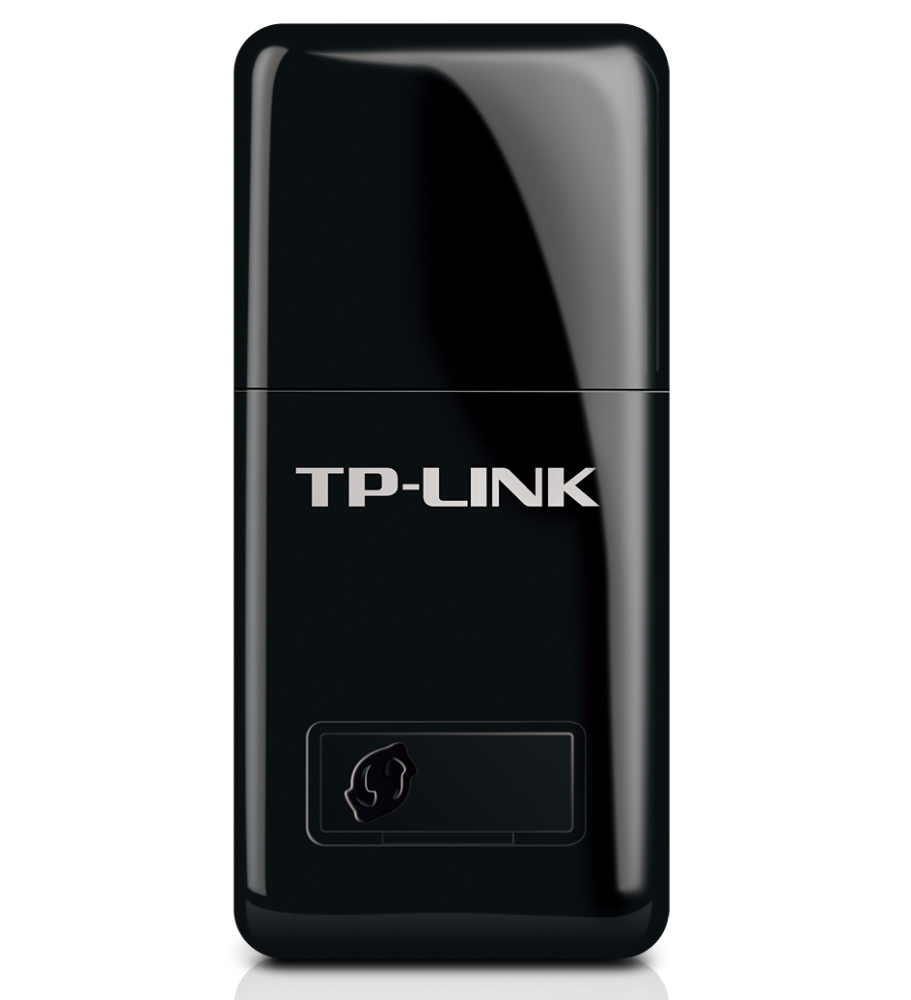

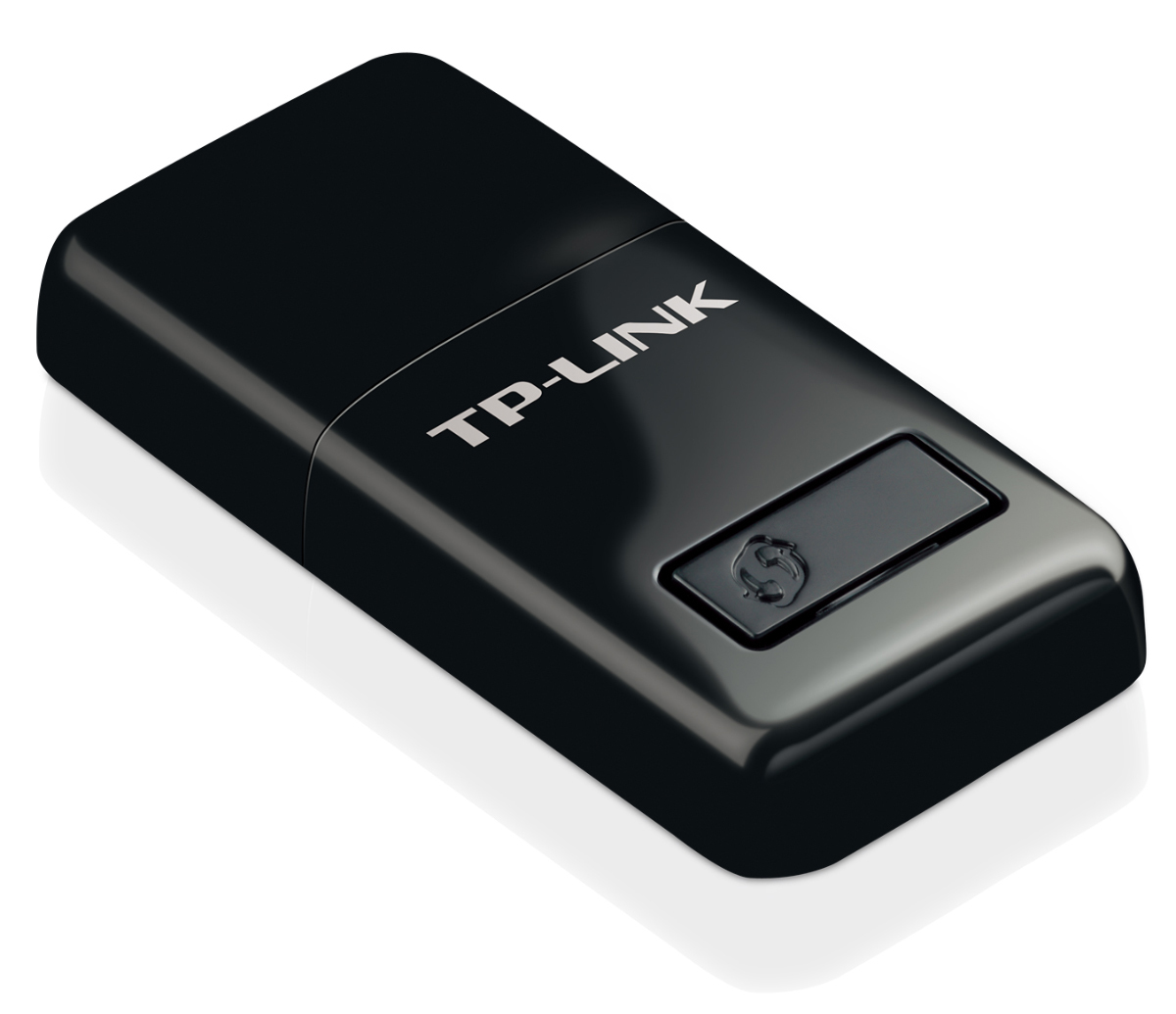

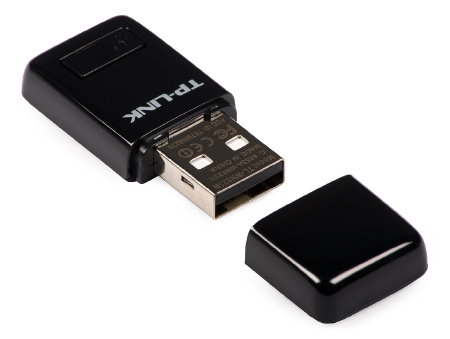

TP-Link TL-WN823N 300Mbps Mini Wireless N USB Adapter, One-touch Wireless Security WPS Button, Mini-sized Design, SoftAP Mode
Product Code: TL-WN823N
Price:
Share This Item:
What This Product Does | 01 |
TP-LINK's 300Mbps Mini Wireless N USB Adapter TL-WN823N is designed to connect your laptop or desktop to a wireless network and enjoy high speed wireless performance. The fingertip design makes the adapter convenient and easy to carry around. What’s more, the TL-WN823N features SoftAP Mode, one-button security setup, easy-to-use configuration software, making it a great choice for enjoying fast wireless network. |
300Mbps Wireless N Speed – Extend Wireless Coverage | 02 |
With wireless speeds of up to 300Mbps and advanced MIMO technology, the TL-WN823N provides you with a fast, reliable wireless connection for lag-free online gaming and video streaming. Better still, TL-WN823N achieves the best performance with wireless N devices, but also works seamlessly with existing IEEE 802.11b/g networks. |
Easy to Install | 03 |
A friendly user interface utility on a CD for simple installation |
Soft AP | 04 |
Easily establish a high speeds Wi-Fi hotspot with just a few clicks |
WPS | 05 |
Easy wireless security encryption at a push of the WPS button |
HARDWARE FEATURES | |
---|---|
Interface | USB 2.0 |
Button | Wi-Fi Protected Setup (WPS) Button |
Dimensions (W X D X H) | 1.54 x 0.72 x 0.31 in. (39 x 18.35 x 7.87mm) |
Antenna Type | Internal |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frequency | 2.400~2.4835GHz |
Signal Rate | 11b: Up to 11Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11n: Up to 300Mbps(dynamic) |
Reception Sensitivity | 300M: -65dBm@10% PER 270M: -65dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -72dBm@10% PER 11M: -85dBm@8% PER 6M: -87dBm@10% PER 1M:-93dBm@8% PER |
Transmit Power | <20dBm (EIRP) |
Wireless Modes | Soft AP Mode Client Mode (support Ad-hoc/Infrastructure network) |
Wireless Security | 64/128-bit WEP WPA-PSK / WPA2-PSK WPA / WPA2 |
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
OTHERS | |
---|---|
Certification | CE, FCC, IC, RoHS |
Package Contents | Wireless Adapter TL-WN823N Resource CD Quick Installation Guide |
System Requirements | Windows 8.1(32/64bits), Windows 8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits) Windows XP(32/64bits), Mac OS X 10.7~10.10, Linux |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Specification | http://www.tp-link.com/en/products/details/cat-11_TL-WN823N.html#specifications |
Standard | Wi-Fi |
Type | External |
Interface | WLAN USB |
Packing Weight | 70 g |
Wi-Fi Speed | 300 Mbps |
Frequency Band | 2.400 - 2.4835 GHz |
Wireless Security | 64/128-bit WEP WPA-PSK / WPA2-PSK WPA / WPA2 |
Antenna | On-Board |
Antennas Quantity | 1 |
Packing Width | 138 mm |
Packing Depth | 34 mm |
Additional Features | Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
Package Contents | Wireless Adapter TL-WN823N Resource CD Quick Installation Guide |
Packing Height | 100 mm |
