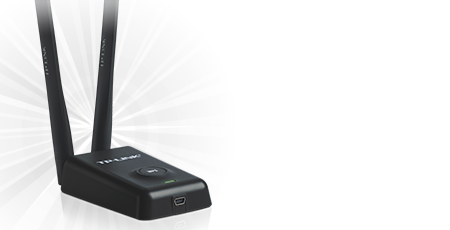

Two 5dBi External Detachable Antennas 01
Two high gain external antennas insure stronger transmission and reception capacity. The two detachable antennas can be rotated and adjusted in different directions to fit various operation environments. For even more demanding applications, the antennas can also be replaced with diverse indoor antennas or directional antennas (using standard RP-SMA connector) to show even greater flexibility and wider wireless coverage.

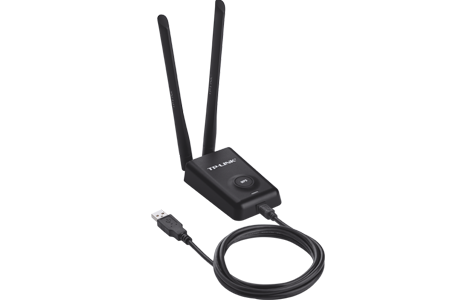

Desktop-Style Design & 1.5m USB Extension Cable 02
Besides the fashionable and novelty exterior, the desktop-style design is beneficial for the signal reception in various application environments, guaranteeing the smooth and stable signal. And TL-WN8200ND also provides 1.5m USB extension cable, convenient for your installation, even for the desktop equipment.

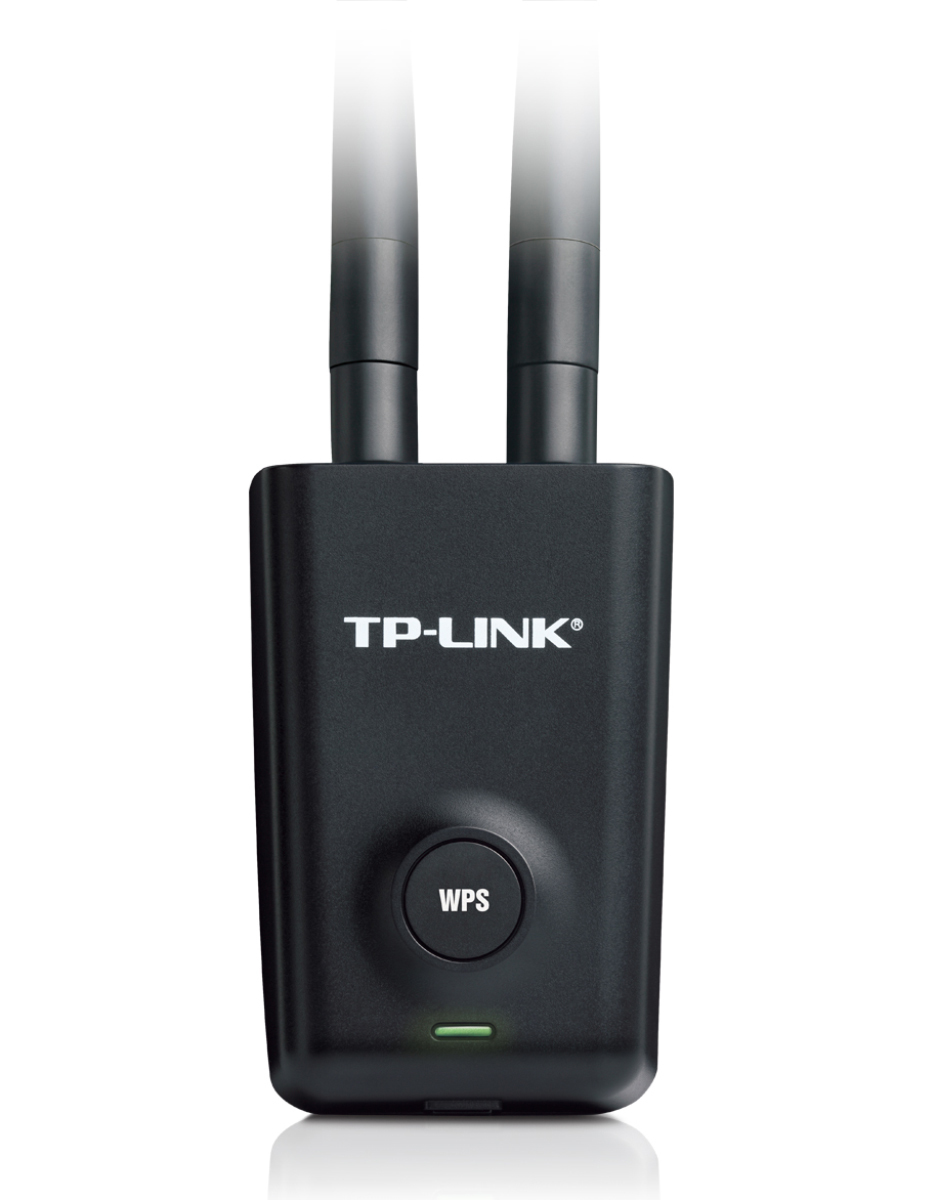

One Button Security 03
Automatically establish a WPA secure connection at a push of the WPS button.
Easy Setup 04
Either using the optimized user interface and setup wizardor the CD(included) setup wizard willallow youto get ‘online’ quickly and easily.



HARDWARE FEATURES
Interface Mini USB
Button WPS
Dimensions (W X D X H) 90.8*60.7*24mm
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna Type 2*Detachable Omni Directional (RP-SMA)
Antenna Gain 5dBi



WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate TxUp to 150Mbps
RxUp to 300Mbps
Transmit Power <20dBm (EIRP, For countries using CE Standards)
<27dBm (EIRP, For countries using FCC Standards)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
OTHERS
Package Contents TL-WN8200ND
2*5dBi Detachable Omni Directional Antennas
Resource CD
Quick Installation Guide
1.5m USB Extension Cable
System Requirements Windows 8 (32/64bits),
Windows 7(32/64bits),
Windows Vista(32/64bits),
Windows XP(32/64bits)
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Standard Wi-Fi
Type External
Interface WLAN USB
Packing Weight 300 g
Standards Compliance IEEE 802.11b IEEE 802.11g IEEE 802.11n
Wi-Fi Speed 300 Mbps
Frequency Band 2.400 - 2.4835 GHz
Wireless Security Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Antenna Yes External/Detachable
Antennas Quantity 2
Antenna Gain 5 dBi
Packing Width 180 mm
Packing Depth 30 mm
Additional Features Transmit Power: <20dBm (EIRP, For countries using CE Standards), <27dBm (EIRP, For countries using FCC Standards)
Packing Height 90 mm
Package Contents TL-WN8200ND 2x5dBi Detachable Omni Directional Antennas Resource CD Quick Installation Guide 1.5m USB Extension Cable
Package Type BOX
