HARDWARE FEATURES

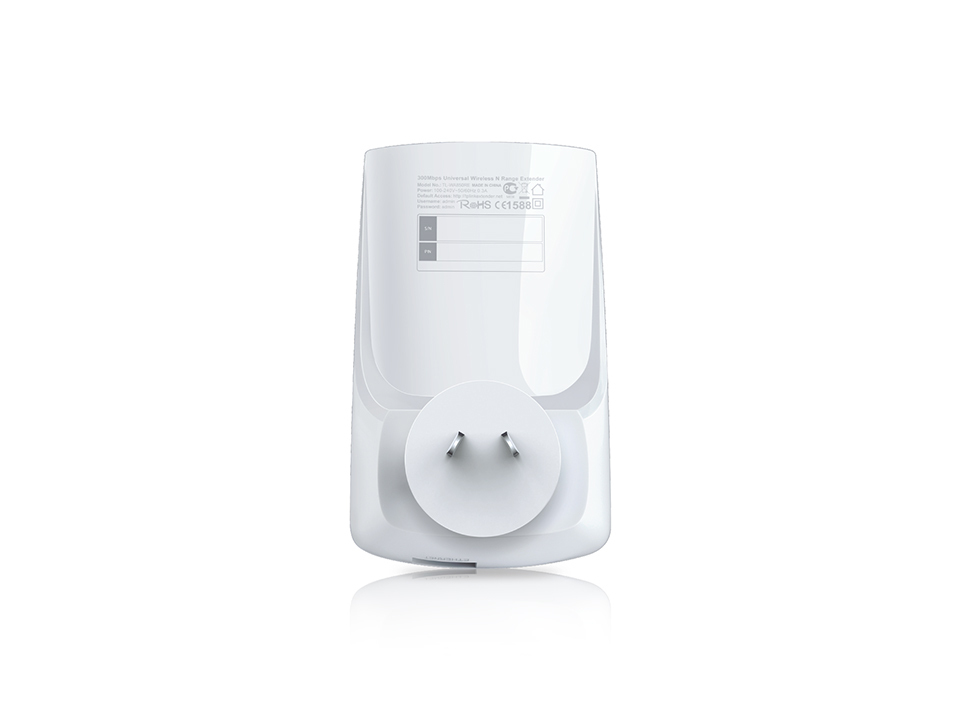

Plug Type EU, UK, US

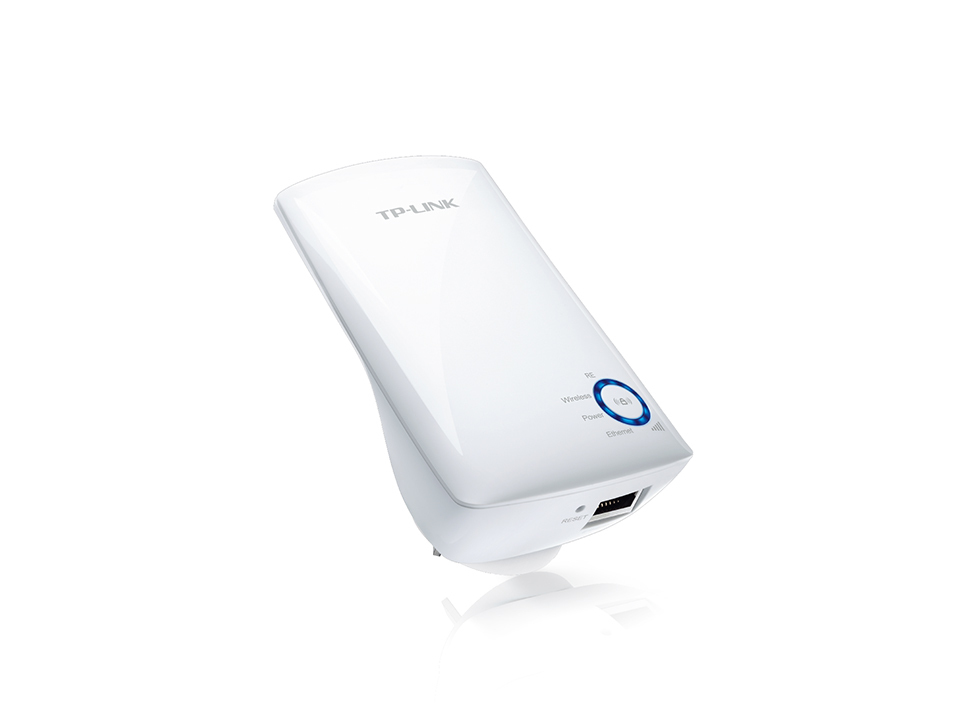

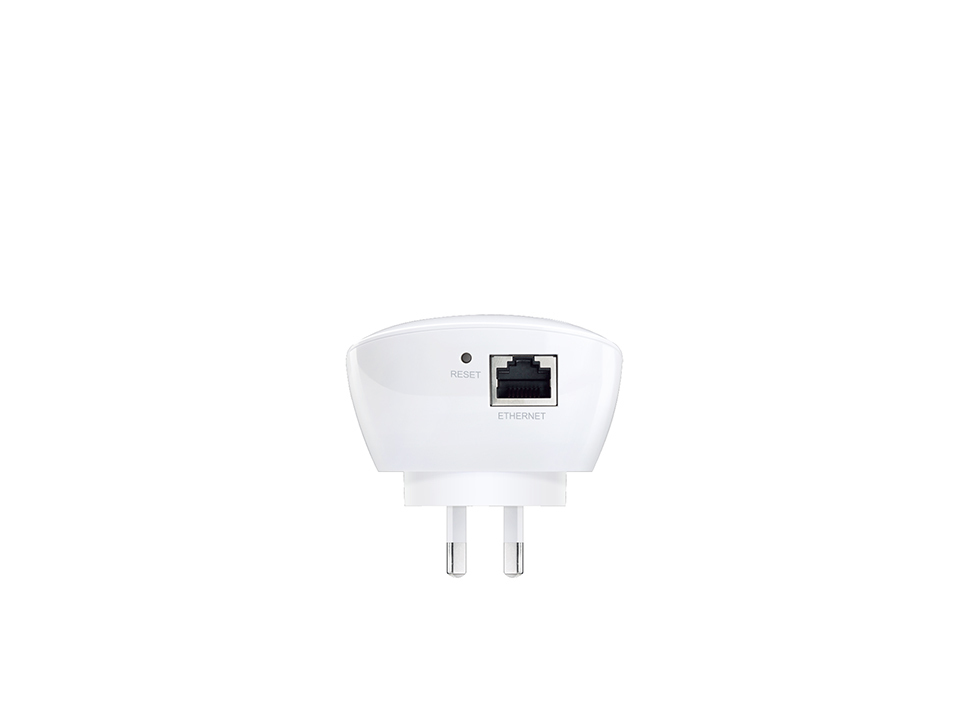

Interface 1 * 10/100M Ethernet Port (RJ45)

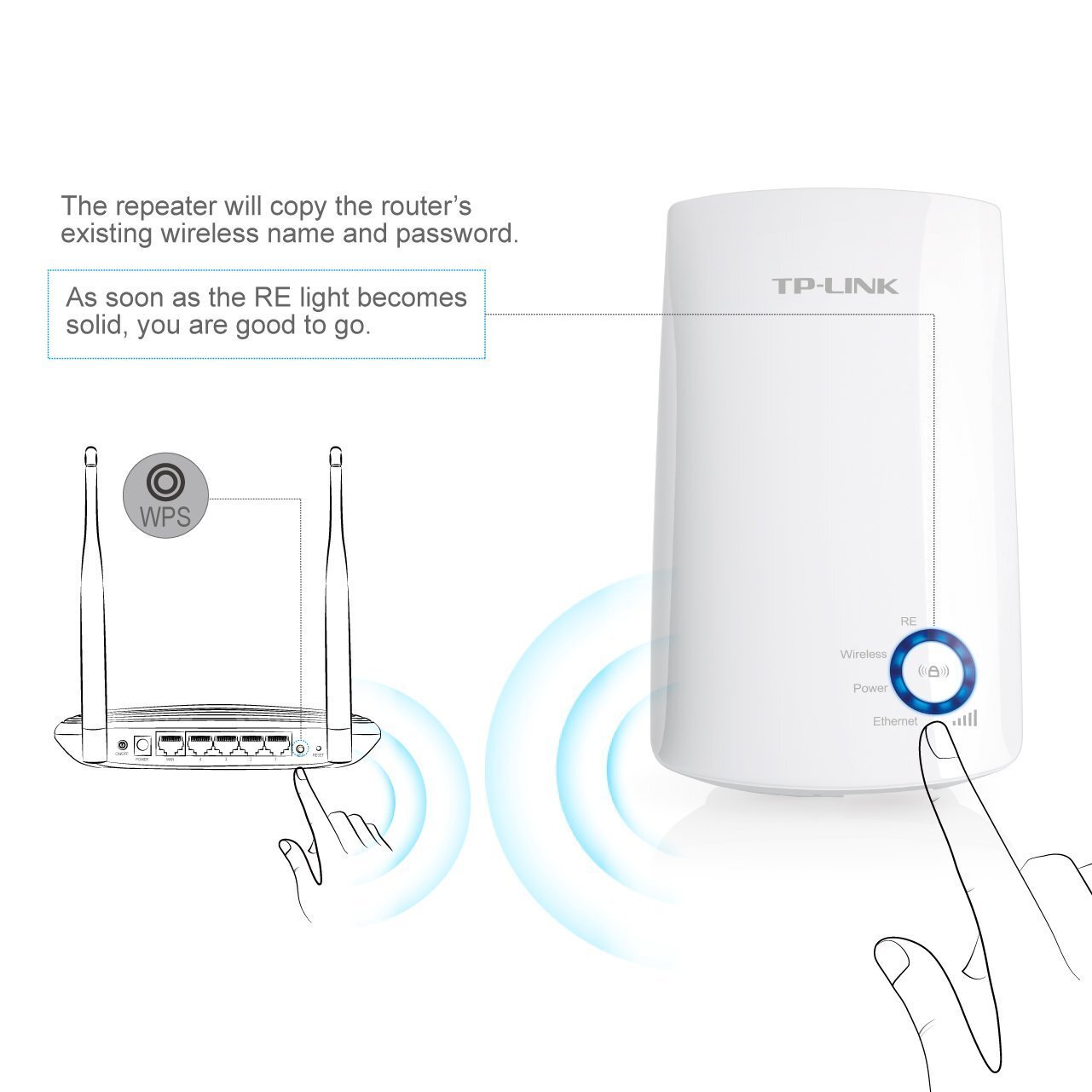

Button RE (Range Extender) Button, Reset Button
Power Consumption About 3W
Antenna 2 * internal
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)



WIRELESS FEATURES
Frequency 2.4~2.4835GHz
Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power < 20 dBm (EIRP)

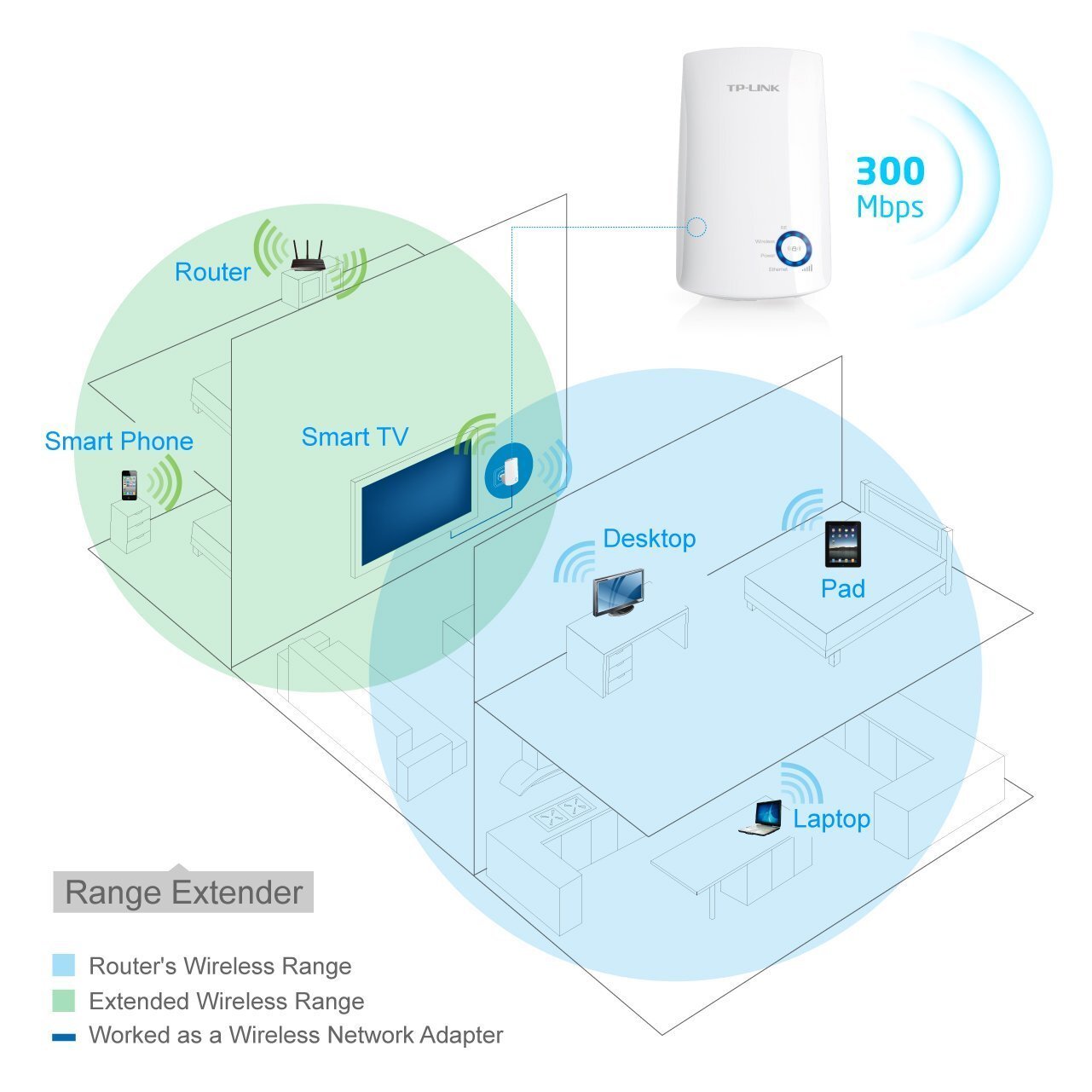

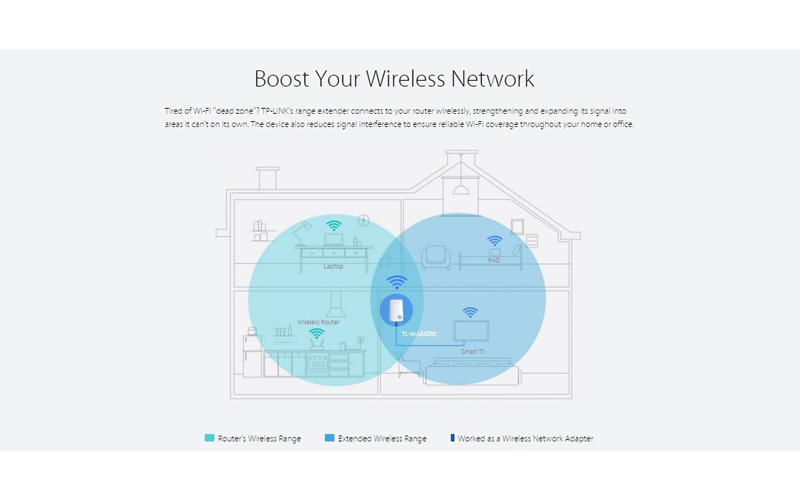

Wireless Modes Range Extender
Wireless Functions WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification CE, RoHS

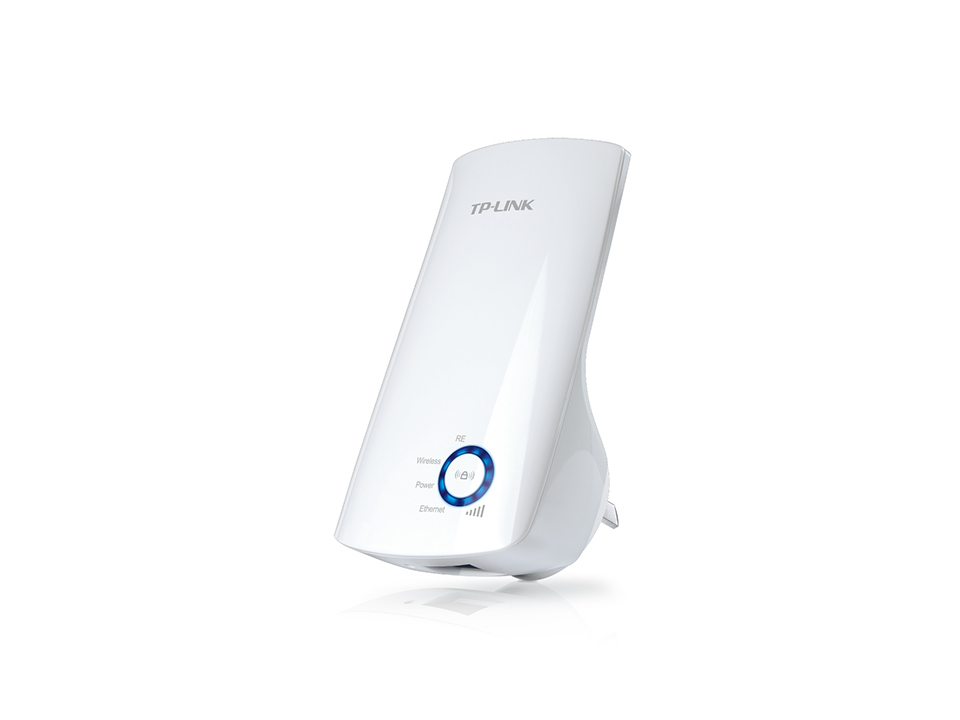

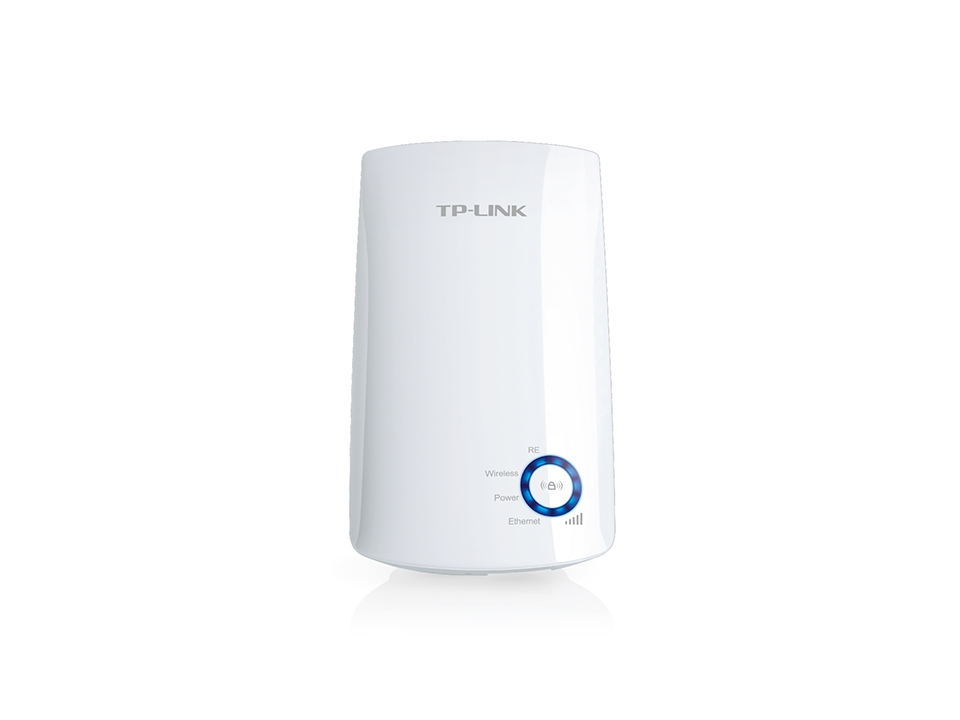

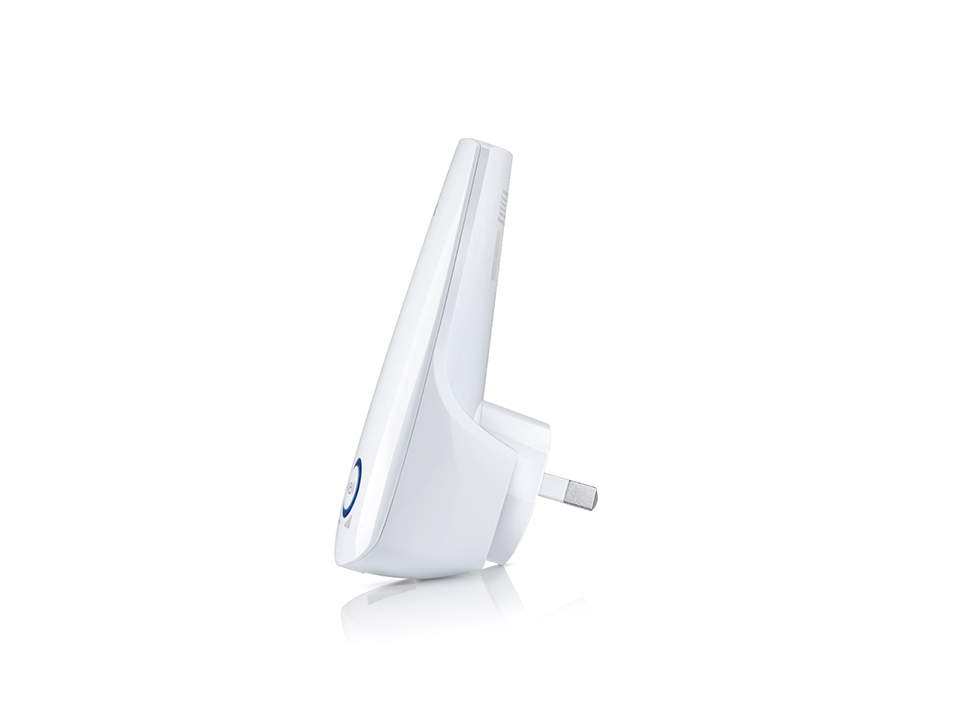

Package Contents 300Mbps Universal Wi-Fi Range Extender TL-WA850RE
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Standard Wi-Fi
Type External
Interface Ethernet
Packing Weight 280 g
Ports 1 x RJ-45
Standards Compliance IEEE 802.11b IEEE 802.11g IEEE 802.11n
Wi-Fi Speed 300 Mbps
Frequency Band 2.400 - 2.4835 GHz
Wireless Security 64/128/152-bit WEP, WPA-PSK, WPA2-PSK
Packing Width 155 mm
Packing Depth 85 mm
Packing Height 100 mm
Package Type BOX
