TL-WA801N01
02
*All above information apply to TL-WA801ND version 2.0 ONLY.
How can I find the hardware version? http://www.tp-link.com/en/article/?articleid=46

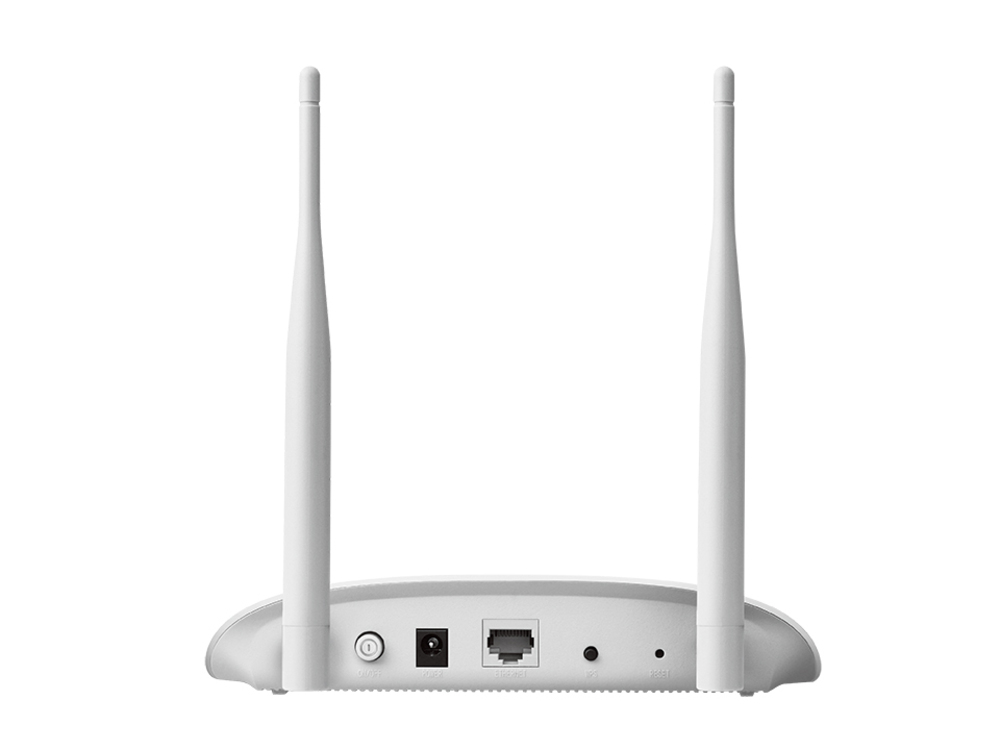

HARDWARE FEATURES
Interface One 10/100M Ethernet Port(RJ45)
Support Passive PoE
Button Power On/Off Button
WPS Button
Reset Button
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 ×4.9× 1.4 in. (181 ×125 ×36mm)
Antenna Type 2*5dBi Detachable Omni Directional (RP-SMA)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power <20dBm(EIRP)

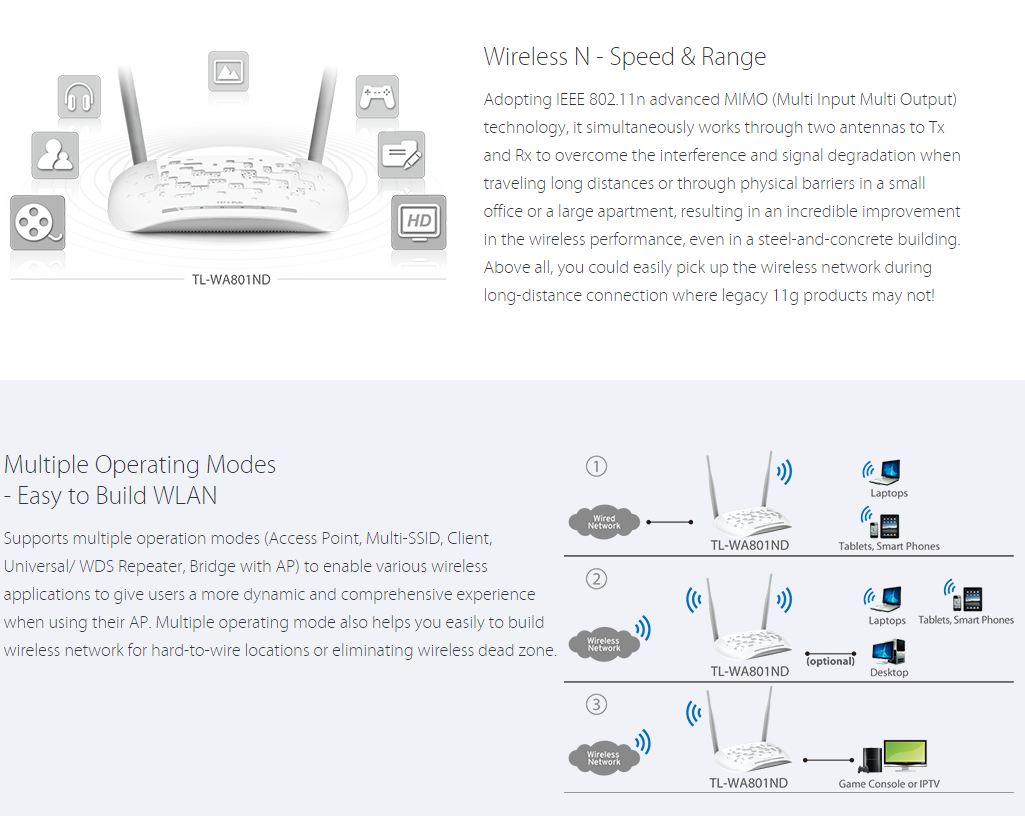

Wireless Modes AP Mode
Multi-SSID Mode
Client Mode
Repeater Mode (WDS/Universal)
Bridge with AP Mode
Wireless Functions Enable/Disable Wireless Radio
WDS Bridge
MAC Address Filter
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Quality of Service WMM
Management SNMP

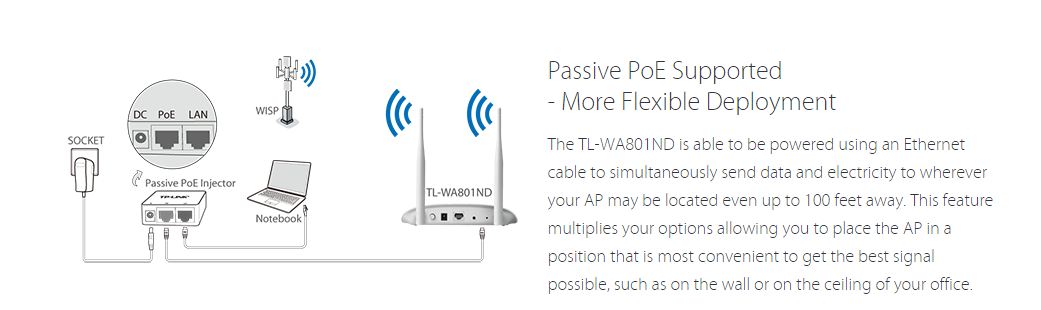

Advanced Functions Up to 30 meters Passive PoE is supported
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Access Point TL-WA801ND
2 Detachable Omni directional antennas
Power supply unit
Passive PoE Power Injector
Resource CD
Quick Installation Guide
RJ-45 Ethernet Cable
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,
MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Network TypeWireless
Specificationhttp://www.tp-link.com/en/products/details/cat-12_TL-WA801ND.html#specifications
Packing Weight760.0000 g
Ports1 x 10/100 Mbps Ethernet Port
Frequency Wireless2.4 GHz
Wi-FiSpeed300 Mbps
AntennaExternal/Detachable
Wireless Security64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Antennas Quantity2
Standards ComplianceIEEE 802.11b IEEE 802.11g IEEE 802.11n
Additional Features300Mbps wireless speed ideal for smooth HD video, voice streaming and online gaming Supports multiple operation modes: Access Point, Multi-SSID, Client, Universal/WDS Repeater, Bridge with AP Easily setup a WPA encrypted secure connection at a push of the WPS button Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector
Packing Width250.0000 mm
Packing Depth280.0000 mm
Packing Height70.0000 mm
