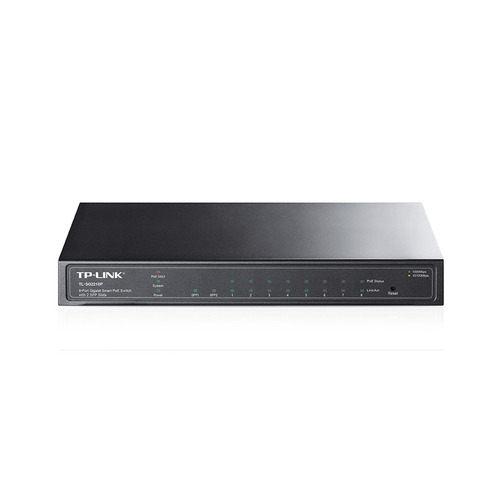

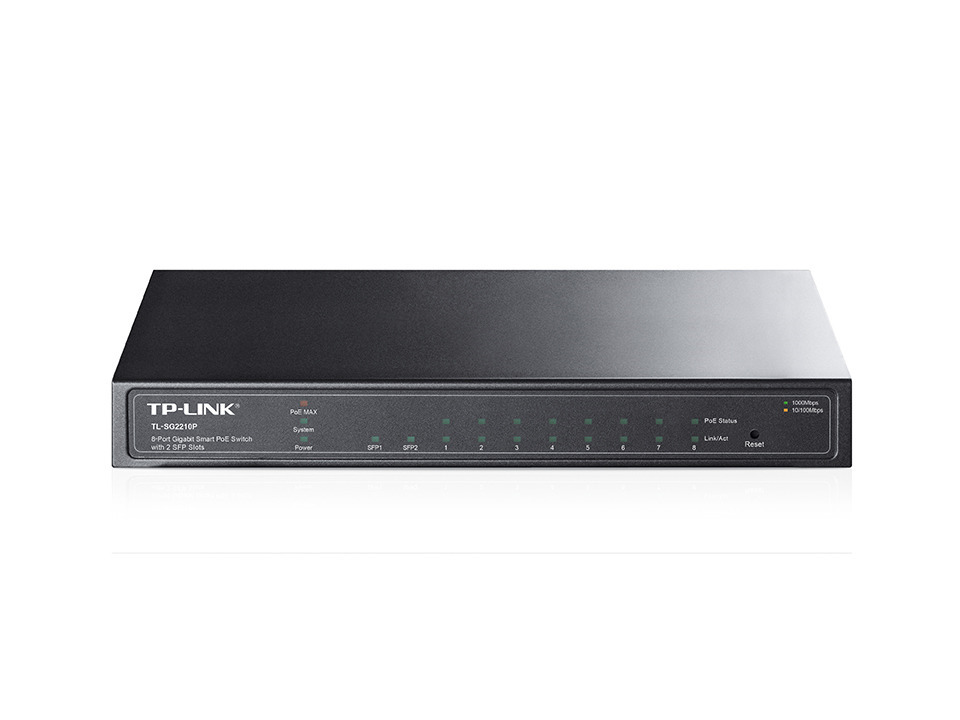

TL-SG2210P 01

IEEE 802.3af-compliant Power over Ethernet

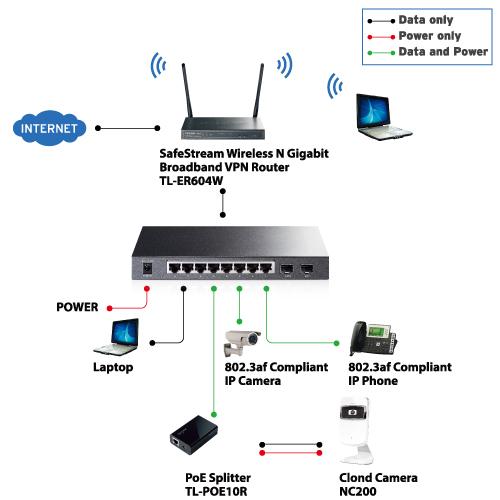

The TL-SG2210P supports 8 ports of IEEE 802.3af-compliant PoE and has a total power supply of 53W to power any 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2210P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.

Advanced QoS Features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Abundant Layer 2 Features

For more application of layer 2 switches, TL-SG2210P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

TL-SG2210P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.



HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p

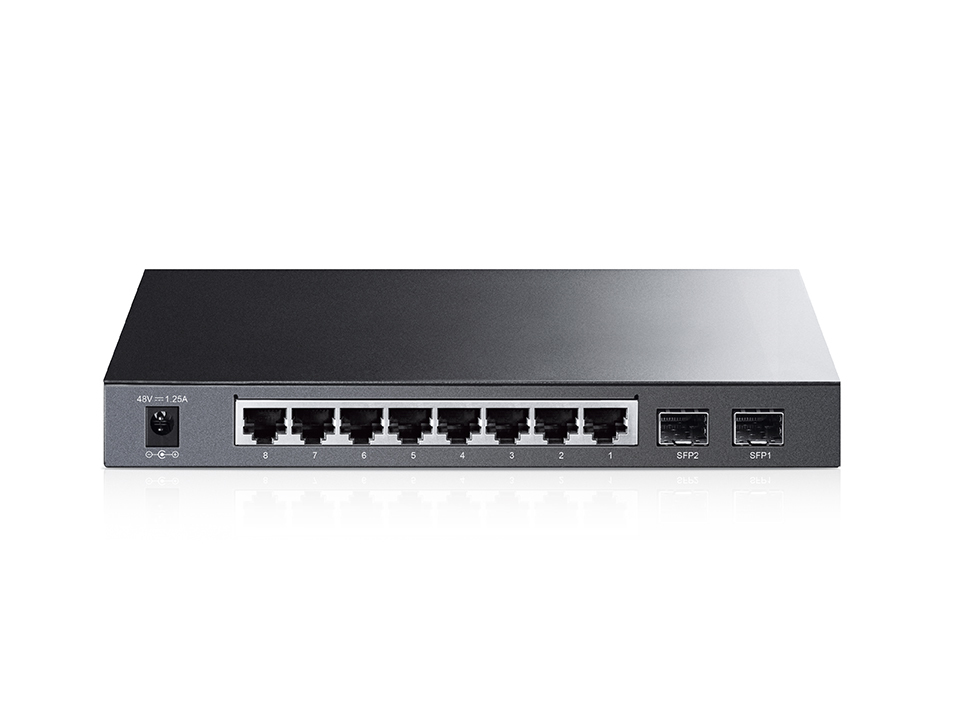

Interface 8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity Fanless
Power Supply 100~240VAC, 50/60Hz
Dimensions (W X D X H) 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)
Power Consumption Maximum (PoE on): 63.4W (220V/50Hz)
Maximum (PoE off): 10.4W (220V/50Hz)
PoE Ports (RJ45) Standard: 802.3af compliant
PoE Ports: 8 Ports
Power Supply: 53W



PERFORMANCE
Bandwidth/Backplane 20Gbps
Packet Forwarding Rate 14.9Mpps
MAC Address Table 8k
Packet Buffer Memory 512KB
Jumbo Frame 9216 Bytes
SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List L2~L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based
Security SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
L2 Switching Features IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
LLDP(LLDP-MED)
Management Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG2210P
Power Adapter
Quick Installation Guide
Resource CD
Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Additional Features Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features Gigabit Ethernet connections on all ports provide full speed of data transferring Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment L2/L3/L4 QoS and IGMP snooping optimize voice and video applications WEB/CLI managed modes, SNMP, RMON bring abundant management features Innovative energy-efficient technology saves up to 50% of power consumption
Standards Compliance IEEE 802.3i IEEE 802.3u IEEE 802.3ac
Power Consumption 63.4/10.4 W
Specification http://www.tp-link.com/en/products/details/cat-40_TL-SG2210P.html#specifications
Ports 8 x 10/100/1000 Mbps RJ45
Quantity Ports 8
Features Green Technology, saving power up to 80%
Buffer Size 512KB Mb
Model TL-SG2210P
Packing Weight 2730.0000 g
Packing Width 250.0000 mm
Packing Depth 528.0000 mm
Packing Height 80.0000 mm
