What This Product Does

01

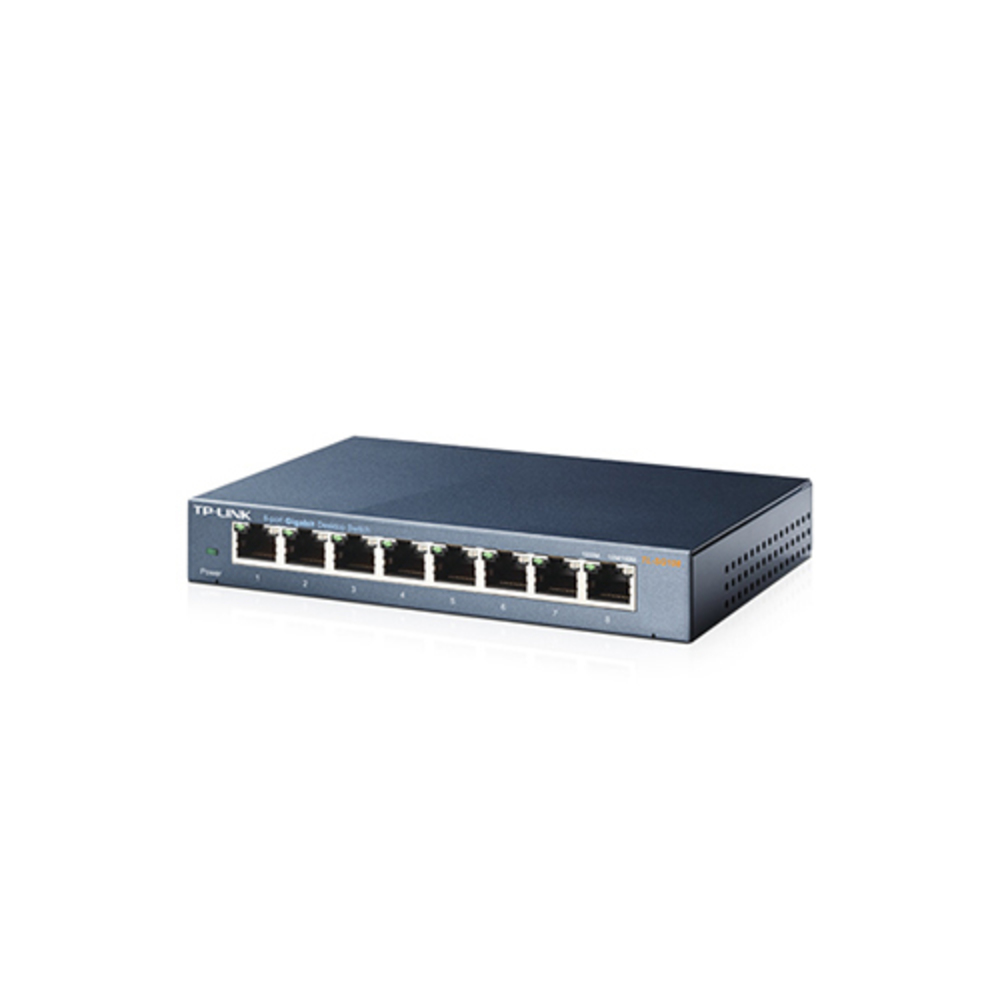

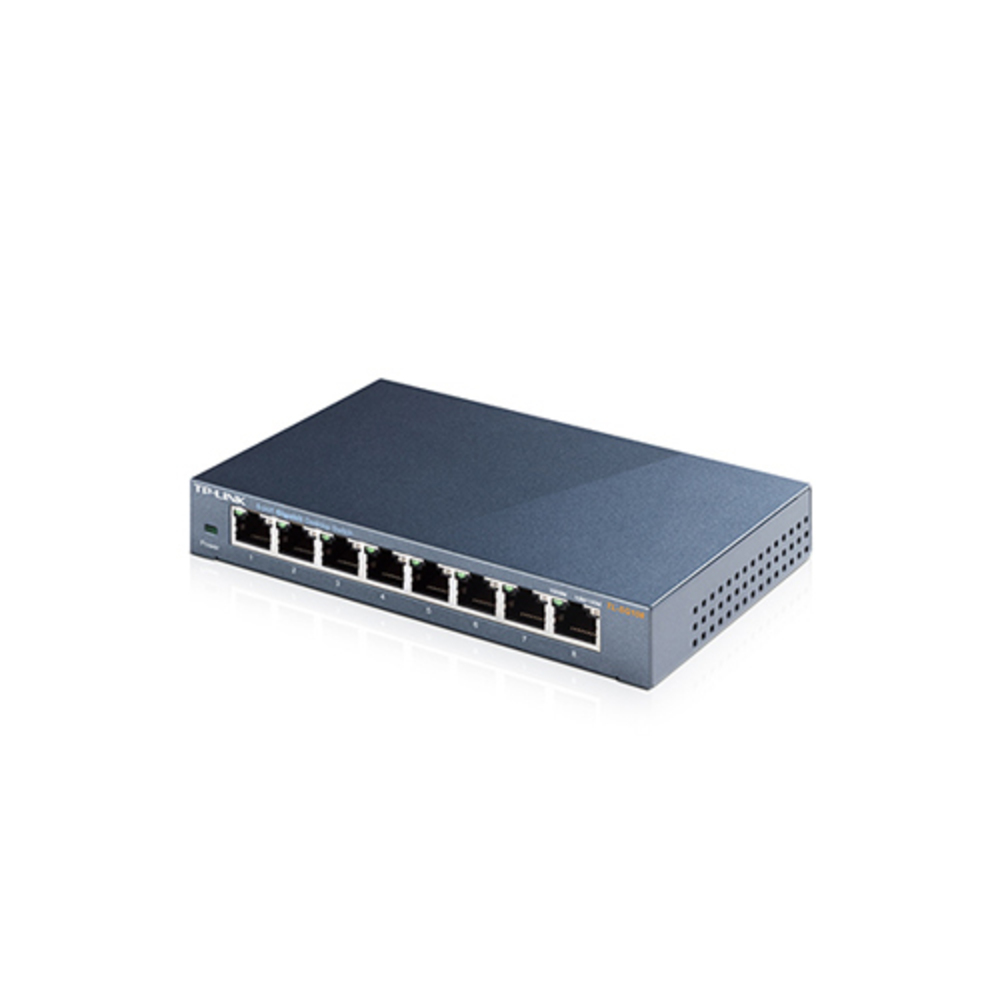

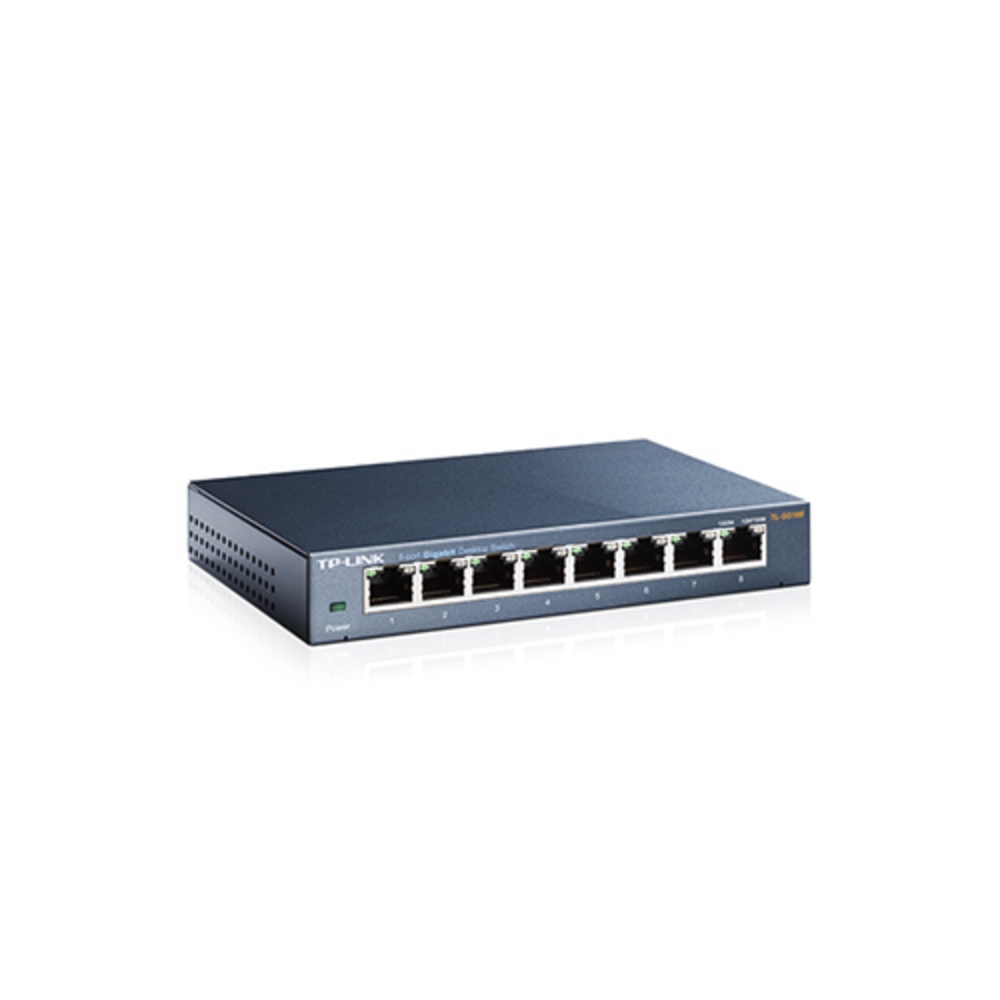

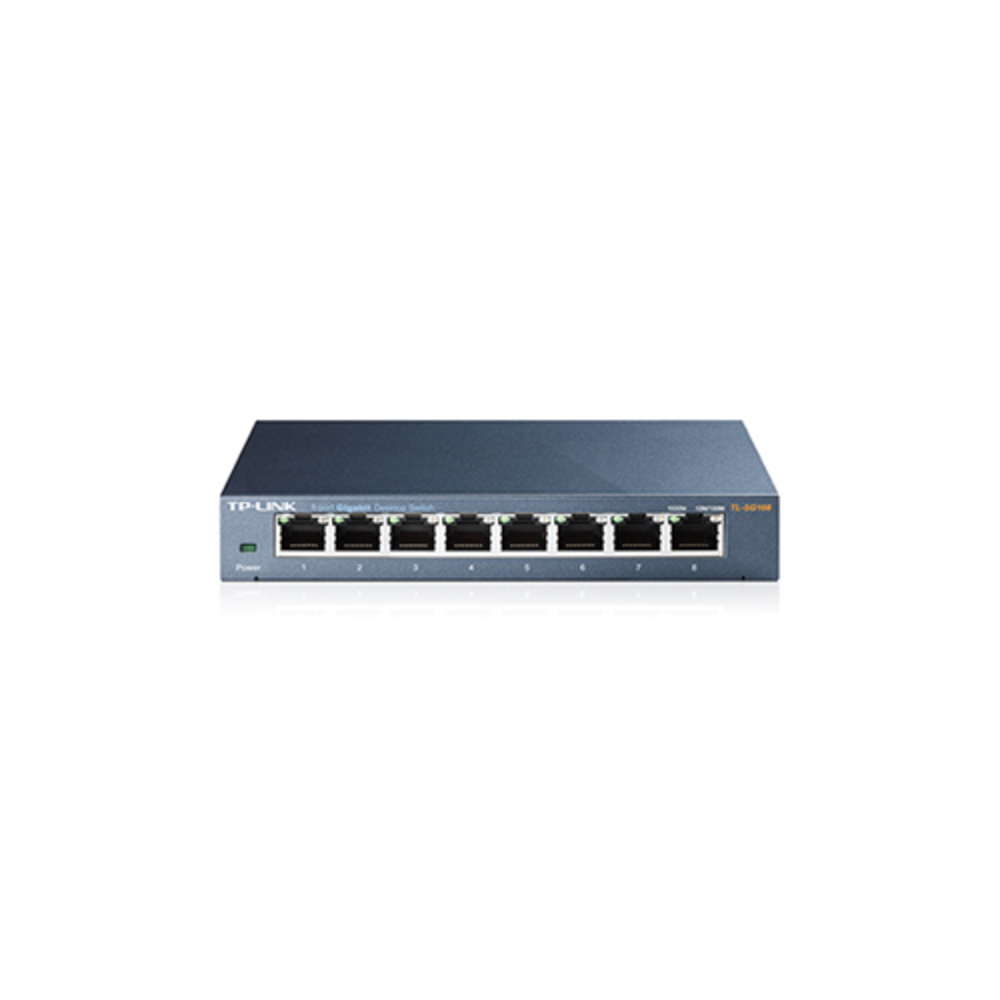

The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

02

Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

03

Go Green With Your Ethernet

04

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

• Power down Idle Ports
  When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG108 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 72% reduction in power use.
• Power Budget According to Cable Length
  Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use

05

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.



HARDWARE FEATURES
Standards and Protocols	IEEE 802.3 / 802.3u / 802.3ab/ 802.3x /802.1p
Interface	8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity	Fanless
Dimensions (W X D X H)	6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
Power Consumption	Maximum: 3.97 (220V/50Hz)

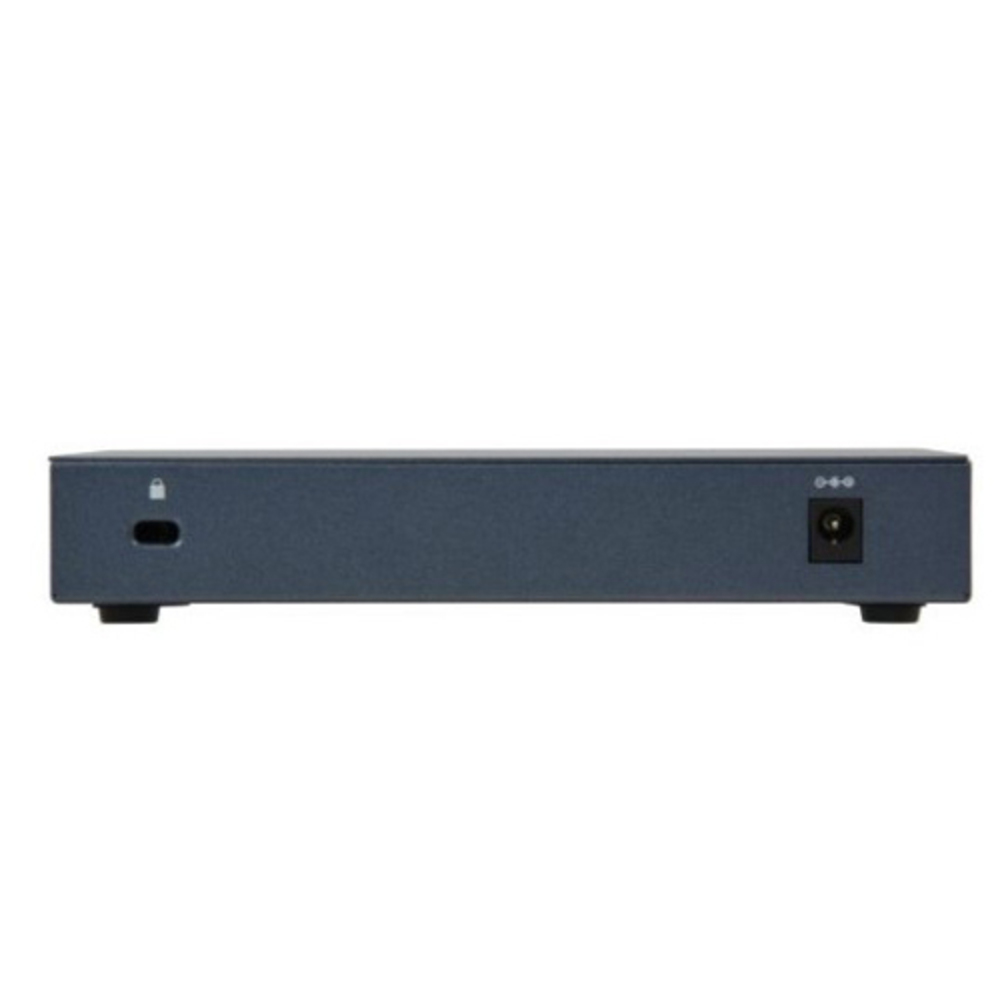

External Power Supply	External Power Adapter (Output: 9VDC / 0.6A)
Buffer Size	1.5Mb
LED Indicator	System Power Link, Speed and activity indicators per port built into each RJ-45 port



PERFORMANCE
Packet Forwarding Rate	11.9Mpps
MAC Address Table	4K
Packet Buffer Memory	1.5Mb
Jumbo Frame	15KB

SOFTWARE FEATURES
Advanced Features	Green Technology,saving power up to 82% 802.3X Flow Control 802.1p/DSCP QoS1 IGMP Snooping1
Transfer Method	Store and Forward

OTHERS
Certification	CE, FCC ,RoHS

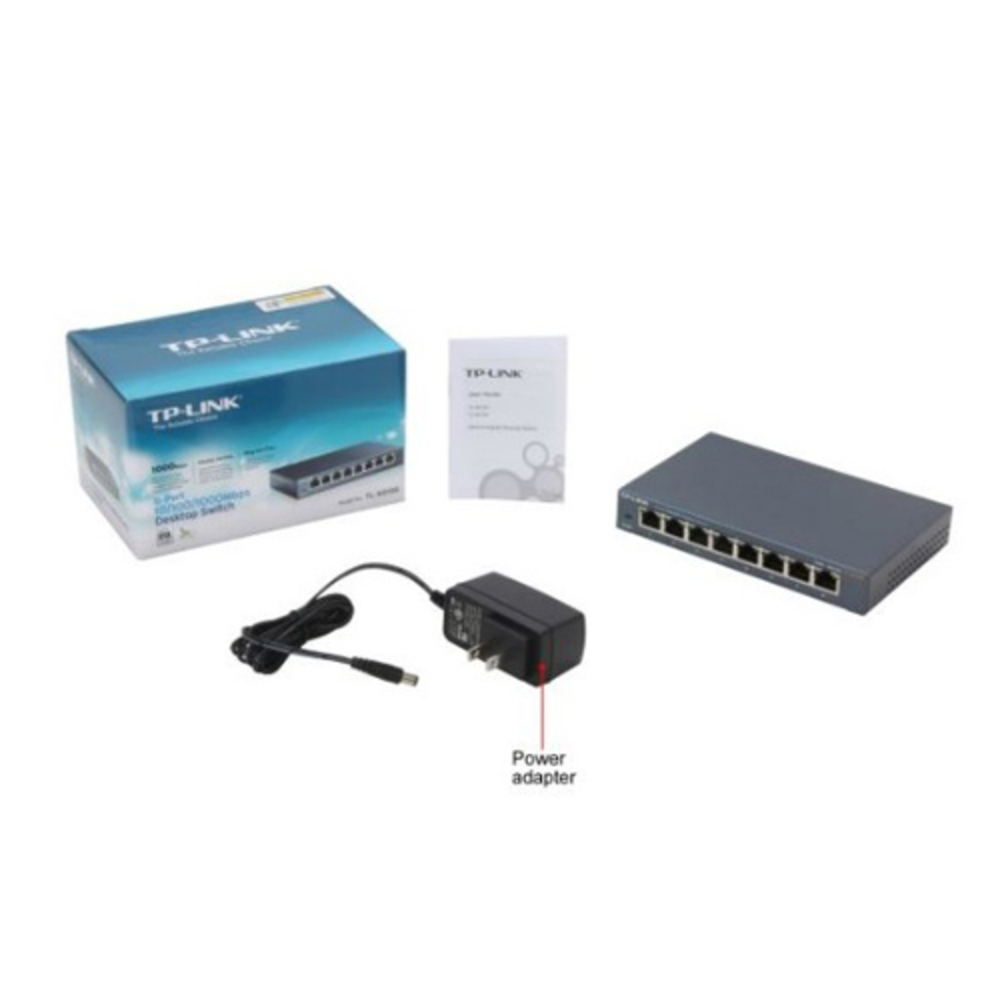

Package Contents	8-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing
