Effective Management01

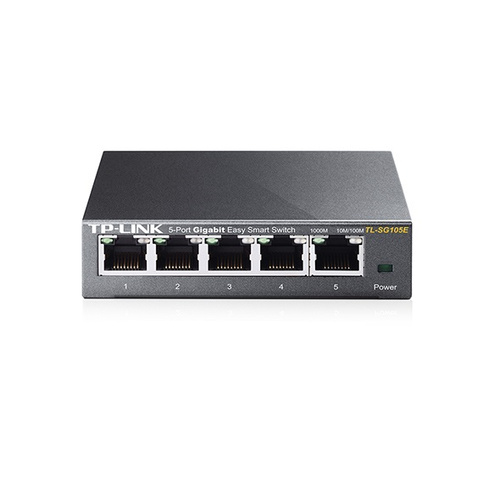

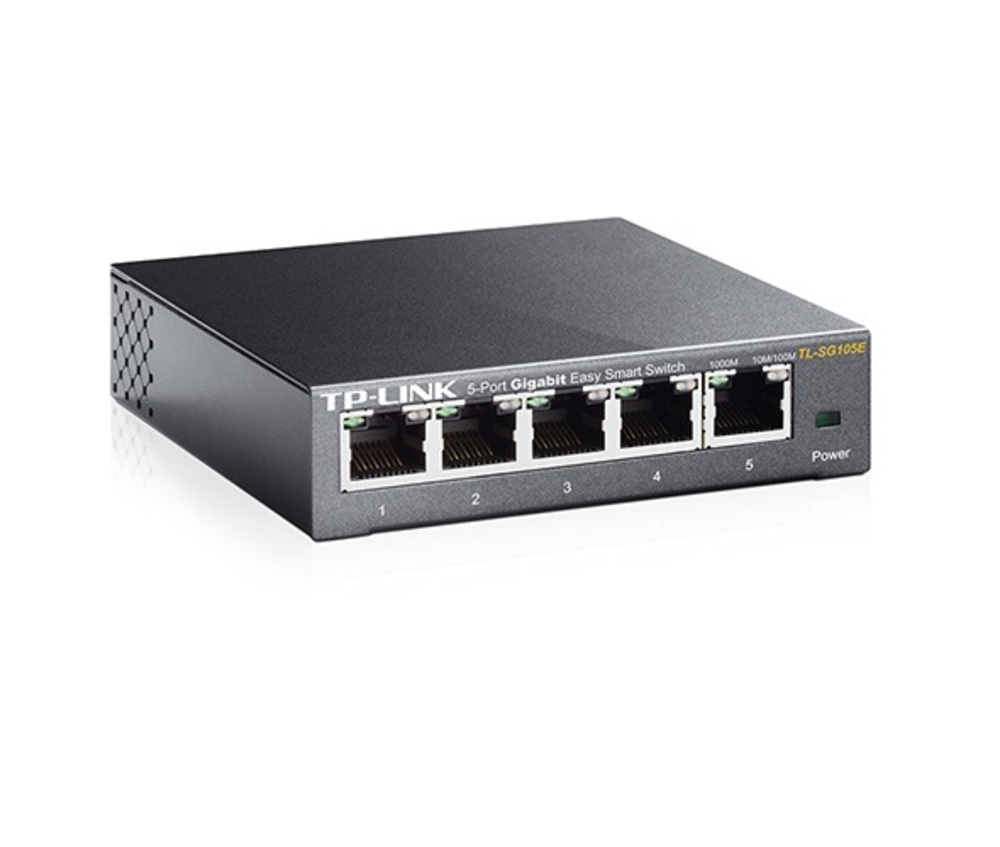

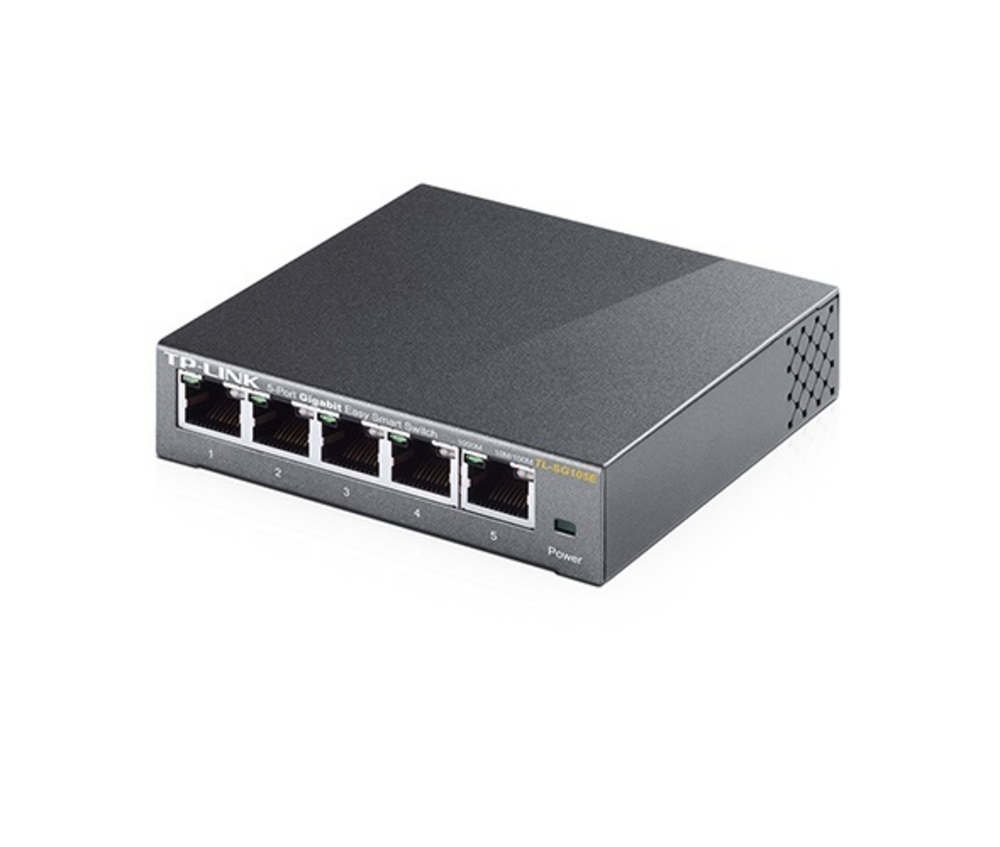

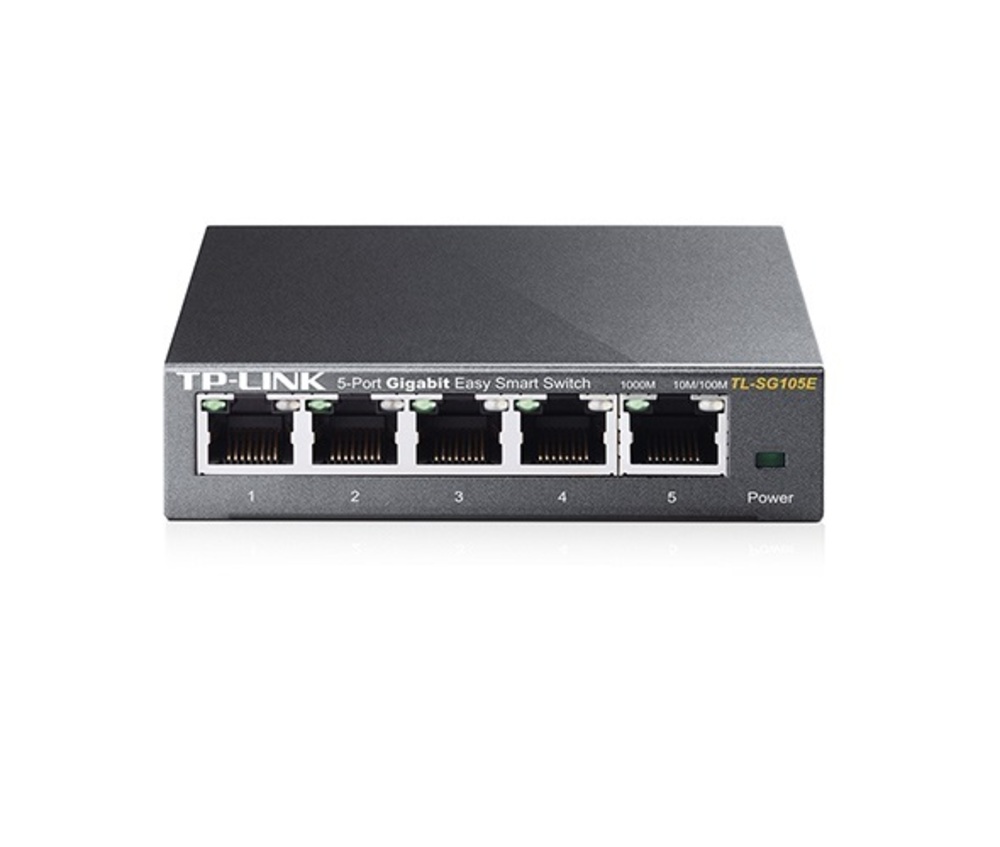

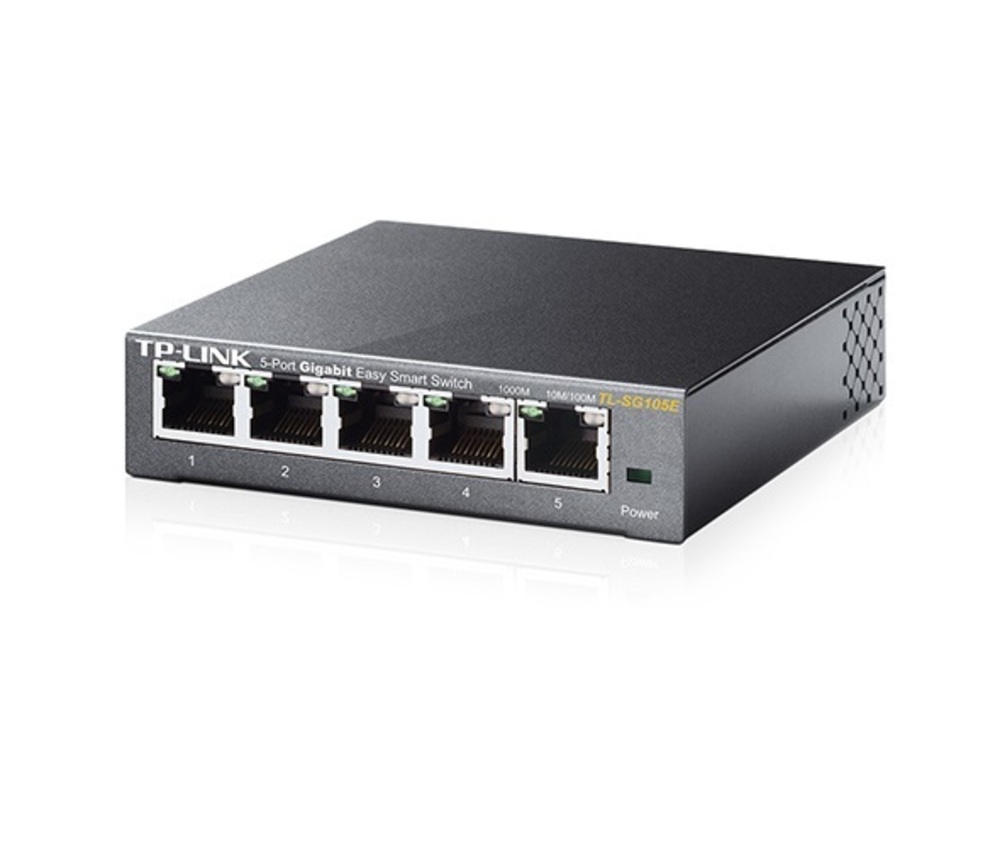

TP-LINK’s Gigabit Easy Smart switch, TL-SG105E offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port/802.1p/DSCP Priority2, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG105E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG105E is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Go Green with Your Ethernet02
You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG105E 5-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports03
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105E can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
Power Budget According to Cable Length04
Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG105E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
Easy to Use05
TL-SG105E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Power Supply100-240VAC, 50/60Hz
Dimensions (W X D X H)3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)
PERFORMANCE
Packet Forwarding Rate7.4Mpps
MAC Address Table2K
Packet Buffer Memory1.5Mb
Jumbo Frame15KB
SOFTWARE FEATURES
Quality of ServiceSupport Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 FeaturesIGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLANSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission MethodStore-And-Forward
OTHERS
CertificationFCC, CE, RoHS
Package ContentsTL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet
System RequirementsMicrosoft® Windows® XP, Vista™ Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Buffer Size1.5 Mb
Ports5 x 10/100/1000 Mbps RJ45
Switching Capacity7.4Mpps GB/s
Quantity Ports5
Standards ComplianceIEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p
Additional FeaturesInnovative energy-efficient technology reduces power consumption by up to 57% IEEE 802.3x flow control provides reliable data transfers 15K Jumbo frame improves performance of large data transfers Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics Port-based/802.1p/DSCP QoS enable smooth latency-sensitive traffic Abundant VLAN features improve network security via traffic segmentation IGMP Snooping optimizes multicast applications Web-based user interface and management utility simplify configuration
ModelTL-SG105E
Packing Weight400 g
Packing Width170 mm
Packing Depth114 mm
Packing Height103 mm
Package TypeBOX
