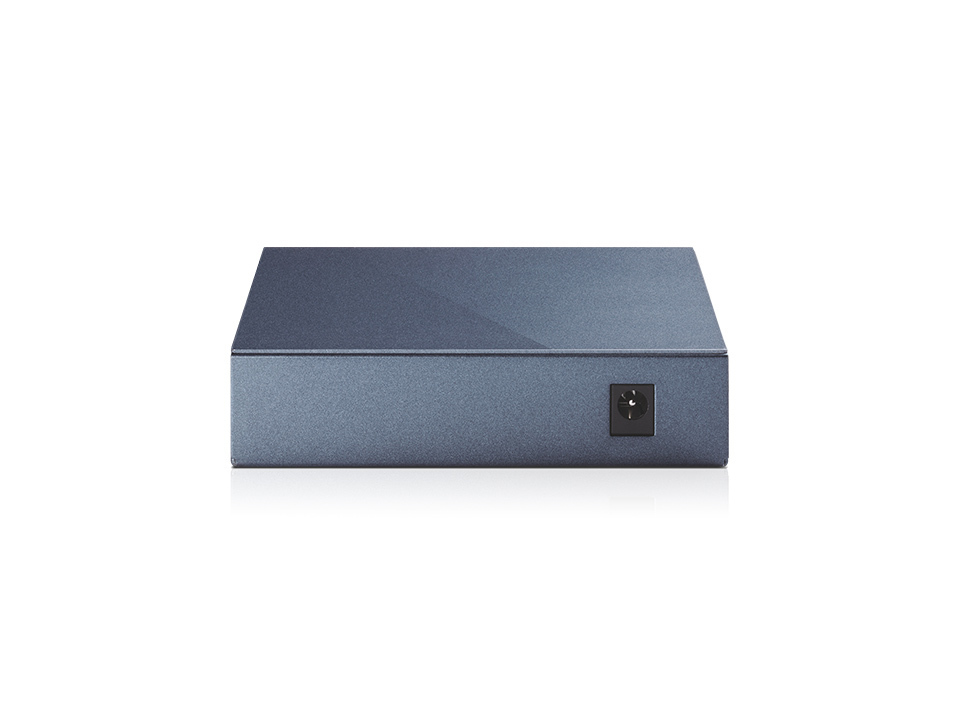

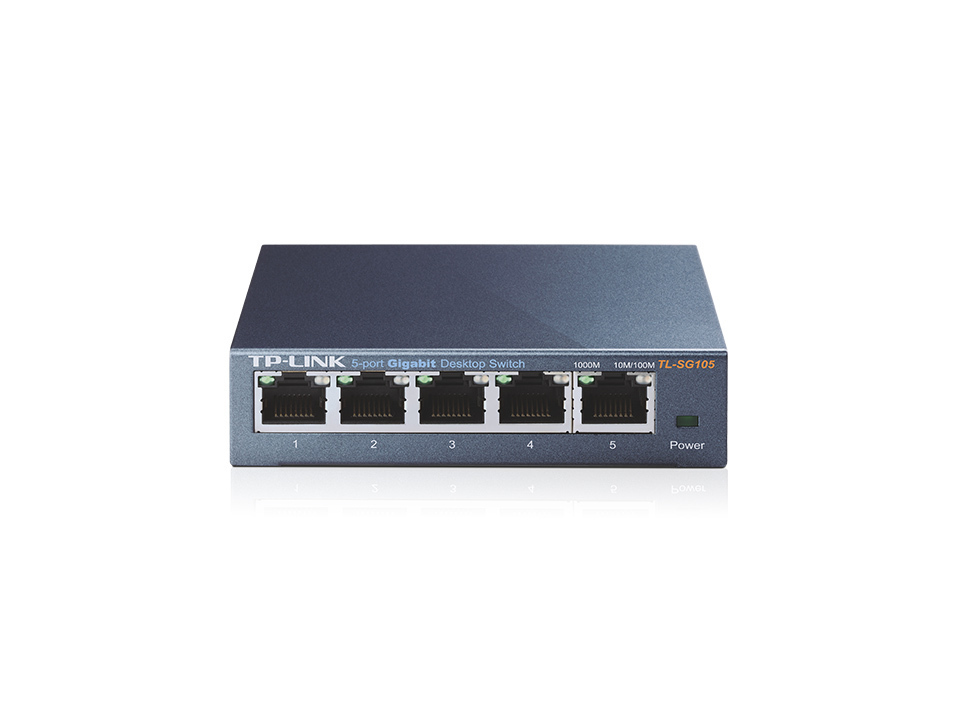

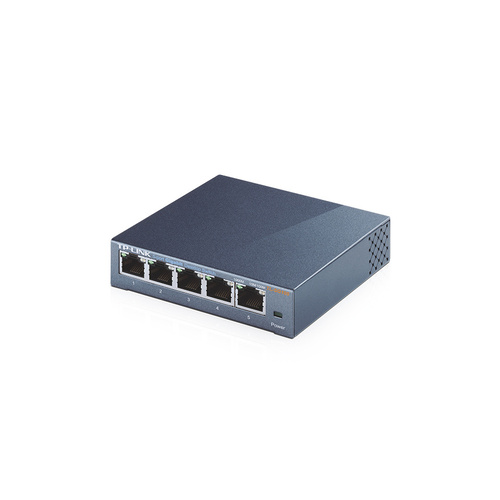

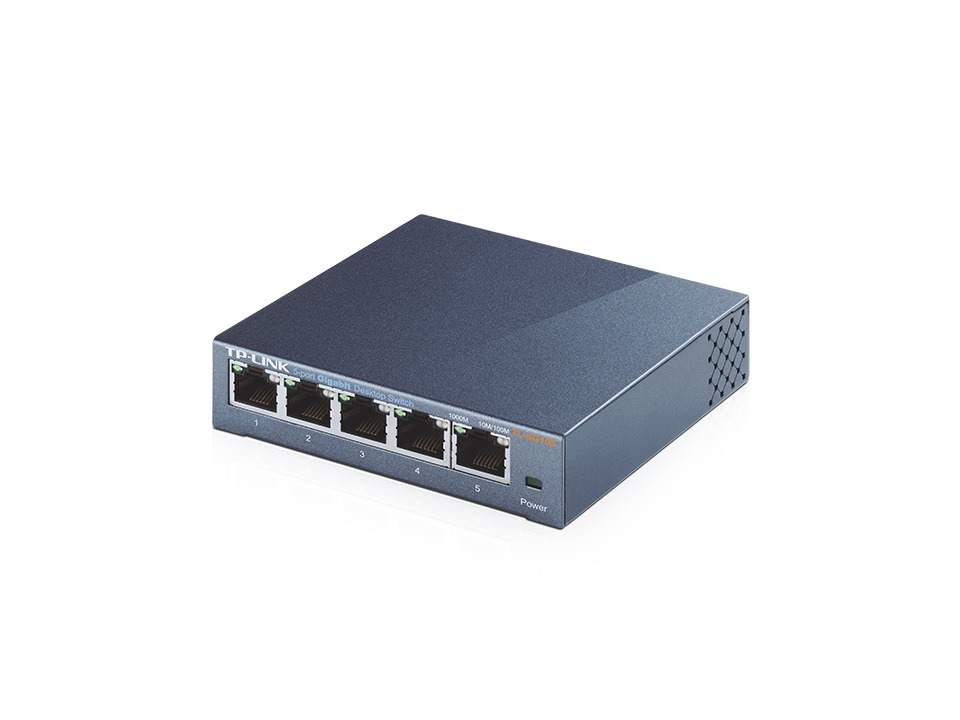

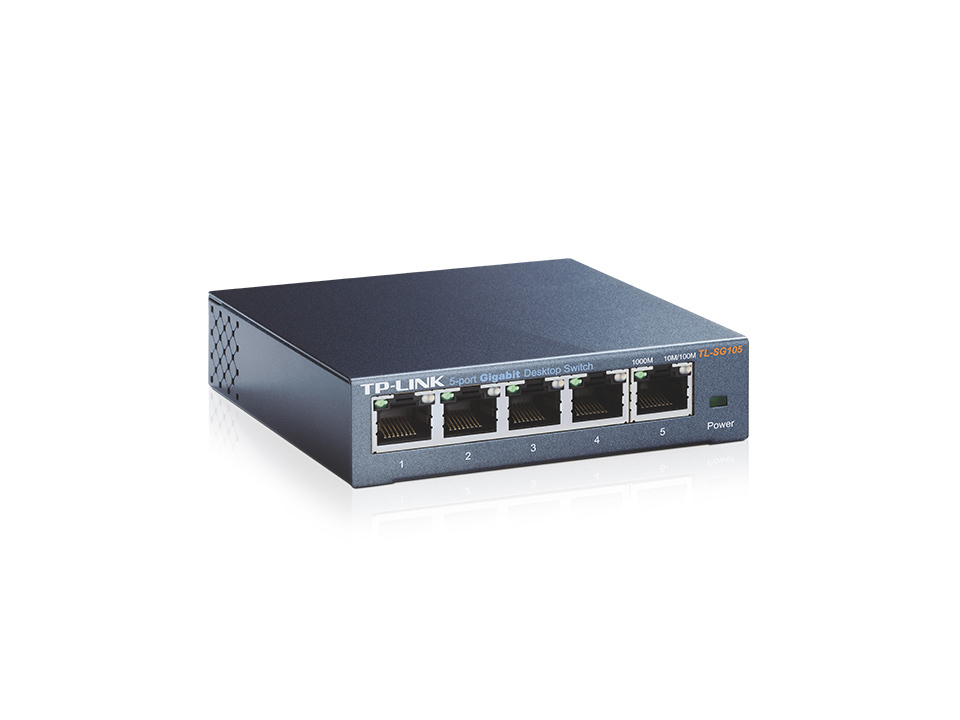

TP-Link TL-SG105 01

Gigabit Switch.

Featured with 5 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet.

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

  • Power down Idle Ports.
    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 84% reduction in power use.
  • Power Budget According to Cable Length.
    Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Traffic Optimization.

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use.

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.



HARDWARE FEATURES
Standards and Protocols IEEE 802.3/802.3u/ 802.3ab/ 802.3x
Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
Dimensions (W X D X H) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Power Consumption Maximum: 3.2W (220V/50Hz)
External Power Supply External Power Adapter (Output: 9VDC / 0.6A)
LED Indicator System Power
Link, Speed and activity indicators per port built into each RJ-45 port



PERFORMANCE
Packet Forwarding Rate 7.4Mpps
MAC Address Table 2K
Packet Buffer Memory 1Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Advanced Features Green Technology, saving power up to 84%
802.3X Flow Control
802.1P/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Quantity Ports 8
Features 802.3X Flow Control, Back Pressure Green Technology, saving power up to 80%
Ports 5 x 10/100/1000 Mbps RJ45
Power Consumption 3.2 W
Switching Capacity 7.4 GB/s
Standards Compliance IEEE 802.3u IEEE 802.3ab IEEE 802.3x
Additional Features IEEE 802.3x flow control provides reliable data transfer Supports QoS (IEEE 802.1p) and IGMP snooping function Plug and play, no configuration needed
Model TL-SG105
Packing Weight 460 g
Packing Width 168 mm
Packing Depth 104 mm
Packing Height 116 mm
