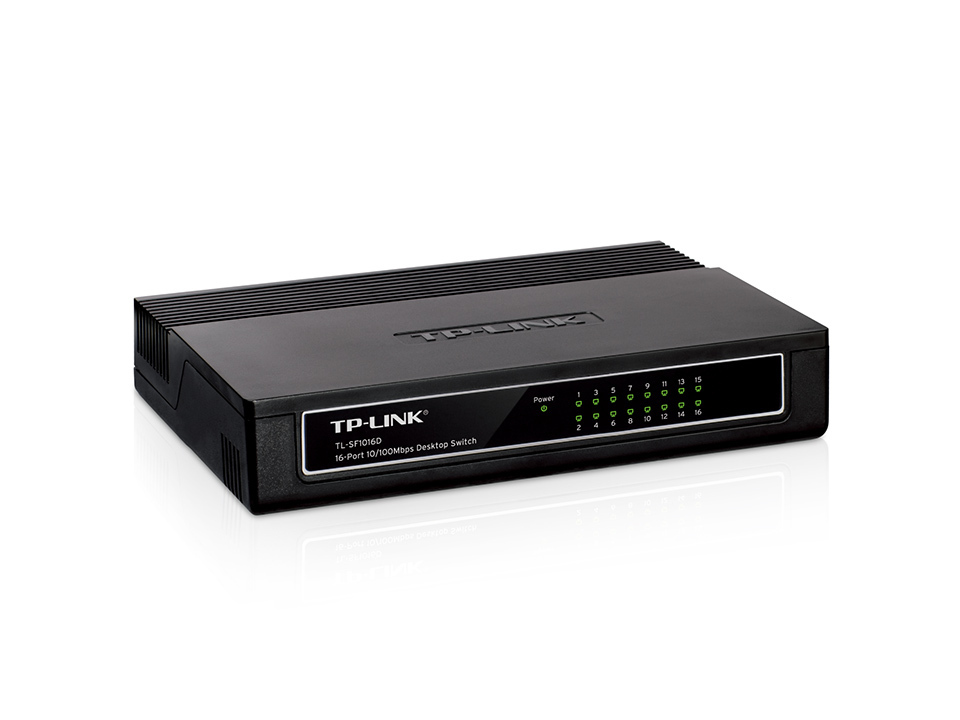

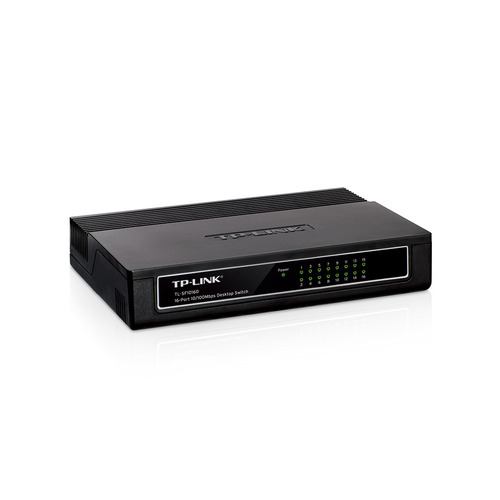

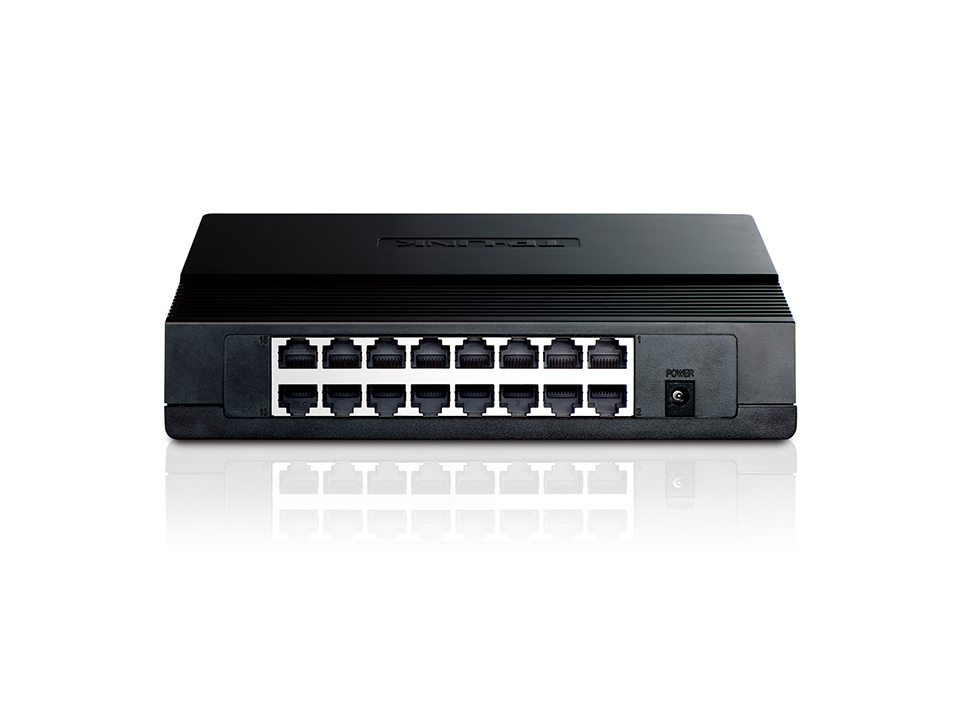

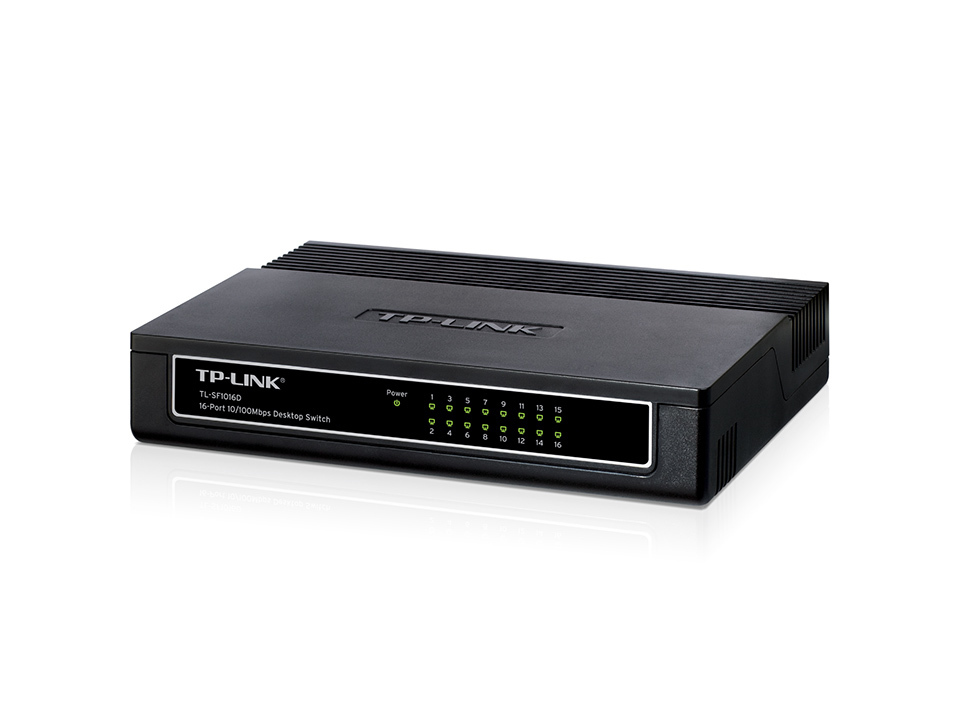

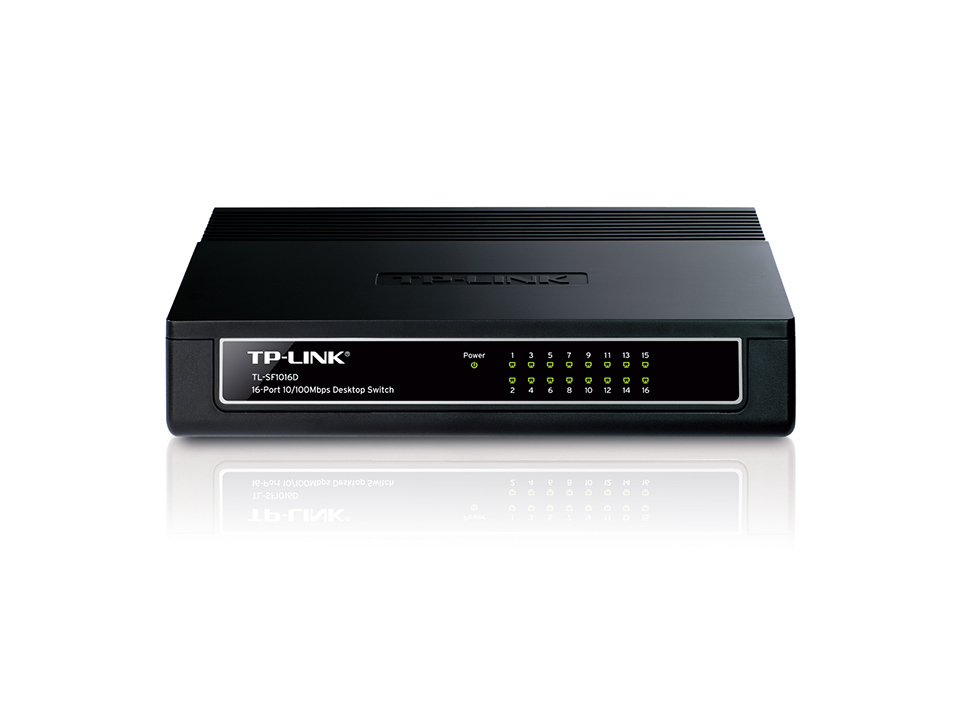

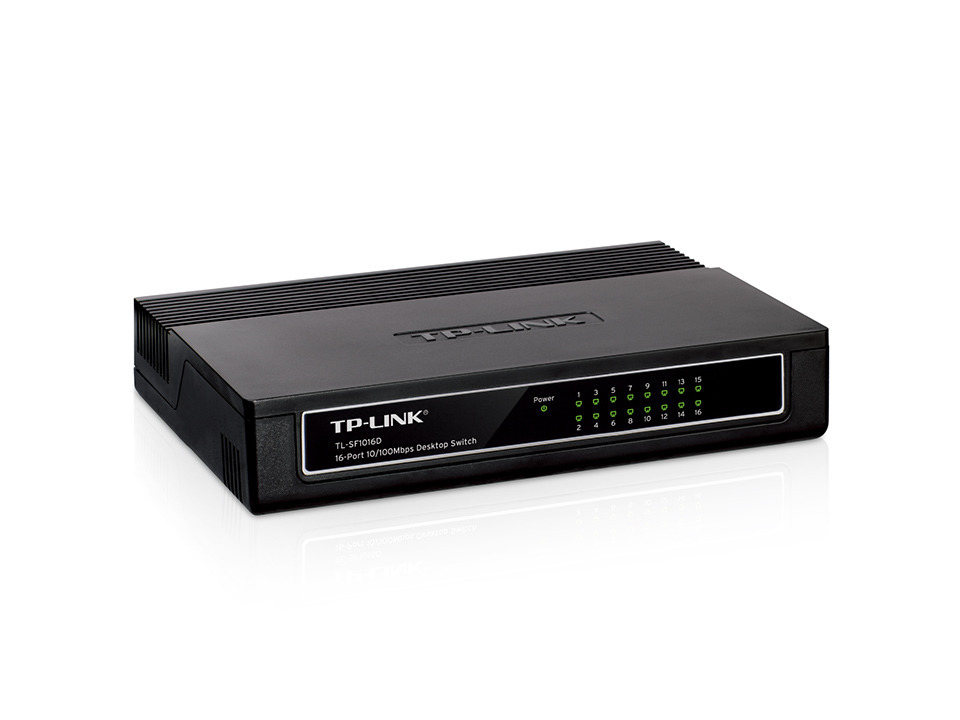

TP-Link TL-SF1016D 16-port 10/100M 3.2Gbps Desktop Switch, 16xRJ45 Ports with Auto MDI / MDIX, IEEE 802.3x, Energy-Efficient
Product Code: TL-SF1016D
Price:
Share This Item:
| TL-SF1016D | 01 |
|
| High Performance TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably. TP-LINK Green Technology This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled. Easy to Use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance. |
| HARDWARE FEATURES | |
|---|---|
| Interface | 1610/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Dimensions (W X D X H) | 7.9*5.6*1.6 in. (200*142*40 mm) |
| Power Consumption | Maximum: 3.1W (220V/50Hz) |
| External Power Supply | 100~240VAC, 50/60Hz |
| Mac Address Table | 1K |
| SOFTWARE FEATURES | |
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology, saving power up to 80% 802.3X Flow Control, Back Pressure |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHs |
| Package Contents | 16-Port 10/10Mbps Desktop Switch TL-SF1016D Power Adapter User Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
| Switching Capacity | 3.2 GB/s |
| Standards Compliance | IEEE 802.3x |
| Quantity Ports | 16 |
| Additional Features | 16 x 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX Green Ethernet technology saves the power up to 70% IEEE 802.3x flow control provides reliable data transfer Plug and play, no configuration required |
| Power Consumption | 3.1 W |
| Specification | |
| Features | 802.3X Flow Control, Back Pressure Green Technology, saving power up to 80% |
| Model | TL-SF1016D |
| Packing Weight | 700.0000 g |
| Packing Width | 230.0000 mm |
| Packing Depth | 290.0000 mm |
| Packing Height | 70.0000 mm |
