8-Port 10/100Mbps Desktop Switch with 4-Port PoE01
With four PoE ports, transfers data and power on one single cableWorking with IEEE 802.3af compliant PDs, expands home and office networkRequires no configuration and installation
What This Product Does02

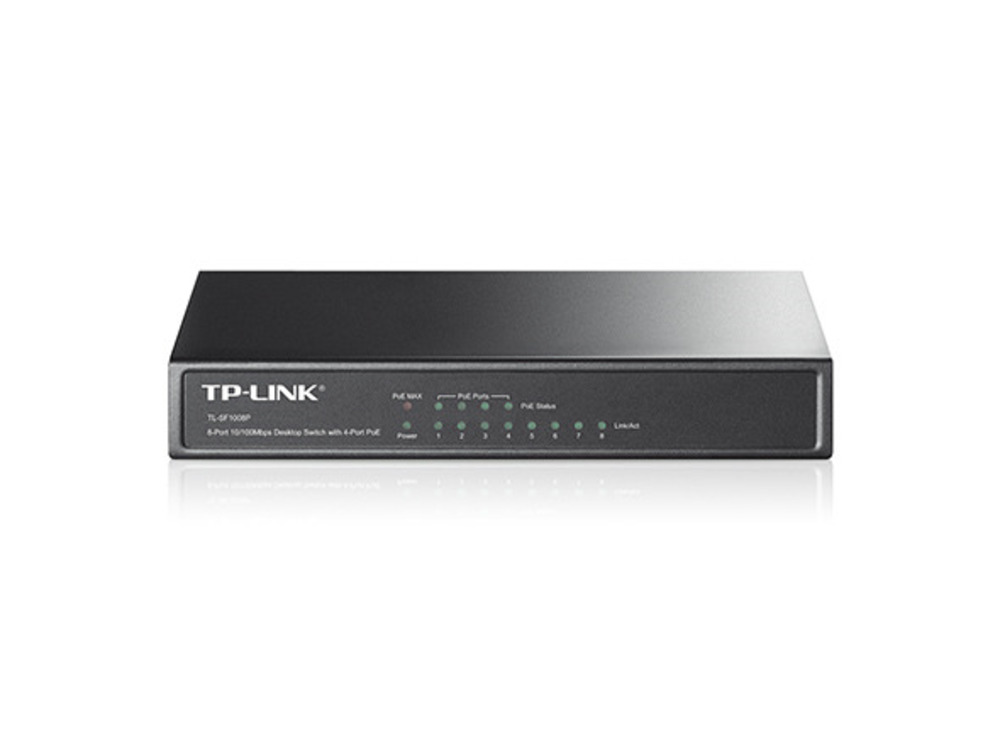

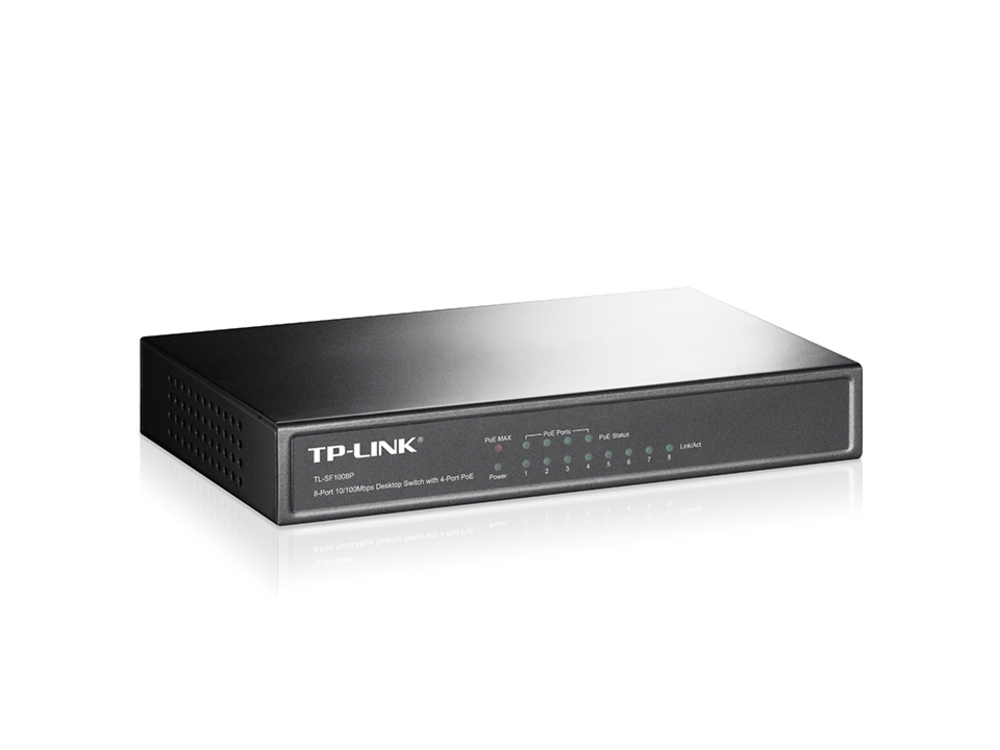

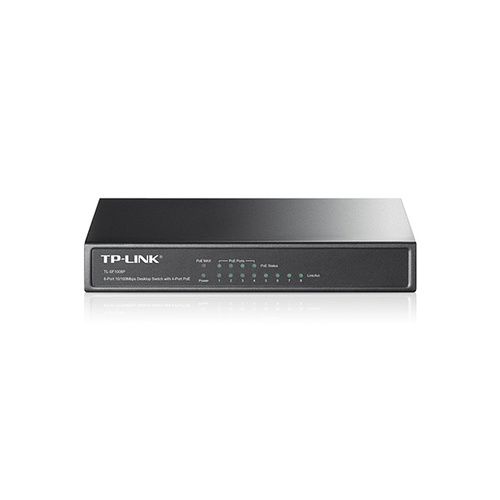

TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to ­fix devices such as APs, IP Cameras or IP Phones, etc
Power over Ethernet03

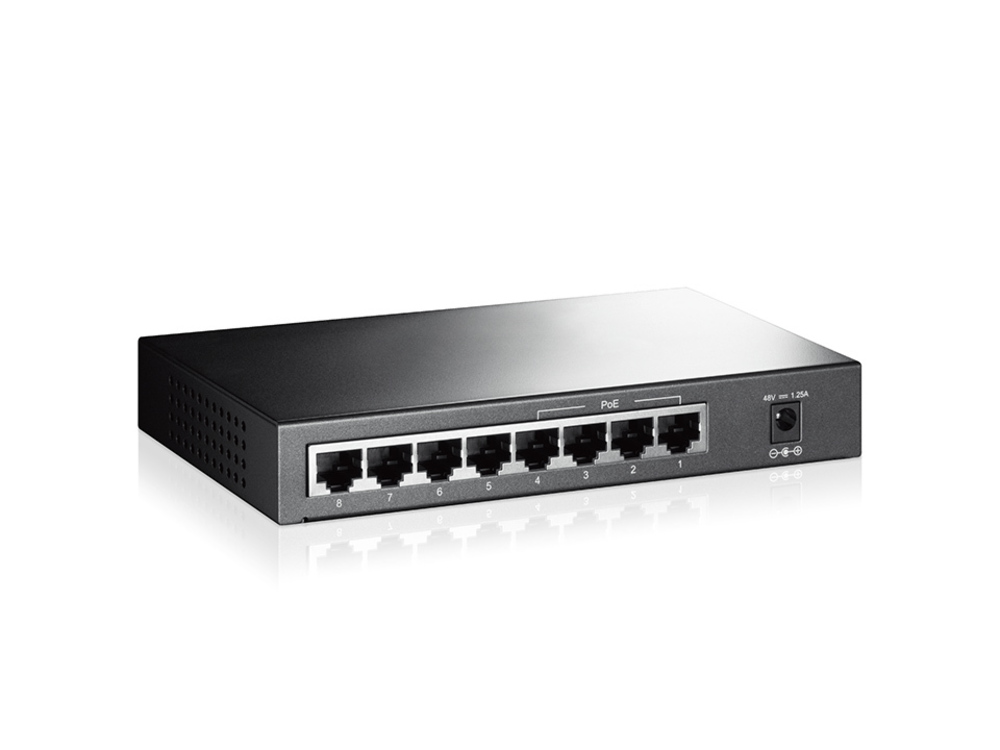

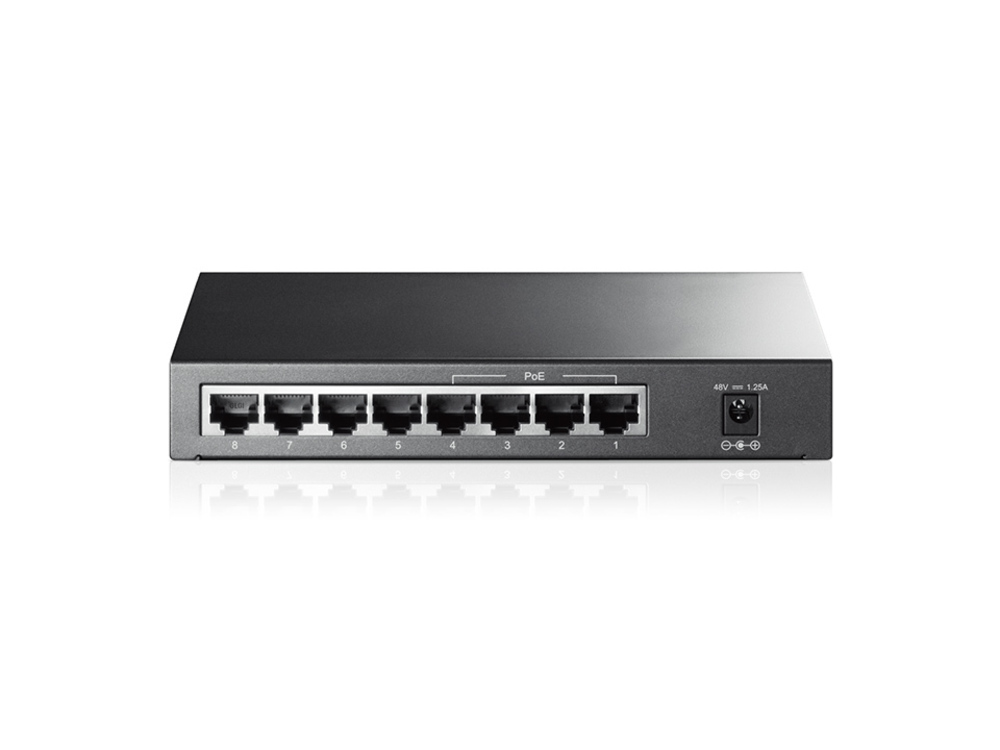

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). -Overload ArrangementTL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 57W, a priority will be arranged among the PoE ports, then the system will cut o? the power of the lowest-priority port. -Port Priority FunctionPriority (port-1=port-2=port-3>port-4):  This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use04
TL-SF1008P is easy to install and use. It requires no confi­guration and installation. With desktop design, outstanding performance and quality, the TP-LINK’s TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
Ports8 x 10/100Mbps RJ45
Buffer Size2 Mb
Quantity Ports8
Specificationhttp://www.tp-link.com.au/products/details/cat-42_TL-SF1008P.html
Switching Capacity16 GB/s
Power Consumption3.2 W
Features802.3X Flow Control, Back Pressure
Additional FeaturesCompatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode Store-And-Forward AUTO Negotiation/AUTO MDI/MDIX
Packing Weight1150 g
Packing Width280 mm
Packing Depth65 mm
Packing Height225 mm
Package TypeBOX
