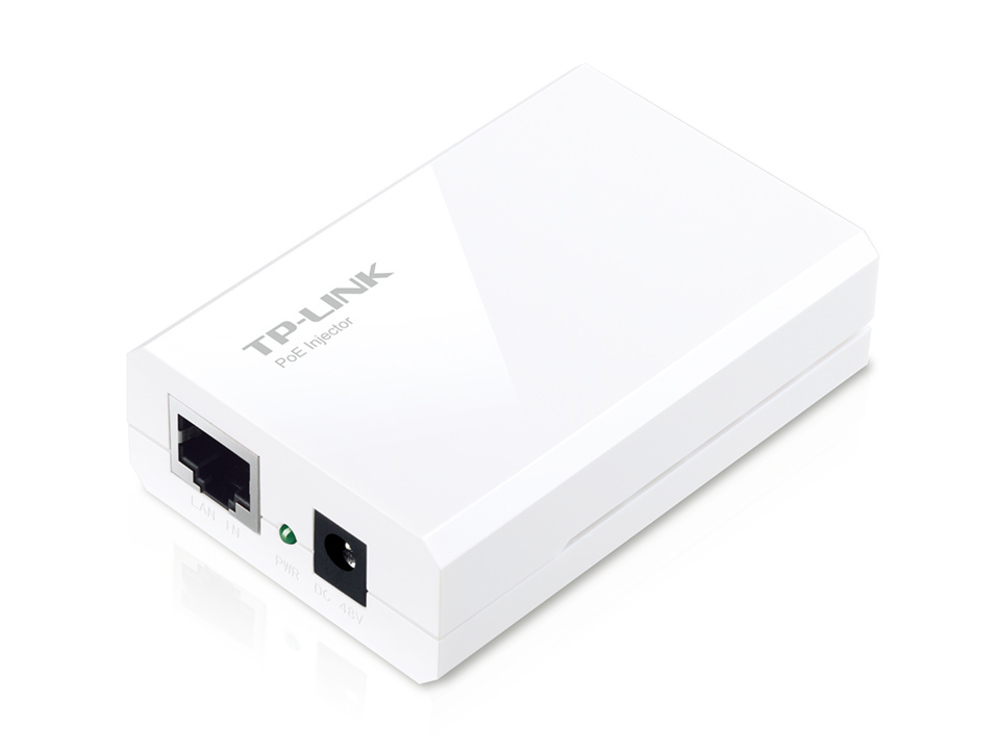

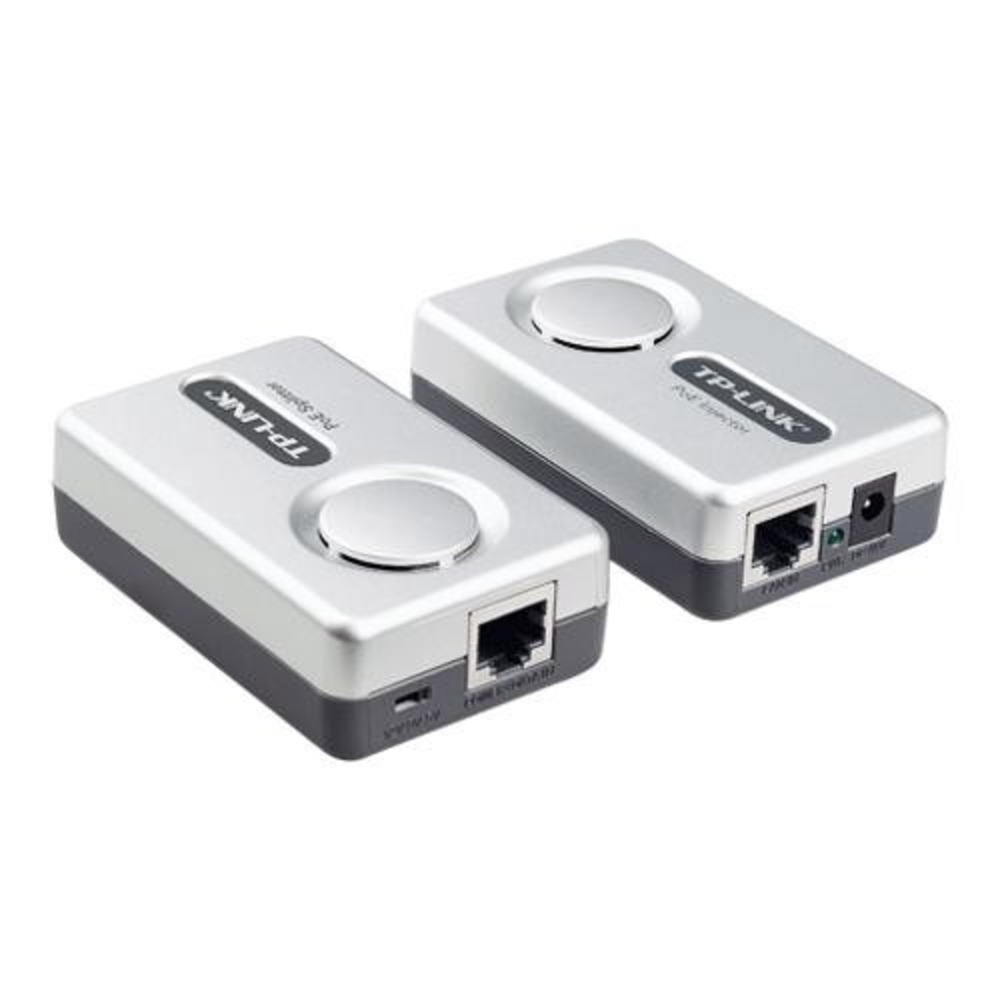

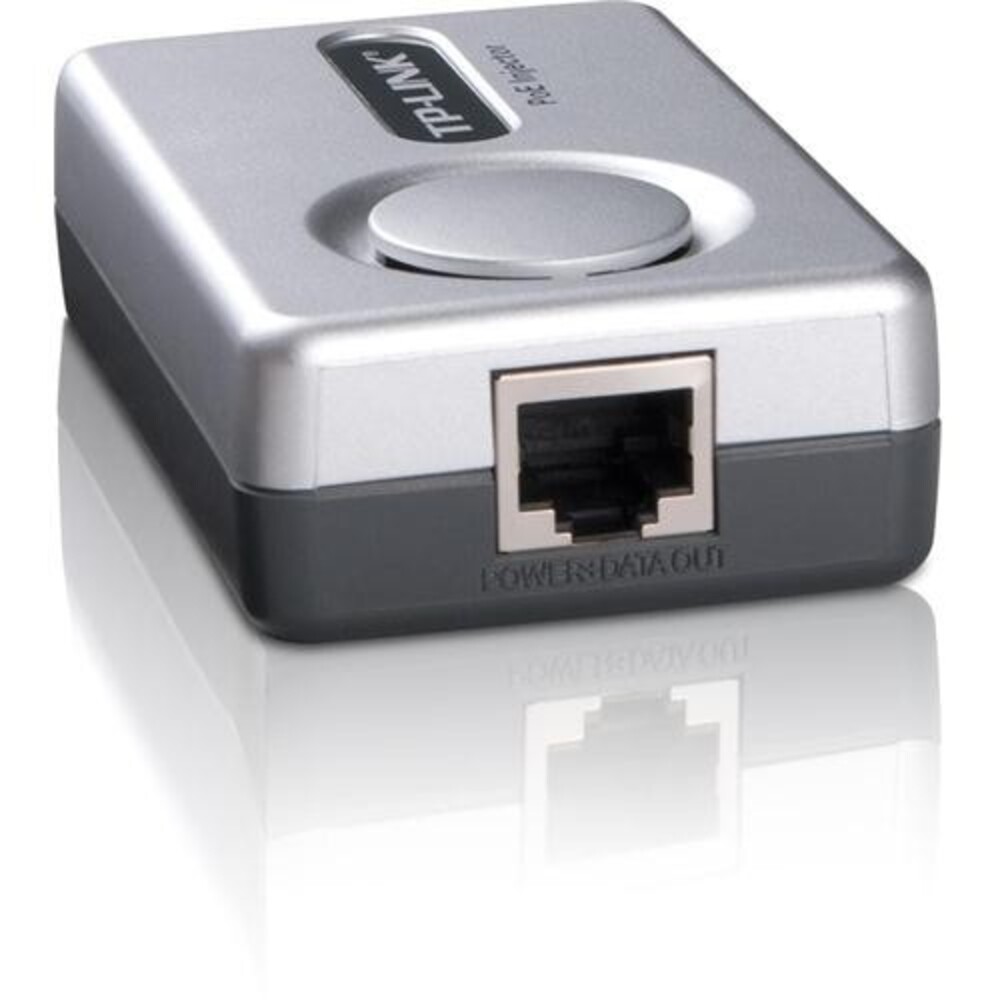

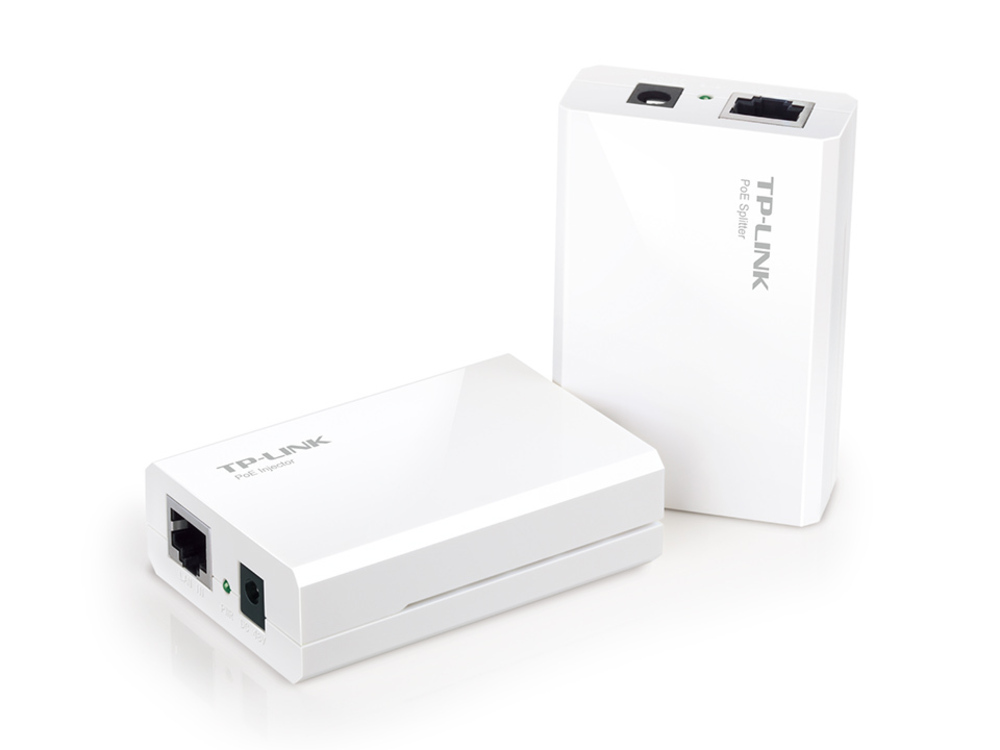

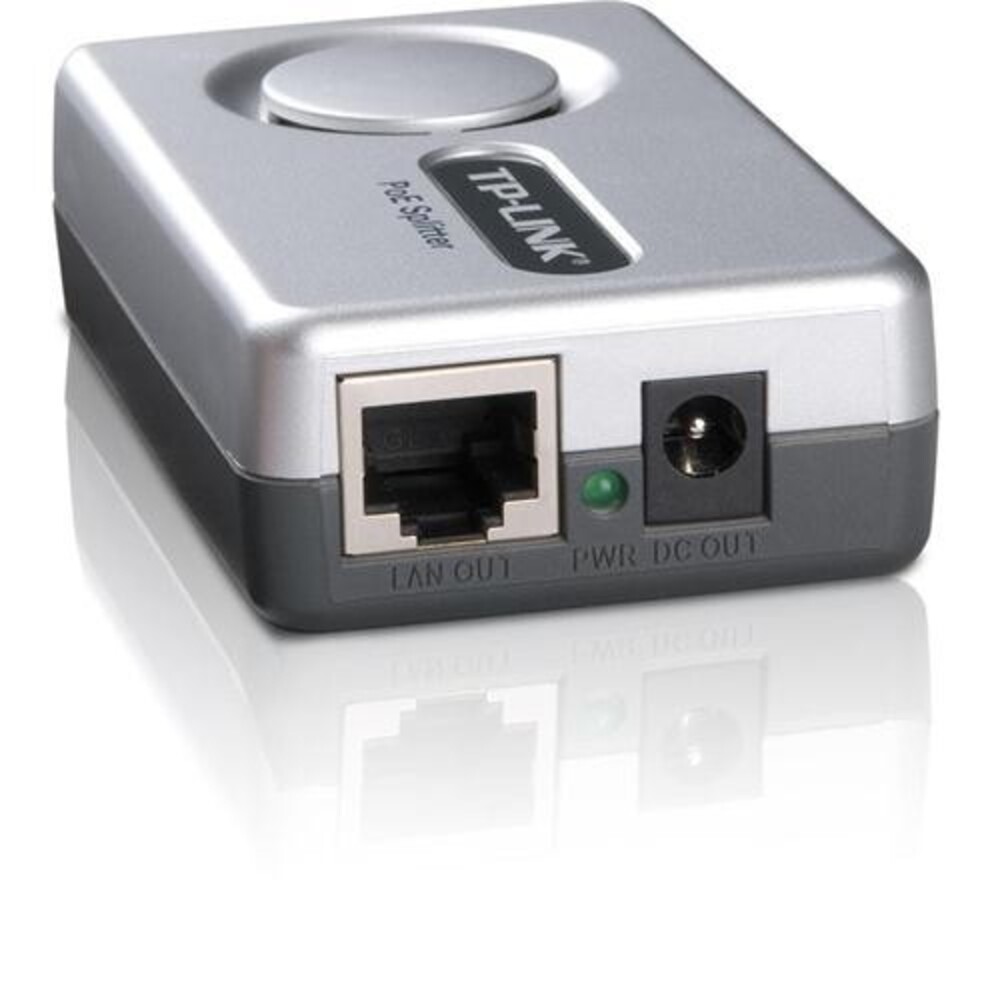

Power over Ethernet Adapter Kit01
  • Delivers power and data through a single Ethernet cable for simple network extension.
  • Transmits power & data over an Ethernet cable up to 100m (328 feet) away.
  • Plug and play design provides a hassle free setup.
  • 12/9/5VDC triple output adapts to different Ethernet-enable devices.

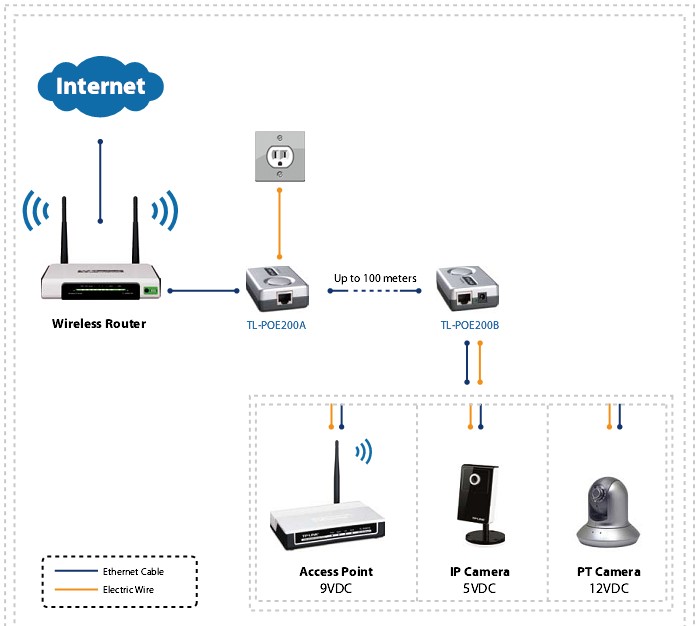

 The PoE kit uses two devices, one, the 'injector' injects power and data into a single Ethernet cable while the other, the ?splitter? placed at the receiving end splits the power and data back into two cables to be used by the connected Ethernet device. This convenience allows users to place Ethernet enabled devices such as access points, IP cameras, or VoIP phones anywhere that they are best suited, regardless of whether a power socket is available, to achieve the best performance for the connected devices.

*TP-LINK's TL-POE200 uses widely adopted PoE technology in the industry and provides more cost-effective PoE solution. It is highly recommended not to pair the PoE products with other PoE adapters unless under professional guidance.


HARDWARE FEATURES
Interface 4 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
1 48VDC POWER INPUT PORT (For TL-POE200A)
1 12/9/5VDC POWER OUTPUT PORT (For TL-POE200B)
LED Indicator PWR
Dimensions ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)
OTHERS
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Power Supply Unit of PoE Injector Input: 100~240VAC
Output: 48V, 0.5A Switching PSU
Output Power For PoE Splitter 12/9/5VDC
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Material TypePlastic
Additional FeaturesCarries power & data over a single Ethernet cable up to 100 meters away Selectable power output Plug-and-Play, requires no configuration 12/9/5VDC triple output adapts to different Ethernet-enable devices Plug and play design provides a hassle free setup
Packing Weight400 g
Product Size81x54x24 mm
Packing Width200 mm
Packing Depth130 mm
Packing Height45 mm
Package TypeBOX
