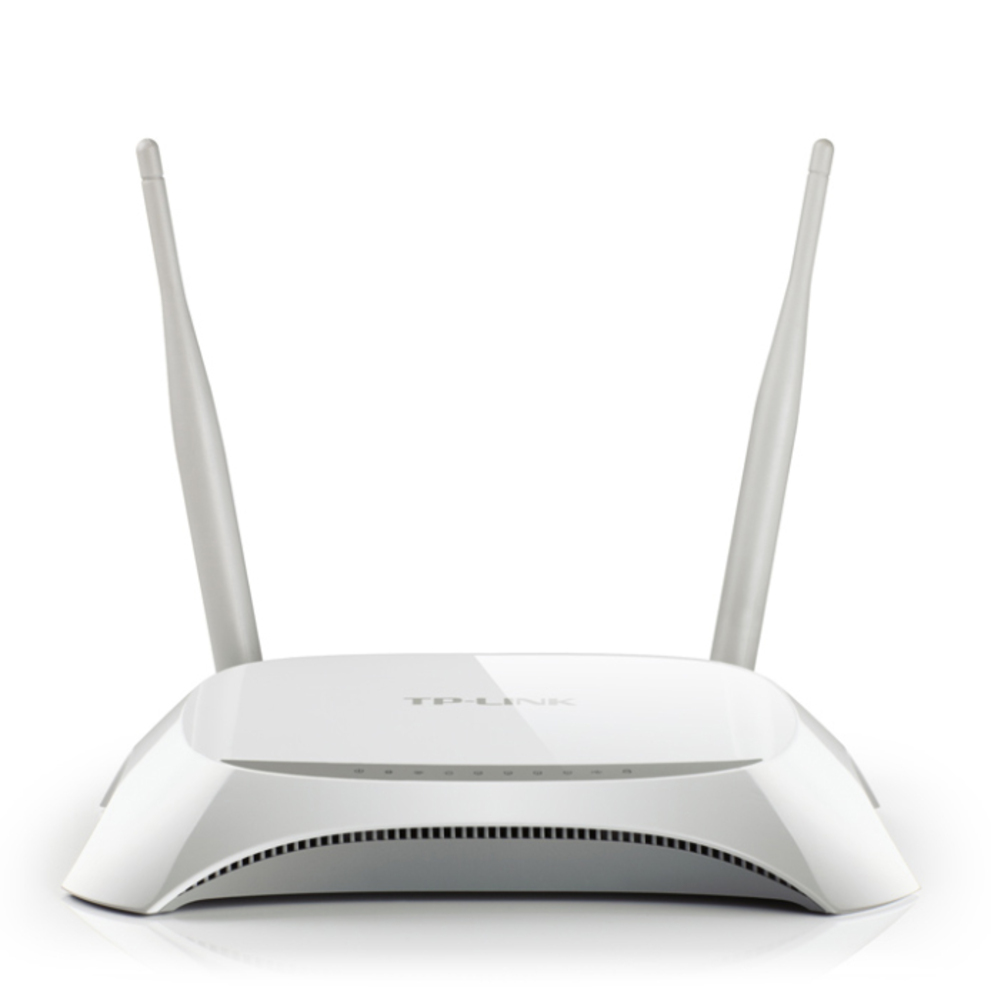

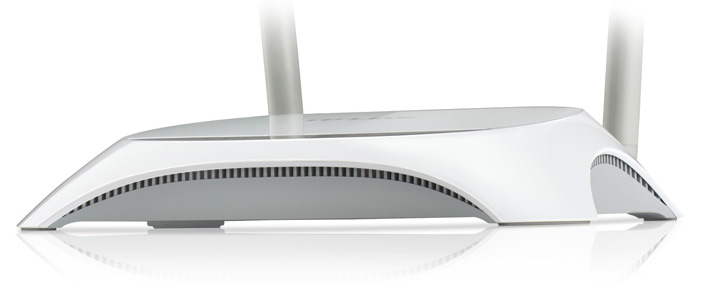

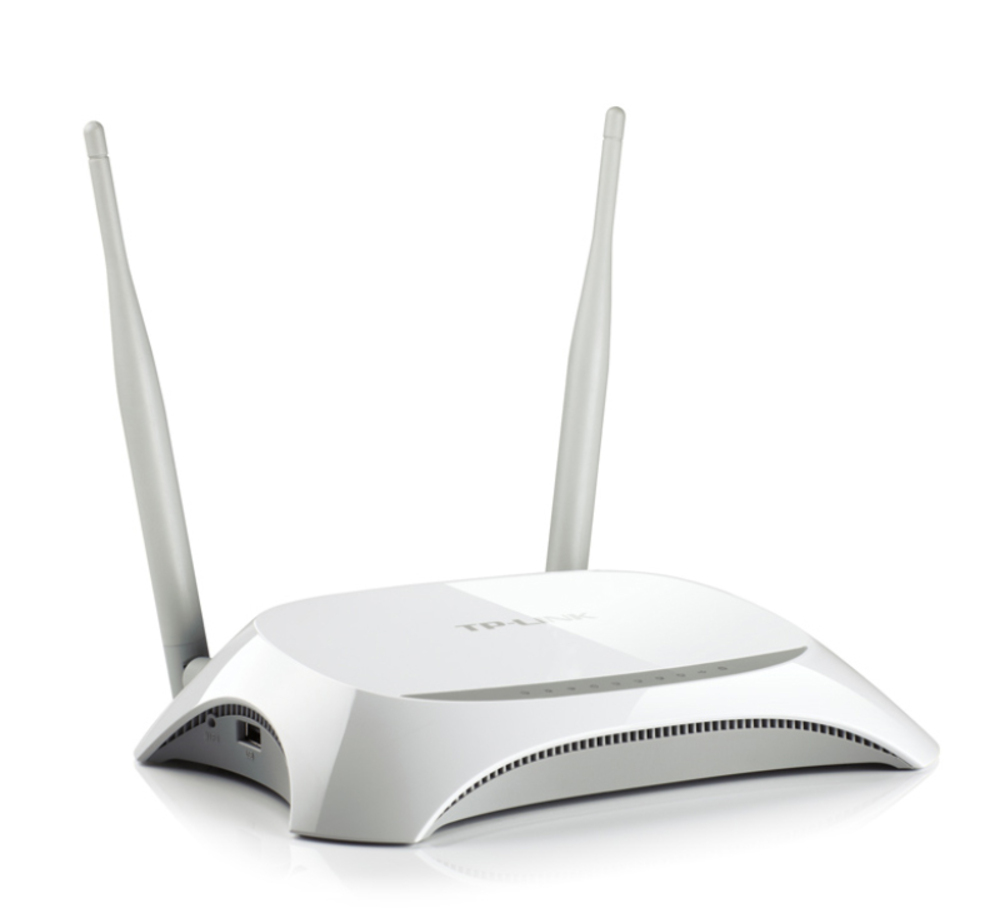

TP-Link TL-MR3420 300Mbps 3G/4G Wireless N Router, Compatible with LTE/HSUPA/HSDPA/UMTS/EVDO USB Modems, 2 x 5dBi Antennas
Product Code: TL-MR3420
Price:
Share This Item:

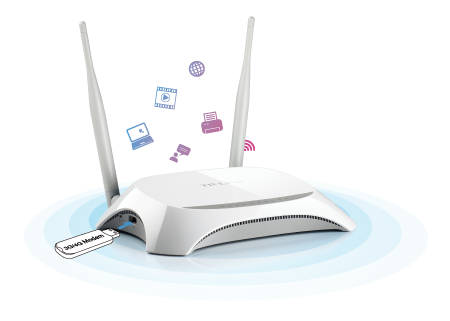

What This Product Does | 01 |
Share the freedom of 3G/4G! The TL-MR3420 3G/4G Wireless N Router allows users to share a 3G/4G mobile broadband connection with family and friends via wired or wireless connections. By connecting a 3G/4G USB modem to the routers, a Wi-Fi hotspot is instantly established, via which multiple devices can access the Internet and share data and applications wirelessly.

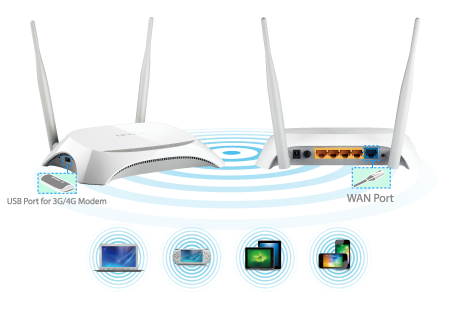

Enjoy 3G/4G Wireless Sharing | 02 |
TL-MR3420 features blazing 4G speeds and backward compatible with 3G modems, allowing users to share a 3G/4G mobile broadband with family and friends via wired or wireless connection. |
Tests in the Field-High Compatibility | 03 |
Compatibility is the most important aspect to consider when you're selecting a 3G/4G router. To ensure the best compatibility between our routers and the modem you would use with the router, TP-LINK has made certain that our 3G/4G Routers are compatible with the ISPs in the regions in which they are sold. We have teams around the globe continually testing our Routers with newly emerged modems to ensure that end users can feel confident that their routers will operate flawlessly where they live and work. |
Comprehensive 3G/4G and WAN Connection Backup Strategy | 04 |
The TL-MR3420 stands out with its 3G/ 4G and WAN connection back-up, which keeps users online when one connection fails. TP-LINK's 3G/4G Router provides users with both 3G/4G Preferred and WAN Preferred back-up modes, while other brands provide one or the other. This brings users a high degree of flexibility when users are setting up the networks with considering connection costs and length of downtime. |

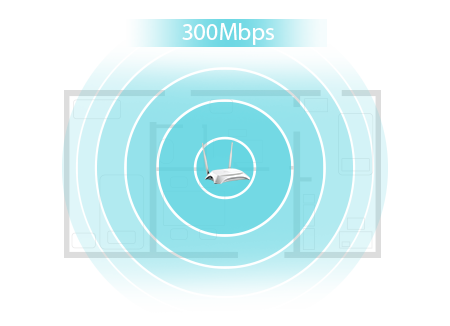

Wireless N Speed & Range | 05 |
Complying with the IEEE 802.11n standard, the TL-MR3420 can establish a wireless network with transmission speeds of up to 300Mbps, while mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, users can easily pick up their wireless network's signal at longer distances from the router, where with legacy 11g products they would have to be much closer. |
HARDWARE FEATURES | |
---|---|

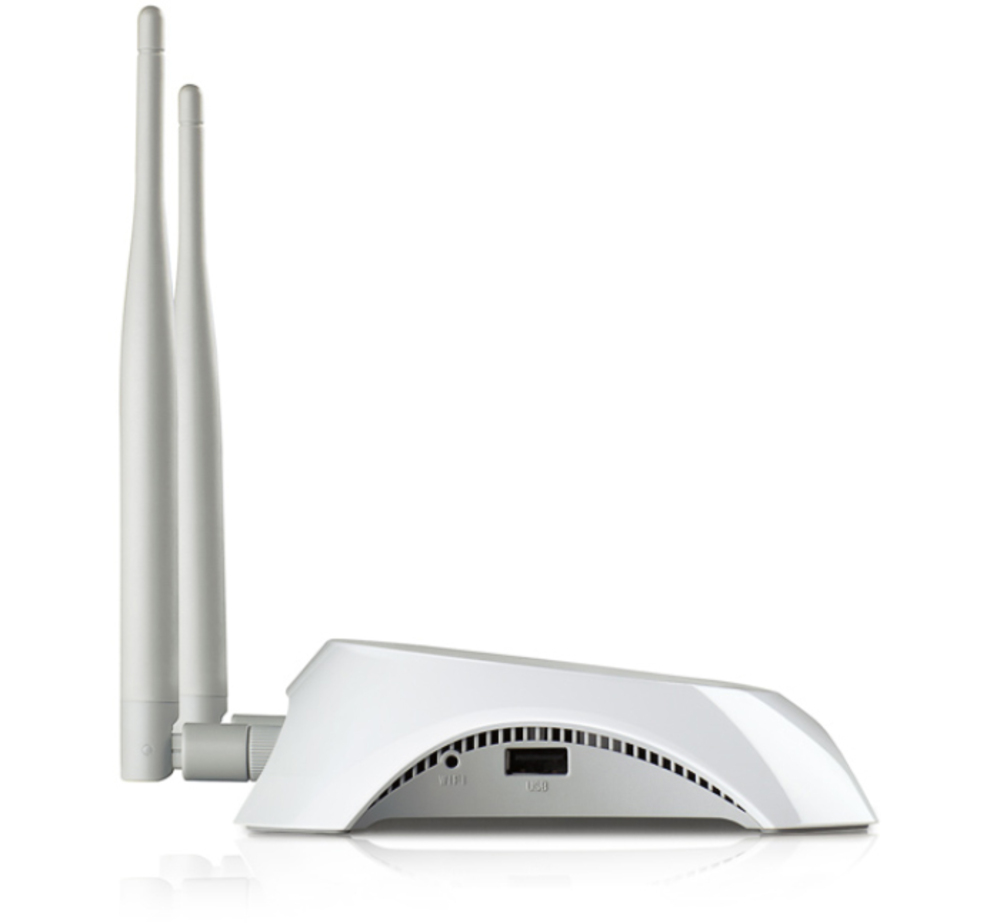

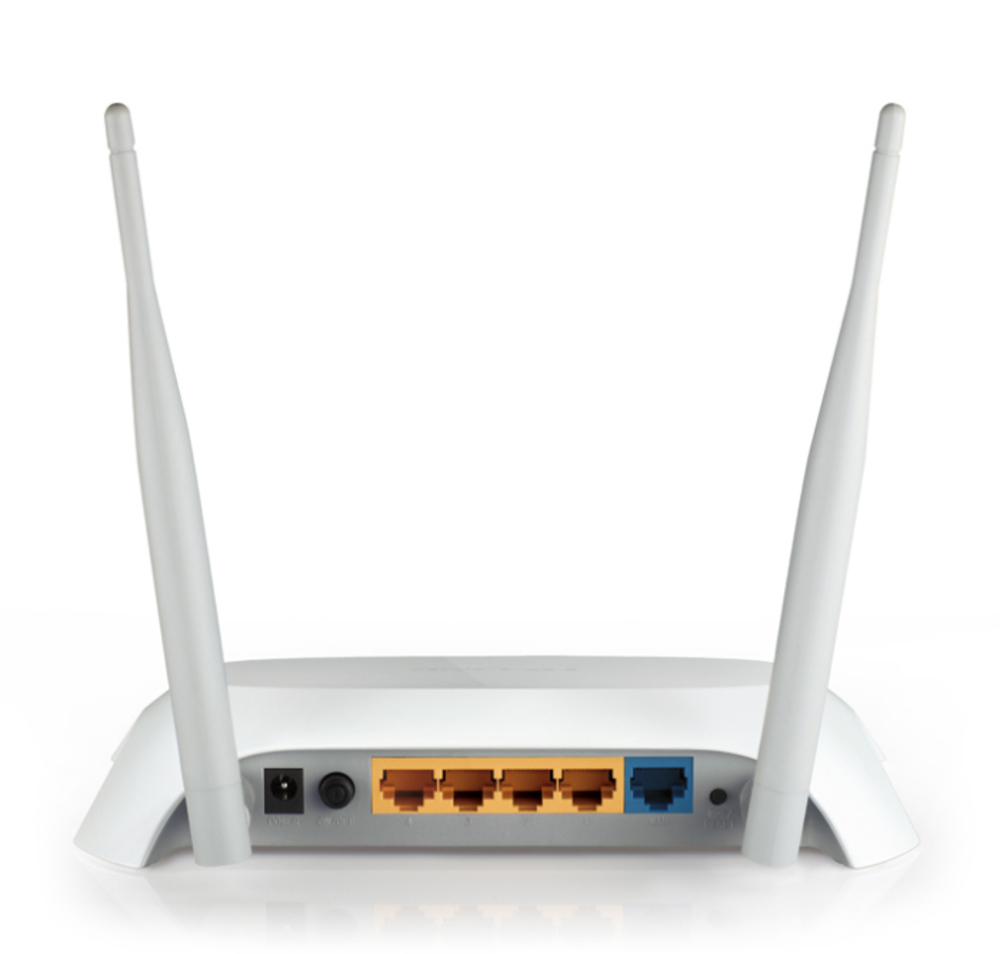

Interface | 1 USB 2.0 Port for LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO USB Modem 1 10/100Mbps WAN Port, 4 10/100Mbps LAN Ports, support the auto-Negotiation and auto-MDI/MDIX |
Button | WPS/Reset Button Wireless On/Off Switch Power On/Off Button |
External Power Supply | 12VDC/1A |
Dimensions ( W x D x H ) | 8*5.4*1.7 in. (204*138*44 mm) |
Antenna Type | Omni directional, Detachable, Reverse SMA |
Antenna Gain | 2x5dBi |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frequency | 2.4-2.4835GHz |
Transmit Power | <20dBm |
Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
SOFTWARE FEATURES | |
---|---|
Security | NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
Management | Web Based Configuration(HTTP), Web Based Firmware Upgrade |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | 3G/4G Wireless N Router TL-MR3420 2 Antennas Power supply unit Ethernet Cable Resource CD Quick Installation Guide |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Network Type | Wireless |
Specification | http://www.tp-link.com.au/products/details/cat-4691_TL-MR3420.html#specifications |
WAN-port | Ethernet USB 3G |
Ports | 4 x 10/100/1000Mbps RJ45 1 x USB 2.0 |
Packing Weight | 620 g |
Wi-FiSpeed | 300 Mbps |
Frequency Wireless | 2.4 GHz |
LAN Speed | 100 Mbps |
Antenna | External/Detachable |
Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK Wireless MAC Filtering |
Antennas Quantity | 2 |
Additional Features | Transmit Power <20dBm Support the auto-Negotiation and auto-MDI/MDIX Antenna Gain: 2x5dBi |
Security | NAT Firewall, SPI Firewall Denial of Service(DoS) SYN Flooding Ping of Death MAC / IP / Packet / Application / URL Filtering |
System Requirements | Windows 98SE Windows NT Windows 2000 Windows Vista Windows 7 Windows 8 MAC OS NetWare UNIX |
Packing Width | 276 mm |
Package Contents | 3G/4G Wireless N Router TL-MR3420 2 Antennas Power supply unit Ethernet Cable Resource CD Quick Installation Guide |
Packing Depth | 66 mm |
Packing Height | 232 mm |
Package Type | BOX |
