High VPN Performance 01

The TL-ER6120 supports multiple VPN protocols including IPsec, PPTP and L2TP in Client/Server mode and can handle pass-through traffic as well. It also features a built-in hardware-based VPN engine allowing the router to support and manage up to 100 LAN-to-LAN/Client-to-LAN IPsec VPN connections. Advanced VPN features include: DES/3DES/AES128/AES192/AES256 encryption, MD5/SHA1 authentication, Manual/IKE key management, and Main/Aggressive negotiation modes.

Abundant Security Features 02

For defense against external threats, TL-ER6120 features an automatic protection to detect and block Denial of service (DoS) attacks such as TCP/UDP/ICMP Flooding, TCP Scanning, Ping of Death and other related threats. Moreover, this router offers a hardware DMZ port, which allows you to setup public servers without exposing your internal network, to avoid attacks from external threats. For better management of the internal network, TL-ER6120 allows administrators to set rules to block specific web sites and IM/P2P applications with just one-click, and restrict staff to use specific services such as FTP, HTTP and SMTP.

Optimizing Bandwidth Usage 03

The TL-ER6120 features two WAN ports, allowing the router to satisfy various Internet access requirements through one device. The Intelligent Load Balancing function can distribute data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. With IP-based Bandwidth Control and Session Limit functions, network administrators can flexibly manage network bandwidth to optimize bandwidth usage.

Safety Minded Enterprise Investments 04

Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the electrical equipment and is discharged harmlessly into the Earth. This router is designed to prevent lightning up to 4Kv in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of mother nature's more violent situations.



  • Up to 100 IPsec VPN Tunnels, 130Mbps IPsec VPN Throughput
  • IPsec, PPTP, L2TP, L2TP over IPsec
  • IPsec NAT Traversal (NAT-T)
  • DES, 3DES, AES128, AES192, AES256 Encryption
  • MD5, SHA1 Authentication
  • Manual, IKE Key Management Mode
  • LAN-to-LAN, Client-to-LAN IPsec VPN
  • PPTP/L2TP VPN Server/Client
  • Hardware DMZ port
  • One-to-One NAT
  • FTP/H.323/SIP/IPsec/PPTP ALG.
  • IM/P2P Application Blocking.
  • URL/Keywords Filtering.
  • Web Content Filtering (Java, ActiveX, Cookies).
  • ARP Inspection.
  • DoS/DDoS Defense.
  • Intelligent Load Balance.
  • Policy Routing.
  • Link Backup (Timing, Failover).
  • IP-based Bandwidth Control.
  • Guarantee & Limited Bandwidth.
  • IP-based Session Limit.
  • Port VLAN, Port Mirror.
  • Static Routing, RIP v1/v2.
  • PPPoE Server.
  • E-Bulletin.



Network Type Wired
WAN-port Ethernet
Packing Weight 3890 g
Ports 2 x 10/100/1000 Mbps Ethernet Port 2 x 10/100/1000 Mbps RJ45 1 x Console Port 1 x Gigabit LAN/DMZ Port
LAN Speed 1 Gbits
Standards Compliance IEEE 802.3 IEEE 802.3u IEEE 802.3ab
IPSec VPN 100 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode IPsec NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
Security ARP Inspection Attack Defense Filtering Application Control DMZ Port
System Requirements Windows 98SE Windows NT Windows 2000 Windows XP Windows Vista Windows 7 MAC OS NetWare UNIX Linux
Packing Width 560 mm

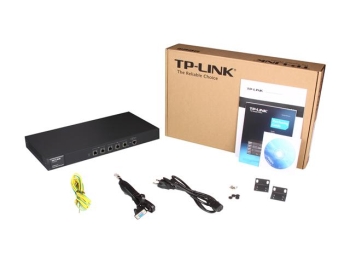

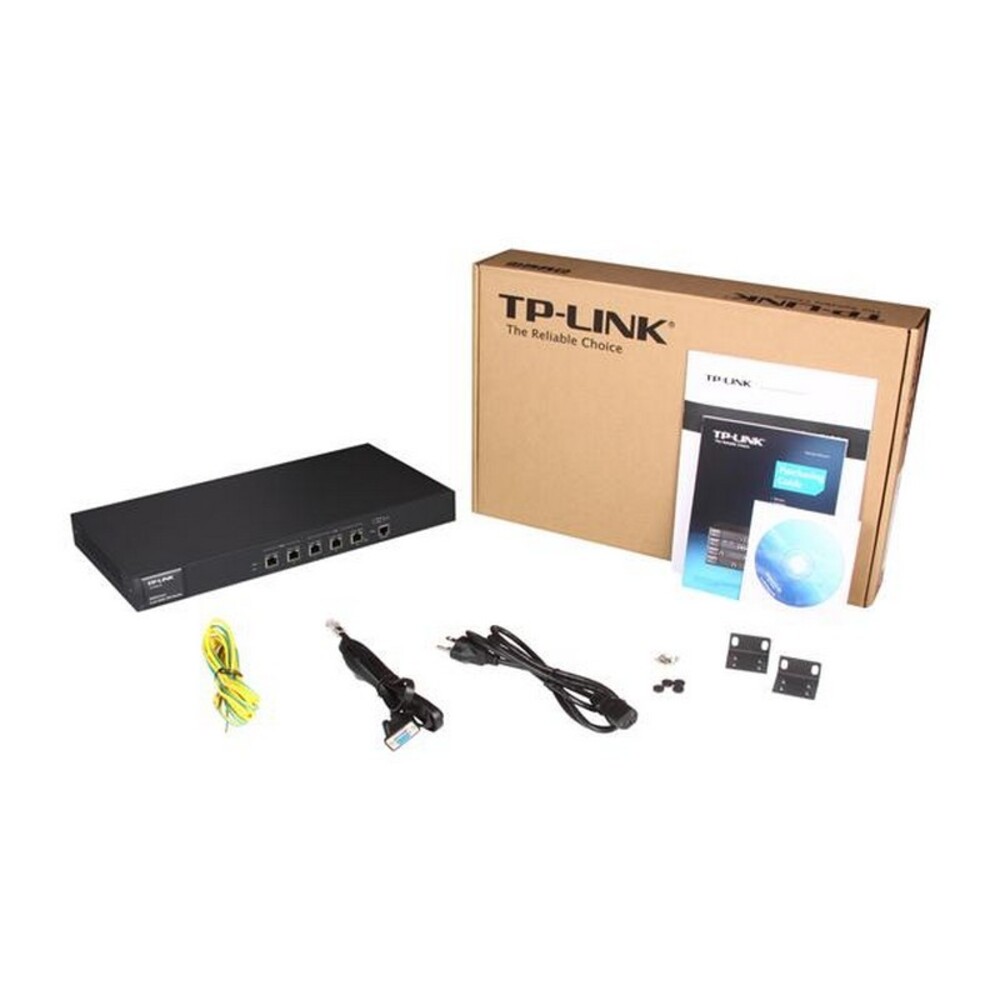

Package Contents TL-ER6120 Resource CD Power Cord Ground Cable Rack-mount Kit Installation Guide
Packing Depth 370 mm
Packing Height 95 mm
Package Type BOX
VPN Pass-Through IPsec PPTP L2TP
