TOSHIBA DYNADOCK® 4K

01

Perfect for business.

02

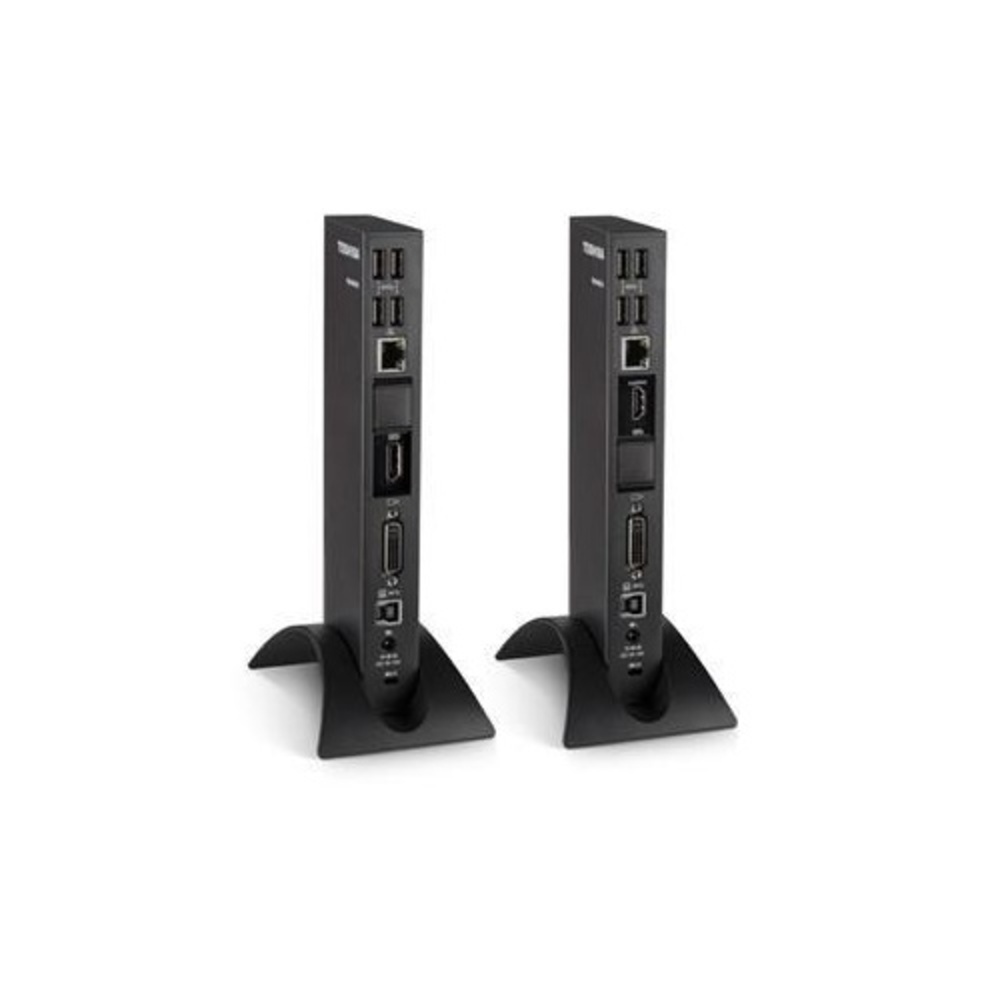

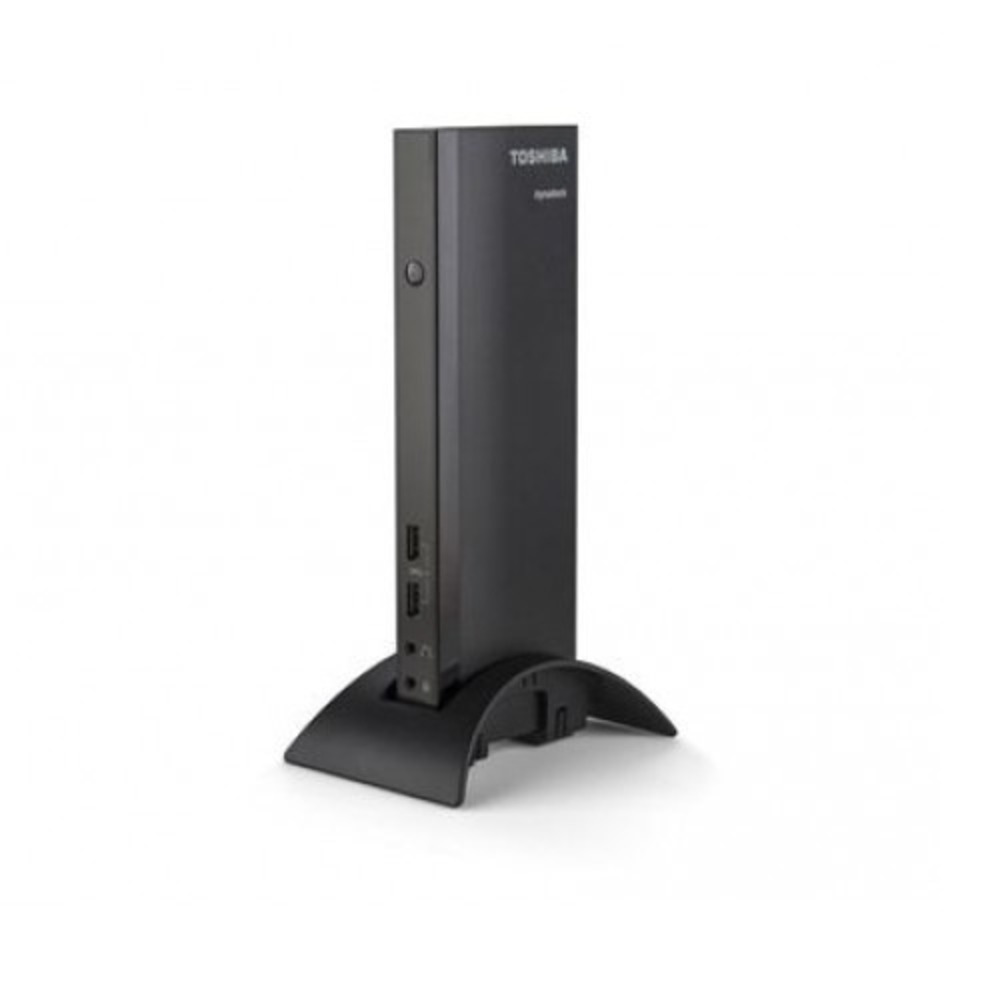

With universal support for Windows PCs, the dynadock® 4K enables today’s business users to plug into everyday essential desktop peripherals in a snap. Versatile, space-saving design. Dynadock® 4K works around you—and your desktop environment. The sleek and slim design can be used upright to save precious desk space, or laid flat (without the base), if you prefer. Spread out with ease. View up to three screens simultaneously (including your laptop screen) to increase productivity and make it easier to manage multiple applications.

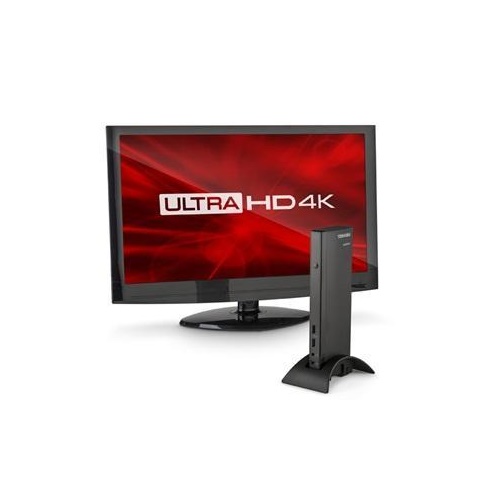

Stunning 4K output.

03

Ultra HD 4K resolution—delivering four times the resolution of Full HD*—enables you to enjoy superior quality images and enjoy more Windows desktop space to create documents, work on large spreadsheets, and surf multiple web pages at once. One simple connection. Plus 4K awesomeness. Now you can create a vibrant, high-resolution Ultra HD 4K workstation in your home or office—with just a single USB 3.0 port on your laptop and the dynadock® 4K universal docking station.

One simple connection. Plus 4K awesomeness.

04

Now you can create a vibrant, high-resolution Ultra HD 4K workstation in your home or office—with just a single USB 3.0 port on your laptop and the dynadock® 4K universal docking station. Universal compatibility—for greater peace of mind. Regardless of laptop brand, dynadock® 4K provides fast access to a true desktop environment. Virtually any brand of computer with a USB 3.0 or USB 2.0 port is compatible with the dynadock® 4K, so you can accommodate them a

Product Features
• One simple USB 3.0 cable connection from your laptop to enable 4K display output and all your accessories for maximum convenience; backward compatible with USB 2.0.
• Built-in video card supports one 4K capable display up to 3840 x 2160 via DisplayPort or HDMI. For dual display mode resolution is supported up to 2048 x 1152 via Displayport or HDMI and DVI-I used simultaneously.
• DVI-I out port supports up to 2048 x 1152
• Stereo sound through HDMI™, DisplayPort, or 3.5mm audio out port
• Six (6) USB ports in total; two (2) front-side, four (4) back-side
• Two (2) easy access front USB 3.0 “always on” Sleep & Charge ports to supply power even if your PC is off; charge your phone, camera, MP3 player, etc.
• Fast USB 3.0 transfer data to your USB 3.0 flash and storage devices up to 10x faster than USB 2.0.
• Versatility of Space-saving upright or horizontal slim design reduces cable clutter on your desk space
• Use of docking station reduces wear-and-tear on PC ports and cable plugs
• Hot plug and play docking after initial software install
• Easy setup
• Install software includes dynadock® 4K Utility to easily customize your dynadock® video and audio settings
• Universal compatibility with all Windows®-based PC brands
• Compatible with Windows 8.1, 8.0 and Windows® 7
• Mac® OS X supported driver available at www.displaylink.com


Product Specifications

• Video resolution:
Up to 3840 x 2160 (30p) with DisplayPort or HDMI to a single external monitor
Up to 2048 x 1152 (60p) with DVI port
Up to 2048 x 1152 (60p) in dual monitor output mode
• Safety/EMC Standards Approvals
FCC, cUL, C-Tick, NOM/NYCE, IRAM
• Compliance
Compatible with Windows® 8.1, 8, and 7, DisplayLink Certified, RoHS compliant, Toshiba Green Procurement Requirements


Physical ports/indicators on the dynadock® 4K:

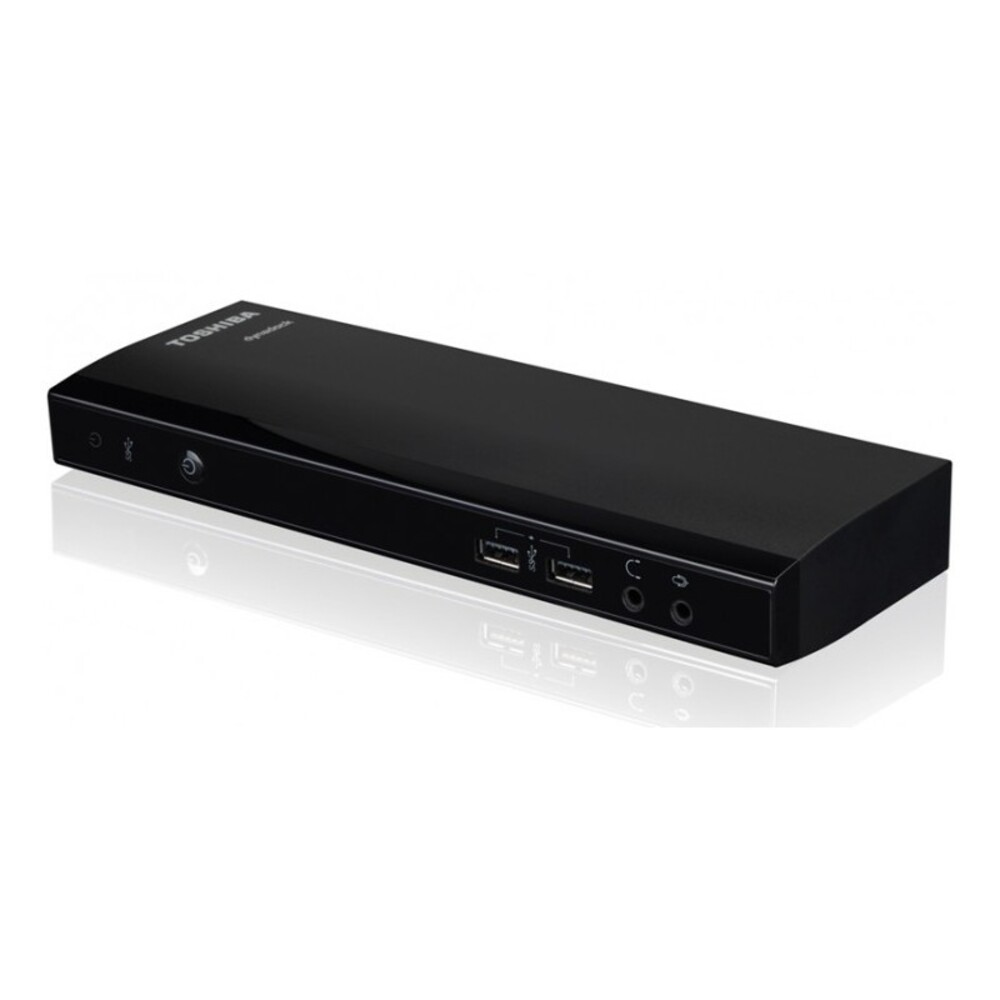

FRONT Panel
• Power Light
• USB Status Light
• Two (2) “Always On” USB 3.0 ports
(Sleep & Charge)
• 3.5mm Line in
(microphone/headset)
• 3.5mm Line out (headphone/headset/speakers)

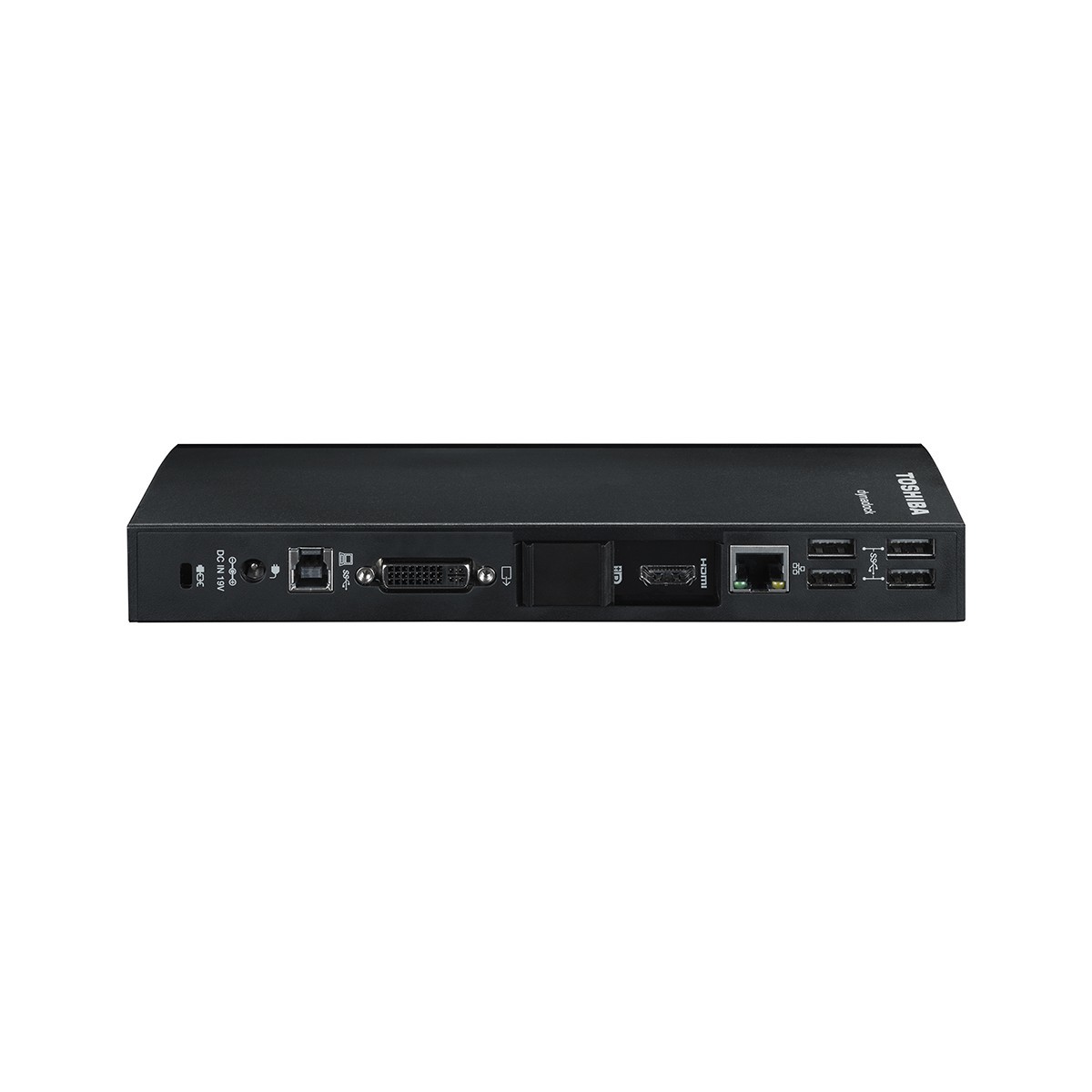

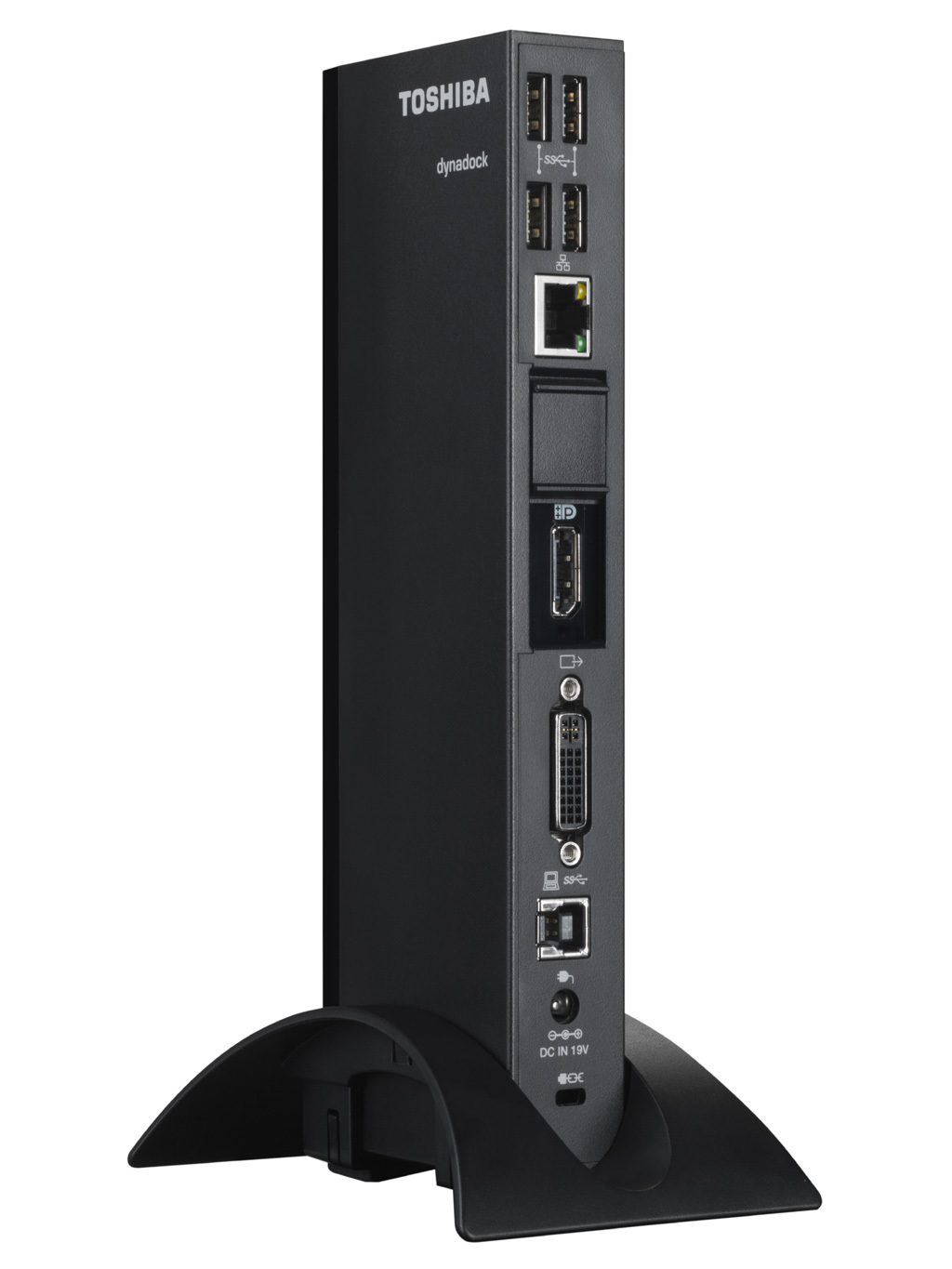

BACK Panel
• Four (2) USB 3.0 ports
• Gigabit Ethernet/Network port
• HDMI™ out port
• DisplayPort out port
• DVI-I out port
• USB 3.0 Connector (to PC)
• DC in (for power)

SIDE Panel
• Security Lock Slot
