Ergotron 97-776-194 Stand Shelf VESA Mount Holder for Video Web Camera Monitor Display Screen LCD

Add the power of videoconferencing to a StyleView LCD cart to help create a mobile telemedicine solution. Simply install this shelf via the VESA plate and then attach a camera

Benefits:

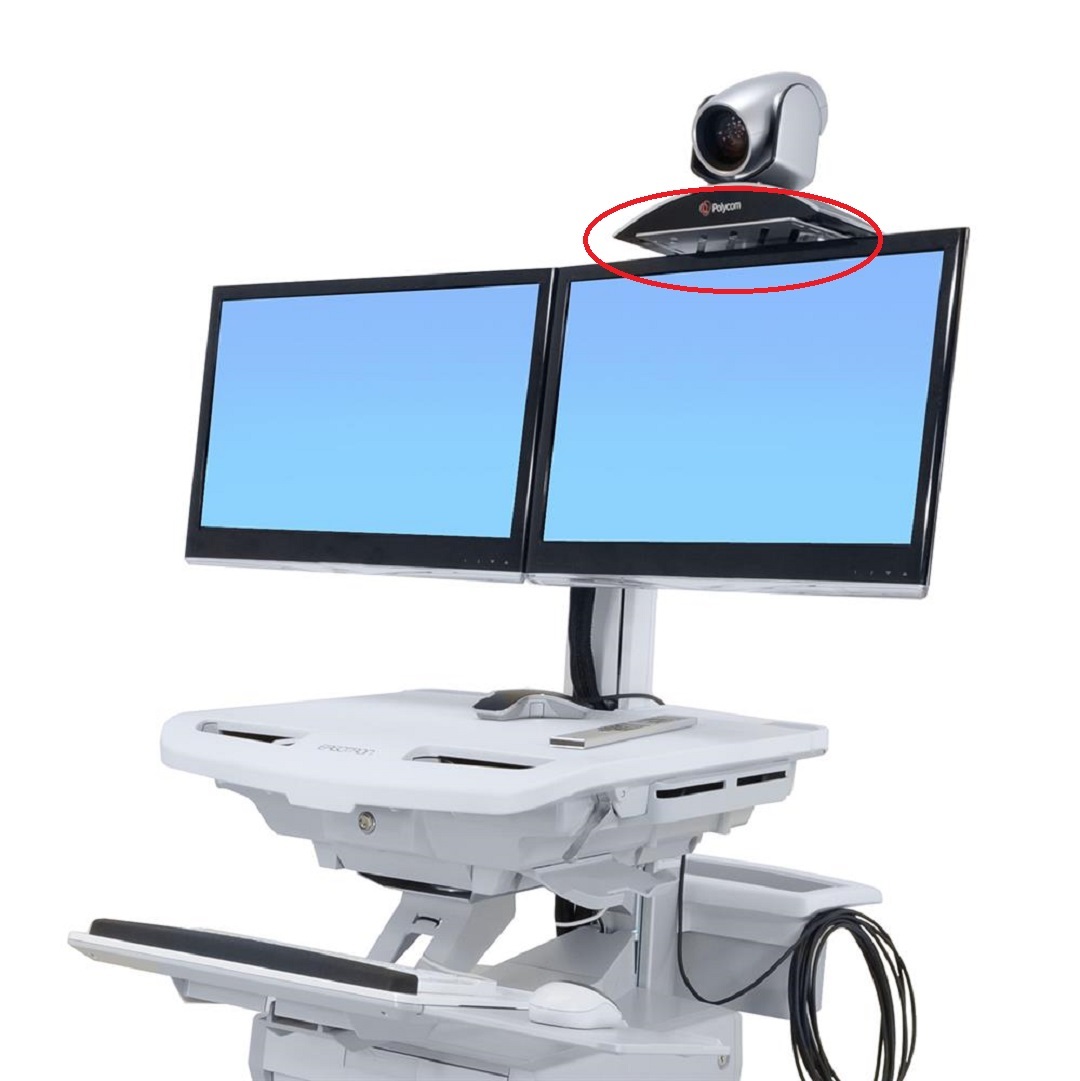

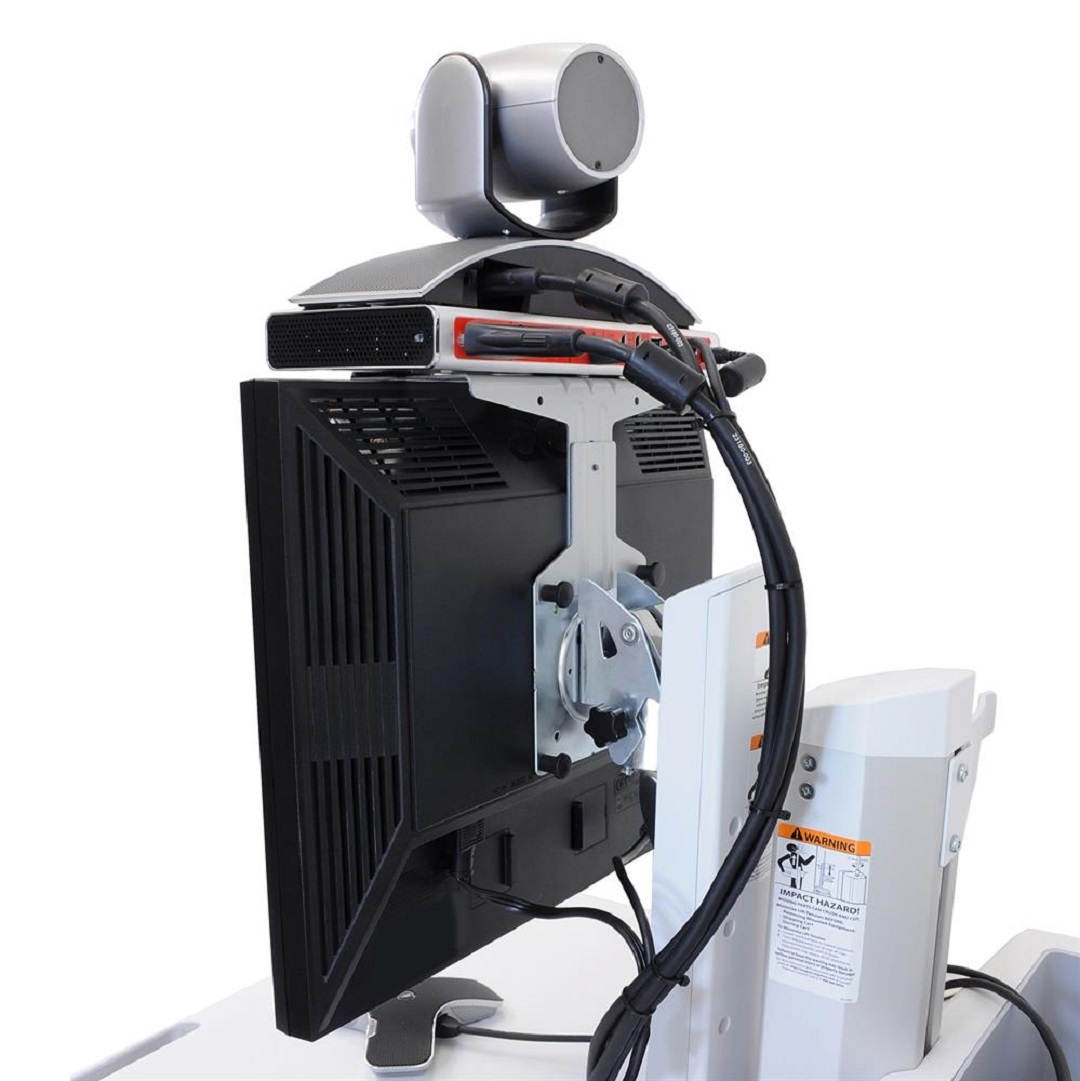

• Mounts a video or web camera above the monitor, facing forward
• Perfect for telemedicine applications
• Travels with the monitor through its entire range of motion

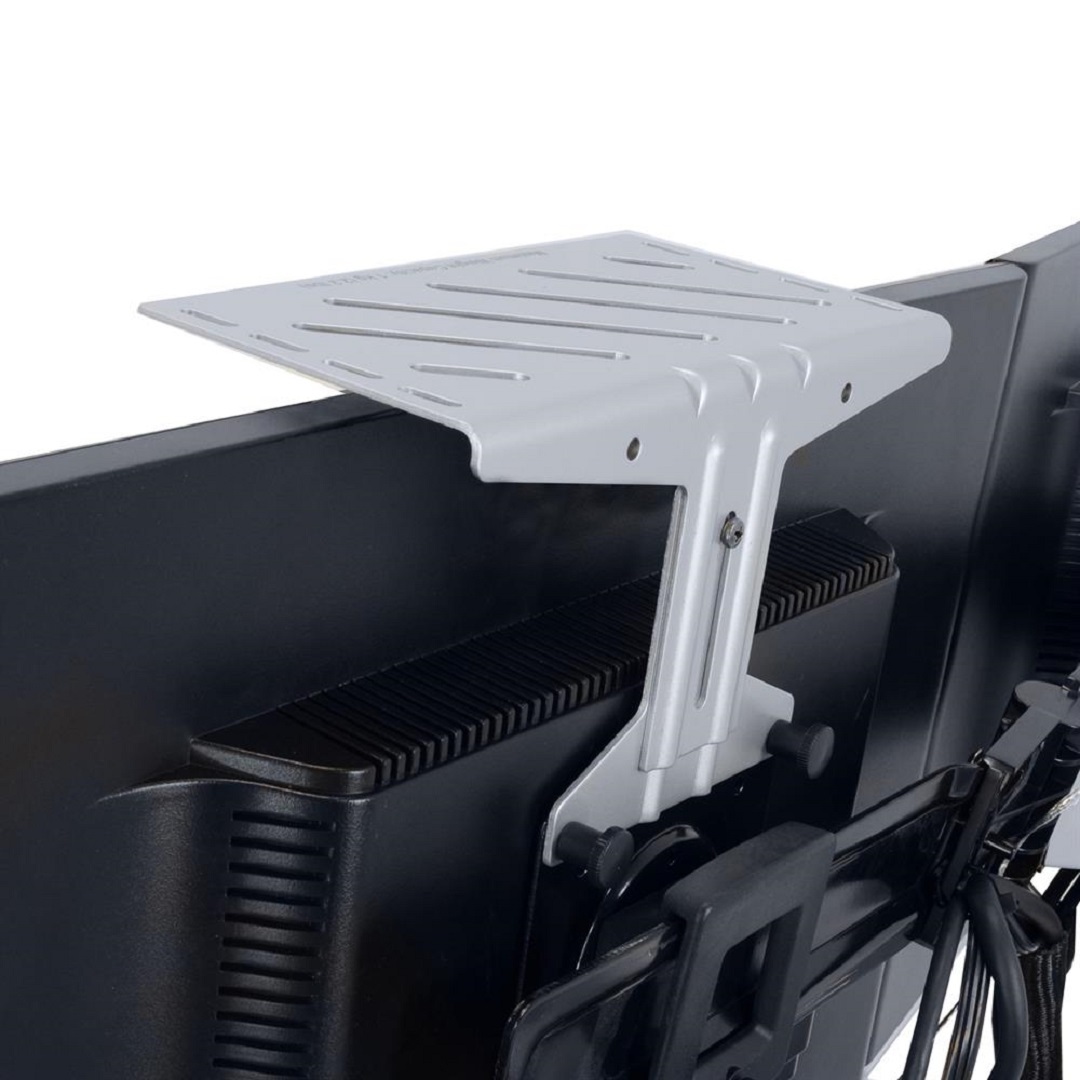

• Easily attaches via the VESA interface. The bracket adjusts to the size of the monitor to place the camera just above the screen’s top bezel
• Sturdy metal construction
• Easy to clean surfaces
• Works with StyleView LCD carts as well as StyleView wall mount systems

Specification:

• Description: SV Camera Shelf (silver)

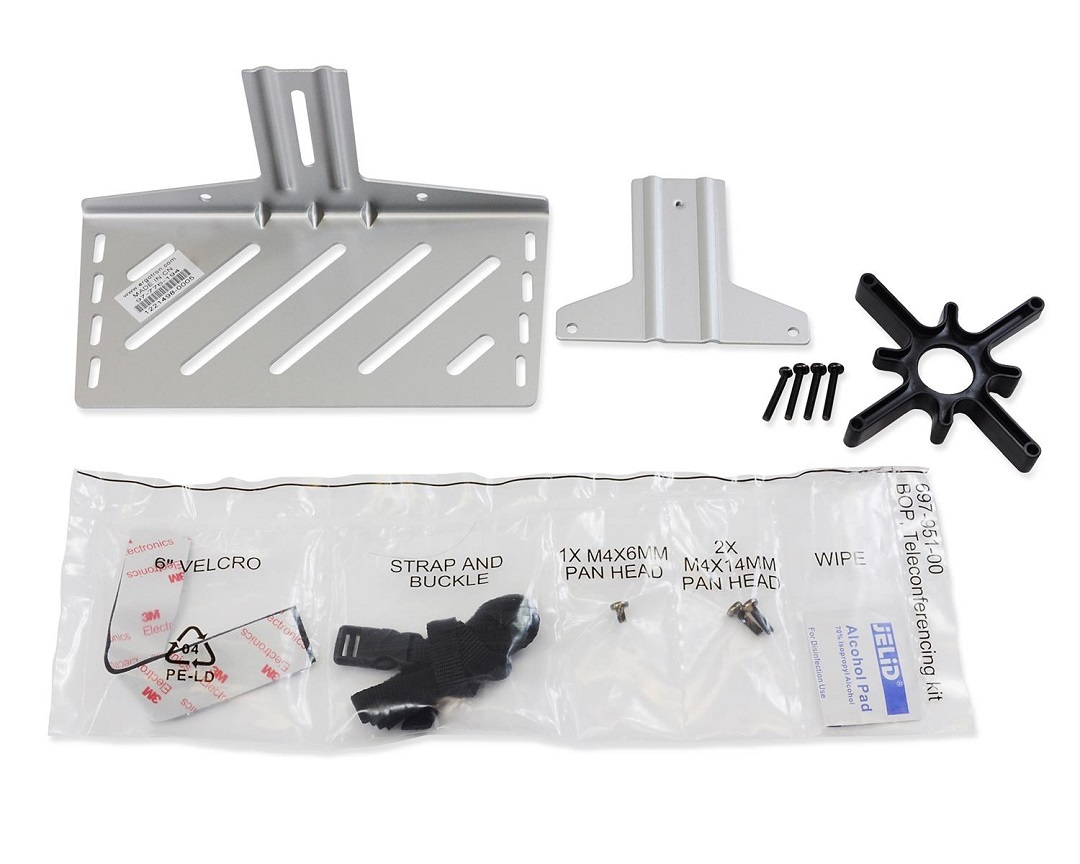

• Includes shelf, bracket, Velcro, strap, mounting hardware
• Camera and videoconferencing equipment are not included
• Shelf dimensions = 20 x 10 cm
• Shelf bracket attaches with the monitor via top holes of VESA MIS-D 100 x 100 mm interface
• The camera attaches to the shelf with included Velcro or strap, or by using the camera’s tripod-mount interface if present
• Attachment of this shelf impacts the overall weight capacity of the monitor arm or pivot. Follow the weight-capacity limitations to avoid any trip hazard when attaching to SV carts

Monitor weight limitations as follows:

• SV41 and SV42 SLA without lock-out = 4.5 kg; with lock-out of pivot = 7.3 kg
• SV42 LiFe without lock-out =  3.2 kg; with lock-out of pivot = 7.3 kg
• SV31, SV32 SLA, SV32 LiFe without lock-out = 5.4 kg; with lock-out of pivot = 7.3 kg
• Note: SV carts with a monitor arm do not include a lock-out feature. The lock-out feature is unique to SV carts with monitor lift pivot
• Shipping Dimensions:24 x 13 x 15 cm
• Shipping Weight: 1 kg
