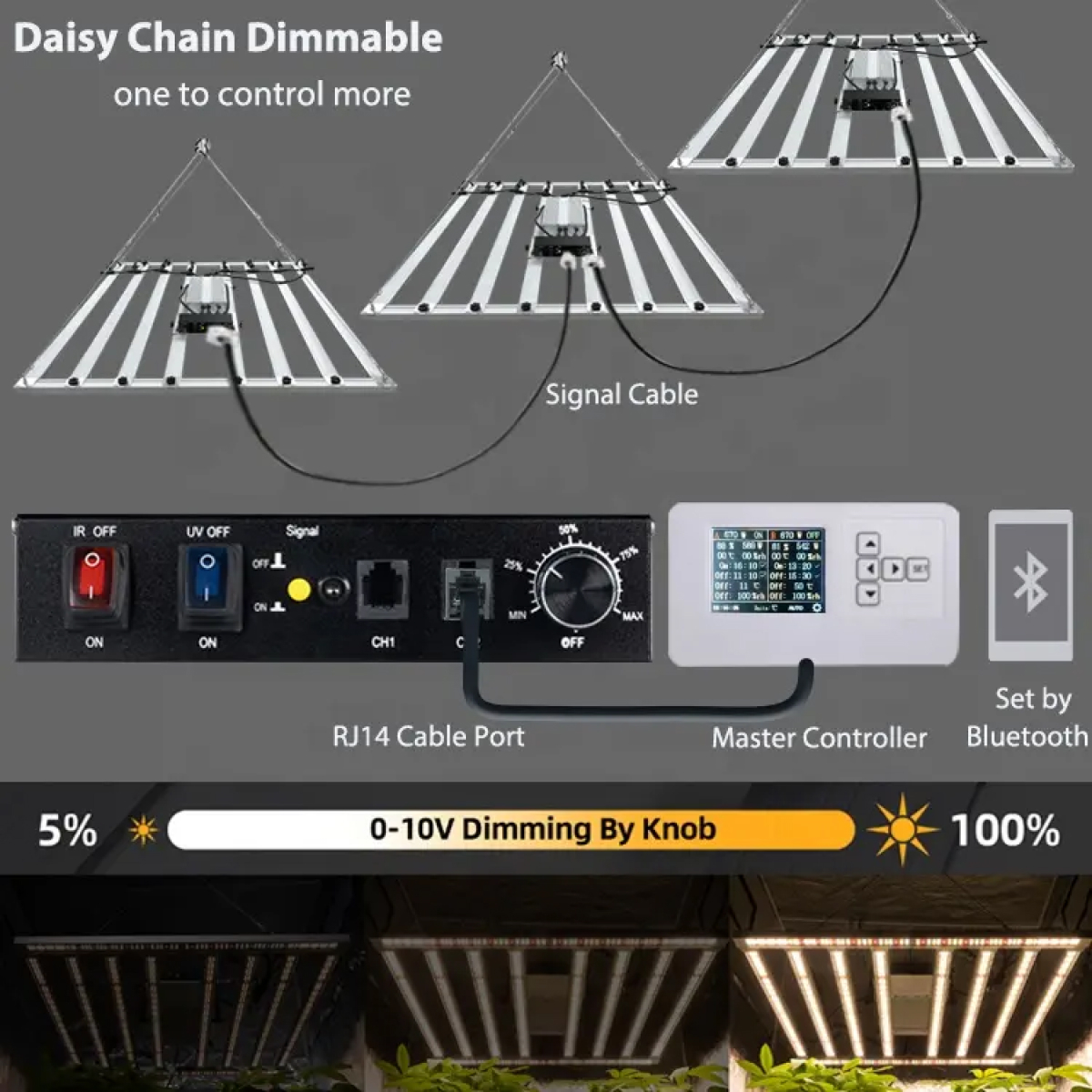

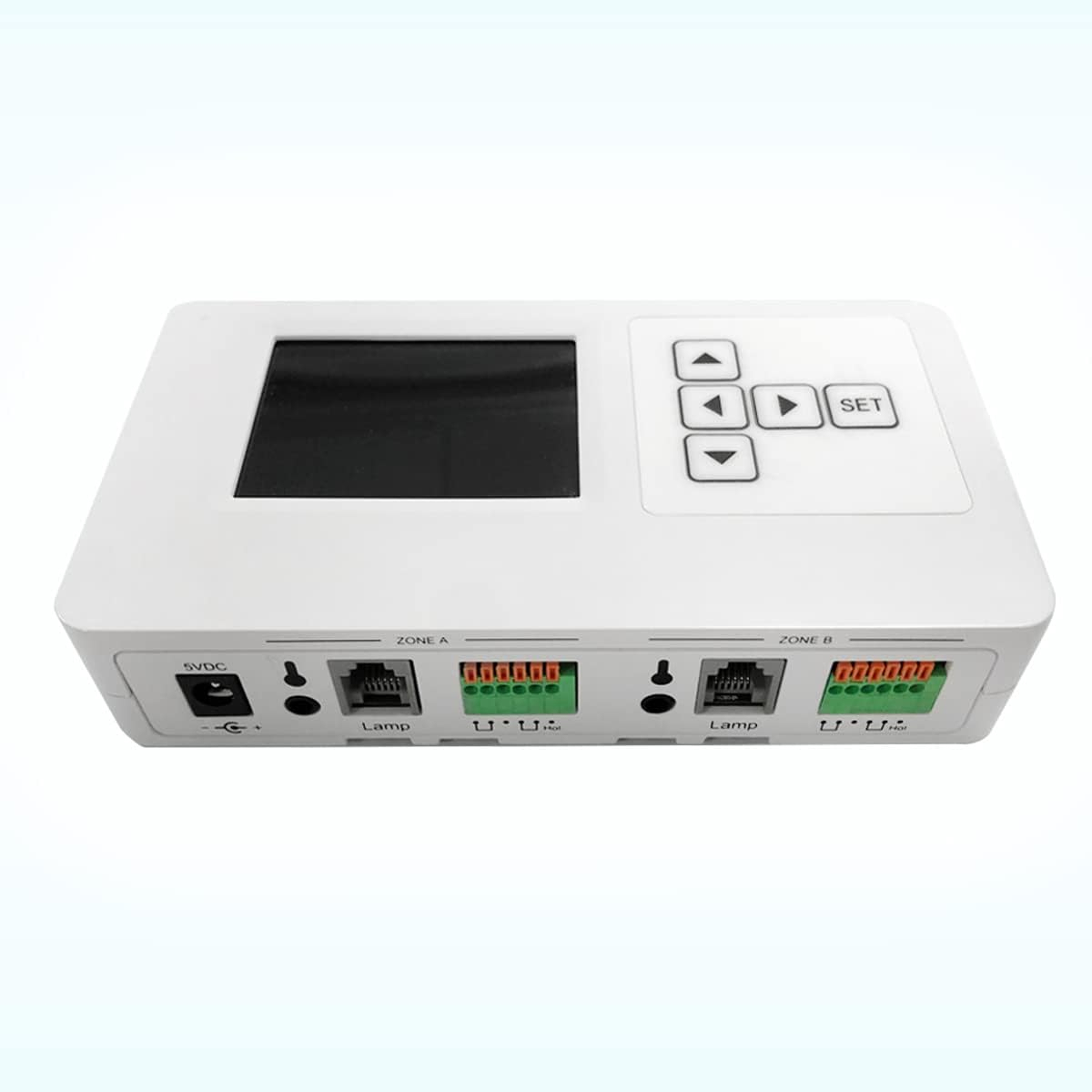

The grow light master controller has two channel (two zones). You can daisy chain up to 100 lights per channel with one single controller. It comes with two temperature sensors, one for each zone which provides real-time data for automated temperature-based dimming, as well as a high-temperature shutdown feature that protects your garden while you’re away. The controller replaces traditional analog lighting relays and eliminates inrush current.







Features:



• No need for a switchboard
• Easy and safe installation (low voltage device)
• Protected against shortcuts
• Double temperature safety feature (auto-dim/auto-shutdown)
• Control up to 100 light per channel or 200 lights total

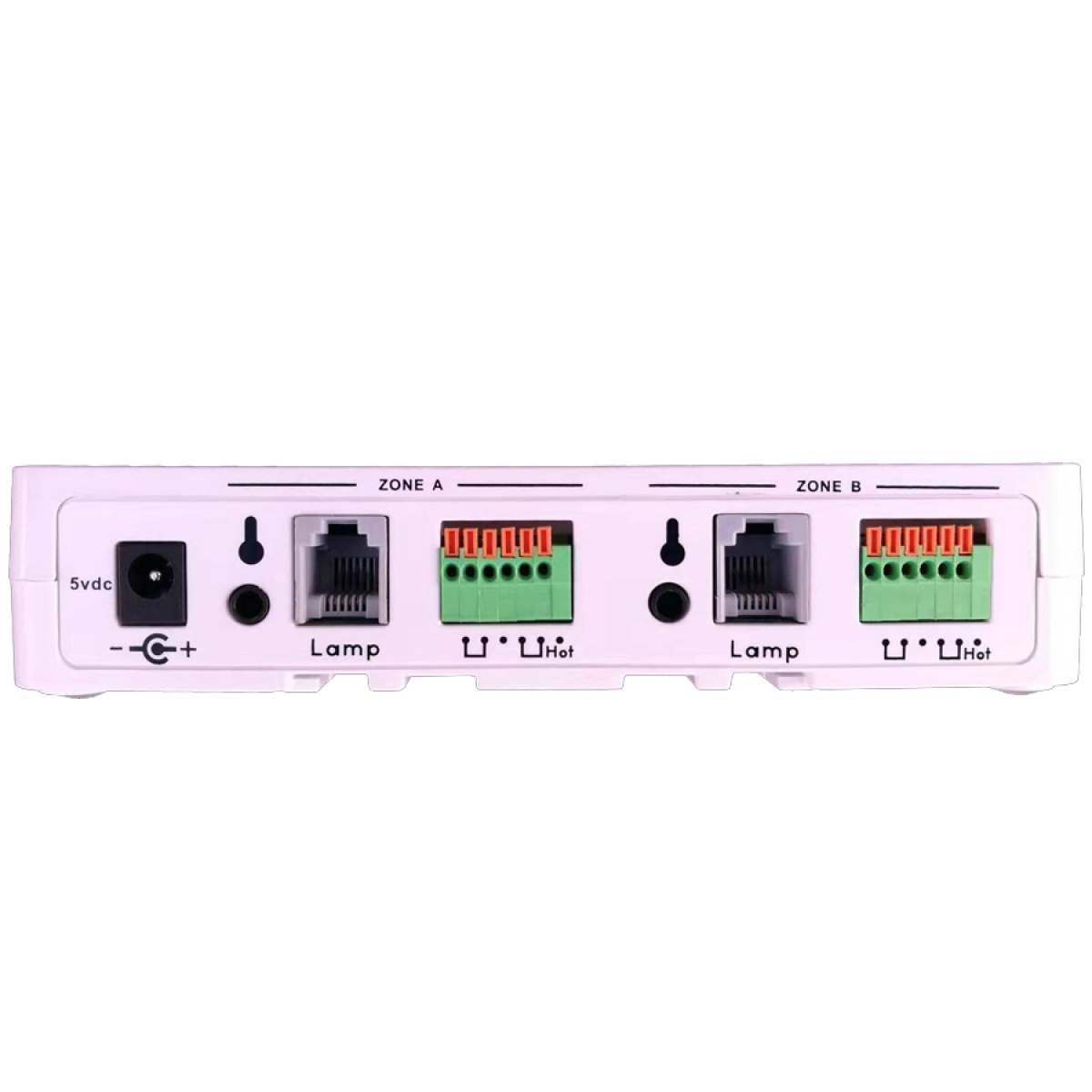

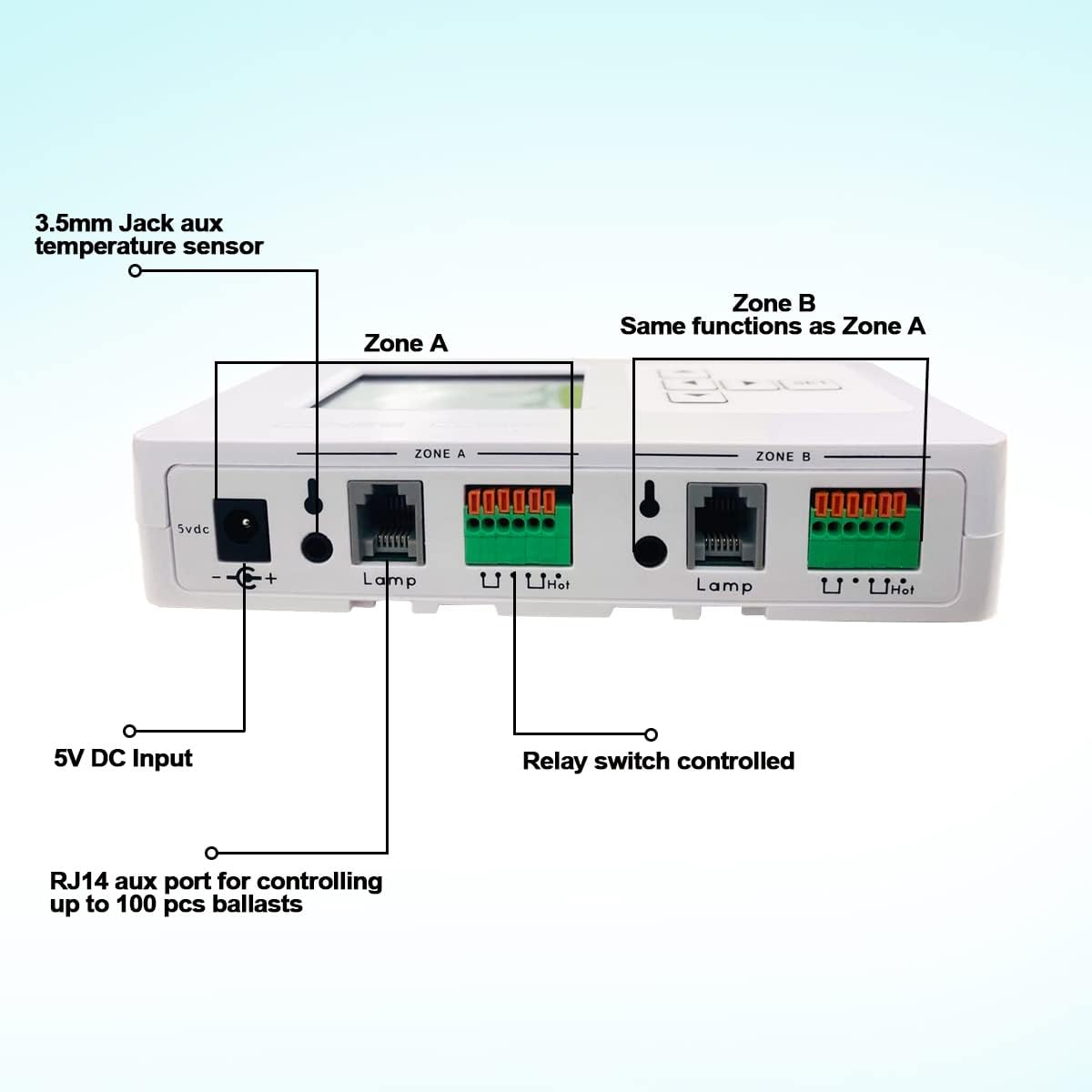

• RJ14 port

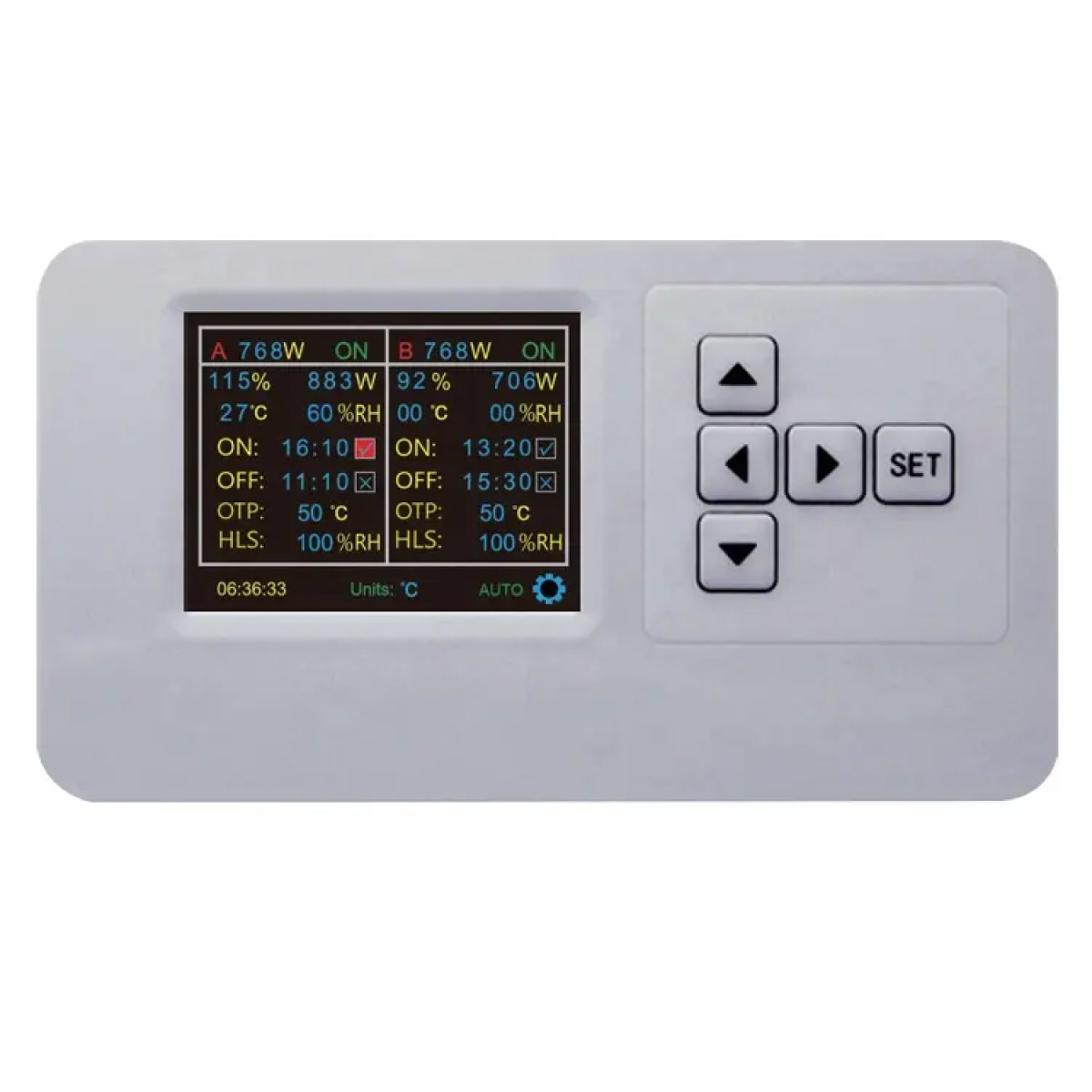

• Show output in % or Watts
• Celsius or Fahrenheit and 24 hr/AM/PM
• Connectivity Technology    ‎Bluetooth/WIFI







Specifications:



• 24 hour timer (on/off): Yes
• Show output as W or %: Yes
• Auto-dim at set temp: Yes
• Auto shutdown at set temp: Yes
• Outputs: 2 (main/aux)
• Number of lights per channel: 100
• Total number of lights: 200
• Temperature/humidity sensors: 2 (for two rooms 12/12)
• External Contactor Modules (ECM): 2 optional
• Sunrise/sunset

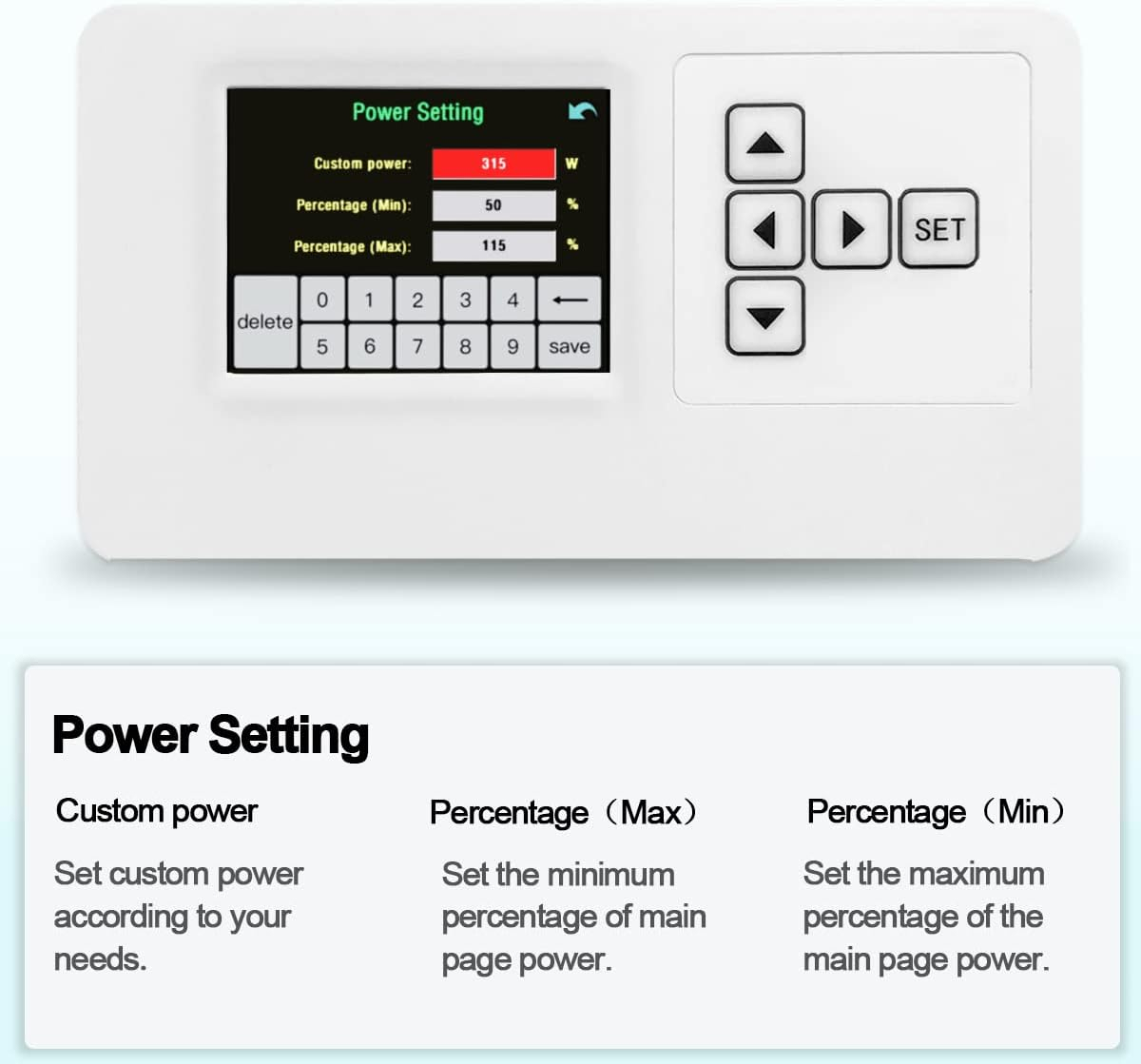

Custom Power Value:This led light controller can control any dimming capability 0-10V LED driver and ballasts, customize any power value, set max and min power percentage.(Tips: Click the screen setting icon with fingernail to into the settings.) )







• Timing:Automatic on/off at the same daily, no manual restart required. It can be timed on/off for a certain period of time to simulate the light gradient effect of the sunrise or sunset process. Reduce forgetting to turn off lights and wasting work time.

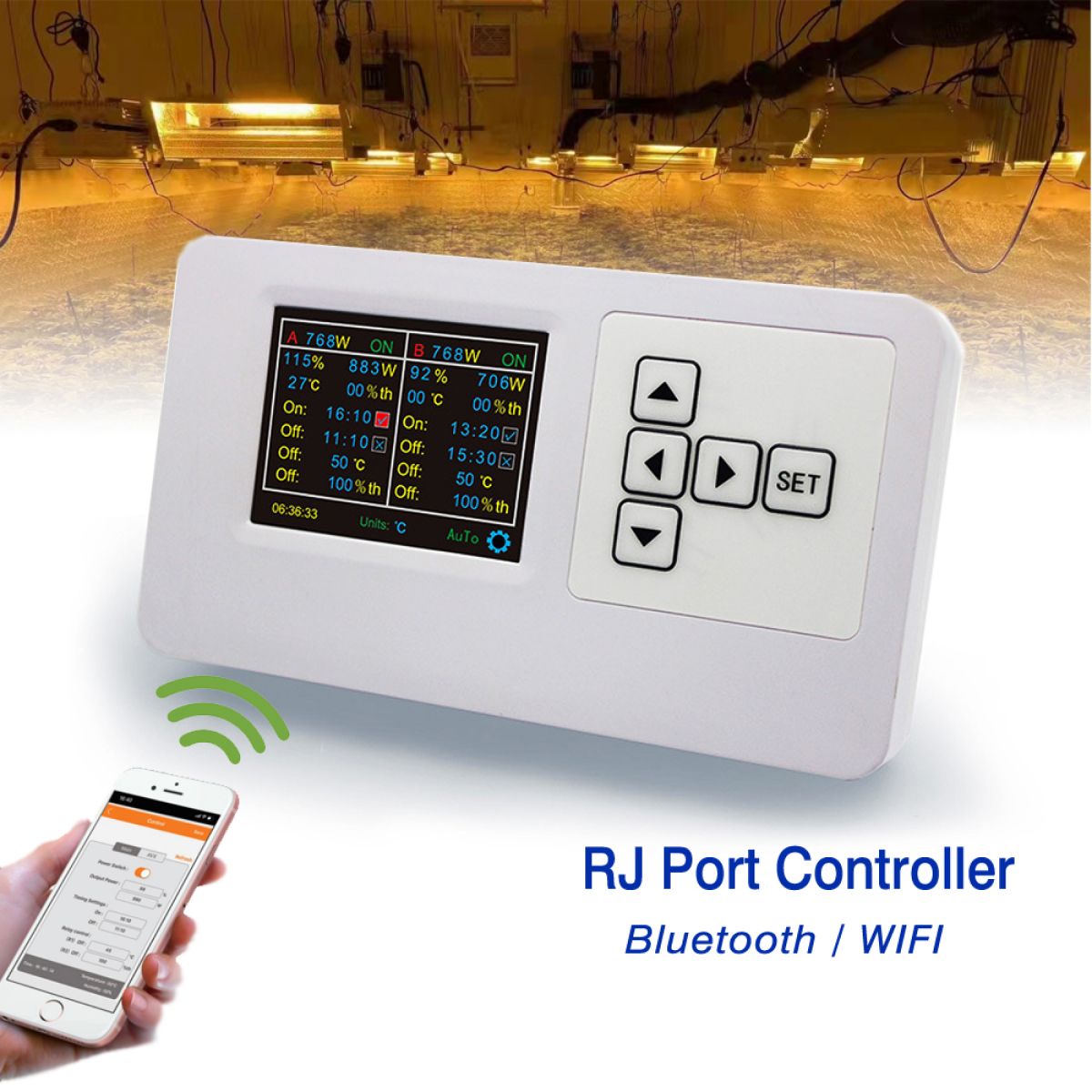

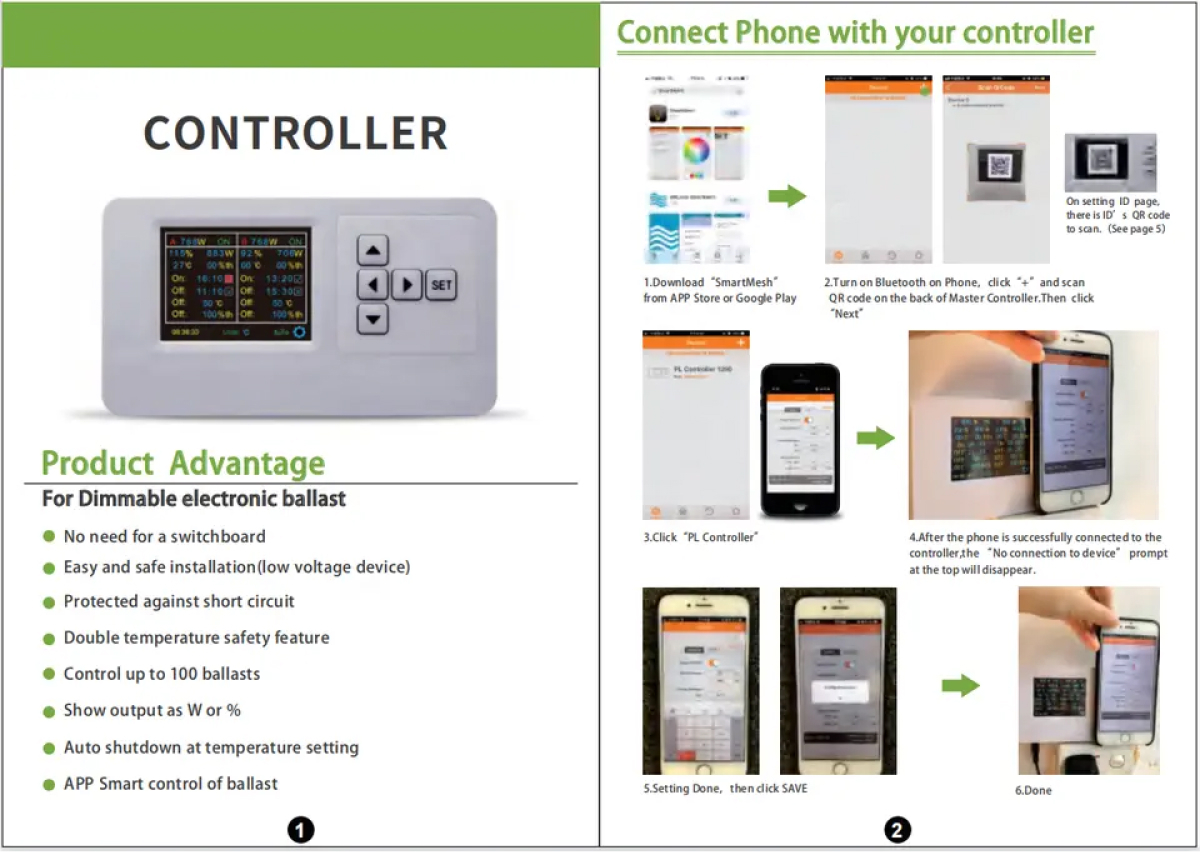

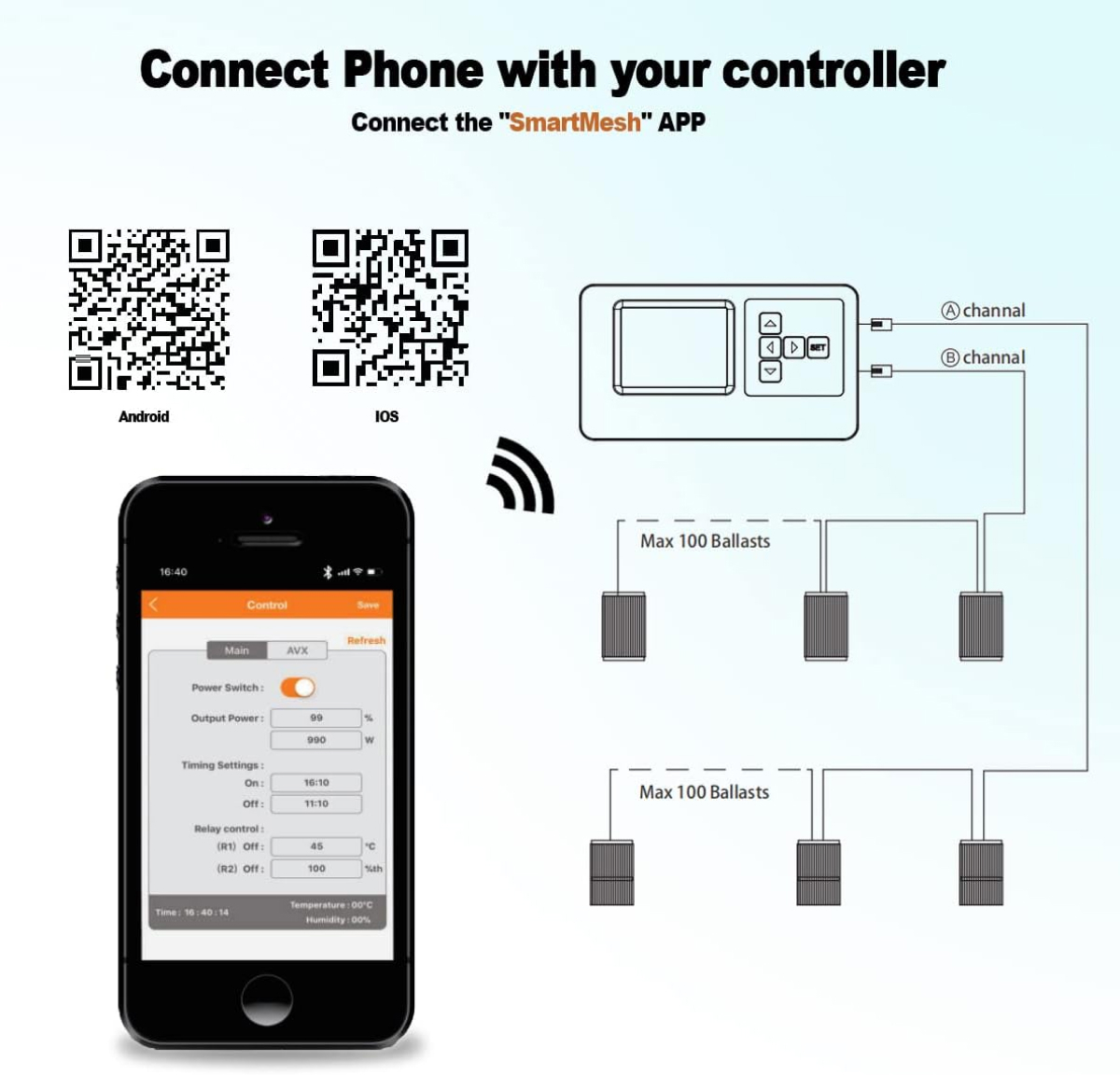

• Connect Phone with Controller: Download the Smart Mesh app and control it via the mobile phone Bluetooth link controller.,easy and convenient. And also with screen off function. Click on the settings button at the screen right bottom corner with your fingernail-find screen off-check it-done, the controller's screen will be automatically off in 5 minutes.More energy saving.
• Temperature Protection: Use temperature measurement and temperature protection settings. The light will automatically turn off when the indoor temperature exceeds the preset maximum temperature value.

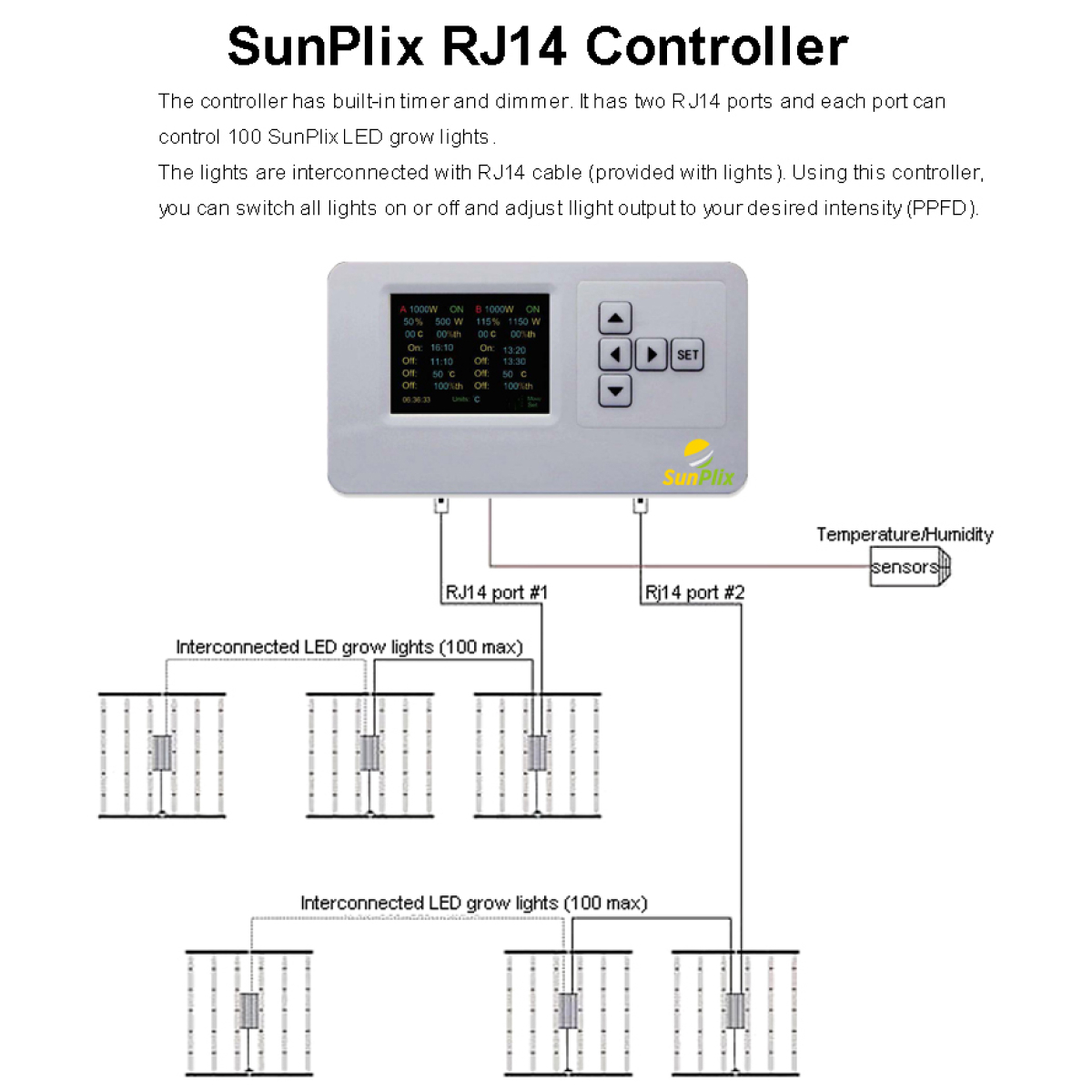

• 2 Control Zones: Equipped with two control zones to manage the brightness and lighting time of the grow lights in different growth stages. It can control up to 100 high-power LED grow lights at the same time
