Support Full HD/1080P01
Deliver stunning 2D, 3D, and Full HD media content. Equipped with a Freescale i.MX6DL 1 GHz dual-core processor, the ARM-based series supports encoding formats like MPEG2, H.264, MPEG4, and more.
*Decoding formats may vary depending on the media player applications.
Rapid development of Android APK02
Develop an Android APK for almost any application through the Android API. It’s fast and easy with the Cortex™-A9 equipped processor.
24/7 high stability in harsh environments03
Made with high-quality materials, the rugged design ensures 24/7 stable operation over long periods of time in 0-45?C environments.
VESA Mountable04
VESA Mount-ready, designed to be easily configured into hardware systems.
Power Failure Recovery05
Ensures end-users that systems will automatically reboot in the event of a power supply interruption.
Support dual-screen display06
Drive content on two screens with the DSA2LS, equipped with one HDMI and one VGA port.
Fanless design07
Made with Shuttle’s energy-saving heat sink and airflow technology, the fanless platform runs quiet and cool. Ideal for noise-sensitive environments.
Support wire and wireless high-speed networks08
With built-in 10/100/1000 Mbps LAN interface and supports Wake-on-LAN function. With a built-in IEEE802.11b/g/n wireless network, transmission rates reach up to 150 Mbps.
*Please refer to spec sheet for detailed WiFi support.
Auto power-on09
With auto power-on function, the system can be turned on and off via third-party software.
Internal power supply10
Eliminate the hassle of excess wires with an internal power supply, designed for easy installation and protection from outside exposure.
Protective Cover for SD card slot11
DSA2LS has built-in eMMC 4GB storage while the SD card reader supports up to 64GB. Protect valuable information stored on SD cards from damage with a protective cover for the SD card slot.
SeriesARM
Specificationhttp://global.shuttle.com/products/productsDetail?productId=1807
GraphicsTypeIntegrated
Wattage10 W
Port LocationBack Back Back Front Front Front Back Back Back
ModelShuttle DSA2LS Cortex A9 i.MX6 DualLite
Capacity1 GB
Drive TypeeMMC
ModelShuttle DSA2LS Cortex A9 i.MX6 DualLite
TypeThin Client Systems Internal DDR3 SDRAM
Ports Input3 x USB 2.0 USB (Type mini B) SD Card Reader AC 24V power input LAN (RJ-45) HDMI 1 x COM Port (Serial Port) VGA Audio Line out
Packing Weight1400 g
ColourBlack
Drive Capacity4 GB
OptionIncluded Included Included
Frequency1 GHz
Case MaterialMetal
OptionIncluded Included Included
OptionIncluded Included Included

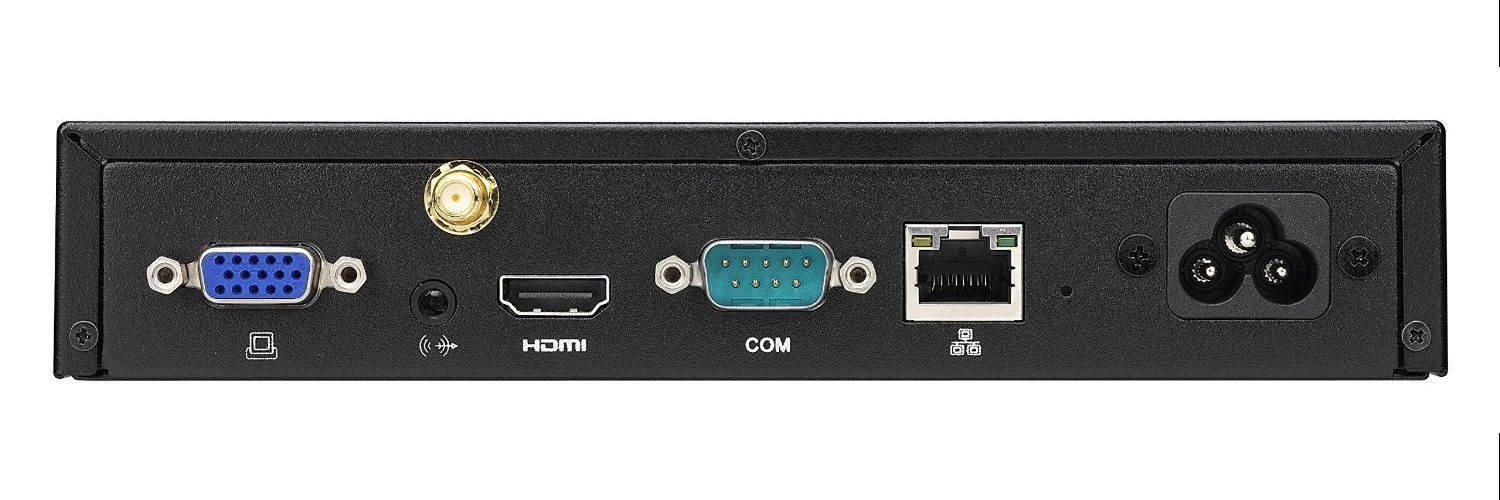

PortsBack, VGA Back, Audio Line out Front, USB (Type mini B) Front, SD Card Reader Back, AC 24V power input Back, LAN (RJ-45) Back, HDMI Back, 1 x COM Port (Serial Port) Front, 3 x USB 2.0
NetworkingGigabit Ethernet Wi-Fi 802.11 b/g/n
Additional FeaturesWake-on-LAN function Full HD/1080P Dual-screen display VESA Mountable Power Failure Recovery Fanless Design Rapid development of Android APK Auto power-on
Packing Width220 mm
Packing Depth18 mm
Packing Height80 mm
Package TypeBOX
