Affordable ARM-based Digital Signage Player—DSA2LS. Shuttle’s latest ARM-based media player is a cost-effective platform for digital menu board and digital signage applications. The DSA2LS signage player is made to deliver quality media content with a Freescale i.MX6DL 1Ghz dual-core processor with Full HD/1080p playback capability. The 1-liter media player has plenty of I/O to drive peripheral-hungry digital signage systems, including USB, Mini USB, RS232, SD card, and Audio out. The DSA2LS is tailored for commercial applications and features an ultra-slim, VESA mountable design for easy integration into signage systems.Application field：Menu board, Full HD digital signage, Kiosk, Thin Clients, vending machine AC/DC power adapter is inside the unit, so you connect the player directly to AC.
Product Specification
Essentials
Model
Shuttle DSA2LS
Type
Thin Client Systems
Colour
Black
Case Material
Metal
Networking
Gigabit Ethernet
Wi-Fi 802.11 b/g/n
Additional Features
Wake-on-LAN function
Full HD/1080P
Dual-screen display
VESA Mountable
Power Failure Recovery
Fanless Design
Rapid development of Android APK
Auto power-on
Memory Specifications
Capacity
1 GB
Type
DDR3 SDRAM
Option
Included
CPU Specifications
Series
ARM
Model
Cortex A9 i.MX6 DualLite
Frequency
1GHz
Option
Included
Graphics Specifications
GraphicsType
Integrated
Option
Included
Storage Specifications
Drive Type
eMMC
Drive Capacity
4 GB
Power Supply
Wattage
10W
Type
Internal
Support Full HD/1080P
01
Deliver stunning 2D, 3D, and Full HD media content. Equipped with a Freescale i.MX6DL 1 GHz dual-core processor, the ARM-based series supports encoding formats like MPEG2, H.264, MPEG4, and more. *Decoding formats may vary depending on the media player applications.
Rapid development of Android APK
02
Develop an Android APK for almost any application through the Android API. It’s fast and easy with the Cortex™-A9 equipped processor.
24/7 high stability in harsh environments
03
Made with high-quality materials, the rugged design ensures 24/7 stable operation over long periods of time in 0-45⁰C environments.
VESA Mountable
04
VESA Mount-ready, designed to be easily configured into hardware systems.
Power Failure Recovery
05
Ensures end-users that systems will automatically reboot in the event of a power supply interruption.
Support dual-screen display
06

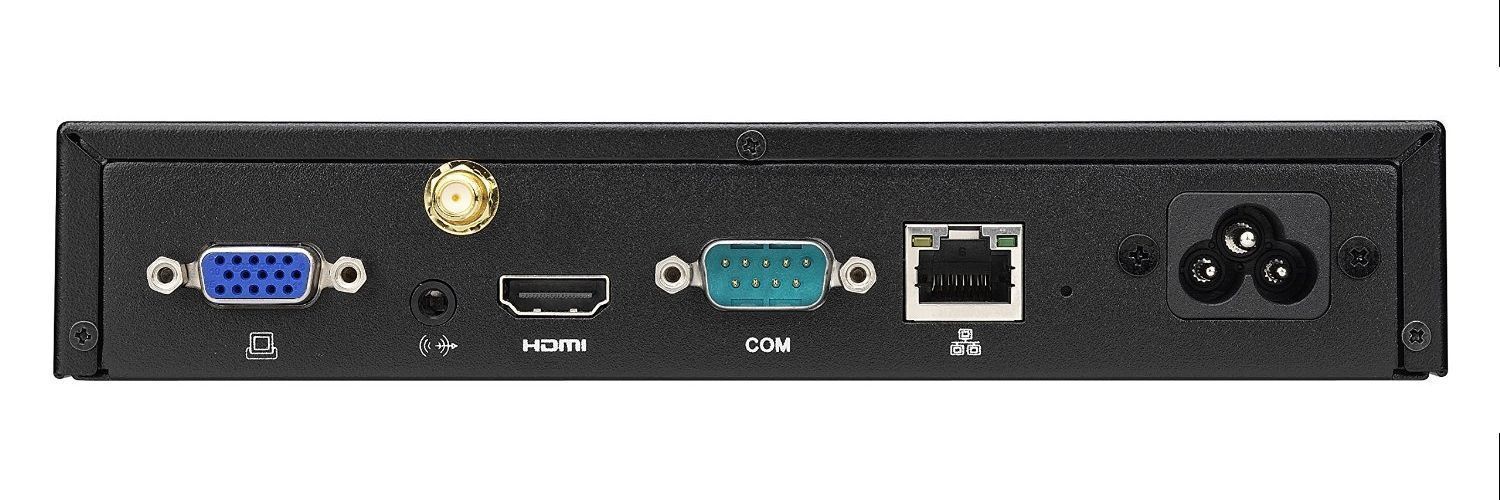

Drive content on two screens with the DSA2LS, equipped with one HDMI and one VGA port.
Fanless design
07
Made with Shuttle’s energy-saving heat sink and airflow technology, the fanless platform runs quiet and cool. Ideal for noise-sensitive environments.
Support wire and wireless high-speed networks
08
With built-in 10/100/1000 Mbps LAN interface and supports Wake-on-LAN function. With a built-in IEEE802.11b/g/n wireless network, transmission rates reach up to 150 Mbps. *Please refer to spec sheet for detailed WiFi support.
Auto power-on
09
With auto power-on function, the system can be turned on and off via third-party software.
Internal power supply
10
Eliminate the hassle of excess wires with an internal power supply, designed for easy installation and protection from outside exposure.
Protective Cover for SD card slot
11
DSA2LS has built-in eMMC 4GB storage while the SD card reader supports up to 64GB. Protect valuable information stored on SD cards from damage with a protective cover for the SD card slot.
