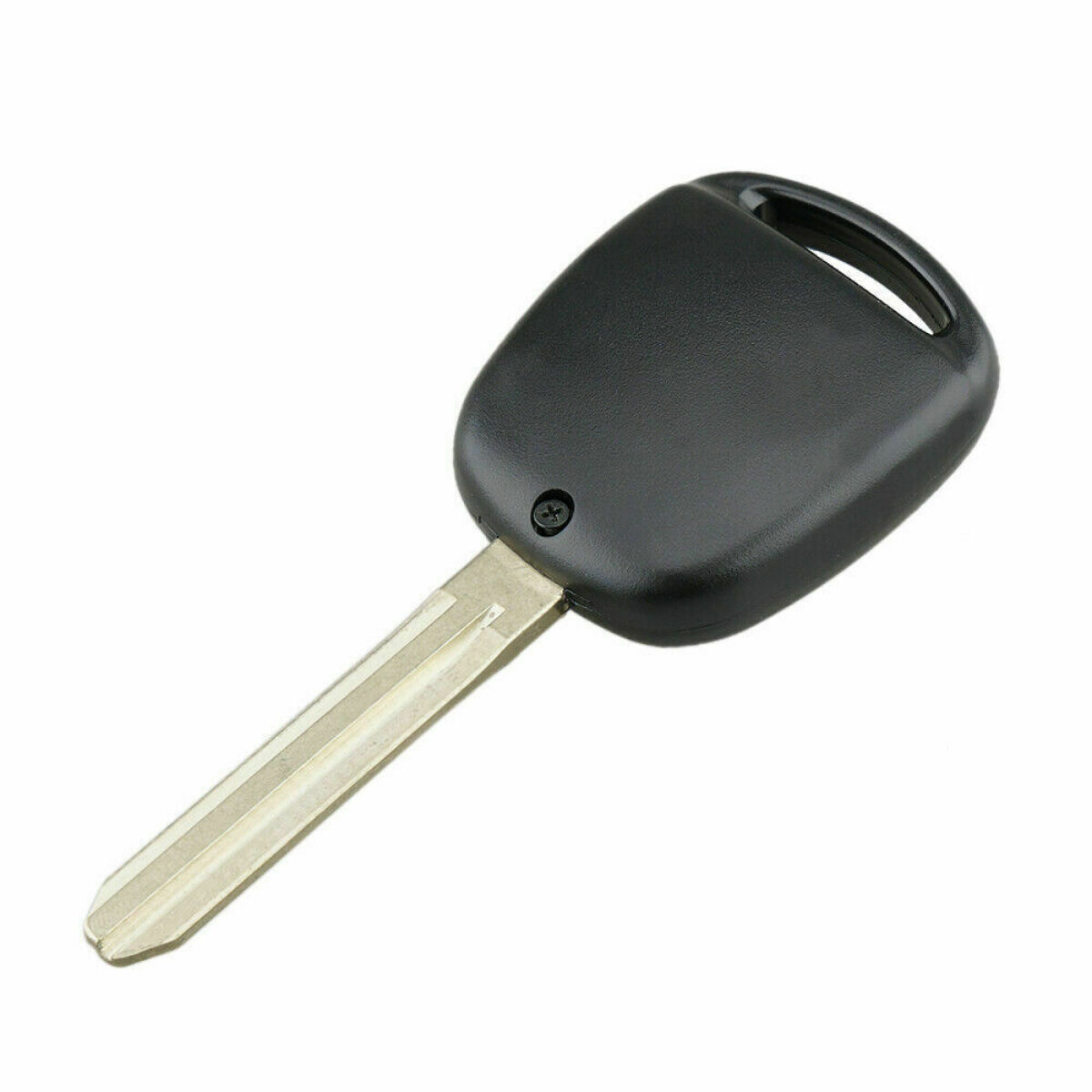

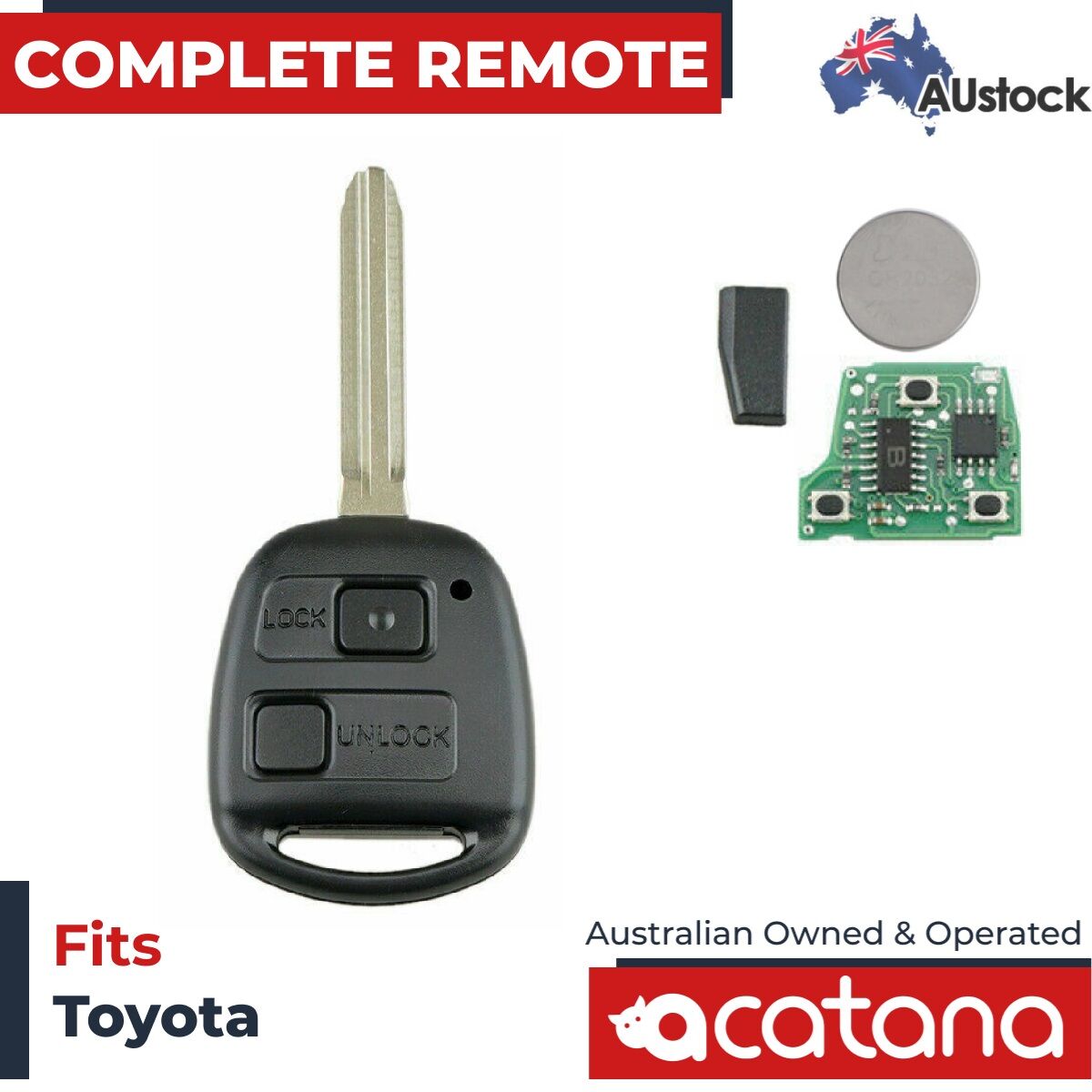

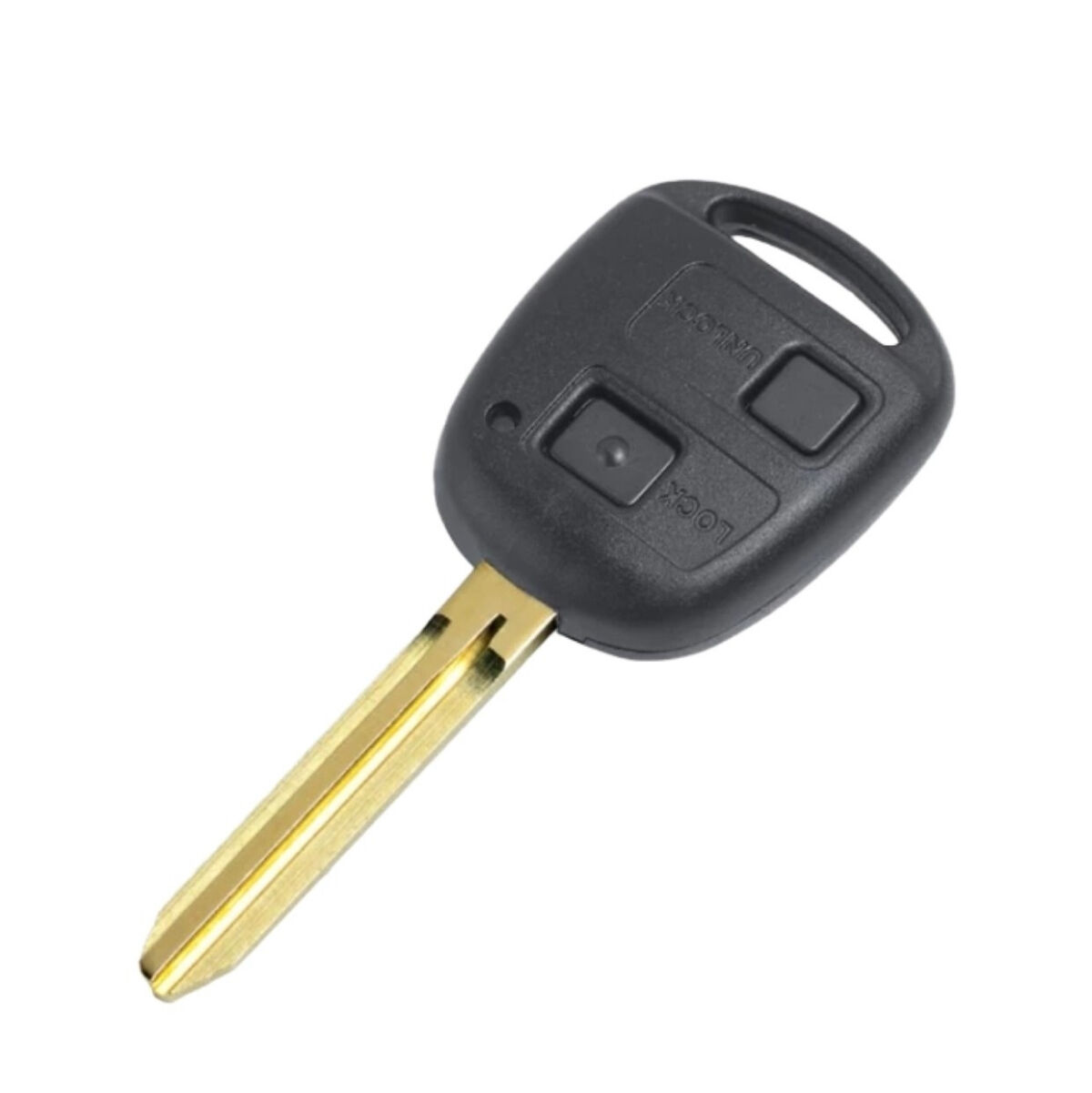

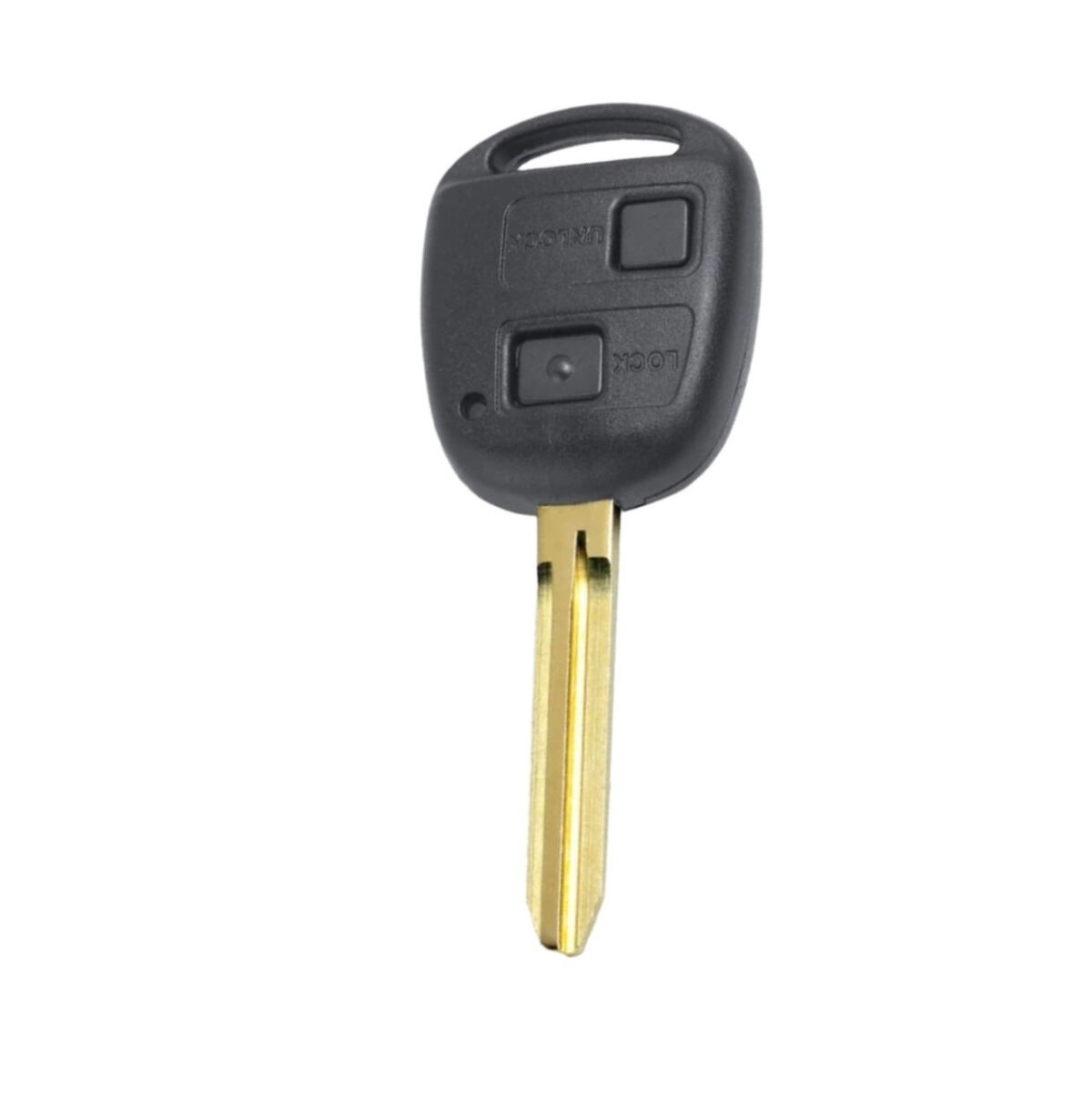

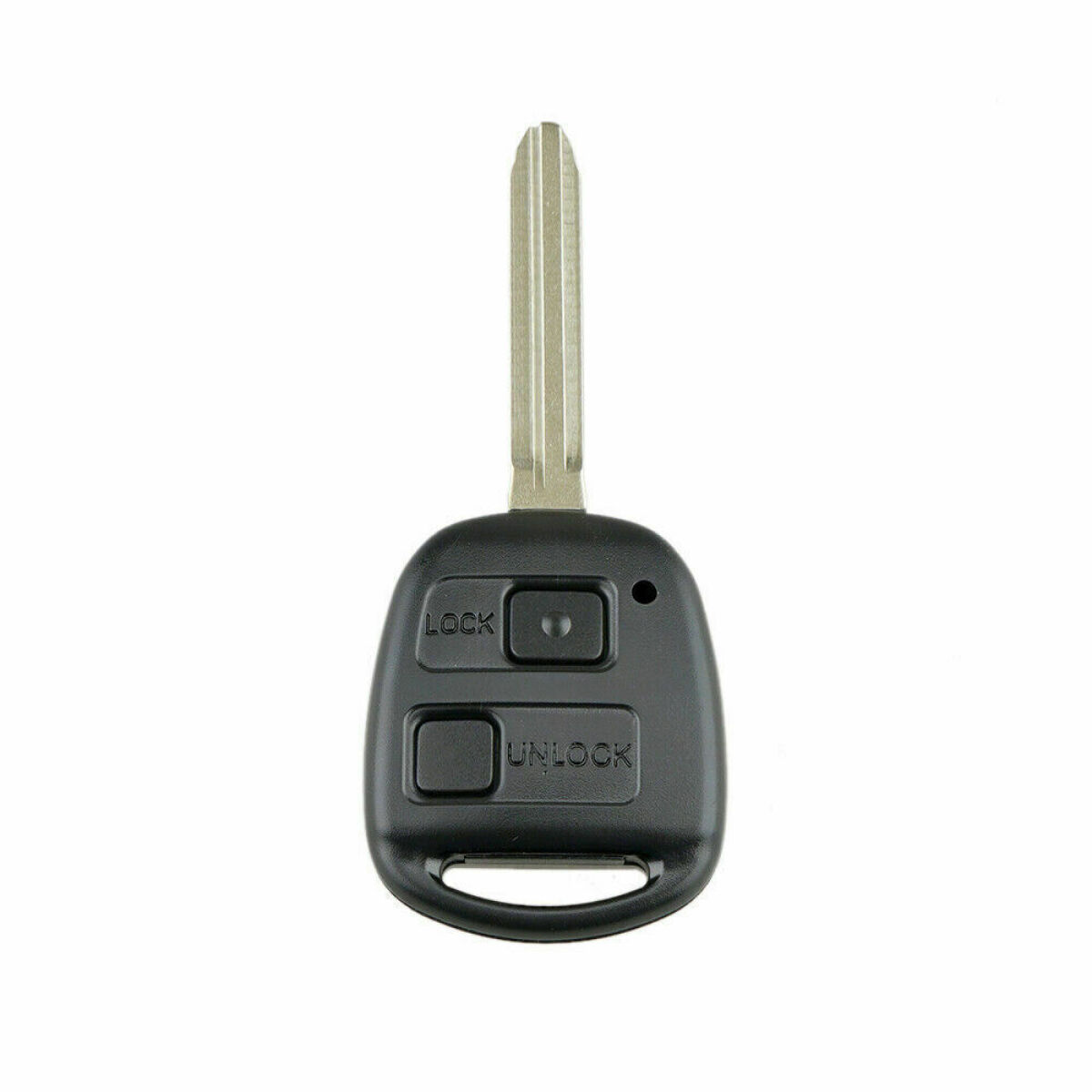

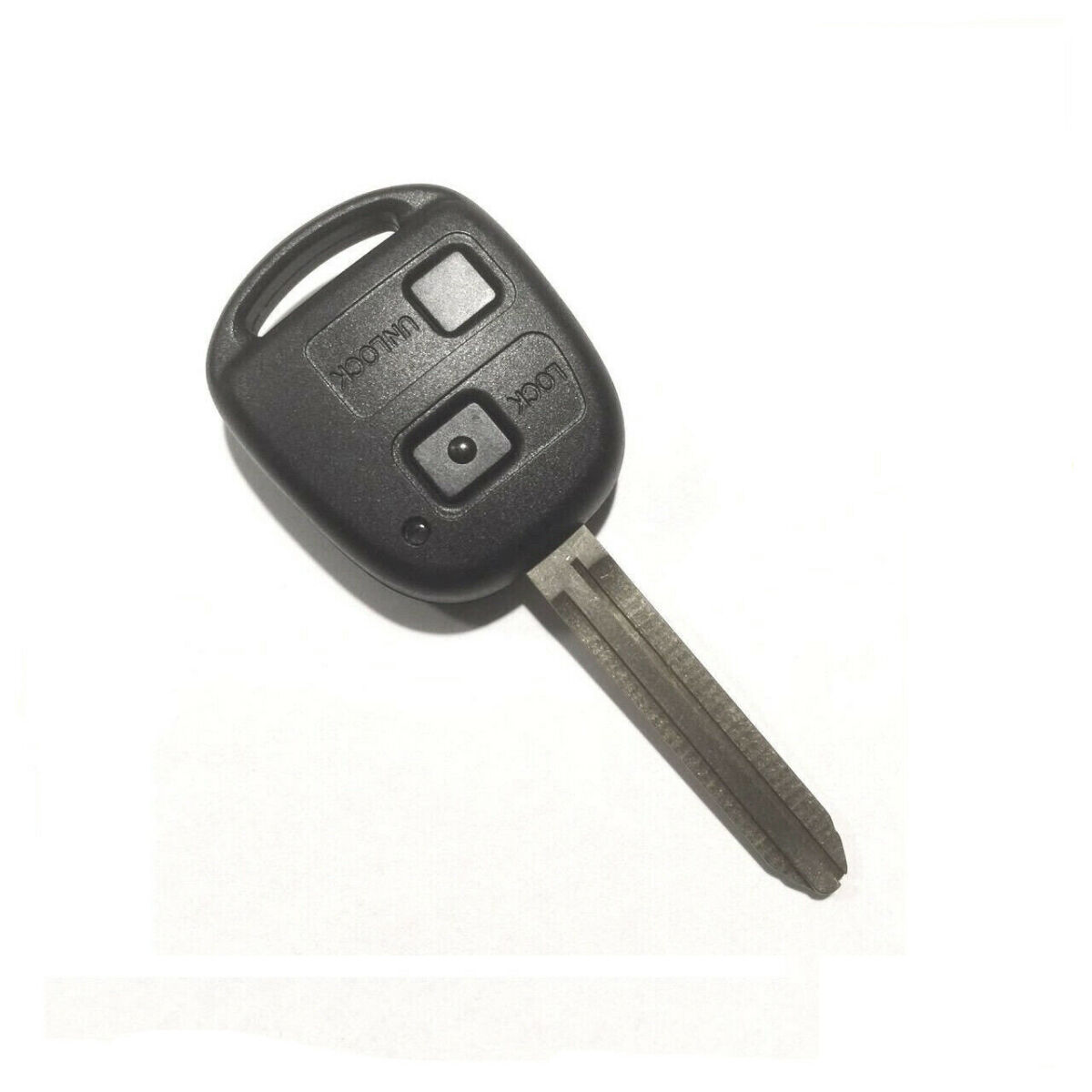

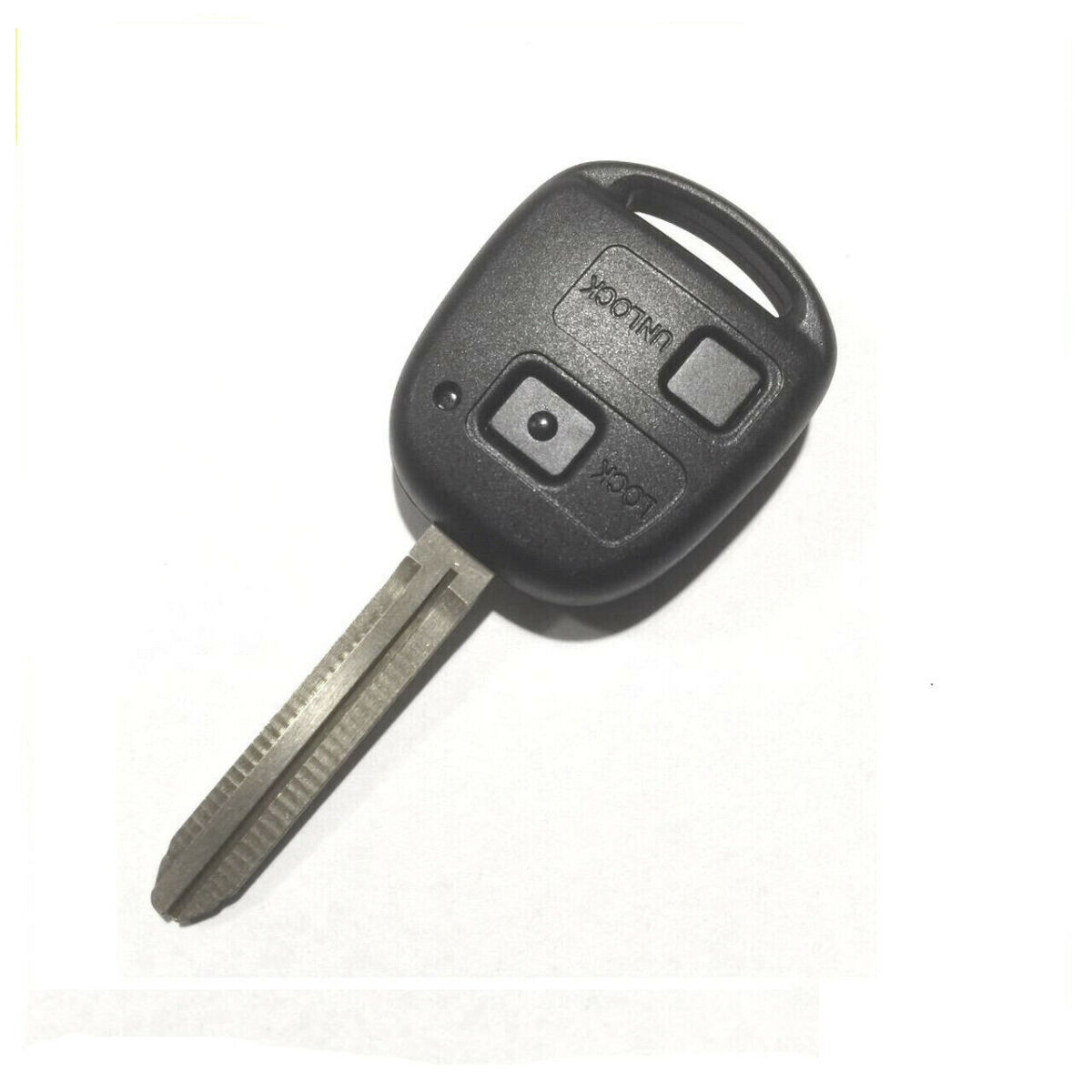

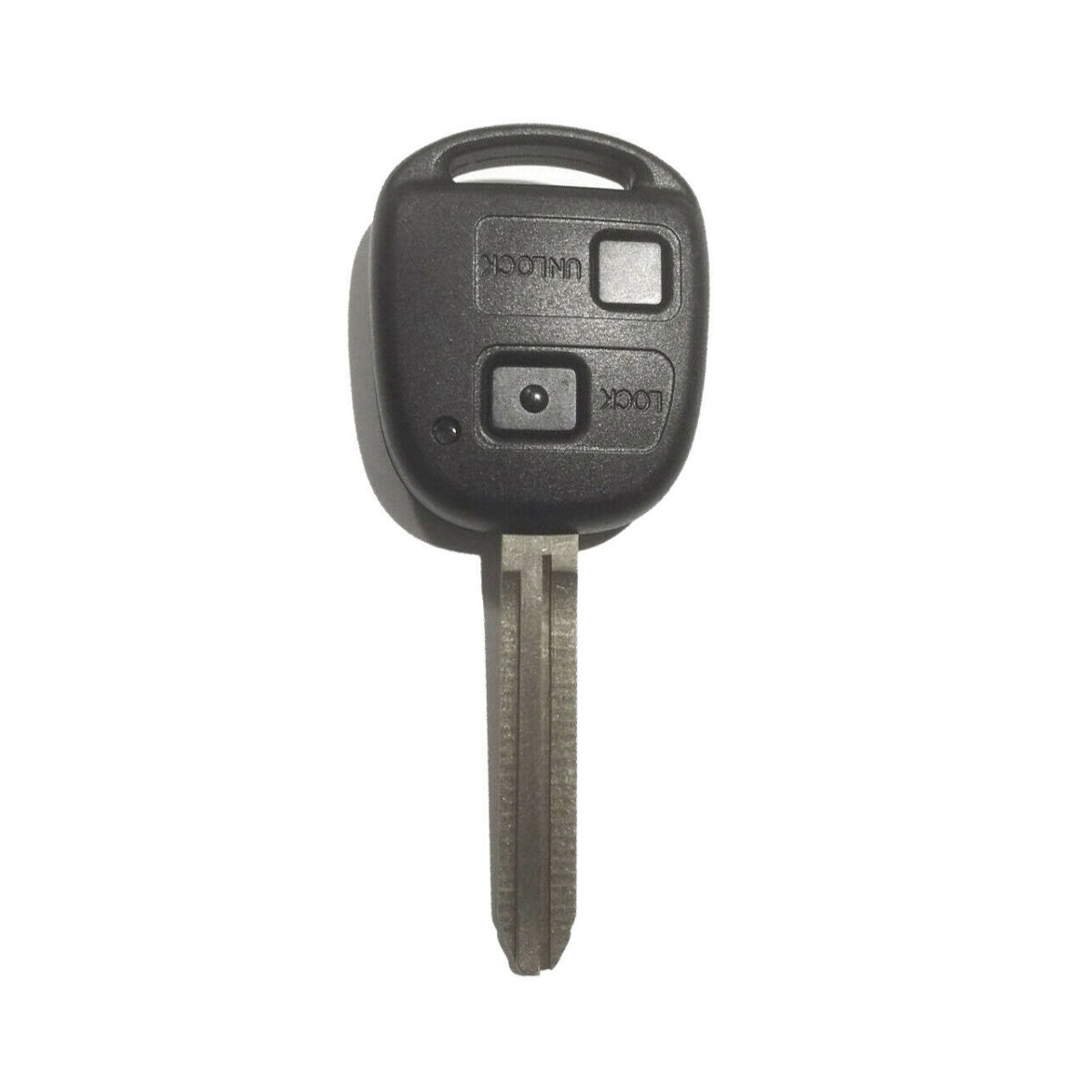

This is a complete remote key for Toyota Tarago ACR30 2000 - 2003. A great replacement for your old, worn-out or lost car key can also be a spare key. This replacement key is assembled and ready for programming. It includes a 2-button key shell case, uncut key blade, remote transponder and 433MHz chip, battery.



Fitment with following models:

• Toyota Tarago ACR30 02/2000 - 10/2003



Features:



• 100% COMPATIBILITY: This is a complete remote key for Toyota.
• READY FOR PROGRAMMING: This replacement key is assembled and ready for programming
• GOOD QUALITY REPLACEMENT: Complete Remote Car Key replacement for a key with broken buttons, worn or lost key case
• DURABLE KEY SHELL: Made of high-quality materials, highly durable.
• TRANSPONDER CHIP 433 Mhz includes remote control unlock and lock button



Specification:

• Transponder Chip 4C
• Frequency 433 MHz
• Key blade TOY43 Uncut
• Model 60081, 50171 ( 4C Chip)  89070-60081 8907060081
• Includes Battery



Before the purchase!

• Please check your original key, your key should have frequency 433 MHz and transponder chip 4C.
• You will need to have at least one working either black key or another remote key. It will not work if you have a service grey key.
• To check this is the correct key for your car you can pop open your existing key case cover and check the number stamped on the remote, part number should be 60081

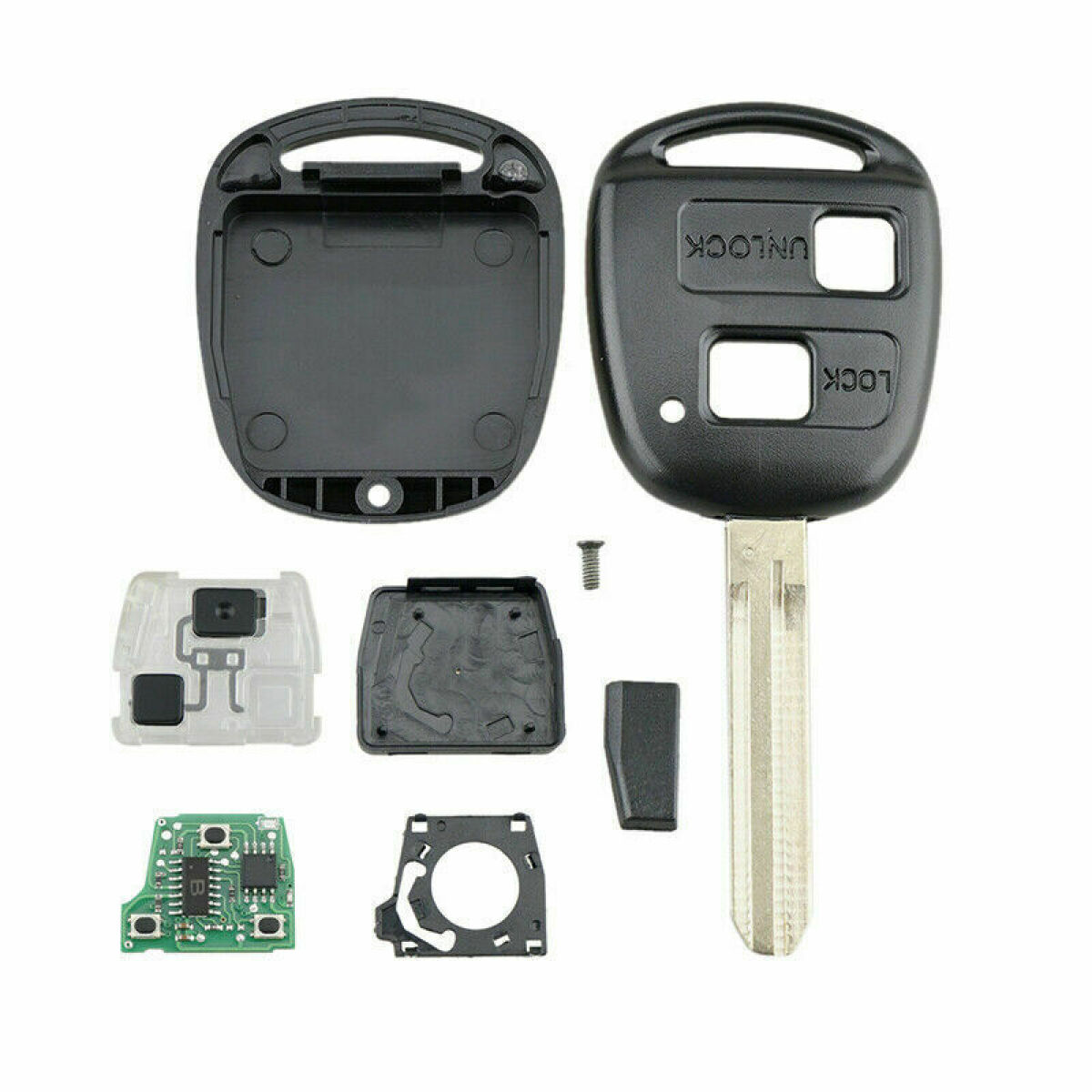

Package Content:

• 1x Remote Car Key
• 1x Transponder Chip
• 1x Battery



NOTES:

• The key blade will need to be cut (this key is UNCUT)
• For programming, you must have one original working remote key at least
• Please follow the recommended instructions!



How to program remote yourself:



Preparatory steps

With key out of the ignition sit in driver seat with driver door opened.



• 1. Within 5 seconds: Insert and remove the key from the ignition switch twice (in, out, in, out)
• 2. Within 40 seconds: Close and open driver’s door twice. Insert and remove the key from the ignition switch (in, out)
• 3. Within 40 seconds: Close and open driver’s door twice. Insert the key into the ignition switch and close the driver’s door
• 4. Within 40 seconds: Switch ignition ON and OFF once
• 5. Remove the key from ignition switch. System should now lock and unlock vehicle once
• 6. Within 45 seconds. Press and hold LOCK and UNLOCK button simultaneously for 1.5 seconds
• 7. Within 3 seconds: Press and release LOCK or UNLOCK button
• 8. System should now lock and unlock vehicle once to confirm programming, twice to indicate programming has failed
• 9. Within 45 seconds: Repeat steps 6-7 to program remaining remote transmitters
• 10. Open driver’s door to exit programming mode



To delete all programmed remotes: at Step 4, switch the ignition ON and OFF five times, locks will cycle five times. Switch the ignition ON and OFF. Open and close the driver's door.





How to program the key transponder chip:



• 1. Put the original master key in and out of the ignition 5 times. Finish with the key in the ignition
• 2. Open and close the driver's door 6 times
• 3. Remove original key from the ignition, insert the new key
• 4. Leave the new key in the ignition for 60 seconds (or till the Security light goes out on the dashboard)
• 5. After the security light stops flashing you can start the car with the new key
• 6. Remove the new key from the ignition
• 7. Open and close the door
