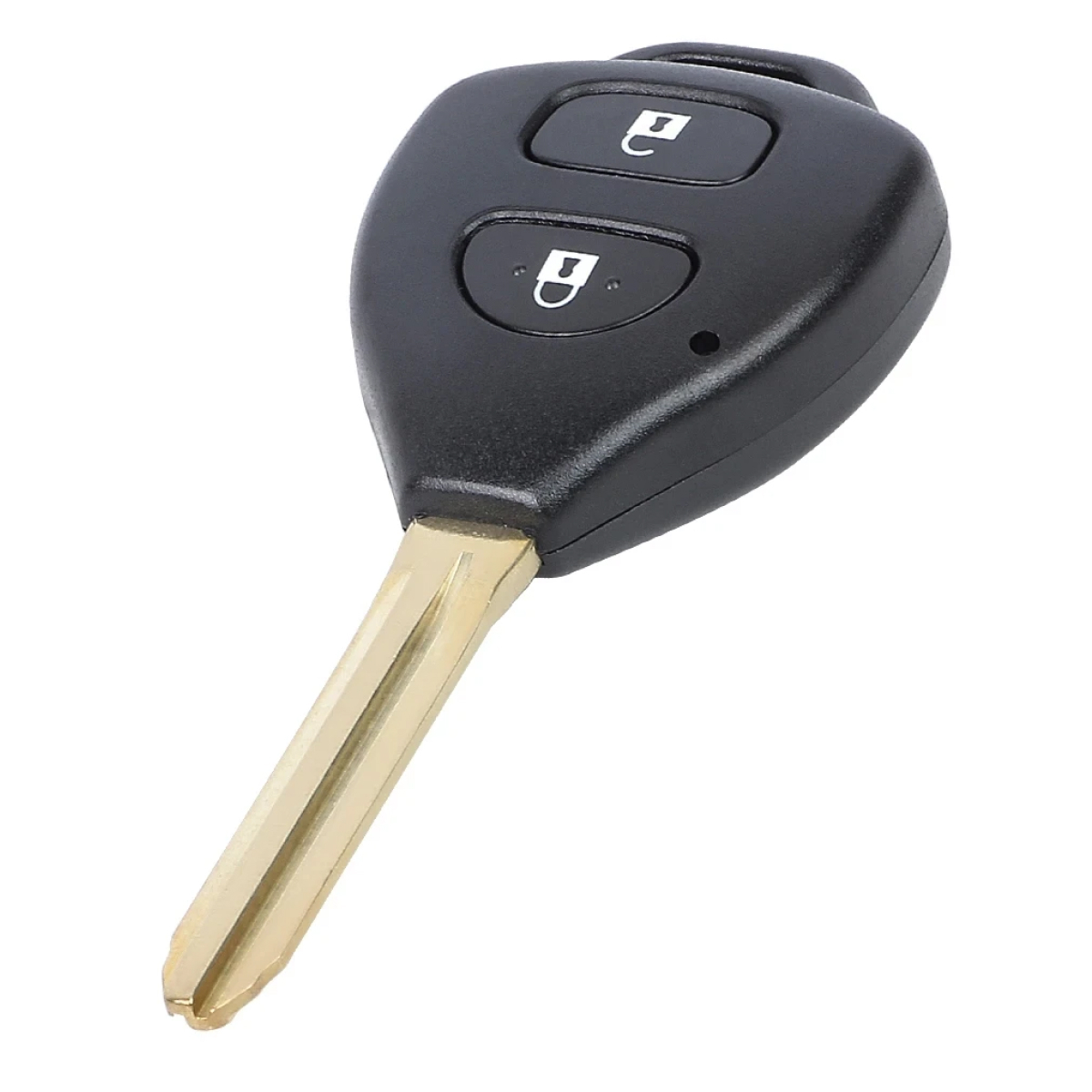

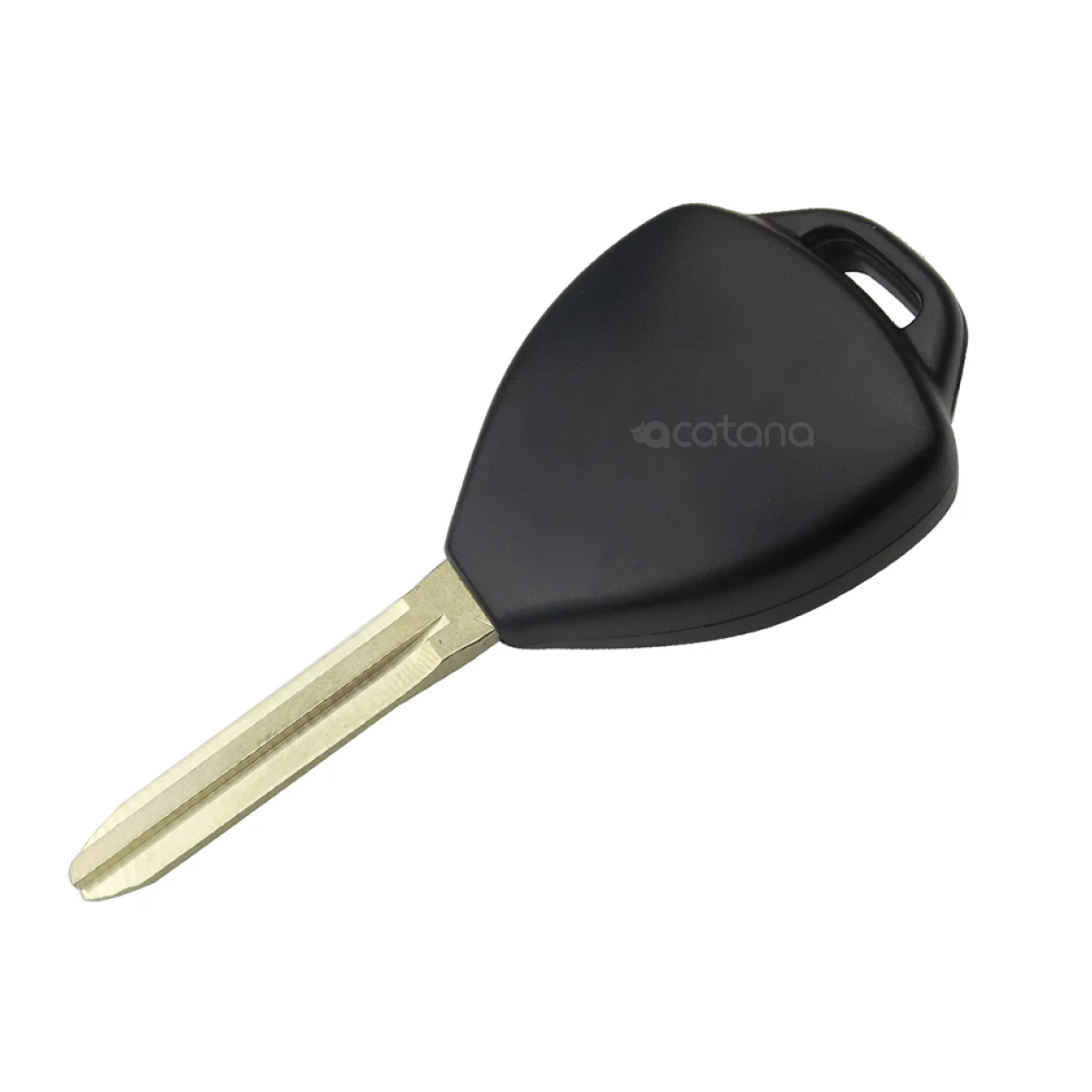

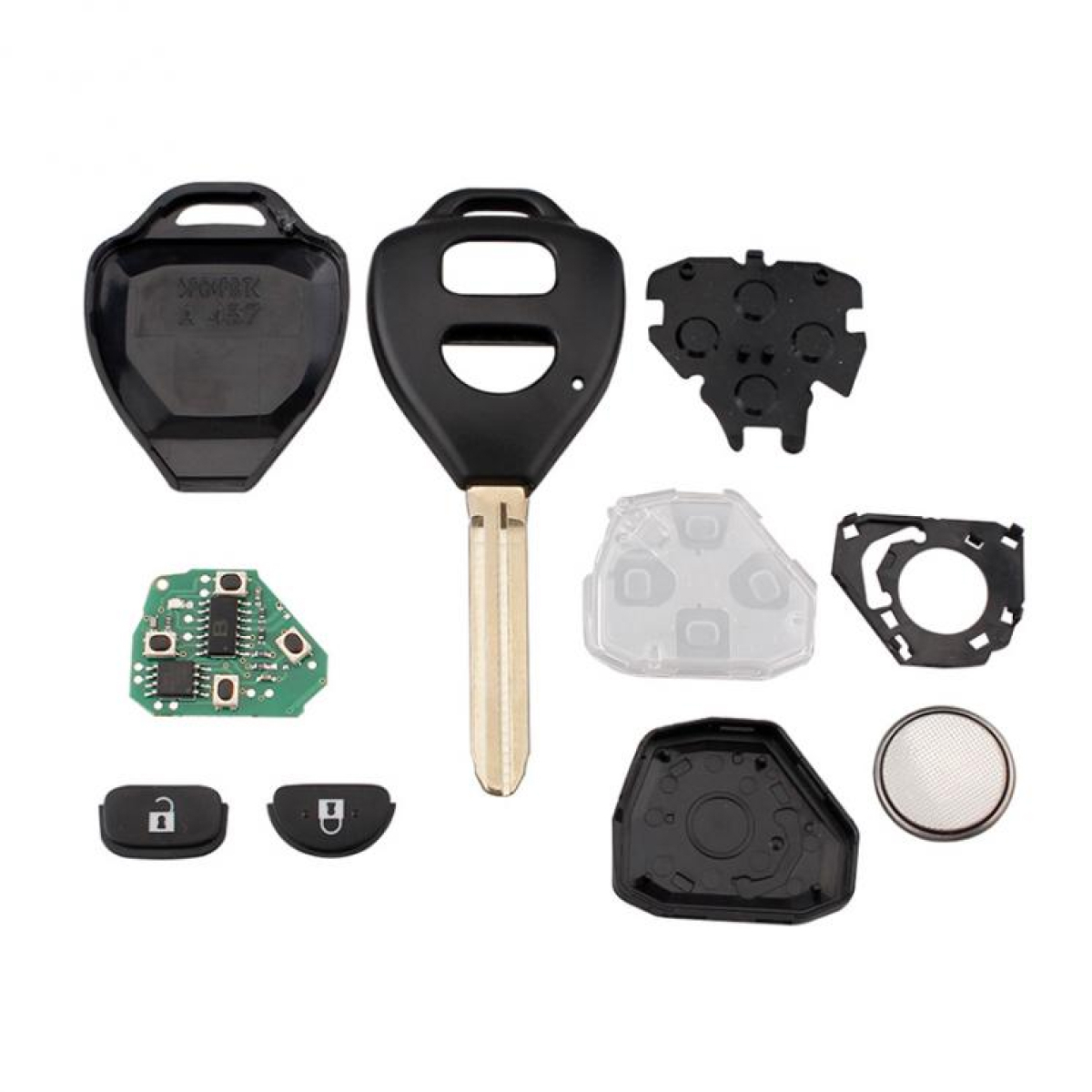

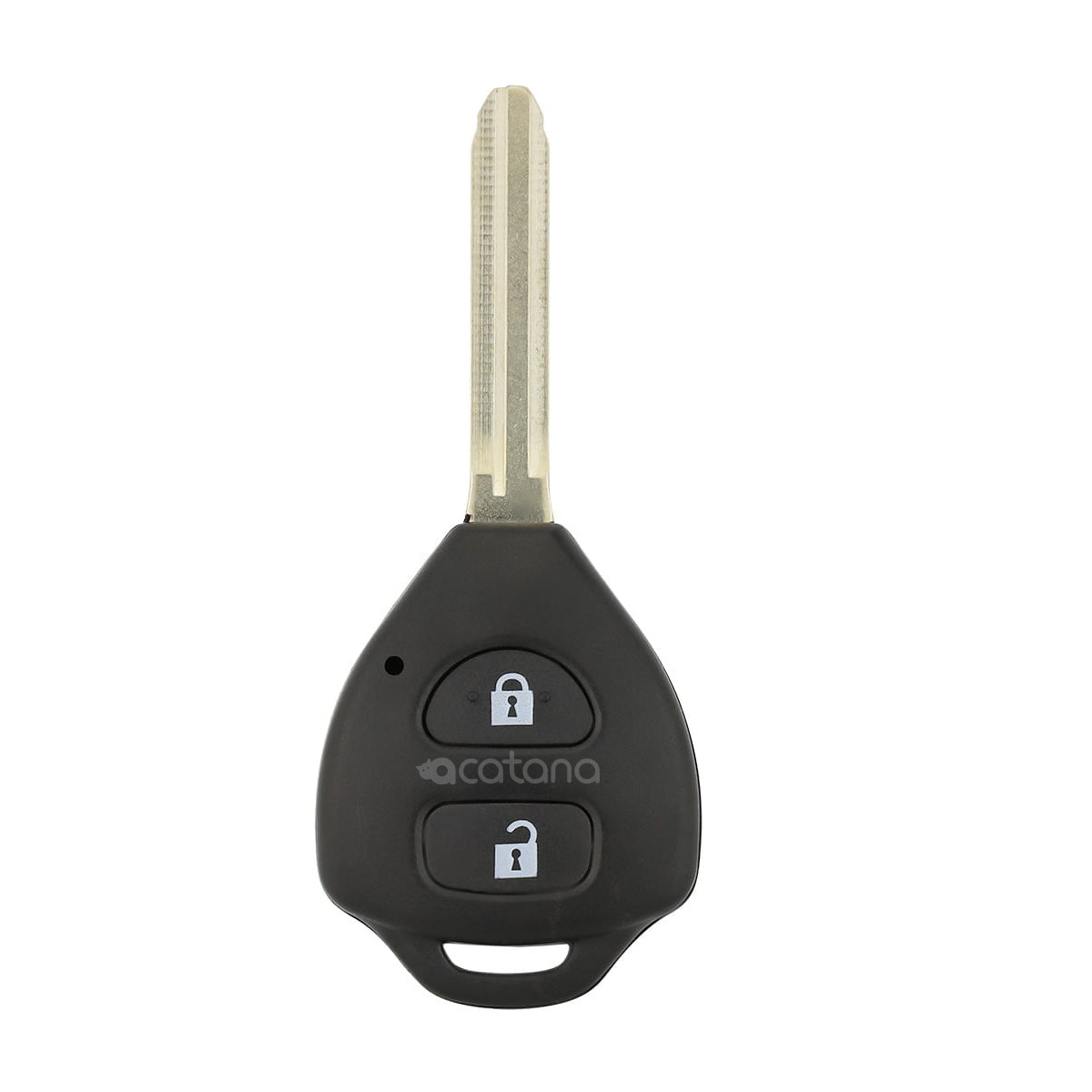

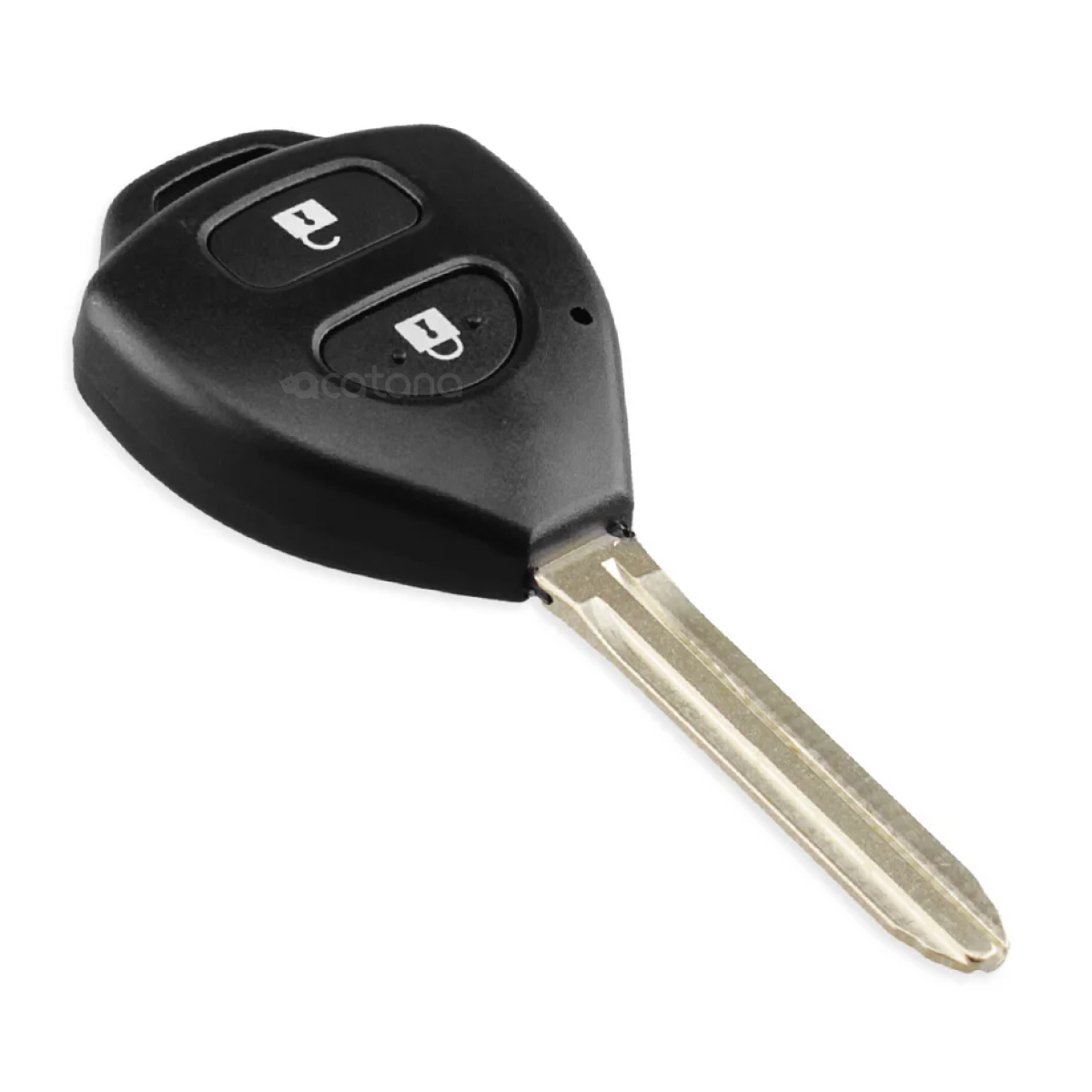

This is the complete remote car key for Toyota. The great replacement for your old, worn-out or lost car key can also be a spare key. This replacement key is assembled and ready for programming. It includes a 2-button key shell case, uncut key blade, remote module 315MHz and immobilizer (transponder chip) G Chip.

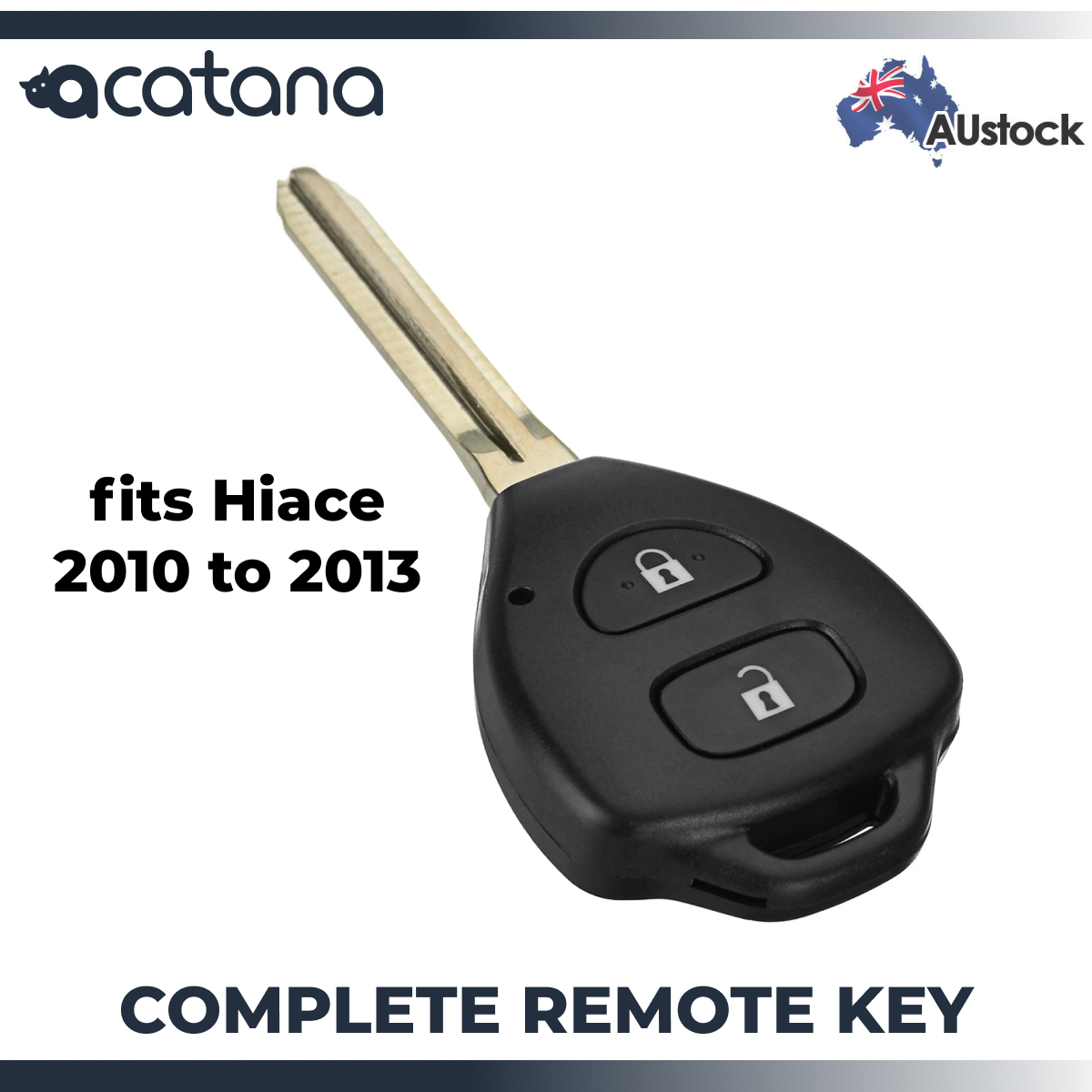

• Car Key Compatibility: for Toyota Hiace 09/2010 - 12/2013

Features:

• 100% COMPATIBILITY: This is a complete remote key for Toyota.
• READY FOR PROGRAMMING: This replacement key is assembled and ready for programming
• GOOD QUALITY REPLACEMENT: Complete Remote Car Key replacement for a key with broken buttons, worn or lost key case
• DURABLE KEY SHELL: Made of high-quality materials, highly durable.
• KEY COMPLETELY ASSEMBLED: Immobiliser Transponder G Chip and remote module 315 Mhz include remote control unlock and lock button

Specification:

• Button: 2
• Blade: TOY43 (uncut)

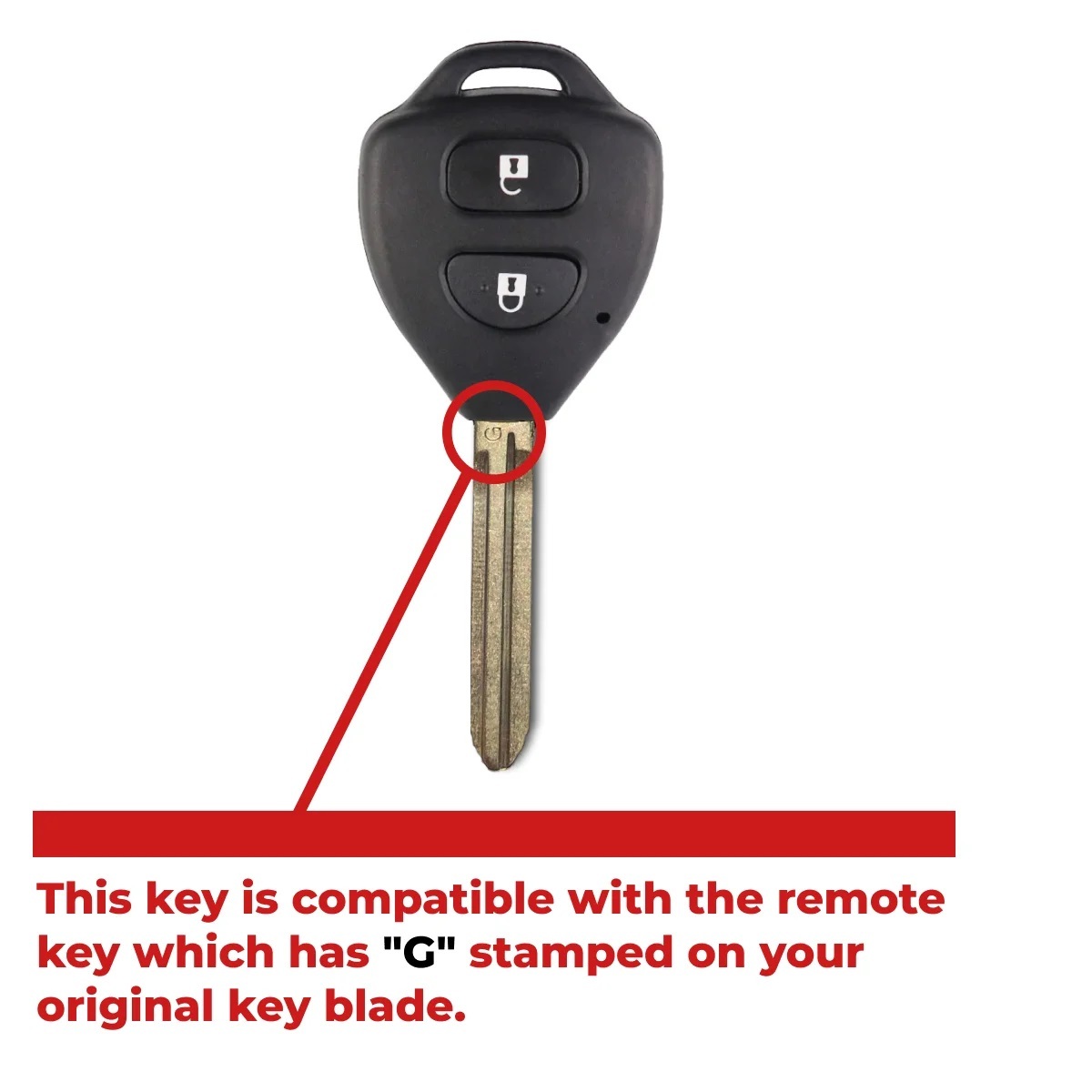

• Immobilizer (Transponder Chip): G Chip
• Frequency: 315 MHz
• Battery included
• Fits Toyota

ATTENTION NOTES:

• ** It will not work if you have a service grey key, for programming, you must have one original working remote key at least
• ** Important: Please program the remote control first before cutting the key blade and programming the car start chip! If the chip is programmed first, the remote functions may not work. (For instructions on programming the remote control, see the instructions below)
• ** After programming the remote control. YOU WILL NEED to cut the key blade and program the car start (Immobilizer Transponder Chip)

THE REMOTE CONTROL MODULE PROGRAMMING

Preparatory steps

With key out of the ignition sit in driver seat with driver door opened.

• 1. Within 5 seconds: Insert and remove the key from the ignition switch twice (in, out, in, out)
• 2. Within 40 seconds: Close and open driver’s door twice. Insert and remove the key from the ignition switch (in, out)
• 3. Within 40 seconds: Close and open driver’s door twice. Insert the key into the ignition switch and close the driver’s door
• 4. Within 40 seconds: Switch ignition ON and OFF once
• 5. Remove the key from ignition switch. System should now lock and unlock vehicle once
• 6. Within 45 seconds. Press and hold LOCK and UNLOCK button simultaneously for 1.5 seconds
• 7. Within 3 seconds: Press and release LOCK or UNLOCK button
• 8. System should now lock and unlock vehicle once to confirm programming, twice to indicate programming has failed
• 9. Within 45 seconds: Repeat steps 6-7 to program remaining remote transmitters
• 10. Open driver’s door to exit programming mode

To delete all programmed remotes: at Step 4, switch the ignition ON and OFF five times, locks will cycle five times. Switch the ignition ON and OFF. Open and close the driver's door.

How to program the key transponder chip:

• 1. Put the original master key in and out of the ignition 5 times. Finish with the key in the ignition
• 2. Open and close the driver's door 6 times
• 3. Remove original key from the ignition, insert the new key
• 4. Leave the new key in the ignition for 60 seconds (or till the Security light goes out on the dashboard)
• 5. After the security light stops flashing you can start the car with the new key
• 6. Remove the new key from the ignition
• 7. Open and close the door

Package Includes: 1 X Complete Remote Car Key, 1х Battery
