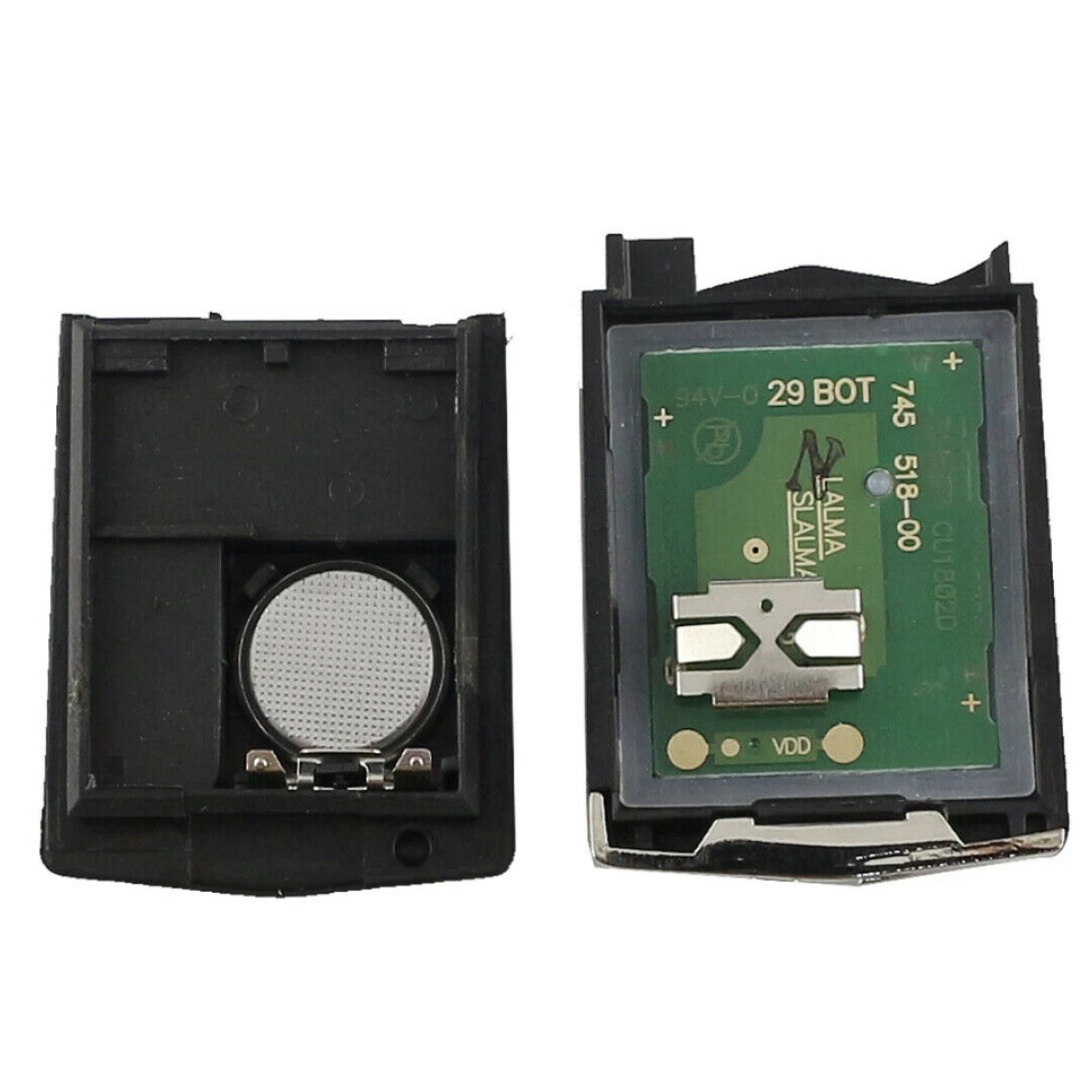

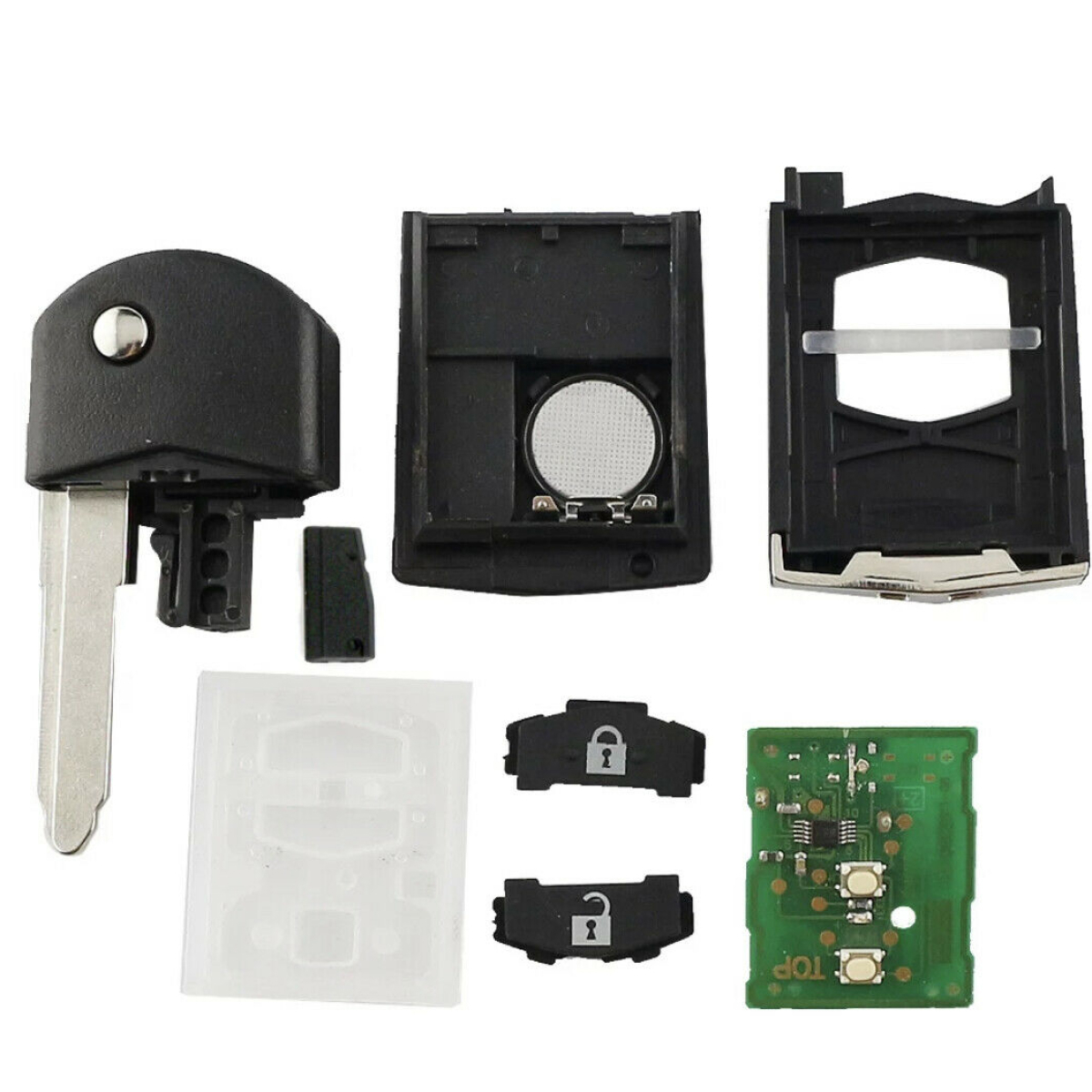

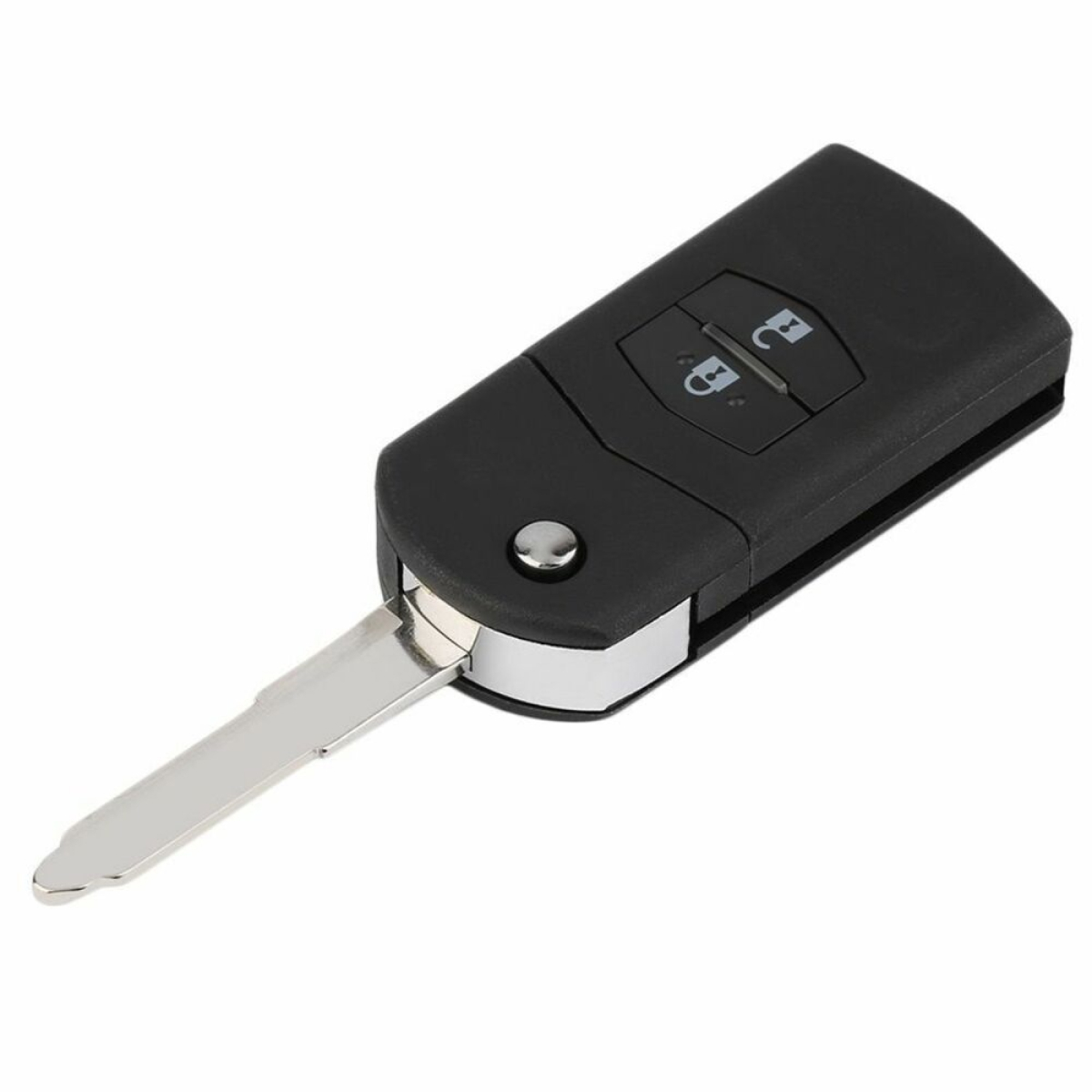

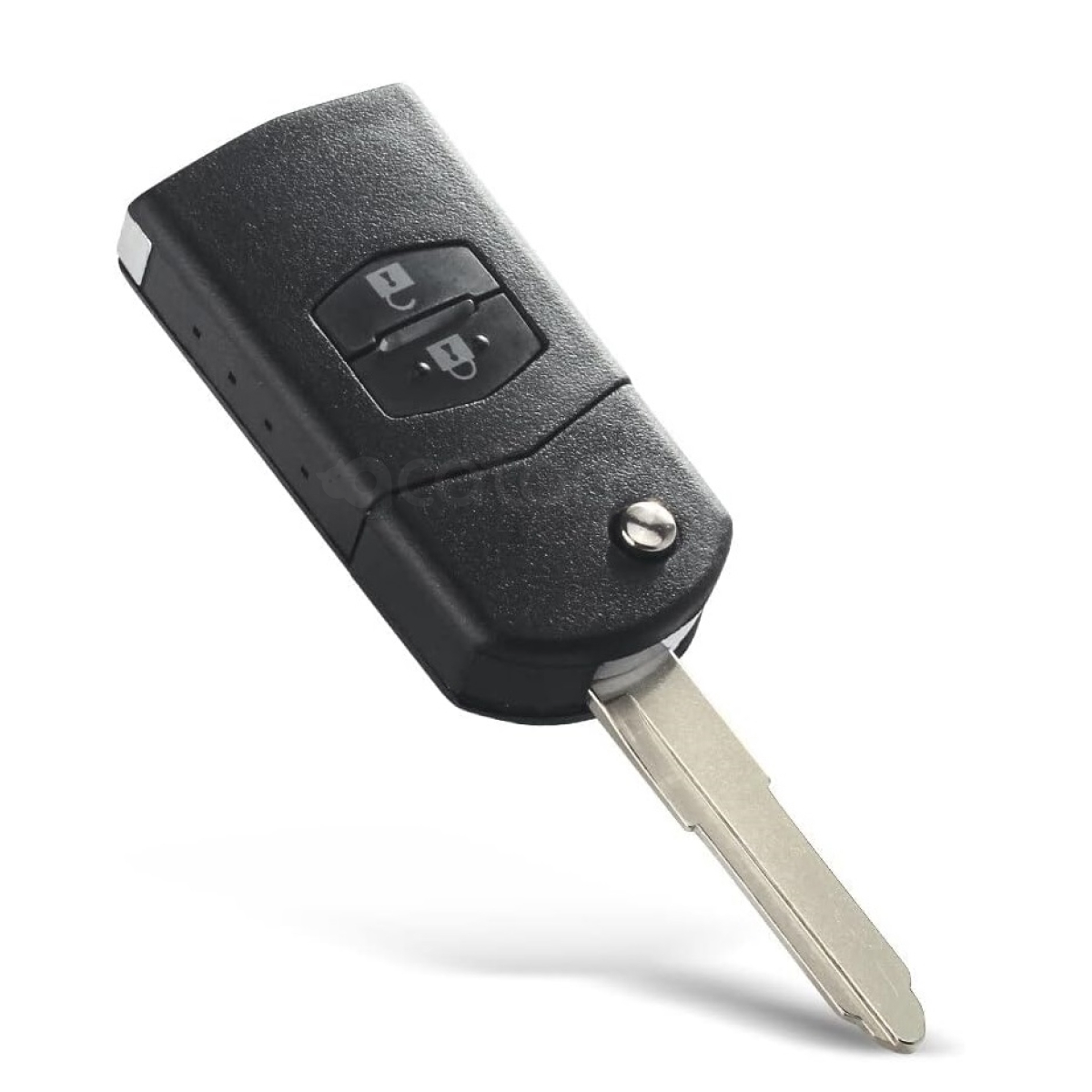

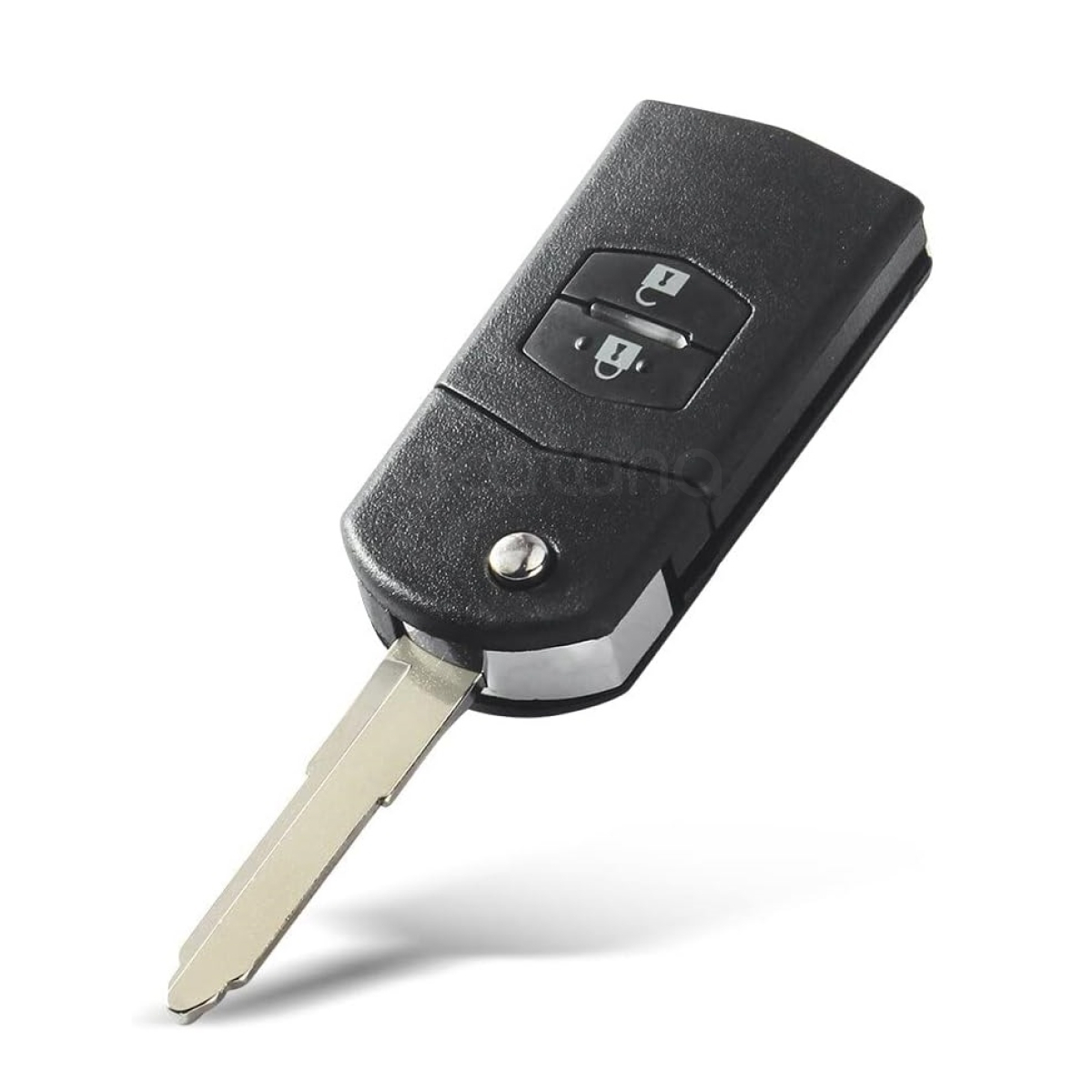

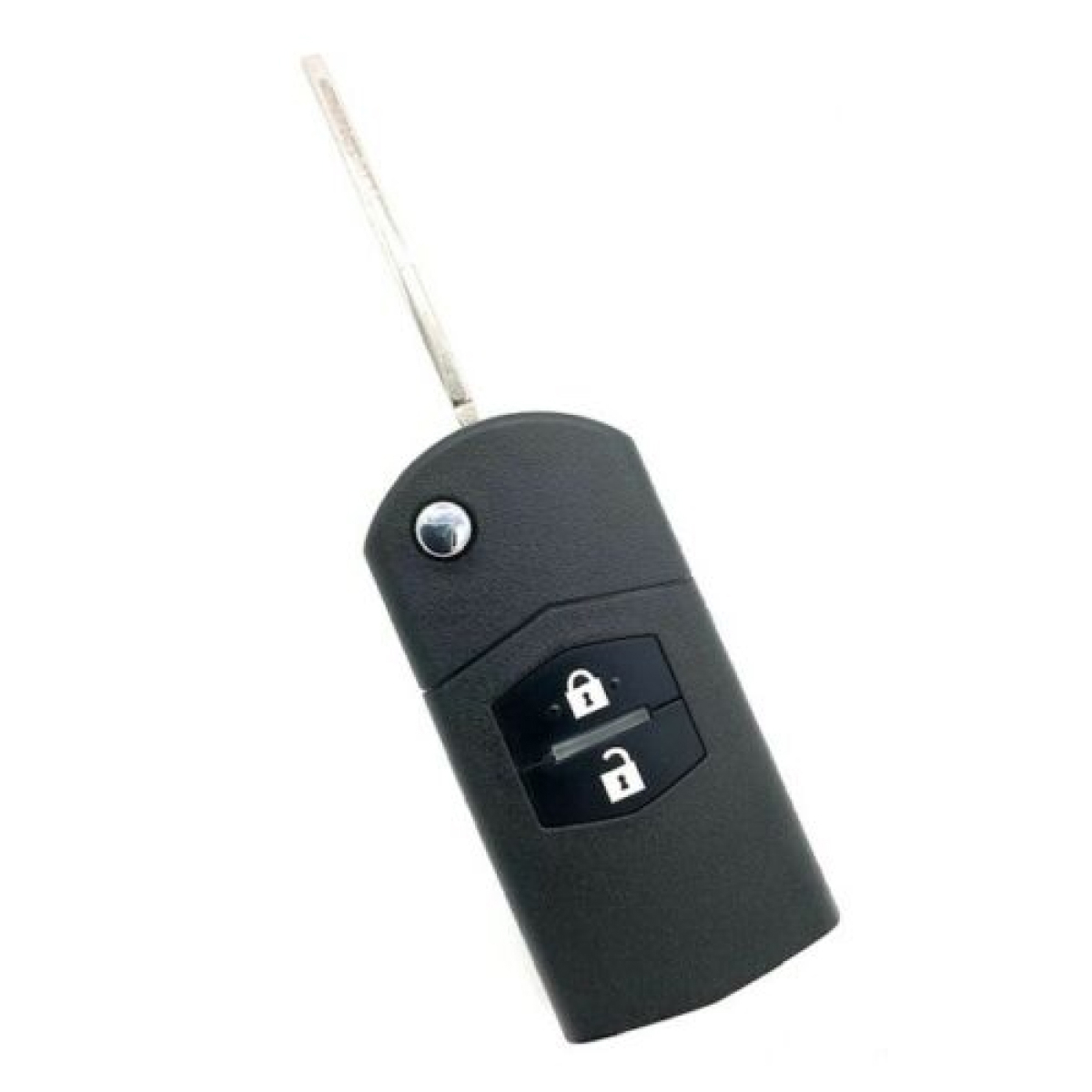

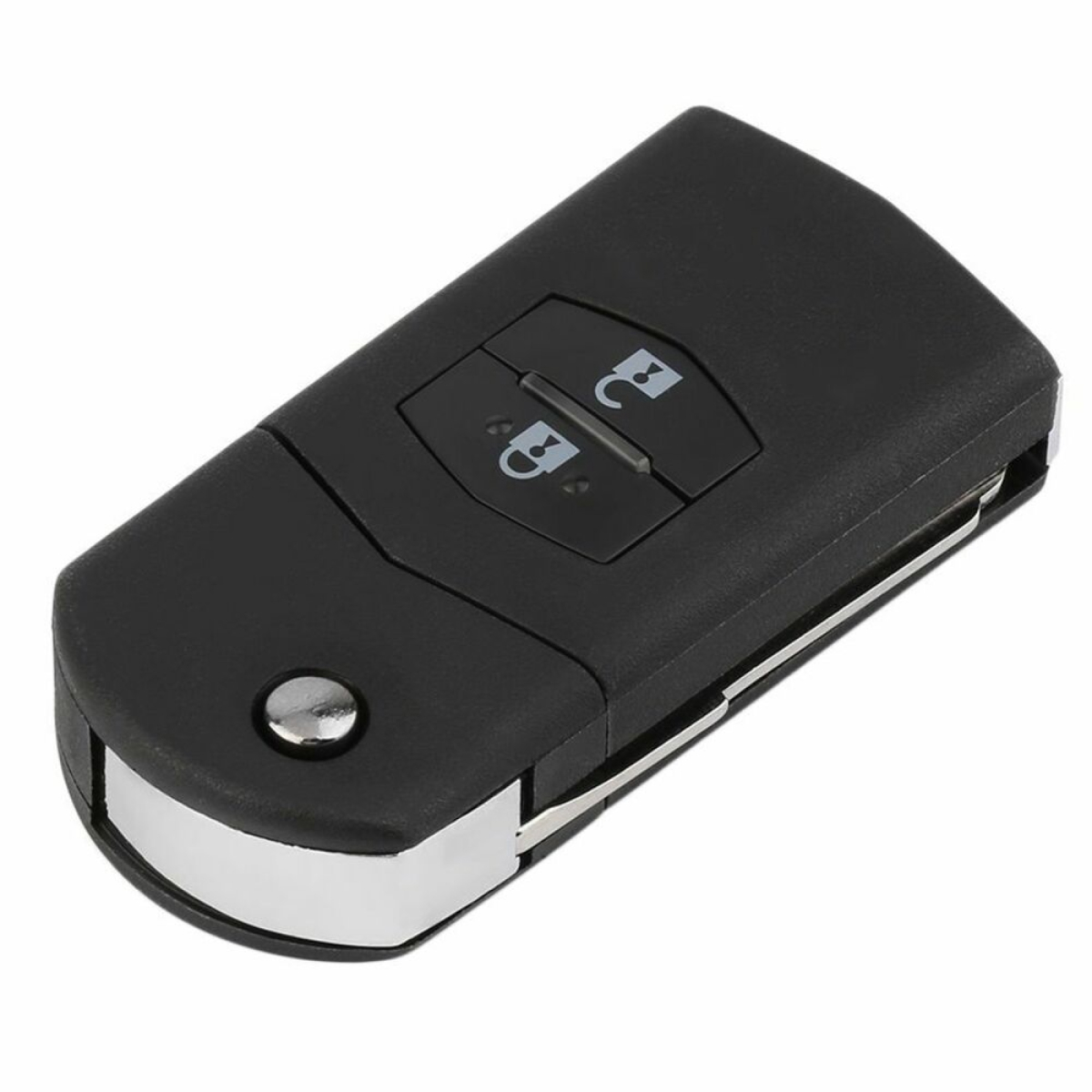

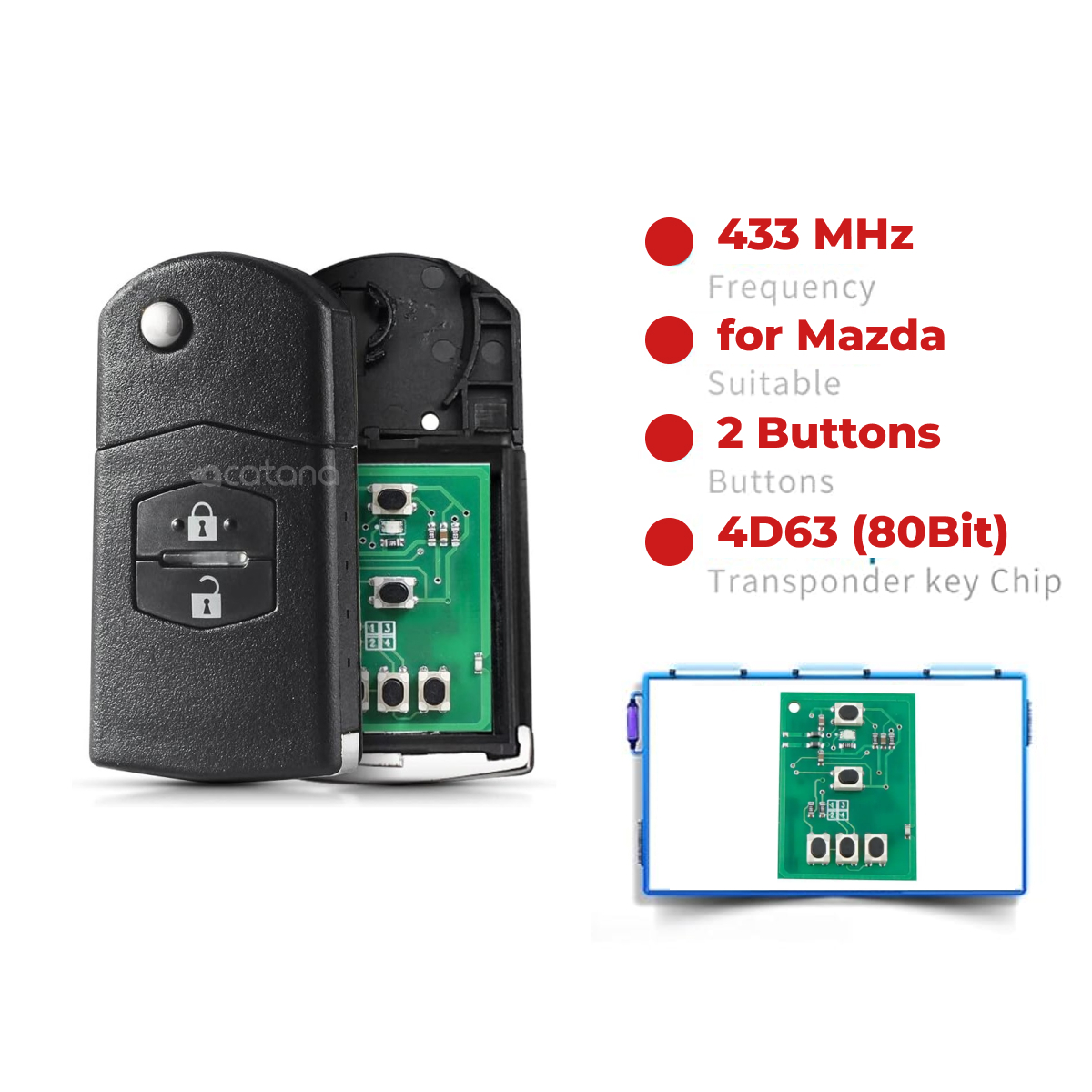

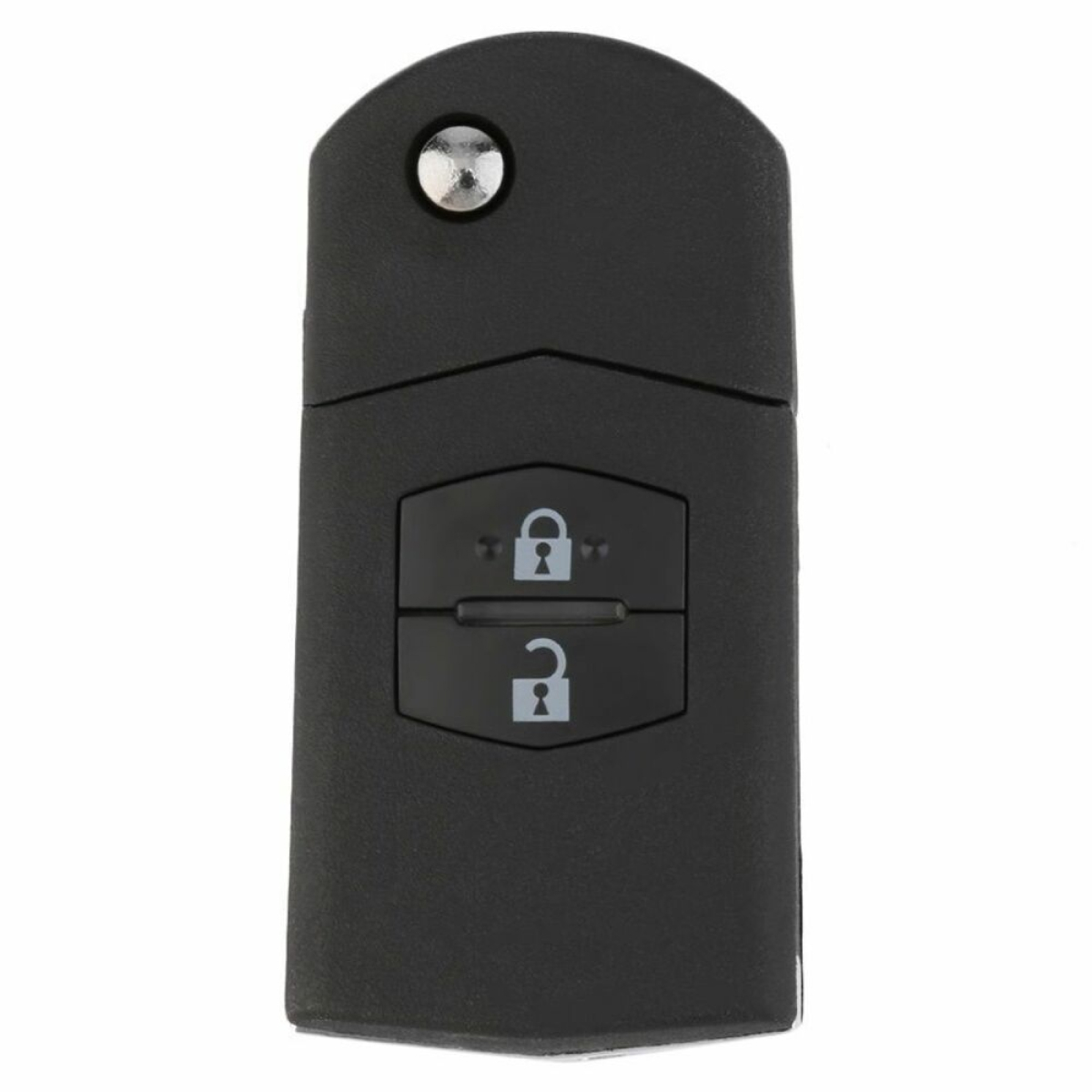

This complete remote car key for Mazda BT-50 2006 - 2014. High-quality replacement car key with transponder and chip, full assembly and ready to be programmed for your car. You can program the key yourself. Replace your old key or just make it a spare. Spec: Chip 4D63, 433 MHz, 2 Button. It includes a 2-button key shell case, uncut key blade, remote transponder and 433MHz chip, battery.



Fitment with the following models:

  • Mazda BT-50 2006 - 2014



Specification:

  • Button: 2
  • Chip: 4D63 Chip (80bit)
  • Frequency: 433 MHz
  • FCC ID: VISTEON 41781
  • Blade type: MAZ24R
  • Blade: HU101, Uncut (need to be cut)
  • Programming: by yourself



Features:

  • 100% COMPATIBILITY: This is a complete remote key for Mazda.
  • READY FOR PROGRAMMING: This replacement key is assembled and ready for programming
  • GOOD QUALITY REPLACEMENT: Complete Remote Car Key replacement for a key with broken buttons, worn or lost key case
  • DURABLE KEY SHELL: Made of high-quality materials, highly durable.
  • TRANSPONDER CHIP 433 Mhz includes remote control unlock and lock button
  • PROGRAM YOURSELF: You can program the key yourself



Package Content:

  • 1х Complete Remote Car Key, 1х Battery



PROGRAMMING


Important Notices:

  • Before purchasing this product, make sure that your key has the engraving "Visteon" and "Visteon 41781" inside. If you do not have this engraving, the key will not fit you. This key has the following characteristics: chip 4D63, frequency 433 MHz.
  • When training remotes, the old remotes are removed from memory during the training procedure.
  • Please ensure all remotes (both old & new) are available with you to be trained at the same time.
  • The key transponder chip programming requires the use of a scan tool and must be performed by an authorized locksmith or dealer.
  • Key blade will need to be cut (this key is UNCUT)
  • Up to 4 remotes can be learned by the vehicle.



How to program the remote control - Do it yourself:

Preparatory Steps: Sit in vehicle with driver’s door open (all other doors and boot closed).

  • 1. Lock and unlock driver's door using a power lock switch or Electronic Window Lock Switch

  • 2. Insert the original key into the ignition. Turn the key to the ON position and return to Lock (OFF) Position 3 times. Leave the key in ignition in Lock (OFF) position. (ON, OFF, ON, OFF, ON, OFF)

  • 3. Close and open the Driver’s Door 3 times. Leave the Driver’s Door open after this step.

  • 4. The vehicle should respond by locking and unlocking the doors once

  • 5. Press the lock button on the remote TWICE

  • 6. The vehicle responds by locking and unlocking doors



Additional remotes:

  • Repeat steps 5 - 6
  • For up to 4 remotes total



Ending programming procedure:

  • Remove the key from the ignition

  • The vehicle will respond a final time with a series (about 4) of door lock and unlock cycles.
