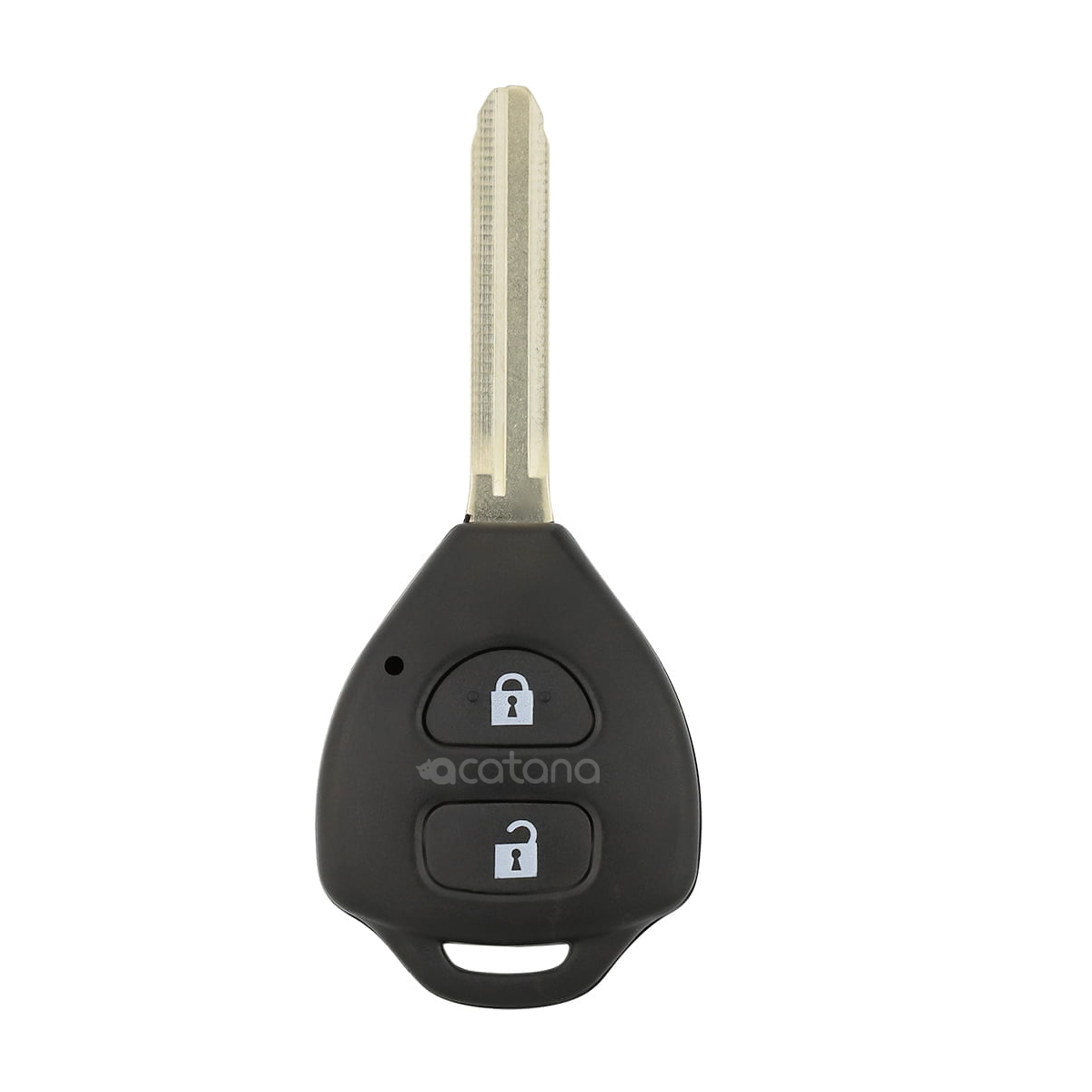

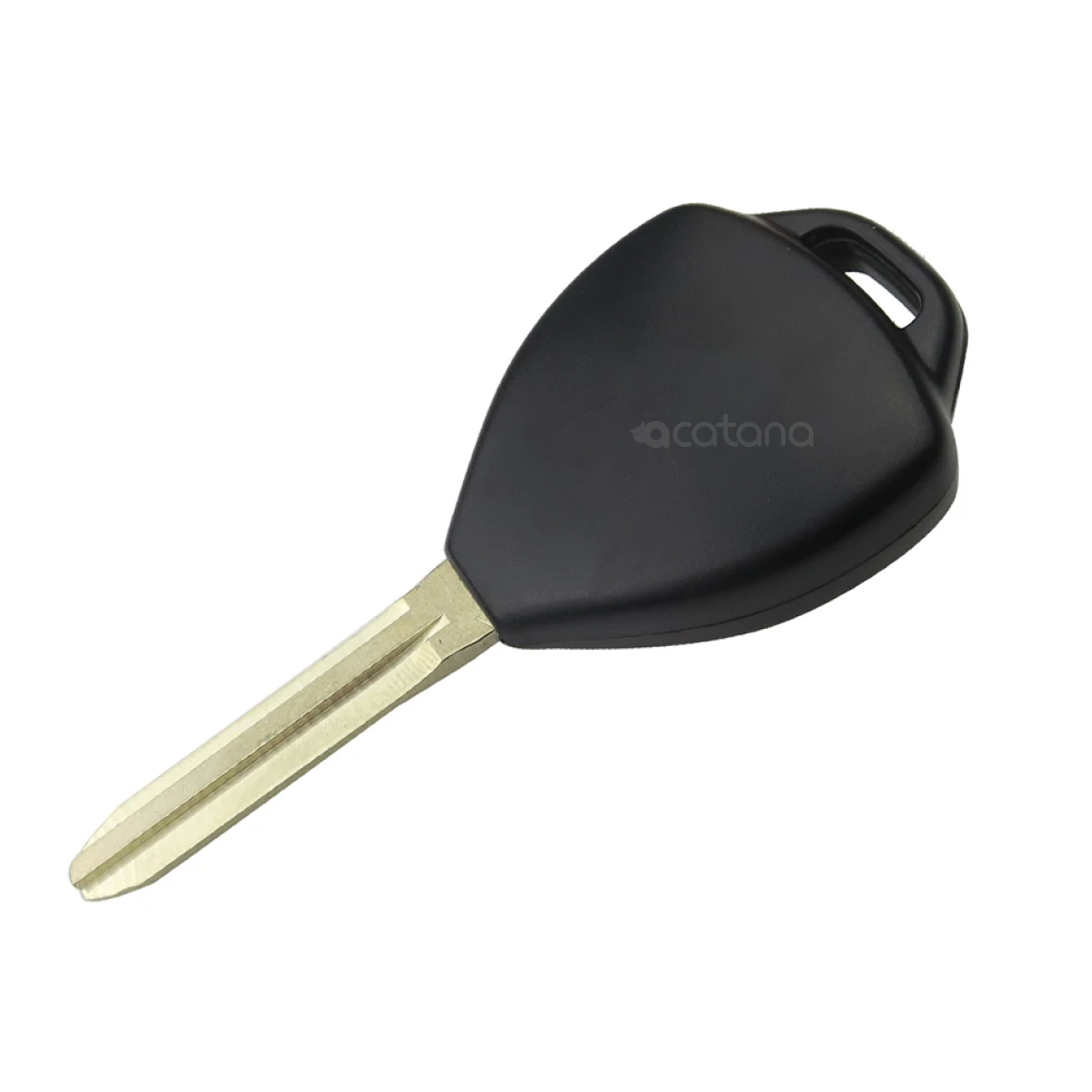

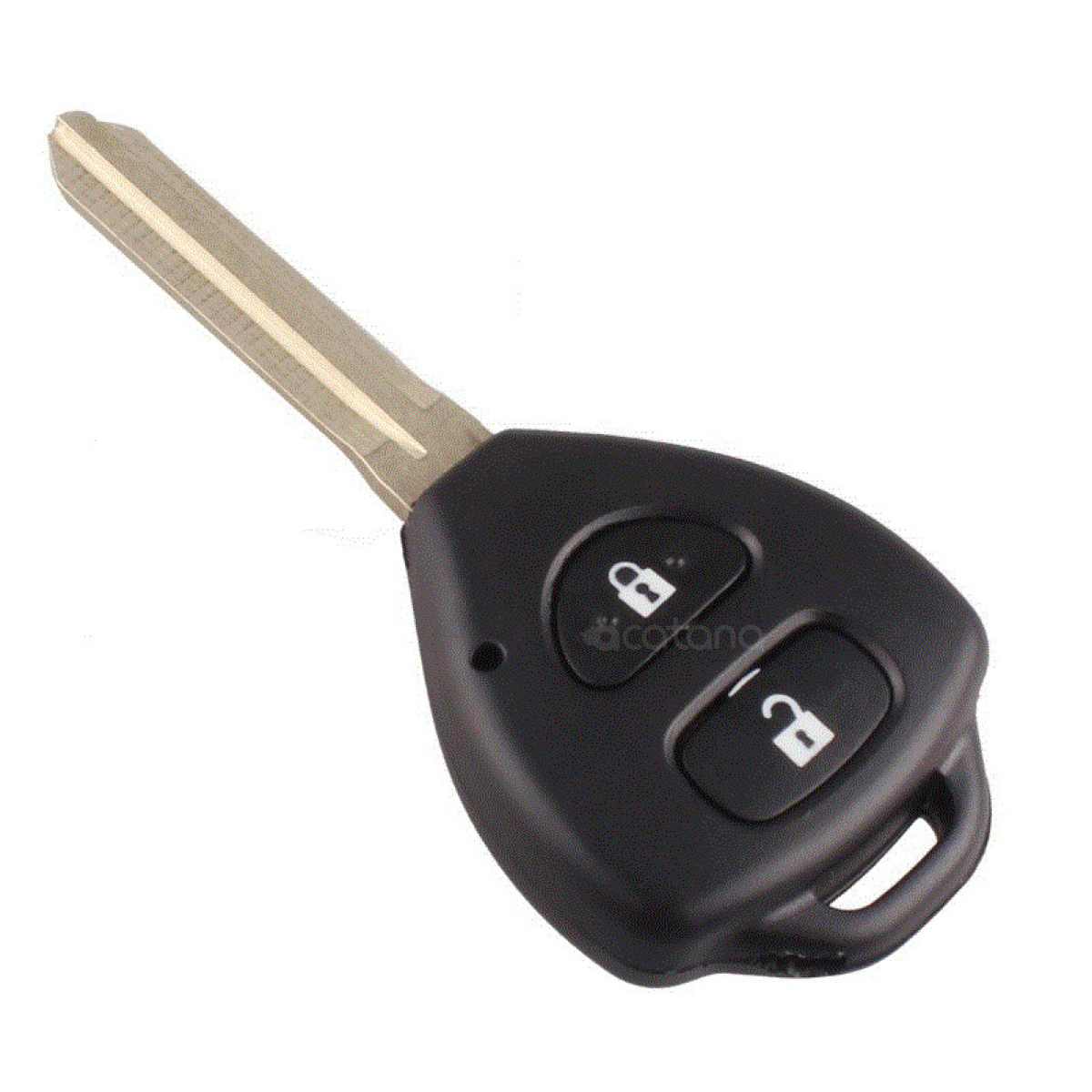

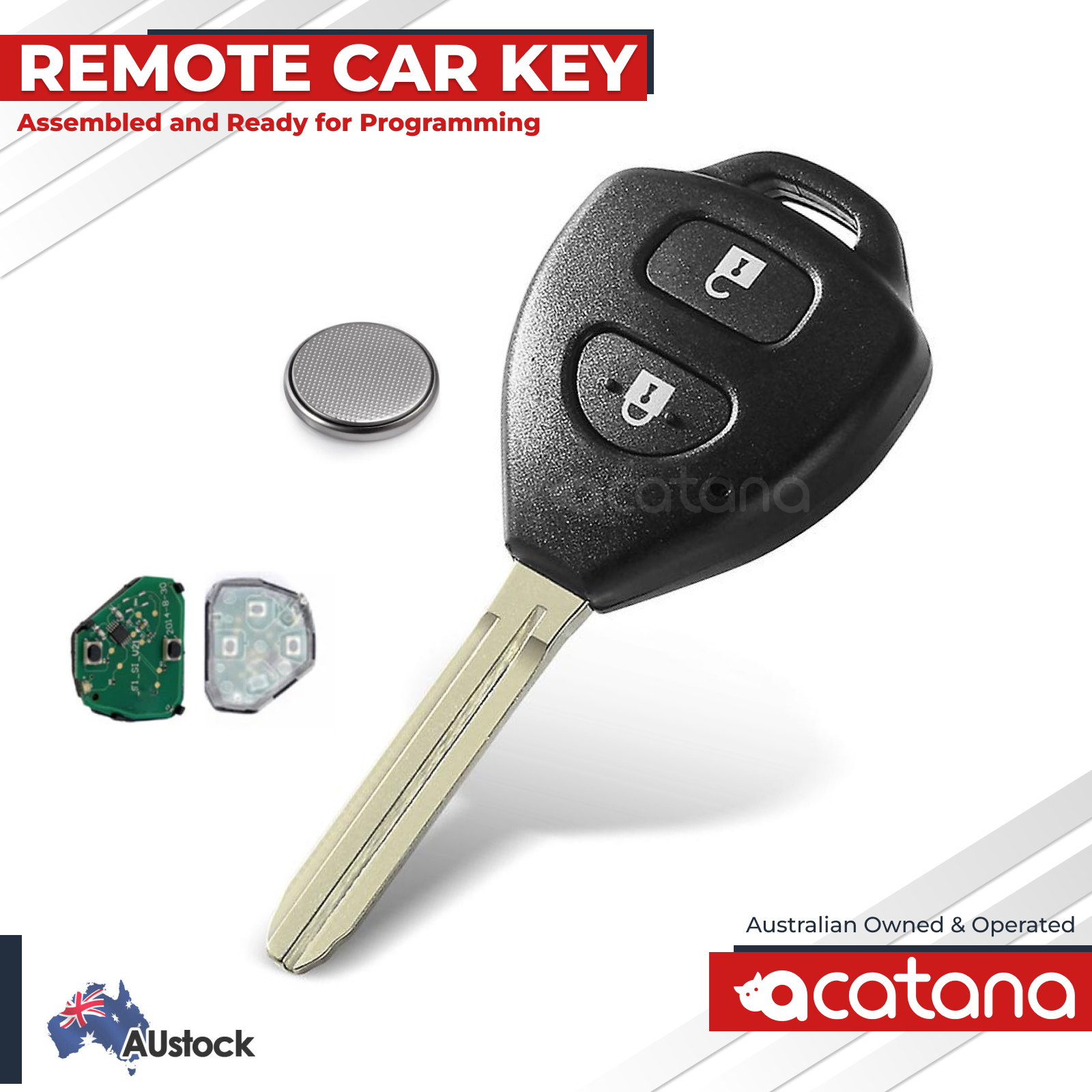

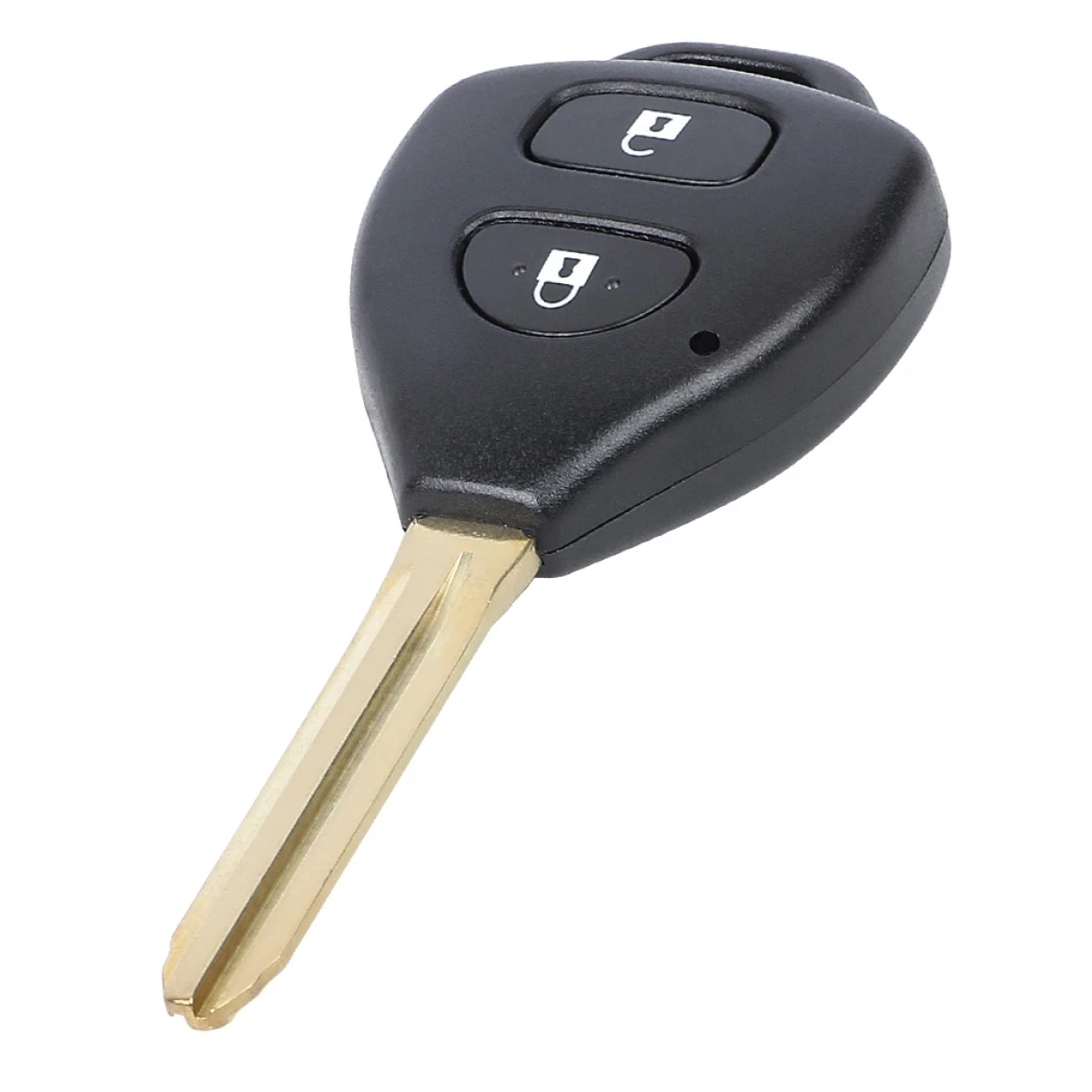

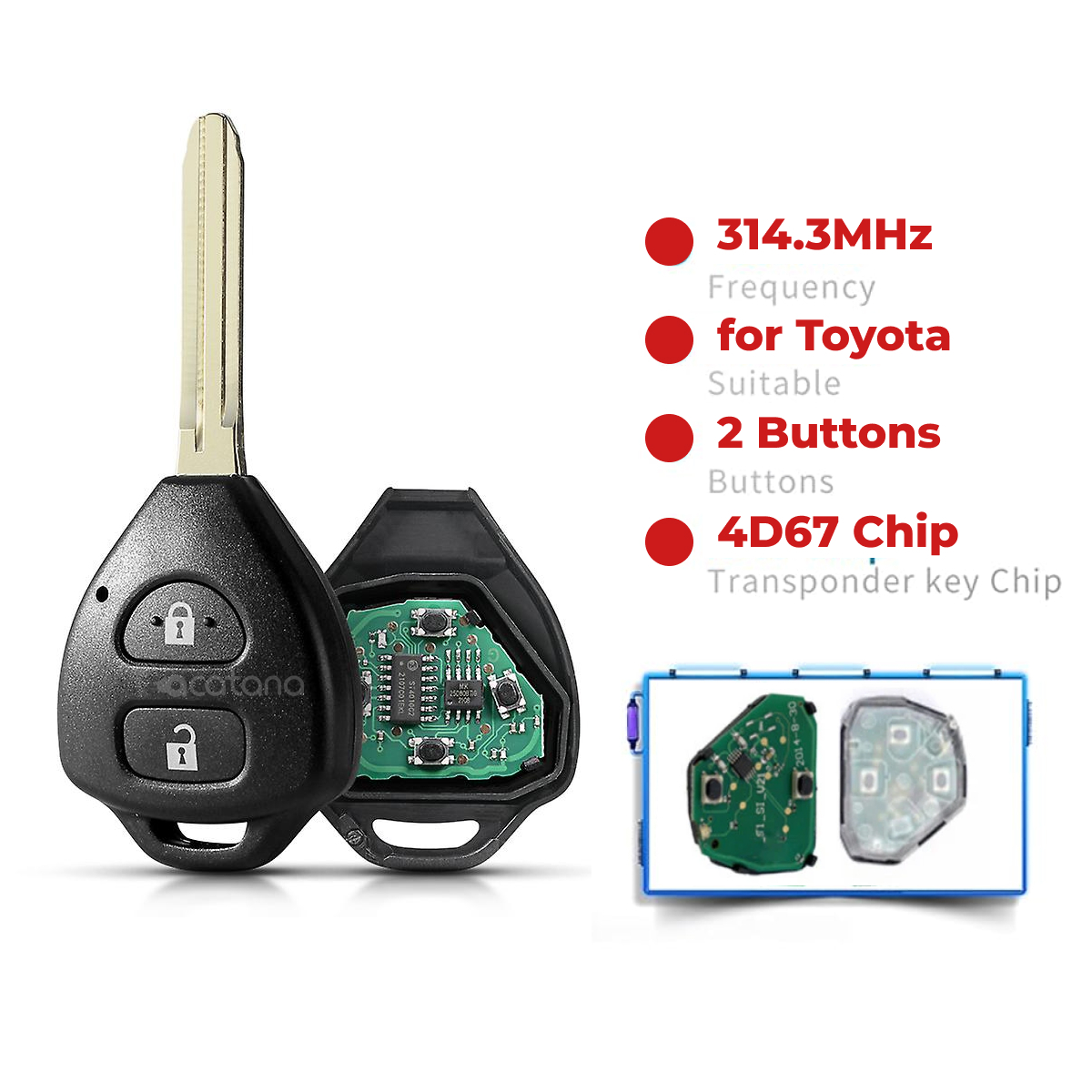

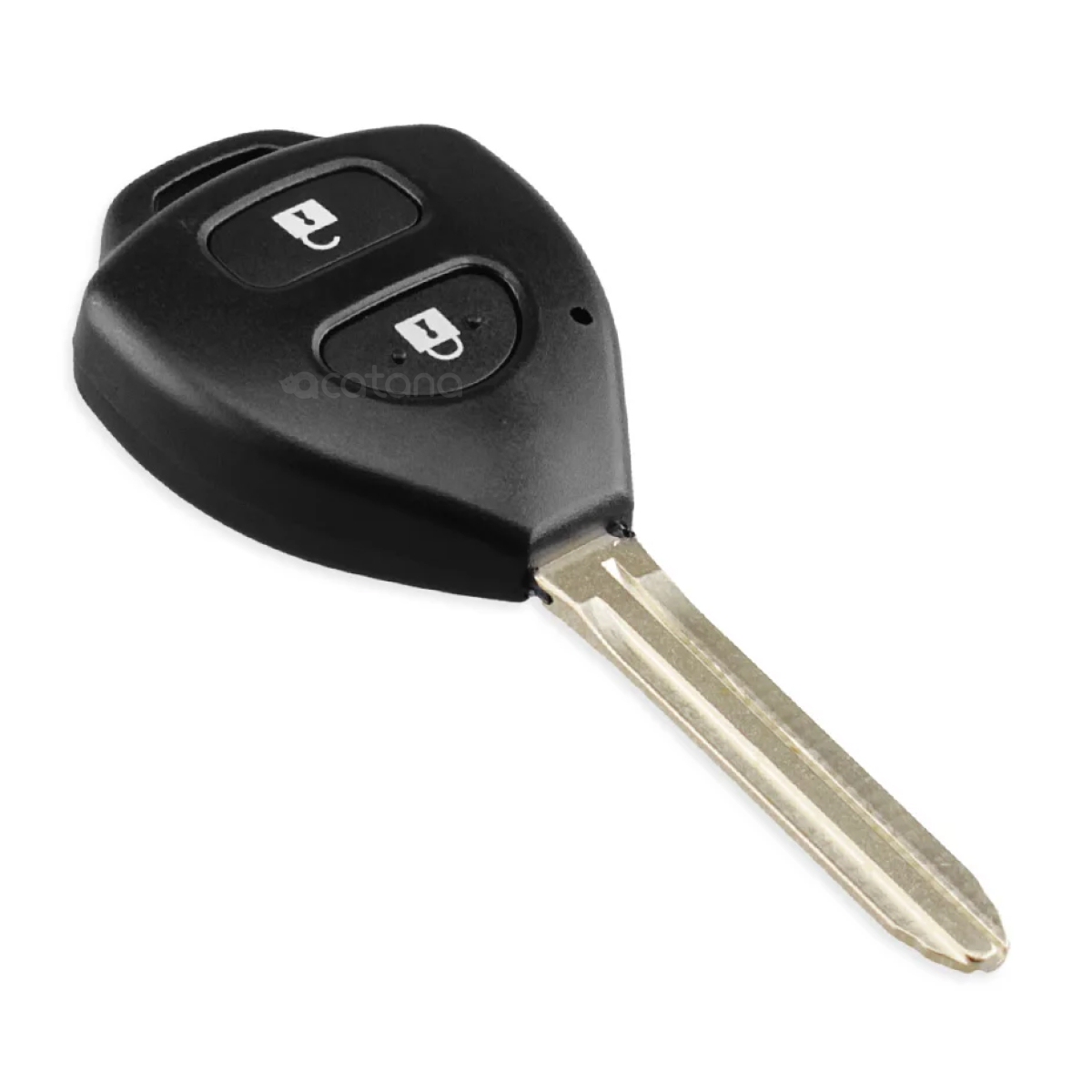

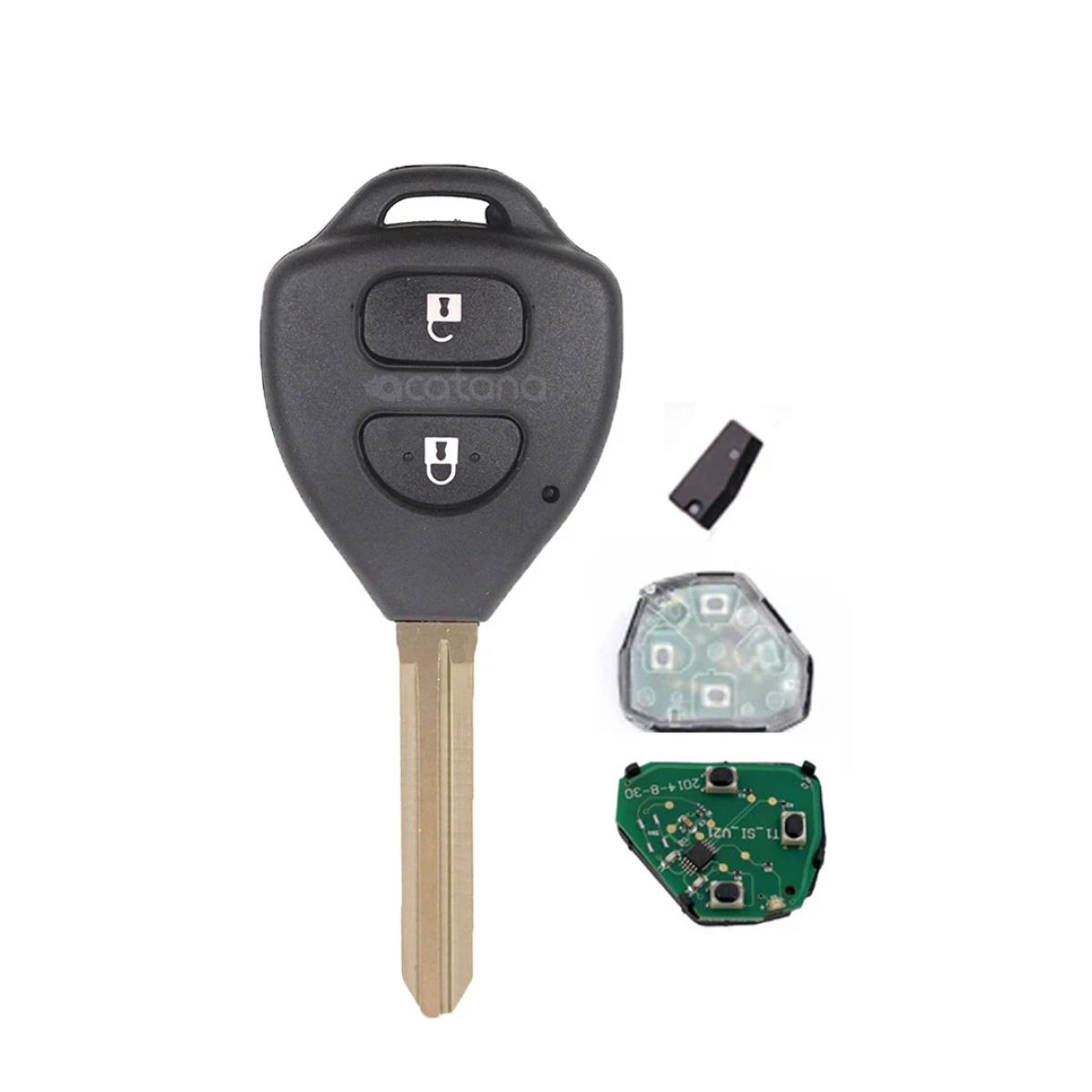

This is the complete remote car key for Toyota. The great replacement for your old, worn-out or lost car key can also be a spare key. This replacement key is assembled and ready for programming. It includes a 2-button key shell case, uncut key blade, remote module 314MHz and immobilizer (transponder chip) 4D67, the key has the part number - 28240

• Car Key Compatibility: for Toyota Hilux 2010 - 2013

Features:

• 100% COMPATIBILITY: This is a complete remote key for Toyota.

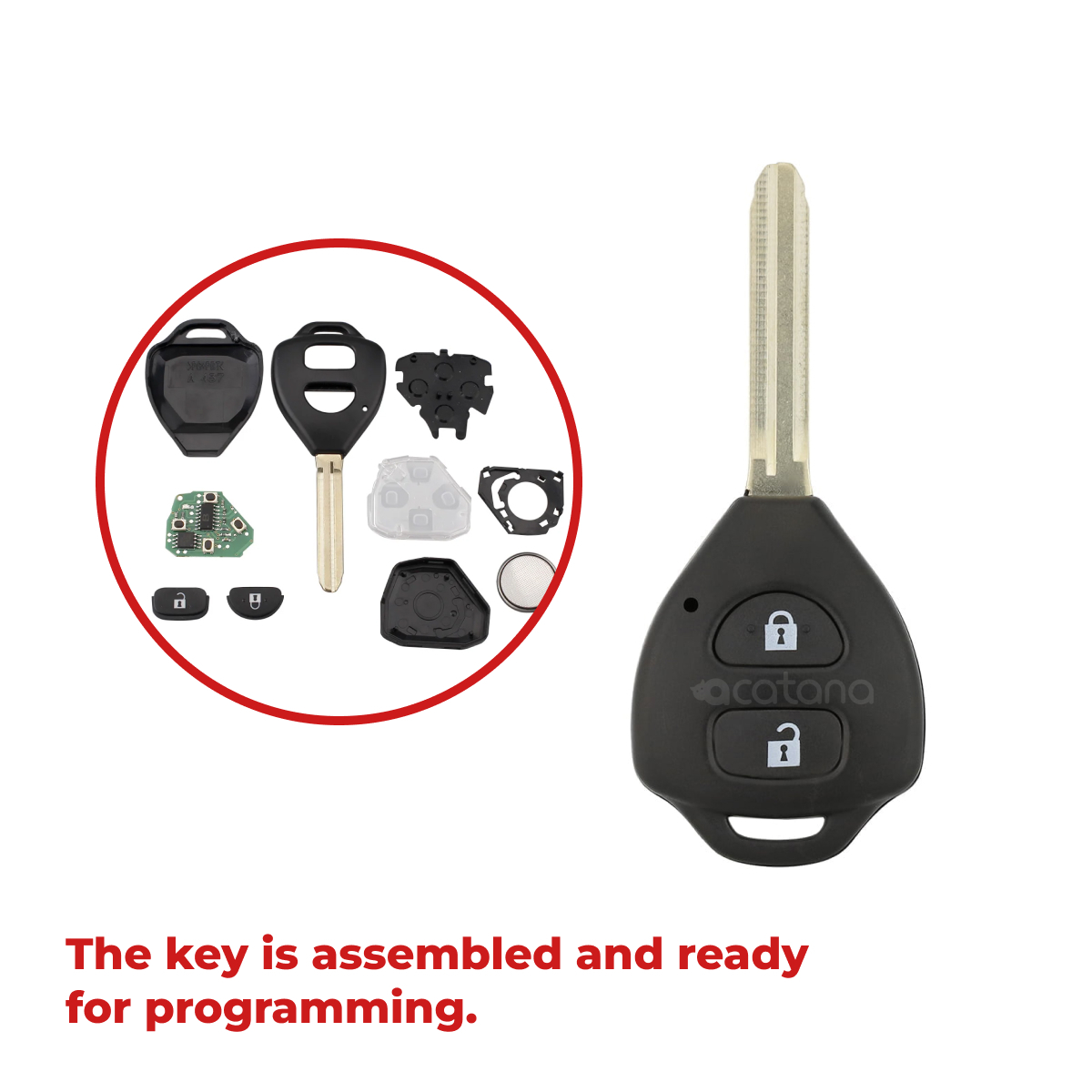

• READY FOR PROGRAMMING: This replacement key is assembled and ready for programming
• GOOD QUALITY REPLACEMENT: Complete Remote Car Key replacement for a key with broken buttons, worn or lost key case
• DURABLE KEY SHELL: Made of high-quality materials, highly durable.
• KEY COMPLETELY ASSEMBLED: Immobiliser Transponder Chip 4D67 and remote module 314 Mhz include remote control unlock and lock button

Specification:

• Button: 2
• Blade: TOY43 (uncut)

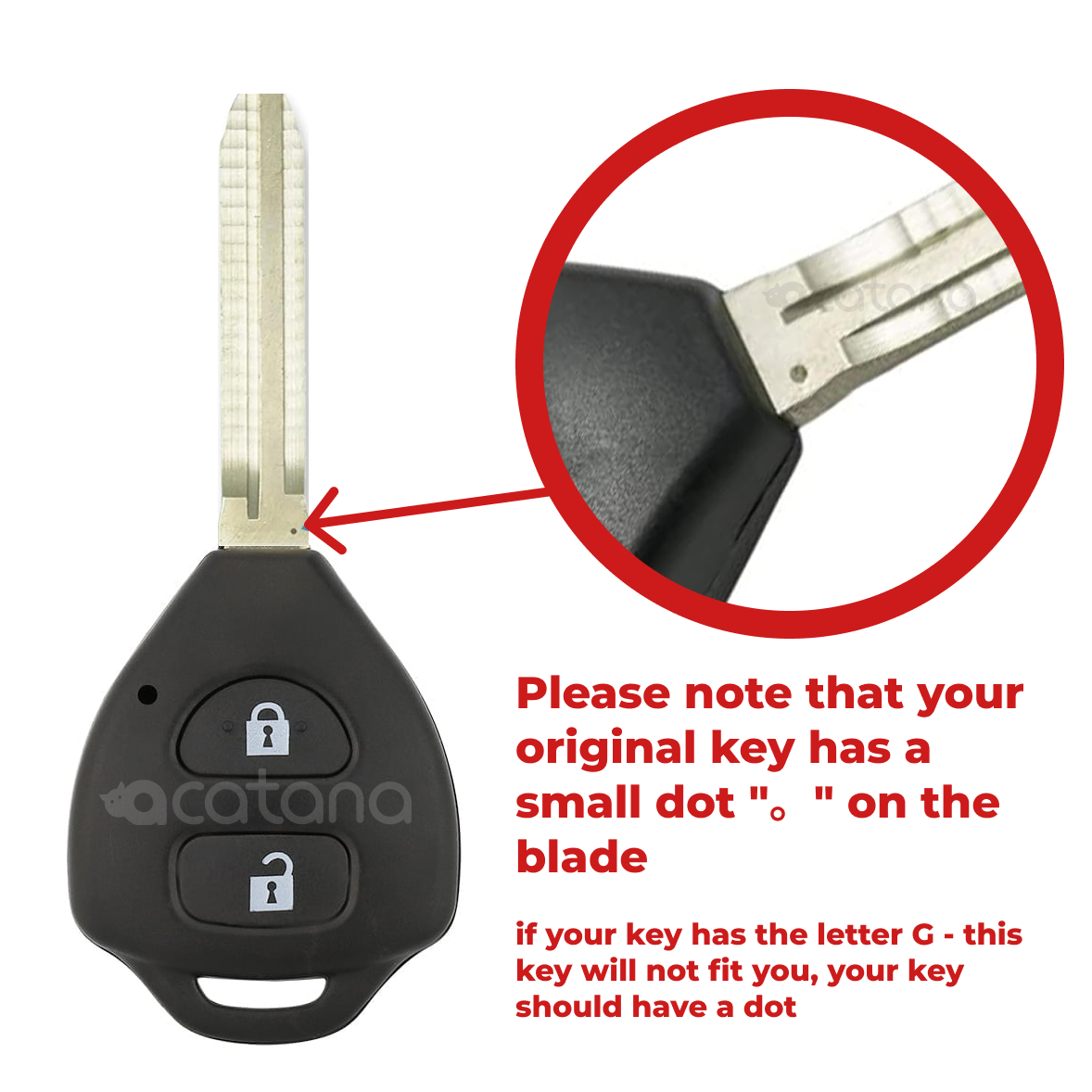

• Immobilizer (Transponder Chip): 4D67 ("。" mark in the original old key blade)
• Frequency: 314.3 MHz
• FCCID: B41TH / 28240 / 28850 / 26300 (Not suit for B41TA）
• Battery included
• Fits Toyota

ATTENTION NOTES:

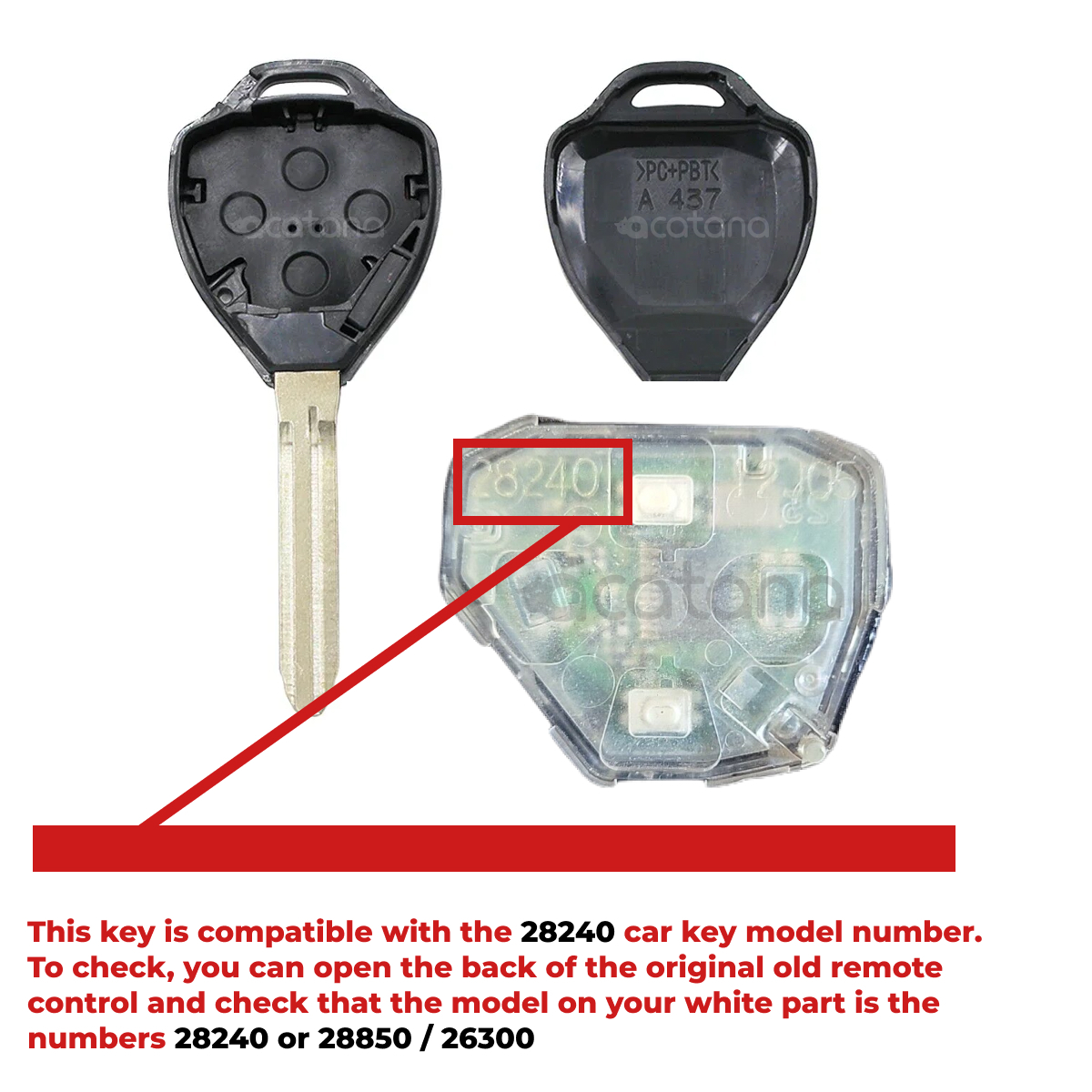

• ** This key has part number 28240, your key should have this number 28240 or 28850 / 26300 (you can find the number by open the back cover of your key)
• ** Important: Please program the remote control first before cutting the key blade and programming the car start chip! If the chip is programmed first, the remote functions may not work. (For instructions on programming the remote control, see the instructions below)
• ** After programming the remote control. YOU WILL NEED to cut the key blade and program the car start (Immobilizer Transponder Chip) - YOU WILL NEED CONTACT to local professional auto mechanic or auto dealer!
• ** This key has only B41TH module (not suitable for B41TA, if your key has B41TA engraving, this key will not fit you)!

THE REMOTE CONTROL MODULE PROGRAMMING

How to program the remote control - Do it yourself:

• 1. Open the driver-side door
• 2. Put the Original key in and out of the ignition 2 times
• 3. Close and open the driver's door 2 times
• 4. Put the Original Key in and out of the ignition once
• 5. Shut and open the door twice
• 6. Close door
• 7. Insert key Turn the ignition on
• 8. Turn the ignition off and remove the key
• 9. Door locks will cycle
• 10. Press lock and unlock together for 1 second then the lock button
• (To delete remotes turn the key on and off 5 times, door locks will cycle 5 times. Turn the key on and then off. Open shut door)
• 11. Locks will cycle put the key in the ignition turn it on then off
• 12. Remove the key from the ignition, close the door and test the remote

**This instruction is only for programming the remote module for opening and closing doors, for programming the car start you need to contact the to local professional auto mechanic or auto dealer!

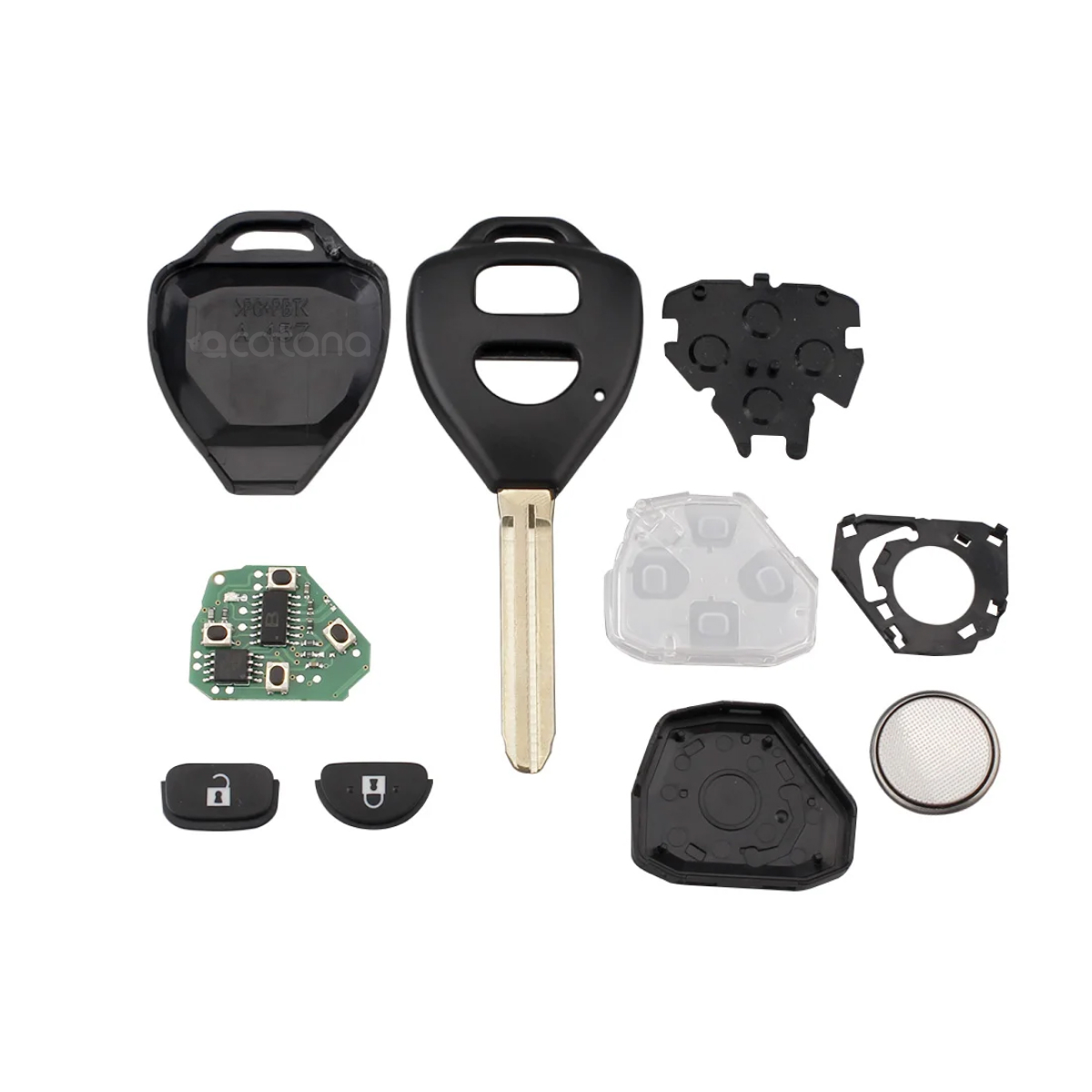

Package Includes: 1 X Complete Remote Car Key, 1х Battery
