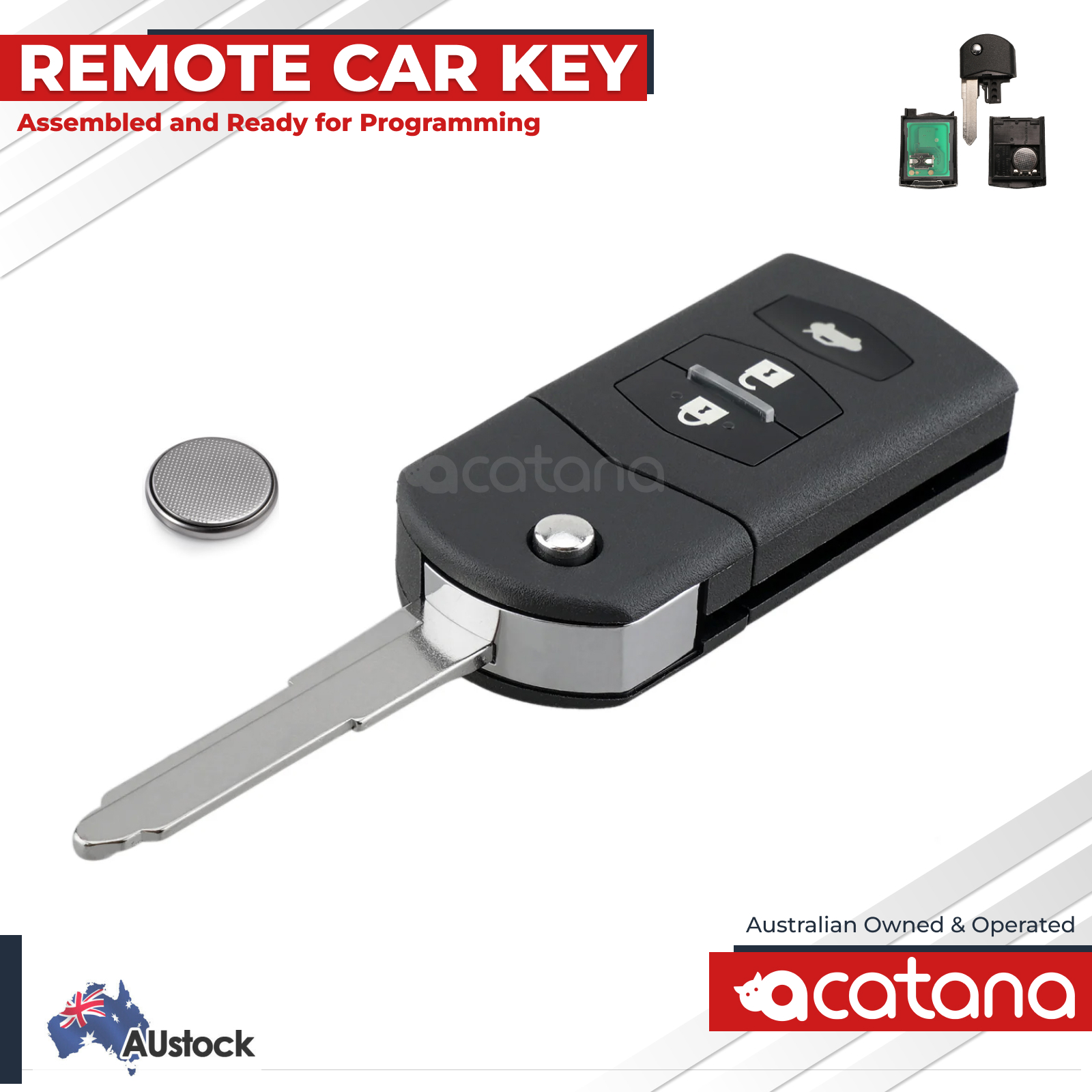

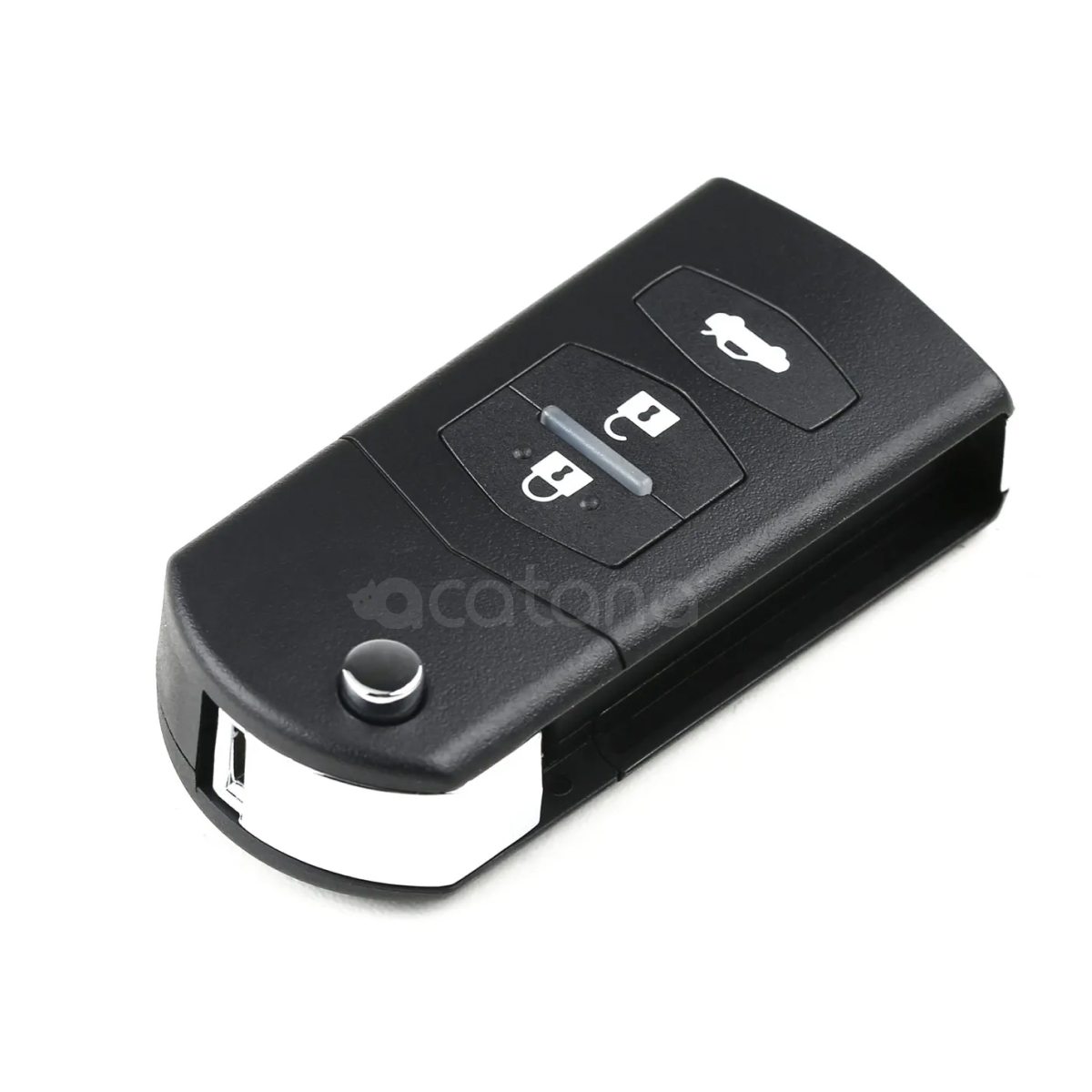

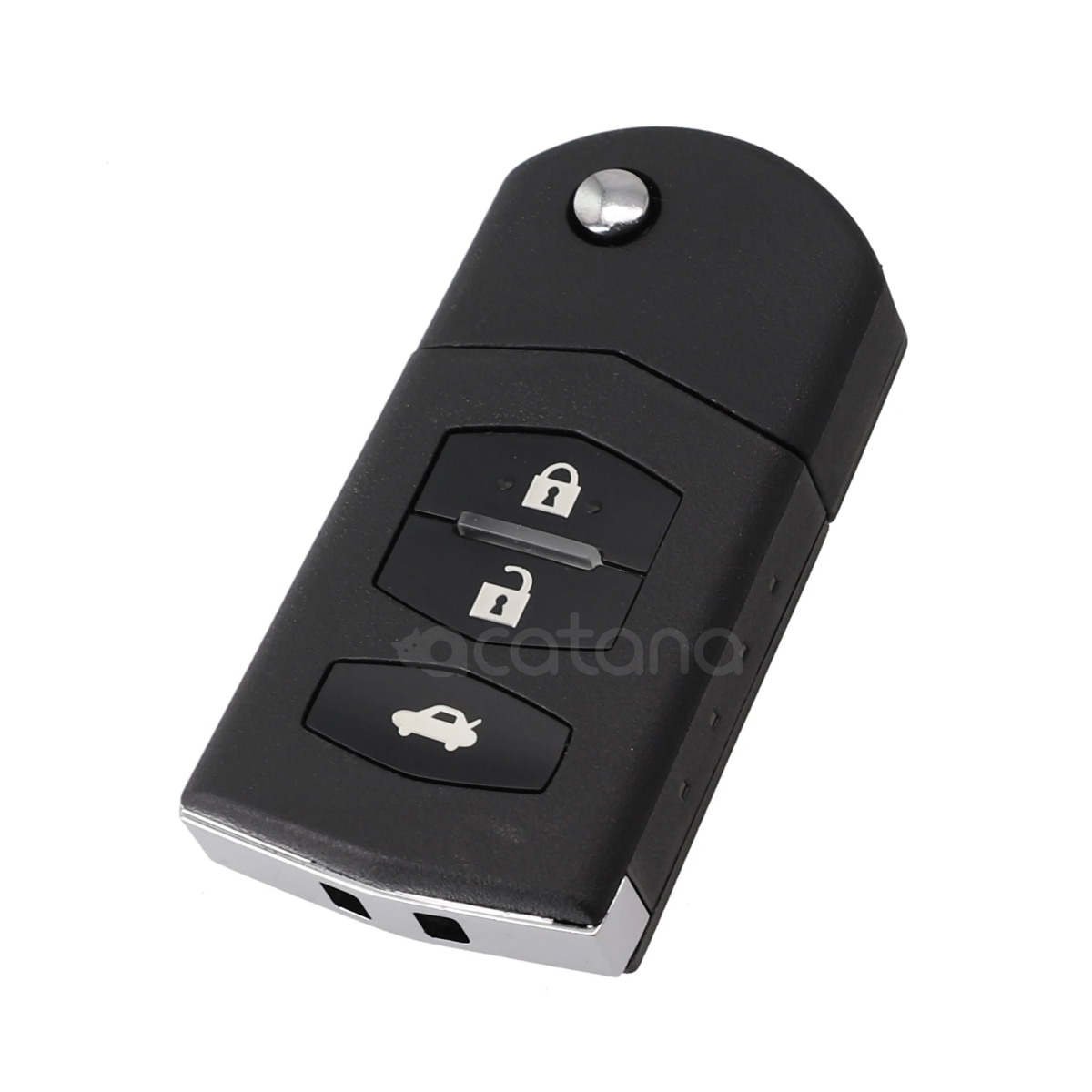

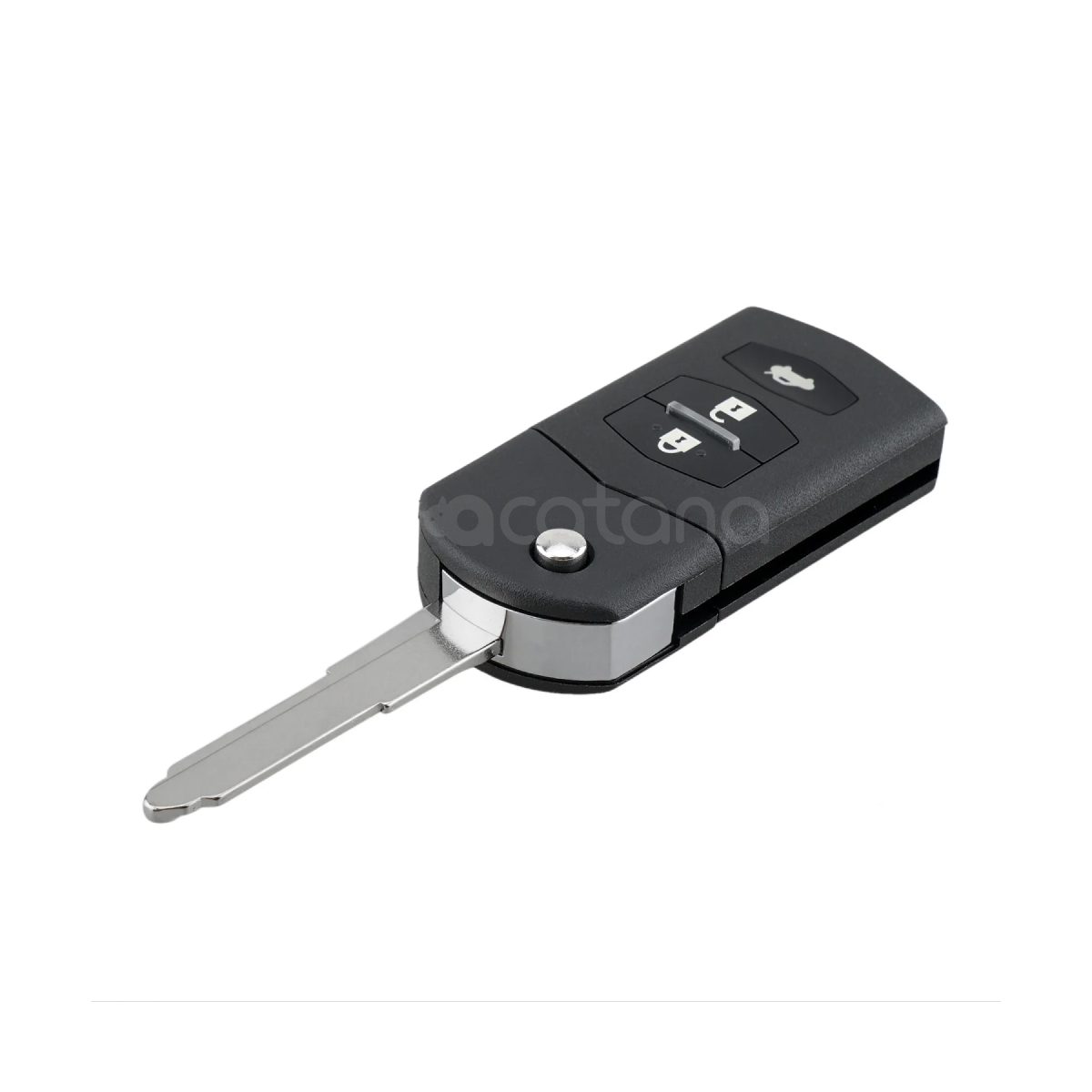

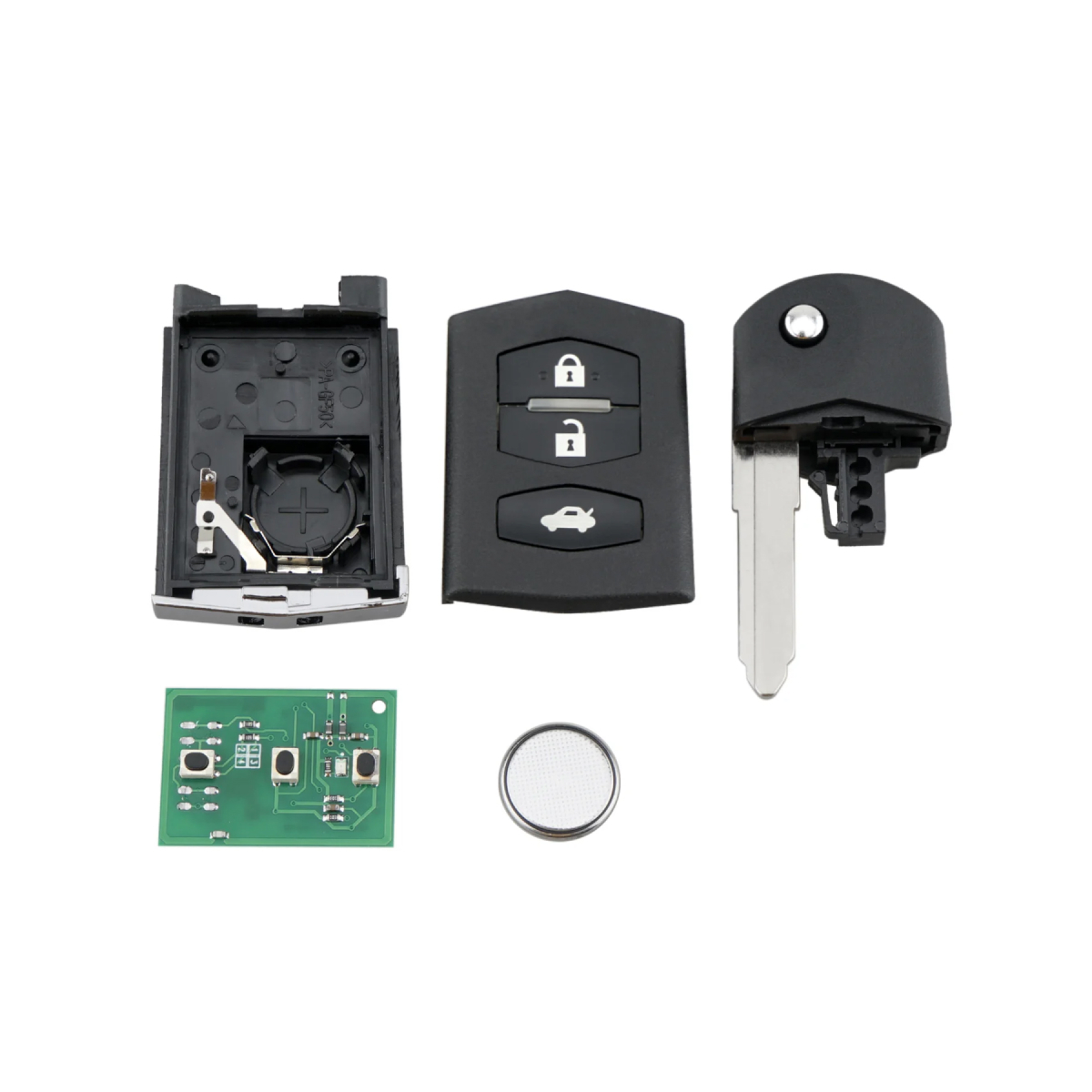

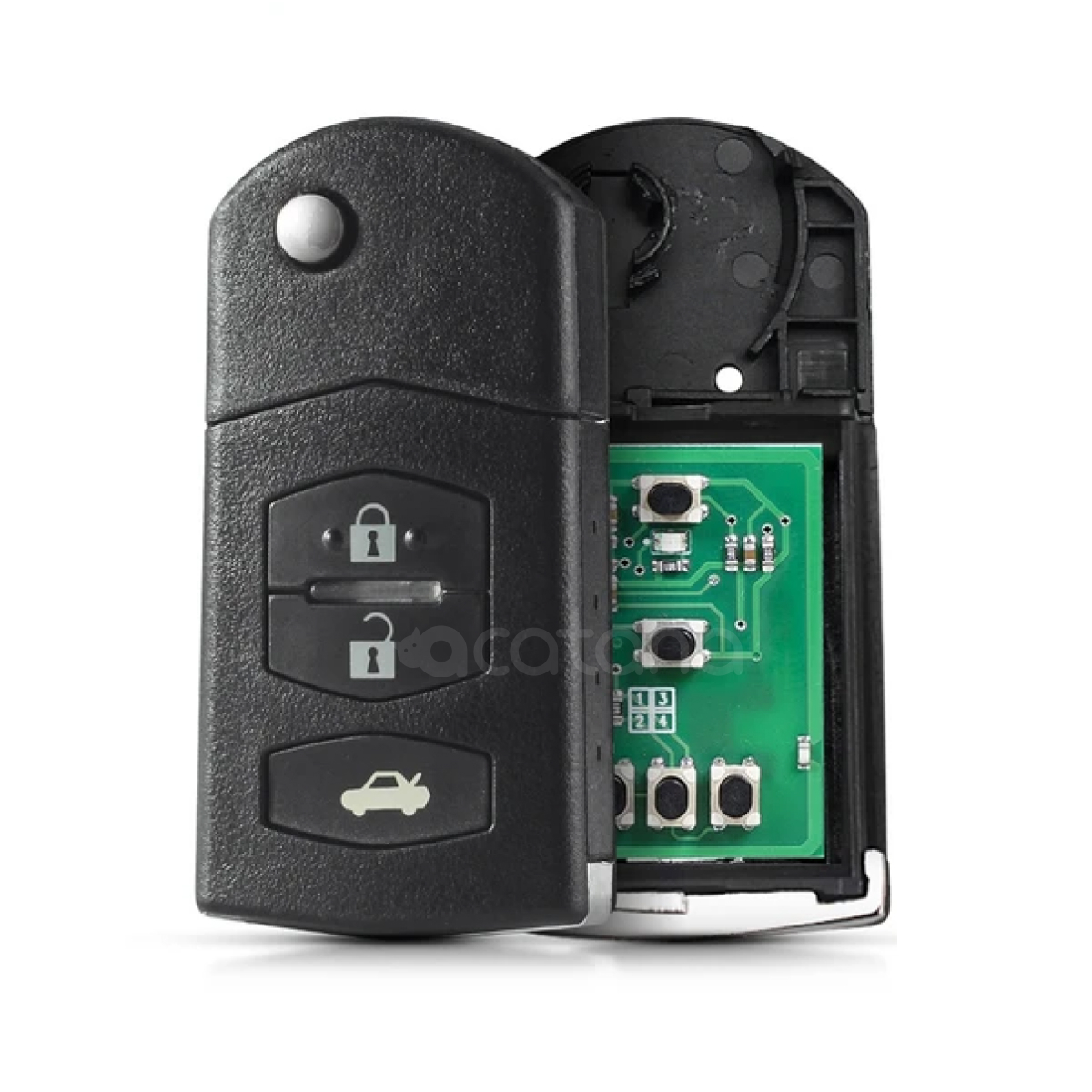

This is a complete remote car key for Mazda. A great replacement for your old, worn-out or lost car key can also be a spare key. This replacement key is assembled and ready for programming. It includes a 3-button key shell case, uncut key blade, remote transponder and 433MHz chip, battery.



Compatibility:

  • Fits for Mazda 6 GH 2009 - 2012

NOTE: not suitable for Mazda 6 siemens VDO system.



Features:

  • 100% COMPATIBILITY: This is a complete remote key for Mazda.

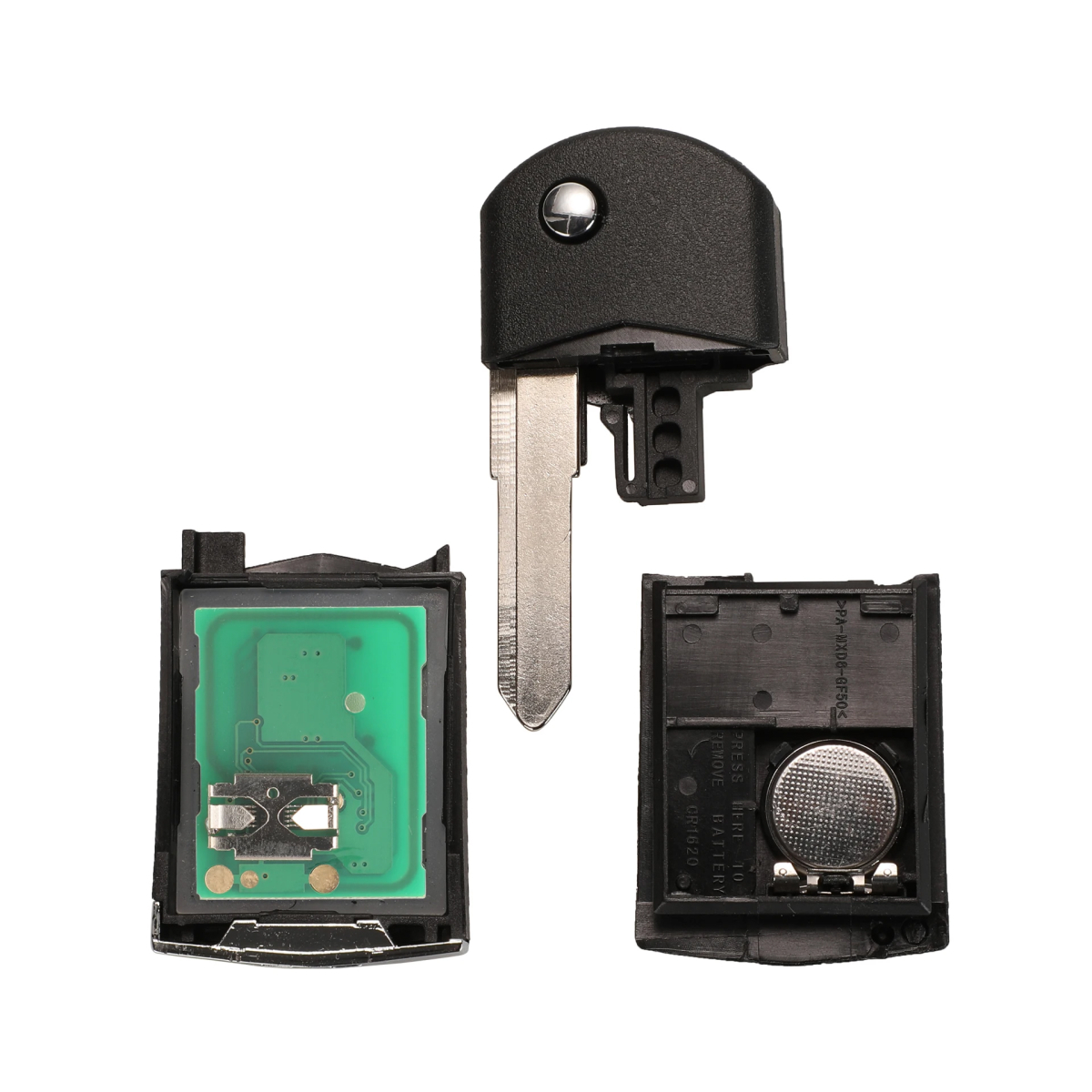

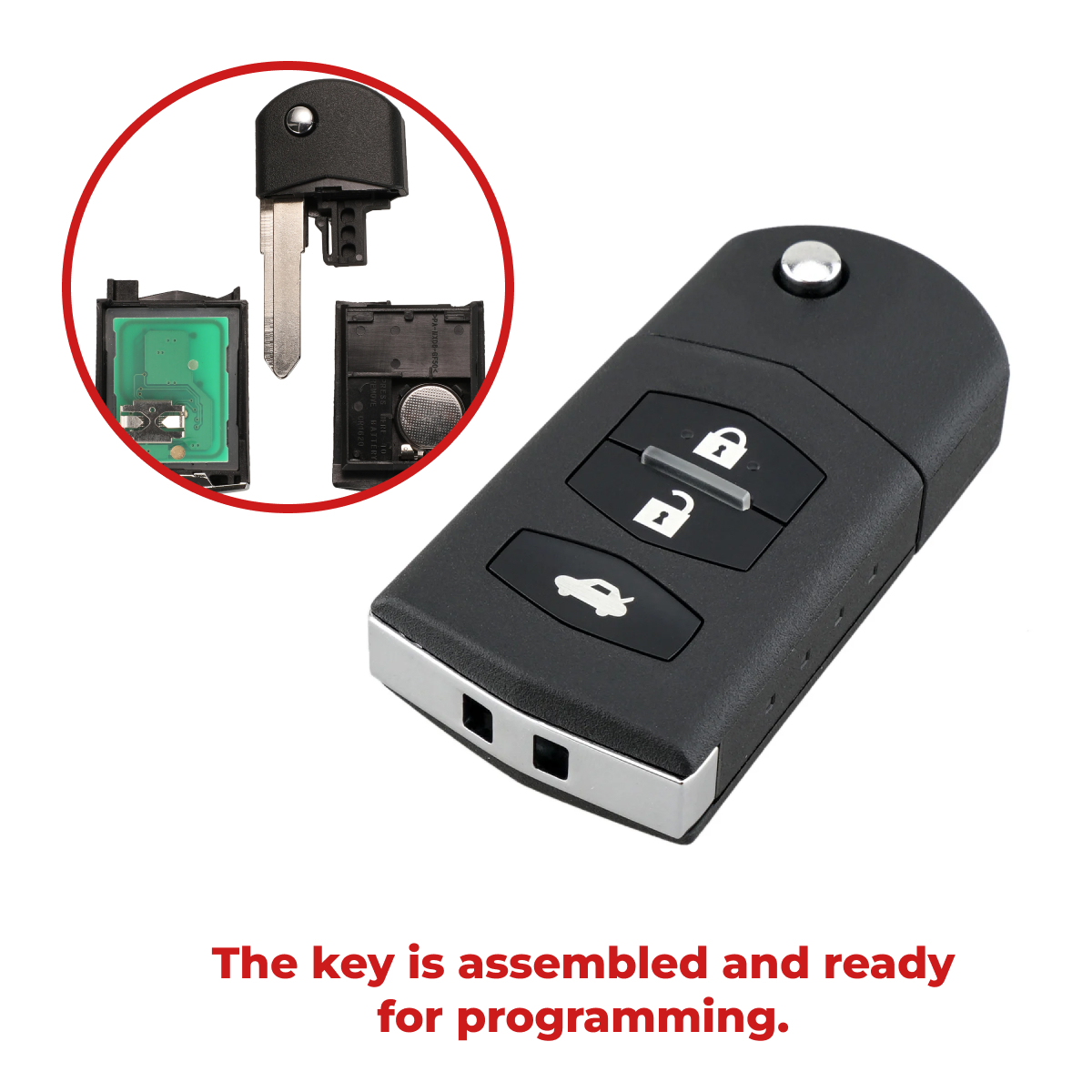

  • READY FOR PROGRAMMING: This replacement key is assembled and ready for programming
  • GOOD QUALITY REPLACEMENT: Complete Remote Car Key replacement for a key with broken buttons, worn or lost key case
  • DURABLE KEY SHELL: Made of high-quality materials, highly durable.
  • TRANSPONDER CHIP 433 Mhz includes remote control unlock and lock button



Specification:

  • FCC ID: SKE126-01, SKE126-A1, 2006DJ2777
  • Frequency: 433Mhz
  • Transponder Chip: 4D63 (80Bit)
  • Material: Plastic + Metal
  • Colour: Black
  • Button: 3 Buttons
  • Blade: MAZ24R Uncut (need to be cut in Locksmith)
  • Battery included
  • Fits Mazda
  • Programming: by yourself



NOTES:

  • You will need to have at least one original working either black key or another remote key. It will not work if you have service grey key

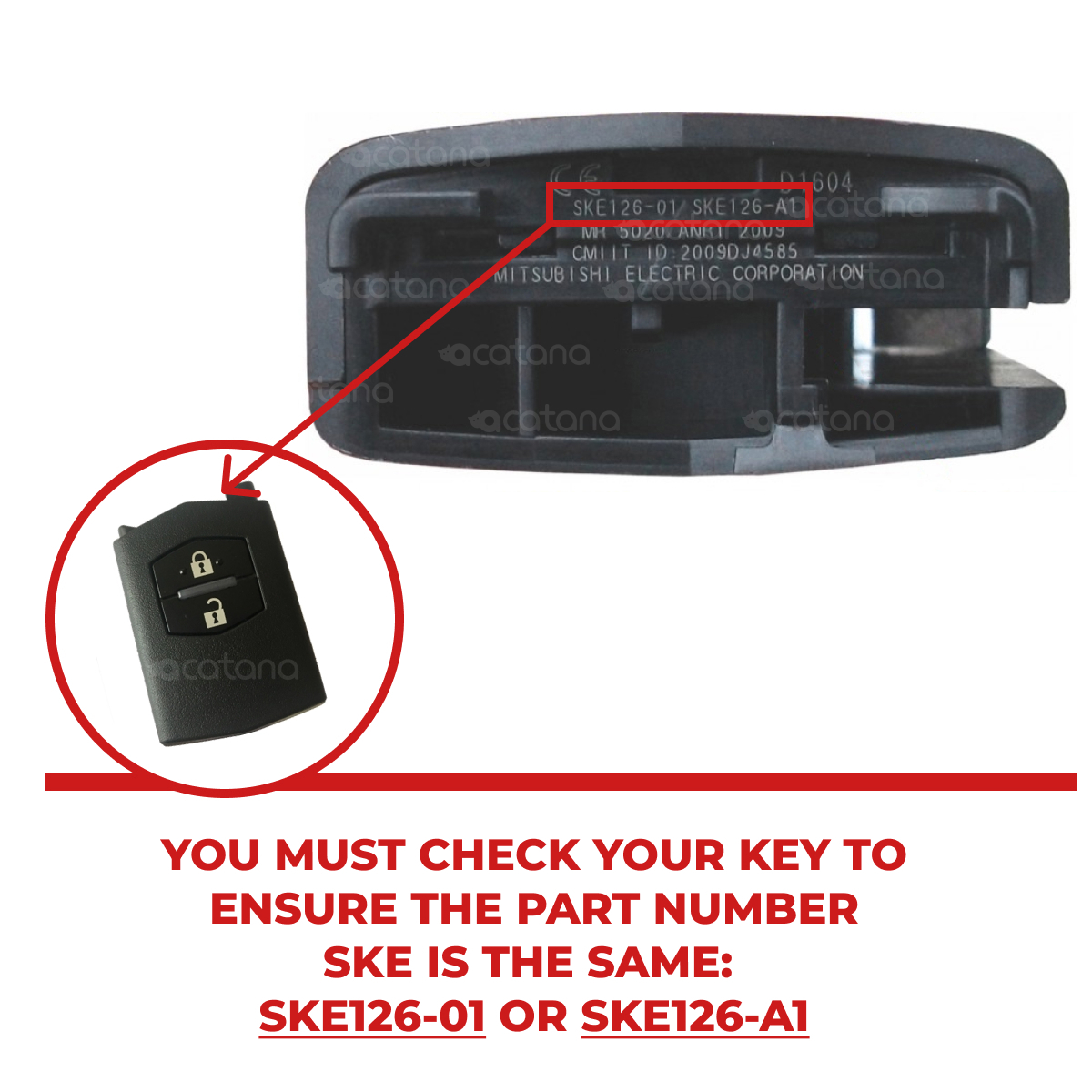

  • You must check your key to ensure the part number is the same SKE126-01, SKE126-A1, 2006DJ2777 (to check, disassemble your original key down, do it this way if you are replacing the battery and check the number stamped on the remote.)
  • The key will need to be cut and programmed by either a Locksmith or programmed yourself by following the instructions listed



Before a new key is programmed:  the new car key will need to be cut by a Locksmith (also you can program by either a Locksmith or yourself by following the instructions listed.) Car Key Programming instructions are presented below. Programming INSTRUCTIONS include two stages: 1) “How to program the remote control” and 2) How to program the car key to start (Programming the transponder chip)”



INSTRUCTIONS:

1) How to program the remote control - Do it yourself:

  • 1. Open Driver side door
  • 2. Put the Original key in and out of ignition 2 times
  • 3. Close and open driver door 2 times
  • 4. Put Original Key in and out of ignition once
  • 5. Shut and open door twice
  • 6. Close door
  • 7. Insert key Turn ignition on
  • 8. Turn ignition off and remove key
  • 9. Door locks will cycle
  • 10. Press lock and unlock together for 1 second then lock button

(To delete remotes turn the key on and off 5 times, door locks will cycle 5 times. Turn the key on then off. Open shut door)

  • 11. Locks will cycle put key in ignition turn to on then off
  • 12. Remove key from ignition, close door and test remote



2) How to program your car key to start  (Programming the transponder chip) - do it yourself:

  • 1. Put Original master key in and out of ignition 5 times. Finish with key in ignition
  • 2. Open and shut door 6 times
  • 3. Remove original, insert new key
  • 4. Leave for 60 seconds (or till Security light goes out on dashboard)
  • 5. After 60 seconds security light stops flashing then you can start car.
  • 6. Take key out
  • 7. Open and shut door



Package Includes:

  • 1 X Complete Remote Car Key, 1х Battery
