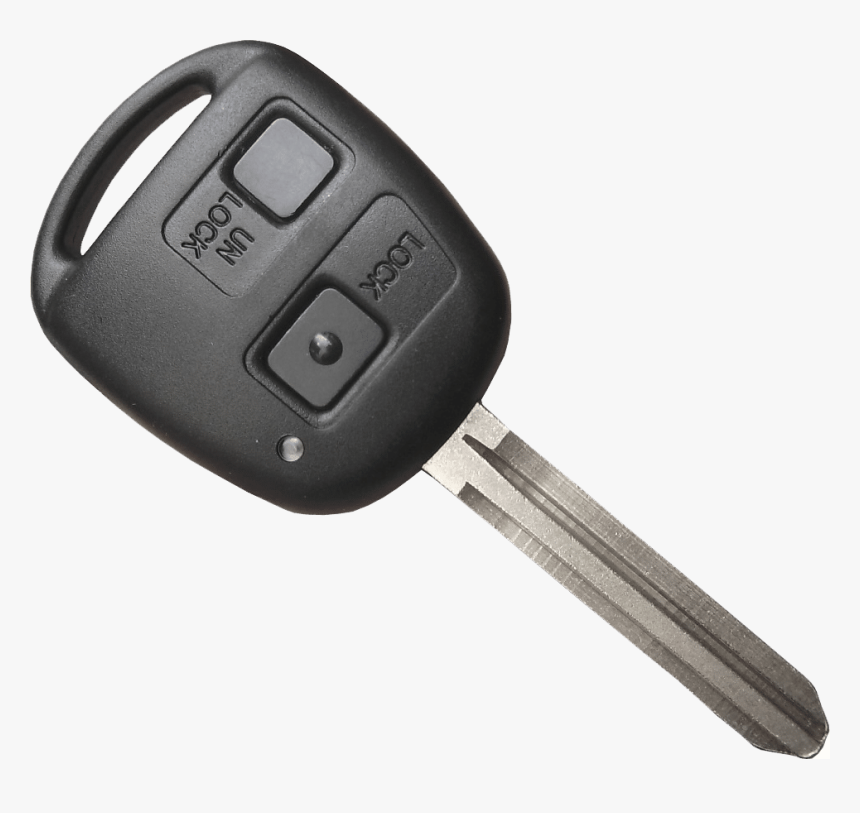

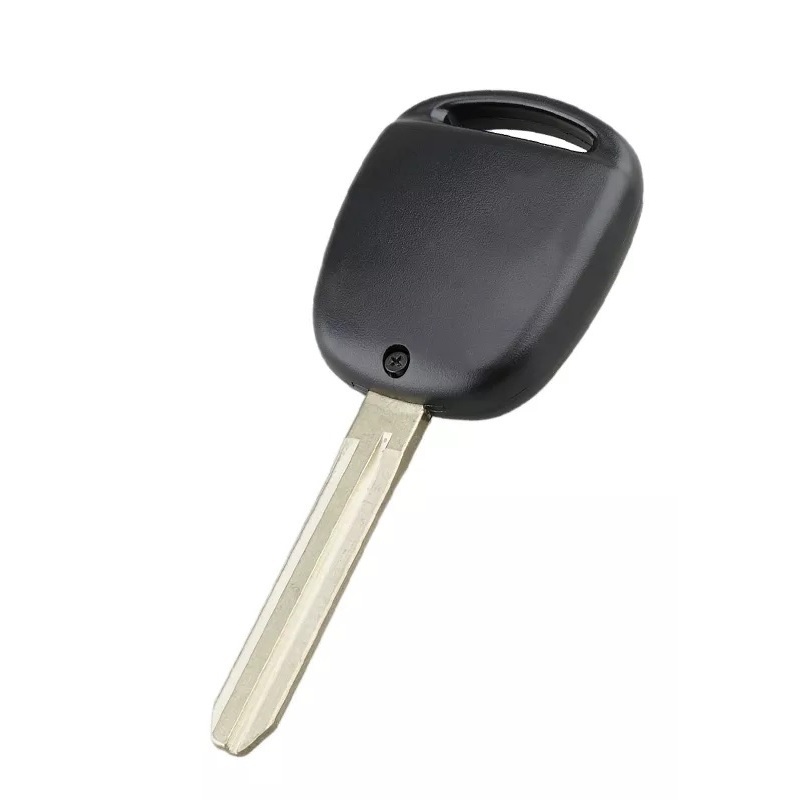

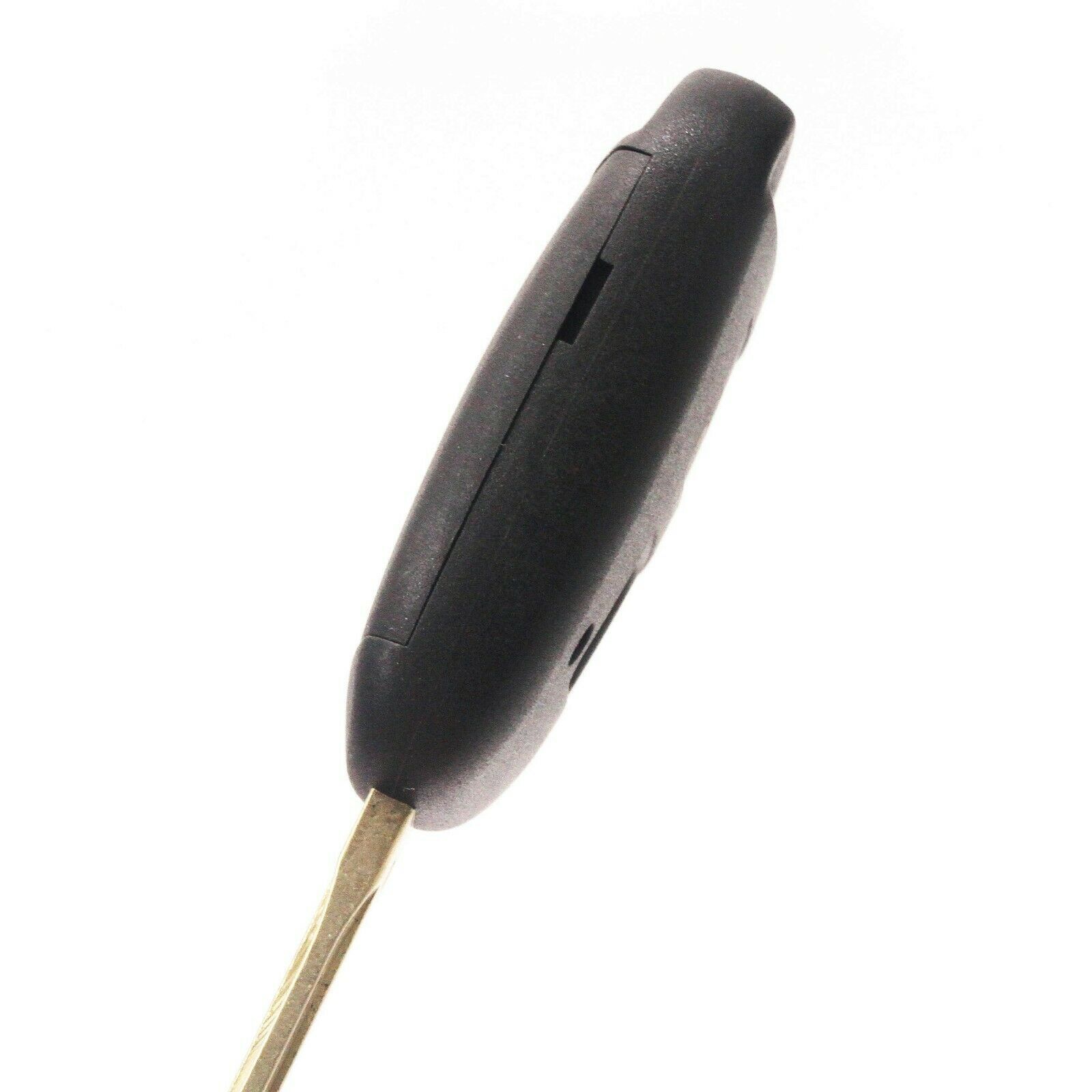

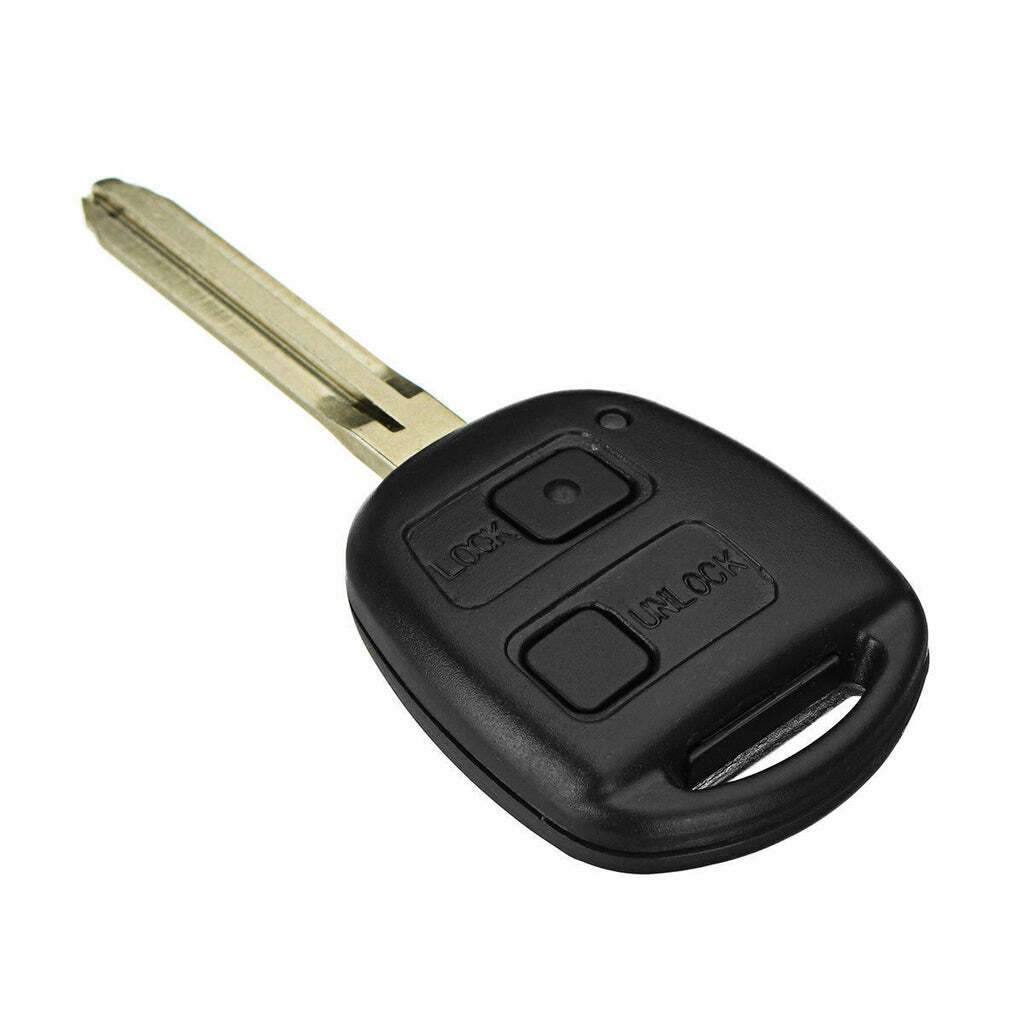

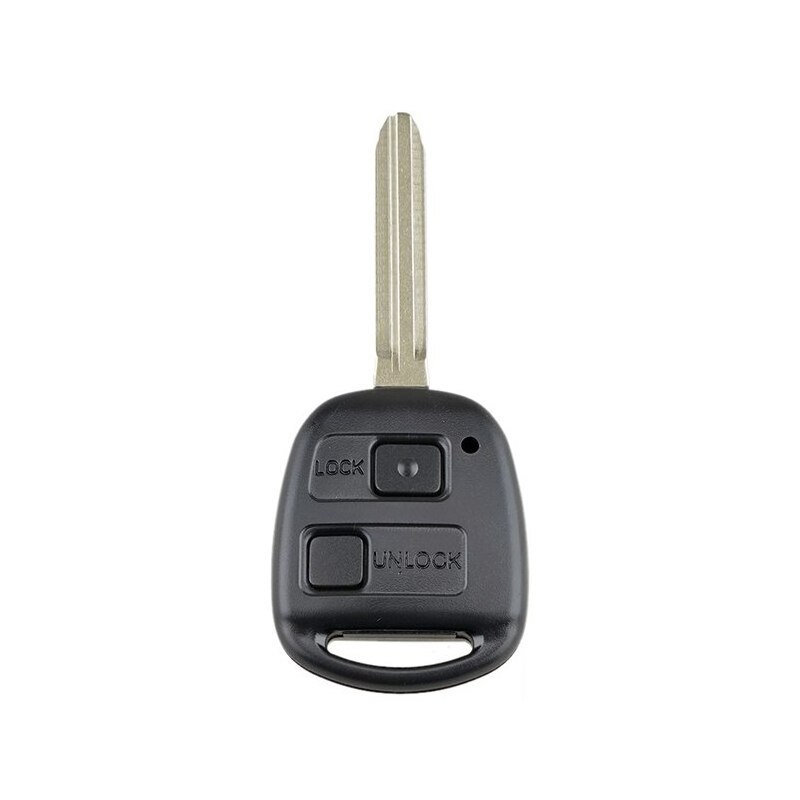

Complete Remote Car Key suitable for Toyota Avensis It's a good way to buy a new remote key for your car. This is a complete remote / key with all the interior (remote / electronics / transponder chips / battery) unit. Key will need to be cut and programmed by either a Locksmith or Toyota dealer.



Fitment and Suitable for:

• Toyota Avensis 2003 - 2010





Key will need to be cut and programmed by either a Locksmith or following our programming instructions listed below

You will need to have at least one working either black key or another remote key

It will not work if you have service grey key

To check this is correct key for your car you can pop open your existing key case cover and check number stamped be on remote part number should be "50171"



Features:

• Comes with 433MHz transponder chip ID46
• Chip needs programing, please turn to the locksmith or dealer
• Uncut blade (get the blade cut by a local locksmith/dealer or swap the blade with your original)
• Battery included in the key remote
• A perfect replacement for your damaged/worn remote key
• FOB does not come with any emblem or logos





Specification:

• Model: COMPLETE REMOTE CAR KEY 50171
• Remote Frequency: 433MHZ
• Buttons:2

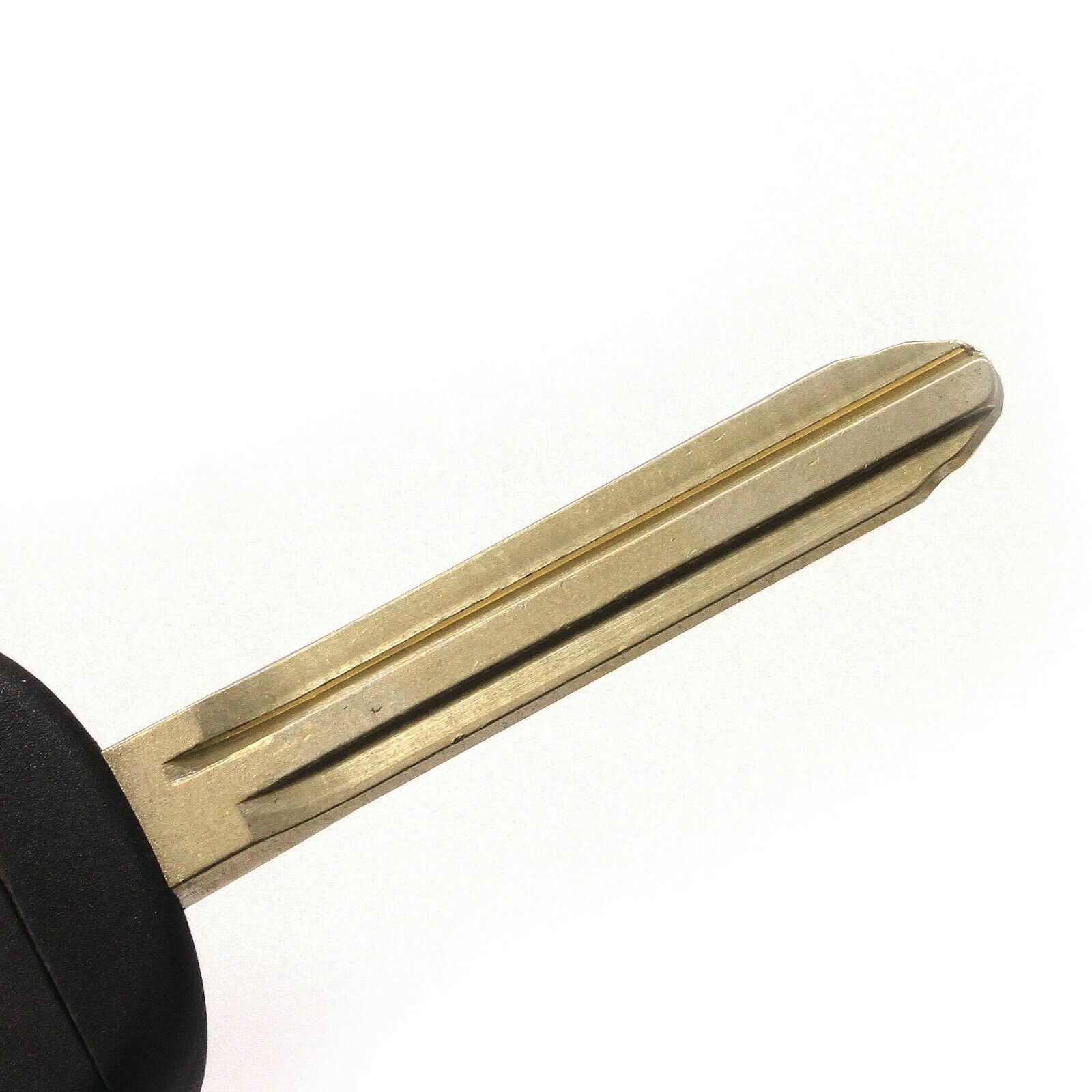

• Blade: TOY43 (UNCUT)
• Transponder Chip: 4D67
• FCC ID: 50171
• No logo or part numbers on the remote key



Package Content:

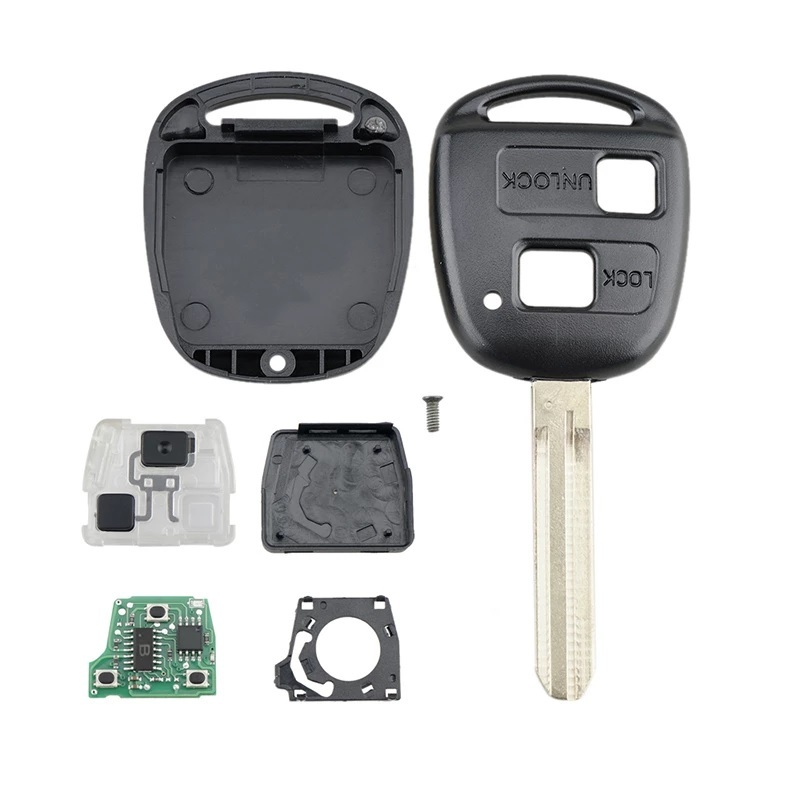

• 1X COMPLETE REMOTE CAR KEY ( Transponder chip + remote car key + shell cover)
• 1X Battery



NOTES:



• Make sure that the key is correct for your car: you can pop open your existing key case cover and check the number stamped on the remote. Part number should be "50171" or  "60081".
• Key blade will need to be cut (this key is uncut)
• For remote programming, you must have one original working black key or remote key. It will not work if you have service grey key.
• Ensure you have all keys present during re-coding.
• Please program remote first before cutting the key.
• Please follow the recommended instructions!





How to program remote yourself:



Preparatory steps

With key out of the ignition sit in driver seat with DRIVER DOOR opened and unlocked, all OTHER DOORS closed and locked.





• 1. Within 5 seconds: Insert the key into the ignition (Do NOT Turn it) and Pull key out twice (in, out, in, out)
• 2. Within 40 seconds: Close then open the drivers door twice (close, open, close, open), then insert the key into the ignition (Do NOT Turn it) and Pull key out.
• 3. Within 40 seconds: Close then open the drivers door twice (close, open, close, open). Insert the key into ignition and leave it in the ignition. Close the drivers door. Turn the ignition to ON then back to OFF (Do NOT Start or crank engine). Remove the key from the ignition.
• 4. Within 3 seconds, the door locks should LOCK then UNLOCK automatically indicating successful entry into programming mode. Return to step 1 if the locks do not cycle at this point.
• 5. Within 40 seconds: Press the lock and unlock buttons on the remote simultaneously for 2 seconds. Immediately after letting go of the lock and unlock buttons, press and hold the lock button by itself. Within 10 seconds, the door locks should lock and then unlock once indicating successful programming. (If the door locks cycle twice, repeat step 5 as the remote was not accepted)
• 6. Repeat step 5 for each new remote.
• 7. Open drivers door to exit the programming mode.



To Delete All Remotes from the Vehicle

 At Step 3, turn the key on and off 5 times (instead of 1) then remove key, door locks will cycle 5 times. Turn the key on then off. Open and shut the door. All remotes that were coded into the car, have now been removed.



How to program the key transponder chip:



• 1. Put Original master key in and out of ignition 5 times. Finish with key in ignition (in, out, in, out, in, out, in, out, in)
• 2. Open and shut door 6 times
• 3. Remove original key and insert the new key (Do not turn the key, just insert it into the ignition)
• 4. Leave for 60s (or till light goes out)
• 5. After 60s security light stops flashing then you can start the car.
• 6. Take the key out
• 7. Open and shut door
