Flexible deployment with simplicity in management01
  • Small offices with a single WAC120 to provide maximum throughput for the entire premise
  • Dental offices with a few WAC120 to provide ubiquitous coverage with strong receptions
  • Small hospitalities such as Bed and Breakfast for ease of setup and reliable connectivity
Gigabit Wireless Connectivity for Small Office and Home Office02
  • Support up to 1.2 Gbps (867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz) of wireless throughput
  • Gigabit wired connectivity to Internet gateway routers or cable modems
  • Dual band concurrent operation at both 2.4 and 5 GHz frequency range
Simple connectivity and ease of set up03

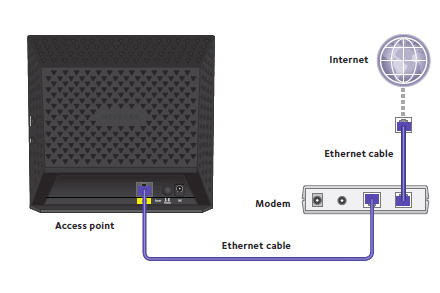

  • Connect simply to DSL gateway, routers, or cable modems

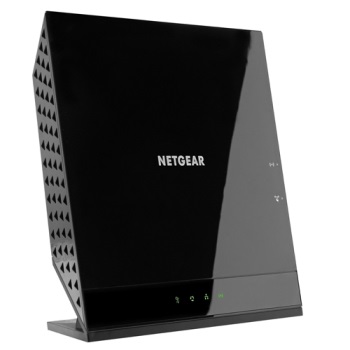

  • WAC120 802.11ac Access Point provides high performance gigabit wireless
  • Wireless Protected Setup (WPS) button enables ease of client auto configuration

Power
  • Country-specific plug: 12V / 1A (12W)
  • 1 Amp power adapter
  • Power consumption: 8.1W (maximum)
Physical Specifications
  • Dimensions (L x W x H): 7.08 x 6.69 x 2.36 in (180 x 170 x 60 mm)
  • Weight: 0.71 lb (322 g)
Mounting
  • Desktop

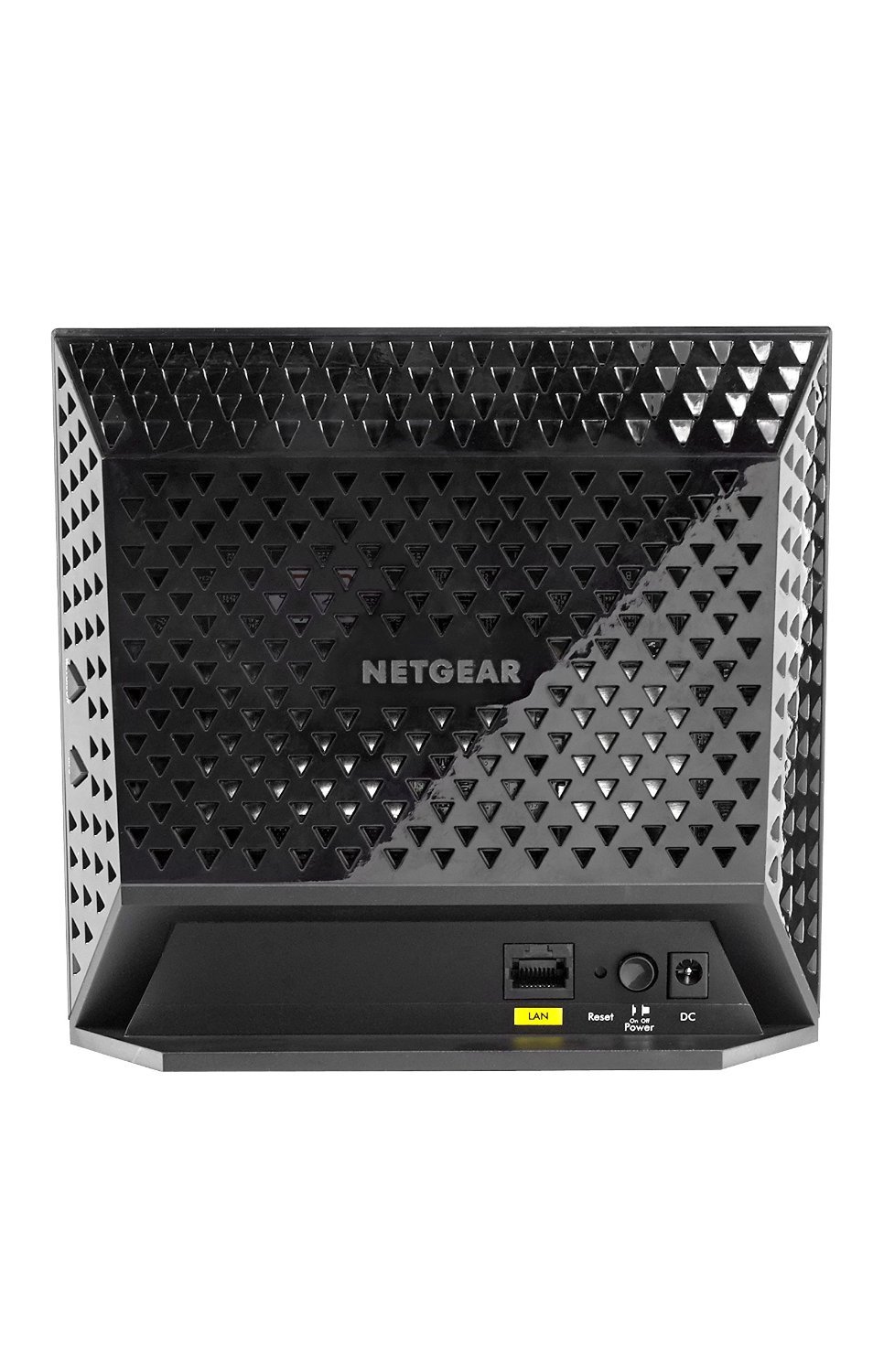

Physical Interfaces
  • One (1) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink™ (Auto MDI-X)

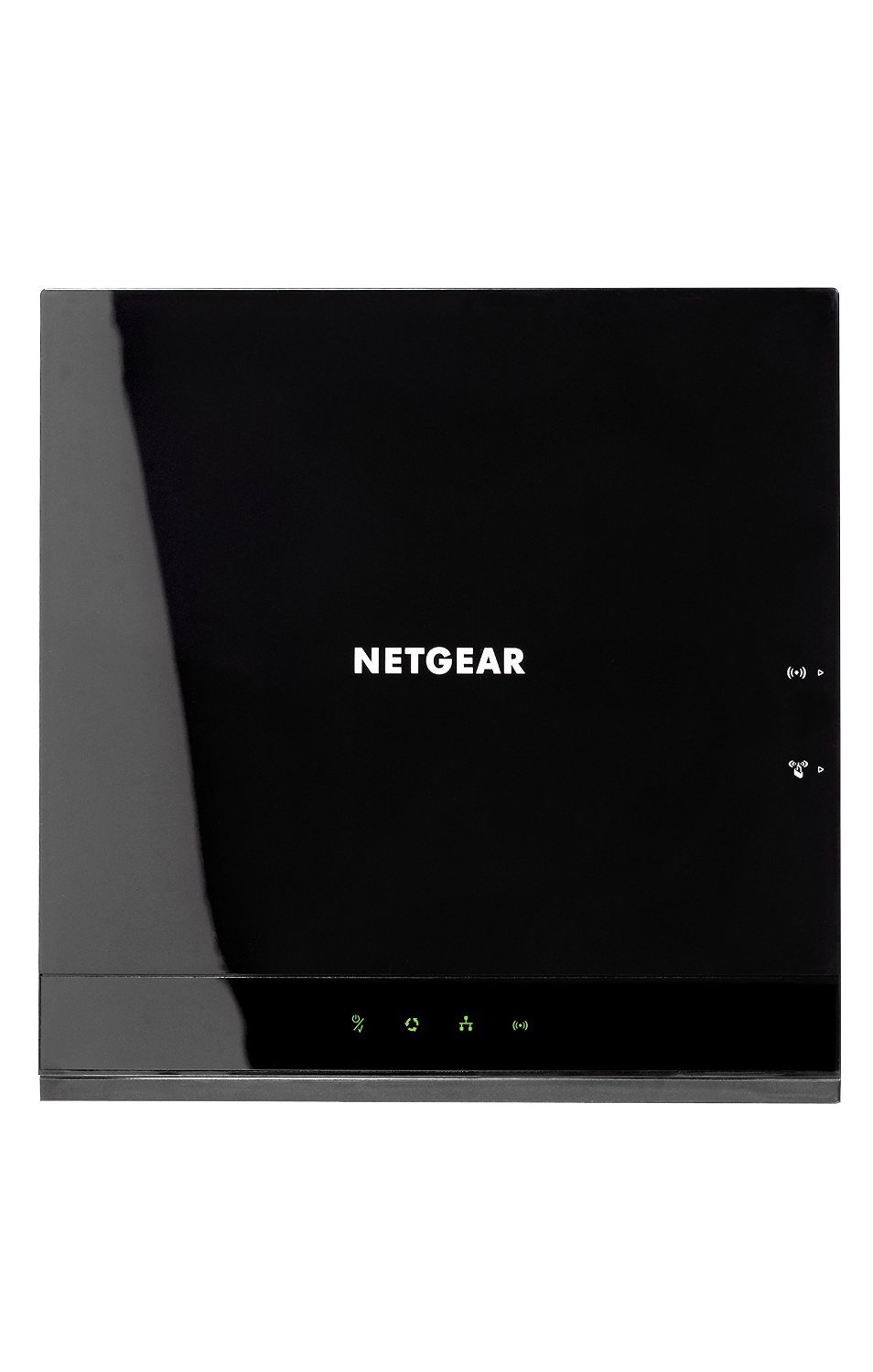

LEDs
  • Power/Test, ACT, LAN, Wireless
Default Reset
  • Yes
Operating Temperature
  • 32° to 104° F (0° to 40° C)
Storage Temperature
  • -4° to 158° F (-20° to 70° C)
Operating Relative Humidity
  • 10-90%
Storage Humidity
  • 5-95%
MTBF
  • @ 25° C > 375,000 hours
  • @ 50° C > 125,000 hours
Standards
  • IEEE 802.11ac specification
  • IEEE 802.11n 2.0 specification
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a
Frequency Band
  • 2.4GHz and 5GHz concurrent operation
Maximum Theoretical Throughput
  • 300 Mbps (2.4GHz)
  • 867 Mbps (5GHz)
Maximum Number of Clients
  • 64
Deployment options
  • Standalone
  • Web UI
Access Point
  • Antenna: 2dBi (internal)
Advanced Wireless
  • WDS Point-to-point wireless bridge mode
  • WDS Point-to-multipoint wireless bridge mode
  • Wireless client mode
Security
  • Wired Equivalent Privacy (WEP) Encryption
  • WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK)
  • MAC Address filtering
  • 1 BSSID
MAC ACL
  • Yes
Wireless Client Mode
  • Yes
VPN Pass-through
  • Yes
802.11e WMM
  • (Wireless multimedia mode) for QoS
Simultaneous Bridge/Client Association
  • Yes
Package Contents
  • 802.11ac Wireless AP (WAC120)
  • Ethernet cable
  • Installation guide
  • Power adapter, localized to country of sale
  • Warranty/support information card
Network TypeWireless
Specificationhttp://www.netgear.com/business/products/wireless/soho-wireless/wac120.aspx#tab-techspecs
WAN-portWi-Fi ADSL
Ports16 x 10/100/1000 Mbps RJ45
Packing Weight322 g
Frequency Wireless2.4 GHz 5 GHz
Wi-FiSpeed300 Mbps 867 Mbps
AntennaInternal
Wireless SecurityWired Equivalent Privacy (WEP) Encryption WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK) MAC Address filtering 1 BSSID
Standards ComplianceIEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11a IEEE 802.11ac
Additional FeaturesSimple setup in minutes with intuitive Graphical User Interface (GUI) Standalone Access Point with mesh, client, and AP modes for flexible deployment for Small Office Home Office (SOHO) LIFETIME 24/7 Advanced Technical Support via chat and 24/7 Advanced Technical Support via phone for 90 days
Packing Width230 mm
Packing Depth220 mm
Packing Height110 mm
Package TypeBOX
