  • Screen Screen ≤ 34 "
  • CapacityCapacity  7–20 lbs 3.2–9.1 kg
  • Lift Lift 13" 33.0 cm
  • Tilt Tilt 180°
  • Pan Pan 360 °
  • Rotation Rotation 360°
  • Vesa Vesa MIS-D



  • UPC: 698833061987
  • Part Number (color):
  • 45-486-216 (white)
  •

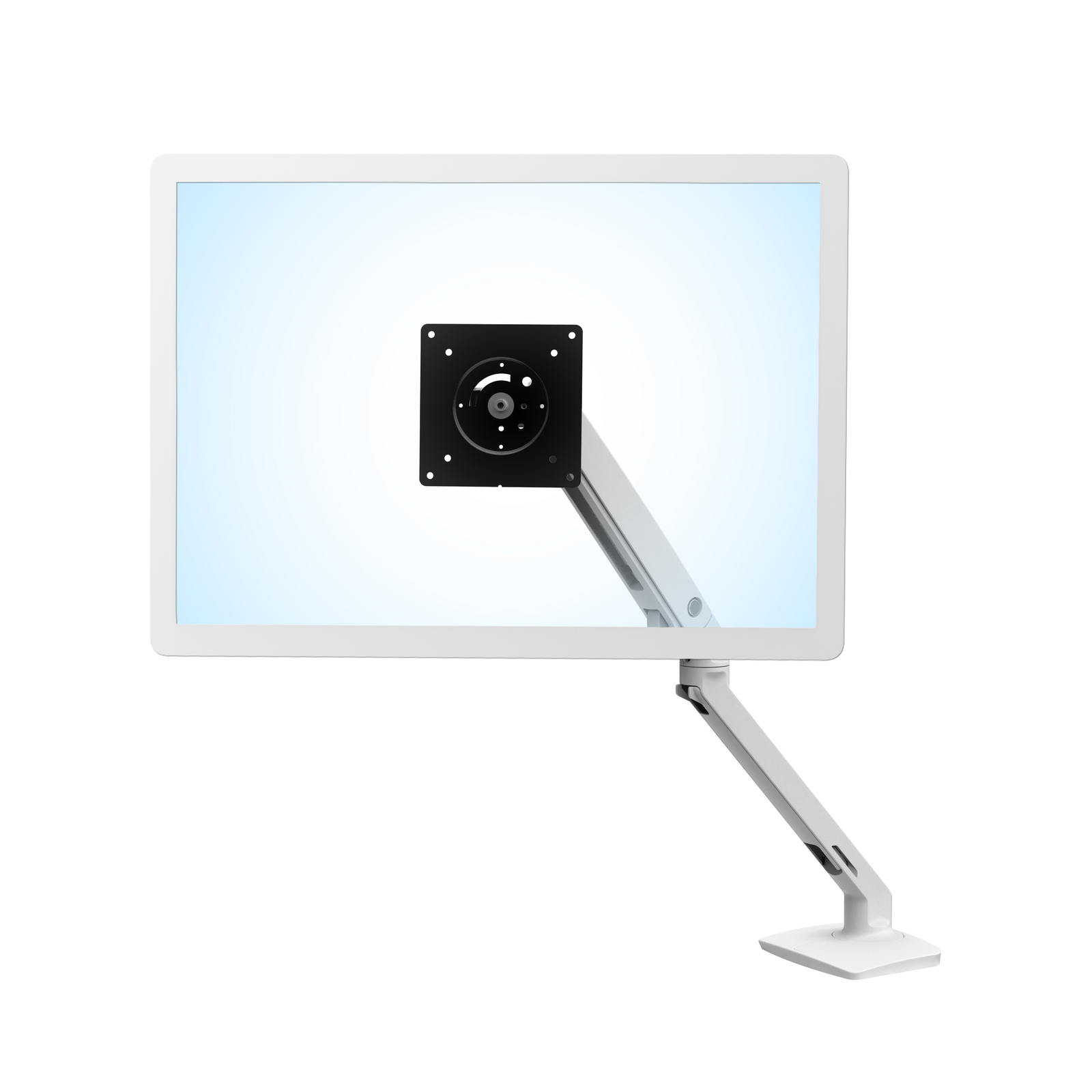

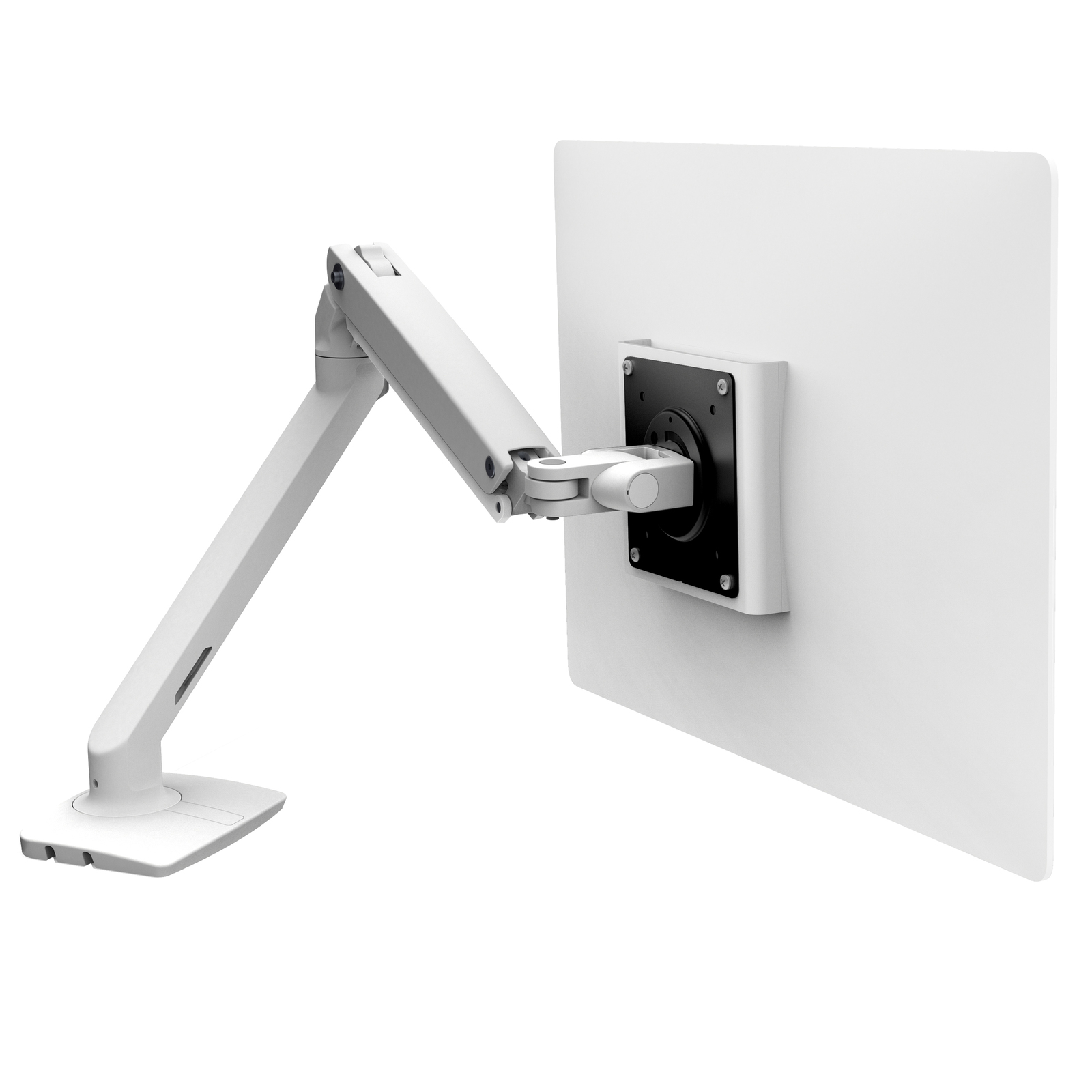

  • Description: MXV Desk Mount LCD Monitor Arm

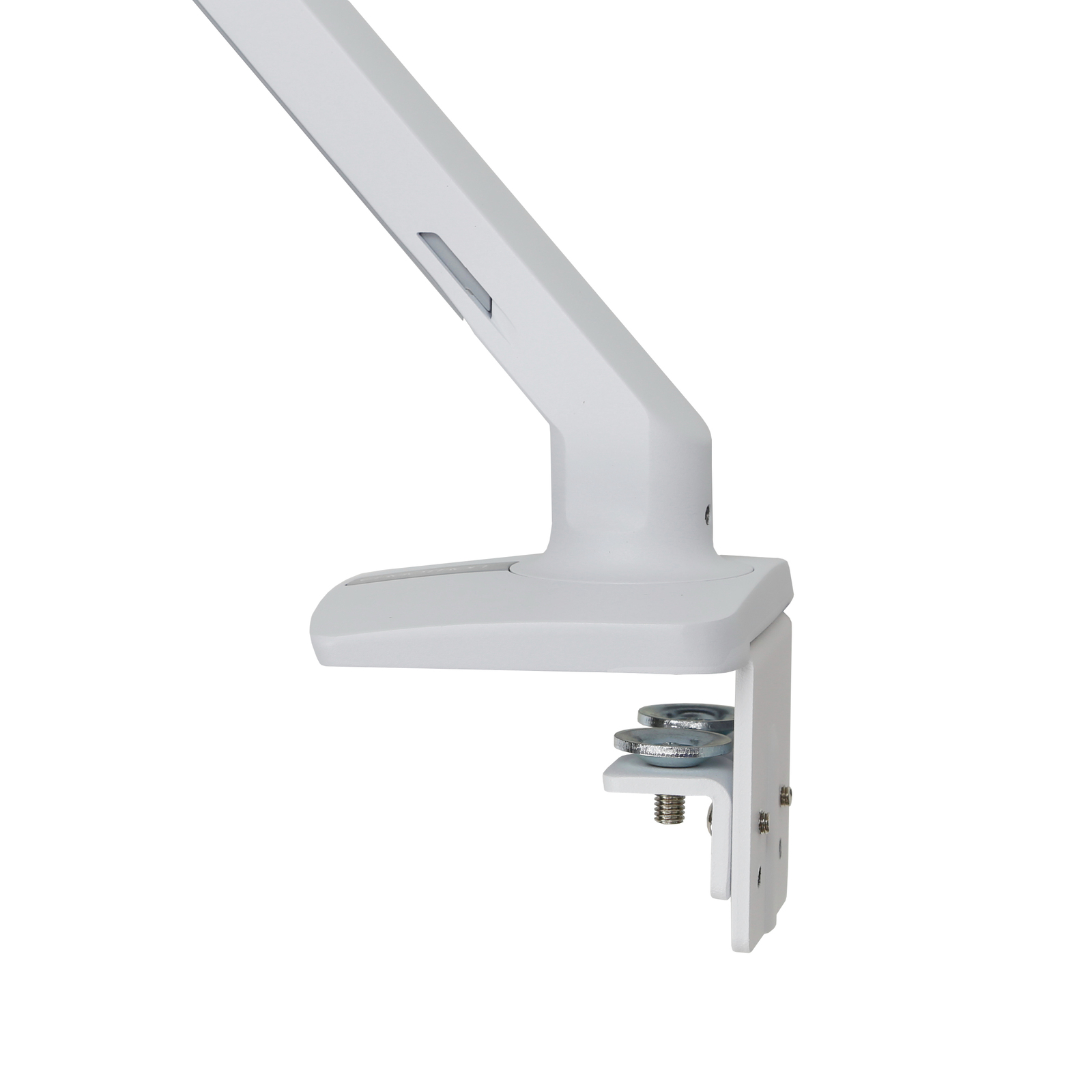

  • Includes fully assembled arm, two-piece desk clamp, mounting hardware
  • Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
  • Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space-constrained areas
  • Mounting Options: Desk Clamp attaches to surface edge .47" to 1.25" (12 to 32 mm) thick
  • An accessory Grommet Mount is available to install arm to the desk via a through-hole in its surface: order 98-110
  • Desk clamp has anti-rotation screws to prevent the base from slipping
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • † Tilt Range: 90° backward, 90° forward
  • ‡ Pan Range: 180° at base; 360° between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase the range to a full 360°
  • Extension Range: 17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate
  • This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
  • Product Weight: 6.4 lbs (2.9 kg)
  • Shipping Dimensions: 34.4" x 9.3" x 7.3" (87.5 x 23.5 x 18.5 cm)
  • Shipping Weight: 7.5 lbs (3.4 kg)
  • Warranty: Ten (10) years
