Milesight Technology IR Mini Dome Network FullHD 3MP Camera

01

Features

02



Camera

Name

Image Sensor

Min. Illumination

WDR

Focal Length

Mount

Field of View

Shutter Time

IR Distance

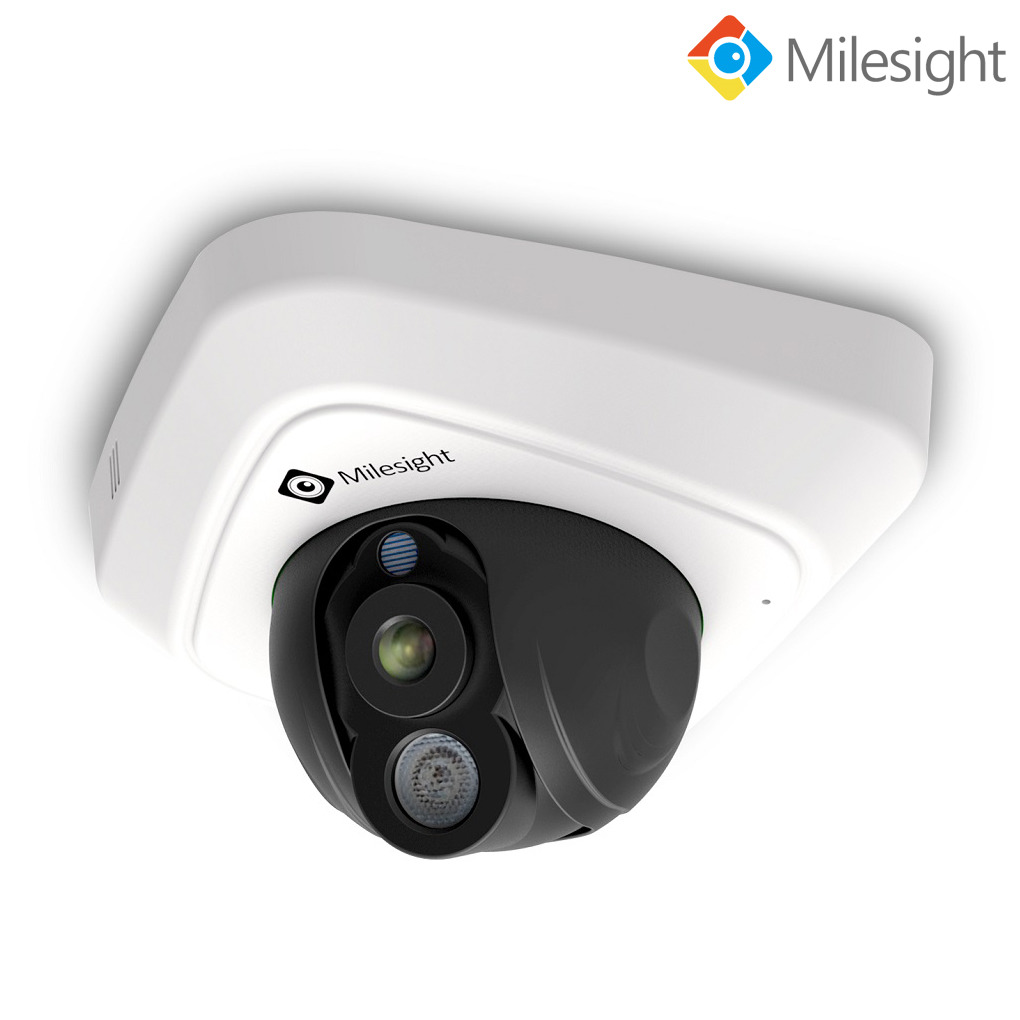

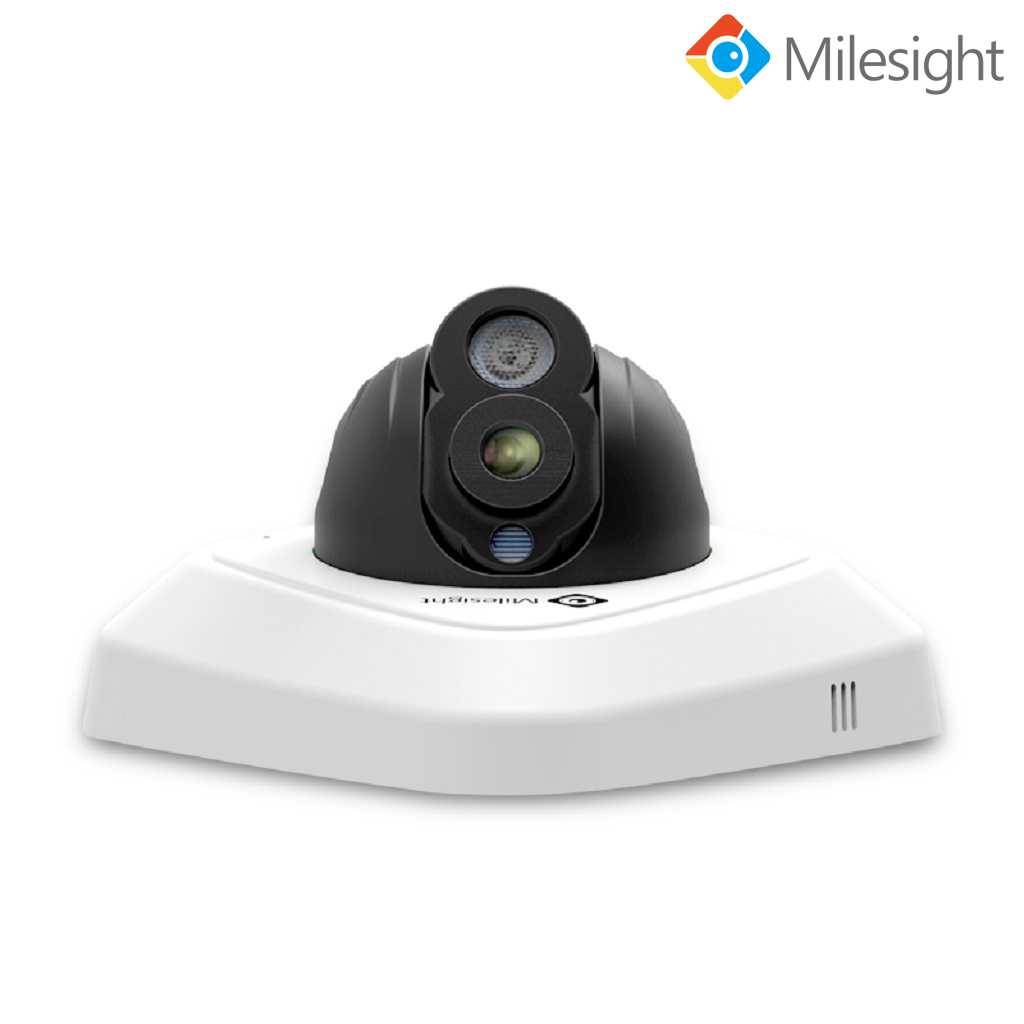

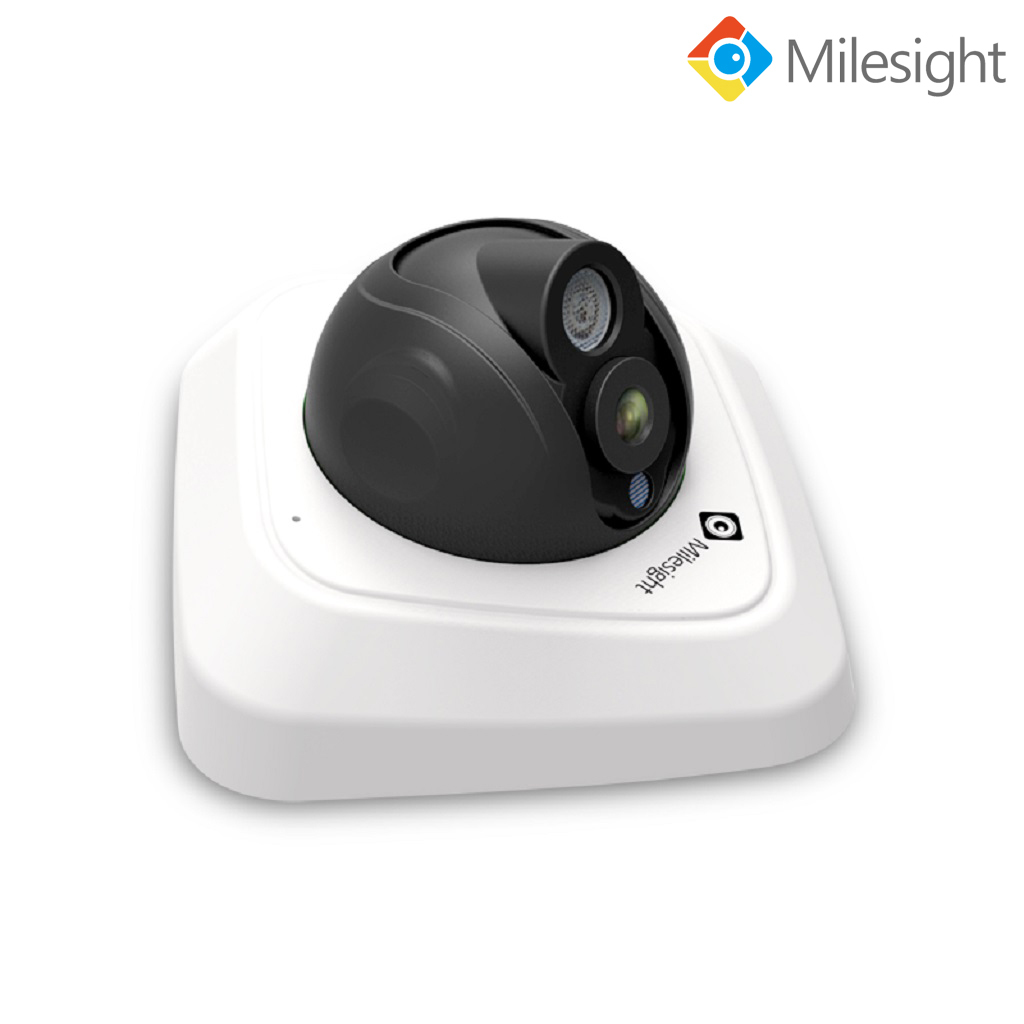

3MP IR Mini Dome Network Camera

1/3" Progressive Scan CMOS

Color: 0.07Lux @F1.2, B/W: 0Lux with IR on

WDR

3.6mm(2.8mm,6mm optional)@F1.6

M12

H72°(3.6mm)

1/100000s-1/5s

10m

Video

Max. Image Resolution

Frame Rate

Video Compression

Video Bit Rate

Image Settings

Web Access

2048×1536

20fps(2048×1536), 30fps(1920×1080), 30fps(1600×1200), 30fps(1280×960), 30fps(1280×720), 30fps(704×576)

H.264/MJPEG

16Kbps~16Mbps (CBR/VBR adjustable)

Saturation/Brightness/Contrast/Sharpness

Support IE/Firefox/Chrome/Safari Browser

Audio

Audio Stream

Audio Compression

Built-in Microphone

G.711/AAC

Network

Communication

Network Storage

Network Protocols

1*RJ45 10M/100M Ethernet Port

NAS(Support NFS, SMB/CIFS)

TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, IPv6, PPPoE, VLAN etc.

System

Storage

Intelligent Video

SIP/VoIP Support

Event Trigger

Event Action

System Compatibility

Support Micro SD/SDHC/SDXC Local Storage, up to 64G

Motion Detection, Privacy Mask, Backlight Compensation, 3D-DNR, ROI

Yes, Voice&Video-over-IP

Motion Detection, Network Disconnection, Audio Alarm, etc.

FTP upload/SMTP upload/SD card record/SIP Phone/Play buzzer

ONVIF Profile S

General

Working Temperature

Working Humidity

Power Supply

Power Consumption

Dimensions

Weight

Warranty

-30?~60?

0~90%(non-condensing)

PoE

4W MAX; 5.5W MAX (with IR on)

106.6mm×106.6mm×53.8mm

150g

2 years
