5MP MESSOA NOD398 1/3 Lumii sensor, H.264, triple streaming, Zoom and Auto Focus, day/night, 20m IR, WDR, 3DNR, IP67, IK10
Product Code: MS-NOD398
Price:
Share This Item:
| Motorized Lens for Remote Zoom and Auto Focus | 01 |
|
| The motor-driven zoom functionality enables configuration over the network to achieve the optimized viewing angle of the monitored area. Auto Focus can be also done with just one simple mouse click, simplifying the installation significantly for faster and easier setup. |
| Flexible Installation with Dual Mount Design | 02 |
|
| With no extra bracket needed, the camera’s detachable modular housing design uniquely allows for the option of recessed in-ceiling mount in addition to surface mount, providing installers with greater flexibility to deploy the camera for discreet installation locations. |
| Built-in Heater Powered by PoE | 03 |
|
| The camera is equipped with built-in heater that can be powered by PoE without requiring extra power supply. It is an ideal feature for extreme weather applications, ensuring camera operation at as low as -50 °C (-58°F). |
| 3D Noise Reduction | 04 |
|
| The 3DNR technology takes traditional DNR a step further, removing digital artifacts and grainy appearance from frame to frame, while maintaining image sharpness at low light settings, which results in more efficient bandwidth utilization and less storage space consumption. |
| True Day/Night with Mechanical ICR | 05 |
|
| Featuring IR Cut Filter Removable (ICR) function, the camera is perfect for capturing truer color images at day time by filtering out IR. At night, IR is allowed for the camera working in B/W mode and being more sensitive to IR, thereby capturing clearer monochrome images. |
| ONVIF Profile G Compliant | 06 |
|
| Profile G refines the interoperability between live video, video storage and recording. NOD398 can be integrated with third-party video management systems of Profile G specification, and support SD/mSD card on-board video storage, search and retrieval capabilities, and media playback. |
Overview

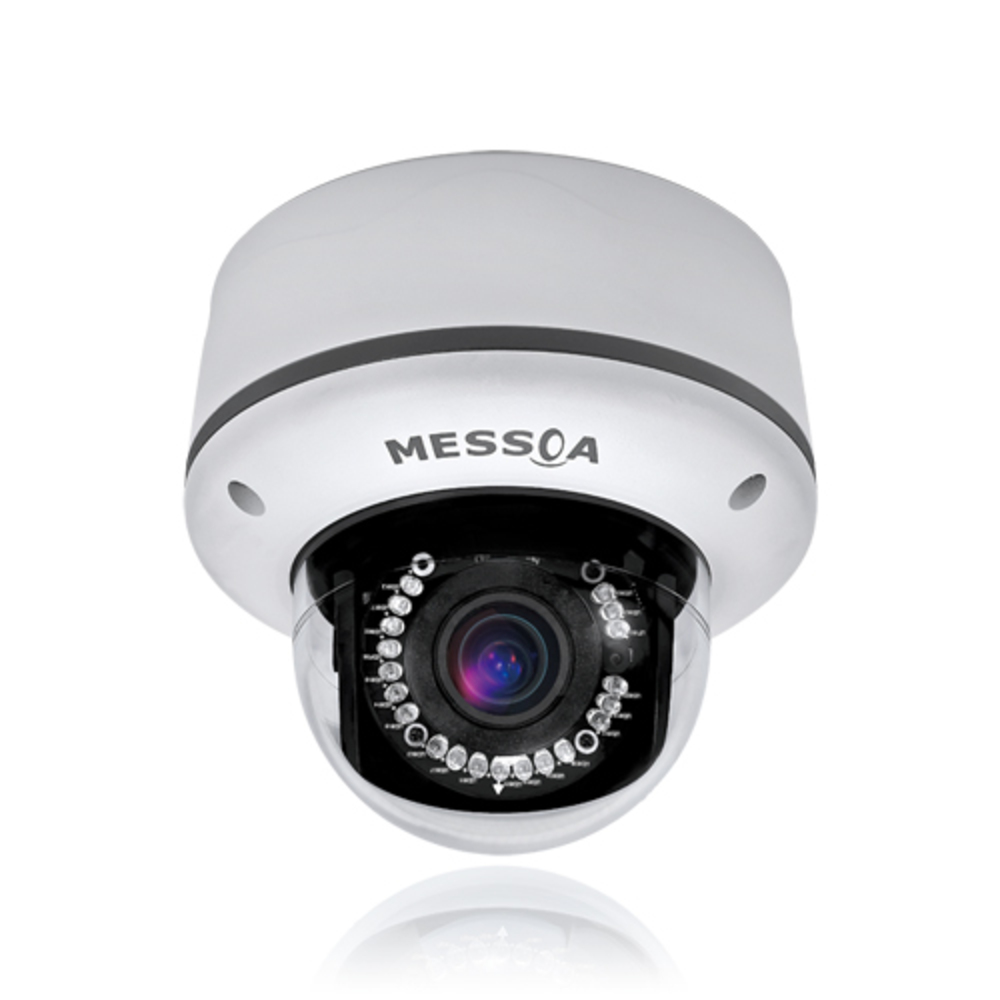

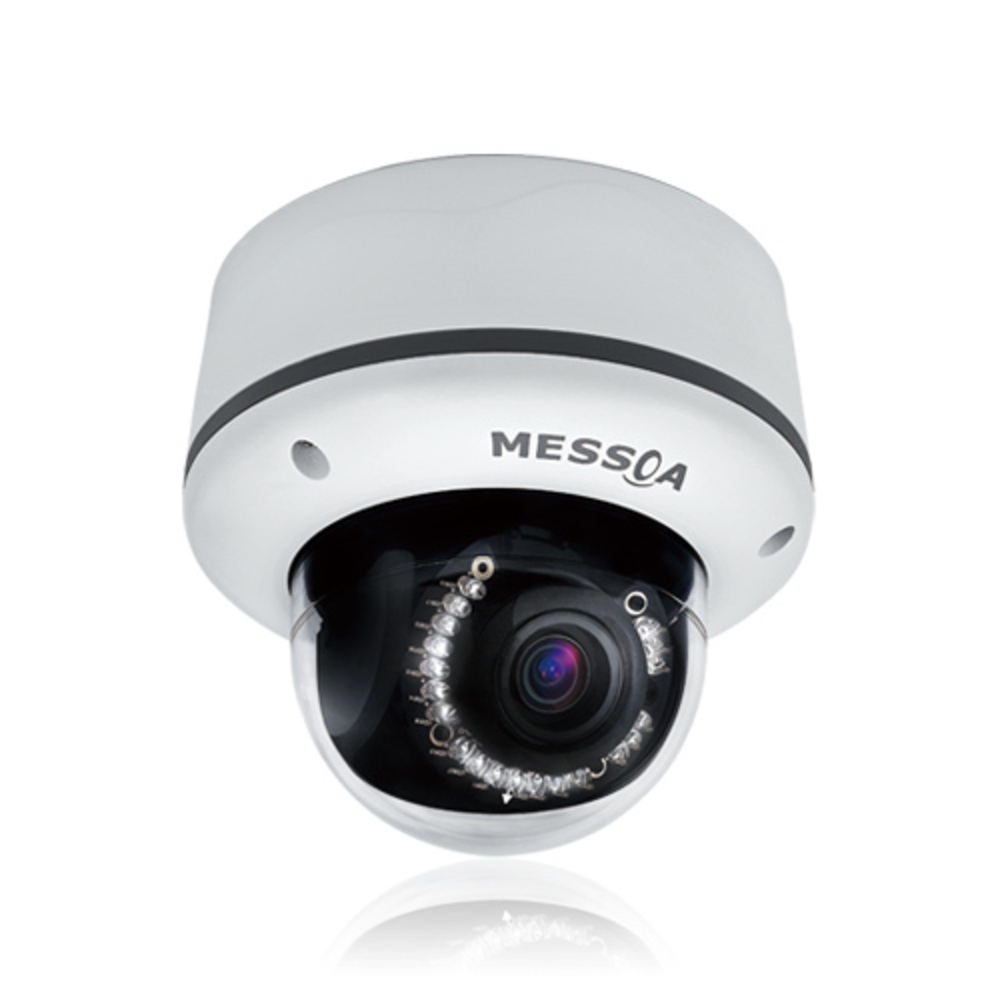

The NOD398 is a professional 5-megapixel motorized IP dome camera designed for detaildemanding outdoor surveillance, delivering superior high definition video quality up to 30fps. A true day/night camera, the NOD398 features enhanced sensitivity backed by proprietary Lumii™ Low Light Technology, IR night vision and 3DNR to provide unprecedented image clarity under the cover of darkness. The built-in heater and the weatherproof enclosure ensure the camera is suited for outdoor deployment. The NOD398 also features installation-facilitating motorized zoom with auto focus and the unique modular design for recessed mount, making it a versatile solution across various applications.
Motorized Lens for Remote Zoom and Auto Focus
The motor-driven zoom functionality enables configuration over the network to achieve the optimized viewing angle of the monitored area. Auto Focus can be also done with just one simple mouse click, simplifying the installation significantly for faster and easier setup.

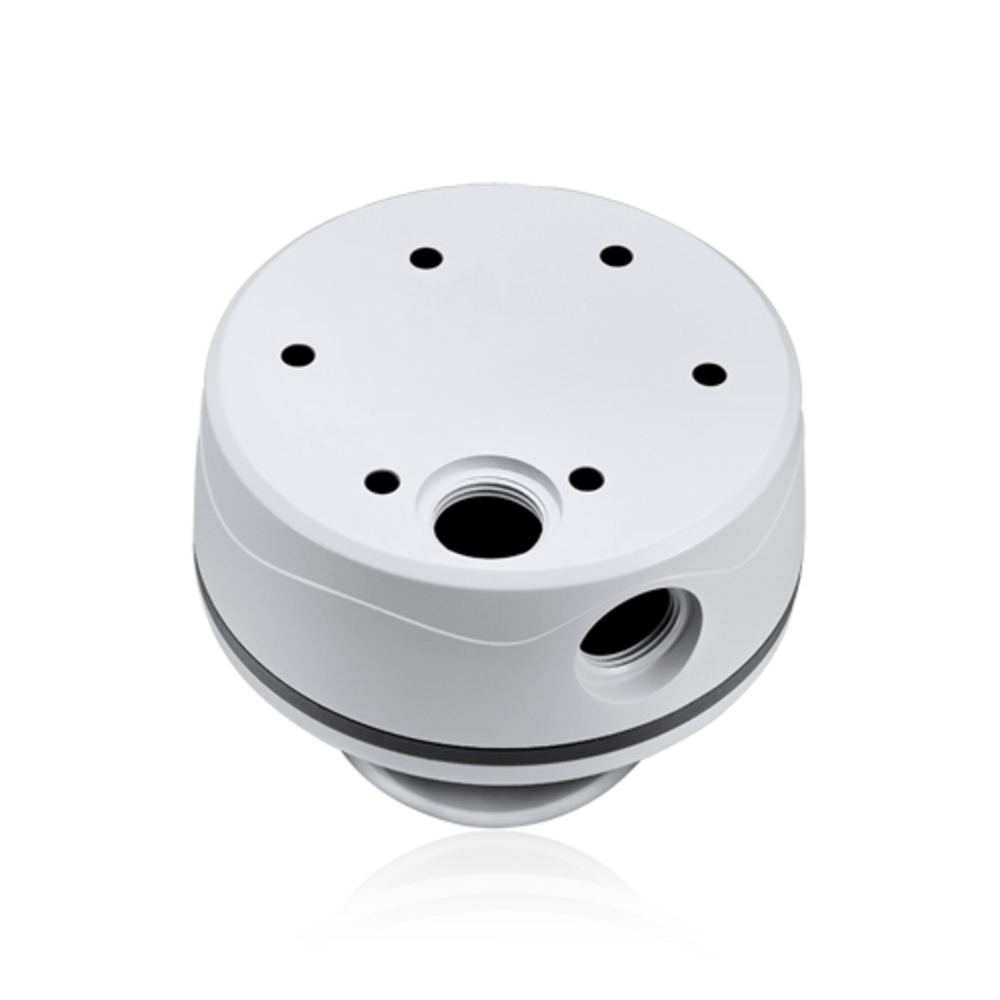

Flexible Installation with Dual Mount Design
With no extra bracket needed, the camera’s detachable modular housing design uniquely allows for the option of recessed in-ceiling mount in addition to surface mount, providing installers with greater flexibility to deploy the camera for discreet installation locations.
3D Noise Reduction
The 3DNR technology takes traditional DNR a step further, removing digital artifacts and grainy appearance from frame to frame, while maintaining image sharpness at low light settings, which results in more efficient bandwidth utilization and less storage space consumption.
True Day/Night with Mechanical ICR
Featuring IR Cut Filter Removable (ICR) function, the camera is perfect for capturing truer color images at day time by filtering out IR. At night, IR is allowed for the camera working in B/W mode and being more sensitive to IR, thereby capturing clearer monochrome images.
Built-in Heater Powered by PoE
The camera is equipped with built-in heater that can be powered by PoE without requiring extra power supply. It is an ideal feature for extreme weather applications, ensuring camera operation at as low as -50 °C (-58°F).
Video | |
| Sensor Type | 1/3.2" progressive scan CMOS sensor |
| Active Pixels | 2592x1944 (HxV) |
| Compression | H.264 / MJPEG |
| Streaming | Triple simultaneous streams with multiple video profile |
| Resolution | 2592x1944, QXGA(2048x1536), 1080P, 1280x960, 720P, SVGA(800x 600), VGA(640x480), 640x360, QVGA(320x240), 320x180 |
| Max. Frame Rate | 5MP 4:3 (2592x1944) at 12 fps 3MP 4:3 (2048x1536) at 15 fps 2MP Full HD 16:9 (1920x1080) at 30/25fps (NTSC/PAL) |
| Day/Night | Mechanical (ICR) D/N Control |
| Day/Night Mode | Auto/ BW/ Color |
| Shutter Time | 1/10,000s to 1/7.5s Selectable (60Hz); 1/10,000s to 1/6.25s Selectable (50Hz) |
| Minimum Illumination | IR LED OFF: Color: 0.15 lux at 50 IRE, 0.03 lux at 10 IRE, F1.2 (Shutter speed: 1/15sec) IR LED ON: 0 lux |
| Video Output | NTSC: 720x480 @30fps; PAL: 720x576 @25fps |
| Bit Rate Control | CBR, VBR |
Lens | |
| Lens Type | Built-in; Varifocal |
| Focal Length | f=3~9mm, F1.2 |
| Focus / Zoom | Autofocus, motorized / Remote |
| View Angle | H: 78°(Wide)~28°(Tele) |
| IRIS Control | DC IRIS |
IR LEDs | |
| LED Quantity | 20 pcs(850nm) |
| IR Distance | 25 meters (82ft) |
| IR turn on Status | Under 5 lux by auto control |
| LED Life | More than 10,000 hours |
Audio | |
| Audio Communication | Two-way Audio |
| Compression | G.711 PCM 8kHz, a/µ-law support |
| Audio In/Out | External microphone and speaker |
Image Enhancement | |
| Image Settings | AES, AWB, AGC Exposure Mode: AES / ALC / Flickerless / Manual; White Balance: Auto / Manual; Backlight Compensation Configurable Brightness, Contrast, Hue, Saturation, and Sharpness Gamma Correction |
| WDR | Enhanced Digital WDR |
| DNR | Configurable 3DNR setting |
| Privacy Zone | Yes, up to 8 privacy zones |
| Image Orientation | Mirror, Flip |
| Frequency Control | NTSC(60Hz)/ PAL(50Hz) |
| Date & Time Stamp | Yes |
Intelligent Video & Event Management | |
| Motion Detection | Yes, 3-level sensitivity |
| Ethernet Detection | Network loss detection |
| Others | Optimized i-frame (GOP) setting |
| Events | Motion detection, ethernet detection, external alarm |
| Event Actions | Event snapshot to remote FTP storage/ email recipients, Edge recording to SD card, HTTP event query, HTTP event client pulling |
| Store Category | Event snapshot, Edge recording, Manual Snapshot, Manual Recording |
Local Storage* | |
| Memory Card Slot | microSDXC/SDHC card(Card not included and support up to 128GB) |
| Memory Card Overwrite | Yes |
Network | |
| Protocol | ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, UDP, UPnP, IEEE802.1X |
| Ethernet | 10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45 |
| Browser | Internet Explorer, Chrome, Firefox, Safari |
| Security | Multiple user access levels with passiword protection; |
I/O & Controls | |
| Power | 2-pin Terminal block/ Female RJ-45 10BASE-T/ 100BASE-TX PoE |
| Power LED Indicator | System power and status indicator |
| Alarm In/Out | Terminal block 1 in / 1 relay out (30V, 1A) |
| Network | RJ-45 with LED Indicator |
| Audio In/Out | Terminal block 1 in / 1 out |
| Analog Video | 1 x composite video out, micro JST |
| System Reboot | Reset x 1 |
| Factory Default | Default x 1, pressing 5 sec for loading factory default |
Power | |
| Power Requirement | Heater Drive: AC 24V ± 10% / PoE (IEEE 802.3af) *Arctic power-on support by PoE at -50°C Demist Drive: AC 24V ± 10% |
| Power Consumption (Max.) | 26W |
Mechanical | |
| Dimensions(ΦxH)) | Φ147mm x 140mm (Φ5.79” x 5.5”) |
| Weight | 1250g (2.76 lb) |
| 3-Axis | Yes |
| Pan/Tilt Adjustment | Pan: 0°-350°(Max.), Tilt: 25°-90°(Max.), Rotate: 0°-350°(Max.) |
| Protection | IP66 Certified, IP67/IP68 Compliant IK10 Compliant |
Environmental | |
| Operating Temperature | (On-board heating device) -50ºC ~ 50ºC (-58ºF ~ 122 ºF) |
| Operating Humidity | 90% RH, non-condensing |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
Regulatory | |
| Approvals | CE, FCC, RoHS |
Ordering Information | |
| Model No. | NTSC: NOD398-N2-MES; PAL: NOD398-P2-MES |
| Accessories | Surface Mount & Recessed-mount: standard package support Cable Management Wall mount: SAB755 L-type Wall Mount: SAB749-1W Pendent Mount: SAB755M |
