Security Camera Network 1080p Full HD Outdoor IP67 or Home IR Night H.264 2MP
Product Code: MS-NDR891PRO
Price:
Share This Item:
| Full HD, Full Frame Rate | 01 |
|
| With Full HD quality images up to 30 frames per second, the camera offers greater resolutions, more coverage, and much smoother video display, providing exceptional details and better chances for identification. Blurry images are reduced as objects of interest come through in perfect clarity 24/7. |
| H.264 Dual Streaming | 02 |
|
| With triple streaming, the camera supports 2 independent H.264 streams simultaneously. This advanced technology greatly saves costs by lowering bandwidth and storage requirement while improving the overall system performance. |
| True Day/Night with Mechanical ICR | 03 |
|
| The camera is perfect for capturing images under highly variable lighting conditions between day and night, providing superior color images at day time and sharp, noise-free monochrome images in low light to nearly no light environment. |
| Intelligent Video Management | 04 |
|
| The camera features a variety of intelligent video detections, event management and smart encoding, allowing event/region-specific monitoring that help inform security staff right when the event takes place, while reducing network and storage loads as only relevant video streams will be recorded. |

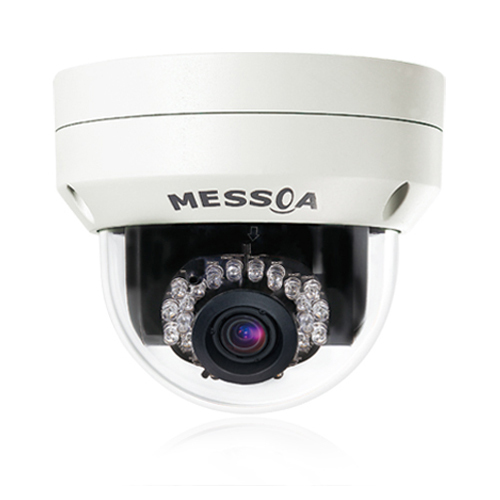

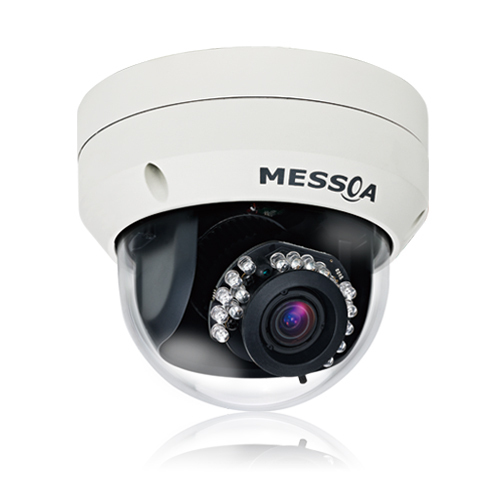

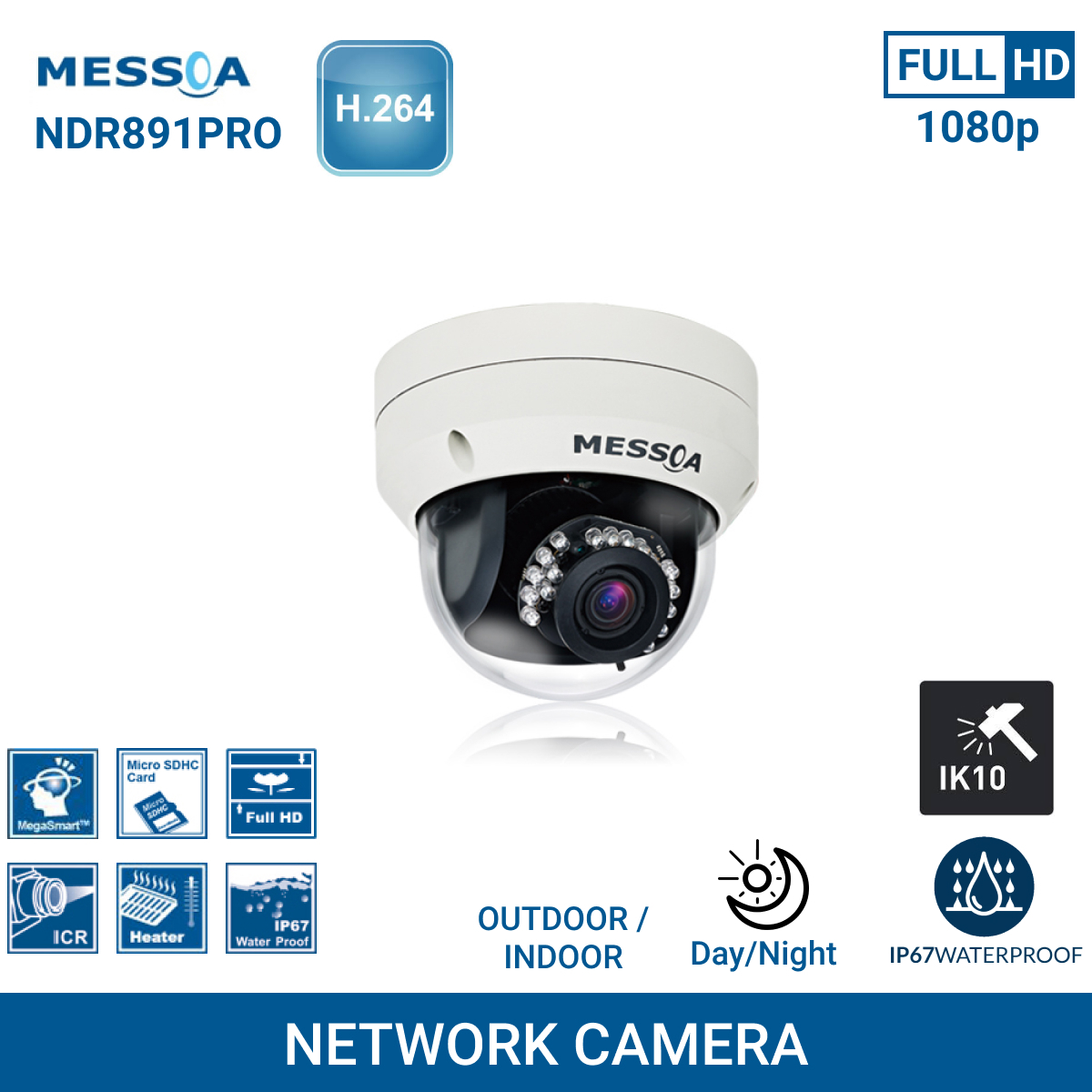

MESSOA NDR891PRO - 2MP, H.264, Full HD, Smart Focus, IP67, IK10, Outdoor Dome Network Camera 1/2.7" Lumii sensor, 25M (82ft) IR, triple streaming, full frame rate, dual H.264 streams, ICR day/night, IP67, IK10 * Full HD, Full Frame Rate * H.264 Dual Streaming * True Day/Night with Mechanical ICR * Intelligent Video Management * Outdoor-Ready Design * 3 Year Warranty For Full Specifications please see Manufacturers Website.
Video | |
| Sensor Type | 1/2.7” image sensor optimized for low-light performance |
| Active Pixels | 1920x1080 (HxV) |
| Compression | H.264, MPEG-4, MJPEG |
| Streaming | Triple simultaneous streams |
| Resolution | 1080p, SXVGA, 720P, XGA, SVGA, D1, VGA, 2CIF, CIF |
| Max. Frame Rate | 2MP 16:9 (1920x1080) at 30 fps (NTSC) and 25 fps (PAL) |
| Day/Night | Mechanical (ICR) D/N Control |
| Day/Night Mode | Auto |
| Shutter Time | 1/10000s to 1/3.75s Selectable (60Hz); 1/10000s to 1/3.125s Selectable (50Hz) |
| Min. llumination | IR LED Off (shutter speed: 1/15sec): 0.06 Lux @10IRE; 0.30Lux @50IRE IR LED On: 0 lux |
| Video Output | NTSC: 720 X 480@30fps; PAL: 720 X 576@25fps |
| Bit Rate Control | CBR/VBR (Primary Stream) |
Lens | |
| Type, Focal Length, F-number | Built-in Mechanical IR Cut Filter varifocal lens, f=3~9mm, F1.2 (Mega pixel lens) |
| View Angle | H: 93°(Wide)~31.7°(Tele)/V:68.4°(Wide)~23.8°(Tele) |
| View Angle Adjustment | Pan:0°-355°(Max.); Tilt:0°-90°(Max.); Rotate:0°-355°(Max.) |
| IRIS Control | DC IRIS |
IR LEDs | |
| LED Quantity | 20 pcs (850nm) |
| IR Distance | 25 meters (82 ft.) |
| IR Activation | Under 10 Lux with auto-control |
| LED Life | More than 10,000 hours (50°) |
Audio | |
| Audio Communication | Two-way mono audio, Full-duplex |
| Compression | G.711, PCM, 8kHz |
| Audio In/Out | External microphone and speaker |
Image Enhancement | |
| Image Settings | AWB, AES, AGC Exposure Mode: Auto/Manual; White Balance: Auto/Manual; Backlight Compensation: 5x5 zones selectable; Sharpness, Saturation, Brightness, Contrast: 255-level sensitivity |
| Digital WDR | Yes; 5-level sensitivity |
| Privacy Zone | Yes; customized threshold privacy zone |
| Image Orientation | Mirror, Flip |
| Frequency Control | 50Hz, 60Hz |
| Date & Time Stamp | Yes |
Intelligent Video & Even Management | |
| Motion Detection | 5x5 zones, 5-level sensitivity or customized threshold |
| Face Detection | 3 level sensitivity |
| Audio Detection | 5-level sensitivity or customized threshold |
| Blur Detection | Customized threshold |
| Ethernet Detection | Network loss detection |
| Smart Encoding | Configurable ROI for better picture quality |
| Others | Snapshot, Smart Focus, e-PTZ, Optimized i-frame setting |
| Events | Motion detection, face detection, audio detection, blur detection, Ethernet detection, external alarm |
| Event Actions | File upload via FTP, SMTP and SD Card; Notification via email, HTTP and TCP External output activation; Video and audio recording to SD Card |
| Storage Category | Alarm / Motion / Schedule / Un-interrupt recording Stores video clips and snapshots |
Local Storage* | |
| Memory Card Slot | microSD/SDHC Card up to 32 GB |
| Memory Card Overwrite | Yes |
Network | |
| Protocol | IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP, RTSP, RTCP, ICMP, UPnP |
| Ethernet | 10Base-T/100Base-TX |
| PoE | IEEE 802.3af, Class 3 |
| Browser | IE Browser 6.0 or above |
| Security | Two-level access with password protection |

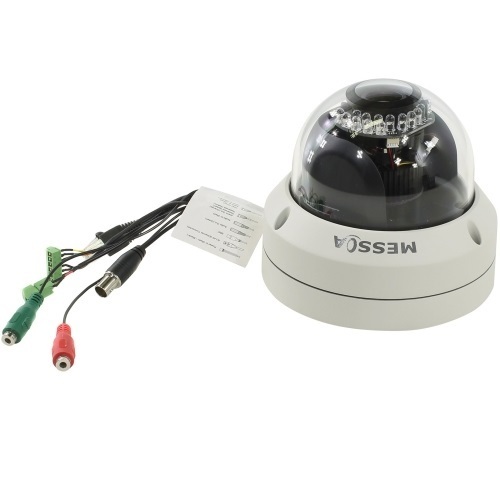

I/O & Controls | |
| Power | 2-pin terminal block |
| Alarm In/Out | Terminal block 2 in / 1 out |
| Network | 1 x RJ-45 |
| Audio In/Out | 3.5mm phone jack 1-in / 1-out |
| Analog Video | 1 x BNC, 1.0Vp-p, 75 ohm / 1 x RCA |
| Reset | System reboot/factory default |
Power | |
| Power Requirement | DC 12V & AC 24V ± 10% / PoE(IEEE 802.3af) |
| Power Consumption | W/O Heater: 8.5W W/ Heater: 28W(Heater On), 8.5W (Heater OFF) |
Mechanical | |

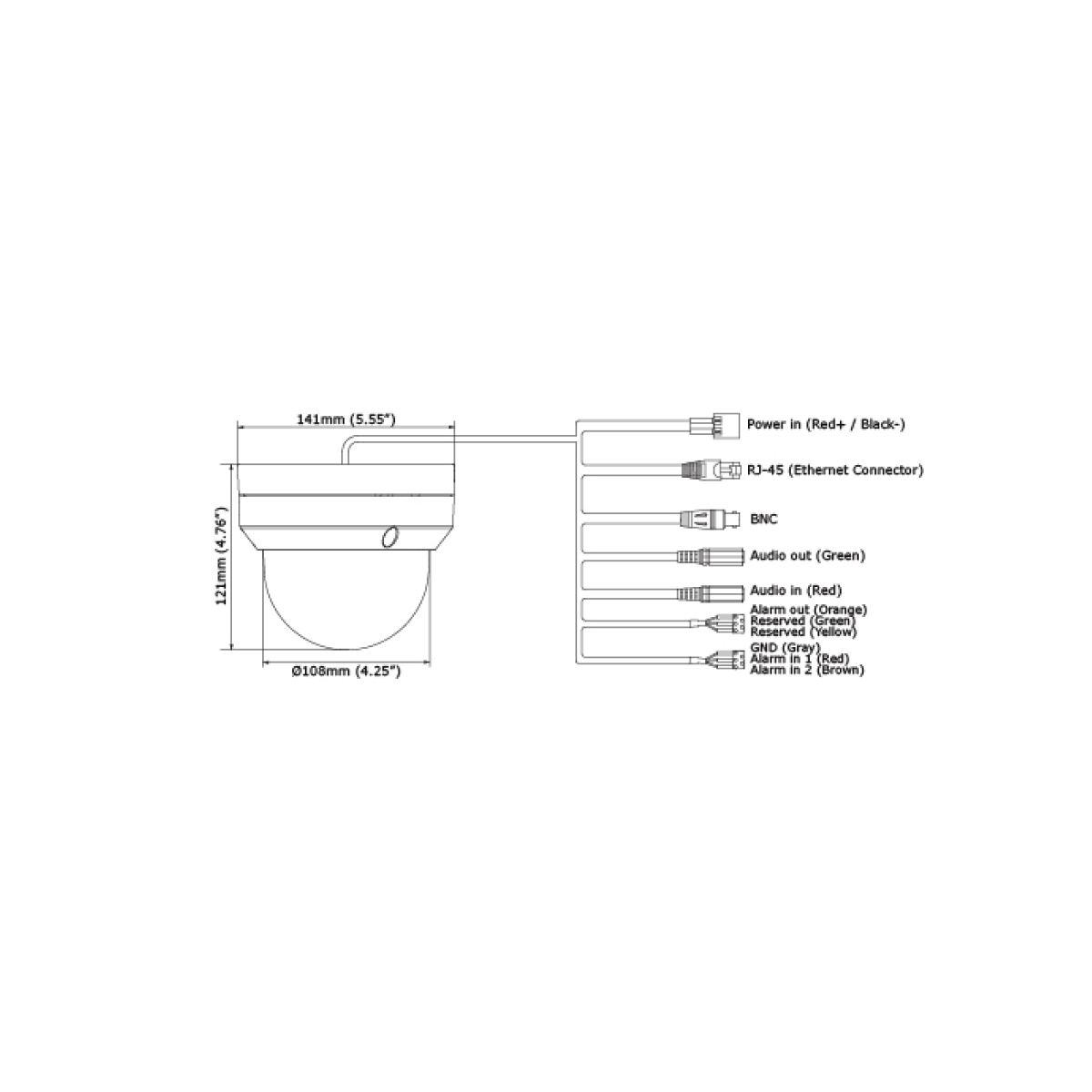

| Dimensions (ØxH) | Φ141 mm x 121 mm (Φ5.55” x 4.76”) |
| Weight | 1.3kg (2.87lb) |
| 3-Axis | Pan: 0°-355°, Tilt: 0°-70°, Rotate: 0°-355° |
| Protection | IP67, IK10, vandal-proof |
| Battery-backed Real-time Clock | Yes; External RTC |
Environmental | |
| Operating Temp. | W/O Heater: -10°C ~ 50°C ( 14°F ~ 122°F ) W/ Heater: -40°C ~ 50°C (-40°F ~ 122°F) |
| Operating Humidity | 10~ 90% RH |
| Storage Temp. | -20ºC ~ 60ºC (-4ºF ~ 140 ºF) |
| Model | NDR891PRO |
| Network Type | Wired |
| Packing Weight | 1558 g |
| Type | Dome Camera |
| Connection Type | RJ45 |
| Interface | Ethernet |
| NetworkingProtocol | IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP, RTSP, RTCP, ICMP, UPnP |
| Video Resolution | 1920 x 1080 |
| Image Sensor | CMOS |
| Packing Width | 181 mm |
| Colour | White |
| Effective Pixels | 2 MP |
| Packing Depth | 168 mm |
| Packing Height | 166 mm |
| Focus Settings | Autofocus |
| Night Vision | Yes |
| Additional Features | Full HD, Full Frame Rate H.264 Dual Streaming True Day/Night with Mechanical ICR Intelligent Video Management Outdoor-ready Design |
