• Height x Width x Depth: 21 mm x 102 mm x 102mm

Note: Rally Mic Pods connect to the table hub included with Logitech Rally systems, and are not compatible with the standalone USB Rally Camera.

RightSound Technologies

RightSound Mic Matrix

• • Logitech Rally or Logitech Rally Plus
  • Machine learning AI trained to distinguish human speech from other sounds
    AEC (Acoustic Echo Cancellation)
    VAD (Voice Activity Detector)
    Background noise suppression
    Auto-level loud and soft voices
  • Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
  • Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
  • Beam focus refresh rate: 8ms (125 times/second)

Pickup range: 4.5m diameter

• Four omnidirectional microphones forming eight acoustic beams

• AEC (Acoustic Echo Cancellation)

• VAD (Voice Activity Detector)

• Background noise suppression

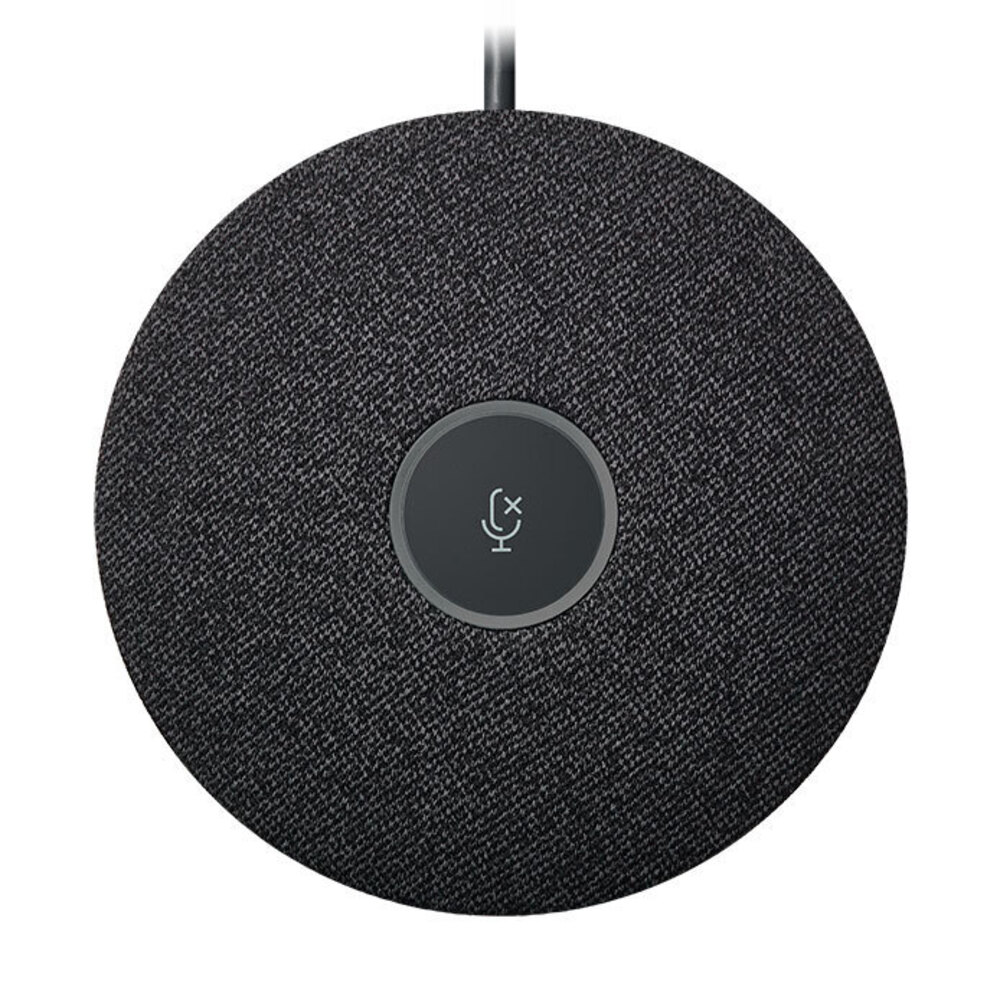

• Mute button with LED status indicator

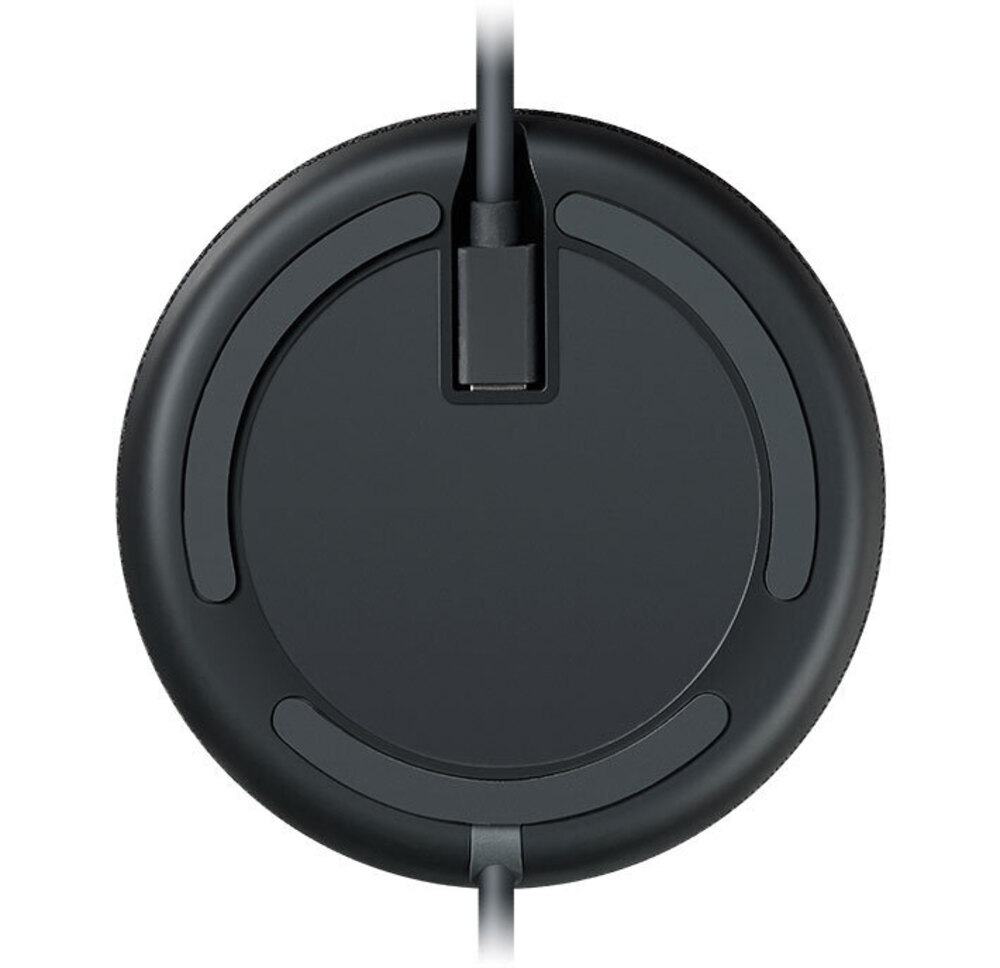

• Captive 2.95m 12-pin cable

• Daisy chain up to 7 Rally Mic Pods

• Frequency response: 90Hz – 16kHz

• Sensitivity: >-27dB +/-1dB @ 1Pa

• Microphone data rate: 48 kHz

• Recommended # of participants:
  • Rally (one Mic Pod): 10
  • Rally Plus (two Mic Pods): 16
  • Additional participants per Mic Pod: 6
  • Recommended participants for Rally with 7 Mic Pods: 46

COMPATIBILITY AND CERTIFICATIONS

• Certified for Skype for Business and ready for Teams

• Zoom Certified

• Certified for Google® Hangouts Meet Hardware

• Microsoft Cortana® certified

• Cisco Jabber® and WebEx compatible

• Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB devices

• Rally Mic Pod
  Documentation
