DIMENSIONS

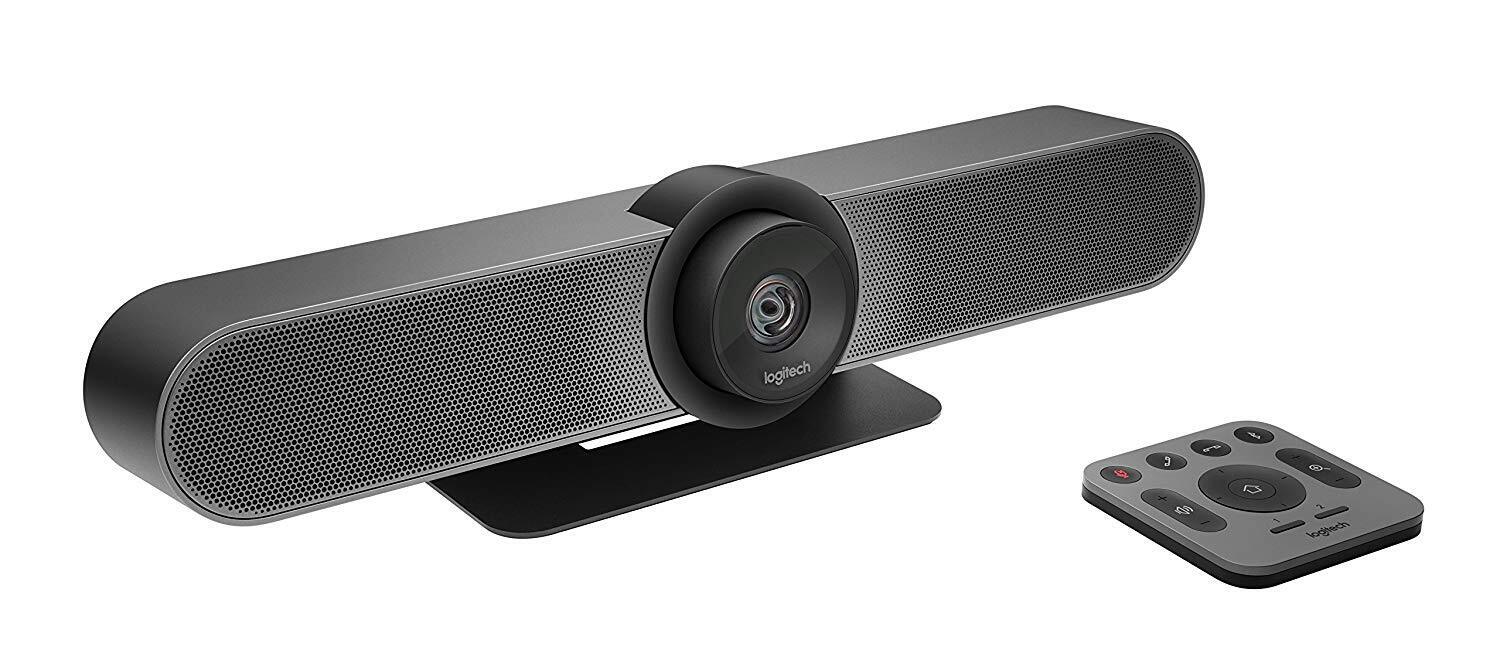

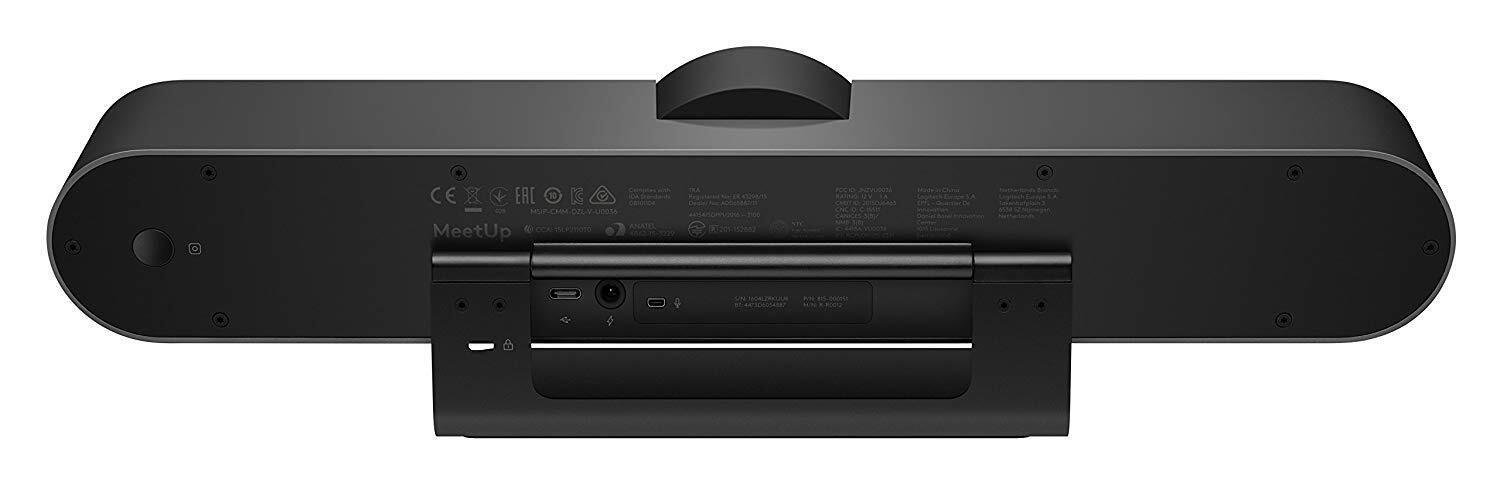

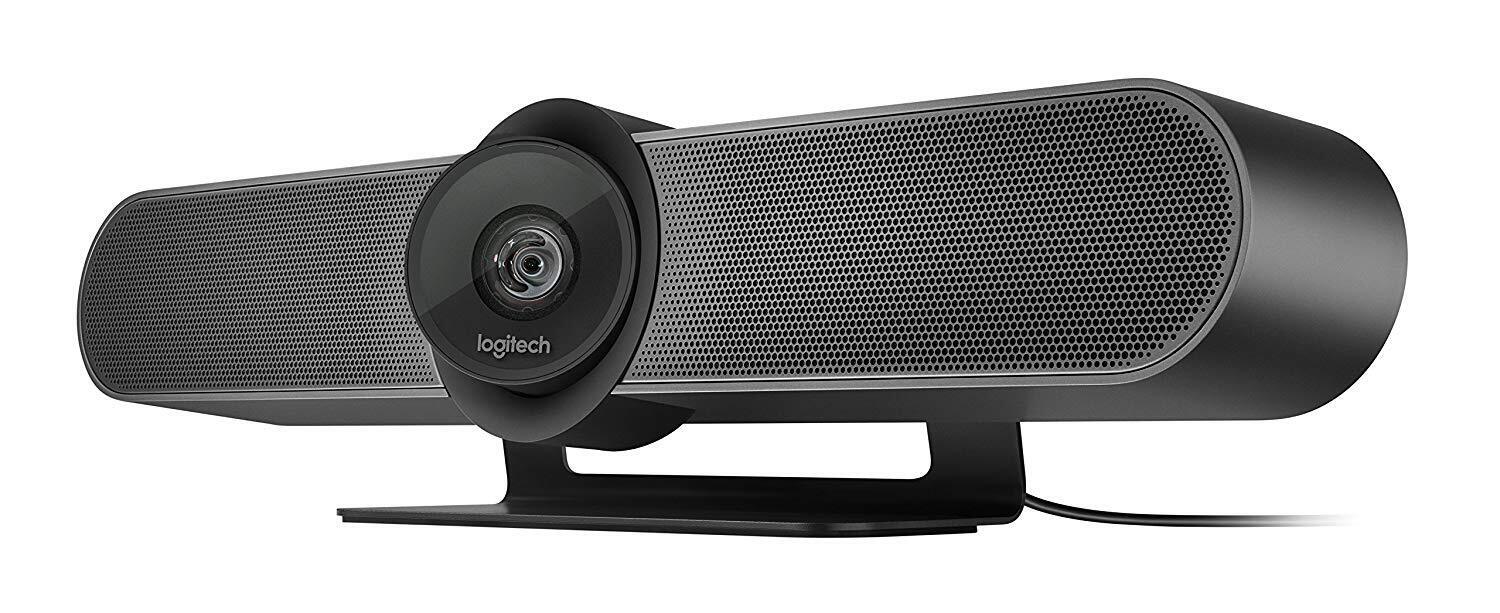

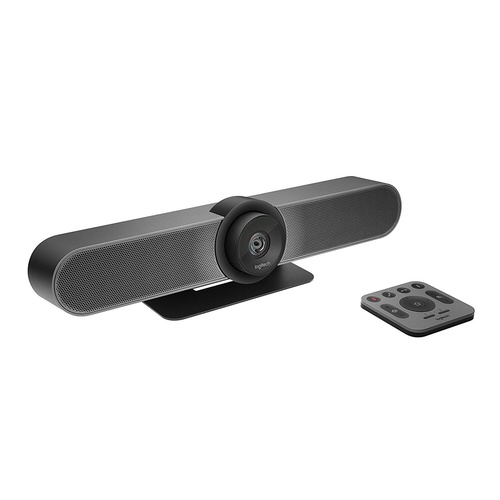

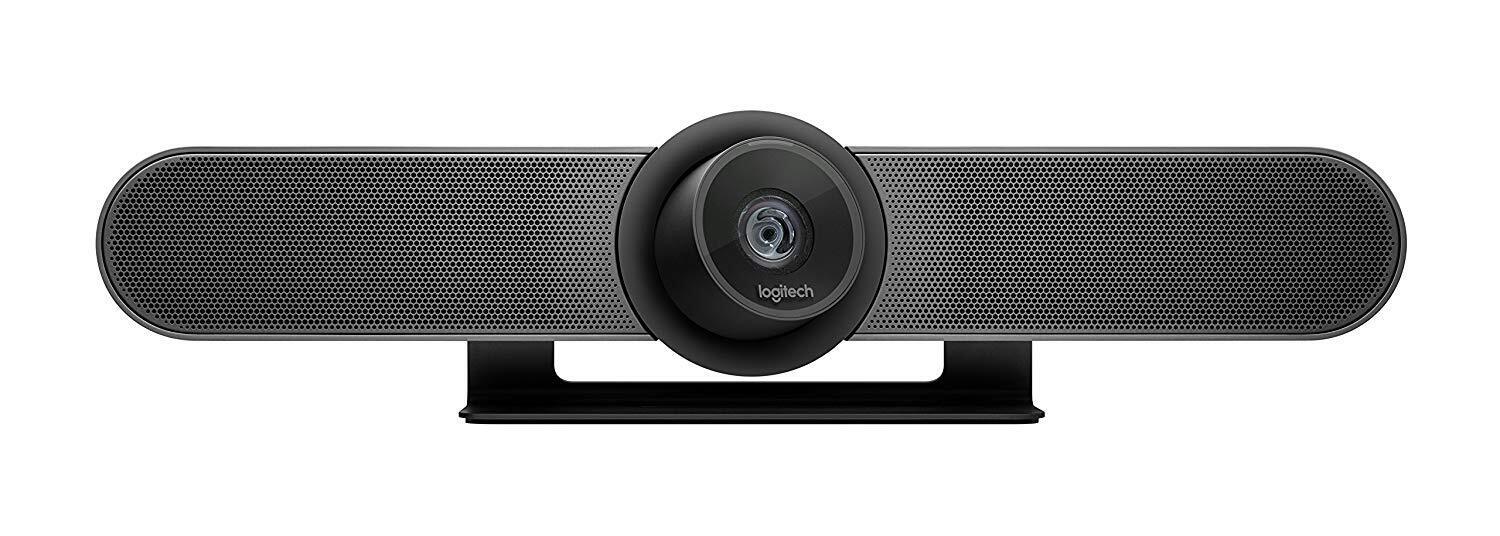

Main unit

• Height x Width x Depth:
• 4.1 in (104 mm) x 15.75 in (400 mm) x 3.35 in (85 mm)
• Weight: 2.3 lbs (1.04kg)

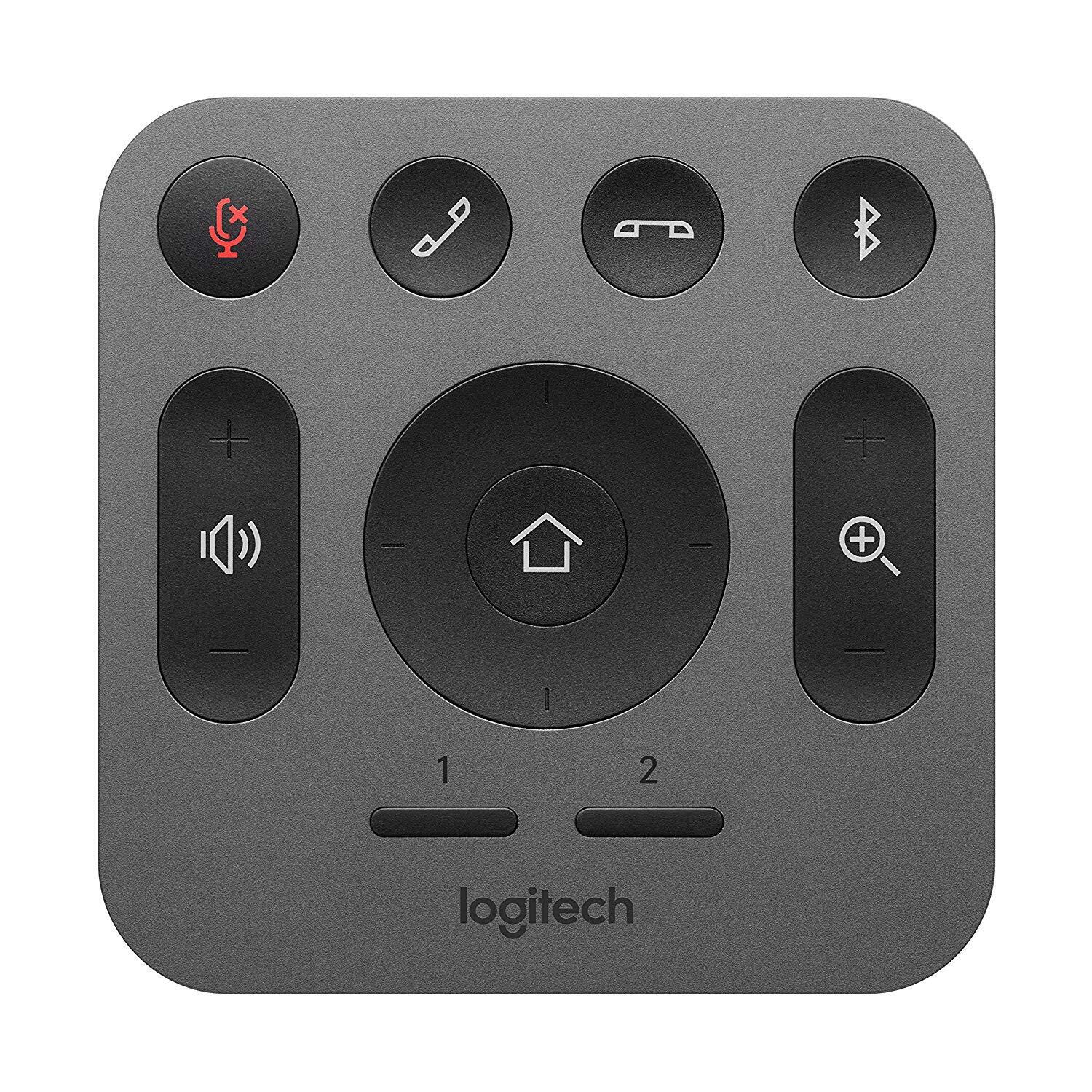

Remote Control

• Height x Width x Depth:
• 3.25 in (83 mm) x 3.25 in (83 mm) x 0.375 in (10 mm)

SYSTEM REQUIREMENTS

Chrome OS™ Version 29.0.1547.70 and higher
USB 2.0 port (USB 3.0 required for 4K video)

• Windows®7, Windows 8.1, or Windows 10
• macOS® 10.10 or higher



TECHNICAL SPECIFICATIONS

OVERALL

• Field of View: Diagonal:120°, Horizontal: 113°, Vertical: 80.7°
• 3-microphone speakerphone
• Optional expansion microphone-ready
• 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable); 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps); 720p HD video calling (up to 1280 x 720 pixels @ 30 fps); with supported clients
• All-in-one design
• Motorized pan/tilt
• Logitech lens
• 3 camera presets
• Bluetooth® wireless technology
• RF remote control
• Multiple mounting options, including table and wall mount; optional TV mount available
• Kensington security slot

MICROPHONE

• Pickup Range: 4 meters (13.1 feet)
• Pickup Range with Expansion Mic: 5 meters (16.4 feet)
• Sensitivity: -27dB
• Microphone frequency response: 90Hz - 16kHz for full voice reproduction and high intelligibility without noise
• Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
• AEC (Acoustic echo cancellation)
• VAD (Voice activity detector)
• Microphone background noise suppression
• Microphone date rate: 32 kHz sampling rate
• Recommended # of participants:6
• Recommended # of participants with expansion mic: 8

SPEAKER

• Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces
• Volume adjustable to 95 dB SPL at 1/2 meter peak
• Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
• Distortion: 200 Hz–300Hz < 3%, 3000 Hz–10KHz < 1%
• Peak-limiting algorithm prevents even momentary speaker clipping to prevent distortion

COMPATIBILITY AND INTEGRATIONS

• Plug-and-play USB connectivity
• Certified for Skype for Business and ready for Teams
• Zoom Certified
• Fuze Certified
• Certified for Google Hangouts Meet Hardware
• Microsoft Cortana®
• Cisco Jabber®
• Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

PACKAGE CONTENTS

• MeetUp ConferenceCam

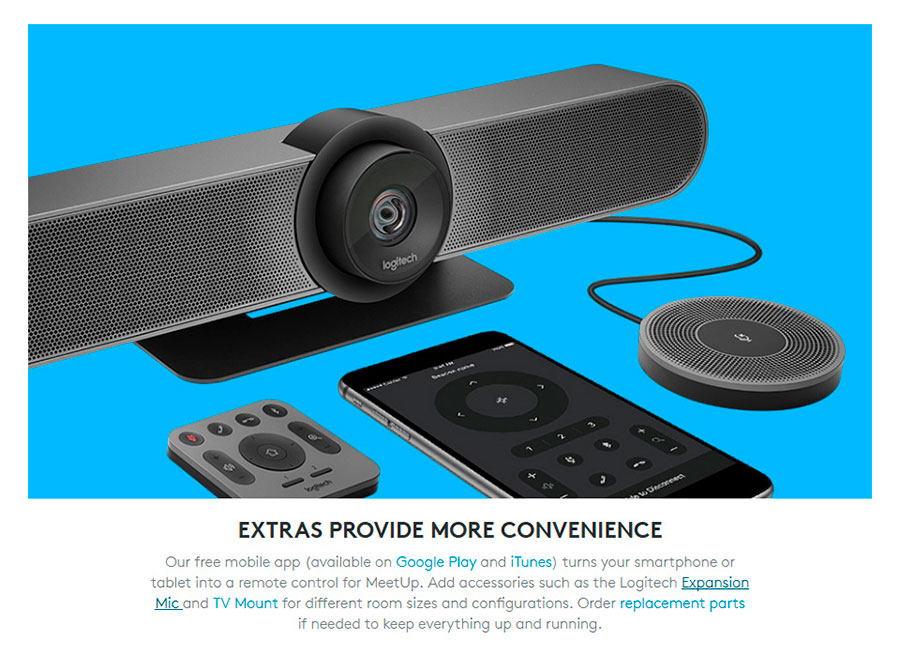

• Remote control
• USB cable: 16 ft (5m)
• Power supply
• Wall mount and hardware
• User documentation

WARRANTY INFORMATION

2-Year Limited Hardware Warranty
