Technical Specifications



Camera:



• Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
• H.264 UVC 1.5 with Scalable Video Coding (SVC)
• Supports H.264 SVC 1080p, along with optimizations for best call performance in single or multiparty HD video
• 90-degree field of view with autofocus
• 4X digital zoom in Full HD
• Rightlight™ 2 Technology for clear image in various lighting environments (even low light)
• Digital pan, tilt and zoom from remote control or optional downloadable app
• Mechanical tilt
• ZEISS lens certification
• Camera LED for active streaming indication



Speakerphone:



• Integrated full duplex speakerphone with echo and noise cancellation
• 360-degree wideband audio with 12-foot (3.6 m) diameter range
• Bluetooth® and NFC enabled
• LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing
• Controls for call answer/end, volume mute



Microphones (Tx):

• Two omni-directional microphones supporting 3.6 m diameter range
• Frequency response: 100Hz – 16KHz
• Sensitivity: -34dB +/-3dB
• Distortion: <1% @ 1KHz at 65dB



Speakers (Rx):

• Frequency response: 140Hz – 16KHz
• Sensitivity: 89dBSPL +/-3dB at 1W/0.5M
• Max output: 91.5dBSPL at 0.5M
• Distortion: <5% from 200Hz

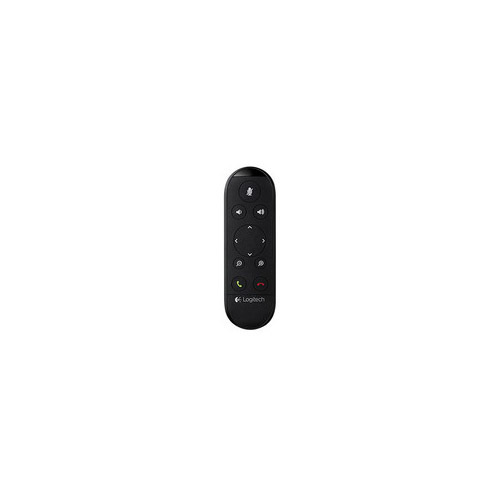

Remote control:



• Dockable remote control for camera / speakerphone functions
• 10-foot (3 meters) range



Cables:



• USB
• Power adapter with cord



Wireless Screen Mirroring and Connectivity Features:



• Screen mirroring through WiFi connection to the device
• Android® or Windows 8.1 compatibility for screen mirroring
• HDMI connector for TV output
• Rechargeable battery supports up to 3 hours videoconferencing or screen mirroring time; 15 hours for Bluetooth audio. Time to fully charge battery (from AC power, device idle): 3 hours
• Battery rechargeable through AC power or USB (not powered through USB)
• 1.8 m/6-foot detachable USB cable for PC or Mac based videoconferencing
• Works with most UC and videoconferencing applications
• Professional-grade certifications
• Kensington security slot



Talk Time/Battery Life:



• Up to 15 hours (3 hours for videoconferencing and screen mirroring)



Range:



• 12 foot diameter range (3.7 meters)
• 360-degree sound
